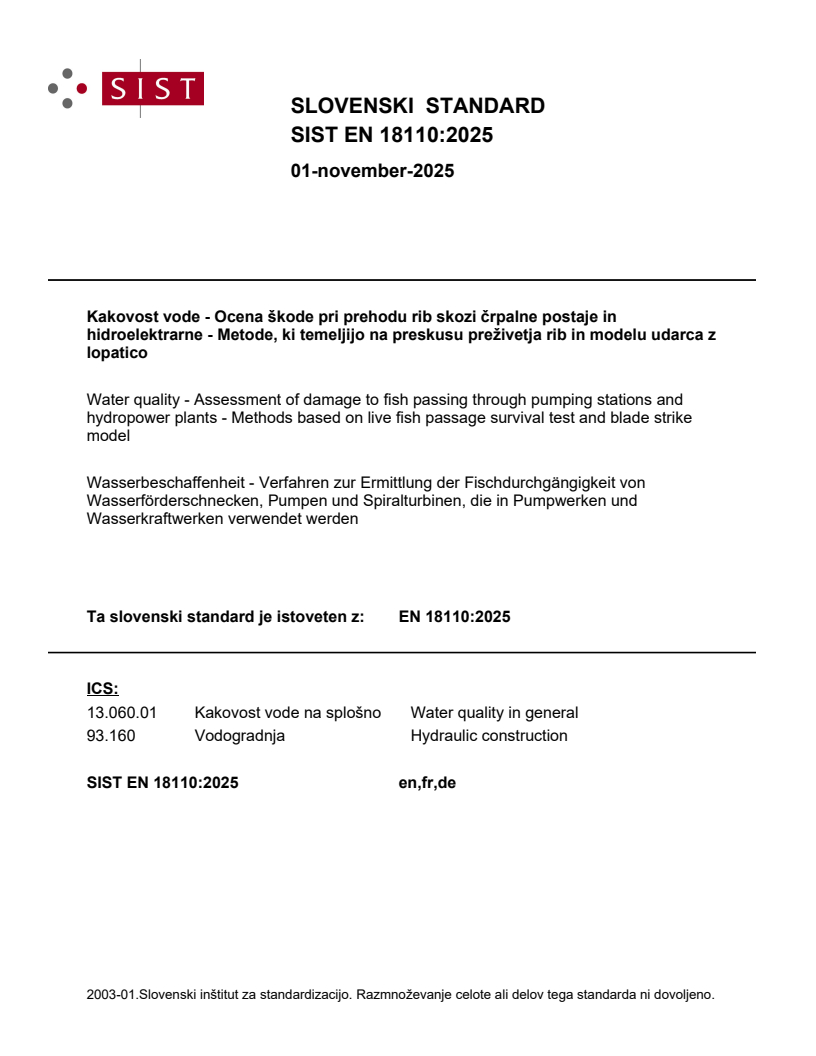

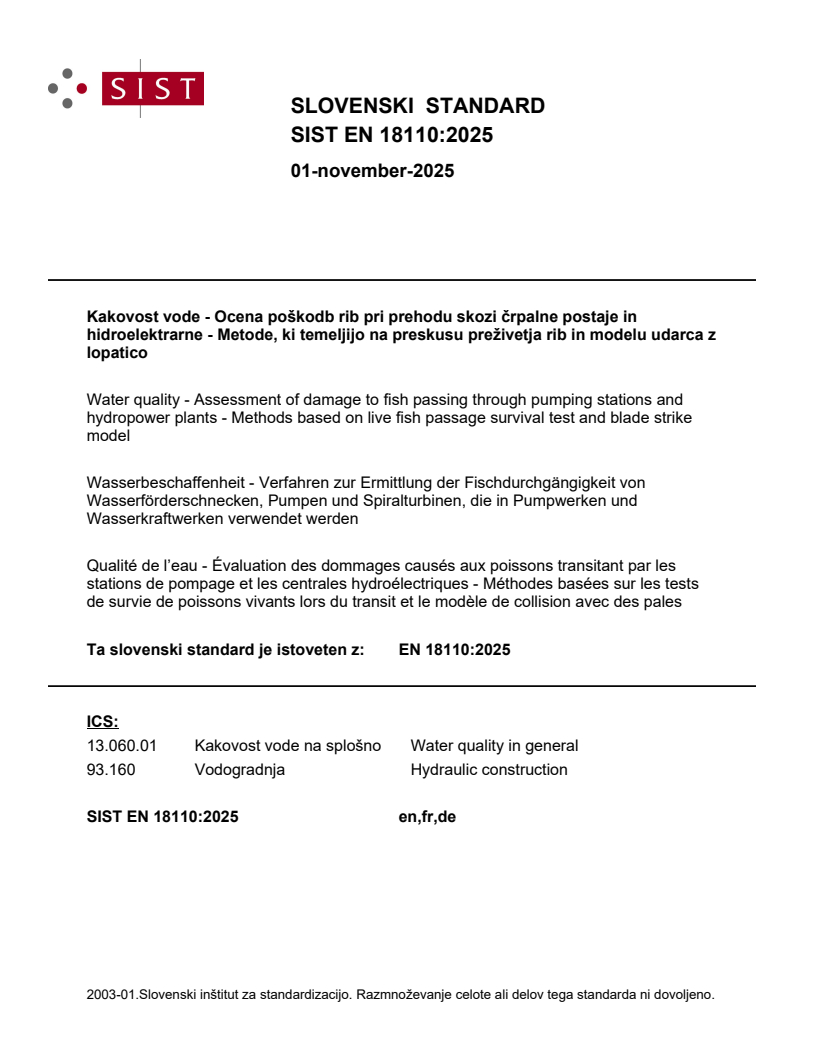

SLOVENSKI STANDARD
01-november-2025
Kakovost vode - Ocena škode pri prehodu rib skozi črpalne postaje in
hidroelektrarne - Metode, ki temeljijo na preskusu preživetja rib in modelu udarca z
lopatico
Water quality - Assessment of damage to fish passing through pumping stations and
hydropower plants - Methods based on live fish passage survival test and blade strike
model
Wasserbeschaffenheit - Verfahren zur Ermittlung der Fischdurchgängigkeit von
Wasserförderschnecken, Pumpen und Spiralturbinen, die in Pumpwerken und
Wasserkraftwerken verwendet werden
Ta slovenski standard je istoveten z: EN 18110:2025
ICS:
13.060.01 Kakovost vode na splošno Water quality in general
93.160 Vodogradnja Hydraulic construction
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

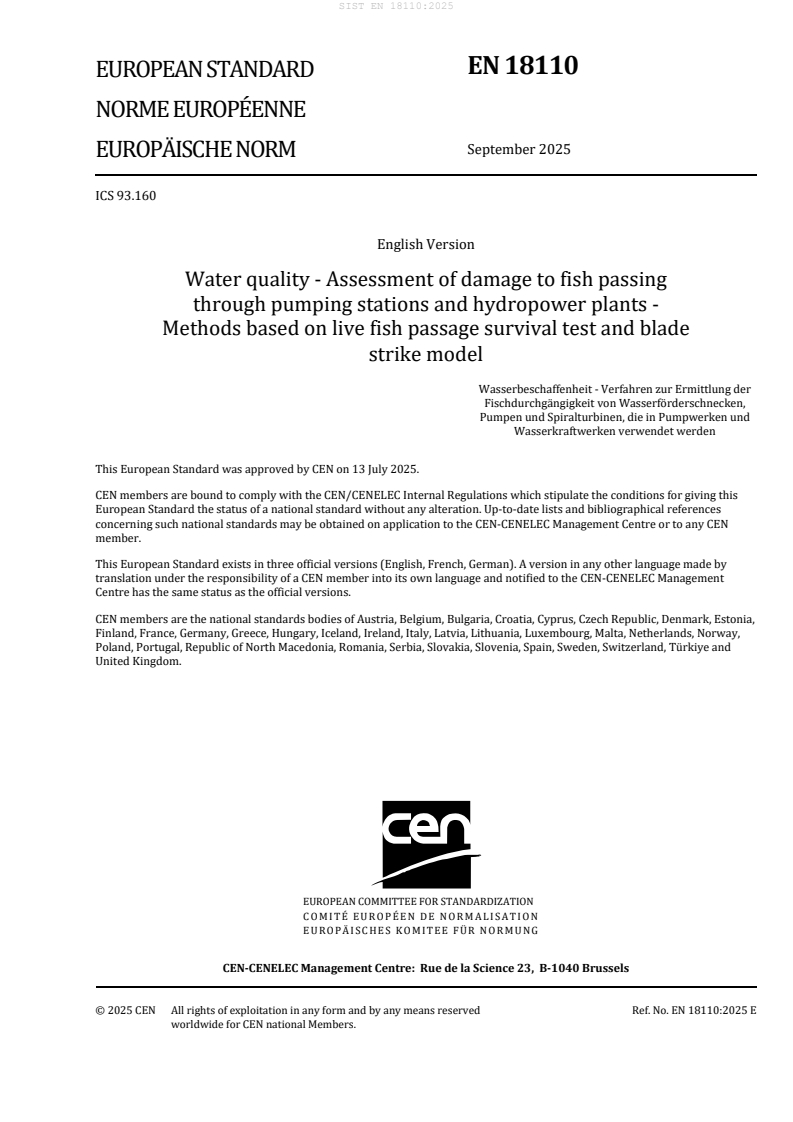

EN 18110
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2025
EUROPÄISCHE NORM
ICS 93.160
English Version
Water quality - Assessment of damage to fish passing
through pumping stations and hydropower plants -
Methods based on live fish passage survival test and blade
strike model
Wasserbeschaffenheit - Verfahren zur Ermittlung der
Fischdurchgängigkeit von Wasserförderschnecken,
Pumpen und Spiralturbinen, die in Pumpwerken und
Wasserkraftwerken verwendet werden
This European Standard was approved by CEN on 13 July 2025.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 18110:2025 E
worldwide for CEN national Members.

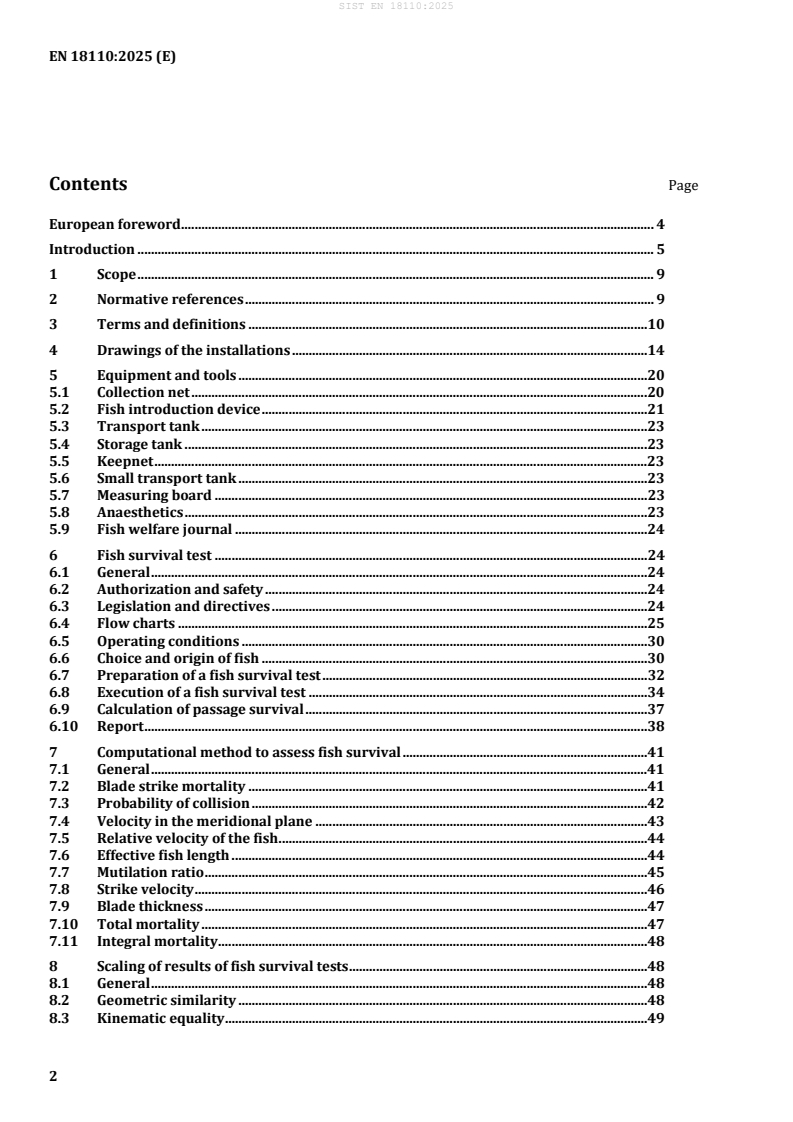

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 9
2 Normative references . 9
3 Terms and definitions .10
4 Drawings of the installations .14
5 Equipment and tools .20
5.1 Collection net .20
5.2 Fish introduction device .21
5.3 Transport tank .23
5.4 Storage tank .23
5.5 Keepnet .23
5.6 Small transport tank .23
5.7 Measuring board .23
5.8 Anaesthetics .23
5.9 Fish welfare journal .24
6 Fish survival test .24
6.1 General .24
6.2 Authorization and safety .24
6.3 Legislation and directives .24
6.4 Flow charts .25
6.5 Operating conditions .30
6.6 Choice and origin of fish .30
6.7 Preparation of a fish survival test .32
6.8 Execution of a fish survival test .34
6.9 Calculation of passage survival .37
6.10 Report .38
7 Computational method to assess fish survival .41
7.1 General .41
7.2 Blade strike mortality .41
7.3 Probability of collision .42
7.4 Velocity in the meridional plane .43
7.5 Relative velocity of the fish .44
7.6 Effective fish length .44
7.7 Mutilation ratio .45
7.8 Strike velocity .46
7.9 Blade thickness .47
7.10 Total mortality .47
7.11 Integral mortality .48
8 Scaling of results of fish survival tests .48
8.1 General .48
8.2 Geometric similarity .48
8.3 Kinematic equality .49
8.4 Scaling in case of true similarity . 49
8.5 Scaling under practical conditions . 50
Annex A (informative) Fish species . 52
Annex B (informative) Causes of damage and mortality to fish passing through pumping
stations and hydropower plants . 53
Annex C (informative) Fish survival assessment for open-water turbines . 59
Annex D (informative) Survival estimates, statistical precision, power, and sample size . 67
Annex E (normative) Parameters to be described in a fish welfare journal . 76
Annex F (informative) Legislation on the protection of test animals used for scientific
purposes . 78
Bibliography . 79
European foreword
This document (EN 18110:2025) has been prepared by Technical Committee CEN/TC 230 “Water
analysis”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2026, and conflicting national standards shall be
withdrawn at the latest by March 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
Purpose of the standard
In recent years, there has been a growing focus on enhancing ecological water quality, with a specific
emphasis on fish populations. International legal frameworks, such as the Water Framework Directive
(WFD) [1], the European Eel Regulation [2], and the Benelux Free Fish Migration Decision [3], have played
a pivotal role in shaping the measures adopted in this regard. Human activities related to water
management, drinking water supply, irrigation, and electricity production require the installation of
pumps and turbines that can have significant environmental impacts on fish populations. For the
environmental sustainability of these sectors, their impact must be studied and, if needed, the best
available mitigation measures must be applied. It is the reason why significant efforts are being made by
various stakeholders, including water management authorities, resource agencies, pump and turbine
manufacturers, ecological consultancy firms, and research institutions, to enhance the chances of survival
for fish passing through pumping stations and hydropower plants.
To address these environmental challenges and ensure the effective protection of fish populations, it is
crucial to establish standardized procedures for assessing the impact of new and existing turbomachines
on fish survival. This standard aims at providing a basis for planning, conducting, and reporting fish
survival studies in pumps and turbines. It will lead to more consistency in results among study sites and
machines.
Mechanisms of fish mortality
Damage to fish in pumping stations or hydropower plants can have different causes [13]. Mechanical
injury by blade strike is generally regarded as the primary cause of injury and mortality in pumps and
turbines with low to moderate heads. Grinding of fish along rough walls or entrapment in small gaps and
clearances can also lead to damage. Other causes are rapid pressure changes that can result in
barotrauma, and excessive shear forces in a fluid flow with high velocity gradients. The actual pump or
turbine system is often where the risk is highest, but also other parts of a plant can be the source of
damage, for instance at trash racks, in nearly closed guide vanes, long pipelines, or siphons, near butterfly
valves, or oscil
...
