SIST EN ISO 1247-2:2023
(Main)Aluminium pigments for paints - Part 2: Vacuum metallized aluminium pigments (ISO 1247-2:2021)
Aluminium pigments for paints - Part 2: Vacuum metallized aluminium pigments (ISO 1247-2:2021)
This document specifies the requirements and corresponding test methods for vacuum metallized aluminium pigments (VMP) suitable for use in paints and printing ink industries.
Aluminium-Pigmente für Beschichtungsstoffe - Teil 2: Vakuummetallisierte Aluminiumpaste (ISO 1247-2:2021)
Dieses Dokument legt die Anforderungen und die entsprechenden Prüfverfahren für vakuum-metallisierte Alu
miniumpigmente (VMP, en: vacuum metallized aluminium pigments) fest, die zur Verwendung in der Lack- und Druckfarbenindustrie geeignet sind.
Pigments d'aluminium pour peintures - Partie 2: Pigments d'aluminium métallisé sous vide (ISO 1247-2:2021)
Le présent document spécifie les exigences et les méthodes d’essai correspondantes pour les pigments d’aluminium métallisé sous vide (VMP) utilisables dans les industries des peintures et des encres d’impression.
Aluminijevi pigmenti za barve - 2. del: Vakuumsko metalizirani aluminijevi pigmenti (ISO 1247-2:2021)
Ta dokument določa zahteve in ustrezne preskusne metode za vakuumsko metalizirane aluminijeve pigmente (VMP), primerne za uporabo v barvah in tiskarskih barvah.
General Information
Overview
EN ISO 1247-2:2023 (ISO 1247-2:2021) specifies requirements and corresponding test methods for vacuum metallized aluminium pigments (VMP) intended for use in paints and printing ink industries. VMPs are produced by a vacuum metallizing or physical vapour deposition (PVD) process and typically have non-leafing characteristics. This standard has been adopted by CEN without modification and complements ISO 1247-1:2021 for general aluminium pigment requirements.
Key Topics
- Scope and definitions: Defines the vacuum metallized aluminium pigment (VMP) and references terminology from ISO 18451-1 and ISO 18451-2.
- Requirements and test methods: Specifies mandatory properties and the corresponding test methods, including:
- Non-volatile matter (see ISO 1247-1:2021, Clause 8) with minimum limits noted in the standard.
- Residue on 45 µm sieve (maximum 1.0 % mass fraction by default) - a detailed wet-sieve procedure is provided (sampling, solvent selection, filtration and drying at 105 °C ± 2 °C for 1 h).
- Water content limits (see ISO 1247-1:2021, Clause 14), with increased allowance when a hydrophilic solvent is used.
- Particle size distribution by instrumental methods (ISO 13320) - specific limits to be agreed between parties.
- Metallic impurities - criteria and test conditions are referenced to ISO 1247-1:2021 (Clause 17) and are subject to agreement between supplier and buyer.
- Sampling and test reporting: Sampling in accordance with ISO 15528; test reports must include product identification, reference to ISO 1247-2:2021, results, deviations and test dates.
Applications
EN ISO 1247-2:2023 is tailored for manufacturers, quality laboratories, formulators and purchasers in the coatings and printing ink sectors. Practical benefits include:
- Assured quality control for VMP batches used in decorative, automotive and industrial coatings.
- Reproducible visual appearance when matching samples and verifying metallic effect in paint formulations.
- Clear acceptance criteria for particle size, residue and non-volatile content to support supplier agreements and reduce batch variability.
Related Standards
- ISO 1247-1:2021 - General aluminium pigments for paints (normative reference for many test methods).
- ISO 13320 - Particle size analysis - Laser diffraction methods (instrumental particle-size testing).
- ISO 15528 - Sampling of paints, varnishes and raw materials.
- ISO 18451-1 / ISO 18451-2 - Terminology and classification for pigments, dyestuffs and extenders.
For specification development or procurement, reference EN ISO 1247-2:2023 to ensure VMP compliance, consistent test procedures and documented test reports that support quality assurance and regulatory alignment.
Standards Content (Sample)

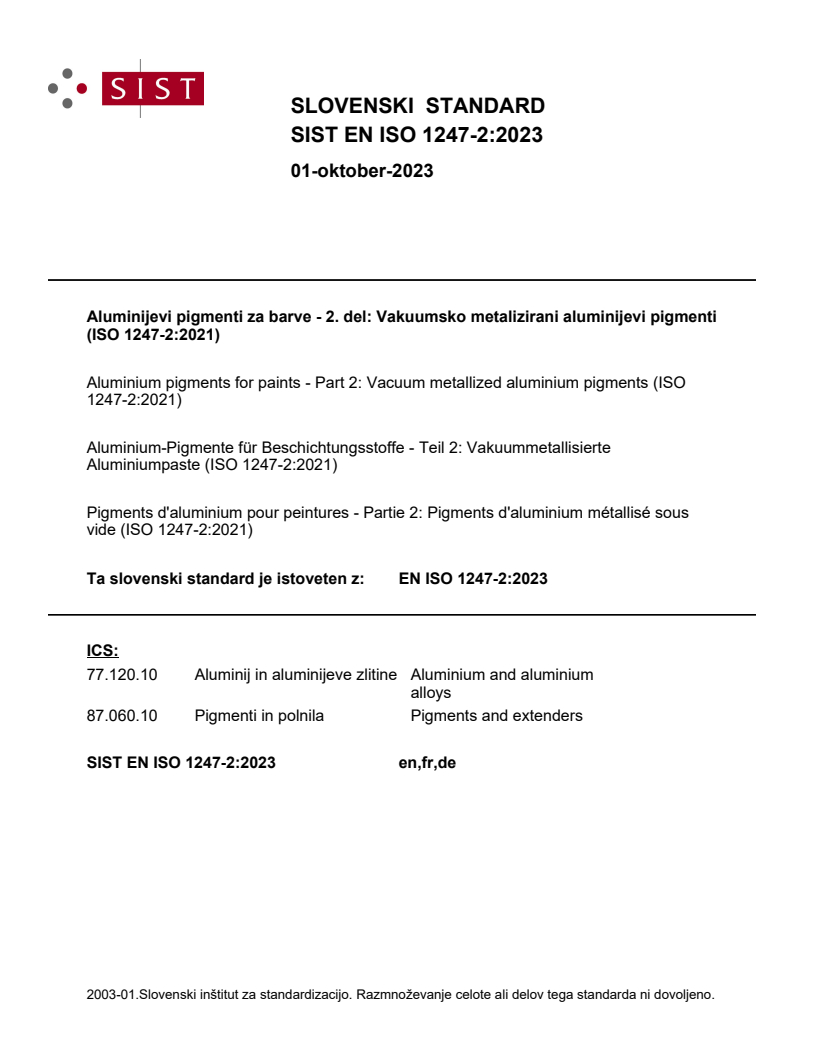

SLOVENSKI STANDARD
01-oktober-2023
Aluminijevi pigmenti za barve - 2. del: Vakuumsko metalizirani aluminijevi pigmenti
(ISO 1247-2:2021)
Aluminium pigments for paints - Part 2: Vacuum metallized aluminium pigments (ISO
1247-2:2021)
Aluminium-Pigmente für Beschichtungsstoffe - Teil 2: Vakuummetallisierte
Aluminiumpaste (ISO 1247-2:2021)
Pigments d'aluminium pour peintures - Partie 2: Pigments d'aluminium métallisé sous
vide (ISO 1247-2:2021)
Ta slovenski standard je istoveten z: EN ISO 1247-2:2023
ICS:
77.120.10 Aluminij in aluminijeve zlitine Aluminium and aluminium
alloys
87.060.10 Pigmenti in polnila Pigments and extenders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

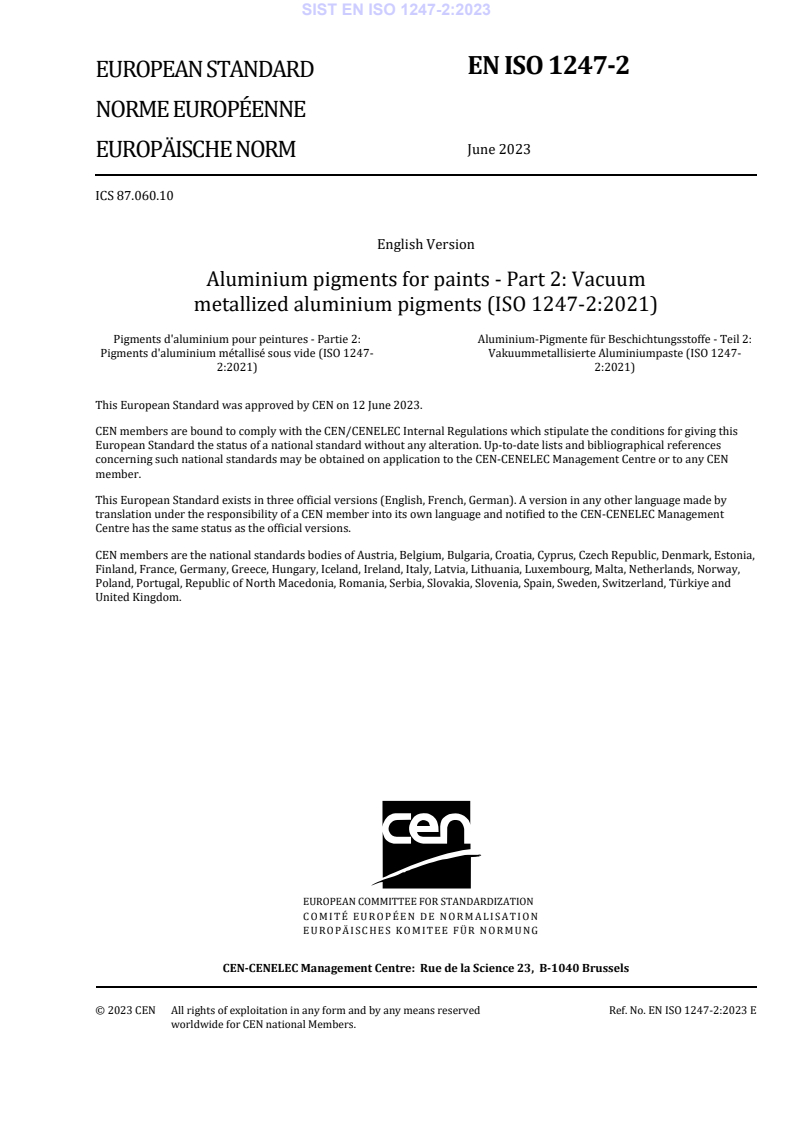

EN ISO 1247-2
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2023
EUROPÄISCHE NORM
ICS 87.060.10
English Version
Aluminium pigments for paints - Part 2: Vacuum
metallized aluminium pigments (ISO 1247-2:2021)
Pigments d'aluminium pour peintures - Partie 2: Aluminium-Pigmente für Beschichtungsstoffe - Teil 2:
Pigments d'aluminium métallisé sous vide (ISO 1247- Vakuummetallisierte Aluminiumpaste (ISO 1247-
2:2021) 2:2021)
This European Standard was approved by CEN on 12 June 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 1247-2:2023 E
worldwide for CEN national Members.

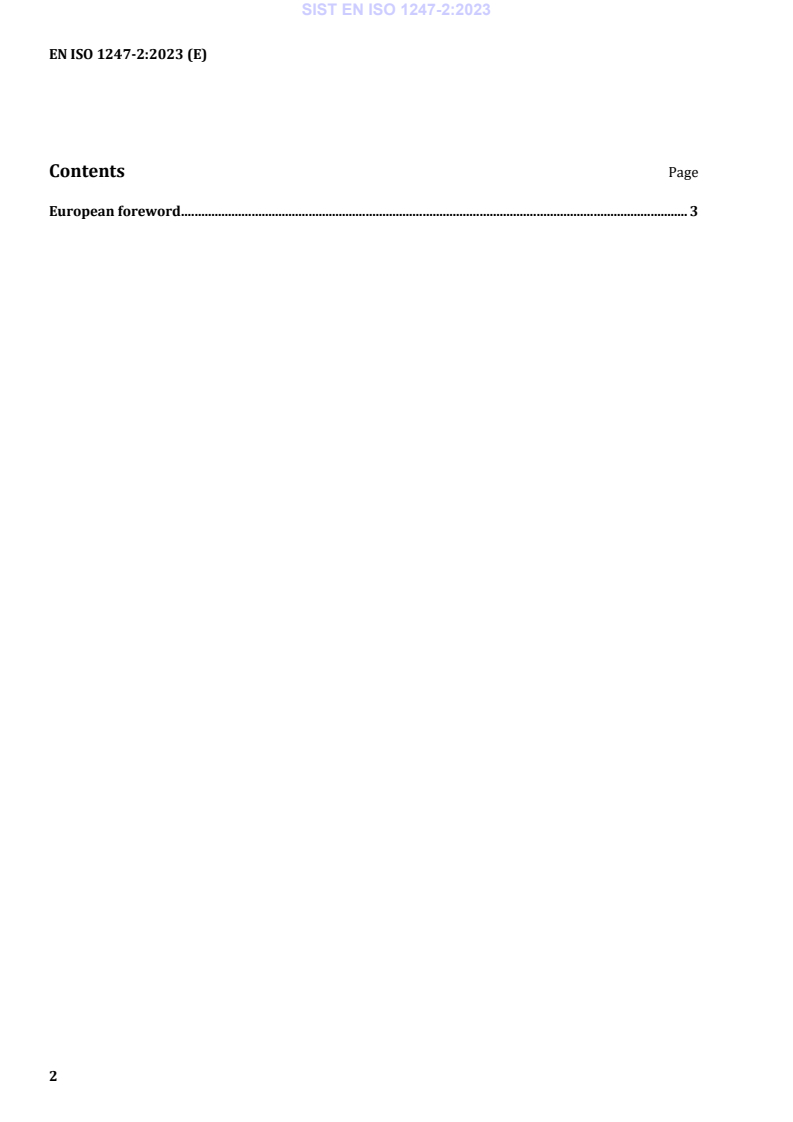

Contents Page
European foreword . 3
European foreword
The text of ISO 1247-2:2021 has been prepared by Technical Committee ISO/TC 256 "Pigments,
dyestuffs and extenders” of the International Organization for Standardization (ISO) and has been taken
over as EN ISO 1247-2:2023 by Technical Committee CEN/TC 298 “Pigments and extenders” the
secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2023, and conflicting national standards
shall be withdrawn at the latest by December 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 1247-2:2021 has been approved by CEN as EN ISO 1247-2:2023 without any
modification.
INTERNATIONAL ISO
STANDARD 1247-2
First edition
2021-08
Aluminium pigments for paints —
Part 2:
Vacuum metallized aluminium
pigments
Pigments d'aluminium pour peintures —
Partie 2: Pigments d'aluminium métallisé sous vide
Reference number
ISO 1247-2:2021(E)
©
ISO 2021
ISO 1247-2:2021(E)
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
ISO 1247-2:2021(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements and test methods . 1
5 Sampling . 2
6 Determination of residue on sieve . 2
6.1 Reagents. 2
6.2 Apparatus . 2
6.3 Procedure . 3
6.3.1 Test portion . 3
6.3.2 Determination . 3
6.4 Expression of results . 3
7 Test report . 3
Bibliography . 4
ISO 1247-2:2021(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commissi
...
Frequently Asked Questions
SIST EN ISO 1247-2:2023 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aluminium pigments for paints - Part 2: Vacuum metallized aluminium pigments (ISO 1247-2:2021)". This standard covers: This document specifies the requirements and corresponding test methods for vacuum metallized aluminium pigments (VMP) suitable for use in paints and printing ink industries.
This document specifies the requirements and corresponding test methods for vacuum metallized aluminium pigments (VMP) suitable for use in paints and printing ink industries.
SIST EN ISO 1247-2:2023 is classified under the following ICS (International Classification for Standards) categories: 77.120.10 - Aluminium and aluminium alloys; 87.060.10 - Pigments and extenders. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase SIST EN ISO 1247-2:2023 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
