SIST EN 16034:2015

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.GLPRWHVQRVWTüren, Tore und Fenster - Produktnorm, Leistungseigenschaften - Feuer- und/oder RauchschutzeigenschaftenBlocs-portes pour piétons, portes et fenêtres industrielles, commerciales et de garage - Norme de produit, caractéristiques de performance - Caractéristiques de résistance au feu et/ou d'étanchéité aux fuméesPedestrian doorsets, industrial, commercial, garage doors and openable windows - Product standard, performance characteristics - Fire resisting and/or smoke control characteristics91.060.50Vrata in oknaDoors and windows13.220.50Požarna odpornost gradbenih materialov in elementovFire-resistance of building materials and elementsICS:Ta slovenski standard je istoveten z:EN 16034:2014SIST EN 16034:2015en,fr,de01-januar-2015SIST EN 16034:2015SLOVENSKI
STANDARD



SIST EN 16034:2015



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16034
October 2014 ICS 13.220.50; 91.060.50 English Version
Pedestrian doorsets, industrial, commercial, garage doors and openable windows - Product standard, performance characteristics - Fire resisting and/or smoke control characteristics
Blocs-portes pour piétons, portes et fenêtres industrielles, commerciales et de garage - Norme de produit, caractéristiques de performance - Caractéristiques de résistance au feu et/ou d'étanchéité aux fumées
Türen, Tore und Fenster - Produktnorm, Leistungseigenschaften - Feuer- und/oder Rauchschutzeigenschaften This European Standard was approved by CEN on 7 August 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16034:2014 ESIST EN 16034:2015

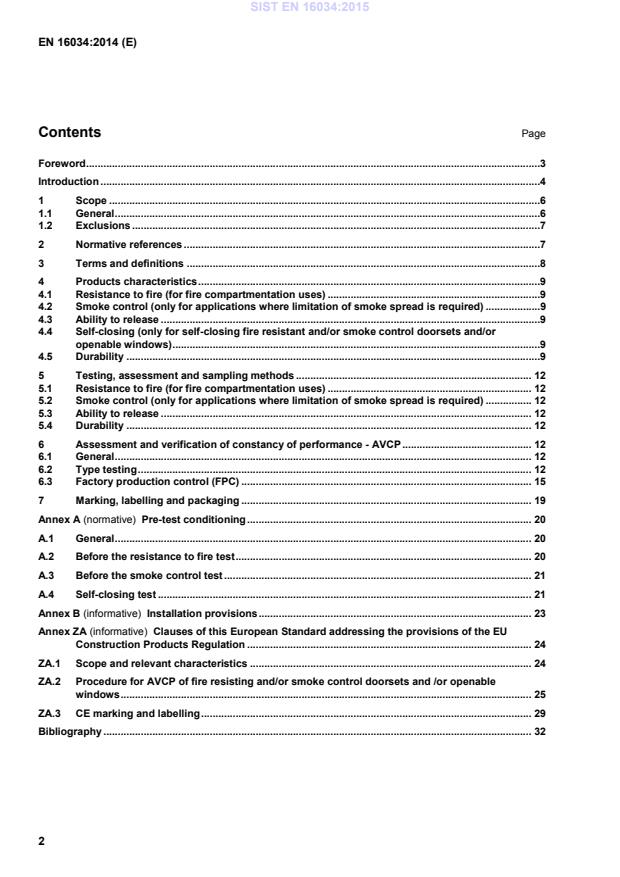

EN 16034:2014 (E) 2 Contents Page Foreword .3 Introduction .4 1 Scope .6 1.1 General .6 1.2 Exclusions .7 2 Normative references .7 3 Terms and definitions .8 4 Products characteristics .9 4.1 Resistance to fire (for fire compartmentation uses) .9 4.2 Smoke control (only for applications where limitation of smoke spread is required) .9 4.3 Ability to release .9 4.4 Self-closing (only for self-closing fire resistant and/or smoke control doorsets and/or openable windows) .9 4.5 Durability .9 5 Testing, assessment and sampling methods . 12 5.1 Resistance to fire (for fire compartmentation uses) . 12 5.2 Smoke control (only for applications where limitation of smoke spread is required) . 12 5.3 Ability to release . 12 5.4 Durability . 12 6 Assessment and verification of constancy of performance - AVCP . 12 6.1 General . 12 6.2 Type testing . 12 6.3 Factory production control (FPC) . 15 7 Marking, labelling and packaging . 19 Annex A (normative)
Pre-test conditioning . 20 A.1 General . 20 A.2 Before the resistance to fire test . 20 A.3 Before the smoke control test . 21 A.4 Self-closing test . 21 Annex B (informative)
Installation provisions . 23 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 24 ZA.1 Scope and relevant characteristics . 24 ZA.2 Procedure for AVCP of fire resisting and/or smoke control doorsets and /or openable windows . 25 ZA.3 CE marking and labelling . 29 Bibliography . 32
SIST EN 16034:2015



EN 16034:2014 (E) 3 Foreword This document (EN 16034:2014) has been prepared by Technical Committee CEN/TC 33 “Doors, windows, shutters, building hardware and curtain walling”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by April 2015 and conflicting national standards shall be withdrawn at the latest by October 2019. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports basic work requirements of Regulation (EU) 305/2011. For relationship with Regulation (EU) 305/2011, see informative Annex ZA which is an integral part of this document. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 16034:2015



EN 16034:2014 (E) 4 Introduction This European Standard is one of a series of standards covering windows and pedestrian doorsets, industrial, commercial and garage doors and gates. This European Standard covers only fire resisting and/or smoke control characteristics including the ability to release and self-closing, further product characteristics are covered in the relevant harmonized European Product Standards EN 14351-1, prEN 14351-2, EN 13241-1 and EN 16361. Figure 1 explains the relation between the standards, where the grey lines show the relationship of other harmonized product standards to EN 16034 (requirements additional to fire resistance and smoke control characteristics) and the black lines explain the relationship to fire resistance and smoke control test, classification and extended application of test results standards. For the purposes of this European Standard the term ‘doorset’ and ‘openable window’ is used as a general term unless clearly stated. SIST EN 16034:2015



EN 16034:2014 (E) 5
Figure 1 — Relationship between various standards EN 14351-1
(Harmonized standard)
Doors and win-dows - External pedestrian doorsets and windows – Prod-uct standard prEN 14351-2
(Harmonized standard)
Doors and win-dows - Internal pedestrian doorsets – Prod-uct standard EN 16034
(Harmonized standard)
Doors with re-sistance to fire and/or smoke control – Product standard EN 13241-1
(Harmonized standard)
Industrial, com-mercial and gar-age doors and gates – Product standard EN 16361
(Harmonized standard)
Power operated pedestrian doors– Product standard EN 1634-1
(Test standard)
Part 1: Fire re-sistance test for doors, shutters and openable windows
EN 1634-3
(Test standard)
Part 3: Smoke control doors and shutters EN 1191
(Test standard)
Windows and doors - Re-sistance to re-peated opening and closing
EN 12605
(Test standard)
Industrial, com-mercial and gar-age doors and gates - Mechani-cal aspects
EN 13501-2
(Classification standard)
Part 2: Fire classi-fication of con-struction products - Classification
EN 15725
(EXAP)
Extended applica-tion reports on the fire performance of construction products and building elements EN 15269-…
(EXAP)
Extended application of test results for fire re-sistance and/or smoke control for door, shutter and openable window assemblies, including their elements of building hardware - Part …
EN 16035
(HPS)
Hardware perfor-mance sheet - Identification and summary of test evidence to facili-tate the inter-changeability of building hardware
SIST EN 16034:2015



EN 16034:2014 (E) 6 1 Scope 1.1 General This European Standard identifies material independent, safety and performance requirements applicable to all fire resisting and/or smoke control products intended to be used in fire and/or smoke compartmentation and/or escape routes, which are either: — industrial, commercial and/or garage doorsets, rolling shutters or operable fabric curtains intended for the installation in areas in the reach of persons and for which the main intended uses are giving safe access for goods and vehicles accompanied or driven by persons, or — rolling shutters or operable fabric curtains used in retail premises which are mainly provided for the access of persons rather than vehicles or goods, or — pedestrian doorsets and/or openable windows and/or inspection hatches which are hinged or sliding, intended for the installation in areas in the reach of persons, and for which the main intended uses are giving safe access for persons and which are manually or power operated and: — opening and self closing as a normal mode of operation, or — normally held open but self closing in case of fire or smoke, or — normally maintained locked in the closed position (e. g. service access/inspection doorsets), and completed: — with building hardware, — with or without any side panel(s), flush over panel(s) and/or transom panel(s) (with or without glazing) and contained within a single perimeter frame for inclusion in a single aperture, — with or without any vision panel(s) in the door leaf or leave(s), — with or without any seals (e.g. for smoke control, fire resistance, draught, acoustic or weather characteristics). Product characteristics covered in EN 13241-1, EN 14351-1, prEN 14351-2 or EN 16361 will not compromise the fire resistance and/or smoke control characteristics of a fire resisting and/or smoke control product. NOTE 1 Requirements included in EN 14351-1, prEN 14351-2, EN 13241-1 or EN 16361 might be relevant for the products covered by this standard. This standard also provides indications on the product modifications not affecting the performances of the concerned products. NOTE 2 The requirements and rules for variations (regarding the direct and extended field of applications) of fire resistance and/or smoke control doorsets are given in the EN 15269 series and EN 1634-1 and EN 1634-3, supported by, e.g. EN 16035. SIST EN 16034:2015



EN 16034:2014 (E) 7 1.2 Exclusions This European Standard does not cover: — fixed windows, glazed side panels and/or overpanels, which are not an integral part of a doorset and/or openable window; — door assemblies produced with components from several sources where there is no single identified manufacturer or legal entity who will take responsibility for them; — operation in environments where the electromagnetic disturbances are outside the range of those specified in EN 61000-6-3; — radio operating devices fitted to doorsets and/or openable windows; where such items are fitted, the relevant ETSI standards should be applied in addition. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 179:2008, Building hardware — Emergency exit devices operated by a lever handle or push pad, for use on escape routes — Requirements and test methods EN 1125:2008, Building hardware — Panic exit devices operated by a horizontal bar, for use on escape routes — Requirements and test methods EN 1154:19961), Building hardware — Controlled door closing devices — Requirements and test methods EN 1155:19972, Building hardware — Electrically powered hold-open devices for swing doors — Requirements and test methods) EN 1158:19973), Building hardware — Door coordinator devices — Requirements and test methods EN 1191, Windows and doors — Resistance to repeated opening and closing — Test method EN 1634–1:2014, Fire resistance and smoke control tests for door and shutter assemblies, openable windows and elements of building hardware — Part 1: Fire resistance test for door and shutter assemblies and openable windows EN 1634-3:2004, Fire resistance and smoke control tests for door and shutter assemblies, openable windows and elements of building hardware — Part 3: Smoke control test for door and shutter assemblies EN 1670, Building hardware — Corrosion resistance — Requirements and test methods EN 1935:2002, Building hardware — Single-axis hinges — Requirements and test methods
1) This document is impacted by the stand-alone amendment EN 1154:1996/A1:2002. 2) This document is impacted by the stand-alone amendment EN 1155:1997/A1:2002. 3) This document is impacted by the stand-alone amendment EN 1158:1997/A1:2002. SIST EN 16034:2015



EN 16034:2014 (E) 8 EN 12209:2003, Building hardware — Locks and latches — Mechanically operated locks, latches and locking plates — Requirements and test methods EN 12605, Industrial, commercial and garage doors and gates — Mechanical aspects — Test methods EN 13501-2, Fire classification of construction products and building elements — Part 2: Classification using data from fire resistance tests, excluding ventilation services EN 13637, Building hardware — Electrically controlled exit systems for use on escape routes — Require-ments and test methods4) EN 14637, Building hardware — Electrically controlled hold-open systems for fire/smoke door assemblies — Requirements, test methods, application and maintenance EN 14846:2008, Building hardware — Locks and latches — Electromechanically operated locks and striking plates — Requirements and test methods EN 15685, Building hardware — Requirements and test methods — Multipoint locks, latches and locking plates4) EN 15887, Building hardware — Uncontrolled Door Closing Devices for single action doors — Requirements and test methods4) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 doorset pedestrian doorset, industrial, commercial and/or garage doorset, rolling shutter and/or operable fabric curtains including any frame or guide, door leaf or leaves, rolling or folding curtain, etc., which is provided to give a fire resisting and/or smoke control capability when used for the closing of permanent openings in fire resisting separating elements, including any side panel(s), vision panel(s), flush over panel(s), transom panel(s) and/or glazing together with the building hardware and any seals (whether provided for the purpose of fire resistance or smoke control) which form the assembly and fulfilling the provisions of this European Standard 3.2 openable window window with one or more moveable elements including any fixed or removable side or overpanel(s), perimeter frame and relevant elements of building hardware 3.3 operable fabric curtain doorset with a leaf constructed from woven material combined with other materials in one or more sections including any frames and/or guides which functions as a rolling shutter 3.4 self-closing ability of an open doorset and/or openable window to close fully into its frame and engage any latching device that may be fitted, without human intervention, by stored energy, or by mains power backed up by stored energy in case of power failure
4) To be published. SIST EN 16034:2015



EN 16034:2014 (E) 9 3.5 ability to release release of the hold-open device of a doorset and/or openable window to ensure reliable closing of the doorset and/or openable window from a defined position 3.6 friable material any material which could crumble, slump, drop or shake down during the normal life of a doorset as, e.g. loose infill mineral fibre, loose materials filled in or blown in the door leaf and gypsum boards Note 1 to entry: Gypsum plasterboards, mineral fibre boards with adhesive binder and silicate fibre boards are not considered to be friable. 4 Products characteristics 4.1 Resistance to fire (for fire compartmentation uses) The capability of the products covered by this standard to provide “integrity” (E), “integrity and insulation” (EI1, EI2) or “integrity and radiation” (EW) for a certain period of time in the event of fire is tested according to 5.1 and results are classified according to EN 13501-2. 4.2 Smoke control (only for applications where limitation of smoke spread is required) The capability of the products covered by this standard to prevent smoke leakage at medium temperature (S200) or smoke leakage at ambient temperature (Sa) in the event of smoke is tested according to 5.2 and results are classified according to EN 13501-2. 4.3 Ability to release In order to release the products covered by this standard and enable the reliable closing of a doorset and/or openable window in the event of fire and/or smoke or failure of the power supply the hold-open device shall be tested according to 5.3 and test results shall be expressed as “released”. 4.4 Self-closing (only for self-closing fire resistant and/or smoke control doorsets and/or openable windows) Self-closing (C) is the ability of an open doorset and/or openable window to close fully into its frame and engage any latching device that may be fitted without human intervention, e.g. by stored energy, or by mains power backed up by stored energy in case of power failure and is verified according to A.2.2. Results are classified according to EN 13501-2 and expressed by “C” and may be completed with a digit of 0 to 5 according to the use categories determined by the number of cycles performed (see 4.5.2.1). 4.5 Durability 4.5.1 Durability of the ability to release The durability of ability to release is verified according to 5.4.1 and the result is expressed as “release maintained”. 4.5.2 Durability of self-closing (only for self closing doorsets and/or openable windows) 4.5.2.1 Durability of self-closing against degradation (cycling testing) The durability of self-closing against degradation is ensured by cycling testing according to 5.4.2. The results shall be expressed according to the use categories indicated in Table 1. SIST EN 16034:2015



EN 16034:2014 (E) 10 Table 1 — Use categories, number of test cycles to be performed in order to assign a use category to the self-closing class Use category Cycles 5 ≥ 200 000 4 ≥ 100 000 3 ≥ 50 000 2 ≥ 10 000 1 ≥ 500 0 1 to 499 4.5.2.2 Durability of self-closing against ageing (corrosion) The durability of self-closing is considered to be achieved if the building hardware used in the doorset and/or openable windows complies with the relevant clauses of the building hardware product standards as listed in Table 2 except in cases where the hardware is classified by these standards as not corrosion resistant. Building hardware not covered by product standards listed in Table 2 shall show their compliance to EN 1670. The durability of self-closing against ageing (corrosion) of the doorset and/or openable window shall be expressed as “achieved”. SIST EN 16034:2015



EN 16034:2014 (E) 11 Table 2 — Relevant EN standards for building hardware Product Group Relevant European Standard Clauses of the European Standards covering the essential characteristic "Durability of self-closing" Single axis hinges EN 1935:2002 5.4, 5.5, 5.8 Controlled door closing devices EN 1154:1996 a 5.2.2, 5.2.17.1, 5.2.17.2 Electrically powered hold-open devices electrically powered hold-open devices incorporated in a door close EN 1155:1997 b EN 1154:1996a 5.2.2, 5.2.17.1, 5.2.17.2 separate electrically powered hold-open devices EN 1155:1997b 5.2.4, 5.2.14.1 5.2.14.2 Door coordinating devices for separate door coor-dinator devices EN 1158:1997 c 5.2.5, 5.2.7.1, 5.2.7.2 for door coordinator devices incorporated in door closers EN 1154:1996a 5.2.2, 5.2.17.1, 5.2.17.2 for door coordinator devices with electrically powered hold-open devices incorporated in a door closer EN 1155:1997b 5.2.4, 5.2.14.1, 5.2.14.2 Mechanical locks and latches EN 12209:2003 5.3.1 Emergency exit devices EN 179:2008 4.2.1 Panic exit devices EN 1125:2008 4.2.1 Uncontrolled door closing devices for single action doors EN 15887 d 4.2.2, 4.2.8.2, 4.2.10, 4.2.11, 4.2.12, 4.2.13, 4.2.14 Electromechanically operated lochs and striking plates EN 14846:2008 5.3.2 Electrically controlled exit systems EN 13637 d 4.7 Multipoint locks, latches and locking plates EN 15685 d 4.3.1; 4.7.1 a This document is impacted by the stand-alone amendment EN 1154:1996/A1:2002. b This document is impacted by the stand-alone amendment EN 1155:1997/A1:2002. c This document is impacted by the stand-alone amendment EN 1158:1997/A1:2002. d To be published. SIST EN 16034:2015



EN 16034:2014 (E) 12 5 Testing, assessment and sampling methods 5.1 Resistance to fire (for fire compartmentation uses) Following pre-test conditioning according to A.2, the fire resistance shall be determined by testing according to EN 1634-1. 5.2 Smoke control (only for applications where limitation of smoke spread is required) Following pre-test conditioning according to A.3 the smoke control characteristic shall be determined by testing according to EN 1634-3. 5.3 Ability to release The ability to release test shall be undertaken on one sample which is submitted to fire resistance testing according to EN 1634-1 or smoke control testing according to EN 1634-3. The ability to release shall be verified by simulating a fire signal (e.g. cut off mains power) three consecutive times. 5.4 Durability 5.4.1 Durability of the ability to release The durability of the ability to release is satisfied if the electrically powered hold open device complies with EN 1155 or EN 14637. 5.4.2 Durability of self closing (only for self closing doorsets and/or openable windows) — Durability of self closing against degradation (cycling testing) The test methods for cycling testing are given in EN 1191 (for pedestrian doorsets and/ or openable windows and EN 12605 (for industrial, commercial and/or garage doorsets). 6 Assessment and verification of constancy of performance - AVCP 6.1 General The compliance of fire resisting and/or smoke control doorsets and/or openable windows with the requirements of this standard and with the performances declared by the manufacturer in the DoP shall be demonstrated by: — determination of the product type; — factory production control by the manufacturer, including product assessment. The manufacturer shall always retain the overall control and shall have the necessary means to take responsibility for the conformity of the product with its declared performance(s). 6.2 Type testing 6.2.1 General All performances related to characteristics included in this standard shall be determined when the manufacturer intends to declare the respective performances unless the standard gives provisions for SIST EN 16034:2015



EN 16034:2014 (E) 13 declaring them without performing tests. (e.g. use of previously existing data, Classification Without Further Testing (CWFT) and conventionally accepted performance). Assessment previously performed in accordance with the provisions of this standard, may be taken into account provided that they were made to the same or a more rigorous test method, under the same AVCP system on the same product or products of similar design, construction and functionality, such that the results are applicable to the product in question. NOTE Same AVCP system means testing by an independent third party under the responsibility of a notified product certification body. For the purposes of assessment, the manufacturer's products may be grouped into families, where it is considered that the results for one or more characteristics from any one product within the family are representative for those same characteristics for all products within that same family Products may be grouped in different families for different characteristics. Reference to the assessment method standards should be made to allow the selection of a suitable representative sample(s). In addition, the determination of the product type shall be performed for all characteristics included in the standard for which the manufacturer declares the performance: — at the beginning of the production of a new or modified fire resisting and/or smoke control doorsets and/or openable windows (unless a member of the same product range), or — at the beginning of a new or modified method of production (where this may affect the stated properties), or they shall be repeated for the appropriate characteristic(s), whenever a change occurs in the fire resisting and/or smoke control doorsets and /or openable windows design, in the raw material or in the supplier of the components, or in the method of production (subject to the definition of a family), which would affect significantly one or more of the characteristics. Where components are used whose characteristics have already been determined, by the component manufacturer, on the basis of assessment methods of other product standards, these characteristics need not be re-assessed. The specifications of these components shall be documented. Products bearing regulatory marking in accordance with appropriate harmonized European specifications may be presumed to have the performances declared in the DoP, although this does not replace the responsibility on the fire resisting and/or smoke control doorset and /or openable window manufacturer to ensure that the fire resisting and/or smoke control doorsets and /or openable windows as a whole i
...
