EUROPEAN STANDARD EN 50598-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2014
ICS 29.160.30
English Version
Ecodesign for power drive systems, motor starters, power
electronics & their driven applications - Part 1: General
requirements for setting energy efficiency standards for power
driven equipment using the extended product approach (EPA),
and semi analytic model (SAM)
Ecoconception des entraînements électriques de Ökodesign für Antriebssysteme, Motorstarter,
puissance, des démarreurs de moteur, de l'électronique de Leistungselektronik und deren angetriebene Einrichtungen -
puissance et de leurs applications entraînées - Partie 1: Teil 1: Allgemeine Anforderungen zur Erstellung von
Exigences générales pour définir les normes d'efficacité Normen zur Energieeffizienz von Ausrüstungen mit
énergétique d'un équipement entraîné via l'approche Elektroantrieb nach dem erweiterten Produktansatz (EPA)
produit étendu (EPA) et par le modèle semi-analytique mit semi-analytischen Modellen (SAM)
(SAM)
This European Standard was approved by CENELEC on 2014-11-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50598-1:2014 E

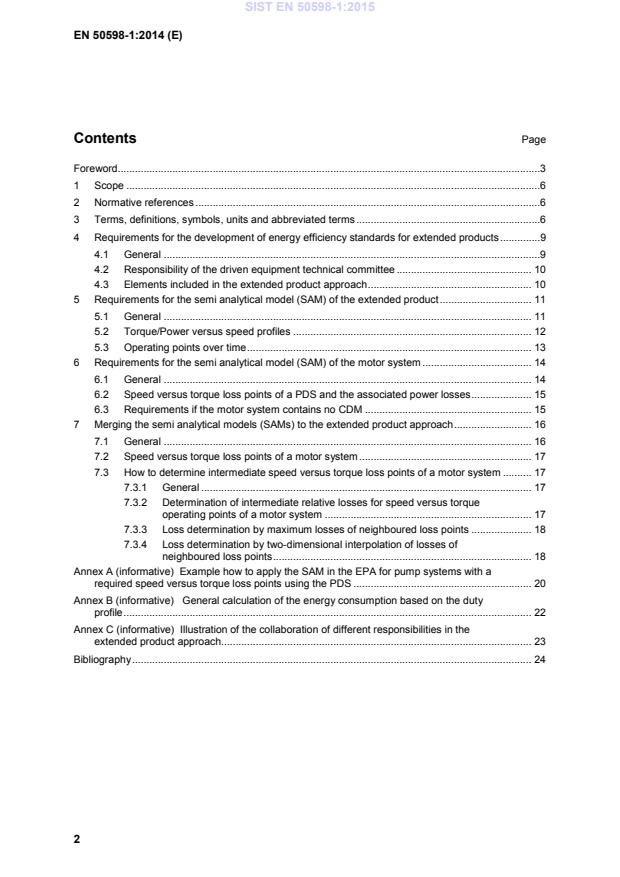

Contents Page
Foreword.3
1 Scope .6
2 Normative references .6
3 Terms, definitions, symbols, units and abbreviated terms .6
4 Requirements for the development of energy efficiency standards for extended products .9
4.1 General .9
4.2 Responsibility of the driven equipment technical committee . 10
4.3 Elements included in the extended product approach . 10
5 Requirements for the semi analytical model (SAM) of the extended product . 11
5.1 General . 11
5.2 Torque/Power versus speed profiles . 12
5.3 Operating points over time . 13
6 Requirements for the semi analytical model (SAM) of the motor system . 14
6.1 General . 14
6.2 Speed versus torque loss points of a PDS and the associated power losses . 15
6.3 Requirements if the motor system contains no CDM . 15
7 Merging the semi analytical models (SAMs) to the extended product approach . 16
7.1 General . 16
7.2 Speed versus torque loss points of a motor system . 17
7.3 How to determine intermediate speed versus torque loss points of a motor system . 17
7.3.1 General . 17
7.3.2 Determination of intermediate relative losses for speed versus torque

operating points of a motor system . 17
7.3.3 Loss determination by maximum losses of neighboured loss points . 18
7.3.4 Loss determination by two-dimensional interpolation of losses of
neighboured loss points . 18
Annex A (informative) Example how to apply the SAM in the EPA for pump systems with a
required speed versus torque loss points using the PDS . 20
Annex B (informative)  General calculation of the energy consumption based on the duty
profile . 22
Annex C (informative) Illustration of the collaboration of different responsibilities in the
extended product approach. 23
Bibliography . 24

Foreword
This document (EN 50598-1:2014) has been prepared by CLC/TC 22X "Power electronics".
The following dates are fixed:

(dop) 2015-11-17
• latest date by which this document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2017-11-17
standards conflicting with this
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association.
EN 50598, Ecodesign for power drive systems, motor starters, power electronics & their driven
applications, will consist of the following parts:
- Part 1: General requirements for setting energy efficiency standards for power driven equipment
using the extended product approach (EPA), and semi analytical model (SAM);
- Part 2: Energy efficiency indicators for power drive systems and motor starters;
- Part 3: Quantitative ecodesign approach through life cycle assessment including product category
rules and the content of environmental declarations.
The CLC/TC 22X/WG 06 is the enabled task force for dealing with the Mandate M/476 from European
Commission for the standardization in the field of variable speed drives and/or power drive system
products.
It has been set a close collaboration with several other technical committees (i.e. CLC/TC 2;
CLC/TC 17B) in order to provide a comprehensive standard for energy efficiency aspects and
ecodesign requirements together with a pilot stakeholder committee CEN/TC 197 from the customers
side.
Key points:
- Requirements on the content of semi analytical models for motor system driven equipment;
- Requirements how to use them in the extended product approach.
The content could be of interest for the following technical committees CLC/TC 59X, CLC/TC 111X,
CEN/TC 44, CEN/TC 113, CEN/TC 121, CEN/TC 123, CEN/TC 142, CEN/TC 143, CEN/TC 156,
CEN/TC 228, CEN/TC 232 and CEN/TC 299.
It is the intention of the working group that this document, once finalized as European standard series,
will be further processed to an international consensus in IEC and ISO.
Introduction
The Technical Committee CLC/TC 22X has circulated at 2010-03-31 the document
CLC/TC 22X/Sec0100/DC document including the mandate M/476 from European Commission for
standardization in the field of variable speed drives and/or power drive system products.
As the PDS contains converter driven motors, the requirements for measuring of the energy efficiency
of motors with non-sinusoidal supply is under the responsibility of CLC/TC2 covering the requirement
from Mandate M/470.
The document is based on the CENELEC technical board document referenced BT137/DG8058/INF
also reproducing this EC-mandate.
The CLC/TC 22X/WG 06 as being the standardization task force for dealing with this Mandate has
close collaboration with several other technical committees (i.e. CLC/TC 2; CLC/TC 17B).
Therefore CLC/TC 22X committee has been enabled responsible to clarify all relevant aspects in the
field of energy efficiency and ecodesign requirements for power electronics, switchgear, control gear,
and power drive systems and their industrial applications.
The sometimes controversial requirements are illustrated in Figure 1. The work has been agreed to
provide the reasonable target as a best compromise.
MMararkekett ssuurrvveeiillallabblele
((iinnddeeppeennddeenndd
TTechechnniicacallllyy
certifiable ))
ccoommpprreehheennssiivvee
RReasoeasonnababllee ttararggetet
MMananuuffacacttuurrerernneeuuttrraall
(N(Noo mmararkekettiinngg
mmessaessaggeses))
Figure 1 — Illustration of controversial requirements for the energy related product (ErP)
standardization
EN 50598 is developed under the CENELEC projects number 24602 to 24604 for compliance with
requirements from the horizontal mandate M/495.
Its three parts are together directly related to the mandates M/470 and M/476.
For the other mandates listed in Table 1, this standard could be applied if the future product standards
developed will make reference to it.
Table 1 — Mandates of the European Commission given to CEN, CENELEC and ETSI and how
they are contributed by these standard series parts
Mandates Part 1 Part 2 Part 3
M/470
 
Motors
M/476
 
PDS
M/495
  
Horizontal all
future
Applications
M/488
 
()
HVAC comfort
fans
M/498
 
()
Pumps
M/500
  ()
Compressors
1 Scope
This European Standard provides a general methodology to energy efficiency standardization for any
extended product including a motor system by using the methodological guidance of the extended
product approach (EPA).
It enables product committees for driven equipment with included motor systems to interact with the
relative power losses of the included motor system (e.g. PDS) in order to determine the system energy
efficiency aspects for the extended product by calculation.
This should be based on specified calculation models for speed/load profiles, the duty profiles and
relative power losses of appropriate torque versus speed operating points.
This part of the EN 50598 series specifies the methodology of determination of losses of the extended
product including a motor system and its sub-parts.
This framework is explained by an example for pumps.
This part of the standard does not specify requirements for environmental impact declarations.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 50598-2, Ecodesign for power drive systems, motor starters, power electronics & their driven
applications — Part 2: Energy efficiency indicators for power drive systems and motor starters
IEC 60050-161, International Electrotechnical Vocabulary. Chapter 161: Electromagnetic compatibility
3 Terms, definitions, symbols, units and abbreviated terms
For the purposes of this document, the terms and definitions given in IEC 60050-161 and the following
apply.
3.1
Energy Efficiency Index
EEI
value describing an energy efficiency aspect of an application, resulting from the extended product
approach (EPA)
Note 1 to entry: If the extended product is a pump system, the EEI is the ratio of the input power to the theoretical
reference power required for the application.
3.2
Extended Product
EP
driven equipment together with its included motor system (e.g a PDS, a motor starter)
Note 1 to entry: See Figure 2.
extended product
motor system
power drive system (PDS)
driven equipment
complete drive module (CDM)
basic
mains &
trans- load
feeding
auxil- drive auxil-
motor
mains
mission Machine
section iaries module iaries
cabling
(BDM)
motor starter
contactor, softstarter,
etc.
motor control equipment = CDM or starter

Figure 2 — Illustration of the extended product including a motor system
3.3
Extended Product Approach
EPA
methodology to determine the energy efficiency index (EEI) of the extended product (EP) using the
speed torque profiles of the driven equipment, the relative power losses of the motor system and the
duty profile of the application
3.4
motor control equipment
either a CDM or a motor starter
3.5
motor system
motor control equipment and a motor
3.6
duty profile
fraction of time spent at each operating point during the total operating time or a complete cycle of
operation of the extended product
Note 1 to entry: Typically this profile is represented by an histogram.
Note 2 to entry: The standby mode can be included in the load time profile.
3.7
P
Electrical
power consumption [kW] of an application
3.8
P
Electrical Max
power consumption [kW] at 100 % speed and 100 % load
3.9
P
i
power consumption [kW] at operating point i
3.10
P
in,CDM
input power [kW] of the CDM from the power loss measurement
3.11
P
in,PDS
input power [kW] of the PDS from the power loss measurement
3.12
P
n
nominal Power [kW] of equipment which is typical for its population of the same rating
Note 1 to entry: See EN 60034-1 for motors.
3.13
P
out,CDM
output power [kW] of CDM from the power loss measurement
3.14
P
out,PDS
output power [kW] of PDS from the power loss measurement
3.15
P
r
rated power [kW] of equipment which is assigned by its manufacturer
3.16
P
Reference
power consumption [kW] used for reference, defined by the extended product committee
3.17
P
L
electrical power losses with the indices CDM dedicates it to the complete drive module, Mot dedicates
it to the motor, Aux dedicates it to the auxiliary devices like cables, transformers or filters
Note 1 to entry: The relative power losses are the per unit losses relative to the nominal power of the device.
3.18
P
L,CDM
power losses of a CDM
3.19
P
L,CDM, determined
power losses of CDM from the power loss determination method
3.20
p
L,CDM,relative
power losses of the CDM, referred to its rated apparent power
3.21
P
L,inverter
power losses in the inverter section of a CDM
3.22
P
L,PDS, determined
power losses of PDS from the power loss determination method
3.23
P
LT,Mot
total losses of a motor according to EN 60034-2-1, method 2-1-1B when supplied by a converter (non
sinusoidal power supply)
3.24
Semi Analytical Model
SAM
model for determining energy efficiency characteristics of a specific motor system or driven
equipment, based on mathematical equations and/or measured data

3.25
t
w
working time of an equipment
3.26
T
i
torque [Nm] at operating point i
3.27
timefraction
i
percentage of time when the extended product is operated at one specific operating point i
4 Requirements for the development of energy efficiency standards for
extended products
4.1 General
This document specifies a methodology to determine the energy efficiency index of an application,
based on the concept of semi analytical models (SAM). The methodology shall be referred to as the
extended product approach (EPA).
This document also specifies the responsibilities and tasks of the different stakeholders creating or
using these extended products standards, as well as the data flows in-between.
a) Specific information about the equipment shall be considered:
1) The torque versus speed profile of the driven equipment as specified by the manufacturer of
the driven equipment or the extended product technical committee.
2) The losses of the motor system or its constituents (Motor, CDM or starter) at reference part-
load operating points. These shall be provided by the different manufacturers as specified in
EN 50598-2.
3) The duty profile of the driven equipment. The extended product standards committee can for
example define typical applications of their extended products, each associated with a typical
duty profile
b) The extended product approach shall be used to determine an energy efficiency indicator (losses,
efficiency, energy consumption…):
1) EN 50598-2 specifies the methods for the determination of losses of the motor system using
measurement and/or calculations.
2) extended product standardization committees shall define how to combine the losses of the
motor system and the losses of the load to obtain an overall energy efficiency aspects related
indicator for the extended product within the defined application.
The interactions between the different stakeholders of the extended product approach are shown in
Figure C.1.
4.2 Responsibility of the driven equipment technical committee
Based on the general principles described in this standard it shall be the responsibility of the driven
equipment technical committee to standardize the methodology to calculate the EEI of the extended
product based on a semi analytical model of the driven equipment.
The product committee shall specify and standardize:
 one or more torque versus speed profiles (load profiles) as described in 5.2 considering typical
loads;
 one or more duty profiles as described in 5.3 considering the typical extended product service
conditions;
 an appropriate method for determining the losses at intermediate operating points based on the
data from the motor, CDM and PDS. See for example the methods in 7.3;
 a semi analytical model for the extended product considering the extended product approach
(EPA) as described in Clause 7, based on the eight torque versus speed operating points as
specified according to EN 50598-2 for the motor system;
 a method for determining an energy efficiency indicator for the extended product under their
responsibility; see Annex B for example.
NOTE The motor system data might consist of PDS data as well as individual data for CDM and motor. EN 50598-2 provides
information about the determination of PDS data based on individual motor and CDM data.
4.3 Elements included in the extended product approach
The semi analytical model (SAM) model of the driven equipment developed by the technical
committee responsible for the extended product combines the information given by the CDM/PDS
manufacturer according to EN 50598-2 in the operating points for the motor system. Other operating
points can be calculated if needed according to 7.3.
To determine the overall losses or efficiency of an extended product implemented in an application it is
required to go through several steps:
Several elements shall be combined:
a) The SAM of the Motor System, specified in EN 50598-2, giving its relative losses at several
standardized operating points. The motor system can be a power drive system (PDS) or can
consist of a motor and a motor starter (contactor, softstarter…):
1) When the motor system is a PDS, the calculation of the losses is the sum of the losses of the
CDM and motor or the total losses of the complete PDS.
2) When the motor system is based on a motor starter, the calculation of the losses is simpler;
there is no need to use any reference motor starter.
b) The SAM of the driven equipment (pump, compressor, fan…), giving the losses or efficiency of
the load machine at typical operating points. It is the responsibility of the associated product
committee.
c) The extended product approach, combining the SAM of the motor system and the SAM of the
driven equipment (and also if necessary relative losses for the coupling). It is the responsibility of
the manufacturer of the extended product. The extended product approach uses application-
related data (required operating points, duty profile, working time …), in order to determine the
energy efficiency index of the application. This index allows comparing the energy efficiency
aspects of several motor systems for a given application, or several modes o
...
