EN 14492-1:2006+A1
October 2009 ICS 53.020.20; 53.020.99 Supersedes EN 14492-1:2006English Version
Cranes - Power driven winches and hoists - Part 1: Power driven winches
Appareils de levage à charge suspendue - Treuils et palans motorisés - Partie 1: Treuils motorisés
Krane - Kraftgetriebene Winden und Hubwerke - Teil 1: Kraftgetriebene Winden This European Standard was approved by CEN on 19 August 2006 and includes Amendment 1 approved by CEN on 6 August 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14492-1:2006+A1:2009: ESIST EN 14492-1:2007+A1:2010

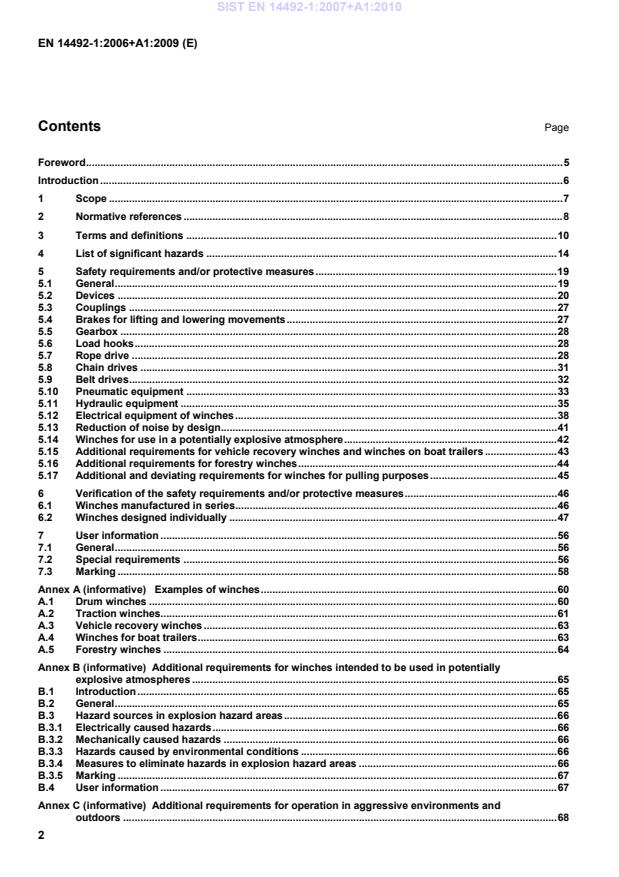

Examples of winches . 60A.1Drum winches . 60A.2Traction winches. 61A.3Vehicle recovery winches . 63A.4Winches for boat trailers . 63A.5Forestry winches . 64Annex B (informative)
Additional requirements for winches intended to be used in potentially explosive atmospheres . 65B.1Introduction . 65B.2General . 65B.3Hazard sources in explosion hazard areas . 66B.3.1Electrically caused hazards . 66B.3.2Mechanically caused hazards . 66B.3.3Hazards caused by environmental conditions . 66B.3.4Measures to eliminate hazards in explosion hazard areas . 66B.3.5Marking . 67B.4User information . 67Annex C (informative)
Additional requirements for operation in aggressive environments and outdoors . 68SIST EN 14492-1:2007+A1:2010

Additional requirements for operation at low temperatures . 70Annex E (informative)
Documents for hooks . 71Annex F (normative)
Noise test code . 72F.1Scope . 72F.2Standards used in this annex . 72F.3Description of the machine family . 72F.4Determination of the emission sound pressure level at the operator´s position by measurement . 72F.4.1General. 72F.4.2Winches other than construction winches . 73F.5Determination of the sound power level . 73F.5.1General. 73F.5.2Winches other than construction winches . 73F.5.3Construction winches . 74F.6Mounting and operating conditions . 75F.6.1General. 75F.6.2Winches other than construction winches . 76F.6.3Construction winches . 76F.7Uncertainties . 76F.8Information to be recorded . 76F.9Information to be reported . 76F.10Declaration and verification of noise emission values . 77Annex G (informative)
Selection of a suitable set of cranes standards for a given application . 78Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 98/37/EC . 79Annex ZB (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 94/9/EC . 80Annex ZC (informative)
!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC"""" . 81Bibliography . 82 Figures
Figure 1 — Fleet angle . 11 Figure 2 — Undercut groove base profile . 31 Figure A.1.1 — Drum winch, manufactured in series . 60 Figure 1.2 — Drum winch, manufactured individually . 60 Figure A.1.3 — Drum winch, pneumatically driven. 60 Figure A.2.1 — Traction winch, standard type . 61 Figure A.2.2 — Traction winch with 2 load bearing ropes and storage drum . 61 Figure A.2.3 — Traction winch with storage drum . 62 Figure A.3.1 — Vehicle recovery winch with electrical drive . 63 Figure A.3.2 — Vehicle recovery winch with hydraulic drive . 63 SIST EN 14492-1:2007+A1:2010

Tables Table 1 — List of significant hazards and associated requirements .15 Table 1 (continued) .16 Table 2 — Values for vh for estimation of φ IAL .25 Table 3 — Limit revolutions for three-phase slipring motors .40 Table 4 — Stall torques for three-phase slipring motors with contactor control .40 Table 5 — Methods to be used to verify conformity with the safety requirements and/or measures .48 Table 5 (continued) .49 Table F.1 — Coordinates of the 6 microphone positions .74
1 Scope This European Standard is applicable to the design, information for use, maintenance and testing of power driven winches for which the prime mover is an electric motor, hydraulic motor, internal combustion motor or pneumatic motor. They are designed for the lifting and lowering of loads which are suspended on hooks or other load handling devices or for the lifting and lowering of loads on inclined planes or the exclusive pulling of loads on planes which are normally horizontal. NOTE Within the period of utilization, the place of use of a winch may be variable. As a rule, a winch is used without any additional transport movement. This European Standard is applicable to the following types of winch: a) rope winches; b) chain winches; c) belt winches, except steel belts used as hoisting media; d) traction winches. These types of winches a) to d) also include the following specific applications:  vehicle recovery winches;  winches on boat trailers;  forestry winches;  winches for stationary offshore applications;  winches for drilling applications;  winches to be used exclusively for the pulling of loads. NOTE Examples are shown in Annex A. SIST EN 14492-1:2007+A1:2010

(IEC 60079-0:2004) EN 60079-7:2003, Electrical apparatus for explosive gas atmospheres — Part 7: Increased safety ‘e’
(IEC 60079-7:2001) EN 60204-32:1998, Safety of machinery — Electrical equipment of machines — Part 32: Requirements for hoisting machines (IEC 60204-32:1998) EN 60529:1991, Degrees of protection provided by enclosures (IP-code) EN 61000-6-2:2005, Electromagnetic compatibility (EMC) — Part 6-2: Generic standards — Immunity for industrial environments (IEC 61000-6-2:2005) EN 61000-6-3:2001, Electromagnetic compatibility (EMC) — Part 6-3: Generic standards; Emission standard for residential, commercial and light-industrial environments (IEC 61000-6-3:1996, modified) EN 61000-6-4:2001, Electromagnetic compatibility (EMC) — Part 6-4: Generic standards; Emission standard for industrial environments (IEC 61000-6-4:1997, modified) EN ISO 3744:1995, Acoustics — Determination of sound power levels of noise sources using sound pressure — Engineering method in an essential free field over a reflecting plane (ISO 3744:1994) EN ISO 4871:1996, Acoustics — Declaration and verification of noise emission values of machinery and equipment
(ISO 4871:1996) EN ISO 11201:1995, Acoustics — Noise emitted by machinery and equipment — Measurement of emission sound pressure levels at a work station and at other specified positions — Engineering method in an essentially free field over a reflecting plane (ISO 11201:1995) EN ISO 11688-1:1998, Acoustics — Recommended practice for the design of low-noise machinery and equipment — Part 1: Planning (ISO/TR 11688-1:1995) EN ISO 12100-1:2003, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic terminology, methodology (ISO 12100-1:2003) EN ISO 12100-2:2003, Safety of machinery — Basic concepts, general principles for design — Part 2: Technical principles (ISO 12100-2:2003) !EN ISO 13849-1, Safety of machinery — Safety-related parts of control systems — Part 1: General principles for design (ISO 13849:2006)" ISO 606:2004, Short-pitch transmission precision roller and bush chains, attachments and associated chain sprockets ISO 4301-1:1986, Cranes and lifting appliances — Classification — Part 1: General ISO 4308-1:2003, Cranes and lifting appliances — Selection of wire ropes — Part 1: General SIST EN 14492-1:2007+A1:2010

Key β = fleet angle on the pulley β - α or β + α = fleet angle on the drum α = angle of the grooves on the drum Figure 1 — Fleet angle On drums without grooves, the fleet angle is the angle between the rope axis and a line drawn perpendicular to the axis of the drum 3.6 force transmission two or more connected parts which transmit forces 3.7 forestry winches rope winches fitted to forestry machines such as pushing tractors and row crop tractors according to
ISO 6814 and used on agricultural tractors, e.g. for fitting in a three-point rod assembly, used for pushing works in the forest 3.8 hoist medium or pulling medium either rope, belt, steel link chain or roller chain that connects the winch to the load 3.9 hydraulic components elements (e.g. switches, valves, filters) interconnected and forming an operational hydraulic system 3.10 hydraulic overpressure pressure exceeding the rated pressure or dynamic pressure 3.11 hydraulic systems definition in ISO 5598 applies 3.12 hydraulic transmission supply, control and distribution of energy by means of pressurised fluid SIST EN 14492-1:2007+A1:2010

Hazards Relevant clause(s) in this European Standard 1 Mechanical hazards due to:
— machine parts or workpieces, e.g.: a) shape; b) relative location; c) mass and stability (potential energy of elements which may move under the effect of gravity); d) mass and velocity (kinetic energy of elements in controlled or uncontrolled motion); e) inadequacy of mechanical strength — accumulation of energy inside the machinery, e.g.: f) elastic elements (springs); g) liquids and gases under pressure; — the effect of vacuum 5.1 n.a. 5.1
5.1, 5.2, 5.3, 5.4, 5.5, 5.7, 5.9, 5.15.4, 5.15.5, 5.15.6, 5.16.5, 5.16.6, 5.16.7, 5.17.4, 5.17.5, 5.17.6
5.4 5.10, 5.11 5.11.4.3
1.1 Crushing hazard 5.1, 5.7.2, 5.7.4 1.2 Shearing hazard 5.1 1.3 Cutting or severing hazard 5.1, 5.8.3, 5.16.9 1.4 Entanglement hazard 5.1, 5.7.2, 5.7.4, 5.8.3 1.5 Drawing-in or trapping hazard 5.1, 5.7.2, 5.7.4, 5.8.3 1.6 Impact hazard 5.1, 5.8.2, 5.16.9 1.7 Stabbing or puncture hazard 5.1 1.8 Friction or abrasion hazard 5.1, 5.7.2, 5.7.4, 5.7.9, 5.8.1 1.9 High pressure fluid injection or ejection hazard 5.11.4.2, 5.11.5, 5.11.6.3 2 Electrical hazards due to:
2.1 contact of persons with live parts (direct contact) 5.2.1, 5.12, 5.12.4 2.2 contact of persons with parts which have become live under faulty conditions (indirect contact) 5.2.1, 5.12, 5.12.4 2.3 approach to live parts under high voltage 5.12.1 2.4 electrostatic phenomena 5.12 2.5 thermal radiation or other phenomena such as the projection of molten particles and chemical effects from short circuits, overloads etc. 5.12 3 Thermal hazards, resulting in:
3.1 burns, scalds and other injuries by a possible contact of persons with objects or materials with an extreme high or low temperature, by flames or explosions and also by the radiation of heat sources 5.1, 5.11.6.5, 5.11.6.6, 5.14 3.2 damage to health by hot or cold working environment n.a. 4 Hazards generated by noise, resulting in:
4.1 hearing loss (deafness), other physiological disorders (e.g. loss of balance, loss of awareness) 5.13, 7.2, Annex F 4.2 interference with speech communication, acoustic signals etc. 5.13, 7.2, Annex F
Hazards Relevant clause(s) in this European Standard 5 Hazards generated by vibration due to:
5.1 use of hand-held machines resulting in a variety of neurological and vascular disorders n.a. 5.2 whole body vibration, particularly when combined with poor postures n.a. 6 Hazards generated by radiation due to:
6.1 low frequency, radio frequency radiation, micro waves n.a. 6.2 infrared, visible and ultraviolet light n.a. 6.3 X and gamma rays n.a. 6.4 alpha, beta rays, electron or ion beams; neutrons n.a. 6.5 lasers n.a. 7 Hazards generated by materials and substances (and their constituent elements) processed or used by the machinery due to:
7.1 hazards from contact with or inhalation of harmful fluids, gases, mists, fumes, and dusts 5.11.2 7.2 fire or explosion hazard 5.11.6.5, 5.11.6.6, 5.14, Annex B, Annex C 7.3 biological or microbiological (viral or bacterial) hazards n.a. 8 Hazards generated by neglecting ergonomic principles in machinery design as, e.g. hazards from:
8.1 unhealthy postures of excessive effort 5.2.1 8.2 inadequate consideration of hand-arm or foot-leg anatomy n.a. 8.3 neglected use of personal protection equipment n.a. 8.4 inadequate local lighting 7 8.5 mental overload and under-load, stress n.a. 8.6 human error, human behaviour 5.2.1 8.7 inadequate design, location or identification of manual controls 5.2.1, 5.12 8.8 inadequate design or location of visual display units 5.2.1, 5.12 9 Combination of hazards n.a. 10 Unexpected start-up, unexpected overrun/overspeed (or any similar malfunction) from:
10.1 failure/disorder of the control system 5.2.1, 5.2.3, 5.2.5, 5.4, 5.10.3, 5.10.4, 5.10.5.1, 5.11.6.1, 5.11.6.2, 5.12.4, 5.12.7, 5.12.8.2 10.2 restoration of energy supply after an interruption 5.2.1, 5.2.3, 5.10.5.1, 5.12 10.3 external influences on electrical equipment 5.12.3, 5.13 10.4 other external influences (gravity, wind etc.) 5.4 10.5 errors in the software 5.2.5, 5.12 10.6 errors made by the operator (due to mismatch of machinery with human characteristics and abilities, see 8.6) n.a. 11 Impossibility of stopping the machine in the best possible conditions 5.2.1, 5.2.3, 5.10.5.1, 5.10.5.2, 5.11.6.1, 5.12.4, 5.12.7 SIST EN 14492-1:2007+A1:2010

Hazards Relevant clause(s) in this European Standard 12 Variations in the rotational speed of tools n.a. 13 Failure of the power supply 5.4, 5.10.2.2, 5.11.6.2, 5.12, 5.12.8.2, 5.15.7 14 Failure of the control circuit 5.2.1, 5.2.3, 5.2.5, 5.4, 5.10.3, 5.10.5.1, 5.11.5, 5.11.6.1, 5.12, 5.12.7, 5.12.8.2 15 Errors of fitting 5.1, 5.7.6, 7 16 Break-up during operation 5.1, 5.4, 5.5, 5.7.8, 5.8.4, 5.9.2 17 Falling or ejected objects or fluids 5.11.6.3 18 Loss of stability/overturning of machinery n.a. 19 Slip, trip and fall of persons (related to machinery) n.a. Additional hazards, hazardous situations and hazardous events due to mobility 20 Relating to the travelling function:
20.1 movement when starting the engine n.a. 20.2 movement without a driver at the driving position n.a. 20.3 movement without all parts in a safe position n.a. 20.4 excessive speed of pedestrian controlled machinery n.a. 20.5 excessive oscillations when moving n.a. 20.6 insufficient ability of machinery to be slowed down, stopped and immobilised n.a. 21 Linked to the work position (including driving station) on the machine due to:
21.1 fall of persons during access to (or at/from) the work position n.a. 21.2 exhaust gases/lack of oxygen at the work position n.a. 21.3 fire (flammability of the cab, lack of extinguishing means) n.a. 21.4 mechanical hazards at the work position: a) contact with the wheels; b) rollover; c) fall of objects, penetration by objects; d) break-up of parts rotating at high speed; e) contact of persons with machine parts or tools (pedestrian controlled machines) n.a. 21.5 insufficient visibility from the work positions n.a. 21.6 inadequate lighting n.a. 21.7 inadequate seating n.a. 21.8 noise at the work position 5.13, 7.2, Annex F 21.9 vibration at the work position n.a. 21.10 insufficient means for evacuation/Emergency exit n.a. 22 Due to the control system:
22.1 inadequate location of manual controls 5.2.1, 5.12 SIST EN 14492-1:2007+A1:2010

Hazards Relevant clause(s) in this European Standard 22.2 inadequate design of manual controls and their mode of operation 5.2.1, 5.10.3, 5.10.4, 5.11.5, 5.11.6.1, 5.12 23 From handling the machine (lack of stability) 5.1 24 Due to the power source and to the transmission of power:
24.1 hazards from the engine and the batteries n.a. 24.2 hazards from transmission of power between machines n.a. 24.3 hazards from coupling and towing n.a. 25 From/to third persons due to:
25.1 unauthorised start-up/use 5.2.1 25.2 drift of a part away from its stopping position 5.2.4 25.3 lack or inadequacy of visual or acoustic warning means n.a. 26 Insufficient instructions for the driver/operator 7 Additional hazards, hazardous situations and hazardous events due to lifting 27 Mechanical hazards and hazardous events:
27.1 from load falls, collisions, machine tipping caused by:
27.1.1 lack of stability 5.1 27.1.2 uncontrolled loading – overloading – overturning moments exceeded 5.2.2, 5.11.3 27.1.3 uncontrolled amplitude of movements 5.2.1, 5.2.4, 5.4, 5.12.8.2 27.1.4 unexpected/unintended movement of loads 5.2.1, 5.2.2, 5.4, 5.10.2.2, 5.11.3, 5.11.6.2, 5.12.8.2, 5.15.4, 5.16.3, 5.17.4 27.1.5 inadequate holding devices/accessories 5.1, 5.6, 5.7.6, 5.7.8, 5.8.4, 5.9.4, 5.9.5, 5.16.7, 5.16.8 27.1.6 collision of more than one machine n.a. 27.2 from access of persons to load support n.a. 27.3 from derailment n.a. 27.4 from insufficient mechanical strength of parts 5.1, 5.2, 5.3, 5.4, 5.5, 5.6, 5.7, 5.8, 5.9, 5.11.4.1, 5.11.4.2, 5.15.2, 5.15.6, 5.15.7, 5.16.5, 5.16.7, 5.16.8, 5.17.6 27.5 from inadequate design of pulleys, drums 5.7.1, 5.7.2, 5.7.4, 5.7.5, 5.7.6, 5.9.1, 5.9.3, 5.9.4, 5.16.6, 5.16.7 27.6 from inadequate selection of chains, ropes, lifting and accessories and their inadequate integration into the machine 5.7, 5.8, 5.9, 5.15.6, 5.16.5, 5.17.6
27.7 from lowering of the load under the control of friction brake 5.4 27.8 from abnormal conditions of assembly/testing/use/maintenance 7 27.9 from the effect of load on persons (impact by load or counterweight) 5.2.1, 7 SIST EN 14492-1:2007+A1:2010

Hazards Relevant clause(s) in this European Standard 28 Electrical hazards
28.1 from lightning 5.12 29 Hazards generated by neglecting ergonomic principles n.a. 29.1 insufficient visibility from the driving position
7 Additional hazards, hazardous situations and hazardous events due to underground work 30 Mechanical hazards and hazardous events due to:
