ISO 11782-2:1998/Amd 1:2024

International
Standard
ISO 11782-2
First edition
Corrosion of metals and alloys —
1998-07-15
Corrosion fatigue testing —
AMENDMENT 1
Part 2:
2024-05
Crack propagation testing using
precracked specimens
AMENDMENT 1
Corrosion des métaux et alliages — Essais de fatigue-corrosion —
Partie 2: Essais d'amorce de rupture sur des éprouvettes
préfissurées
AMENDEMENT 1
Reference number
ISO 11782-2:1998/Amd.1:2024(en) © ISO 2024

ISO 11782-2:1998/Amd.1:2024(en)

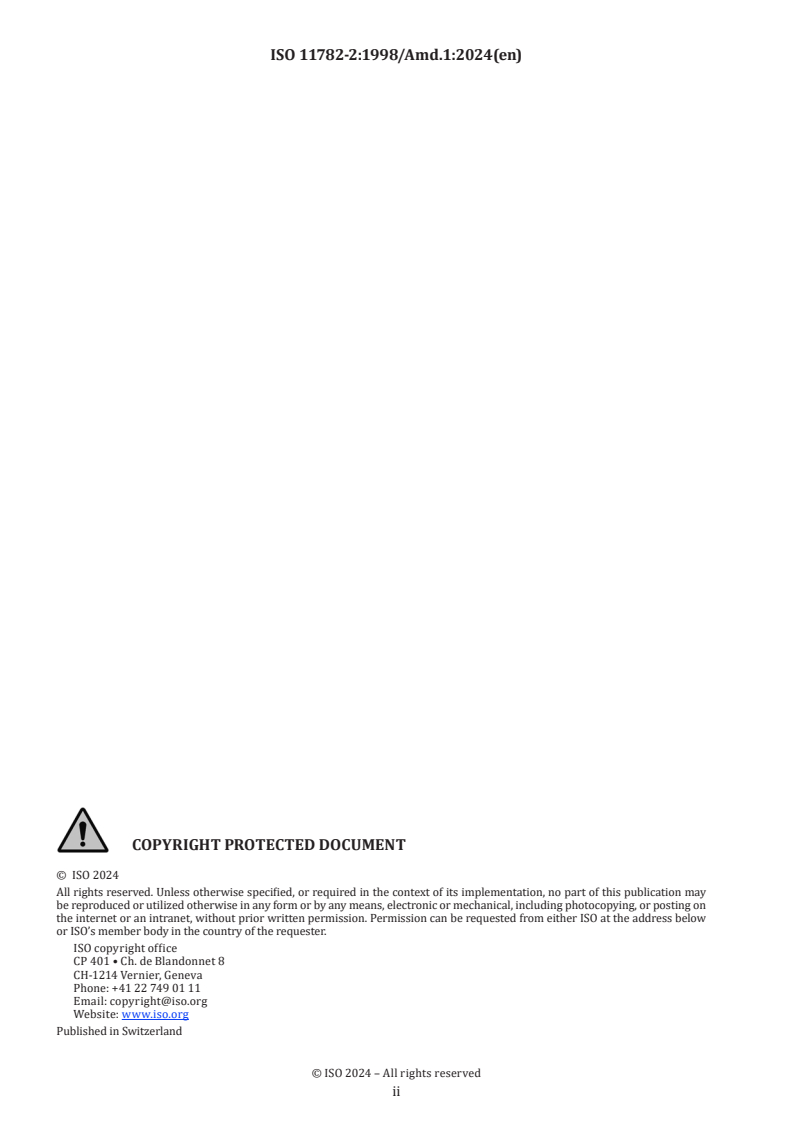

© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 11782-2:1998/Amd.1:2024(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 156, Corrosion of metals and alloys, in
collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/TC 262,
Metallic and other inorganic coatings, including for corrosion protection and corrosion testing of metals and
alloys, in accordance with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
A list of all parts in the ISO 11782 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iii
ISO 11782-2:1998/Amd.1:2024(en)
Corrosion of metals and alloys — Corrosion fatigue testing —
Part 2:
Crack propagation testing using precracked specimens
AMENDMENT 1
4.2.2
Move Table 1 at the end of last paragraph, as follows:
Specimen geometries which are frequently used for corrosion fatigue crack growth rate testing include the
following:
a) three-point single edge notch bend (SENB3);
b) four-point single edge notch bend (SENB4);
c) compact tension (CT);
d) centre-cracked tension (CCT).
Details of standard specimen designs for each of these types of specimen are given in Figures 3 to 6 and
permitted notch geometries are given in Figure 7. Suitable machining tolerances are given in Table 1.
Table 1 — Dimensions of specimens with tolerances
Dimension Tolerances Surface finish, squareness and parallelism
L Surfaces shall be perpendicular and parallel as applicable to
within 0,002 W (Total indicator reading)
G
H Surface finish of faces perpendicular to the line of the notch root
to be Ra 0,8 µm
±0,01 W
F
F ±0,004 W Notch to be equidistant about centre-line to within 0,01 W
Holes to be square to faces within ±0,007 5 W and parallel
D +0,004 W within ±0,000 5 W
Surface finish Ra 0,4 µm
4.2.3
Move Table 2 to Table 5 at the end of last paragraph, as follows:
The values of Y appropriate to the four specimen geometries discussed above are given in Tables 2 to 5.

ISO 11782-2:1998/Amd.1:2024(en)
Table 2 — Stress intensity factor function values for SENB3 specimens

a/W 0,000 0,001 0,002 0,003 0,004 0,005 0,006 0,007 0,008 0,009
0,10 3,39 3,40 3,42 3,43 3,45 3,46 3,48 3,49 3,50 3,52
0,11 3,53 3,55 3,56 3,58 3,59 3,60 3,62 3,63 3,64 3,66
0,12 3,67 3,69 3,70 3,71 3,73 3,74 3,75 3,77 3,78 3,79
0,13 3,81 3,82 3,83 3,85 3,86 3,87 3,89 3,90 3,91 3,93
0,14 3,94 3,95 3,96 3,98 3,99 4,00 4,02 4,03 4,04 4,05
0,15 4,07 4,08 4,09 4,11 4,12 4,13 4,14 4,16 4,17 4,18
0,16 4,19 4,21 4,22 4,23 4,25 4,26 4,27 4,28 4,30 4,31
0,17 4,32 4,33 4,35 4,36 4,37 4,38 4,40 4,41 4,42 4,43
0,18 4,45 4,46 4,47 4,48 4,50 4,51 4,52 4,54 4,55 4,56
0,19 4,57 4,59 4,60 4,61 4,62 4,64 4,65 4,66 4,67 4,69

0,20 4,70 4,71 4,72 4,74 4,75 4,76 4,78 4,79 4,80 4,81
0,21 4,83 4,84 4,85 4,87 4,88 4,89 4,90 4,92 4,93 4,94
0,22 4,96 4,97 4,98 5,00 5,01 5,02 5,03 5,05 5,06 5,07
0,23 5,09 5,10 5,11 5,13 5,14 5,15 5,17 5,18 5,19 5,21
0,24 5,22 5,23 5,25 5,26 5,27 5,29 5,30 5,32 5,33 5,34
0,25 5,36 5,37 5,38 5,40 5,41 5,43 5,44 5,45 5,47 5,48
0,26 5,49 5,51 5,52 5,54 5,55 5,57 5,58 5,59 5,61 5,62
0,27 5,64 5,65 5,67 5,68 5,69 5,71 5,72 5,74 5,75 5,77
0,28 5,78 5,80 5,81 5,83 5,84 5,86 5,87 5,89 5,90 5,92
0,29 5,93 5,95 5,96 5,98 5,99 6,01 6,02 6,04 6,05 6,07

0,30 6,08 6,10 6,12 6,13 6,15 6,16 6,18 6,20 6,21 6,23
0,31 6,24 6,26 6,28 6,29 6,31 6,32 6,34 6,36 6,37 6,39
0,32 6,41 6,42 6,44 6,46 6,47 6,49 6,51 6,52 6,54 6,56
0,33 6,57 6,59 6,61 6,63 6,64 6,66 6,68 6,69 6,71 6,73
0,34 6,75 6,77 6,78 6,80 6,82 6,84 6,85 6,87 6,89 6,91
0,35 6,93 6,95 6,96 6,98 7,00 7,02 7,04 7,06 7,08 7,09
0,36 7,11 7,13 7,15 7,17 7,19 7,21 7,23 7,25 7,27 7,29
0,37 7,31 7,33 7,34 7,36 7,38 7,40 7,42 7,44 7,46 7,48
0,38 7,51 7,53 7,55 7,57 7,59 7,61 7,63 7,65 7,67 7,69
0,39 7,71 7,73 7,75 7,78 7,80 7,82 7,84 7,86 7,88 7,91

0,40 7,93 7,95 7,97 7,99 8,02 8,04 8,06 8,08 8,11 8,13
0,41 8,15 8,17 8,20 8,22 8,24 8,27 8,29 8,31 8,34 8,36
0,42 8,38 8,41 8,43 8,46 8,48 8,50 8,53 8,55 8,58 8,60
0,43 8,63 8,65 8,68 8,70 8,73 8,75 8,78 8,80 8,83 8,85
0,44 8,88 8,90 8,93 8,96 8,98 9,01 9,04 9,06 9,09 9,12
0,45 9,14 9,17 9,20 9,22 9,25 9,28 9,31 9,33 9,36 9,39
0,46 9,42 9,45 9,47 9,50 9,53 9,56 9,59 9,62 9,65 9,68
0,47 9,70 9,73 9,76 9,79 9,82 9,85 9,88 9,91 9,94 9,97
0,48 10,01 10,04 10,07 10,10 10,13 10,16 10,19 10,22 10,26 10,29
0,49 10,32 10,35 10,38 10,42 10,45 10,48 10,52 10,55 10,58 10,62

0,50 10,65 10,68 10,72 10,75 10,79 10,82 10,86 10,89 10,93 10,96
0,51 11,00 11,03 11,07 11,10 11,14 11,18 11,21 11,25 11,29 11,32
0,52 11,36 11,40 11,43 11,47 11,51 11,55 11,59 11,63 11,68 11,70
0,53 11,74 11,78 11,82 11,86 11,90 11,94 11,98 12,02 12,06 12,10

ISO 11782-2:1998/Amd.1:2024(en)
TTabablele 2 2 ((ccoonnttiinnueuedd))

a/W 0,000 0,001 0,002 0,003 0,004 0,005 0,006 0,007 0,008 0,009
0,54 12,15 12,19 12,23 12,27 12,31 12,35 12,40 12,44 12,48 12,53
0,55 12,57 12,61 12,66 12,70 12,75 12,79 12,84 12,88 12,92 12,97
0,56 13,02 13,06 13,11 13,16 13,20 13,25 13,30 13,35 13,39 13,44
0,57 13,49 13,54 13,59 13,64 13,69 13,74 13,79 13,84 13,89 13,98
0,58 13,99 14,04 14,10 14,15 14,20 14,25 14,31 14,36 14,41 14,47
0,59 14,52 14,58 14,63 14,69 14,74 14,80 14,86 14,91 14,97 15,03

0,60 15,09 15,14 15,20 15,26 15,32 15,38 15,44 15,50 15,56 15,62
0,61 15,69 15,75 15,81 15,87 15,94 16,00 16,06 16,13 16,19 16,26
0,62 16,32 16,39 16,46 16,52 16,59 16,66 16,73 16,80 16,86 16,93
0,63 17,00 17,08 17,15 17,22 17,29 17,36 17,44 17,51 17,58 17,60
0,64 17,73 17,81 17,88 17,96 18,04 18,12 18,19 18,27 18,25 18,43
0,65 18,51 18,59 18,67 18,76 18,84 18,92 19,01 19,09 19,18 19,26
0,66 19,35 19,44 19,52 19,61 19,70 19,79 19,85 19,97 20,06 20,15
0,67 20,25 20,34 20,44 20,53 20,63 20,72 20,82 20,92 21,02 21,12
0,68 21,22 21,32 21,42 21,52 21,63 21,73 21,84 21,94 22,05 22,16
0,69 22,27 22,38 22,49 22,60 22,71 22,82 22,94 23,05 23,17 23,28

0,70 23,40 23,52 23,64 23,76 23,88 24,01 24,13 24,25 24,38 24,51
0,71 24,64 24,76 24,90 25,03 25,16 25,29 25,43 25,56 25,70 25,84
0,72 25,98 26,12 26,26 26,41 26,55 26,70 26,85 27,00 27,15 27,30
0,73 27,45 27,61 27,76 27,92 28,08 28,24 28,40 28,56 28,73 28,90
0,74 29,06 29,23 29,41 29,53 29,75 29,93 30,11 30,29 30,47 30,65
0,75 30,84 31,03 31,22 31,41 31,60 31,80 31,99 32,19 32,39 32,60
0,76 32,80 33,01 33,22 33,43 33,65 33,86 34,08 34,31 34,53 34,76
0,77 34,98 35,22 35,45 35,69 35,92 36,17 36,41 36,66 36,91 37,16
0,78 37,42 37,67 37,94 38,20 38,47 38,74 39,01 39,29 39,57 39,85
0,79 40,14 40,43 40,73 41,02 41,32 41,63 41,94 42,25 42,57 42,89

0,80 43,21 43,54 43,87 44,21 44,55 44,90 45,25 45,60 45,96 46,33
0,81 46,70 47,07 47,45 47,83 48,22 48,62 49,02 49,42 49,83 50,25
0,82 50,67 51,10 51,54 51,98 52,43 52,88 53,34 53,81 54,28 54,76
0,83 55,25 55,74 56,25 56,76 57,27 57,80 58,33 58,88 59,43 59,98
0,84 60,55 61,13 61,72 62,31 62,92 65,53 64,16 64,79 65,44 66,09
0,85 66,76 67,44 68,13 68,83 69,55 70,27 71,01 71,77 72,53 73,31
0,86 74,11 74,91 75,74 76,57 77,43 78,30 79,18 80,09 81,01 81,94
0,87 82,90 83,87 84,87 85,88 86,91 87,97 89,04 90,14 91,26 92,40
0,88 93,57 94,76 95,98 97,23 98,50 99,80 — — — —
0,89 — — — — — — — — — —
1/2
Tabulated values = (KB/P) × W
Span = 4 W
[1]
Closed form approximation :
12/ 2
 
61αα ,,99 −−()12αα15 −+39,,32 7α
()
 
Y =
32/
()12+−αα()1
where α = a/W
Applicability: all values of a/W

ISO 11782-2:1998/Amd.1:2024(en)
Table 3 — Stress intensity factor function values for SENB4 specimens

a/W 0,000 0,001 0,002 0,003 0,004 0,005 0,006 0,007 0,008 0,009
0,10 1,75 1,76 1,77 1,77 1,78 1,79 1,80 1,81 1,81 1,82
0,11 1,83 1,84 1,84 1,85 1,86 1,87 1,87 1,88 1,89 1,90
0,12 1,90 1,91 1,92 1,93 1,93 1,94 1,95 1,96 1,96 1,97
0,13 1,98 1,99 1,99 2,00 2,01 2,01 2,02 2,03 2,04 2,04
0,14 2,05 2,06 2,06 2,07 2,08 2,09 2,09 2,10 2,11 2,11
0,15 2,12 2,13 2,13 2,14 2,15 2,15 2,16 2,17 2,18 2,18
0,16 2,19 2,20 2,20 2,21 2,22 2,22 2,23 2,24 2,24 2,25
0,17 2,26 2,26 2,27 2,28 2,29 2,29 2,30 2,31 2,31 2,32
0,18 2,33 2,33 2,34 2,35 2,35 2,36 2,37 2,37 2,38 2,39
0,19 2,39 2,40 2,41 2,41 2,42 2,43 2,44 2,44 2,45 2,46

0,20 2,46 2,47 2,48 2,48 2,49 2,50 2,50 2,51 2,52 2,52
0,21 2,53 2,54 2,54 2,55 2,56 2,57 2,57 2,58 2,59 2,59
0,22 2,60 2,61 2,61 2,62 2,63 2,64 2,64 2,65 2,66 2,66
0,23 2,67 2,68 2,68 2,69 2,70 2,71 2,71 2,72 2,73 2,73
0,24 2,74 2,75 2,76 2,76 2,77 2,78 2,78 2,79 2,80 2,81
0,25 2,81 2,82 2,83 2,84 2,84 2,85 2,86 2,86 2,87 2,88
0,26 2,89 2,89 2,90 2,91 2,92 2,92 2,93 2,94 2,95 2,95
0,27 2,96 2,97 2,98 2,98 2,99 3,00 3,01 3,02 3,02 3,03
0,28 3,04 3,05 3,05 3,06 3,07 3,08 3,09 3,09 3,10 3,11
0,29 3,12 3,12 3,13 3,14 3,15 3,16 3,16 3,17 3,18 3,19

0,30 3,20 3,21 3,21 3,22 3,23 3,24 3,25 3,25 3,26 3,27
0,31 3,28 3,29 3,30 3,31 3,31 3,32 3,33 3,34 3,35 3,36
0,32 3,36 3,37 3,38 3,39 3,40 3,41 3,42 3,43 3,43 3,44
0,33 3,45 3,46 3,47 3,48 3,49 3,50 3,51 3,52 3,52 3,53
0,34 3,54 3,55 3,56 3,57 3,58 3,59 3,60 3,61 3,62 3,63
0,35 3,64 3,65 3,65 3,66 3,67 3,68 3,69 3,70 3,71 3,72
0,36 3,73 3,74 3,75 3,76 3,77 3,78 3,79 3,80 3,81 3,82
0,37 3,83 3,84 3,85 3,86 3,87 3,88 3,89 3,90 3,91 3,92
0,38 3,93 3,94 3,96 3,97 3,98 3,99 4,00 4,01 4,02 4,03
0,39 4,04 4,05 4,06 4,07 4,08 4,10 4,11 4,12 4,13 4,14

0,40 4,15 4,16 4,17 4,19 4,20 4,21 4,22 4,23 4,24 4,25
0,41 4,27 4,28 4,29 4,30 4,31 4,33 4,34 4,35 4,36 4,37
0,42 4,39 4,40 4,41 4,42 4,44 4,45 4,46 4,47 4,49 4,50
0,43 4,51 4,52 4,54 4,55 4,56 4,57 4,59 4,60 4,61 4,63
0,44 4,64 4,65 4,67 4,68 4,69 4,71 4,72 4,73 4,75 4,76
0,45 4,77 4,79 4,80 4,82 4,83 4,84 4,86 4,87 4,89 4,90
0,46 4,92 4,93 4,94 4,96 4,97 4,99 5,00 5,02 5,03 5,05
0,47 5,06 5,08 5,09 5,11 5,12 5,14 5,15 5,17 5,19 5,20
0,48 5,22 5,23 5,25 5,26 5,28 5,30 5,31 5,33 5,35 5,36
0,49 5,38 5,39 5,41 5,43 5,44 5,46 5,48 5,50 5,51 5,53

0,50 5,55 5,56 5,58 5,60 5,62 5,63 5,65 5,67 5,69 5,71
0,51 5,72 5,74 5,76 5,78 5,80 5,82 5,83 5,85 5,87 5,89
0,52 5,91 5,93 5,95 5,97 5,99 6,01 6,03 6,05 6,07 6,09
0,53 6,11 6,13 6,15 6,17 6,19 6,21 6,23 6,25 6,27 6,29

ISO 11782-2:1998/Amd.1:2024(en)
TTabablele 3 3 ((ccoonnttiinnueuedd))

a/W 0,000 0,001 0,002 0,003 0,004 0,005 0,006 0,007 0,008 0,009
0,54 6,31 6,33 6,35 6,38 6,40 6,42 6,44 6,46 6,48 6,51
0,55 6,53 6,55 6,57 6,60 6,62 6,64 6,67 6,69 6,71 6,73
0,56 6,76 6,78 6,81 6,83 6,85 6,88 6,90 6,93 6,95 6,98
0,57 7,00 7,03 7,05 7,08 7,10 7,13 7,15 7,18 7,20 7,23
0,58 7,26 7,28 7,31 7,34 7,36 7,39 7,42 7,45 7,47 7,50
0,59 7,53 7,56 7,59 7,61 7,64 7,67 7,70 7,73 7,78 7,79

0,60 7,82 7,85 7,88
...
