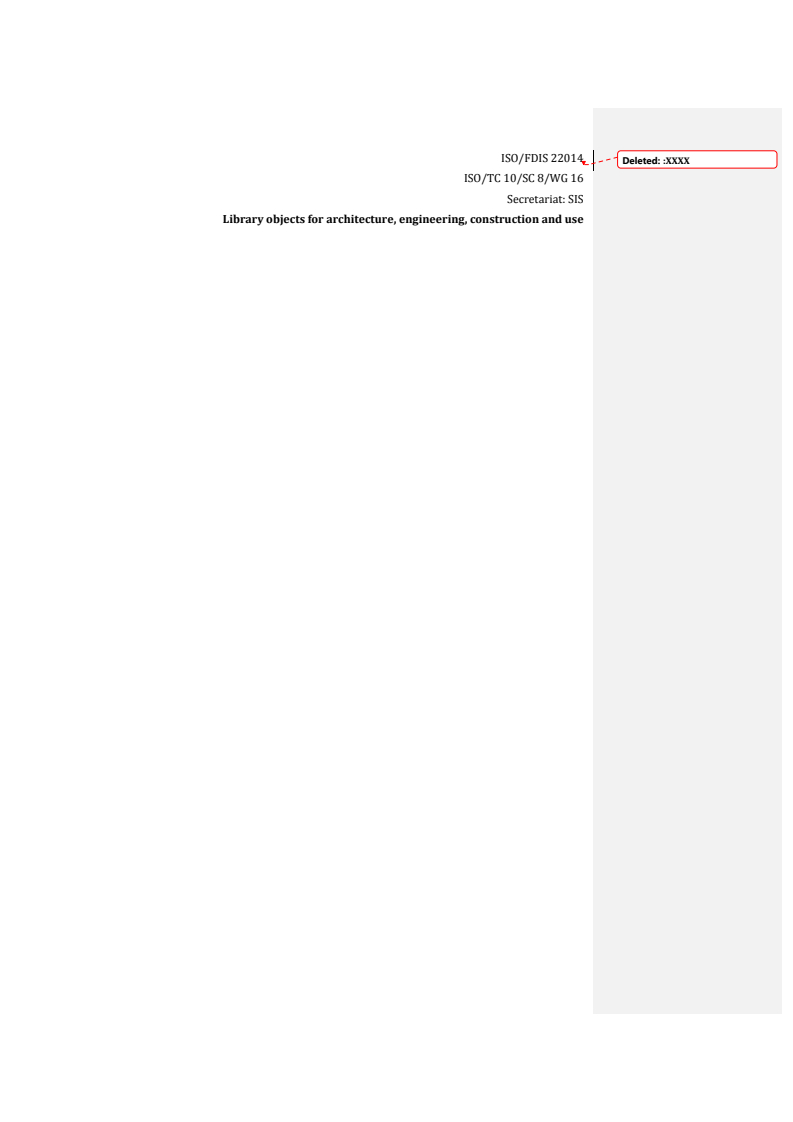

ISO/FDIS 22014

ISO/FDIS 22014
Deleted: :XXXX
ISO/TC 10/SC 8/WG 16
Secretariat: SIS
Library objects for architecture, engineering, construction and use

© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation,
no part of this publication may be reproduced or utilized otherwise in any form or by any means,
electronic or mechanical, including photocopying, or posting on the internet or an intranet,
without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 — Ch. de Blandonnet 8
CH‐1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

Field Code Changed

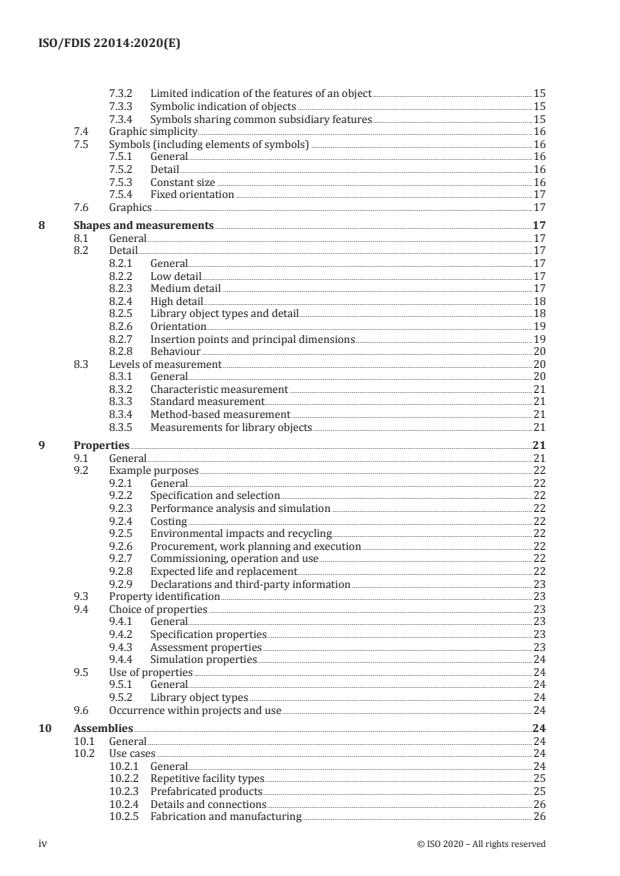

Contents
Deleted:
Introduction. vii
1  Scope . 1
2  Normative references . 1
3  Terms and definitions . 2
4  Applications . 4
4.1  General . 4
4.2  Template objects . 5
4.3  Generic objects . 5
4.4  Product objects. 5
4.4.1  General . 5
4.4.2  Catalogue product objects . 6
4.4.3  Parametric series product objects . 6
4.4.4  Engineered-to-order product objects . 6
5  Principles . 6
6  Identification and origination of library objects . 7
6.1  General . 7
6.2  Format . 7
6.3  Object definition . 8
6.4  Ide ntif ication . 8
6.4.1  Introduction . 8
6.4.2  General . 8
6.4.3  Naming (file and object) . 8
6.4.4  Description . 9
6.4.5  Unique identifier . 10
6.4.6  Other identifiers . 10
6.5  Origination . 10
6.5.1  General . 10
6.5.2  Source . 10
6.5.3  Library object version and date . 10
6.5.4  Product version and date . 10
6.5.5  Further information (references/links) . 10
6.5.6  Updates (references/links) . 11
6.5.7  Software . 11
6.6  Classification . 11
6.6.1  General . 11
6.6.2  Classification schemes . 11
6.6.3  Multiple classifications . 11
6.7  Occurrence information . 12
6.7.1  General . 12
6.7.2  Reference designations . 13
7  Symbols and simplified representation . 13
7.1  General . 13
© ISO 2020 – All rights reserved iii

7.2  Defining properties for symbols . 15
7.2.1  General . 15
7.2.2  Presentation contents . 15
7.2.3  Dimension . 15
7.2.4  Projection method . 15
7.2.5  Scale . 16
7.2.6  Presentation style . 16
7.3  Features . 17
7.3.1  General . 17
7.3.2  Limited indication of the features of an object . 17
7.3.3  Symbolic indication of objects . 17
7.3.4  Symbols sharing common subsidiary features . 17
7.4  Graphic simplicity . 17
7.5  Symbols (including elements of symbols) . 18
7.5.1  General . 18
7.5.2  Detail . 18
7.5.3  Constant size . 18
7.5.4  Fixed orientation . 18
7.6  Graphics . 19
8  Shapes and measurements . 19
8.1  General . 19
8.2  Detail . 19
8.2.1  General . 19
8.2.2  Low detail . 19
8.2.3  Medium detail . 19
8.2.4  High detail . 20
8.2.5  Library object types and detail . 20
8.2.6  Orientation . 21
8.2.7  Insertion points and principal dimensions . 21
8.2.8  Behaviour . 22
8.3  Levels of measurement . 22
8.3.1  General . 22
8.3.2  Characteristic measurement . 23
8.3.3  Standard measurement . 23
8.3.4  Method-based measurement . 23
8.3.5  Measurements for library objects . 23
9  Properties . 24
9.1  General . 24
9.2  Example purposes . 24
............................................................................................................................................................. 24
9.2.1  General
9.2.2  Specification and selection . 24
9.2.3  Performance analysis and simulation . 24
9.2.4  Costing . 24
9.2.5  Environmental impacts and recycling . 24
9.2.6  Procurement, work planning and execution . 24
9.2.7  Commissioning, operation and use . 24
9.2.8  Expected life and replacement . 25
9.2.9  Declarations and third-party information . 25
9.3  Property identification . 25
9.4  Choice of properties . 25
9.4.1  General . 25
9.4.2  Specification properties . 26
iv © ISO 2020 – All rights reserved

9.4.3  Assessment properties . 26
9.4.4  Simulation properties . 26
9.5  Use of properties . 26
9.5.1  General . 26
9.5.2  Library object types . 26
9.6  Occurrence within projects and use . 27
10  Assemblies . 27
10.1  General . 27
10.2  Use cases . 27
10.2.1  General . 27
10.2.2  Repetitive facility types . 28
10.2.3  Prefabricated products . 28
10.2.4  Details and connections . 28
10.2.5  Fabrication and manufacturing . 28
10.2.6  Layered constructions . 28
10.3  Processes . 29
10.3.1  Preparation and publication . 29
10.3.2  Design and development . 29
10.3.3  Measurement . 29
10.3.4  Use in asset management . 29
10.4  Implementation . 29
10.5  Identification and grouping of assemblies . 30
10.5.1  General . 30
10.5.2  Symbols . 30
10.5.3  Shape and measurement . 30
10.5.4  Properties . 31
10.5.5  Composition . 31
Annex A (informative) Examples . 32
Annex B (informative) Localization . 40
Bibliography . 41
© ISO 2020 – All rights reserved v

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national
standards bodies (ISO member bodies). The work of preparing International Standards is normally
carried out through ISO technical committees. Each member body interested in a subject for which a
technical committee has been established has the right to be represented on that committee.
International organizations, governmental and non‐governmental, in liaison with ISO, also take part in
the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all
matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT)
see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 10, Technical product documentation,
Subcommittee SC 8, Construction documentation.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
vi © ISO 2020 – All rights reserved

Introduction
0.1 General
This document describes best practice for the development and application of library objects to support
building information modelling (BIM) based design, specification and construction processes, including
giving additional recommendations for specific use‐cases such as assemblies.
The objective has been to develop an international standard giving principles and definitions for the
Deleted: International Standard
symbolic and simplified visual presentation of library objects in connection with BIM, and their
organization into libraries.
0.2 Purpose and justification
The purpose of this document is to offer a persistent standard for developers, library providers,
designers and manufacturers, to improve the exchange and reuse of library objects.
Library objects and their corresponding graphical symbols (symbols) are today commonly provided in
digital format by BIM authoring software. Traditional paper‐based methods for symbols have therefore
become less useful and are in some cases outdated. Several national standards have even been
withdrawn due to lack of maintenance and conflicting international standards. Still, documentation of
Deleted: International Standards.
complex entities like buildings and civil engineering works requires clear and uniform presentation so
as to be legible and easily understood. Library objects, by combining properties, shape and symbols,
offer scope for greater accuracy and efficiency.
Current technology gives the opportunity to adjust the views of library objects (content and visual
presentation) to the many purposes that occur during the lifecycle of a building information model, and
to connect symbol graphics to library objects. This document is intended to give a framework for the
presentation of model objects, with respect to those purposes, and also the structuring of symbols into
symbol libraries.
0.3 Relationship to other standards
The increased adoption of data dictionaries, along with ISO 23386 and ISO 23387, is expected to
Deleted: and the upcoming
standards EN
facilitate the preparation of properties for the non‐graphic aspects of library objects.
Deleted: EN
The EN 17412 series focuses on the specification of the level of information need for project
deliverables, whereas this document is intended to support the preparation of libraries outside of any
Deleted: are
individual project.
Deleted: upcoming CEN standard
Deleted: will focus
© ISO 2020 – All rights reserved vii

FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 22014:2020(E)

Library objects for architecture, engineering, construction and
use
1 Scope
This document gives requirements for defining format and content for library objects to support project
inception, brief, design, tendering, construction, operations, use and demolition, supporting the
development of information throughout the process, giving principles and definitions for the symbolic
and simplified visual presentation of objects in connection with building information modelling (BIM)
and their organization into libraries. It is intended for all professionals and service providers using
generic and product‐specific data, supporting the development of information throughout the process.
A library object is intended for reuse within project teams and across organizations. This serves to
improve accuracy and constructability of designs, and to improve the handover of information through
the supply chain to the owner or operator. Objects and their corresponding graphical symbols are today
Deleted: /
commonly provided in digital format. Objects combining properties, shape and symbols offer scope for
greater accuracy and efficiency.
This document:
— establishes requirements for defining template objects, generic objects and product objects in data‐
driven library and design processes;
— establishes requirements for symbols and other graphic conventions for use on drawings for the
construction industry. It also describes a rationale of symbolism which establishes rules for the
design of symbols and other graphic conventions, and gives recommendations for the application of
those rules and the ways in which symbolism should be used;
— covers purposes for characterizing the shape and measurement of library objects;
— covers purposes for specifying and assessing properties for library objects. It defines the
information appropriate for specific uses including specification of the desired outcome (typically
by designers and engineers) and the selection of identified products (typically by contractors and
subcontractors). It also gives recommendations for the application of assemblies in integrated BIM
working.
This document is intended for all professionals and service providers who produce and use library
objects with generic and product‐specific data. This group includes, but is not limited to, product
manufacturers and suppliers, library authors, designers and engineers, contractors, owners,
maintainers and commissioners.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
© ISO 2020 – All rights reserved 1

ISO 13567‐1, Technical product documentation — Organization and naming of layers for CAD — Part 1:
Deleted: ISO 12006‐2, Building
construction — Organization of
Overview and principles
information about construction
works — Part 2: Framework for
ISO 13567‐2, Technical product documentation — Organization and naming of layers for CAD — Part 2:
classification.¶
Concepts, format and codes used in construction documentation
ISO 12006‐3, Building
construction — Organization of
ISO/TS 15926‐4, Industrial automation systems and integration — Integration of life-cycle data for information about construction
works — Part 3: Framework for
process plants including oil and gas production facilities — Part 4: Initial reference data
object-oriented information¶
ISO 16739‐1, Industry Foundation Classes (IFC) for data sharing in the construction and facility Deleted: ‐
management industries — Part 1: Data schema
Deleted: ‐
ISO 80000‐1, Quantities and units — Part 1: General
Deleted: ‐
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
library object
type object
Deleted:
representation of an object, being maintained as part of a collection with common features (
Deleted: )
Note 1 to entry: A library object can be a template object, generic object or product object.
Note 2 to entry: A library object is independent of any occurrence and has no placement in space.
Note 3 to entry: A library object may be referred to as a type object or class.
Note 4 to entry: See Figure 1.
2 © ISO 2020 – All rights reserved

Deleted:
Formatted: Font:
Figure 1 — Relationship between library objects
3.2
template object
library object (3.1) used as a guide to produce generic objects (3.3) and product objects (3.4)
Deleted: 1.2
Deleted: 1.3
Note 1 to entry: A template object typically provides schedules of classification values and a minimum set of
properties. The measurement type (e.g. “area”) of properties (e.g. “effective area”) are specified, but the values and
Deleted: "
units (e.g. “0,300” and “m”) are not.
Deleted: “Effective Area
Note 2 to entry: Data templates containing recommended properties and set(s) of properties could be available to
Deleted: "
support the development of template objects.
Deleted: "
Deleted: and/or sets
3.3
generic object
library object (3.1) used as a generalization
Note 1 to entry: A generic object is intended for use prior to being resolved into a product.
Note 2 to entry: Typically, shape and symbols will be provided and some property values with units.
Deleted: ,
3.4
product object
library object (3.1) used to represent a product
Deleted: <#>
product¶
tangible outcome of a process ¶
3.5
[SOURCE: ISO 6707‐3:2017, 3.3.1]¶
occurrence object
instance of a specific library object (3.1) that realizes a library object class
Deleted: [SOURCE: ISO 2382:2015,
based on entity occurrence
Note 1 to entry: Occurrence objects are part of a model of a built asset.
definition]¶
© ISO 2020 – All rights reserved 3

3.6
graphical symbol
visually perceptible figure with a particular meaning used to transmit information independently of
language
Note 1 to entry: Typically, a symbol is a graphic entity without scale, used:
a) on a drawing to indicate the occurrence and/or location of an occurrence object (3.5);
Deleted: 3
b) in an annotation to indicate one or more of the properties (3.9) of a library object (3.1).
Deleted: 7
[SOURCE: ISO 22727:2007, 3.1, modified — Note 1 to entry added.]
3.7
graphical symbol element
part of a graphical symbol (3.6) with a particular meaning
Deleted: 4
[SOURCE: ISO 22727:2007, 3.5]
3.8
assembly
set of related types or components attached to each other
Note 1 to entry: Typically, an assembly is a partial model where both the overall assembly and the constituent
parts are managed during design, construction or use, and the constituent parts are located relative to the overall
assembly.
[SOURCE: ISO 6707‐1:2017, 3.3.5.5, modified — “types or” and Note 1 to entry added.]
Deleted: ‐
3.9
property
feature or quality of an object
[SOURCE: ISO 6707‐1:2017, 3.7.1.3, modified]
Deleted: ‐
4 Applications
4.1 General
Library objects shall support the entire life cycle of the virtual representation of the built assets,
including buildings and infrastructure.
Use of consistent template, generic and product objects can add efficiency and reduce risks associated
with data loss or misinterpretation. See Figure 2.
Deleted: figure
4 © ISO 2020 – All rights reserved

Deleted:
Figure 2 — Library objects upgrade processes
Formatted: Font:
4.2 Template objects
Template objects shall be:
— created and shared, to guide library developers;
— used to illustrate best practice, define expectations for completeness and test generic and product
library objects.
Template objects provide guidance for developers of generic objects and product objects and should
Deleted: NOTE
contain only identification information and, wherever possible, properties without value. Shape and
symbolic presentations are optional. Priority should be given to template objects created by
international and regional bodies, professional and trade associations and other consensus‐based
bodies.
4.3 Generic objects
Generic objects shall be:
— based on published template objects where available;
— created and shared for example by application vendors and in‐house application support teams;
— used from the earlier stages of design and specification;
— replaced with or upgraded to product objects when decided.
NOTE Generic objects support initial design and engineering, and so contain at least identification and
specifying information to support the later selection of product library objects.
4.4 Product objects
4.4.1 General
Product objects shall be:
— based on published generic objects where available;
© ISO 2020 – All rights reserved 5

— created and shared by manufacturers and third parties;
— used to validate design intent;
— used as the basis for quantification and electronic procurement;
— used to document as‐installed information to support operations, maintenance and replacement;
— able to support economic, functional and environmental assessments.
NOTE Product objects support the remaining stages of the project and asset lifecycle by representing procured
products and materials.
4.4.2 Catalogue product objects
Catalogue product objects, representing a specific product with fixed properties, available from a
catalogue, shall be designed to be:
— downloaded and used directly by applications;
— associated to unique product identifiers.
NOTE Catalogue product objects represent off‐the‐shelf products and commodity materials.
4.4.3 Parametric series product objects
Parametric series product objects, representing a controlled range or series of generic or product
objects with variable properties, shall be designed to be:
— downloaded and configured to suit the design and engineering requirements;
— associated to unique series identifiers.
NOTE Parametric series product objects represent configurable variants defined in standards and
manufacturers’ catalogues.
4.4.4 Engineered-to-order product objects
Engineered‐to‐order product objects, representing a specific product, either as a requirement
specification or a resolved solution that can be manufactured, shall be designed to be:
— downloaded and configured to document design and engineering requirements;
— used as the basis for requests for engineered solutions from suppliers and manufacturers;
— upgraded to engineered solutions supplied by a supplier/manufacturer.
NOTE Engineered‐to‐order product objects represent specified configurations which are then substituted by
specific solutions provided by a manufacturer.
5 Principles
Library objects shall support use for the following purposes:
6 © ISO 2020 – All rights reserved

— identification of the product, its physical and virtual source, its classification and type (see
Clauses 4 and 6) and its representation in schedules and quantity take‐offs;
— use in the production of conventional drawings and projections (see Clause 7);
— use in 3D projections, spatial coordination/clash detection, use simulation and visualizations,
quantity take‐off (see Clause 8);
— use in specification, estimating and functional, environmental and economic analysis (see Clause 9);
— use in assemblies where relevant (see Clause 10).
The information provided for these purposes shall be consistent and non‐conflicting, and minimal but
sufficient for the anticipated purposes. The library object, its symbols, shape and properties shall be
associated to a consistent system of units of measure.
Where applicable, library objects shall correspond to real‐world objects containing the information
known and considered relevant at the current stage and purposes of the process. Predefined levels of
detail, measurement and properties shall be considered so as to specify the relevance of the supplied
information with respect to its purpose within a specific period of its lifecycle.
As far as possible, library objects should be created independent of the project stage or specific
purposes, other than the generic to product upgrade process which may occur at any project stage.
Library objects shall have information associated so as to be selectable from the library by applying a
value filter, using classification or other properties.
Occurrences of library objects shall have information associated so as to be selectable from the model
by applying a value filter, using classification or other properties.
NOTE Any representation of a real‐world (physical) object consists of a set of data corresponding to it. The
Deleted: 1
same applies to any other (intangible) phenomenon which needs to be represented in a model‐based construction
process. The information in the library object is always a subset of the potential complete description of the
object, containing a number of properties that are perceived. In most cases, the properties are a subset adapted to
the intended use of the information.
Presentations in the form of text, drawings, images or other forms shall be derived from the library
Deleted: ,
objects to be viewed on screen or printed.
Specific content requirements may be tested using an information delivery manual (IDM), according to
Deleted: NOTE 2
ISO 29481‐1.
Deleted: ‐
6 Identification and origination of library objects
6.1 General
To ensure a qualitative and persistent exchange and reuse of library objects, aspects such as structure,
format, object definition, identification, origination, classification and occurrence information should be
addressed.
6.2 Format
A library object shall be published in a format that enables the transfer of information, both human and
machine‐readable.
© ISO 2020 – All rights reserved 7

6.3 Object definition
A library object shall be characterized to ensure that the object is unambiguously defined by choosing a
type object and predefined type from the Industry Foundation Classes (IFC) schema as specified in
ISO 16739‐1.
If an appropriate IFC type is not available the (Ifc)BuildingElement(ProxyType), a user‐defined
Deleted: ) and/or
predefined type or both may be used.
NOTE An example of a type object and predefined type could be “(Ifc)LightFixture(Type)” and ”PointSource”.
6.4 Identification
6.4.1 Introduction
The library object shall be clearly named to aid identification and selection.
NOTE There could also be a need to identify each occurrence of an object. There are systematic approaches for
identification, with the aim of ensuring that each object is uniquely identifiable. Relevant international standards
for identification and reference designations of such occurrences are the ISO 4157 series and the IEC 81346 series,
respectively.
6.4.2 General
The library object shall be uniquely named and described.
NOTE 1 Maintaining identification information for a library object enables increased accuracy and repeatability
for subsequent processes. A library object file might also have to conform to operating system file naming
limitations.
The following characters may be used in names based on the Latin alphabets:
[A‐Z] [a‐z] [0‐9] _ ‐
Some applications, operating systems and information exchange formats do not accept or handle other
characters or will interpret some of them with a specific meaning. The following characters are
examples that should not be used in names:
—, . ! “ £ $ % ^ & * () { }[ ] + = < >: ? | \ / @ ’ ~ #¬ ` ‘
Deleted: — ,. ! “ £ $ % ^ & * ( ) { }[
] + = < > : ?
NOTE 2 Other alphabets or character sets could have similar conventions. See Annex B on localization.
Deleted: /
The _ (underscore, Unicode U+005F) character shall be used as a delimiter to separate fields forming a
hierarchical sequence where each field is of increasing specialization.
The – (minus, Unicode U+2212) character may be used where the separated fields do not form a
hierarchical sequence.
6.4.3 Naming (file and object)
6.4.3.1 General
The same name shall be used for library objects and their file representation where possible, unless the
file contains multiple library objects.
8 © ISO 2020 – All rights reserved

6.4.3.2 Composition of names
The library object shall be named to identify the origination (source and/or manufacturer), object type
and product or subtype, see Figure 3 and Table 1.
The name shall be formatted using the delimiter and use PascalCase (no spaces and capitalized words)
to simplify phrases. No spaces or other punctuation shall be used.
NOTE 1 For example, a generic object could be named “GGG_LightFixture_PointSource”.
Use of underscore: GGG_Door_Internal_Single.
Use of hyphen: GGG_Wall_External‐215Brick
Generic: NBL_Door_Door
Product: Leaderflush_Door_Door
NOTE 2 This convention can be summarized as {Source}_{Type}_{Subtype/Product} ({Further }).
Deleted: summarised
Deleted:
Formatted: Font:
Figure 3 — File and library object naming
Table 1 — Information in names of library objects
File naming field Description
Source Library object author or manufacturer.
Type Initial specialization (see 6.3).
Subtype or Product code Used to convey additional specializatio
...
