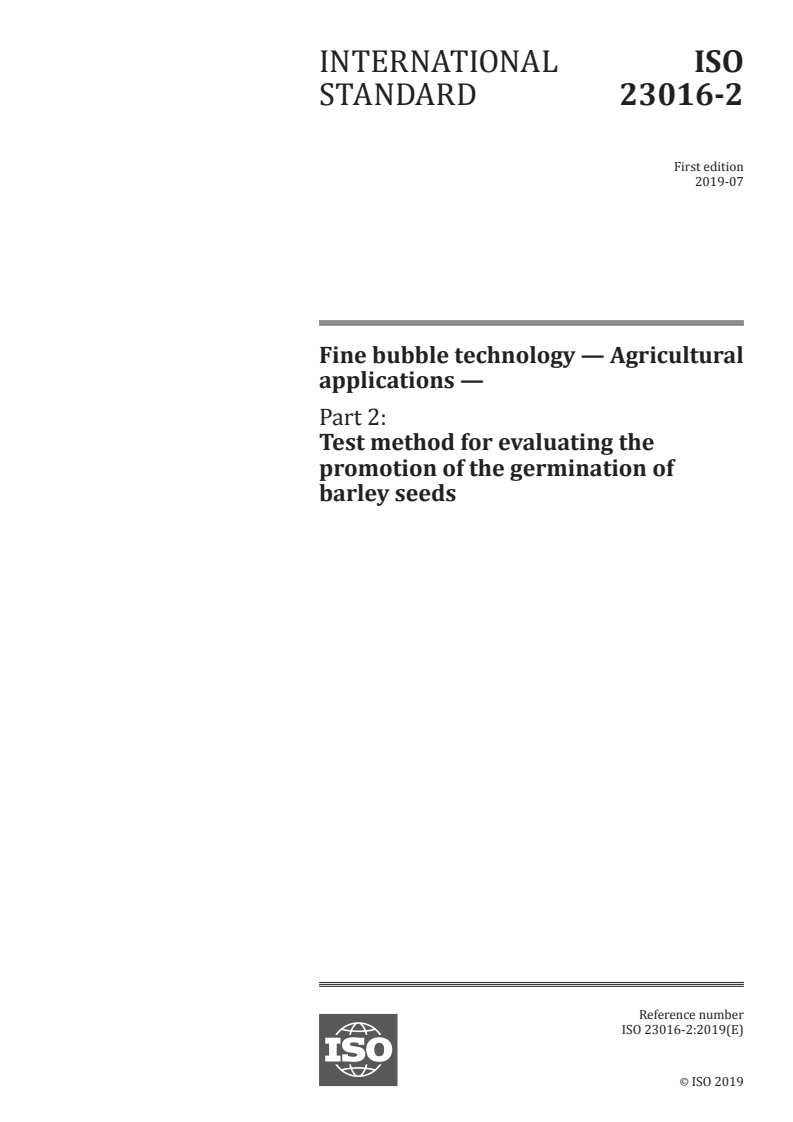

ISO 23016-2:2019

INTERNATIONAL ISO
STANDARD 23016-2
First edition
2019-07
Fine bubble technology — Agricultural
applications —
Part 2:
Test method for evaluating the
promotion of the germination of
barley seeds
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

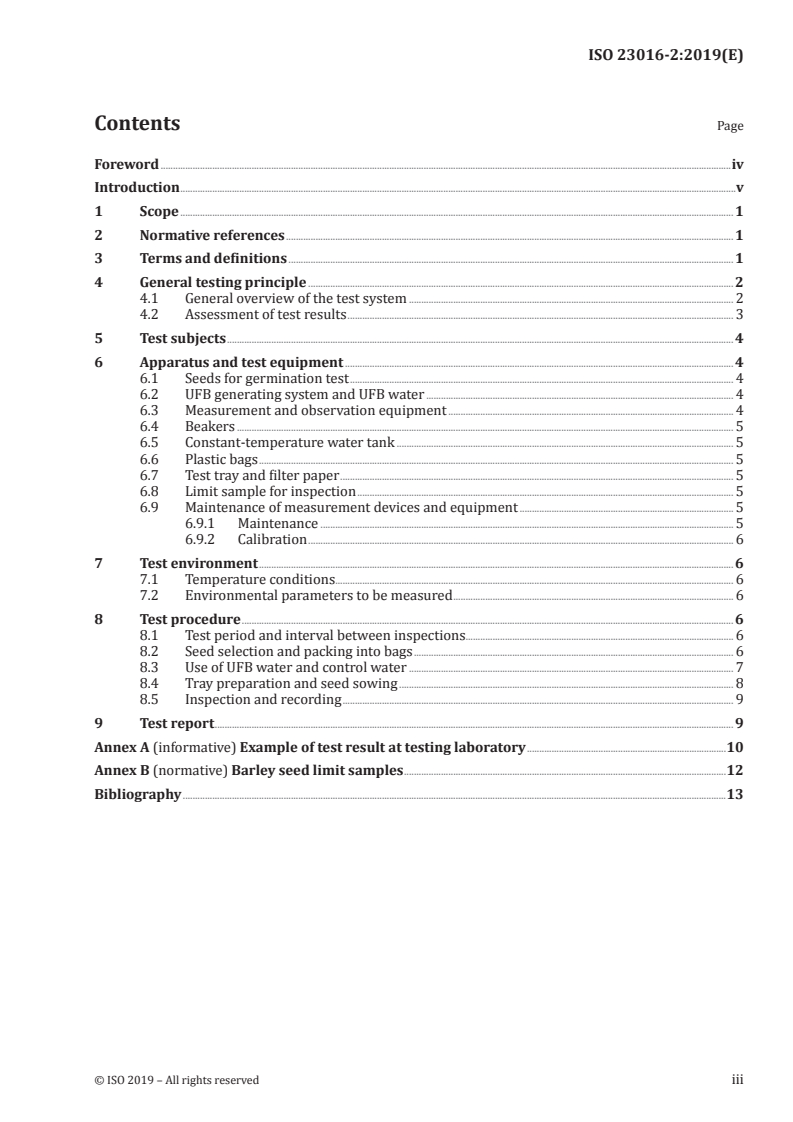

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General testing principle . 2
4.1 General overview of the test system . 2
4.2 Assessment of test results . 3
5 Test subjects . 4
6 Apparatus and test equipment . 4
6.1 Seeds for germination test . 4
6.2 UFB generating system and UFB water . 4
6.3 Measurement and observation equipment . 4
6.4 Beakers . 5
6.5 Constant-temperature water tank . 5
6.6 Plastic bags . 5
6.7 Test tray and filter paper . 5
6.8 Limit sample for inspection . 5
6.9 Maintenance of measurement devices and equipment . 5
6.9.1 Maintenance . 5
6.9.2 Calibration . 6
7 Test environment . 6
7.1 Temperature conditions . 6
7.2 Environmental parameters to be measured . 6
8 Test procedure . 6
8.1 Test period and interval between inspections. 6
8.2 Seed selection and packing into bags . 6
8.3 Use of UFB water and control water . 7
8.4 Tray preparation and seed sowing . 8
8.5 Inspection and recording . 9
9 Test report . 9
Annex A (informative) Example of test result at testing laboratory .10
Annex B (normative) Barley seed limit samples .12
Bibliography .13

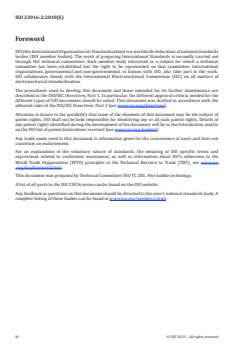

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 281, Fine bubble technology.
A list of all parts in the ISO 23016 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

Introduction
Considering the increasing use of fine bubble technology in agriculture, this document has been
developed to establish standards in this area, with particular focus on promoting the germination and
growth of barley seeds.
The use of fine bubble technology in agriculture has been confirmed to benefit various types of
agricultural products and has attracted the interest of various countries. Application of the technology
to leafy vegetables in agriculture is already well-established, and this is being expanded to seed
germination and growth as well. Worldwide as well, standardization of fine bubble technology in the
field of agriculture is not only being spotlighted but is being conducted in practice at a rapid pace. The
technology is expected to blossom rapidly.
Fine bubble technology has been applied successfully not only in agriculture but also in the fields of
environmental science, food, marine products, medicine, etc. Wide-ranging progress in standardizing
the technology is being made in these fields. The achievement of standardization in various fields is
expected to result in increased worldwide recognition of fine bubble technology in the future.
INTERNATIONAL STANDARD ISO 23016-2:2019(E)
Fine bubble technology — Agricultural applications —
Part 2:
Test method for evaluating the promotion of the
germination of barley seeds
1 Scope
This document specifies a method to test the promotion of the germination of barley seeds, using
ultrafine bubble (UFB) water produced from an ultrafine bubble water generating system. The
performance of the method is assessed by measuring the ratio of barley seed germination.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 20480-1, Fine bubble technology — General principles for usage and measurement of fine bubbles —
Part 1: Terminology
ISO 20480-2, Fine bubble technology — General principles for usage and measurement of fine bubbles —
Part 2: Categorization of the attributes of fine bubbles
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 20480-1 and ISO 20480-2 and
the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
germination
appearance of a sprout of at least 1 mm of length
[SOURCE: ISO 18763:2016, 3.7, modified — "root" has been replaced by "sprout".]
3.2
immersion
act of immersing unprocessed barley seeds in ultrafine bubble water or control water
3.3
ultrafine bubble generating system
UFB generating system
equipment that uses water and air to generate ultrafine bubbles by mechanical action
Note 1 to entry: Ultrafine bubbles (UFB) are bubbles with a diameter of less than 1 µm. See ISO 20480-1.
3.4
ultrafine bubble water
UFB water
water that includes UFB
Note 1 to entry: UFB are defined in ISO 20480-1.
3.5
control water
water for use as a control sample for the effects of UFB
3.6
raw water
distilled water supplied as a raw material for both UFB water (3.4) and control water (3.5)
3.7
test water
either UFB water (3.4) or control water (3.5)
3.8
UFB section
test beaker containing UFB water (3.4) for use in germination tests of barley seeds in UFB water
3.9
control section
test beaker containing control water (3.5) for use in germination tests of barley seeds in control water
3.10
growth period
period from sowing of seeds through the final germination observation
3.11
germination ratio
G
ratio of the seeds observed during inspection to have germinated to the total number of seeds provided
for the test
3.12
UFB enabled efficiency
P value
quantity measuring the efficiency of UFB for its enhancement in the germinating period
Note 1 to entry: P is defined by Formula (1).
4 General testing principle
4.1 General overview of the test system
UFB water shall be generated through the supply of raw water to the UFB generating system. The UFB
water shall be supplied to the UFB section to promote the germination of the barley seeds that have
been supplied to the UFB section. In addition, raw water for control purposes that does not contain UFB
shall be supplied directly to the control section. Figure 1 shows
...
