ISO/IEC 18000-7:2009

INTERNATIONAL ISO/IEC
STANDARD 18000-7
Third edition
2009-08-01
Information technology — Radio
frequency identification for item
management —
Part 7:
Parameters for active air interface
communications at 433 MHz
Technologies de l'information — Identification par radiofréquence pour
la gestion d'objets —
Partie 7: Paramètres de communications actives d'une interface d'air à
433 MHz
Reference number
©
ISO/IEC 2009

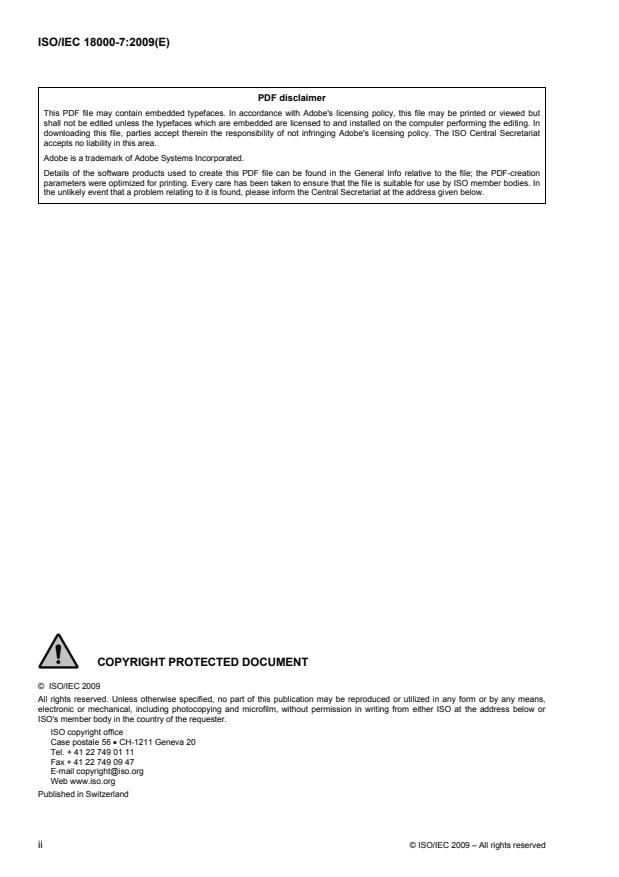

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO/IEC 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2009 – All rights reserved

Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Conformance .1
2.1 RF emissions general population.1
2.2 RF emissions and susceptibility health care setting.1
2.3 Command structure and extensibility.1
2.4 Mandatory commands .2
2.5 Optional commands.2
2.6 Custom commands .2
2.7 Proprietary commands .2
3 Normative references.2
4 Terms and definitions .3
5 Symbols and abbreviated terms .3
6 433,92 MHz active narrowband specification .3
6.1 Physical layer.3
6.2 Data Link layer .4
6.2.1 General .4
6.2.2 Preamble .5
6.2.3 Data bytes .5
6.2.4 Packet end period.5
6.2.5 Interrogator-to-tag message format .6
6.2.6 Tag-to-interrogator message format .9
6.3 Tag commands .16
6.3.1 Collection with Universal Data Block (UDB).16
6.3.2 Sleep .21
6.3.3 Sleep all but .21
6.3.4 Security commands .22
6.3.5 Transit information commands.25
6.3.6 Manufacturing Information Commands .27
6.3.7 Memory commands.28
6.3.8 Delete Writeable Data.30
6.3.9 Read Universal Data Block.31
6.3.10 Database table commands .32
6.3.11 Beep ON/OFF .49
6.3.12 Sensor implementation.50
6.4 Tag collection and collision arbitration .51
6.5 Multi-packet UDB Collection .54
6.6 Physical and Media Access Control (MAC) parameters.56
6.6.1 Interrogator to tag link .56
6.6.2 Tag to interrogator link .58
6.6.3 Protocol parameters.59
6.6.4 Anti-collision parameters .60
Annex A (normative) Co-existence of different application standards based on ISO/IEC 18000-7 .61
Bibliography.63

© ISO/IEC 2009 – All rights reserved iii

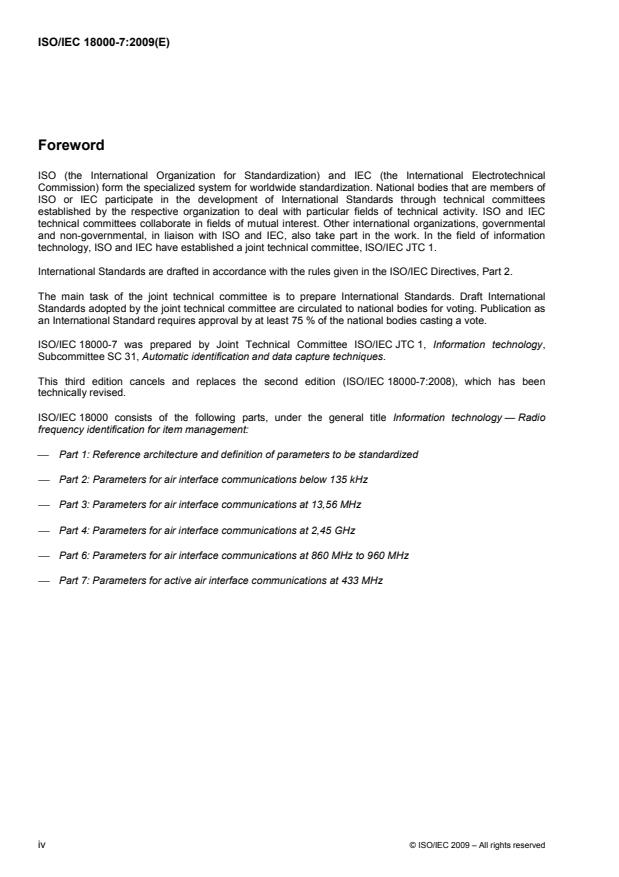

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
ISO/IEC 18000-7 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 31, Automatic identification and data capture techniques.
This third edition cancels and replaces the second edition (ISO/IEC 18000-7:2008), which has been
technically revised.
ISO/IEC 18000 consists of the following parts, under the general title Information technology — Radio
frequency identification for item management:
⎯ Part 1: Reference architecture and definition of parameters to be standardized
⎯ Part 2: Parameters for air interface communications below 135 kHz
⎯ Part 3: Parameters for air interface communications at 13,56 MHz
⎯ Part 4: Parameters for air interface communications at 2,45 GHz
⎯ Part 6: Parameters for air interface communications at 860 MHz to 960 MHz
⎯ Part 7: Parameters for active air interface communications at 433 MHz
iv © ISO/IEC 2009 – All rights reserved

Introduction
This part of ISO/IEC 18000 is intended to address radio frequency identification (RFID) devices operating in
the 433 MHz frequency band, providing an air interface implementation for wireless, non-contact information
system equipment for item management applications. Typical applications operate at ranges greater than one
metre.
The RFID system includes a host system and RFID equipment (interrogator and tags). The host system runs
an application program, which controls interfaces with the RFID equipment. The RFID equipment is composed
of two principal components: tags and interrogators. The tag is intended for attachment to an item, which a
user wishes to manage. It is capable of storing a tag serial number and other data regarding the tag or item
and of communicating this information to the interrogator. The interrogator is a device, which communicates to
tags in its RF communication range. The interrogator controls the protocol, reads information from the tag,
directs the tag to store data in some cases, and ensures message delivery and validity. This system uses an
active tag.
RFID systems defined by this part of ISO/IEC 18000 provide the following minimum features:
⎯ identify tag in range;
⎯ read data;
⎯ write data or handle read-only systems gracefully;
⎯ selection by group or address;
⎯ graceful handling of multiple tags in the field of view;
⎯ error detection.
The International Organization for Standardization (ISO) and International Electrotechnical Commission (IEC)
draw attention to the fact that it is claimed that compliance with this document may involve the use of a patent
concerning radio frequency identification technology given in 6.2. ISO and IEC take no position concerning the
evidence, validity and scope of this patent right.
The holder of this patent right has assured ISO and IEC that he is willing to negotiate licenses under
reasonable and non-discriminatory terms and conditions with applicants throughout the world. In this respect,
the statement of the holder of this patent right is registered with ISO and IEC. Information may be obtained
from the following.
Patent number Patent title Patent holder Contact Affected
subclause
Communication system Hurst Arthur, VP, General Counsel, Savi
US 5640151 for communicating with Savi Technology Technology, Inc., 351 East Evelyn Ave., 6.2.6
tags Mountain View, CA 94041, USA
Communication system Hurst Arthur, VP, General Counsel, Savi
US 5686902 for communicating with Savi Technology Technology, Inc., 351 East Evelyn Ave., 6.2.6
tags Mountain View, CA 94041, USA
Method and apparatus Hurst Arthur, VP, General Counsel, Savi
US 11/432684 for efficient data Savi Technology Technology, Inc., 351 East Evelyn Ave.,
transmission from a tag Mountain View, CA 94041, USA
© ISO/IEC 2009 – All rights reserved v

Method and apparatus Hurst Arthur, VP, General Counsel, Savi
EP 0467036 for radio identification Savi Technology Technology, Inc., 351 East Evelyn Ave., 6.2.6
and tracking Mountain View, CA 94041, USA
Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
US 6002344 Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
CA 2,310,623 Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
CN 98812462.9 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
DE 98960332.9 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
EP 98960332.9 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
FR 98960332.9 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
GB 98960332.9 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
HK 01101416.3 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
IL 136.220 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
IT 98960332.9 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
JP 2000-521687 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
US 7,035,818 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
US 10/725,010 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
US 10,932,279 Symbol Aaron B. Bernstein, VP, Deputy General
System and method for
Technologies Counsel Intellectual Property, 1 Motorola 6.2
electronic inventory
Plaza, MS A6, Holtsville, NY 11561, USA
US 6,470,045 Communication protocol EM G. Meusburger, IP Manager, Rue des
between a transceiver Microelectronic Sors, CH-2074, Marin, Switzerland
unit and transponders or Marin SA
transceiver associated
with said unit
JP 10-256493 Communication protocol EM G. Meusburger, IP Manager, Rue des
between a transceiver Microelectronic Sors, CH-2074, Marin, Switzerland
unit and transponders or Marin SA
transceiver associated
with said unit
vi © ISO/IEC 2009 – All rights reserved

EP 0 902 546 Communication protocol EM G. Meusburger, IP Manager, Rue des
Appl. No. between a transceiver Microelectronic Sors, CH-2074, Marin, Switzerland
97115772.2 unit and transponders or Marin SA
transceiver associated
with said unit
US 6,784,787 Zebra Eric McAlpine, IP Counsel, Legal
Granted Technologies Department, 333 Corporate Woods
Parkway, Vernon Hills, IL 60061-3109,
EP 1 031 046
USA
Granted
Identification systems
EP 1 291 671
Granted
EP Appl
05 017 862.3
Pending
US 6,480,143 Zebra Eric McAlpine, IP Counsel, Legal
Granted Technologies Department, 333 Corporate Woods
Electronic identification
Parkway, Vernon Hills, IL 60061-3109,
systems
EP 1 001 366
USA
Granted
US 5,680,459 Zebra Eric McAlpine, IP Counsel, Legal
Granted Technologies Department, 333 Corporate Woods
Passive transponder
Parkway, Vernon Hills, IL 60061-3109,
USA
US 6,198,381 Zebra Eric McAlpine, IP Counsel, Legal
Delayed reset mode
Granted Technologies Department, 333 Corporate Woods
model for electronic
Parkway, Vernon Hills, IL 60061-3109,
JP 10-272945
identification system
USA
Pending
US 5,537,105 Zebra Eric McAlpine, IP Counsel, Legal
Granted Technologies Department, 333 Corporate Woods
Parkway, Vernon Hills, IL 60061-3109,
US 5,966,083 Electronic identification
USA
Granted systems
US 5,995,017
Granted
US 7375637 University of Marc S. Malandro, Ph.D., CLP,
Methods and apparatus
Granted Pittsburgh University of Pittsburgh, 200 Gardner
for reducing power
Steel Conference Center, Thackeray &
consumption of an
O’Hara Streets, Pittsburgh, PA 15260,
active transponder
USA
US 11/678296 Methods and apparatus University of Marc S. Malandro, Ph.D., CLP,
Pending for switching a Pittsburgh University of Pittsburgh, 200 Gardner
transponder to an active Steel Conference Center, Thackeray &

state, and asset O’Hara Streets, Pittsburgh, PA 15260,
management systems USA
employing same
US 61/099977 University of Marc S. Malandro, Ph.D., CLP,
Pending System and method for Pittsburgh University of Pittsburgh, 200 Gardner
real time asset location Steel Conference Center, Thackeray &
and tracking O’Hara Streets, Pittsburgh, PA 15260,
USA
US 6563417 Identec Stefan Schwiers, CTO, R&D
Granted Solutions Department, Identec Solutions AG,
Millennium Park 2, 6890 Lustenau,
Interrogation, monitoring
US 6917291
Austria
and data exchange 6.3.12
Granted
using RFID Tags
US 7053777
Granted
© ISO/IEC 2009 – All rights reserved vii

EP 99117640.5- Identec Stefan Schwiers, CTO, R&D
2215 Solutions Department, Identec Solutions AG,
Granted Millennium Park 2, 6890 Lustenau,
System for monitoring, Austria
DE 59904147.1-08
tracking, and handling of 6.3.12
Granted
objects
GB/FR/CH/NL/AT
99117640.5-2215
Granted
US 7345576 Method and apparatus Identec Stefan Schwiers, CTO, R&D
Granted for resolving RFID Solutions Department, Identec Solutions AG,
based object traffic Millennium Park 2, 6890 Lustenau,
transactions to single Austria 6.3.12
container in the
presence of a plurality of
containers
th
Impinj Chris Diorio, CTO, 701 N. 34 Street,

Suite 300, Seattle, WA 98103, USA
Intermec Phyllis T. Turner-Brim, Esq., Legal
Department, Intermec IP Corporation,
th
6001 36 Ave. W, Everett, WA 98203,
USA
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights other than those identified above. ISO or IEC shall not be held responsible for identifying any or all such
patent rights.
viii © ISO/IEC 2009 – All rights reserved

INTERNATIONAL STANDARD ISO/IEC 18000-7:2009(E)

Information technology — Radio frequency identification for
item management —
Part 7:
Parameters for active air interface communications at 433 MHz
1 Scope
This part of ISO/IEC 18000 defines the air interface for radio frequency identification (RFID) devices operating
as an active RF tag in the 433 MHz band used in item management applications. It provides a common
technical specification for RFID devices that can be used by ISO technical committees developing RFID
application standards. This part of ISO/IEC 18000 is intended to allow for compatibility and to encourage inter-
operability of products for the growing RFID market in the international marketplace. This part of
ISO/IEC 18000 defines the forward and return link parameters for technical attributes including, but not limited
to, operating frequency, operating channel accuracy, occupied channel bandwidth, maximum power, spurious
emissions, modulation, duty cycle, data coding, bit rate, bit rate accuracy, bit transmission order, and, where
appropriate, operating channels, frequency hop rate, hop sequence, spreading sequence, and chip rate. This
part of ISO/IEC 18000 further defines the communications protocol used in the air interface.
2 Conformance
The rules for evaluation of RFID device conformity to this part of ISO/IEC 18000 are defined in
ISO/IEC TR 18047-7.
2.1 RF emissions general population
Device manufacturers claiming conformance to this part of ISO/IEC 18000 shall declare on their own
responsibility that RF emissions do not exceed the maximum permitted exposure limits recommended by
either IEEE C95.1:2005 or ICNIRP according to IEC 62369-1. If a device manufacturer is unsure which
recommendation is to be cited for compliance, the manufacturer shall declare on their own responsibility to
ICNIRP limits.
2.2 RF emissions and susceptibility health care setting
Device manufacturers claiming conformance to this part of ISO/IEC 18000 shall declare on their own
responsibility that RF emissions and susceptibility comply with IEC 60601-1-2.
2.3 Command structure and extensibility
This part of ISO/IEC 18000 includes a definition of the structure of command codes between an interrogator
and a tag and indicates how many positions are available for future extensions.
Command specification clauses provide a full definition of the command and its presentation.
Each command is labelled as being “mandatory” or “optional”.
The clauses of this part of ISO/IEC 18000 make provisions for “custom” and “proprietary” commands.
© ISO/IEC 2009 – All rights reserved 1

2.4 Mandatory commands
A mandatory command shall be supported by all tags that claim to be compliant and all interrogators which
claim compliance shall support all mandatory commands.
2.5 Optional commands
Optional commands are commands that are specified as such within this part of ISO/IEC 18000. Interrogators
shall be technically capable of performing all optional commands that are specified in this part of
ISO/IEC 18000 (although they need not be set up to do so). Tags may or may not support optional
commands.
If an optional command is used, it shall be implemented in the manner specified in this part of ISO/IEC 18000.
2.6 Custom commands
Custom commands may be permitted by those applying this part of ISO/IEC 18000, but they are not specified
in this part of ISO/IEC 18000.
A custom command shall not solely duplicate the functionality of any mandatory or optional command defined
in this part of ISO/IEC 18000 by a different method. An interrogator shall use a custom command only in
accordance with the specifications of the tag manufacturer.
2.7 Proprietary commands
Proprietary commands may be permitted by those applying this part of ISO/IEC 18000, but they are not
specified in this part of ISO/IEC 18000.
A proprietary command shall not solely duplicate the functionality of any mandatory or optional command
defined in this part of ISO/IEC 18000 by a different method. All proprietary commands shall be disabled before
the tag leaves the tag manufacturer. Proprietary commands are intended for manufacturing purposes and
shall not be used in field-deployed RFID systems.
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest published edition of the
referenced document (including any amendments) applies.
ISO/IEC 8859-1, Information technology — 8-bit single-byte coded graphic character sets — Part 1: Latin
alphabet No. 1
ISO/IEC 15459 (all parts), Information technology — Unique identifiers
ISO/IEC 15963, Information technology — Radio frequency identification for item management — Unique
identification for RF tags
ISO/IEC TR 18047-7 Information technology — Radio frequency identification device conformance test
methods — Part 7: Test methods for active air interface communications at 433 MHz
ISO/IEC 19762-1, Information technology — Automatic identification and data capture (AIDC) techniques —
Harmonized vocabulary — Part 1: General terms relating to AIDC
ISO/IEC 19762-3, Information technology — Automatic identification and data capture (AIDC) techniques —
Harmonized vocabulary — Part 3: Radio frequency identification (RFID)
2 © ISO/IEC 2009 – All rights reserved

IEC 62369-1, Ed. 1.0, Evaluation of human exposure to electromagnetic fields from short range devices
(SRDs) in various applications over the frequency range 0 GHz to 300 GHz — Part 1: Fields produced by
devices used for electronic article surveillance, radio frequency identification and similar systems
IEC 60601-1-2, Medical electrical equipment — Part 1-2: General requirements for basic safety and essential
performance — Collateral standard: Electromagnetic compatibility — Requirements and tests
ICNIRP Guidelines, Guidelines for limiting exposure to time-varying electric, magnetic, and electromagnetic
fields (up to 300 GHz), International Commission on Non-Ionizing Radiation Protection
IEEE C95.1:2005, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency
Electromagnetic Fields, 3 kHz to 300 GHz
4 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 19762-1 and ISO/IEC 19762-3
apply.
5 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in ISO/IEC 19762-1 and
ISO/IEC 19762-3 apply.
6 433,92 MHz active narrowband specification
6.1 Physical layer
The RF communication link between interrogator and tag shall utilize a narrow band UHF frequency with the
following nominal characteristics:
Carrier Frequency 433,92 MHz
Modulation Type FSK
Frequency Deviation +/- 50 kHz
Symbol LOW fc +50 kHz
Symbol HIGH fc -50 kHz
Data Modulation Rate 27,7 kHz
Wake up Signal Modulation with 31,25 kHz square wave signal followed
by modulation with 10 kHz square wave signal
For detailed physical layer specifications, see section 6.6.
The Wake Up Signal shall be transmitted by the interrogator for a minimum of 2,45 seconds to wake up all
tags within communication range. The Wake Up Signal shall consist of a 2,35 to 4,8-second 31,25 kHz square
wave modulated signal called the “Wake Up Header” immediately followed by a 0,1-second 10 kHz square
wave modulated signal called the “Co-Header.” Upon detection and by completion of the Wake Up Signal all
tags shall enter into the Ready state awaiting a command from the interrogator. See Figure 1. A tag has two
states, awake/ready and asleep. During the ready state, the tags will accept the valid commands from readers
and respond accordingly. When the tag is asleep, it will ignore all commands.

© ISO/IEC 2009 – All rights reserved 3

Figure 1 — Wake Up Signal
Once awoken, the tag shall stay awake for a minimum of 30 seconds after receipt of the last well-formed
message packet consisting of a valid Protocol ID, command code, and CRC values, unless the interrogator
otherwise commands the tag to sleep. If no well-formed command message is received within the 30 seconds,
the tag will transition to the sleep state and SHALL no longer respond to command messages from
Interrogators.
The communication between interrogator and tag shall be of the Master-Slave type, where the interrogator
shall initiate communications and then listen for a response from a tag. Multiple response transmissions from
tags shall be controlled by the collection algorithm described in 6.4.
6.2 Data Link layer
6.2.1 General
Data between interrogator and tag shall be transmitted in packet format. A packet shall be comprised of a
preamble, data bytes and a final end period. The last two level changes of the preamble shall indicate the end
of the preamble and beginning of the first data byte. The same two level changes of the preamble also
indicate the originator of the data packet. Data bytes shall be sent in Manchester code format. Transmission
order shall be most significant byte first; within a byte, the order shall be least significant bit first. Figure 2
illustrates the logic levels for the data communication timing of the preamble and the first byte of a packet.
4 © ISO/IEC 2009 – All rights reserved

Note: Data byte transmitted order is most significant byte first; within each byte the order is least significant bit first.
A 15 µs logic low level precedes the first preamble cycle. Byte shown is code 0xC6.
Figure 2 — Data communication timing
6.2.2 Preamble
The preamble shall be comprised of twenty (20) cycles of 60 µs period, 30 µs high and 30 µs low, followed by
two final level changes which identifies the communication direction: 42 µs high, 54 µs low (tag to
interrogator); or 54 µs high, 54 µs low (interrogator to tag). Refer to Figure 2 above.
6.2.3 Data bytes
Data bytes shall be in Manchester code format, each byte is comprised of 8 data bits and one stop bit. The bit
period shall be 36 µs, the total byte period shall be 324 µs. A falling edge in the centre of the bit-time indicates
a 0 bit, a rising edge indicates a 1 bit. The stop bit is coded as a zero bit.
6.2.4 Packet end period
A final period of 36 µs of continuous logic low, followed by a logic low to logic high transition, followed by
continuous logic high for a minimum of 15 µs shall be transmitted after the last Manchester encoded bit within
the packet.
© ISO/IEC 2009 – All rights reserved 5

6.2.5 Interrogator-to-tag message format
Tags shall recognize the interrogator-to-tag message format described in Table 1 and Table 2:
Table 1 — Interrogator-to-tag command format (broadcast)
Protocol Packet Packet Session ID Command Command CRC
ID Options Arguments
Length Code
0x40 1 byte 1 byte 2 bytes 1 byte N bytes 2 bytes

Table 2 — Interrogator-to-tag command format (point-to-point)
Protocol Packet Packet Tag Tag Session ID Command Command CRC
ID Options Serial Arguments
Length Manufacturer Code
Number
ID
0x40 1 byte 1 byte 2 bytes 4 bytes 2 Bytes 1 byte N bytes 2 bytes

6.2.5.1 Protocol ID
The protocol ID field allows different application standards based on this part of ISO/IEC 18000 (“derived
application standards”) to be developed. All derived application standards shall share the same physical layer
protocols, but their command/response structure/field and command sets may vary depending on the
application. The three basic commands (“Collection with Universal Data Block”, “Sleep” and “Sleep All But”)
defined in this part of ISO/IEC 18000 shall be supported by all derived application standards. All other
commands required by this part of ISO/IEC 18000 shall be supported by this part of ISO/IEC 18000 compliant
products, but not necessarily by products compliant with derived application standards.
When the interrogator sends out a Wake Up Signal all tags based on the air interface of this part of
ISO/IEC 18000 and derived standards shall wake up.
The interrogator may send out various commands as specified by the application. In the event that the
interrogator wants to inventory all the active tags within its range, it shall send out a Collection command as
defined in this part of ISO/IEC 18000. All tags adhering to this part of ISO/IEC 18000 or derived application
standards shall respond to this basic Collection command. A tag shall respond with the collection response
defined by the tag’s own application data link layer standard (this part of ISO/IEC 18000 or derived standard).
The tags shall also accept the Sleep commands (“Sleep” and “Sleep All But”) defined in this part of
ISO/IEC 18000. The co-existence of this part of ISO/IEC 18000 and derived standards is illustrated in
Annex A.
6.2.5.2 Packet Options
Table 3 — Packet options field
Bit
7 6 5 4 3 2 1 0
1)
Reserved Reserved Reserved Reserved Reserved 0= Broadcast (Tag serial number and Tag Reserved
manufacturer ID not present)
1= Point to Point (Tag serial number and
tag manufacturer ID present)
1) Bit 2 of the “packet options field” has a fixed value of “1” for backwards compatibility.
6 © ISO/IEC 2009 – All rights reserved

The Packet Options field, described in Table 3, shall be used to indicate the presence of the Tag serial
number and Tag manufacturer ID fields within the command message (packet). As indicated in Table 4, a
particular command can be point-to-point or broadcast. The command type is indicated as follows:
⎯ Point-to-point only, Packet Option field Bit 1 must be set to 1.
⎯ Broadcast only and Packet Option field Bit 1 must be set to 0.
Reserved bits are for future use. The default value shall be “0”.
6.2.5.3 Packet Length
The packet length field shall be used to indicate the full length of the message in bytes, from the Protocol ID
up to and including the CRC field.
6.2.5.4 Tag Manufacturer ID
The Tag Manufacturer ID is a unique identifier that is issued to each tag manufacturer. The Tag Manufacturer
ID is a 16-bit code assigned by the Registration Authority as called out in ISO/IEC 15963. This 16-bit code is a
combination of the ISO/IEC15963 Allocation Class “0001 0001” (most significant byte) and the 8-bit Issuer
UID “xxxxxxxx” (least significant byte). For example, if the Issuer UID is assigned as 00000100, the Tag
Manufacturer ID would be 00010001 00000100.
The Tag Manufacturer ID format and content shall follow the requirements of unique identifiers as defined in
ISO/IEC 15459-1.
The structure and allocation of the Tag Manufacturer ID is described in ISO/IEC 15963 and INCITS 256.
autoid.org is the ISO/IEC 18000-7 Registration Authority.
6.2.5.5 Tag Serial Number
The Tag Serial Number is a 32-bit integer that is uniquely assigned to each individual tag during
manufacturing. This number cannot be changed and is read only. The Tag Serial Number has no structure
and does not contain any information besides uniquely identifying a tag. The Tag Serial Number cannot be
reused. Issuance of Tag Serial Numbers may be managed and administered by each manufacturer. The Tag
Manufacturer ID and Tag Serial Number together uniquely identify a tag as defined in ISO/IEC 15963. This
six-byte combination includes the two-byte Tag Manufacturer ID followed by the Tag Serial Number. An
example of the combined data structure for Tag Manufacturer ID and Tag Serial Number is:
00010001 00000100 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx
6.2.5.6 Session ID
The Session ID is a 16-bit integer value that uniquely identifies an interrogator from any other interrogator
compliant with this part of ISO/IEC 18000 in the local vicinity. The Session ID of an individual interrogator may
be changed without restriction, but its value shall be set to a value not in use by other interrogators compliant
with this part of ISO/IEC 18000 in the local vicinity. No two interrogators compliant with this part of
ISO/IEC 18000 within RF range of the same tag shall have the same Session ID. At the moment the Session
ID is changed in an interrogator, any ongoing communication between that interrogator and any tag shall be
terminated. An interrogator that receives a tag message containing a Session ID not equal to its own Session
ID shall not transmit any packets over the UHF interface regarding the contents of the tag message. The
Session ID 0x0000 is reserved and shall not be used.
6.2.5.7 Command Codes
The Command codes and their function as a Read and/or Write command shall be as listed in Table 4, below.
Codes not identified are reserved.
© ISO/IEC 2009 – All rights reserved 7

Table 4 — Command codes
Command Command name Command Mandatory/Optional Description
code + Sub type
Interrogator Tag
Command
Code
(R/W)
0x1F / NA Collection with Broadcast Mandatory Mandatory Collects all Tag IDs and Universal
Universal Data Data Block
Block
NA / 0x15 Sleep Point to Point Mandatory Mandatory Puts tag to sleep
NA / 0x16 Sleep All But Broadcast Mandatory Mandatory Puts all tags but one to sleep
0x13 / 0x93 User ID Point to Point Mandatory Optional Sets user assigned ID (1 – 60 bytes)
0x09 / 0x89 Routing Code Point to point Mandatory Mandatory Reads and writes routing code
0x0C / NA Firmware Version Point to Point Mandatory Optional Retrieves manufacturer-defined tag
firmware revision number
0x0E / NA Model Number Point to Point Mandatory Optional Retrieves manufacturer-defined tag
model number
0x60 / 0xE0 Read/Write Memory Point to Point Mandatory Optional Reads and writes user memory
NA / 0x95 Set Password Point to Point Mandatory Optional Sets tag password (4 bytes long)
NA / 0x97 Set Password Point to Point Mandatory Optional Engages/disengages password
Protect Mode protection (see section 6.3.4)
NA/ 0x96 Unlock Point to Point Mandatory Optional Unlocks password protected tag
0x70 / NA Read Universal Point to Point Mandatory Mandatory Reads the Universal Data Block
Data Block
0x26+0x01 Table Create Point to Point Mandatory Optional Creates a database table
0x26+0x02 Table Add Records Point to Point Mandatory Optional Prepares to add new records to the
specified database table
0x26+0x03 Table Update Point to Point Mandatory Optional Prepares to modify the specified table
Records records
0x26+0x04 Table Update Fields Point to Point Mandatory Optional Prepares to update the specified fields
of a table record
0x26+0x05 Table Delete Point to Point Mandatory Optional Deletes existing record from the
Record existing database table
0x26+0x06 Table Get Data Point to Point Mandatory Optional Prepares to retrieve the specified table
records
Gets total number of records and the
0x26+0x07 Table Get Point to Point Mandatory Optional
maximum number of records the table
Properties
can hold
0x26+0x08 Table Read Point to Point Mandatory Optional Retrieves a block of data from a table
Fragment as initiated by the Table Get Data
command
0x26+0x09 Table Write Point to Point Mandatory Optional Writes a block of data into a table as
Fragment initiated by the Table Add Records,
Table Update Records, or Table
Update fields command
0x26+0x10 Table Query Broadcast or Mandatory Optional Initiates table search based on the
Point to Point specified criteria
0xE1 / NA Beep ON/OFF Point to Point Mandatory Optional Turns tag’s beeper ON or OFF
0x8E Delete Writeable Point to Point Mandatory Optional Deletes all allocated writeable data on
Data a tag
8 © ISO/IEC 2009 – All rights reserved

The Command Type column indicates whether the command is broadcast (does not include Tag Manufacturer
ID and Tag serial number in the message) or point-to-point (includes Tag Manufacturer ID and Tag Serial
Number in the message).
For commands requiring a Sub Command Code, the Sub Command Code field is the first byte of the
Command Arguments field that follows the Command Code.
6.2.5.8 Command Arguments
Some commands require arguments. For those commands where arguments are defined, argument data shall
be supplied with the command. The contents and length of any required arguments are specific to each
command. See section 6.3 for details.
6.2.5.9 CRC
A CRC checksum shall be calculated as a 16-bit value for each command message, initialized with all zeroes
(0x0000), over all data bytes (excluding preamble) from the protocol ID up to and including any command
16 12 5
arguments according to the CCITT polynomial (x + x + x +1). The CRC shall be appended to the data
included in the command message as a two bytes field. Reference: ITU-T Recommendation V.41 (Extract
from the Blue Book), Code-independent error-control system, Appendix I - Encoding and decoding realization
for cyclic code system.
6.2.6 Tag-to-interrogator message format
The tag-to-interrogator message shall use one of two formats depending on the type of message being
transmitted to the Interrogator. The tag shall always respond to a command using one of the response formats
described below except in the following situations, for which the tag shall not respond:
⎯ the command is explicitly specified in this part of ISO/IEC 18000 as requiring no response
⎯ the CRC bytes received in the command do not match the CRC checksum that the tag has calculated
for the received command packet
⎯ receipt of a broadcast command containing an invalid command code or other error
⎯ the tag is in the asleep state
There are two possible response formats:
⎯ the Broadcast response message format
⎯ the Point-to-Point response message format
6.2.6.1 Broadcast response message format
The message format shown in Table 5 shall be used in response to Interrogator broadcast
commands received by tags within the Interrogator's communication range. Broadcast commands are
identified in Table 4.
Table 5 — Broadcast response message format

Protocol Tag Packet Session ID Tag Tag Serial Command Data CRC
ID Status Length Manufacturer Number Code
ID
0x40 2 bytes 1 byte 2 bytes 2 bytes 4 bytes 1 byte N bytes 2 bytes

© ISO/IEC 2009 – All rights reserved 9

⎯ Tag Status: Indicates various conditions such as response format, tag type, alarm and hardware
fault. See section 6.2.6.4, Tag Status, for more details.
⎯ Packet Length: Message length in bytes from the Protocol ID field up to and including CRC field.
⎯ Session ID: ID of a particular session: An unsigned integer value from 0x0001 to 0XFFFF. The
Session ID 0x0000 is reserved and shall not be used.
⎯ Tag Manufacturer ID: Unique ID assigned to manufacturer
⎯ Tag Serial Number: Unique tag serial number preset during manufacturing
⎯ Command Code: Com
...
