ISO/IEC TS 29167-15:2017

TECHNICAL ISO/IEC TS
SPECIFICATION 29167-15
First edition
2017-09
Information technology — Automatic
identification and data capture
techniques —
Part 15:
Crypto suite XOR security services for
air interface communications
Technologies de l'information — Techniques automatiques
d'identification et de capture de données —
Partie 15: Services de sécurité par suite cryptographique XOR pour
communications d'interface radio
Reference number
©
ISO/IEC 2017
© ISO/IEC 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO/IEC 2017 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, symbols and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Symbols and abbreviated terms. 2
3.2.1 Symbols . 2
3.2.2 Abbreviated terms . 2
4 Conformance . 3
4.1 Claiming conformance . 3
4.2 Interrogator conformance and obligations . 3
4.3 Tag conformance and obligations . 3
5 Cipher introduction . 3
6 Parameter definitions . 4
7 State diagram . 5
8 Initialization and resetting . 5
9 Authentication . 6
9.1 General . 6
9.2 Authentication procedure . 6
9.2.1 Protocol requirements . 6
9.2.2 Procedure . 6
10 Secure communication (optional) . 8
11 Key update (optional) . 9
Annex A (normative) State transition tables .10
Annex B (normative) Error codes and error handling.11
Annex C (informative) Cipher Description .12
Annex D (informative) Test vectors .13
Annex E (normative) Protocol specific .14
Annex F (normative) Authentication procedure pseudo-code.18
Annex G (informative) Security considerations .21
Bibliography .22
© ISO/IEC 2017 – All rights reserved iii

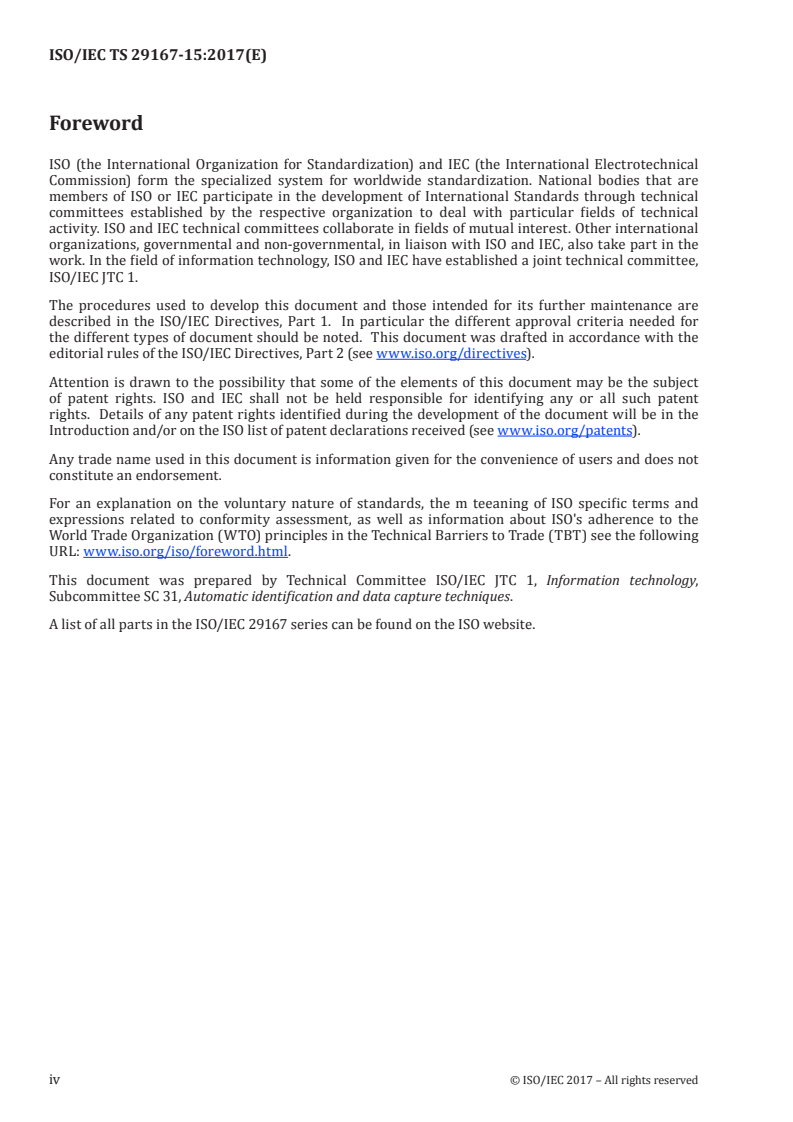

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the m teeaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 31, Automatic identification and data capture techniques.
A list of all parts in the ISO/IEC 29167 series can be found on the ISO website.
iv © ISO/IEC 2017 – All rights reserved

Introduction
This document defines a coding suite based on an exclusive or (XOR) operation for the ISO/IEC 18000
air interfaces standards for radio frequency identification (RFID) devices.
XOR is a type of logical disjunction on two operands that results in a value of true if exactly one of the
operands has a value of true. The primary advantage of XOR operation is that it is simple to implement
and that the XOR operation is computationally inexpensive for hiding information in cases where either
no particular or light security is required. The simple implementation of XOR does not require a cipher
and therefore limits the security protection and attacks like eaves dropping are much easier.
The security service tag authentication is a mandatory security service. All other services in this
coding suite are optional. Every manufacturer has the liberty to chose which of these services will be
implemented on a tag.
The International Organization for Standardization (ISO) and International Electrotechnical
Commission (IEC) draw attention to the fact that it is claimed that compliance with this document may
involve the use of patents concerning radio-frequency identification technology given in the clauses
identified below.
ISO and IEC take no position concerning the evidence, validity and scope of these patent rights.
The holders of these patent rights have assured the ISO and IEC that they are willing to negotiate
licences under reasonable and non-discriminatory terms and conditions with applicants throughout
the world. In this respect, the statements of the holders of these patent rights are registered with ISO
and IEC.
Information on the declared patents may be obtained from:
Patent holder: China IWNCOMM Co., Ltd.
Address: A201, QinFengGe, Xi’an Software Park,
No. 68, Keji 2nd Road,
Xi’an Hi-Tech Industrial Development Zone
Xi’an, Shaanxi, P. R. China 710075
The latest information on IP that may be applicable to this document can be found at www.iso.
org/patents.
© ISO/IEC 2017 – All rights reserved v

TECHNICAL SPECIFICATION ISO/IEC TS 29167-15:2017(E)
Information technology — Automatic identification and
data capture techniques —
Part 15:
Crypto suite XOR security services for air interface
communications
1 Scope
This document defines a coding suite based on an exclusive or (XOR) operation for the ISO/IEC 18000
air interfaces standards for radio frequency identification (RFID) systems. In particular, it specifies the
use of XOR as a basic way to hide plain data in the identity authentication and secure communication
procedures. The coding suite is defined in alignment with existing air interfaces.
This document defines various authentication methods and methods of use for the XOR. A tag and an
interrogator may support one, a subset, or all of the specified options, clearly stating what is supported.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 18000-63, Information technology — Radio frequency identification for item management —
Part 63: Parameters for air interface communications at 860 MHz to 960 MHz Type C
ISO/IEC 19762 (all parts), Information technology — Automatic identification and data capture (AIDC)
techniques — Harmonized vocabulary
3 Terms, definitions, symbols and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 19762 (all parts) and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
command
command that interrogator sends to tag with "Message" as parameter
3.1.2
message
part of the command that is defined by the CS
© ISO/IEC 2017 – All rights reserved 1

3.1.3
reply
reply that tag returns to the interrogator with "Response" as parameter
3.1.4
response
part of the reply (stored or sent) that is defined by the CS
3.2 Symbols and abbreviated terms
3.2.1 Symbols
⊕ exclusive or
# number
xxxx hexadecimal notation
h
|| concatenation
O fixed value
n
n
+ a + b means a addition b mod 2 , the length of a and b is n.
− a − b means binary subtraction operation. Given two binary numbers a and b, the operation
a – b outputs the result of subtracting b from a.
NOTE  The easiest way to subtract the second binary number from the first one is to make
the second number negative and then add it with the first number.
mod modulo operation
3.2.2 Abbreviated terms
CRC cyclic redundancy check
CS coding suite
CSI coding suite identifier
EBV extensive bit vector (see ISO/IEC 18000-63)
ID identifier
MAC message authentication code
PSK pre-shared key
RFID radio frequency identification
RFU reserved for future use
RN random number
SK session key
2 © ISO/IEC 2017 – All rights reserved

TRAIS tag and reader air interface security
TRAIS-X tag and reader air interface security based on XOR
XOR exclusive or
4 Conformance
4.1 Claiming conformance
To claim conformance with this document, an interrogator or tag shall comply with all relevant clauses
of this document, except those marked as “optional”.
4.2 Interrogator conformance and obligations
To conform to this document, an interrogator shall
— implement the mandatory commands defined in this document, and conform to the relevant part of
ISO/IEC 18000.
To conform to this document, an interrogator may
— implement any subset of the optional commands defined in this document.
To conform to this document, the interrogator shall not
— implement any command that conflicts with this document, or
— require the use of an optional, proprietary or custom command to meet the requirements of this
document.
4.3 Tag conformance and obligations
To conform to this document, a tag shall
— implement the mandatory commands defined in this document for the supported types and conform
to the relevant part of ISO/IEC 18000.
To conform to this document, a tag may
— implement any subset of the optional commands defined in this document.
To conform to this document, a tag shall not
— implement any command that conflicts with this document, or
— require the use of an optional, proprietary or custom command to meet the requirements of this
document.
5 Cipher introduction
The logical operation exclusive disjunction, also called eXclusive OR (XOR) is a type of logical disjunction
on two operands that results in a value of true if exactly one of the operands has a value of true and
often used for bitwise operations or algebra computing. For example:
© ISO/IEC 2017 – All rights reserved 3

Bitwise operation:
— 1 ⊕ 1 = 0
— 1 ⊕ 0 = 1
— 0 ⊕ 1 = 1
— 0 ⊕ 0=0
— a ⊕ b = a + b (mod 2)
The XOR operator is extremely common as a component in complex ciphers. By itself, using a constant
repeating key, a simple XOR crypto can trivially be broken using frequency analysis. If the content
of any message can be guessed or otherwise known then the key can be revealed (the XOR crypto is
vulnerable to a known-plaintext attack, since plaintext ⊕ ciphertext = key). Its primary advantage
is that it is simple to implement and that the XOR operation is computationally inexpensive. A simple
repeating XOR crypto is therefore sometimes used for hiding information in cases where either no
particular or light security is required. For detailed cipher descriptions, see Annex C. For some security
considerations of this coding suite, see Annex G.
6 Parameter definitions
Table 1 — Definition of parameters
Parameter Description
Command Code [7:0] The values of security commands (See 3.1.1 for the definition of Command)
RFU[7:0] The reserved values for future use
Coding Suite ID [7:0] CSI: coding suite identifier
Length[Variable] The length of message with extensive bit vector format
Payload[Variable] Message data (See 3.1.2 for the definition of Message)
CRC-16[15:0] The cyclic redundancy check value
Message See 3.1.2
Reply See 3.1.3
Response See 3.1.4
RN[63:0] 64-bit random number
Header[1:0] The value of header
This shows the authentication type in the authentication procedure. The values
are as follows:
—  00: mutual authentication
AuthType[1:0]
—  01: interrogator authentication
—  10: tag authentication
—  11: RFU
This shows the step number in the authentication procedure. The values are as follows:
—  000: RFU
AuthStep[2:0]  —  001: Step 1 of Authenticate command
—  010: Step 2 of Authenticate command
—  011-111: RFU
4 © ISO/IEC 2017 – All rights reserved

Table 1 (continued)
Parameter Description
Key ID[4:0] The key identifier that the tag and interrogator used in the authentication procedure.
This shows the data computed in the authentication procedure. The values are as
follows:
—  SORNi = (RNi′ + O ) ⊕ PSK′
n
—  SORNt = (RNt′ + O ) ⊕ PSK′
n
—  SRNi = RNi ⊕ PSK
—  SRNt = RNt ⊕ PSK
—  NULL
AuthData[Variable]
where
—  RNi′ : RNi′ means bit-wise ROTATE RNi left for n bits, where RNi is a 64-bit
random number generated by an interrogator, n is the number of binary value 1 of RNi
—  RNt : RNt′ means bit-wise ROTATE RNt left for n bits, where RNt is a 64-bit
random number generated by a tag, n is the number of binary value 1 of RNt
—  O : 5555 5555 5555 5555h
n
—  PSK′: PSK′ means bit-wise ROTATE PSK left for n bits, PSK is a value of pre-
shared key (64-bit), n is the number of binary value 1 of RNi or RNt
MAC[127:0] The value of message authentication code
7 State diagram
Figure 1 shows the state machine of XOR coding suite. The state diagram for this coding suite consists
of four states. For state transition tables, Annex A shall be consulted.
Figure 1 — State diagram
8 Initialization and resetting
This document shall implement an Initial state.
After power-up and after a reset of the coding suite the tag moves into the Initial state.
Implementations of this suite shall assure that all memory used for intermediate results is cleared after
each operation (message-response pair) and after reset.
© ISO/IEC 2017 – All rights reserved 5

9 Authentication
9.1 General
This document describes additions to the ISO/IEC 18000 series of standards protocol to support the tag
and reader air interface security (TRAIS) based on XOR (TRAIS-X). Specially, it defines
— the use of XOR crypto for mutual, interrogator and tag authentication procedures;
— the use of XOR crypto for secure communication;
— the encoding in the related commands and the processing of those messages.
Figures 2 and 3 shows protocol flows of mutual and interrogator, and tag authentication procedures,
respectively.
Figure 2 — TRAIS-X mutual and interrogator authentication protocol flows
Figure 3 — TRAIS-X tag authentication
The formats of authenticate and response commands are shown in Table E.1 and Table E.2, respectively.
9.2 Authe
...
