ISO/TR 25100:2012

TECHNICAL ISO/TR
REPORT 25100
Second edition
2012-09-15

Intelligent transport systems — Systems
architecture — Harmonization of ITS data
concepts
Systèmes intelligents de transport — Architecture des systèmes —
Harmonisation des concepts de données SIT




Reference number
ISO/TR 25100:2012(E)
©
ISO 2012

---------------------- Page: 1 ----------------------
ISO/TR 25100:2012(E)

COPYRIGHT PROTECTED DOCUMENT


©  ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2012 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TR 25100:2012(E)
Contents Page
Foreword . iv
Introduction . v
1  Scope . 1
2  Terms, definitions and abbreviated terms . 1
2.1  Terms and definitions . 1
2.2  Abbreviated terms . 2
3  Background issues . 4
3.1  Proprietary data concepts . 4
3.2  Semantic differences . 4
3.3  Structural differences . 4
3.4  Difficulty of application of existing data concepts . 5
3.5  Report of investigation . 5
4  Harmonisation – General discussion . 5
4.1  Introduction to harmonisation . 5
4.2  Illustration of the need for harmonisation . 5
4.3  Challenges in harmonisation . 6
4.4  Harmonisation processes . 7
4.5  Steps in the harmonisation process . 10
4.6  Other work related to harmonisation . 11
5  Current approaches to harmonisation in ITS international standards . 11
5.1  Four approaches . 11
5.2  ISO 14817 harmonisation . 12
5.3  ISO/IEC 20943 approach . 13
5.4  TBG17 Business process & core components . 14
5.5  Highways Agency (UK) – Core Components Analysis of the ITS Metadata Registry . 16
6  Harmonisation approach for designers of data specifications . 24
6.1  Where there are relevant core components in a metadata registry or library . 24
6.2  Where there is no relevant registry using core components . 25
7  Harmonisation as a means to improve efficiency . 25
8  Conclusions and recommendations . 26
Annex A (informative) Conventions for precise core component mappings . 28
Bibliography . 33

© ISO 2012 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TR 25100:2012(E)

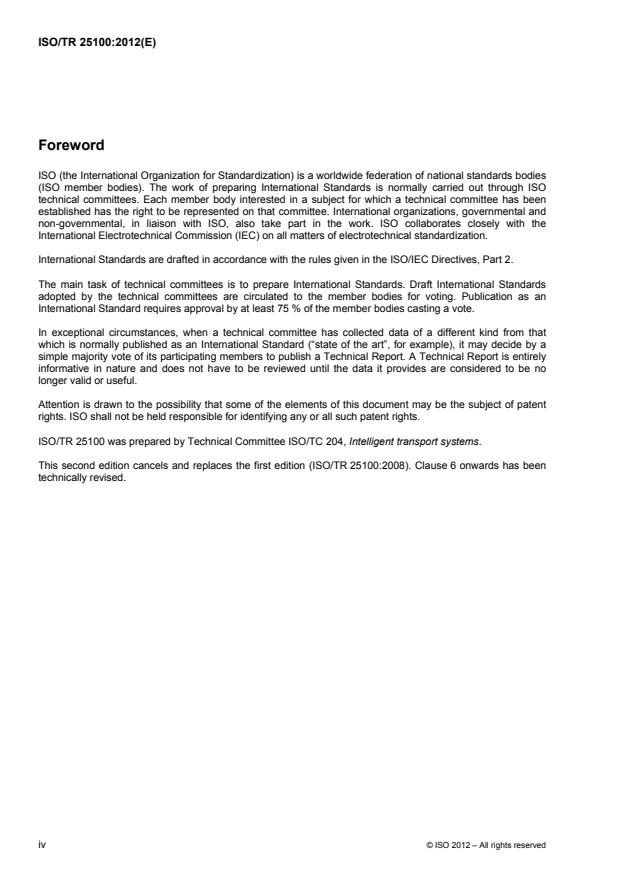

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from that
which is normally published as an International Standard (“state of the art”, for example), it may decide by a
simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely
informative in nature and does not have to be reviewed until the data it provides are considered to be no
longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 25100 was prepared by Technical Committee ISO/TC 204, Intelligent transport systems.
This second edition cancels and replaces the first edition (ISO/TR 25100:2008). Clause 6 onwards has been
technically revised.
iv © ISO 2012 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 25100:2012(E)
Introduction
The objective of this Technical Report is to provide user guidance for the harmonisation of data concepts
where there are similarities in definitions, including semantics.
Harmonisation has been discussed by several groups and some preliminary guidance and principles for the
effective harmonisation of data concepts for Intelligent Transport Systems [ITS] has already emerged.
It should be clearly recognised that harmonisation is not essential for interoperability, which can usually be
achieved given sufficient investment of knowledge and resources. Nevertheless this generally leads to
duplication and other unnecessary, futile and even useless work being undertaken. This also assumes that
there is an unlimited resource available to achieve the desired interoperability, whereas, in practice, time,
budget and shortage of skilled resources often cause compromise. Additionally, interoperability in one aspect
is sometimes achieved by the lack or loss of interoperability in another. Harmonisation is intended to reduce
the nugatory work, increase efficiency and thereby reduce the incidence of errors and faults.
This Technical Report describes a proposed process for harmonisation of data concepts to arrive at preferred
definitions for use in formal standards, specifications, technical reports and information models. The proposal
is based on consideration of a harmonisation process used by international groups involved in transport and
logistics information and control systems.
Harmonisation provides a means to improve efficiency and effectiveness of ITS, by helping to remove
duplication, inefficiency, ambiguity and confusion, and thereby improve clarity, comprehension, safety and
efficiency.
© ISO 2012 – All rights reserved v

---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 25100:2012(E)

Intelligent transport systems — Systems architecture —
Harmonization of ITS data concepts
1 Scope
This Technical Report provides guidance on the harmonisation of data concepts that are being managed by
data registry and data dictionaries such as those described in ISO 14817:2002.
This Technical Report describes processes for harmonisation of such data concepts to arrive at preferred
definitions for use in formal standards, specifications, technical reports and information models. It is based on
consideration of a harmonisation process used by international groups involved in the ITS sector and in the
wider sector of transport and logistics information and control systems.
2 Terms, definitions and abbreviated terms
2.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1.1
attribute
data concept that represents a single property of an entity
2.1.2
data concept
definition of a kind of data representing a concept in the subject domain that can be identified
with explicit boundaries and meaning and whose properties and behaviour all follow the same
rules
NOTE This Technical Report assumes that data concepts, however they are represented, may have structure, such
that individual property definitions are grouped into aggregate entities representing larger-grained concepts in the subject
domain, and these entities may have relationships to one another; this basic idea is common to most description
languages and metamodels including UML, XML and entity-relationship notations.
2.1.3
entity
data concept that may have attributes and relationships to other entities
NOTE This Technical Report follows common usage of the term “entity” where the words “entity kind” or “entity class”
would be more accurate.
2.1.4
harmonisation of data concepts
process of reconciling differences in semantics, structure and syntax of similar data concepts
NOTE Harmonisation may include the establishment of a single pervasive definition for each data concept (i.e.
standardization), but can also encompass flexible approaches in which definitions can be understood to grow closer
without becoming identical.
© ISO 2012 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/TR 25100:2012(E)
2.1.5
ontology
rigorous conceptual schema representing the subject domain
2.1.6
relationship
property of a data concept that defines its relation to another data concept
2.1.7
standardization of data concepts
process of establishing a single standard definition for data concepts
2.1.8
taxonomy
classification scheme for a subject domain
2.2 Abbreviated terms
2.2.1
ACC
aggregate core component
2.2.2
ASCC
association core component
2.2.3
ASN.1
abstract syntax notation one
2.2.4
BCC
basic core component
2.2.5
BIE
business information entity
2.2.6
BRS
business requirement specification
2.2.7
CC
core component
2.2.8
CCC
change control committee [ISO 14817 (2002)]
2.2.9
CCTS
Core Components Technical Specification
2.2.10
CV
controlled vocabulary
2 © ISO 2012 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/TR 25100:2012(E)
2.2.11
DEN
Dictionary Entry Name
2.2.12
ETL
Extract, Transform and Load
2.2.13
IEC
International Electrotechnical Commission
2.2.14
ISO
International Organization for Standardization
2.2.15
ITS
intelligent transport systems
2.2.16
MOF
meta-object facility
2.2.17
QVT
queries views and transformations
2.2.18
RSM
requirements specification mapping
2.2.19
TBG17
'Trade and Business Processes Group working group 17', UN/CEFACT
2.2.20
TC
technical committee
2.2.21
TICS
transport information & control system
2.2.22
TIH
Travel Information Highway (UK)
2.2.23
UML
Unified Modeling Language (ISO/IEC 19501)
2.2.24
UN
United Nations
2.2.25
UN/CEFACT
United Nations Centre for Trade Facilitation and Electronic Business
© ISO 2012 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/TR 25100:2012(E)
2.2.26
WD
working draft
2.2.27
WG
working group
2.2.28
XML
eXtensible Markup Language
3 Background issues
Development of information systems and networks supporting business processes for transport and logistics
frequently encounters multiple similar data concepts, any or all of which may be in widespread use. The need
for harmonisation of these synonymous concepts has been acknowledged to enhance interoperability and
reusability, but there are significant issues to be overcome.
Current approaches to achieve the data interoperability are principally to write ad-hoc data interface programs
for each pair of communicating systems. Experience shows that development and maintenance of these
programs is expensive in terms of both time and money. The total effort required increases with the square of
the number of communicating systems.
3.1 Proprietary data concepts
The first issue is that many data concepts are proprietary or are deeply embedded in proprietary systems,
which work well within their intended domain but are not freely accessible for broader use. There is an
opportunity cost for a system whenever there is a similar but nevertheless separately defined and
implemented concept in use in another domain that is not applied to the subject system.
3.2 Semantic differences
A second issue is where the concepts are subjects of widely used standards, but are not identical and have
subtle semantic differences in their use. In this case the standards development organisations have generally
been protective of their own approaches, based on concern about the cost of enforced changes on already
deployed systems. This has resulted in diminished success in harmonisation processes (in the USA for
example).
Semantic clashes are where similar or overlapping concepts are used with different detailed semantics in
different standards.
3.3 Structural differences
Structural clashes are caused by the heterogeneity of representation which is possible with many techniques,
such as XML representation. For example, using XML format the same concept can be expressed in several
different ways. ISO 24531 provides assistance in these respects for the use of XML in the ITS sector.
XML Schema enables constraining of XML documents but this was designed for constraining the content of
XML documents not for the conceptual representation. Within XML, structural clashes are mainly caused by
the different usage of specific constructs, e.g. by a different usage of attributes rather than embedded
elements or by expressing concepts in enumeration values.
Usually freely designed XML documents used for specific application purposes do not provide sufficient
information about the semantics of the data. The semantics of XML elements used by web applications is
hard-coded into the applications and is typically not available in machine processable form. This applies also
4 © ISO 2012 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/TR 25100:2012(E)
to documents with available structural schemata (XML Schema), which in most cases define the syntactical
structure of XML documents without explicit specification of their meaning.
Recording all standardised data using ASN.1, as specified in ISO 14813-6, provides assistance for defining
structure and semantics, but of course does not prevent two independently designed structures from clashing.
Other forms of representation allow similar clashes to exist.
3.4 Difficulty of application of existing data concepts
When addressing a new application domain there should be a desire to reuse concepts that already exist as
proprietary or open standards, but the mechanism to render them usable may be unclear. This generally
results from semantic differences or uncertainty in the application of the concept, or because significant
domain knowledge is required for the successful reuse of a data concept from a different domain. It can
appear easier to an engineer to design a new concept rather than verify that an existing one is exactly suitable.
Existing concepts tend to come within structures that are not optimal for further new applications, and
unnecessary surplus structure discourages re-use.
3.5 Report of investigation
'Harmonisation' is often touted as the means to resolve these issues, but has been much more difficult to
achieve than expected. This Technical Report is based on an on-going investigation being carried out on
behalf of ISO/TC 204 working group WG1 (Intelligent Transport Systems [ITS] Architecture, Taxonomy,
Terminology and data modelling), into various approaches used for harmonisation. This Technical Report
presents tentative conclusions regarding the effectiveness of the approaches for general use in intelligent
transport systems, and the wider sector of transport and logistics.
4 Harmonisation – General discussion
4.1 Introduction to harmonisation
Harmonisation in this context is the process of resolving differences in data definitions that have semantic
overlaps. However, successful achievement of the harmonisation process remains a problem in many areas.
Members of ISO/TC 204 WG1 have been considering this matter for some time and propose solutions to the
requirement for effective harmonisation at syntactic, relationship and semantic levels. These solutions for
harmonisation are provided in this Technical Report.
Progress in this respect has also been achieved in the 'United Nations Office for Trade Facilitation and
Electronic Business' [UN/CEFACT] by the 'Trade and Business Processes Working Group' [TBG], specifically
TBG17, as discussed in a subsequent section.
Harmonisation is easier to achieve if a single organisation owns all of the systems or specifications being
harmonised. Harmonisation is particularly difficult in a mature domain where there are already established
implementations and standards but no single controlling authority to enforce the use of one particular standard.
Nevertheless even within a loosely aligned community, a harmonisation process can still be valuable in
signalling preferred representations and providing aids to translation or migration.
4.2 Illustration of the need for harmonisation
It is helpful to consider the nature of the problem to be resolved. Take for example the need for integrated use
of travel information in an advanced national traveller information service. One class of information for the
traveller information system will be timetables for various travel services. To take an example from Australia
where two timetables are to be merged but the times of service departure are expressed differently:
 Travel service A departure time format: local time in New South Wales (time zone universal coordinated
time + 10 hours) 12-hour clock, subject to daylight savings time (Concept A);
© ISO 2012 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/TR 25100:2012(E)
 Travel service B departure time format: 24 hour clock based on Western Australia (time zone universal
coordinated time + 8hrs) and not subject to daylight saving time (Concept B).
Of course, if the travel service were totally local, and travellers had no mobility, the only criteria would be local
custom. However, as the object of travel is mobility, and we may expect one traveller to move from one
locality to another, we may expect one travel provider to be providing travel information to traveller information
systems elsewhere, and in these days of Internet we may also expect direct enquiries from elsewhere; there is
therefore a significant benefit to be gained from harmonisation. An analyst can understand that both services
have an implementation of the same underlying concept – the departure time of a travel service – and can
therefore take steps to harmonise. It will be apparent that there is a need for a series of conversions and
business rules to be applied to arrive at a compatible format, which could be in either of the proponent formats
or a third (preferred) option could be the use of a standard time such as UTC with the conversion to the time
format as preferred by the person making the inquiry (query) to be made at the time of a query.
4.3 Challenges in harmonisation
For a single underlying domain concept, there are many types of difference that can arise between the
expressions of that concept in two different systems.
The following example is from a European project (Harmonise) for the 'Conceptual Normalisation of XML Data
for Interoperability in Tourism'.
This project studies problems in using XML data in the tourist industry, and while much of its harmonisation
resolution is very specific to XML it provides a methodology that in process (if not in detail) is similar to those
described in this Technical Report, and provides some good examples of the problems involved. These are
shown clearly in Tables 1 and 2 below.
Table 1 — Sample of differences
Different naming PostCode vs. PostalCode
Different position Postcode in Address rather than in ContactInfo
Different scope TelephonePrefix and TelephoneNumber separated vs. as single concept

In the wider industry there is a need to resolve these differences to achieve interoperability. Harmonisation is
possible because an observer can still see that, for example, “postcode” and “postalcode” are still expressions
of the same domain concept.
The example in Table 2 shows three valid but different ways of expressing the concept PostalCode in XML.
Table 2 — Structural heterogeneity of XML
