Paper, board and printing inks – Printability – Laboratory test method for offset ink setting

This document describes a laboratory test method, using an IGT1-type or a prüfbau2-type printability tester, for the preparation of specimens to evaluate the absorption rate of an ink on a substrate in offset lithography by setting-off the printed surface to an unprinted surface. This method describes testing with an amount of ink simulating either single colour or multi-colour printing. The print and the set-off print (counter print) are made with interval times, between print and set-off, common for the target process. This method evaluates a particular ink and substrate combination. 1These materials are available from IGT Testing Systems, www.igt.nl. This information is given for the convenience of the users of this document and does not constitute an endorsement by ISO of the products. Equivalent products may be used if they can be shown to lead to the same results. 2These materials are available from prüfbau, Dr.-Ing. H. Dürner GmbH, www.pruefbau.de. This information is given for the convenience of the users of this document and does not constitute an endorsement by ISO of the products. Equivalent products may be used if they can be shown to lead to the same results.

Papier, carton et encres d'impression – Imprimabilité – Méthode d'essai de laboratoire pour le séchage de l'encre offset

General Information

Status
Published
Publication Date
24-Jun-2021
Current Stage
9093 - International Standard confirmed
Completion Date
04-Oct-2024
Ref Project

Buy Standard

Technical specification
ISO/TS 19857:2021 - Paper, board and printing inks – Printability – Laboratory test method for offset ink setting Released:6/25/2021
English language
22 pages
sale 15% off
Preview
sale 15% off
Preview
Technical specification
ISO/TS 19857:2021 - Paper, board and printing inks – Printability – Laboratory test method for offset ink setting
English language
22 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

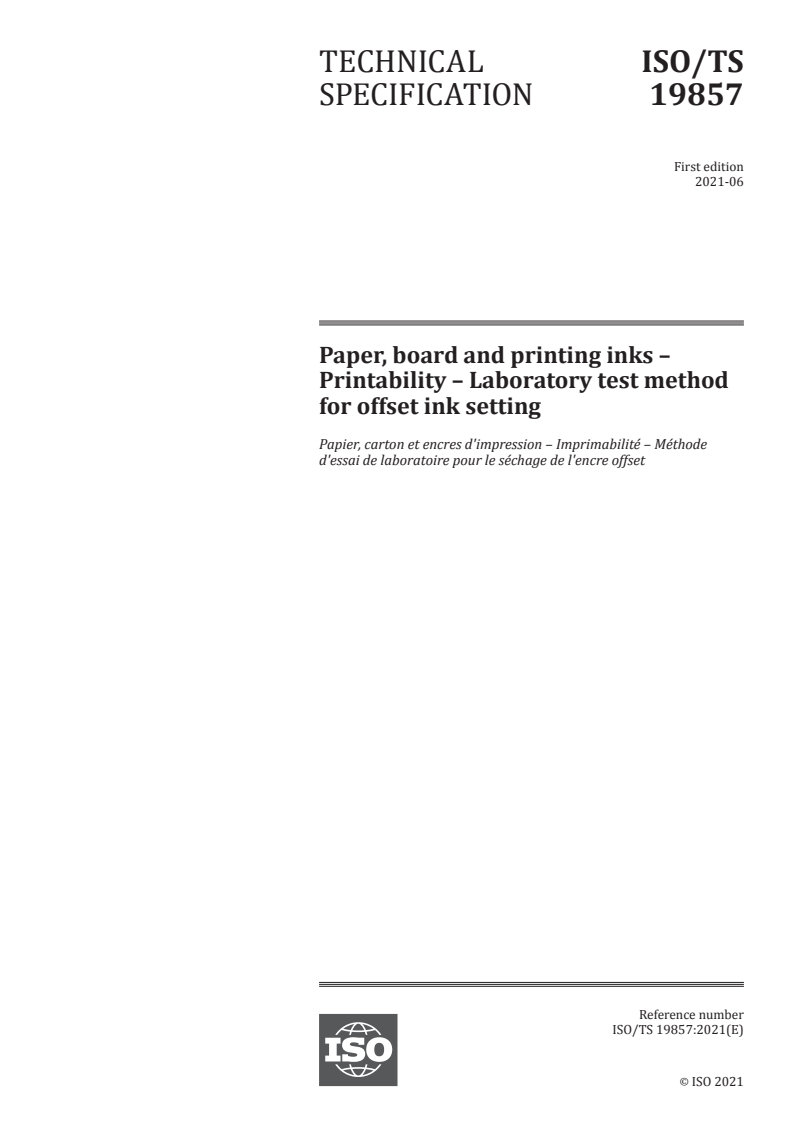

TECHNICAL ISO/TS
SPECIFICATION 19857
First edition
2021-06
Paper, board and printing inks –
Printability – Laboratory test method
for offset ink setting
Papier, carton et encres d'impression – Imprimabilité – Méthode
d'essai de laboratoire pour le séchage de l'encre offset
Reference number
©
ISO 2021
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved

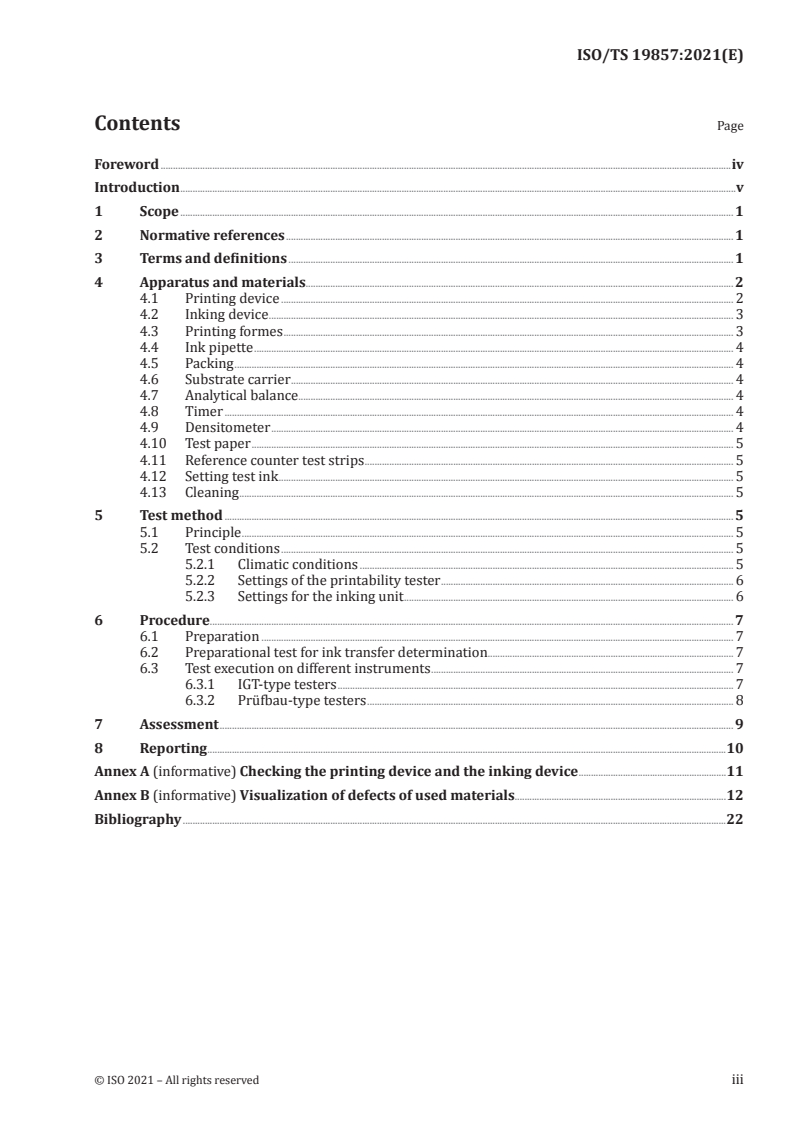

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Apparatus and materials. 2
4.1 Printing device . 2
4.2 Inking device . 3
4.3 Printing formes . 3
4.4 Ink pipette . 4
4.5 Packing . 4
4.6 Substrate carrier . 4
4.7 Analytical balance. 4
4.8 Timer . 4
4.9 Densitometer . 4
4.10 Test paper . 5
4.11 Reference counter test strips . 5
4.12 Setting test ink . 5
4.13 Cleaning . 5
5 Test method . 5
5.1 Principle . 5
5.2 Test conditions . 5
5.2.1 Climatic conditions . 5
5.2.2 Settings of the printability tester . 6
5.2.3 Settings for the inking unit . 6
6 Procedure. 7
6.1 Preparation . 7
6.2 Preparational test for ink transfer determination. 7
6.3 Test execution on different instruments . 7
6.3.1 IGT-type testers . 7
6.3.2 Prüfbau-type testers . 8
7 Assessment . 9
8 Reporting .10
Annex A (informative) Checking the printing device and the inking device .11
Annex B (informative) Visualization of defects of used materials.12
Bibliography .22

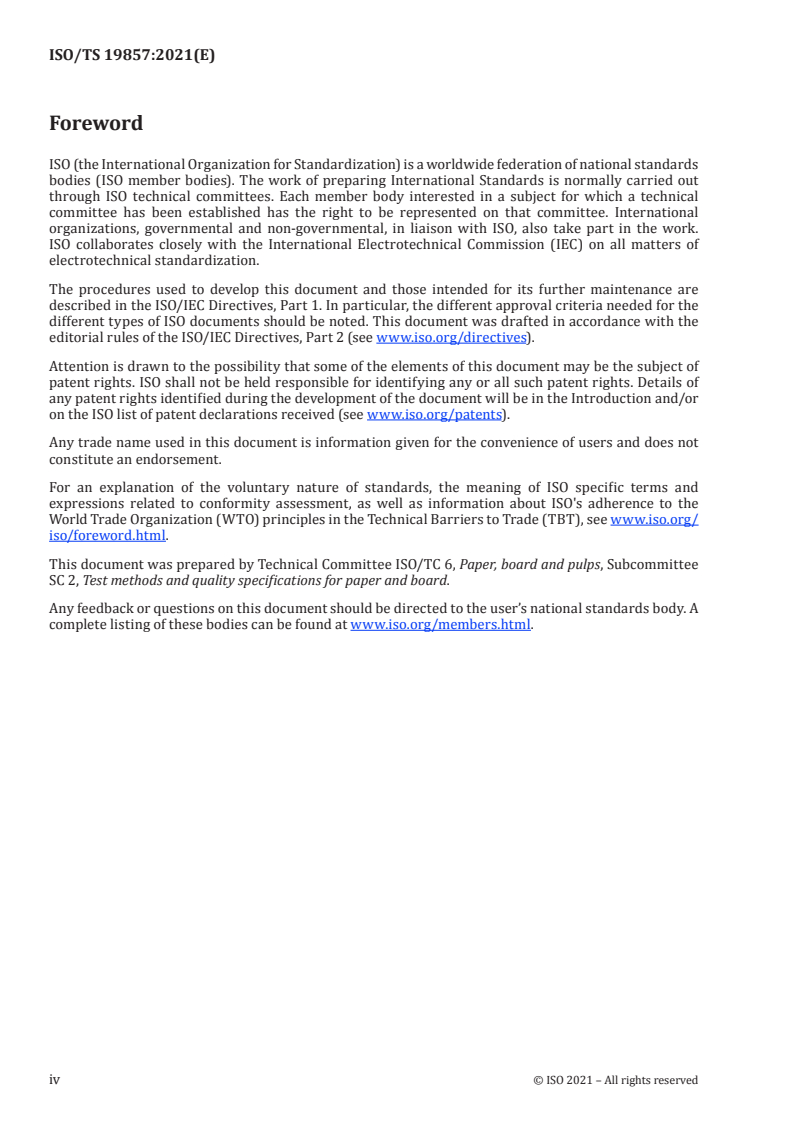

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 6, Paper, board and pulps, Subcommittee
SC 2, Test methods and quality specifications for paper and board.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved

Introduction
This document describes a test method to evaluate the ink setting characteristics of a specific ink/
substrate combination in offset lithographic printing.
Set-off is the transfer of ink from the front of one sheet to the back or the front of the next sheet.
Setting is the process of penetration of liquid ink components of low viscosity into the penetrable
substrate. These low-viscosity liquids within the ink are mineral oils, vegetable oils or esters of
vegetable oils. By separation from those low-viscous liquids, the remaining ink film solidifies. This is
combined with a varying change in the surface tack depending on the inks-varnish system and the
time. The surface tack usually increases at the begin of the setting and later-on drops to zero. Setting
is either the main drying mechanism for ink systems (e.g. news inks) or part of a multi-channel drying
mechanism (e.g. conventional sheet fed offset inks or heatset inks). The laboratory test for setting
performs a set-off print of the fresh print to a non-printed substrate at defined times. The ink transfer
to the non-printed substrate not only depends on the degree of solidification of the ink by setting, but
also on the actual level of tack of the original ink film. Thus, the test result is a combined measure.
The absorption properties of the paper are of great influence in offset lithography printing.
Inappropriate absorption can lead to numerous printing problems such as ink set-off, bad adhesion,
mottling, unpredictable tone value increase, poor rub resistance, damaging of first printed side on
perfecting presses after perfecting and others.
The more absorbent the paper is, the less time will be needed for the ink to set sufficiently for further
processing, but other properties can be affected adversely by fast ink setting. Very short times should
be used when testing the processing of wet sheets, e.g. in a perfector press. Longer times are used for
paper handling right after printing, and very long times are used for further processing such as folding
and cutting.
Depending on the purpose of the test, there are three options for the paper-ink combination:
— Reference ink on production paper;
— Production ink on reference paper;
— Production ink on production paper, which can be divided into the following, depending on the
application of the print:
— Set-off face-to-face (e.g. set-off after folding);
— Set-off face to back (e.g. set-off in a stack of paper).
TECHNICAL SPECIFICATION ISO/TS 19857:2021(E)
Paper, board and printing inks – Printability – Laboratory
test method for offset ink setting
1 Scope
1) 2)
This document describes a laboratory test method, using an IGT -type or a prüfbau -type printability
tester, for the preparation of specimens to evaluate the absorption rate of an ink on a substrate in offset
lithography by setting-off the printed surface to an unprinted surface.
This method describes testing with an amount of ink simulating either single colour or multi-colour
printing. The print and the set-off print (counter print) are made with interval times, between print and
set-off, common for the target process.
This method evaluates a particular ink and substrate combination.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 5-4, Photography and graphic technology — Density measurements — Part 4: Geometric conditions for
reflection density
ISO 2834-1, Graphic technology — Laboratory preparation of test prints — Part 1: Paste inks
ISO 2846-1, Graphic technology — Colour and transparency of printing ink sets for four-colour printing —
Part 1: Sheet-fed and heat-se
...


TECHNICAL ISO/TS
SPECIFICATION 19857
First edition
2021-06
Paper, board and printing inks –
Printability – Laboratory test method
for offset ink setting
Papier, carton et encres d'impression – Imprimabilité – Méthode
d'essai de laboratoire pour le séchage de l'encre offset
Reference number
©
ISO 2021
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Apparatus and materials. 2
4.1 Printing device . 2
4.2 Inking device . 3
4.3 Printing formes . 3
4.4 Ink pipette . 4
4.5 Packing . 4
4.6 Substrate carrier . 4
4.7 Analytical balance. 4
4.8 Timer . 4
4.9 Densitometer . 4
4.10 Test paper . 5
4.11 Reference counter test strips . 5
4.12 Setting test ink . 5
4.13 Cleaning . 5
5 Test method . 5
5.1 Principle . 5
5.2 Test conditions . 5
5.2.1 Climatic conditions . 5
5.2.2 Settings of the printability tester . 6
5.2.3 Settings for the inking unit . 6
6 Procedure. 7
6.1 Preparation . 7
6.2 Preparational test for ink transfer determination. 7
6.3 Test execution on different instruments . 7
6.3.1 IGT-type testers . 7
6.3.2 Prüfbau-type testers . 8
7 Assessment . 9
8 Reporting .10
Annex A (informative) Checking the printing device and the inking device .11
Annex B (informative) Visualization of defects of used materials.12
Bibliography .22
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 6, Paper, board and pulps, Subcommittee
SC 2, Test methods and quality specifications for paper and board.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved

Introduction
This document describes a test method to evaluate the ink setting characteristics of a specific ink/
substrate combination in offset lithographic printing.
Set-off is the transfer of ink from the front of one sheet to the back or the front of the next sheet.
Setting is the process of penetration of liquid ink components of low viscosity into the penetrable
substrate. These low-viscosity liquids within the ink are mineral oils, vegetable oils or esters of
vegetable oils. By separation from those low-viscous liquids, the remaining ink film solidifies. This is
combined with a varying change in the surface tack depending on the inks-varnish system and the
time. The surface tack usually increases at the begin of the setting and later-on drops to zero. Setting
is either the main drying mechanism for ink systems (e.g. news inks) or part of a multi-channel drying
mechanism (e.g. conventional sheet fed offset inks or heatset inks). The laboratory test for setting
performs a set-off print of the fresh print to a non-printed substrate at defined times. The ink transfer
to the non-printed substrate not only depends on the degree of solidification of the ink by setting, but
also on the actual level of tack of the original ink film. Thus, the test result is a combined measure.
The absorption properties of the paper are of great influence in offset lithography printing.
Inappropriate absorption can lead to numerous printing problems such as ink set-off, bad adhesion,
mottling, unpredictable tone value increase, poor rub resistance, damaging of first printed side on
perfecting presses after perfecting and others.
The more absorbent the paper is, the less time will be needed for the ink to set sufficiently for further
processing, but other properties can be affected adversely by fast ink setting. Very short times should
be used when testing the processing of wet sheets, e.g. in a perfector press. Longer times are used for
paper handling right after printing, and very long times are used for further processing such as folding
and cutting.
Depending on the purpose of the test, there are three options for the paper-ink combination:
— Reference ink on production paper;
— Production ink on reference paper;
— Production ink on production paper, which can be divided into the following, depending on the
application of the print:
— Set-off face-to-face (e.g. set-off after folding);
— Set-off face to back (e.g. set-off in a stack of paper).
TECHNICAL SPECIFICATION ISO/TS 19857:2021(E)
Paper, board and printing inks – Printability – Laboratory
test method for offset ink setting
1 Scope
1) 2)
This document describes a laboratory test method, using an IGT -type or a prüfbau -type printability
tester, for the preparation of specimens to evaluate the absorption rate of an ink on a substrate in offset
lithography by setting-off the printed surface to an unprinted surface.
This method describes testing with an amount of ink simulating either single colour or multi-colour
printing. The print and the set-off print (counter print) are made with interval times, between print and
set-off, common for the target process.
This method evaluates a particular ink and substrate combination.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 5-4, Photography and graphic technology — Density measurements — Part 4: Geometric conditions for
reflection density
ISO 2834-1, Graphic technology — Laboratory preparation of test prints — Part 1: Paste inks
ISO 2846-1, Graphic technology — Colour and transparency of printing ink sets for four-colour printing —
Part 1: Sheet-fed and heat-se
...
