ISO/TR 26999:2012

TECHNICAL ISO/TR
REPORT 26999
First edition
2012-10-15
Intelligent transport systems — Systems
architecture — Use of process-oriented
methodology in ITS International
Standards and other deliverables
Systèmes intelligents de transport — Architecture de systèmes —
Emploi d’une méthodologie orientée processus dans les Normes
internationales ITS et autres produits livrables
Reference number
©
ISO 2012
© ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the
address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Terms and definitions . 1
3 Symbols and abbreviated terms . 3
4 Background . 3
4.1 TC 204, working group 1 (WG1) . 3
4.2 Systems and architectures . 4
4.3 ITS architecture development approaches . 5
5 The process-oriented model . 5
5.1 General . 5
5.2 Stakeholder aspirations . 6
5.3 Stakeholder needs . 7
5.4 Functional viewpoint . 8
5.5 Physical viewpoint .14
5.6 Communications viewpoint .16
6 Other parts of the description of an ITS architecture .17
6.1 General .17
6.2 Identification and version .17
6.3 System stakeholder identification .17
6.4 Viewpoint overviews .18
6.5 Other information .18
7 Types of ITS architecture .18
7.1 General .18
7.2 Framework ITS architecture .19
7.3 Defined ITS architecture .19
7.4 Overloaded defined ITS architecture .20
7.5 Specific ITS architecture .21
7.6 Relationship between the types of ITS architecture .21
8 Creating an ITS architecture using the process-oriented model .22
8.1 General .22
8.2 Creating a framework ITS architecture .22
8.3 Creating a defined ITS architecture .23
8.4 Creating a specific ITS architecture.24
8.5 Using tools for creating ITS architectures .25
Bibliography .26

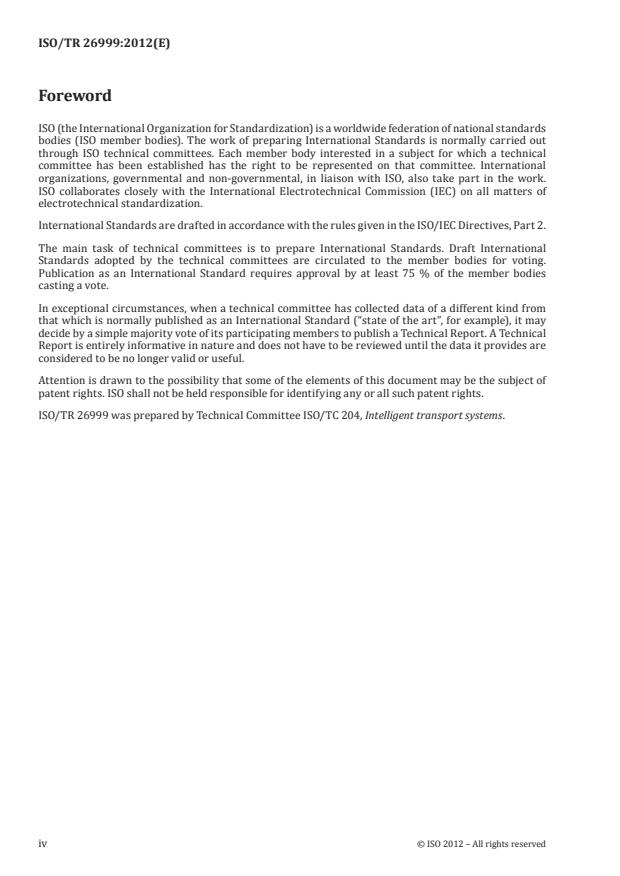

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from
that which is normally published as an International Standard (“state of the art”, for example), it may
decide by a simple majority vote of its participating members to publish a Technical Report. A Technical
Report is entirely informative in nature and does not have to be reviewed until the data it provides are
considered to be no longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 26999 was prepared by Technical Committee ISO/TC 204, Intelligent transport systems.
iv © ISO 2012 – All rights reserved

Introduction
The objective of this Technical Report (TR) is to provide guidance on the use of the process-oriented
method (POM), also known as data flow modelling, in the development of intelligent transport systems
(ITS) International Standards and other deliverables, and in the design and implementation of ITS
systems. In particular, it is intended to be used as the basis for the development of high-level system
architectures for ITS. These architectures are tools to aid ITS implementations, and a mechanism to
identify and promote the creation and use of standards.
The advantages of applying POM to the development of high-level system architectures for ITS include
the following:
— POM is easily understood, particularly by non-technical people (e.g. decision-makers) who are often
the intended audience for high-level system architectures;
— POM enables a coherent description to be built up from multiple user views;
— training and tool support is available, particularly in Europe and the USA;
— the data descriptions produced by POM are capable of manipulation by a metadata registry for ITS;
— the results of creating a POM system architecture can be easily transferred into requests for
quotations (RFQs), expressions of interest (EOIs), tenders and other similar documents;
— the results of POM system architectures can be translated into UML for use by software developers;
— POM is applicable to both hardware and software and does not, therefore, pre-suppose the form in
which its functionality will be implemented.
The disadvantages of using POM include the following:
— POM has a bad image, e.g. it is old-fashioned, and is usually not now included in the training of
systems analysts and designers;
— parts of a POM system architecture might require conversion to UML before it will be accepted by
most software developers.
There are some risks in using POM, but the benefits of its ability to be easily understood by the usual
initial audience for high-level system architectures can often help with the initial promotion of ITS
implementations. This TR is intended to provide guidance to stakeholders who are considering the use
of POM for ITS.
TECHNICAL REPORT ISO/TR 26999:2012(E)
Intelligent transport systems — Systems architecture —
Use of process-oriented methodology in ITS International
Standards and other deliverables
1 Scope
The scope of this Technical Report is the use of the so-called process-oriented method (POM) in
International Standards, Technical Specifications, Technical Reports and related documents.
This Technical Report discusses the use of POM in the development of high-level system architectures
for intelligent transport systems (ITS). It is based on the results of the work of the FRAME-S project
and the FRAME Forum. Much of the text from Clause 2 through to the end of the document is therefore
reproduced by kind permission of the European Commission and the FRAME Forum.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
actor
sub-element of a terminator
NOTE It is mainly used to enable a particular variant of a terminator to be differentiated from other variants,
e.g. to differentiate a public transport vehicle driver from any other type of driver, or all drivers.
2.2
architectural model
model that contributes to the content of an architectural view
2.3
architecture (generic definition)
set of concepts and rules for a system that describes the inter-relationship between entities in the entire
system, independent of the hardware and software environment
NOTE Architecture is described through a series of viewpoints that might be at varying levels of
generality/specificity, abstraction/conception, totality/component, and so on. See also “communications
viewpoint”, “functional viewpoint”, “organizational viewpoint” and “physical viewpoint” definitions below.
2.4
architectural viewpoint
representation of a system from the perspective of an identified set of architecture-related concerns
2.5
architectural description
collection of information items used to describe an architecture
2.6
aspiration
expression of what a stakeholder wants the ITS implementation to provide, usually written in the
language of the stakeholder and thus possibly having little or no formal structure
NOTE There could be many aspirations for each ITS implementation, depending on its scope and the number
of stakeholders that are involved.
2.7
communications viewpoint
one of several architectural viewpoints of the system of interest, showing the links between the building
blocks in the physical viewpoint that will enable them to communicate with each other, and including
details of expected data throughputs and any other constraints that will affect the eventual choices of
communications hardware and software
2.8
functional viewpoint
one of several architectural viewpoints of the system of interest, showing the functionality that will be
needed to fulfil the requirements expressed in the user needs, this functionality being shown as a series
of functions and data stores plus the data flows between them and the data flows between the functions
and the terminators
2.9
ITS architecture
specific form of a system architecture for use as a tool in the initial stages of an ITS implementation
2.10
model
representation of an entity from which the important elements have been abstracted by removing certain
detail while at the same time retaining the interrelationship between the key elements of the whole
NOTE 1 A model can be made more or less abstract by the successive suppression of detail such that the
concepts and relationships come into enhanced focus and become more readily understood. However, the process
can be taken too far when the simplification has exceeded the threshold where a necessary understanding can
be achieved. Thus the process of modelling is one of going only far enough to achieve the optimum understanding
and insight — and no further.
NOTE 2 A model is a way of representing something, other then in its natural state (see “Models of ITS”
documents at the web site given in Reference [2] in the Bibliography).
2.11
organizational viewpoint
one of several architectural viewpoints of the system of interest, showing how the building blocks
from the physical viewpoint (or the functional viewpoint) can be allocated to the different types of
organization (or organizations themselves, if known) that will be involved with the ITS implementation
2.12
physical viewpoint
one of several architectural viewpoints of the system of interest, showing how the functionality from
the functional viewpoint can be allocated to different physical locations and combined into different
building blocks
2.13
stakeholder
entity that is involved in some way with the ITS implementation
2.14
stakeholder need
formal expression, using “shall” language, to define what the stakeholders expect the ITS implementation
to provide, and from which the functional viewpoint is created, also known as “user need”
2.15
system architecture
single, high-level, description of the major elements or objects of a system plus the inter-connections
between them
2 © ISO 2012 – All rights reserved

2.16
system of interest
another name used for the system, applied to whatever will be included in the ITS implementation that
is created out of the ITS architecture
2.17
terminator
entity that is external to the system but with which the system communicates either to obtain inputs or
to which it can send outputs
NOTE 1 Terminators may be split up into actors if necessary.
NOTE 2 In most ITS architectures, the terminators may be the same in both the functional and the physical
viewpoints.
NOTE 3 In the US National ITS Architecture, a terminator defines the boundary of the system of interest. Each
terminator may represent the people, systems and general environment that interface to ITS. The interfaces
between terminators and the sub-systems and processes within the National ITS Architecture are defined, but no
functional requirements are allocated to terminators. The logical and physical architecture views of the National
ITS Architecture both have exactly the same set of terminators.
2.18
unified modelling language
UML
object-oriented modelling language specified in ISO/IEC 19501
2.19
user need
another name for “stakeholder need”
3 Symbols and abbreviated terms
3.1
E-FRAME
extended framework architecture made for Europe
3.2
FRAME
framework architecture made for Europe
3.3
ITS
intelligent transport system
3.4
KAREN
keystone architecture required for European networks
3.5
POM
process-oriented method
4 Background
4.1 TC 204, working group 1 (WG1)
This Technical Report arose to complement work done by WG 1 on the elaboration of Technical Report
ISO/TR 24529 which covers the use of UML in ITS International Standards and other deliverables. WG 1
has never mandated the sole use of UML above other architecture methodologies, and this Technical
Report is intended to describe the use of an alternative methodology.
POM should not be seen as a rival to UML, and the two should be seen as complementary rather than
competitors. Each methodology should be seen as being most suitable for (parts of) architectures that
are created at particular stages in ITS implementations. In general, POM is best suited to high-level
architectures that are to be used by decision-makers and others to refine their original concepts for
ITS implementation and explore alternatives, without the need for detailed knowledge of architecture
modelling techniques. UML is seen by some as more suited to detailed lower-level architectures from
which software is to be designed, coded and tested before being included in the implementation.
4.2 Systems and architectures
The topic of system architecture is surrounded by shibboleths and silver bullets which imply that “if you are
not using my preferred method of describing them, then you are wrong”. The basic flaw in this argument
is that system architectures are used for a number of different purposes, and so it is not surprising that
different modelling techniques are required. Thus the relevant phrase should be “horses for courses”
rather than “one size fits all”. Let us consider the two words “system” and “architecture in turn.
Systems of interest are often described in a hierarchical manner and, when this is done, each lower
stage contains greater detail than the one above it. Thus each higher stage provides the requirements
[1]
for the one below it, which is a “design” that conforms to those requirements . In the world of ITS, we
can identify at least seven levels of requirements and design, each with their own set of characteristics
and needs, as follows [note that (a) some of the terms used are described below and (b) the bottom two
bullets are at the same level]:
— The top-level requirements are stakeholder aspirations.
— These are interpreted into a structured design by the system architect in the form of stakeholder needs.
— The stakeholder needs are then used as requirements by the system architect who creates a high-
level design — the ITS architecture.
— ITS engineers then use (part of) the ITS architecture to create requirements for procurement.
— The system engineer in the supplier’s organization uses these requirements for procurement to
create a detailed design for the final equipment.
— Software and hardware engineers use parts of this detailed design to produce requirements for the
software and hardware, respectively.
— A programmer uses the software requirements to produce a program, which is a form of design.
— A hardware engineer uses the hardware requirements to produce a design for the hardware.
Consequently, a modelling technique that was originally created to aid, say, the development of (low-
level) software sub-systems might not be suitable for describing the higher levels of the system of
interest, which include features from other engineering disciplines. Also, the intended audiences for the
highest levels of abstraction might not always be from an engineering background, and will therefore
need something that is easy and intuitive to understand and that contains few “hidden” semantics.
Architectures describe the fixed parts of the structure of the system of interest and its sub-systems.
They range from a high-level structure of a system of interest that all users need to understand to some
degree, to the low-level structure of a (complex) piece of software which only needs to be understood
by its developers and maintainers. In fact, during the development of a large and complex system,
[1]
architectures might be used at a number of different levels, each containing different levels of detail .
The situations described above are extended when a system architecture is not used to describe a single
system of interest, but a class of systems from which any particular deployment might take some, but
not all, of the components. This is called a system framework architecture.
4 © ISO 2012 – All rights reserved

This Technical Report describes a process for the first four stages stated above, using a sequence of
[1]
models that have been developed specifically to aid in the creation of large complex systems of interest
and is proven in use. It is also the process and models that underlie the European ITS Framework
[2]
Architecture , which has already formed the basis of a number of regional, national and trans-national
ITS architectures, as well as architectures for individual projects.
4.3 ITS architecture development approaches
Several approaches to architecture development have been tried during the last 20-30 years. In
essence, all of them are trying to capture the mental model that system designers create when asked to
design a system. As these systems have become more and more complex, they have often needed to be
partitioned into sub-systems, or for the required functionality to be provided through the creation of
several separate systems with what is hoped to be fully agreed communications between them.
Once communications have been agreed between systems, it usually means that they are said to be
“interoperable”. This is required to enable systems to deliver the same services across national and
other geographical boundaries and to enable individual systems, sub-systems and components to be
replaced without adversely affecting system operation or performance. The probability of systems
communicating with each other successfully can be improved through the use of system architectures,
as these can be used to ensure that communicating systems are not based on conflicting assumptions.
ITS has not escaped this move towards the need for high degrees of complexity and interoperability.
Indeed, ITS, by their very nature, are highly complex and, in many cases, interdependent. This has
resulted in the adoption of formalized approaches to the development of ITS system architectures, or
“ITS architectures” as they are usually called.
At first the ITS architecture development approaches were manual, but in time and as a result of the
added complexity already mentioned, they have become computer based, with some levels of computer
assistance also being introduced. At the moment, there are two main approaches in use: the object-
oriented (OO) approach, usually using UML, and the process-oriented method (POM), also known as
data flow modelling. Both have their advocates and detractors and both have computer-based tools to
aid in their use.
Proponents of UML will quite rightly claim their differences and in some circumstances advantages over
POM, and it is not the objective of this Technical Report to claim preference for POM, but simply to say
that in many cases it is a suitable technique and to consider the ways of using it most effectively.
5 The process-oriented model
5.1 General
Before beginning to understand the process-oriented model, is important to understand its objectives
and the limitations of the claims that are being made for it. They are as follows:
a) It is an effective model to describe a high-level ITS framework architecture, and the ITS architectures
that are derived from it.
b) It is anticipated that it will be used in the early part of a hierarchy of requirements and designs.
In particular, it is anticipated that (parts of) a resulting ITS architecture will be used to produce
component and infrastructure specifications for suppliers to design and build (using their own in-
house methods and modelling techniques).
c) An ITS framework architecture might not be complete. It might be necessary to add items to create
a defined ITS architecture to satisfy its stakeholders.
d) The model is technology-independent, i.e. the decision as to how to implement the components and
infrastructure is left to the suppliers (subject to any restrictions imposed by the purchaser).
The model comprises the following elements:
— Stakeholder aspirations
— Stakeholder needs
— Functional viewpoint
— Context diagram
— Data flow diagrams
— Control model
— Physical viewpoint
— Context diagram (same as that for the functional viewpoint)
— Sub-system specifications
— Module specifications (optional — depending upon system complexity)
— Communications viewpoint
5.2 Stakeholder aspirations
These are unstructured statements that express the problems that need to be addressed and the desires
of the various stakeholders. Ideally, they should be written by the stakeholders, but in practice they
normally need guidance from their ITS architects. A stakeholder is any person that affects, or is affected
by, either directly or indirectly, the system under consideration. They can be categorized into four
generic groups, as follows:
— Want ITS — These are the problem owners. Their problems may be concerned with traffic and/or
transport, and they might be authorities that need to improve the transport environment of their political
masters, network owners or operators, or travellers who wish to improve their travelling experience.
— Make ITS — These are solution providers. They comprise the component manufacturers and the
system integrators.
— Use ITS — These are the travellers, system operators and service providers that will come into
direct contact with the systems and use them to solve their problems.
— Rule ITS — These are the authorities that provide the legislative framework within which the
solutions will be created and used. They also include the creators of standards.
Some stakeholders, such as service providers, can be part of more than one category.
Aspirations are written in the stakeholders’ own words. Thus they are likely to be unstructured, as can
be seen in the examples given in Figure 1.
6 © ISO 2012 – All rights reserved

Figure 1 — Examples of stakeholder aspirations
(Reproduced by kind permission of the FRAME Forum)
When working with stakeholders, it is often useful to give them a starting point. This can be provided
[3]
by using some or all of the high-level service descriptions provided in ISO 14813-1 as the basis for a
discussion of the services that the stakeholders could consider providing.
5.3 Stakeholder needs
Sometimes called user needs, stakeholder needs are structured statements that form the system
requirements of the ITS architecture. They should be written using simple formal statements that
specify a function or a feature that should be provided by the final ITS implementation. Stakeholder
needs should have a formal structure, usually provided by a numbering system.
This numbering system should reflect the range of services that the ITS is expected to support, with
stakeholder needs for the same or similar services being put within the same numerical sequences.
If a new set of stakeholder needs is being created, then useful starting points for this structure are
[3]
again provided by the list of services in ISO 14813-1 , but also by the list of European ITS user needs
[2]
available from the FRAME website , or the US National ITS Architecture user services available from
[4]
its website .
Stakeholder needs are usually written in what is called “shall” language because each sentence starts
with the words “The system shall …” for each feature that is required for a given application or service.
If a feature is optional in the sense that a valid ITS architecture for that application or service can be
created without it, then the stakeholder need starts with the phrase: “The system shall be able to …” or
“The system shall enable …” All features mentioned in one stakeholder need are to be implemented at
the same time. Those features that can be omitted if not required by the ITS architecture for a particular
ITS implementation must be in separate stakeholder needs.
As part of the ITS architecture creation process, the ITS architect translates the stakeholder
aspirations into stakeholder needs using the format and structure just described. This is illustrated
by the example in Figure 2.
Figure 2 — Examples of stakeholder needs mapped to a stakeholder aspiration
(Reproduced by kind permission of the FRAME Forum)
In order to save time and resources in the ITS architecture creation process, it is better to try and map
the stakeholder aspirations to an existing set of stakeholder needs. These can provided either by the list
[2]
of European ITS user needs that is included in the European ITS Framework Architecture , or by the
[4]
user services that have been created for the US National ITS Architecture . Both of these are written
in “shall” language, but have slightly different styles of writing, in particular the sets of sequences of
stakeholder needs in the list of European ITS user needs are called “groups”, while those in the US
National ITS Architecture are called “user service bundles”.
The selection of the correct starting point (European or US) will depend on which most closely fits the
services that the ITS architecture is to support. However, whichever choice is made, it is always possible
that no mapping will be found between some of the stakeholder aspirations and either the European or
the US set of stakeholder needs. In this case, new stakeholder needs will have to be created, using the
appropriate European or US format.
5.4 Functional viewpoint
5.4.1 General
This subclause describes the contents of the functional viewpoint, sometimes called the functional (or
logical) architecture. Its contents comprise functions, data stores and terminators, which are linked together
by data flows. The relationships between these components are illustrated using data flow diagrams.
5.4.2 Context diagram
One of the most important parts of a functional viewpoint is the context diagram. It defines the system
as a single entity but identifies all of the external entities with which the system must communicate.
Thus it is used to show the boundary between the system and the outside world. An example of a simple
context diagram is shown in Figure 3.
8 © ISO 2012 – All rights reserved

Figure 3 — An example of a context diagram
(Reproduced by kind permission of the FRAME Forum)
The external entities (other systems or persons) are called “terminators”. They can be generic as shown
above, or be created as individuals for the various forms of each terminator. This latter concept is
illustrated in the more complex context diagram for the US National ITS Architecture — see http://
itsarch.iteris.com/itsarch/html/pspec/dfdiagramcontext.htm. In Figure 3, the detail of some of the
terminators is provided by the use of actors. For example the “driver” terminator can have actors to
represent drivers of different types of vehicle, e.g. private car, heavy goods vehicle, public transport
vehicle. In the US National ITS Architecture each of these actors is shown as a separate terminator.
5.4.3 Functions
In its simplest form, a function defines what needs to be done to create the required outputs to a
terminator from a given set of terminator inputs. However, it is very unusual for this to be done with
one function, and so there might be several functions between the input terminator(s) and the output
terminator(s). Each one will perform part of the necessary processing.
All functions should be individually numbered and have a name. The name should summarize what the
function does in a simple short statement that usually begins with a verb, e.g. “Provide operator interface”,
“Collect toll”. The scheme used for the function numbering will be important for the construction of
functional hierarchies — see later.
The description of each function should be divided into four parts. These comprise an overview, lists of
input and output data flows, detailed functional requirements (what the function actually does) and a list
of the stakeholder needs that are being served. The stakeholder needs associated with each function are
determined when it is created. There is no exact science to define how many stakeholder needs should
be related to one function, as it will depend on what is in the stakeholder needs and the complexity of
the functionality required to fulfil them. A typical example of a function description is shown in Figure 4
(note that trigger flows are described in 5.4.7).
Figure 4 — An example of a function description
(Reproduced by kind permission of the FRAME Forum)
When functions are newly created, it is very easy to have a few of them related to a large number of
stakeholder needs. This can make the functions very complex and contain a lot of functionality, which
can sometimes cause problems for the creation of the physical viewpoint. Large or complex functions
are therefore usually split up into smaller and simpler functions so that each one contains part of the
total functionality required to fulfil a collection of stakeholder needs. To help with understanding how
these functions relate to each other, they are structured into a functional hierarchy in which the original
large or complex function only has an “overview” description and is called a “high-level function”. The
new smaller and less complex functions are its components, each having a full description as shown in
Figure 4 and being called “low-level functions”. The functions at the very highest level in the hierarchy
are usually referred to as “functional areas” and there might be several of these in each ITS architecture,
each containing many functions, some of which might themselves be high-level functions with component
low-level functions.
10 © ISO 2012 – All rights reserved

In the example of a function description shown in Figure 4, the function 3.1.2.1 is in functional area 3. It
is part of a high-level function, 3.1.2, which is itself a component of high-level function 3.1. Most, if not all,
of the ITS architectures using the POM methodology structure their functionality in this way.
5.4.4 Data stores
Data stores are used to hold data that need to be stored for a length of time, and then used by one or
more functions. Data stores should be named and numbered, with the name indicating the type of data
it contains and provided with a description containing details of what data are in the store.
It is important to note that the term “data store” is not necessarily synonymous with a database, nor is it
intended to imply the use of any particular physical design or storage methodology. But it does identify
data that either needs to be accessed by several functions, or whose storage must be explicitly identified.
Taken together, the data store descriptions will provide the information viewpoint component of the
architecture. An example of a data store description is shown in Figure 5.
Figure 5 — An example of a data store description
(Reproduced by kind permission of the FRAME Forum)
5.4.5 Functional data flows
Functional data flows are used to provide data links between functions, data stores and terminators.
They should be uni-directional only in a functional viewpoint, though they are sometimes shown as
being bi-directional in a context diagram — see the example in Figure 3.
Each functional data flow should be provided with a description, which provides a high-level description
of the data it contains. An example of a data flow description is shown in Figure 6.
Figure 6 — An example of a functional data flow description
(Reproduced by kind permission of the FRAME Forum)
5.4.6 Data flow diagrams
Data flow diagrams (DFDs) are used to illustrate the way that the functions and data stores used to
satisfy the stakeholder needs communicate with each other and with the terminators/actors using the
functional data flows. Each DFD actually illustrates what is in a high-level function, and at the highest
level shows what is in each functional area.
The structure of the DFDs follows the hierarchical structure of the functions, but with the addition of a
top-level diagram. This is called a “system diagram” and it shows the data flows that link the functional
areas together. An example of this type of diagram is shown in Figure 7.
Figure 7 — An example of a system diagram
(Reproduced by kind permission of the FRAME Forum)
12 © ISO 2012 – All rights reserved

NOTE The diagram shown in Figure 7 is a reproduction of a full system diagram which is normally printed on
A3 size paper. A full-sized example of such a diagram can be seen by opening the “Functional Area Diagram” in the
FRAME Browsing Tool. This tool can be downloaded, by following the instructions in the “Installation” section,
from the FRAME website: http://www.frame-online.net/the-architecture/browsing-tool.html.
In the example of a system diagram shown in Figure 7, each of the functional areas is illustrated as a
single box. Each of these is also represented by its own DFD, which in turn might contain high-level
functions that are also illustrated by their own DFDs. Thus each DFD shows an increasing level of detail,
which makes it easier for users of the ITS architecture to understand its contents. An example of the DFD
for a high-level function is shown in Figure 8.
Figure 8 — An example of a (lowest-level) data flow diagram
(Reproduced by kind permission of the FRAME Forum)
The DFD is one of the parts of the architecture creation process that has benefited greatly from the
introduction of computer-based tools. The actual appearance of the DFDs provided by these tools will
depend upon the facilities they have to show functions, data stores, data flows and terminators/actors.
Thus the DFD shown in Figure 8 should be treated as an example of how a DFD can appear, rather than
the way that all DFDs should appear. An alternative representation of the way that a DFD can appear
is provided by the system diagram for the US National ITS Architecture which can be found at: http://
www.iteris.com/itsarch/html/pspec/dfdiagram0.htm.
It is not always necessary to draw the data flow diagrams for the functional viewpoint. This particularly
applies where the ITS architecture is being created from an existing architecture with the objective of
producing a physical viewpoint — see later subclauses.
5.4.7 Control
A functional viewpoint might also contain a control model, which can be explicit, e.g. a finite-state
machine, or implicit by assuming a function will execute whenever it has sufficient data to do so
properly. Alternatively trigger flows may be used, as shown in Figure 4. These are special forms of input
data flow which, when received by a function, will cause it to do something. In this case, the functional
requirements will be written to say that the function will not do anything until a trigger flow has been
received. This can be either to start the function or to carry out a specific part of its functionality.
5.5 Physical viewpoint
5.5.1 General
This subclause describes the contents of the physical viewpoint, sometimes called the physical
architecture. Its contents comprise sub-systems and (optionally) modules, which are linked together
with physical data flows. The relationships between these components are illustrated using diagrams.
5.5.2 Context diagram
A physical viewpoint has the same context diagram as the functional viewpoint because it is the same
system that is being shown. It will therefore appear identical to the diagram shown in Figure 3. The
physical viewpoint provides a “physical” view of the system instead of the “functional” view provided
by the functional viewpoint.
5.5.3 Sub-systems and modules
A separate sub-system is created for each physical location that will be used in the ITS implementation.
Each sub-system is allocated some of the functions and data stores from the functional viewpoint. The
way that the allocation is made depends on the actual physical locations where it is considered desirable
to place the various parts of the system functionality. Thus the sub-systems show the distribution of
functional units in the different physical locations that are to be used for the ITS implementation.
Sub-systems may be subdivided into modules, if desired. This can be to enable a program of phased
deployment for different services being provided by one ITS implementation, or for the identification of
the
...
