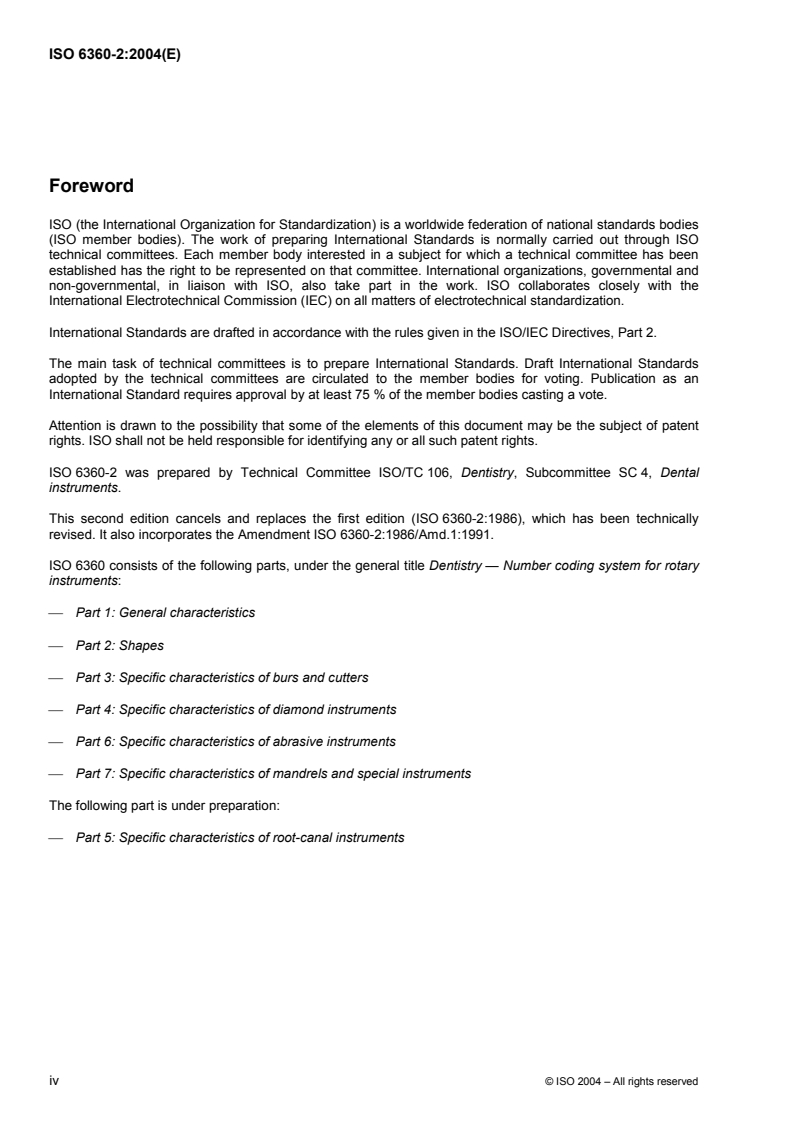

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 6360-2 was prepared by Technical Committee ISO/TC 106, Dentistry, Subcommittee SC 4, Dental
instruments.
This second edition cancels and replaces the first edition (ISO 6360-2:1986), which has been technically
revised. It also incorporates the Amendment ISO 6360-2:1986/Amd.1:1991.
ISO 6360 consists of the following parts, under the general title Dentistry — Number coding system for rotary
instruments:
 Part 1: General characteristics
 Part 2: Shapes
 Part 3: Specific characteristics of burs and cutters
 Part 4: Specific characteristics of diamond instruments
 Part 6: Specific characteristics of abrasive instruments
 Part 7: Specific characteristics of mandrels and special instruments
The following part is under preparation:
 Part 5: Specific characteristics of root-canal instruments
iv © ISO 2004 – All rights reserved

Introduction
This part of ISO 6360 is one of a series of International Standards relating to dental rotary instruments. A wide
variety of dental rotary instruments, including root-canal instruments, is manufactured throughout the world for
use by the dental profession.
ISO 6360 provides a general number coding system for all types of dental rotary instruments, including
accessories used in connection with these rotary instruments.
The benefits of this system for dentistry in its entirety will only be derived if the system is widely adopted;
manufacturers of dental instruments, as well as the dental trade, are therefore requested to refer to ISO 6360
in their catalogues.
This part of ISO 6360 was prepared in response to a need by the dental trade and industry and the dental
profession for a universal system of classification and designation for these instruments. It establishes a
comprehensive number coding system suitable for all dental rotary instruments by use of a 15-digit code
number identifying general and specific characteristics of instruments or groups of instruments.
The first group of three digits identifies the materials used for the working part of instruments.
The second group of three digits identifies the shanks and handles used for instruments and the overall
lengths of instruments.
The third group of three digits identifies the shapes of instruments.
The fourth group of three digits identifies the specific characteristics for groups of instruments.
The fifth group of three digits identifies the nominal diameter of the working part of the instruments.
The code numbers are generic code numbers. They do not provide exact product information. This
information is given in the respective product standards for dental rotary instruments.
For the application of the system and for the correct allocation of numbers or their identification, it is intended
that the user consult ISO 6360-1 and this part of ISO 6360 for general information, and in addition one of the
subsequent parts (ISO 6360-3 to ISO 6360-7) for further information on specific characteristics of instruments
or groups of instruments.
For the allocation of new numbers complying with ISO 6360, an application supported by a description and a
drawing should be sent to the secretariat of ISO/TC 106/SC 4, Dental instruments, which keeps updated
records of all numbers currently allocated. An international group of experts will then decide on an appropriate
identification number for the instrument in question, including its specific characteristics. The Secretary will
inform the applicant, in due course, of the result and assist him in using the number correctly. The Secretariat
of ISO/TC 106/SC 4 can be contacted at:
DIN NADENT
Turnplatz 2
75172 Pforzheim
Germany
INTERNATIONAL STANDARD ISO 6360-2:2004(E)

Dentistry — Number coding system for rotary instruments —
Part 2:
Shapes
1 Scope
This part of ISO 6360 specifies the code numbers for the shapes of all dental rotary instruments and for
several accessories used in connection with these instruments. This three-digit number for shape description
forms the third group of three digits in the 15-digit overall number, the principles of which are explained in
ISO 6360-1.
NOTE In addition to terms for rotary instruments and accessories used in two of the three official ISO languages
(English, French and Russian), this part of ISO 6360 gives the equivalent terms in the German language: these are
published under the responsibility of the member body for Germany (DIN). However, only the terms given in the official
languages can be considered as ISO terms.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 6360-1, Dentistry — Number coding system for rotary instruments — Part 1: General characteristics
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 6360-1 and the following apply.
3.1
wheel
cylindrical rotary instrument used in dentistry in which the length of the working part is 5 % to 100 % of the
diameter
3.2
disc
cylindrical rotary instrument used in dentistry in which the length of the working part is less than 5 % of the
diameter
3.3
torpedo
shape of rotary instrument used in dentistry having a short radius near the tip of the working end
NOTE 1 See code numbers 284 and 294 for illustrations.
NOTE 2 The envelope of the rotating working end is similar to that produced by the revolution of a pointed (Gothic)
arch around its axis of symmetry.
3.4
conical with ogival end
shape of rotary instrument used in dentistry having a long radius near the tip of the working end
NOTE See code number 213 for an illustration.
4 Code numbers for shapes
4.1 General
The general characteristics of the number coding system for rotary instruments are described in ISO 6360-1.
The first and second groups of three digits of the 15-digit overall number are specified in ISO 6360-1.
The third group of three digits identifies the shape of the instrument.
The shapes are designated by a three-digit code number, which appears in the locations seven to nine of the
15-digit overall number.
4.2 Generic form
The code numbers are predominantly based on the geometric form of the rotary instruments. They are
considered as generic, basic code numbers. Neither the illustrations nor the terms or lengths used are
considered as correct product information. The geometric form is the easiest way to distinguish between
different instruments. This differentiation is also used by the practitioner in his daily work. This principle
however cannot be used throughout the complete number coding system. In several cases, the application of
the instruments or the name of the inventor is used for clarification purposes. For simplified identification, it is
considered advantageous to combine instrument names according to their application, e.g. root-canal
instruments, implant burs, bone cutters for surgery.
The general designation of the geometric form applies to that region of the rotary instrument from the shank
(or handle) to the working part. The shank (or handle) is illustrated on the right side of a figure and the working
part on the left side of a figure.
Additional descriptive terms used are
a) for application on the shank side (right side of the figure):
english (en): proximal
french (fr): proximale
german (de): hinten
b) for application on the working-part side (left side of the figure):
en: end or en: distal
fr: bout/frontale fr: distale
de: Stirn de: vorne
For shape/design variations of one type (basic type) of instrument, similar three-digit code numbers are used,
but different digits are used to distinguish each individual pattern. For example a type of cylindrical instrument
may have a number from 107 to 123. The difference in digits indicates variations in the shape of the working
part, the angle of the tip, the length of the head, and/or other characteristics.
2 © ISO 2004 – All rights reserved

4.3 Wheels
For wheels all shapes are classified.
4.4 Discs
For discs all shapes are classified.
4.5 Diamond instruments
For diamond instruments, the basic code numbers shall be used. The exact length of the working part is given
in the locations 10 to 12 (see ISO 6360-4).
EXAMPLE For a diamond instrument with a length of the working part of 4,0 mm, the basic code number is 137. The
previously used code number 139 (which shall not be used) is given in order to ease the transition from the first edition of
ISO 6360-2 (ISO 6360-2:1986) to this edition.
5 Shapes and design
5.1 General shapes and design
Code numbers which shall be used for general shapes and design are given in Table 1. The numbers, shown
in Table 1, range from 001 to 316.
Table 1 — General shapes and design
Code
Shape and design Designation
number
en: spherical (round)
fr: sphérique (ronde) 001
de: kugelförmig (rund)
en: spherical (round) with collar, standard
fr: sphérique (ronde) avec extension, normale 002

de: kugelförmig (rund) mit Ansatz, normal
en: hemispherical
fr: hémisphérique 003
de: halbrund vorne
en: spherical, flattened with collar and pierced
fr: sphérique, aplatie avec extension et percée 005
de: rund, abgeflacht mit Ansatz und Querbohrung

en: hemispherical, enlarged neck without undercut
fr: hémisphérique, col augmenté sans sous-tranchant 006

de: halbrund, verstärkter Hals ohne Unterschnitt

Table 1 (continued)
Code
Shape and design Designation
number
en: spherical with internal cooling
fr: sphérique avec conduits de refroidissement 007
de: rund mit Innenkühlung
en: inverted conical
fr: conique inversée 010
de: umgekehrter Kegel
α u 15°
see 010 011
15° < α u 30°
see 010 012
30° < α u 60°
see 010 013
see 010 014
60° < α
en: inverted conical with shoulder, short
fr: conique inversée avec épaulement, courte 015

de: umgekehrter Kegel mit Anschlag, kurz
en: inverted conical with shoulder, normal
see 015 fr: conique inversée avec épaulement, normale 016
de: umgekehrter Kegel mit Anschlag, normal
en: inverted conical with concave collar
fr: conique inversée avec extension concave 018

de: umgekehrter Kegel mit konkavem Ansatz
en: inverted conical with collar
fr: conique inversée avec extension 019
de: umgekehrter Kegel mit Ansatz
en: inverted conical, side-cutting only
fr: conique inversée, coupe uniquement latérale 020
de: umgekehrter Kegel, nur Seite schneidend

en: inverted conical, end-cutting only
fr: conique inversée, à coupe uniquement en bout 021
de: umgekehrter Kegel, nur Stirn schneidend

en: inverted conical, side-cutting only, concave end
fr: conique inversée, coupe uniquement latérale, bout
concave 022
de: umgekehrter Kegel, nur Seite schneidend,

konkave Stirn
en: inverted conical, concave end
fr: conique inversée, bout concave 023
de: umgekehrter Kegel, konkave Stirn

4 © ISO 2004 – All rights reserved

Table 1 (continued)
Code
Shape and design Designation
number
en: inverted conical, concave, concave end
fr: conique inversée, concave, bout concave 024
de: umgekehrter Kegel, konkav, konkave Stirn

en: inverted conical, concave, concave end,
side-cutting only
fr: conique inversée, concave, bout concave, coupe
uniquement latérale
de: umgekehrter Kegel, konkav, konkave Stirn, nur
Seite schneidend
en: inverted conical, concave, concave end,
end-cutting only
fr: conique inversée, concave, bout concave, coupe
uniquement en bout
de: umgekehrter Kegel, konkav, konkave Stirn, nur
Stirn schneidend
en: inverted conical, concave, side- and end-cutting
fr: conique inversée, concave, coupe latérale et en
bout 027
de: umgekehrter Kegel, konkav, Stirn und Seite

schneidend
en: inverted conical, concave, end-cutting only
fr: conique inversée, concave, coupe uniquement en
bout
de: umgekehrter Kegel, konkav, nur Stirn schneidend
en: inverted conical, cylindrical, recessed
hemispherical end
fr: conique inversée, cylindrique, évidement
hémisphérique frontal
de: umgekehrter Kegel, zylindrisch, Stirn mit
halbrunder Aussparung
en: inverted conical, recessed conical end
fr: conique inversée, évidement conique frontal
de: umgekehrter Kegel, Stirn mit konischer
Aussparung
en: inverted conical, conical pointed
fr: conique inversée, conique pointue 031

de: umgekehrter Kegel, konisch spitz
en: diabolo
fr: diabolo 032
de: Diabolo
Table 1 (continued)
Code
Shape and design Designation
number
en: inverted conical, rounded, conical pointed
fr: conique inversée, arrondie, conique pointue 033

de: umgekehrter Kegel, abgerundet, konisch spitz
en: inverted conical, hollow, recessed cylindrical end,
internally ribbed
fr: conique inversée, creuse, évidement cylindrique
frontal, intérieur lamelles
de: umgekehrter Hohlkegel, Stirn mit zylindrischer

Aussparung, innenliegende Lamellen
en: inverted conical, recessed cylindrical end
fr: conique inversée, évidement cylindrique frontal
de: umgekehrter Kegel, Stirn mit zylindrischer
Aussparung
en: inverted conical, hollow, internally ribbed or fluted
fr: conique inversée, creuse, intérieur lamelles ou
ondes 036
de: umgekehrter Hohlkegel, innenliegende Lamellen
oder Wellen
en: double conical, symmetrical, short
fr: double conique, symétrique, courte
de: Doppelkegel, symmetrisch, kurz
l u d
d < l u 1,5 d
see 037 038
see 037 1,5 d < l 039
en: wheel
fr: roue 040
de: Rad
see 040 5 % d < l < 25 % d 041
see 040 25 % d < l < 50 % d 042
see 040 50 % d < l < 100 % d 043
en: wheel with collar
fr: roue avec extension 044
de: Rad mit Ansatz
6 © ISO 2004 – All rights reserved

Table 1 (continued)
Code
Shape and design Designation
number
en: wheel, peripheral-cutting only
fr: roue, coupe uniquement périphérique
de: Rad, nur Umfang schneidend
5 % d < l u 25 % d
25 % d < l u 50 % d
see 045 046
en: wheel, end-cutting only
fr: roue, coupe uniquement en bout 047

de: Rad, nur Stirn schneidend
en: wheel, peripheral- and rim-cutting
fr: roue, coupe périphérique et sur la partie adjacente 048
de: Rad, Umfang und Rand schneidend
en: wheel, conical, peripheral-cutting only
fr: roue, conique, coupe uniquement périphérique 049
de: Rad, konisch, nur Umfang schneidend

en: wheel, inverted conical, peripheral-cutting only
fr: roue, conique inversée, coupe uniquement
périphérique 050
de: Rad, umgekehrter Kegel, nur Umfang
schneidend
en: wheel, inverted conical, conical, symmetrical
fr: roue, conique inversée, conique, symétrique 051
de: Rad, umgekehrter Kegel, konisch, symmetrisch

en: wheel, conical, sharp end
fr: roue, conique, bout pointu

de: Rad, konisch, Stirn spitz
en: wheel, conical, end with chamfer
fr: roue, conique, bout avec chanfrein 053
de: Rad, konisch, Stirn mit Fase

en: wheel, straight with shoulder, peripheral- and
rim-cutting
fr: roue, droite avec épaulement, coupant à la
périphérie et sur la partie adjacente

de: Rillenschleifer, gerade mit Tiefenanschlag,
Umfang und Rand schneidend
Table 1 (continued)
Code
Shape and design Designation
number
en: wheel, conical with shoulder, peripheral- and
rim-cutting
fr: roue, conique, avec épaulement, coupant à la
périphérie et sur la partie adjacente

de: Rillenschleifer, konisch mit Tiefenanschlag,
Umfang und Rand schneidend
en: wheel, rounded edge
fr: roue, bords arrondis 056
de: Rad, Kante rund
en: wheel, perforated
fr: roue, perforée 057
de: Rad, perforiert
en: wheel, proximal- and peripheral-cutting
fr: roue, coupe périphérique et proximale 058
de: Rad, Umfang und hinten schneidend

en: wheel, peripheral- and distal-cutting
fr: roue, coupe périphérique et frontale 059
de: Rad, Umfang und vorne schneidend

en: wheel, perforated, peripheral- and proximal-
cutting
fr: roue, perforée, coupe périphérique et proximale
de: Rad, perforiert, Umfang und hinten schneidend

en: wheel, perforated, peripheral- and distal-cutting
fr: roue, perforée, coupe périphérique et frontale 061
de: Rad, perforiert, Umfang und vorne schneidend

en: wheel, with internal cooling, peripheral-cutting
only
fr: roue, avec conduits de refroidissement, coupe
uniquement périphérique
de: Rad, mit Innenkühlung, nur Umfang schneidend
5 % d < l u 25 % d
8 © ISO 2004 – All rights reserved

Table 1 (continued)
Code
Shape and design Designation
number
en: wheel, perforated, with internal cooling,
peripheral-cutting only
fr: roue, perforée, avec conduits de refroidissement,
coupe uniquement périphérique
de: Rad, perforiert, mit Innenkühlung, nur Umfang
schneidend
en: wheel, conical proximal side
fr: roue, bord proximal conique 064
de: Rad, hintere Seite konisch

en: wheel, half-circle rim
fr: roue, périphérie demi-cercle
de: Rad, Rand halbrund
5 % d < l u 25 % d
en: wheel, half-circle rim, rim-cutting only
fr: roue à périphérie demi-cercle, coupe uniquement
latérale
de: Rad, Rand halbrund, nur Rand schneidend

en: wheel, rounded edge, side-cutting, with shoulder
fr: roue, à bords arrondis, coupe latérale, avec
épaulement 073
de: Rad, Kante rund, Seite schneidend, mit
Tiefenanschlag
en: wheel, recessed, narrow, unmounted
fr: roue, évidée, étroite, non montée
de: Rad, abgesetzt, schmal, unmontiert
5 % d < l u 25 % d
25 % d < l u 50 % d
see 075 076
50 % d < l u 100 % d
see 075 077
en: wheel with window, peripheral-cutting only
fr: roue évidée, coupe uniquement périphérique 083
de: Rad mit Fenster, nur Rand schneidend

Table 1 (continued)
Code
Shape and design Designation
number
en: wheel with cooling canals, peripheral- and
rim-cutting
fr: roue avec conduits de refroidissement, coupe à la
périphérie et sur la partie adjacente
de: Rad mit Innenkühlung, Umfang und Rand

schneidend
en: wheel, conical recess, peripheral- and rim-cutting
fr: roue, évidement conique, coupe à la périphérie et
sur la partie adjacente 094
de: Rad, konische Aussparung, Umfang und Rand

schneidend
en: wheel, conical recess, peripheral- and rim-cutting
with helicoidal groove
fr: roue, évidement conique, coupe à la périphérie et
sur la partie adjacente avec sillon hélicoïdal
de: Rad, konische Aussparung, Umfang und Rand

schneidend mit spiralförmiger Rille
en: wheel, spherical, symmetrically truncated,
peripheral-cutting only
fr: roue, sphérique, symétriquement tronquée, coupe 098
uniquement périphérique
de: Rad, konvex, nur Umfang schneidend

en: wheel, spherical, symmetrically truncated,
toothed and recessed, peripheral-cutting only
fr: roue, sphérique, symétriquement tronquée,
dentée avec évidement, coupe uniquement 099
périphérique
de: Rad, konvex, gezahnt mit Spanraum, nur Umfang

schneidend
en: wheel, riveting
fr: roue rivetée 100
de: Nietrad
en: disc, profiled
fr: disque, profilé 101
de: Konturscheibe
en: ellipsoidal
fr: ellipsoïde 103
de: oval
10 © ISO 2004 – All rights reserved

Table 1 (continued)
Code
Shape and design Designation
number
en: cylindrical, side- and end-cutting
fr: cylindrique, coupe latérale et en bout 107
de: zylindrisch, Seite und Stirn schneidend

l u 3,5 mm
see 107 108
3,5 mm < l u 5,5 mm
see 107 109
5,5 mm < l u 7,5 mm
see 107 110
7,5 mm < l u 9,5 mm
see 107 111
9,5 mm < l u 11,5 mm
see 107 112
11,5 mm < l u 13,5 mm
see 107 113
see 107 13,5 mm < l 114
en: cylindrical, helicoidal groove left
fr: cylindrique, sillon hélicoïdal à gauche 115

de: zylindrisch, linksgewundene Spannut
en: cylindrical, side-cutting only
fr: cylindrique, coupe uniquement latérale
de: zylindrisch, nur Seite schneidend

l u 3,5 mm
see 116 117
3,5 mm < l u 5,5 mm
see 116 118
5,5 mm < l u 7,5 mm
see 116 119
7,5 mm < l u 9,5 mm
see 116 120
9,5 mm < l u 11,5 mm
see 116 121
11,5 mm < l u 13,5 mm
see 116 122
13,5 mm < l u 15,5 mm
see 116 123
en: cylindrical, pointed end
fr: cylindrique, bout pointu 126
de: zylindrisch, Stirn spitz
l u 3,5 mm
see 126 127
3,5 mm < l u 5,5 mm
see 126 128
5,5 mm < l u 7,5 mm
see 126 129
7,5 mm < l u 9,5 mm
see 126 130
9,5 mm < l u 11,5 mm
see 126 131
11,5 mm < l u 13,5 mm
see 126 132
13,5 mm < l u 15,5 mm
see 126 133
Table 1 (continued)
Code
Shape and design Designation
number
en: cylindrical, hemispherical end
fr: cylindrique, bout rond 137
de: zylindrisch, Stirn rund
l u 3,5 mm
see 137 138
3,5 mm < l u 5,5 mm
see 137 139
5,5 mm < l u 7,5 mm
see 137 140
7,5 mm < l u 9,5 mm
see 137 141
9,5 mm < l u 11,5 mm
see 137 142
11,5 mm < l u 13,5 mm
see 137 143
13,5 mm < l u 15,5 mm
see 137 144
see 137 l > 15,5 mm 145
en: cylindrical, convex end, rounded edge
fr: cylindrique, bout convexe, bord arrondi 146
de: zylindrisch, Stirn konvex, Kante rund
en: cylindrical, rounded edge, side-cutting only
fr: cylindrique, bord arrondi, coupe uniquement
latérale
de: zylindrisch, Kante rund, nur Seite schneidend
en: conical, rounded edge and concave end,
end-cutting and 1/3 side-cutting
fr: conique, bord arrondi et extrémité évidée, coupe
en bout et 1/3 sur la partie adjacente

de: konisch, Kante rund und Stirnmulde, Stirn und
1/3-Seite schneidend
en: cylindrical, end-cutting and 1/3 side-cutting
fr: cylindrique, coupe en bout et 1/3 sur la partie
adjacente
de: zylindrisch, Stirn und 1/3-Seite schneidend
en: cylindrical, end-cutting only
fr: cylindrique, coupe uniquement en bout 150

de: zylindrisch, nur Stirn schneidend
en: cylindrical, inverted conical
fr: cylindrique, conique inversée 151

de: zylindrisch, umgekehrter Kegel
en: cylindrical, hemispherical end, side-cutting only
fr: cylindrique, bout rond, coupe uniquement latérale 152

de: zylindrisch, Stirn rund, nur Seite schneidend

12 © ISO 2004 – All rights reserved

Table 1 (continued)
Code
Shape and design Designation
number
en: cylindrical, hemispherical end, end-cutting and
1/3 side-cutting
fr: cylindrique, bout rond, coupe en bout et 1/3 sur la
partie adjacente
de: zylindrisch, Stirn rund, Stirn und 1/3-Seite
schneidend
en: cylindrical, round distal edge and concave end
fr: cylindrique, bord distal arrondi et extrémité évidée 154
de: zylindrisch, abgerundet mit Stirnmulde

en: cylindrical, distal end hemispherical, proximal end
inverted hemispherical
fr: cylindrique, bout rond, partie proximale 155
hémisphérique inversée
de: Walze
en: cylindrical, rounded edge
fr: cylindrique, bord arrondi
de: zylindrisch, Kante rund
3,5 mm < l < 5,5 mm
see 156 5,5 mm < l < 7,5 mm 157
see 156 7,5 mm < l < 9,5 mm 158
en: conical pointed
fr: conique pointue 159
de: konisch spitz
α u 10°
see 159 160
10° < α u 30°
see 159 161
30° < α u 60°
see 159 162
see 159 60° < α 163
en: conical pointed, slender
fr: conique pointue, élancée
de: konisch spitz, schlank
3,5 mm < l u 6,5 mm
6,5 mm < l u 8,5 mm
see 164 165
8,5 mm < l u 10,5 mm
see 164 166
l u 10,5 mm
see 164 167
Table 1 (continued)
Code
Shape and design Designation
number
en: conical, (truncated conical)
fr: conique, (tronconique) 168
de: konisch, (kegelstumpfförmig)

l u 3,5 mm
see 168 169
3,5 mm < l u 5,5 mm
see 168 170
5,5 mm < l u 7,5 mm
see 168 171
7,5 mm < l u 9,5 mm
see 168 172
9,5 mm < l u 11,5 mm
see 168 173
11,5 mm < l u 13,5 mm
see 168 174
13,5 mm < l u 15,5 mm
see 168 175
en: conical, 30 % flatter than number 168
fr: conique, 30 % plus plat que numéro 168
de: konisch, 30 % flacher als Nummer 168

7,5 mm < l u 9,5 mm
en: conical with helicoidal groove
fr: conique avec sillon hélicoïdal 177

de: konisch mit gewundener Nut
en: conical with left helicoidal groove
fr: conique avec sillon hélicoïdal à gauche 178

de: konisch mit linksgewundener Nut
en: cylindrical, rounded edge, end-cutting only
fr: cylindrique, bord arrondi, coupe uniquement en
bout
de: zylindrisch, Kante rund, nur Stirn schneidend
en: conical, side-cutting only
fr: conique, coupe uniquement latérale 180
de: konisch, nur Seite schneidend

l u 3,5 mm
see 180 181
3,5 mm < l u 5,5 mm
see 180 182
5,5 mm < l u 7,5 mm
see 180 183
see 180 7,5 mm < l u 9,5 mm 184
9,5 mm < l u 11,5 mm
see 180 185
11,5 mm < l u 13,5 mm
see 180 186
13,5 mm < l u 15,5 mm
see 180 187
14 © ISO 2004 – All rights reserved

Table 1 (continued)
Code
Shape and design Designation
number
en: conical pointed, side-cutting only
fr: conique pointue, coupe uniquement latérale
de: konisch spitz, nur Seite schneidend

l > 10,5 mm
en: conical, side-cutting only, guided
fr: conique, coupe uniquement latérale, guidée 190

de: konisch, nur Seite schneidend, mit Zapfen
en: conical, rounded end, slender
fr: conique, bout arrondi, élancée
de: konisch, Stirn rund, schlank

3,5 mm < l u 7,5 mm
7,5 mm < l u 9,5 mm
see 191 192
9,5 mm < l u 11,5 mm
see 191 193
en: conical, domed end
fr: conique, bout hémisphérique 194
de: konisch, Stirn rund
l u 3,5 mm
see 194 195
3,5 mm < l u 5,5 mm
see 194 196
5,5 mm < l u 7,5 mm
see 194 197
7,5 mm < l u 9,5 mm
see 194 198
9,5 mm < l u 11,5 mm
see 194 199
11,5 mm < l u 13,5 mm
see 194 200
see 194 13,5 mm < l 201
en: conical, convex end, rounded edge, short
fr: conique, bout convexe, bord arrondi, courte 202
de: konisch, Stirn konvex, Kante rund, kurz

en: conical, convex end, rounded edge, standard
see 202 fr: conique, bout convexe, bord arrondi, normale 203
de: konisch, Stirn konvex, Kante rund, normal
en: conical, convex end, rounded edge, long
see 202 fr: conique, à bout convexe, bord arrondi, longue 204
de: konisch, Stirn konvex, Kante rund, lang
en: conical with 45° chamfer
fr: conique avec chanfrein à 45° 205
de: konisch mit 45° Fase
Table 1 (continued)
Code
Shape and design Designation
number
en: conical, pointed end
fr: conique, bout pointu 206
de: konisch, Stirn spitz
l u 3,5 mm
see 206 207
3,5 mm < l u 5,5 mm
see 206 208
5,5 mm < l u 7,5 mm
see 206 209
7,5 mm < l u 9,5 mm
see 206 210
9,5 mm < l u 11,5 mm
see 206 211
11,5 mm < l u 13,5 mm
see 206 212
en: conical, ogival end
fr: conique, bout ogival 213
de: konisch, nadelförmige Spitze

en: conical, domed end, side-cutting only
fr: conique, bout hémisphérique, coupe uniquement
latérale
de: konisch, Stirn rund, nur Seite schneidend
l u 3,5 mm
see 215 216
3,5 mm < l u 5,5 mm
see 215 217
5,5 mm < l u 7,5 mm
see 215 218
7,5 mm < l u 9,5 mm
see 215 219
9,5 mm < l u 11,5 mm
see 215 220
11,5 mm < l u 13,5 mm
see 215 221
en: conical, domed ellipsoidal end, standard
fr: conique, bout hémisphérique, normale 222
de: konisch, Stirn Ellipse, normal

en: conical, domed ellipsoidal end, long
see 222 223
fr: conique, bout hémisphérique, longue
de: konisch, Stirn Ellipse, lang
en: pear with straight collar, standard
fr: poire avec extension droite, normale
de: Birne mit geradem Ansatz, normal
d < l u 3 d
16 © ISO 2004 – All rights reserved

Table 1 (continued)
Code
Shape and design Designation
number
en: inverted conical
fr: conique inversée
de: umgekehrt konisch
d < l u 3 d
see 225 3 d < l 226
see 225 5 mm < l 227
en: inverted conical, side-cutting only
fr: conique inversée, coupe uniquement latérale
de: umgekehrt konisch, nur Seite schneidend
d < l u 3 d
see 229 3 d < l 230
en: inverted conical, convex end, rounded edge,
short
fr: conique inversée, bout convexe, bord arrondi,
courte
de: umgekehrt konisch, Stirn konvex, Kante rund,
kurz
en: inverted conical, convex end, rounded edge,
standard
fr: conique inversée, bout convexe, bord arrondi,
see 232 233
normale
de: umgekehrt konisch, Stirn konvex, Kante rund,
normal
en: inverted conical, convex end, rounded edge,
long
fr: conique inversée, bout convexe, bord arrondi,
longue
see 232 234
de: umgekehrt konisch, Stirn konvex, Kante rund,
lang
3 d < l
en: inverted conical, rounded edge, standard
fr: conique inversée, bord arrondi, normale
de: umgekehrt konisch, Kante rund, normal
d < l u 3 d
see 235 3 d < l 236
Table 1 (continued)
Code
Shape and design Designation
number
en: pear
fr: poire
de: Birne
d < l u 3 d
see 237 3 d < l 238
see 237 5 mm < l 239
en: pear, helicoidal groove left
fr: poire, sillon hélicoïdal à gauche
de: Birne, linksgewundene Nut
l < 4,5 mm
see 240 l > 4,5 mm 241
en: flame, standard
fr: flamme, normale 243
de: Flamme, normal
en: flame, short
see 243 fr: flamme, courte 244
de: Flamme, kurz
en: cylindrical, ogival end, long
fr: cylindrique, bout ogival, longue 245
de: zylindrisch, Stirn flammenförmig, lang

l u 3,5 mm
see 245 246
3,5 mm < l u 5,5 mm
see 245 247
5,5 mm < l u 7,5 mm
see 245 248
see 245 7,5 mm < l u 9,5 mm 249
9,5 mm < l u 11,5 mm
see 245 250
11,5 mm < l u 13,5 mm
see 245 251
13,5 mm < l u 15,5 mm
see 245 252
en: bud
fr: bouton 254
de: Knospe
en: cylindrical, ogival end, long, side-cutting only
fr: cylindrique, bout ogival, longue, coupe
uniquement latérale
de: zylindrisch, Stirn flammenförmig, lang, nur Seite
schneidend
5,5 mm < l u 7,5 mm
9,5 mm < l u 11,5 mm
see 255 256
18 © ISO 2004 – All rights reserved

Table 1 (continued)
Code
Shape and design Designation
number
en: bud, slender
fr: bouton, élancée 257
de: Knospe, schlank
en: bud, slender, long neck
fr: bouton, élancée, col long 258

de: Knospe, schlank, langer Hals
en: bud, slender, extra-long neck
fr: bouton, élancée, col extra-long 259

de: Knospe, schlank, extralanger Hals
en: bud, rounded
fr: bouton, bout rond 260
de: Knospe, rund
en: bud, slender, long
fr: bouton, élancée, longue 261

de: Knospe, schlank, lang
en: bud, rounded, slender
fr: bouton, bout rond, élancée 263
de: Knospe, rund, schlank
en: bud, rounded, long
fr: bouton, bout rond, long 266

de: Knospe, rund, lang
en: bud, rounded, slender, long neck
fr: bouton, bout rond, élancée, col long 267

de: Knospe, rund, schlank, langer Hals
en: bud, rounded, slender, extra-long neck
fr: bouton, bout rond, élancée, col extra-long 268

de: Knospe, rund, schlank, extralanger Hals
en: bud, flat end, rounded edge
fr: bouton, bout plat, bord arrondi 269

de: Knospe, Stirn flach, Kante rund
en: bullet
fr: paraboloïde
de: Granate
5,5 mm < l u 7,5 mm
7,5 mm < l u 9,5 mm
see 272 273
9,5 mm < l u 11,5 mm
see 272 274
see 272 11,5 mm < l 275
Table 1 (continued)
Code
Shape and design Designation
number
en: drop
fr: goutte 276
de: Tropfen
en: egg
fr: œuf 277
de: Ei
en: egg, long, side-cutting
fr: œuf, longue, coupe latérale 278

de: Ei, lang, Seite schneidend
en: egg, side-cutting
fr: œuf, coupe latérale 279
de: Ei, Seite schneidend
en: barrel
fr: ellipsoïde longitudinale symétriquement
bitronquée
de: Tonne
l u d
d < l u 2 d
see 280 281
see 280 2 d < l 282
en: torpedo, cylindrical
fr: torpédo, cylindrique 284
de: Torpedo, zylindrisch
l u 2,5 mm
see 284 285
2,5 mm < l u 3,5 mm
see 284 286
3,5 mm < l u 5,5 mm
see 284 287
see 284 5,5 mm < l u 7,5 mm 288
7,5 mm < l u 9,5 mm
see 284 289
9,5 mm < l u 11,5 mm
see 284 290
11,5 mm < l u 13,5 mm
see 284 291
see 284 13,5 mm < l 292
en: torpedo, conical
fr: torpédo, conique 294
de: Torpedo, konisch
l u 3,5 mm
see 294 295
3,5 mm < l u 5,5 mm
see 294 296
20 © ISO 2004 – All rights reserved

Table 1 (continued)
Code
Shape and design Designation
number
5,5 mm < l u 7,5 mm
see 294 297
7,5 mm < l u 9,5 mm
see 294 298
9,5 mm < l u 11,5 mm
see 294 299
11,5 mm < l u 13,5 mm
see 294 300
en: lens
fr: lentille
de: Linse
l u 20 % d
see 303 20 % d < l 304
en: lens, rim-cutting only
fr: lentille, à coupe uniquement périphérique 307
de: Linse, nur Rand schneidend

en: lens with collar
fr: lentille avec extension 310
de: Linse mit Ansatz
en: wheel, inverted conical and conical, symmetrical
fr: roue, conique inversée et conique, symétrique 313
de: Messerschneide
en: wheel, inverted conical and conical, proximal
concave
fr: roue, conique inversée et conique, proximale 316
concave
de: Messerschneide, hinten konkav

5.2 Discs
Code numbers for discs shall be as given in Table 2. The numbers, shown in Table 2, range from 317 to 402.
Table 2 — Discs
Code
Shape and design Designation
number
en: disc, very thin, perforated (oval), peripheral and
rim-cutting
fr: disque, très fin, perforé (oval), coupe périphérique
et sur la partie adjacente
de: Scheibe, sehr dünn, perforiert (oval), Umfang und
Rand schneidend
en: disc, very thin, perforated (oval), peripheral- and
proximal-cutting
fr: disque, très fin, perforé (oval), coupe périphérique
et proximale
de: Scheibe, sehr dünn, perforiert (oval), Umfang und
hinten schneidend
en: disc, very thin, perforated, peripheral- and
distal-cutting
fr: disque, très fin, perforé, coupe périphérique et
frontale
de: Scheibe, sehr dünn, perforiert (oval), Umfang und
vorne schneidend
en: disc, peripheral-cutting
fr: disque, coupe périphérique 320
de: Scheibe, Umfang schneidend

en: disc, peripheral- and rim-cutting
fr: disque, coupe à la périphérie et sur la partie
adjacente
de: Scheibe, Umfang und Rand schneidend

en: disc, proximal- rim-cutting
fr: disque, coupe à la partie proximale 322
de: Scheibe, Rand hinten schneidend

en: disc, distal- rim-cutting
fr: disque, coupe à la partie frontale 323
de: Scheibe, Rand vorne schneidend

22 © ISO 2004 – All rights reserved

Table 2 (continued)
Code
Shape and design Designation
number
en: disc, very thin, with V-shaped slots, peripheral-
and rim-cutting
fr: disque, très fin, avec des fentes en V, coupe
périphériqe
de: Scheibe, sehr dünn, mit V-förmigen Ausschnitten,
Umfang und Rand schneidend
en: disc, very thin, with V-shaped slots, long neck,
peripheral- and rim-cutting
fr: disque, très fin, avec des fentes en V, à col long,
coupe périphérique
de: Scheibe, sehr dünn, mit V-förmigen Ausschnitten,
langer Hals, Umfang und Rand schneidend

en: disc, standard, peripheral-, distal- and
proximal-cutting
fr: disque, normal, coupe à la périphérie et sur les
deux faces
de: Scheibe, normal, Umfang, vorne und hinten

schneidend
en: disc, peripheral- and proximal-cutting
fr: disque, coupe périphérique et proximale 328
de: Scheibe, Umfang und hinten schneidend

en: disc, peripheral- and distal-cutting
fr: disque, coupe périphérique et frontale 329
de: Scheibe, Umfang und vorne schneidend

en: disc, proximal-cutting only
fr: disque, coupe uniquement proximale 330
de: Scheibe, nur hinten schneidend

en: disc, distal-cutting only
fr: disque, coupe uniquement frontale 331
de: Scheibe, nur vorne schneidend

en: disc, perforated, peripheral- and rim-cutting
fr: disque, perforé, coupe à la périphérie et sur la
partie adjacente 332
de: Scheibe, perforiert, Umfang und Rand
schneidend
Table 2 (continued)
Code
Shape and design Designation
number
en: disc, perforated, diagonally serrated, peripheral-
and rim-cutting
fr: disque, perforé, dents en diagonale, coupe à la
périphérie et sur la partie adjacente
de: Scheibe, perforiert, schräg verzahnt, Umfang und
Rand schneidend
en: disc, perforated, distal-, proximal- and
peripheral-cutting
fr: disque, perforé, coupe à la périphérie et sur les
deux faces
de: Scheibe, perforiert, Umfang, vorne und hinten

schneidend
en: disc, perforated, proximal- and peripheral-cutting
fr: disque, perforé, coupe périphérique et proximale
de: Scheibe, perforiert, Umfang und hinten
schneidend
en: disc, perforated, distal- and peripheral-cutting
fr: disque, perforé, coupe périphérique et frontale
de: Scheibe, perforiert, Umfang und vorne
schneidend
en: disc, segments, distal- and peripheral-cutting
fr: disque à segments, coupe périphérique et frontale
de: Scheibe, Segmentierung, Umfang vorne und
hinten schneidend
en: disc, thin, peripheral- and rim-cutting
fr: disque, mince, coupe à la périphérie et sur la
partie adjacente
de: Scheibe, dünn, Umfang und Rand schneidend

en: disc, thin, peripheral- and proximal-rim-cutting
fr: disque, mince, coupe à la périphérie et sur la
partie adjacente de la face proximale 341
de: Scheibe, dünn, Umfang und Rand hinten
schneidend
en: disc, thin, peripheral- and distal-rim-cutting
fr: disq
...
