ISO 16121-1:2012

INTERNATIONAL ISO
STANDARD 16121-1
Second edition
2012-10-01
Road vehicles — Ergonomic
requirements for the driver’s
workplace in line-service buses —
Part 1:
General description, basic requirements
Véhicules routiers — Exigences ergonomiques du poste de conduite
dans les bus de ville —
Partie 1: Description générale, exigences de base
Reference number
©
ISO 2012

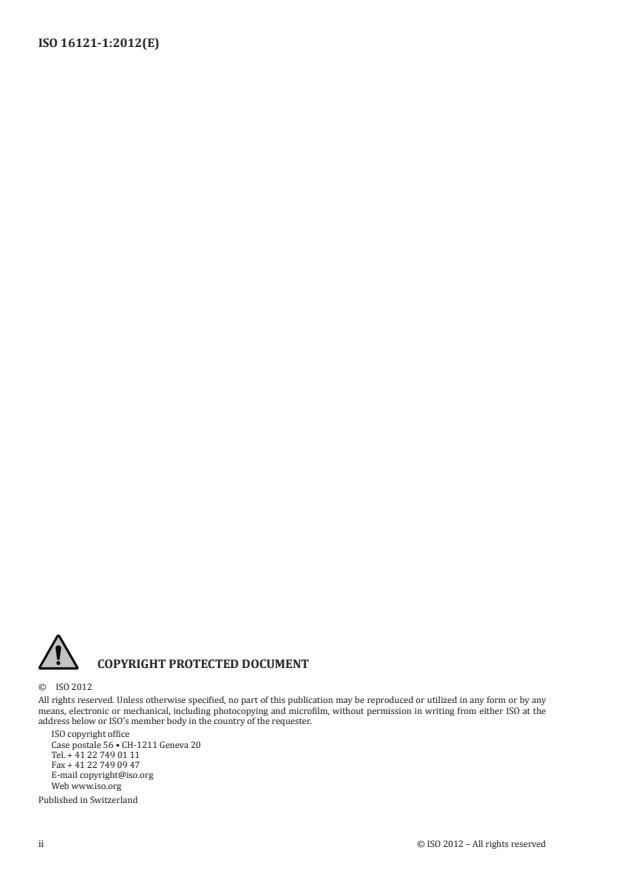

© ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the
address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Basic requirements . 2
4.1 Dimensions . 2
4.2 Driver’s workplace in general . 5
4.3 Driver’s seat . 6
4.4 Pedals . 9
4.5 Steering wheel .12
Bibliography .14

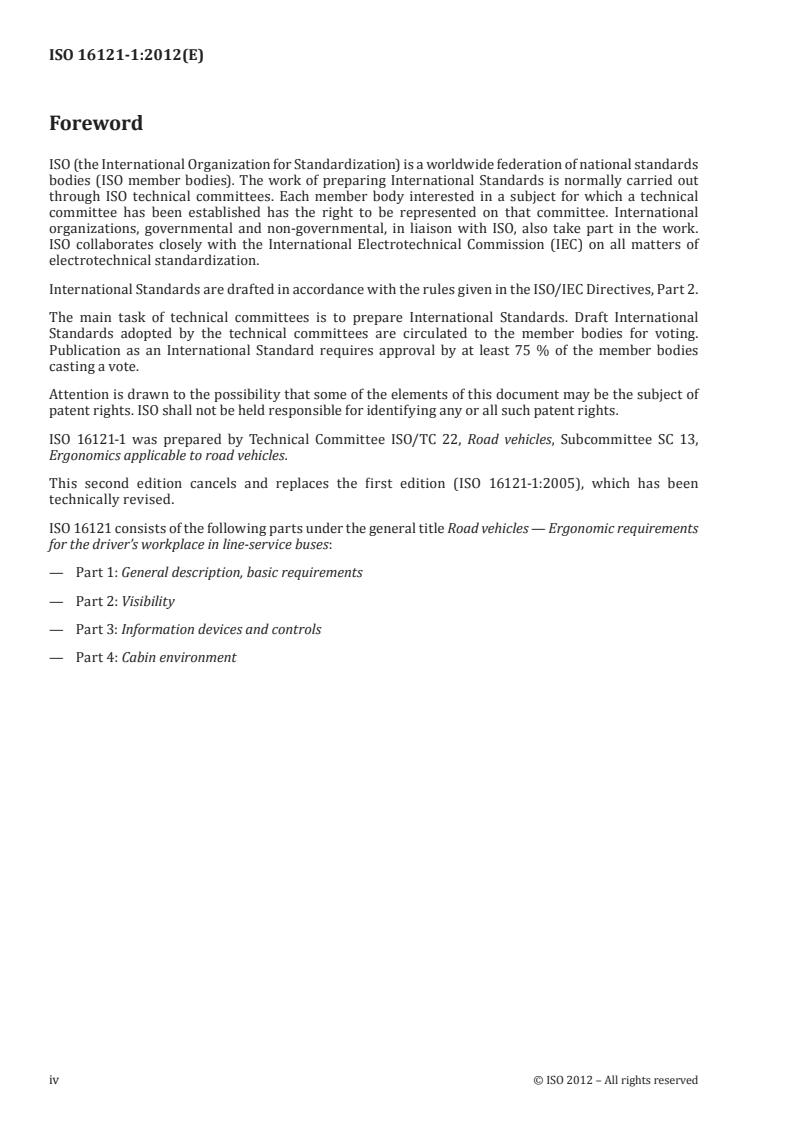

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 16121-1 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 13,
Ergonomics applicable to road vehicles.
This second edition cancels and replaces the first edition (ISO 16121-1:2005), which has been
technically revised.
ISO 16121 consists of the following parts under the general title Road vehicles — Ergonomic requirements
for the driver’s workplace in line-service buses:
— Part 1: General description, basic requirements
— Part 2: Visibility
— Part 3: Information devices and controls
— Part 4: Cabin environment
iv © ISO 2012 – All rights reserved

Introduction
Poor ergonomics in the driver’s workplace in buses designed to provide scheduled urban and interurban
services increase the already high physical and mental strains on the drivers.
It is the aim of this part of ISO 16121 to supply the designer of line-service buses with information about
how to develop an overall ergonomic concept for the driver’s workplace. The recommended requirements
on the driver’s workplace for line-service buses made in this part of ISO 16121 are based on the scientific
conclusions of the research project “Driver’s workplace in the line-service bus”. This was conducted
[3]
in Germany and summarized in the VDV 234 recommendation. Further comprehensive ergonomic
studies related to the design of an enhanced driver workplace conducted in the United States, Canada,
[4, 5, 6, 7, 8]
the Netherlands, Sweden and the United Kingdom have been considered and found to provide
recommendations covering similar areas.
This part of ISO 16121 sets out to consider the practical implications for all ranges of drivers, but
particularly those with statures from 1,55 m (small female) to 2,0 m (large male). These statures include
shoes (~30 mm).
It is also essential that the designer refers to the specifications and requirements of all parts of ISO 16121
(Parts 1 to 4) before completing the design of a driver’s workplace.
It should be noted that where there is also national legislation covering any of the subjects contained
herein, then both should be complied with. However, if a contradiction between the two should arise in
any specific area, then the legislation should prevail for that specific point only. Other technical solutions,
at least equal with regard to ergonomics, should not be excluded.
INTERNATIONAL STANDARD ISO 16121-1:2012(E)
Road vehicles — Ergonomic requirements for the driver’s
workplace in line-service buses —
Part 1:
General description, basic requirements
1 Scope
This part of ISO 16121 applies to the driver’s workplace in low-floor line-service buses designed for the
carriage of passengers, comprising more than eight seats in addition to the driver’s seat, and having a
maximum weight exceeding five metric tonnes and an overall width exceeding 2,30 m.
This part of ISO 16121 contains basic requirements for an ergonomic and comfortable seating position,
which is essential to keep drivers in a good state of health. The dimensions and mounting positions of
a driver’s seat, pedals and steering should be carefully chosen to enable drivers to sit in an ergonomic
seating position, i.e. sitting at angles which comply with the given ranges of comfort and to allow some
variation when seated.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 2575, Road vehicles — Symbols for controls, indicators and tell-tales
1)
ISO 6549, Road vehicles — Procedure for H- and R-point determination
ISO 10326-1, Mechanical vibration — Laboratory method for evaluating vehicle seat vibration — Part 1:
Basic requirements
ISO 16121-3, Road vehicles — Ergonomic requirements for the driver’s workplace in line-service buses —
Part 3: Information devices and controls
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
low-floor
vehicle in which at least 35 % of the area available for standing passengers (or of its forward section in
the case of an articulated vehicle) forms a single area without steps, reached through at least one service
door by a single step from the ground
3.2
required values
values representing present state of the art that, when applied, achieve an acceptable level of
ergonomic design
1) International Standard withdrawn.
3.3
recommended values
values representing the preferred ergonomic conditions that are desirable for the future development
of the driver’s workplace
3.4
zero-X-plane
vertical transverse plane through the Accelerator Heel Point (AHP), vertical to the longitudinal median
plane of the bus
3.5
zero-Y-plane
median plane of driver (in driving posture) parallel to the longitudinal median plane of the bus
3.6
zero-Z-plane
horizontal plane through the Accelerator Heel Point (AHP)
3.7
Accelerator Heel Point
AHP
intersection of the driver’s right heel, when the foot is positioned against the accelerator pedal in its idle
position, and the surface of the depressed floor covering or other heel support
3.8
heel point line
AHP line
intersection line of the zero-X-plane with the zero-Z-plane
4 Basic requirements
4.1 Dimensions
4.1.1 Reference system
All dimensions in the driver’s workplace refer to a driver-based system of coordinates (see Figure 1).
The reference system is formed by the zero-X-plane, zero-Y-plane and zero-Z-plane, which are
perpendicular to each other.
The intersection point (coordinate origin) of all three planes corresponds to the AHP projected onto the
zero-Y-plane. The intersection line of the zero-X-plane with the zero-Z-plane is referred to as the AHP Line.
The X, Y and Z axes are oriented so that the negative coordinate range lies in front of the zero-X-plane, on the
left of the zero-Y-plane and below the zero-Z-plane, when one is looking in the direction of driving forward.
2 © ISO 2012 – All rights reserved

Key
1 zero-X-plane
2 zero-Y-plane
3 zero-Z-plane
4 AHP line
Figure 1 — Driver-based system of coordinates
4.1.2 Tolerances
For linear measures a tolerance of ± 10 mm shall be valid, unless otherwise specified. This tolerance,
however, is not applicable when dimensions are specified as a range of values (e.g. x = 10 mm to 30 mm).
4.1.3 AHP
The AHP is defined for three basic types of throttle pedal design as follows:
— For treadle (organ) type pedals (see Figure 2a), the AHP is the intersection of the depressed floor or
other heel support with a line projected from the upper surface of the throttle pedal.
— For hanging (pendulum) type pedals (see Figure 2b), the AHP is the point which intersects with the
depressed floor or other heel support when an arc 200 mm in length is taken from the centre of the
pedal surface.
— For treadle (organ) type pedals with a fixed heel stop (see Figure 2c), the AHP shall be taken as the
intersection between the heel stop and the pedal surface.
In all cases, the AHP shall lie on the vertical centreline of the pedal.
200 mm
AHP
a) Treadle type pedal with no heel stop
AHP
b) Pendulum type pedal
AHP
c) Treadle type pedal with heel stop
Figure 2 — Determination of Accelerator Heel Point, AHP
4 © ISO 2012 – All rights reserved

4.2 Driver’s workplace in general
4.2.1 Size of driver’s workplace
4.2.1.1 Driver’s workplace length
The length of the driver’s workplace (inside dimension) shall be such that the driver can attain the
full range of adjustment (see Table 1), including swivel (where such a mechanism is fitted) without
restriction. The depth of the footwell shall be at least 350 mm (see Figure 3) forward of AHP.
4.2.1.2 Driver’s workplace width
The width of the driver’s workplace shall be chosen in such a way that sufficient distance to all interior
surfaces to either side of the driver (laterally from head to foot) and sufficient leg freedom are available,
including space for seat swivel. For the protection of the fingers a clearance distance of 25 mm from the
outer extremities of the seat shall be kept.
The minimum lateral elbow room (y ) in the shoulder range shall be 800 mm for all seat positions
min
during driving.
4.2.2 Access to the driver’s workplace
In low-floor buses, the driver’s workplace should be arranged on a platform. It is recommended that this
platform be at a height of 300 ± 50 mm above the floor and be reached by a single step. If the platform
height is greater than 350 mm, steps with equal height shall be provided with a maximum height of
250 mm and a minimum height of 125 mm.
Clear and unrestricted access to the driver’s workplace shall be ensured, with a passage width of at
least 500 mm.
These requirements are for normal entrance to the driver’s workplace and do not necessarily apply to
additional emergency exit doors.
4.2.3 Stowage space
In the driver’s workplace, a space for the driver’s bag should be provided, e.g. in the cabin door. The
stowage dimensions (length × height × width) for the driver’s bag should be at least 480 mm × 330
mm × 170 mm (240 mm preferred, where possible).
It should be possible to open the bag for the withdrawal of objects in the compartment. For personal
objects needed during the drive (e.g. sunglasses) addit
...
