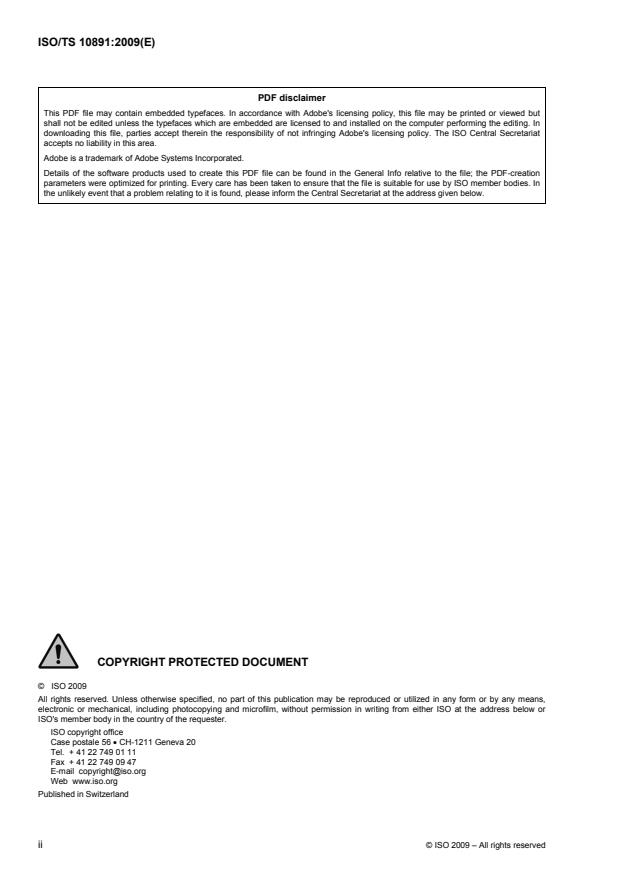

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Operational requirements . 3
5 Container tag frequency of operation and radiation characteristics . 13
6 Container identification RFID system testing and requirements . 13
Annex A (normative) Environmental characteristics . 14
Bibliography . 16

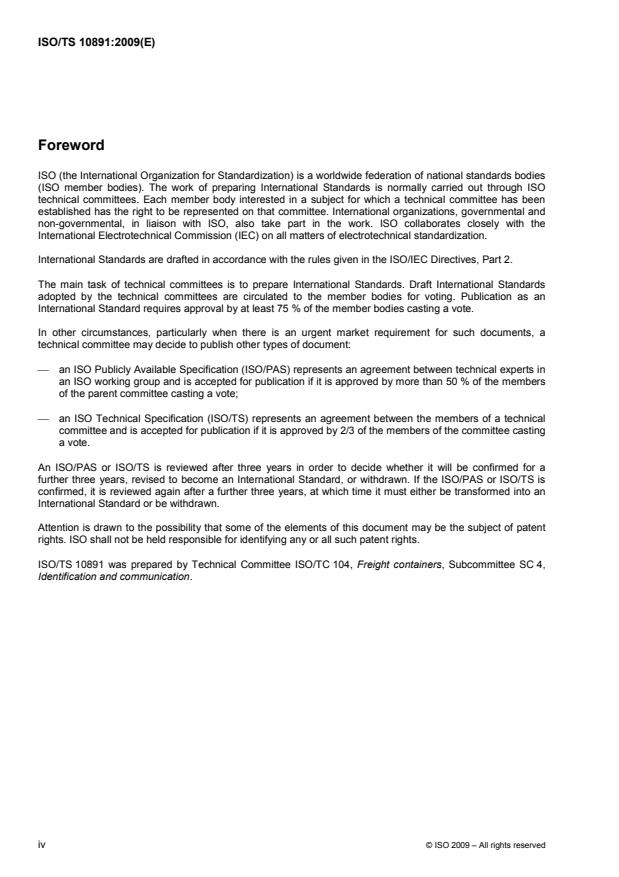

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of document:
⎯ an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical experts in
an ISO working group and is accepted for publication if it is approved by more than 50 % of the members
of the parent committee casting a vote;
⎯ an ISO Technical Specification (ISO/TS) represents an agreement between the members of a technical
committee and is accepted for publication if it is approved by 2/3 of the members of the committee casting
a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for a
further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or ISO/TS is
confirmed, it is reviewed again after a further three years, at which time it must either be transformed into an
International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TS 10891 was prepared by Technical Committee ISO/TC 104, Freight containers, Subcommittee SC 4,
Identification and communication.
iv © ISO 2009 – All rights reserved

Introduction
This Technical Specification has been developed to be compatible with ISO 18185, Freight containers —
Electronic seals. Due to differences in data structures and air interface parameters, equipment manufactured
in compliance with these International Standards and this Technical Specification is not interchangeable and
might not be interoperable. However, assurance is given that equipment compliant with ISO 17363,
ISO 18185 or this Technical Specification is non-interfering and therefore operable in close proximity to each
other.
With regard to ISO 18185 and this Technical Specification:
⎯ supported air interface and communication protocol are specified in ISO/IEC 18000;
⎯ supported commands and messages are specified in ISO/IEC 15961 and ISO/IEC 15962;
⎯ semantics are defined in ISO/IEC 15418;
⎯ syntax is defined in ISO/IEC 15434.
Though not used in this Technical Specification, recognition is given to the standardization work of
⎯ ISO/IEC JTC 1/SC 31 in the area related to air interface, data semantic and syntax construction, and
conformance;
⎯ ISO/TC 104 in the area of freight container security, including electronic seals [(e-seals) ISO 18185], and
container identification. This work is relevant and highly important since electronic seals are RF devices
with their own air interface. Such International Standards ensure that electronic seals are compatible, or
at least non-interfering, with tags described in this Technical Specification.
This Technical Specification provides a systemic approach for automatic identification and supply chain
applications of RFID for freight containers. Each can be applied to a freight container independently of the
other. They describe two different tag types with respectively different tag and application requirements.
These are as follows.
a) Permanent container “license-plate” tag:
This tag, hereinafter referred to as the “container tag”, fully described in this Technical Specification, is a
permanently affixed, read-only [write once read many (WORM)] tag containing limited data relating only to
physical identification and description of the container to which it is affixed. This Technical Specification
describes the use of two tags, permanently affixed by, or on behalf of, the container owner. These tags are
permanently affixed to and should last the lifetime of their associated container (except possibly in situations
where the container changes ownership or equipment ID or the tag is damaged).
b) Cargo shipment-specific tag:
This tag, hereinafter referred to as the “shipment tag”, is a read-write tag into which data specific to a
containerized cargo shipment can be stored. Use of this type of tag and the data stored within it is at the
discretion of the shipper. The tag may be affixed to the container by the shipper or, per the shipper's
instructions, by the party that physically performs the loading (“stuffing”) of the container. Data capabilities are
flexible and may, at the shipper's discretion, include destination, routing, conveyance or other transportation
information, cargo information (including hazardous material information, where applicable) or other trip-
specific information. A compliant tag performs reliably from the point of stuffing of the container to the
container's final delivery to the consignee; it is removed by the consignee upon final delivery. The tag may be
reusable.
This Technical Specification is one part of a three-part approach within the ISO system for the use of RFID
applications on containers. The other related standards apply to e-seals (ISO 18185) and cargo shipment tags.
ISO/TS 10891 replaces ISO 10374. ISO 10374 was used as a foundation for ISO 18185 and this Technical
Specification [as well as for other (industrial) standards] and will remain active some years in order to provide
additional support.
vi © ISO 2009 – All rights reserved

TECHNICAL SPECIFICATION ISO/TS 10891:2009(E)

Freight containers — Radio frequency identification (RFID) —
Licence plate tag
1 Scope
This Technical Specification establishes:
a) a set of requirements for container tags, which allow the transfer of information from a container to
automatic processing systems by electronic means;
b) a data coding system for container identification and permanent related information which resides within a
container tag;
c) a data coding system for the electronic transfer of both container identification and permanent related
information from container tags to automatic data processing systems;
d) the description of data to be included in container tags for transmission to automatic data processing
systems;
e) performance criteria necessary to ensure consistent and reliable operation of container tags within the
international transportation community;
f) the physical location of container tags on containers;
g) features to inhibit malicious or unintentional alteration and/or deletion of the information content of
container tags when installed on a freight container.
This Technical Specification is intended to be applicable to freight containers as defined in ISO 668 as well as
to other containers not defined in ISO 668 and container ancillary equipment such as road and terminal
chassis, generator sets and power packs (see 3.1).
The use of container tags and the equipping of containers for automatic identification are optional. The
purpose of this Technical Specification is to optimise the efficiency of equipment control systems and to assist
in container security initiatives and programs, including the optional usage of electronic seals in accordance
with ISO 18185, and any subsequent International Standard. For this reason, any container tag system used
for identifying containers shall be non-proprietary and conform to and be compatible with this Technical
Specification.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 668, Series 1 freight containers — Classification, dimensions and ratings
ISO 830, Freight containers — Vocabulary
ISO 6346, Freight containers — Coding, identification and marking
ISO/IEC 15961, Information technology — Radio frequency identification (RFID) for item management — Data
protocol: application interface
ISO/IEC 15962, Information technology — Radio frequency identification (RFID) for item management — Data
protocol: data encoding rules and logical memory functions
ISO/IEC 15963, Information technology — Radio frequency identification for item management — Unique
identification for RF tags
ISO/IEC 18000-6, Information technology — Radio frequency identification for item management — Part 6:
Parameters for air interface communications at 860 MHz to 960 MHz
ISO/IEC 19762-1, Information technology — Automatic identification and data capture (AIDC) techniques —
Harmonized vocabulary — Part 1: General terms relating to AIDC
ISO/IEC 19762-3, Information technology — Automatic identification and data capture (AIDC) techniques —
Harmonized vocabulary — Part 3: Radio frequency identification (RFID)
IEC 60068-2, Environmental testing — Part 2: Tests.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 19762-1, ISO/IEC 19762-3,
ISO 830 and the following apply.
3.1
freight container
ISO freight container as specified in ISO 668 as well as other containers not specified ISO 668 and container
ancillary equipment such as road and terminal chassis, generator sets and power packs
3.2
mandatory and optional
indication of the status of requirements from the ISO standpoint, and not to imply that a particular status does
or does not result from intergovernmental agreement, legislation etc.
3.3
physically, electronically, and radiographically secure
capable of meeting the operational requirements specified in this Technical Specification after successfully
completing the tests specified in Annex A
NOTE For operational requirements see Clause 4.
3.4
physically tamper-proof
designed such that malicious disassembly and re-assembly, using commonly available tools, will be detected
upon visual inspection
3.5
electronically tamper-proof
designed such that malicious modification or deletion of electronically stored information by subjection to
electromagnetic signals from commonly available electronic devices is not possible
3.6
reader
automatic identification device and its antennas
2 © ISO 2009 – All rights reserved

3.7
range
distance between the reader and the container tag
3.8
passing speed
speed at which a container tag passes the reader
3.9
localisation
capability in any operational scenario to associate a container tag to the container on to which it is affixed
3.10
system reliability
ability of reader to capture information from every passing container tag, which is mounted, programmed and
presented in accordance with this Technical Specification, and which enters its reading area under
environmental conditions specified in Annex A
3.11
system accuracy
within the defined conditions for system reliability, capability of a reader to detect any misinterpretation of
container tag information, including bit errors
3.12
tag type
two-digit code describing the tag technology applied to the container
3.13
tag location code
one-digit code defining the tag mounting location
EXAMPLE T = top panel, S = side panel.
4 Operational requirements
4.1 Basic components of the identification system
The container identification RFID system shall consist of two basic components:
a) two container tags installed on the exterior of the freight container;
b) a reader located away from the freight container.
4.1.1 The container tags shall be capable of:
a) maintaining the integrity of the freight container identification and permanent related information;
b) encoding information into a form suitable for transmission to reader;
c) being physically, electronically and radiographically secure and tamper-proof;
d) being mounted onto the container in locations and manner as specified within this document;
e) having a minimum life of 20 years normal operational use without requiring any periodic maintenance;
f) having a minimum memory capacity of 256 bytes;
g) being read when properly oriented as described in 4.5.2;
h) being localised to a specific container and read as specified in the operational scenarios defined in 4.5.3;
i) being read when operated in the environmental conditions specified in Annex A;
j) being programmed via RF transmissions from a dedicated tag programmer. After programming,
mandatory data in the tags must be permanently locked in a manner that prohibits modifying this data;
k) being deployed in international operation, without the necessity of licensing tags individually and/or in
individual jurisdictions; and
l) being interrogated by a compatible, international standards-based reader.
4.1.2 The reader shall be capable of:
a) independently reading information contained in the container tags when properly presented; and
b) decoding the information contained in the tags into a form suitable for transmission to automatic data
processing systems.
4.2 Container tag data content and format
4.2.1 Some information contained in the tags is mandatory, permanent (non-changeable) information.
Remaining memory space is reserved for future use.
4.2.2 The container tags shall provide the following mandatory information about the container; reference to
or reliance upon other tables or databases in external automatic data processing systems in order to obtain
each of the various information elements shall not be required.
a) Tag manufacturer ID: 2 characters.
b) Tag type: 2 characters.
c) Tag location code: 1 character.
d) Conveyance and ancillary equipment type, e.g. ISO 668 container, chassis, genset: 2 characters:
01 Intermodal maritime container;
02 Chassis;
03 Genset;
04 Power pack;
05 Reefer spare part kit;
06 Truck;
07 Swap body;
08 Trailer;
09 Other equipment.
e) For equipment type 01:
1) An equipment identification number, in accordance with ISO 6346, which consists of 11 characters:
i) owner code;
4 © ISO 2009 – All rights reserved

ii) equipment category identifier;
iii) serial number;
iv) check digit.
2) A 4 character size and type code, in accordance with ISO 6346.
3) A 20 character operational mark for maximum gross mass and tare mass, in accordance with
ISO 6346.
f) For equipment types 02 to 09:
1) Information in accordance with UN/CFACT specifications.
2) The size and type codes, or other relevant codes.
3) Operational marks as required.
The tag shall be able to store data as defined within Table 1. Additional memory is reserved for future use.
Table 1 — Container ID tag data and values
Value Unit
Data
Minimum Maximum representation
Tag manufacturer ID  Alphanumerical
Tag type 00 99 Numerical
Tag location code A Z Alphabetical
Equipment type 00 99 Numerical
Owner code AAA ZZZ Alphabetical
Equipment category identifier A Z Alphabetical
Serial number 000000 999999 Numerical
Check digit 0 9 Numerical
Size and type code  Alphanumerical
a
Gross mass (kilograms) 00000 99999 Numerical
a
Tare mass (kilograms) 00000 99999 Numerical
a
In certain cases pounds are used instead of kilograms.
The mandatory data above shall be written to tag memory, using radio frequency through a sealed tag case.
Tags must be programmable in the field. After initial programming, WRITE access to memory prescribed for
required mandatory data (above) must be disabled using a permanent lock of memory or other means.
4.2.3 Data protocol and unique tag identifier
The data protocol, i.e. commands and messages to and from container tags conforming to this Technical
Specification shall support the requirements of ISO/IEC 15961 and ISO/IEC 15962.
For effective container tagging, it is necessary that each RFID container tag be unique worldwide. In order to
uniquely identify RFID container tags, each tag shall be assigned a unique tag ID, as specified in
ISO/IEC 15963. In tag memory bank MBO1, bit 0×17 shall be programmed to a “1” and bits 0×18 to 0×1F shall
contain an ISO/IEC 15961 application family identifier (AFI).
4.3 Reader requirements
4.3.1 The reader shall be international standards-based and shall be compatible with the container tags in
order that it can provide the information transmitted by the tags to the automated processing system.
4.3.2 The reader shall be of a technology adaptable to accommodate fixed, mobile or portable applications.
4.3.3 The reader and connected real time electronic data processing (EDP) system shall be capable of
adding to the data captured from the container tags the following information:
a) reader unit identification;
b) date and time of interrogation of the container tags.
4.4 Safety and regulatory considerations
All container tags compliant with this Technical Specification, including their readers, shall meet the safety and
regulatory requirements of the appropriate government re
...
