ISO/TS 18625:2017

TECHNICAL ISO/TS
SPECIFICATION 18625
First edition
2017-10
Freight containers — Container
Tracking and Monitoring Systems
(CTMS): Requirements
Conteneurs de fret — Système de suivi et de surveillance : Exigences
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Abbreviated terms . 2
5 General information . 2
5.1 System architecture . 2
5.2 System functions . 3
5.3 System operation . 4
5.4 System interfaces . 5
5.5 System data management . 5
5.6 System data safeguard measures . 5
5.7 System levels of performance . 6
5.8 Communications . 6
5.8.1 General. 6
5.9 Breadth of capability . 7
5.10 Depth of capability . 7
6 CTMS system requirements. 7
6.1 Operational scenarios . 7
6.1.1 General. 7
6.1.2 “Event Library”: Journey segments and associated events . 7
6.2 Specific system requirements . 8
6.2.1 General. 8
6.2.2 Physical/structural requirements . 9
6.2.3 Environmental requirements . 9
6.2.4 Operational and performance requirements . 9
6.3 Readability . 9
6.3.1 General. 9
6.3.2 Container monitoring .10
6.4 Accuracy and reliability of the CTMS .10
6.5 Data .10
7 Container Tracking Device (CTD) .11
7.1 General device information (variety/range of devices) .11
7.2 Device installation/mounting .11
7.3 General device functions for security .11
8 Infrastructure elements .12
8.1 General .12
8.2 Data interface(s) .12
8.3 Other infrastructure elements (any other non-device distributed elements) .12
9 Safety and regulatory considerations.12
Annex A (informative) Event library .14
Bibliography .18

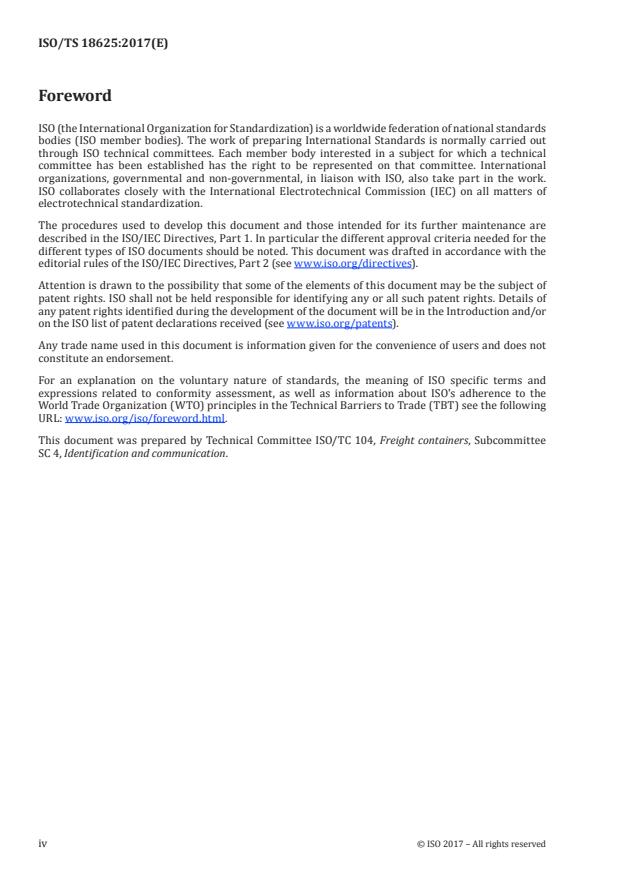

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 104, Freight containers, Subcommittee
SC 4, Identification and communication.
iv © ISO 2017 – All rights reserved

Introduction
Through communication with a broad range of potential Container Tracking and Monitoring System
(CTMS) users, much has been learned about needed capabilities and the timeline for providing certain
solution levels. Initially, it was assumed that the most immediate needs would be for high-tier (i.e. high-
capability) solutions to protect dangerous or valuable cargoes. Potential users made clear that point
solutions for dangerous or valuable cargoes have already been developed for these needs. These point
solutions are in use today. Instead, the most immediate potential demand seems to be for “low-tier”
solutions that deliver a minimal but important capability at low cost, capable of being broadly deployed
and used. Starting at the low tier reflects a building block approach that can be expanded as technology
and requirements permit.
This document summarizes the aforementioned discussions. This document provides a systemic
approach for automatic identification, tracking and monitoring for freight containers. Specifically,
it provides guidance for the requirements (operational and otherwise) for a system, and its enabling
devices, used to track, monitor and/or report the status of the container according to the needs,
requirements and specifications determined by the user. The CTMS would provide
a) an unambiguous unique identification of the container,
b) location of the container with a selectable degree of precision as defined by the user of the system
(there are various options for accuracy and it is left to the user to determine what is best for the
application), and
c) status, where applicable, of container condition parameters as defined by the user of the system
which may include parameters related to container environment, container condition, container
integrity, container load status, etc.
The collection of this information is done through one or more selectable communications interfaces.
The format, frequency and granularity in which the information is accessed and presented will be
defined by the user of the system and is outside the scope of this document.
Though not used in this document, recognition is given to the standardization work of
— ISO/IEC JTC 1/SC 31 in the area related to air interface, data semantic and syntax construction,
conformance and identification, location and security of items,
— ISO/IEC/TR 24729-4, and
— ISO/TC 104 in the area of freight container security, including electronic seals [(e-seals) ISO 18185
(all parts)] and container identification.
TECHNICAL SPECIFICATION ISO/TS 18625:2017(E)
Freight containers — Container Tracking and Monitoring
Systems (CTMS): Requirements
1 Scope
This document is intended to be applicable to freight containers as defined in ISO 668 as well as to
other freight containers not defined in ISO 668 and to container ancillary equipment such as road and
terminal chassis, generator sets and power packs.
This document provides guidance for the requirements (operational and otherwise) for a system,
and its enabling devices, used to track, monitor and/or report the status of the container, hereinafter
referred to as the Container Tracking and Monitoring System (CTMS). The use of a CTMS is optional.
The party opting to use
...
