ISO 4002-1:1979
(Main)Equipment for sowing and planting - Part 1: Concave disks type D1 - Dimensions
Equipment for sowing and planting - Part 1: Concave disks type D1 - Dimensions

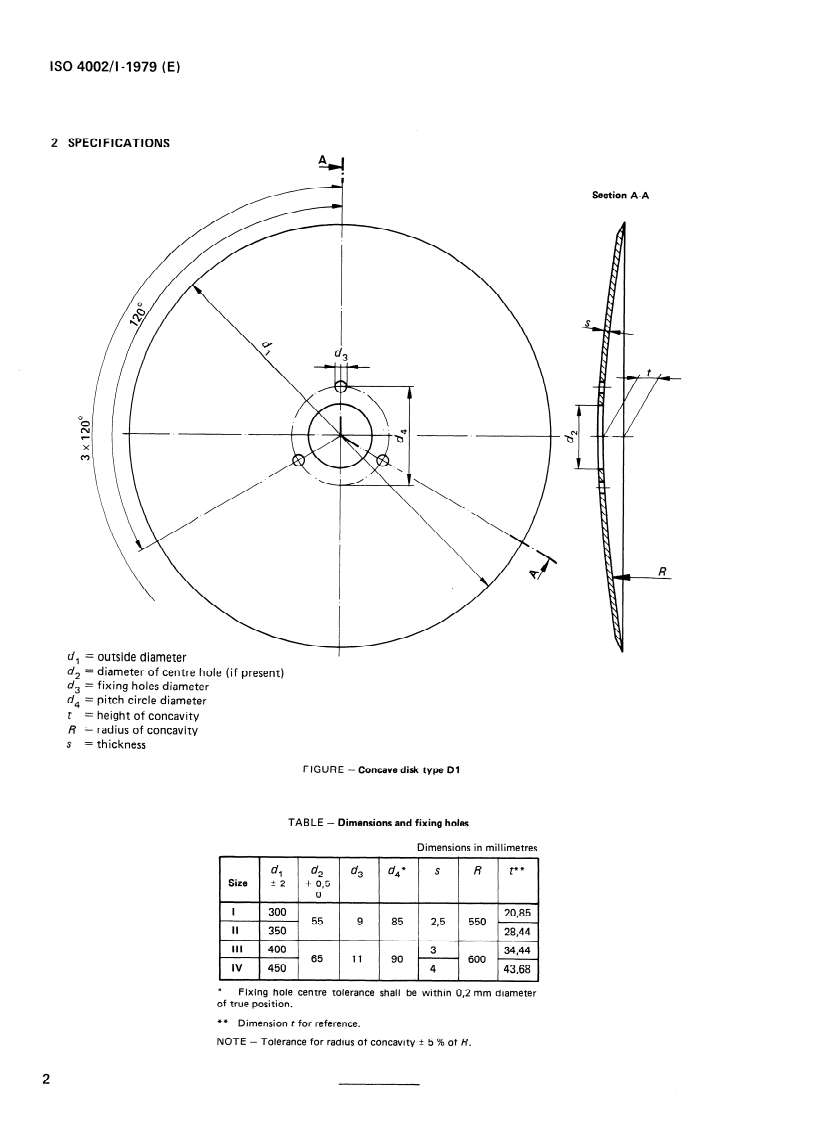

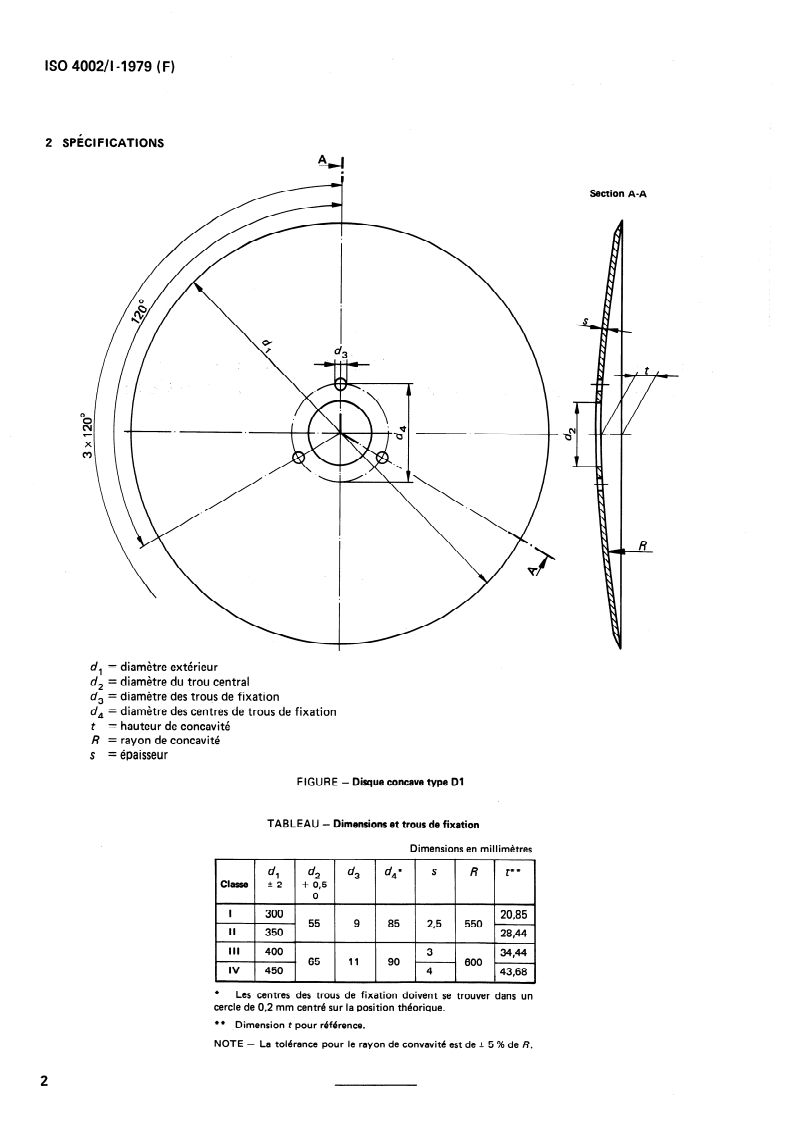

Establishes the dimensions of disks, with or without central hole. The table given the dimensions and fixing holes for sizes I to IV; the figure illustrates the various dimensions given and shows a section of the disk.
Matériel de semis et de plantation — Disques — Partie 1: Disques concaves type D1 — Dimensions
General Information
- Status
- Published
- Publication Date
- 31-Mar-1979
- Technical Committee
- ISO/TC 23 - Tractors and machinery for agriculture and forestry
- Drafting Committee
- ISO/TC 23 - Tractors and machinery for agriculture and forestry
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 23-Aug-2021
- Completion Date
- 13-Dec-2025
Overview
ISO 4002-1:1979 - Equipment for sowing and planting - Part 1: Concave disks type D1 - Dimensions defines the dimensional requirements for concave disks used in sowing and planting machines. The standard establishes the official geometry and tolerances for concave disks (type D1), with or without a central hole, to ensure compatibility and interchangeability across agricultural machinery and seeders.
Key topics
- Scope and applicability: Dimensions for concave disks used in sowing and planting equipment (type D1).
- Dimensional parameters defined: outside diameter, central-hole diameter (if present), fixing-hole diameter, pitch circle diameter, disk thickness, height of concavity (t) and radius of concavity (R).
- Sizes covered: a tabulated set of dimensions for Sizes I to IV (values given in millimetres in the standard).
- Fixing and positional tolerances:
- Fixing-hole centre tolerance: within 0.2 mm diameter of true position.
- Radius of concavity tolerance: +5% of R.
- Reference notes: dimension t is given for reference in the table.
- Illustrations: figure shows section views and labels for the various dimensions to aid interpretation.
Applications
ISO 4002-1:1979 is intended for:
- Manufacturers of sowing and planting machines and replacement disks - to produce components to a recognized dimensional standard.
- Design engineers specifying disk geometry for seeders and planters to ensure fit and performance.
- Parts suppliers and distributors ensuring replacement concave disks meet dimensional and tolerance requirements.
- Quality control and inspection teams verifying conformity of disk parts to specified tolerances.
- Procurement and maintenance departments seeking interoperable parts for agricultural machinery fleets.
Benefits include improved interchangeability of disks between machines, predictable performance of seeding equipment, simplified maintenance and spare-parts sourcing, and compliance with an internationally recognized dimensional reference.
Related standards and context
- Developed by ISO/TC 23 (Tractors and machinery for agriculture and forestry).
- ISO 4002-1 is Part 1 of the disks series; consult the ISO catalogue or national standards bodies for related parts or subsequent revisions.
Keywords: ISO 4002-1:1979, concave disks, sowing and planting, seeders, agricultural machinery, disk dimensions, fixing holes, pitch circle diameter, radius of concavity, tolerance.
Frequently Asked Questions
ISO 4002-1:1979 is a standard published by the International Organization for Standardization (ISO). Its full title is "Equipment for sowing and planting - Part 1: Concave disks type D1 - Dimensions". This standard covers: Establishes the dimensions of disks, with or without central hole. The table given the dimensions and fixing holes for sizes I to IV; the figure illustrates the various dimensions given and shows a section of the disk.
Establishes the dimensions of disks, with or without central hole. The table given the dimensions and fixing holes for sizes I to IV; the figure illustrates the various dimensions given and shows a section of the disk.
ISO 4002-1:1979 is classified under the following ICS (International Classification for Standards) categories: 65.060.30 - Sowing and planting equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 4002-1:1979 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
