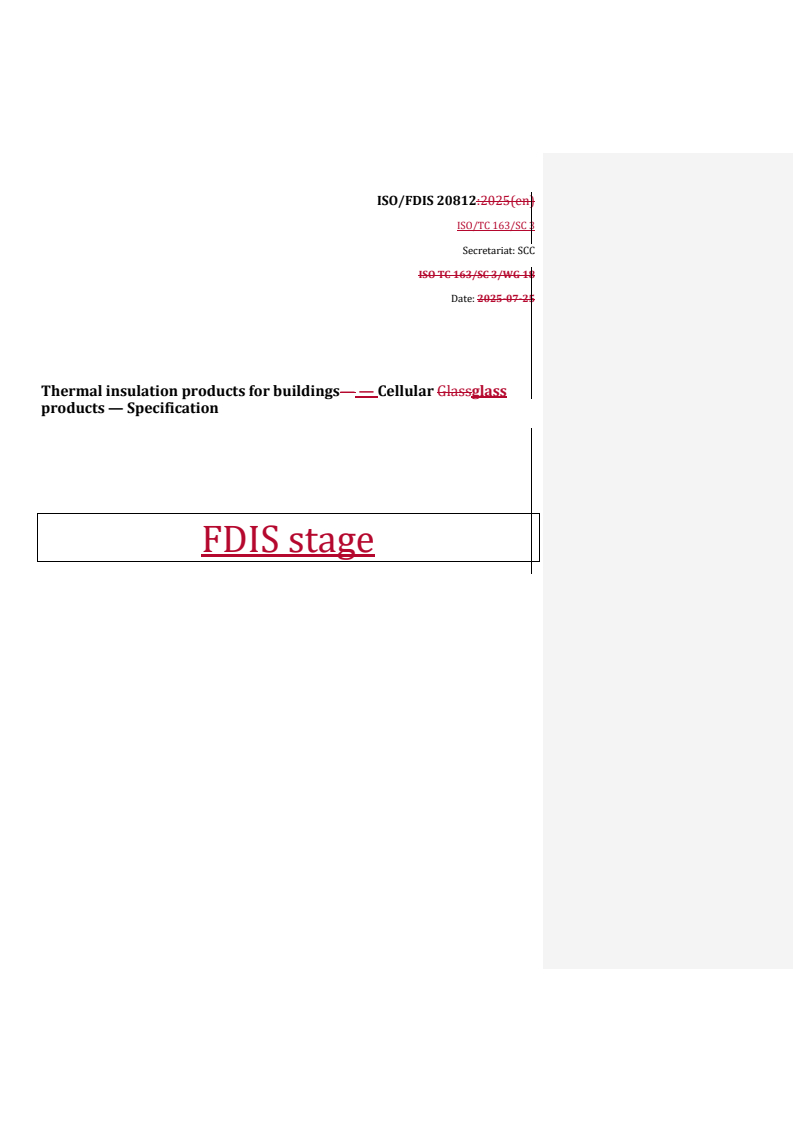

ISO 20812

ISO/FDIS 20812:2025(en)
ISO/TC 163/SC 3
Secretariat: SCC
ISO TC 163/SC 3/WG 18
Date: 2025-07-25
Thermal insulation products for buildings— — Cellular Glassglass
products — Specification
FDIS stage
ISO/FDIS 20812:2025(en)

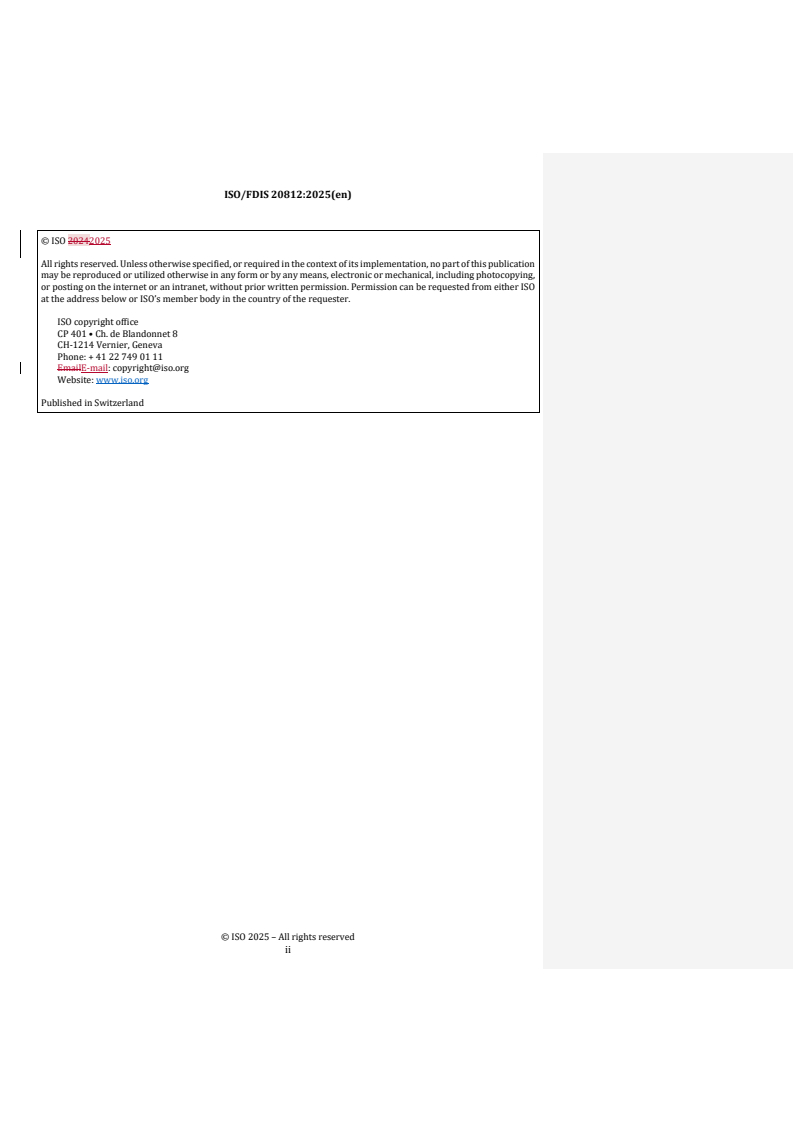

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
EmailE-mail: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO/FDIS 20812:2025(en)

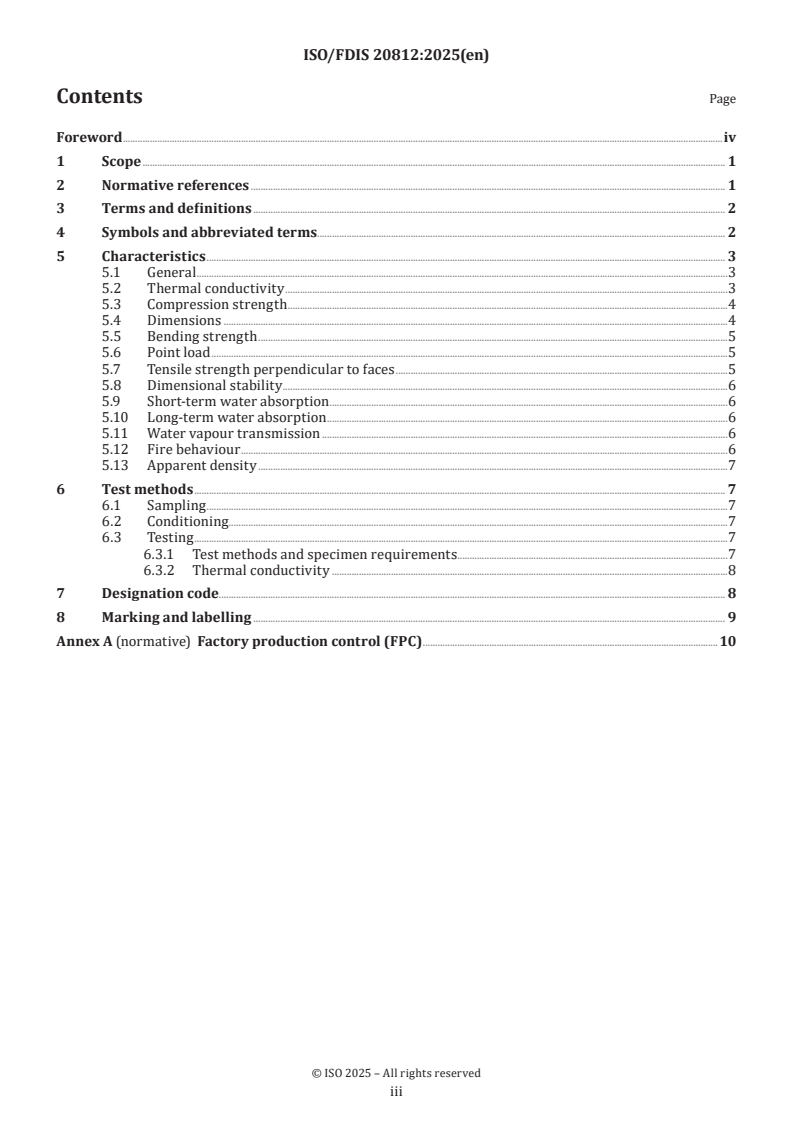

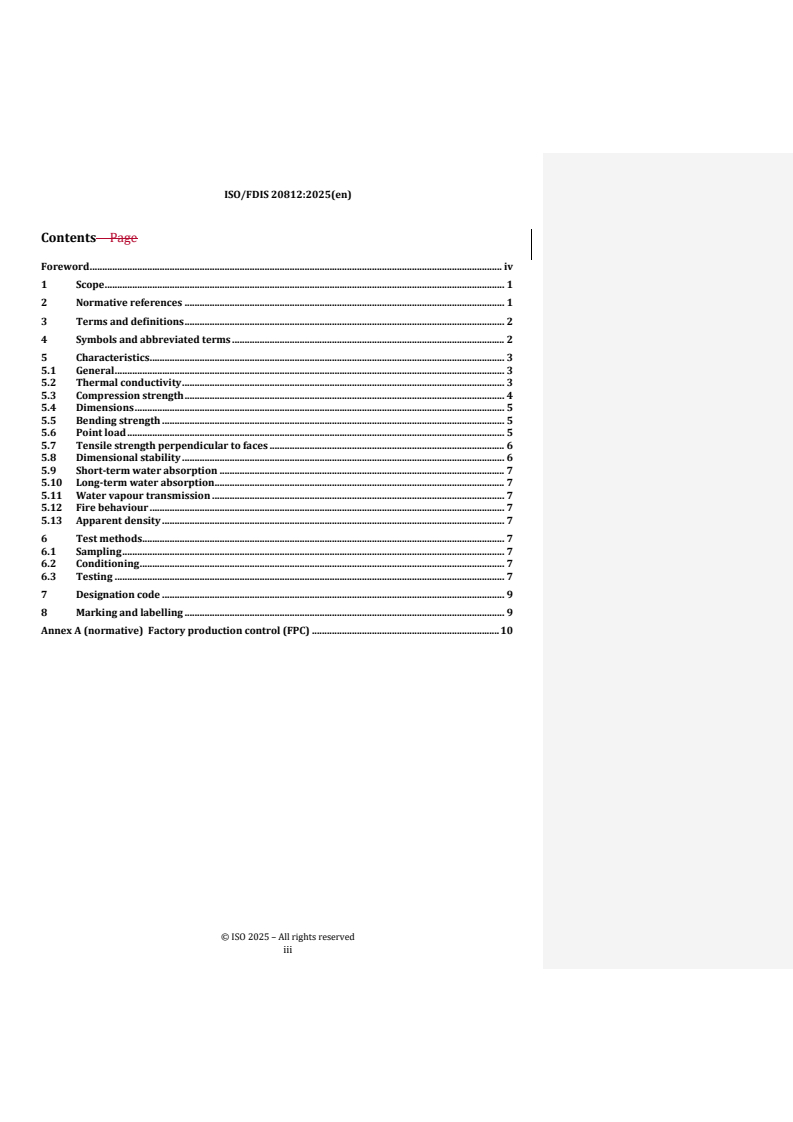

Contents Page
Foreword . iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Symbols and abbreviated terms . 2
5 Characteristics . 3
5.1 General . 3
5.2 Thermal conductivity . 3
5.3 Compression strength . 4
5.4 Dimensions . 5
5.5 Bending strength . 5
5.6 Point load . 5
5.7 Tensile strength perpendicular to faces . 6
5.8 Dimensional stability . 6
5.9 Short-term water absorption . 7
5.10 Long-term water absorption . 7
5.11 Water vapour transmission . 7
5.12 Fire behaviour . 7
5.13 Apparent density . 7
6 Test methods . 7
6.1 Sampling . 7
6.2 Conditioning . 7
6.3 Testing . 7
7 Designation code . 9
8 Marking and labelling . 9
Annex A (normative) Factory production control (FPC) . 10

iii
ISO/FDIS 20812:2025(en)

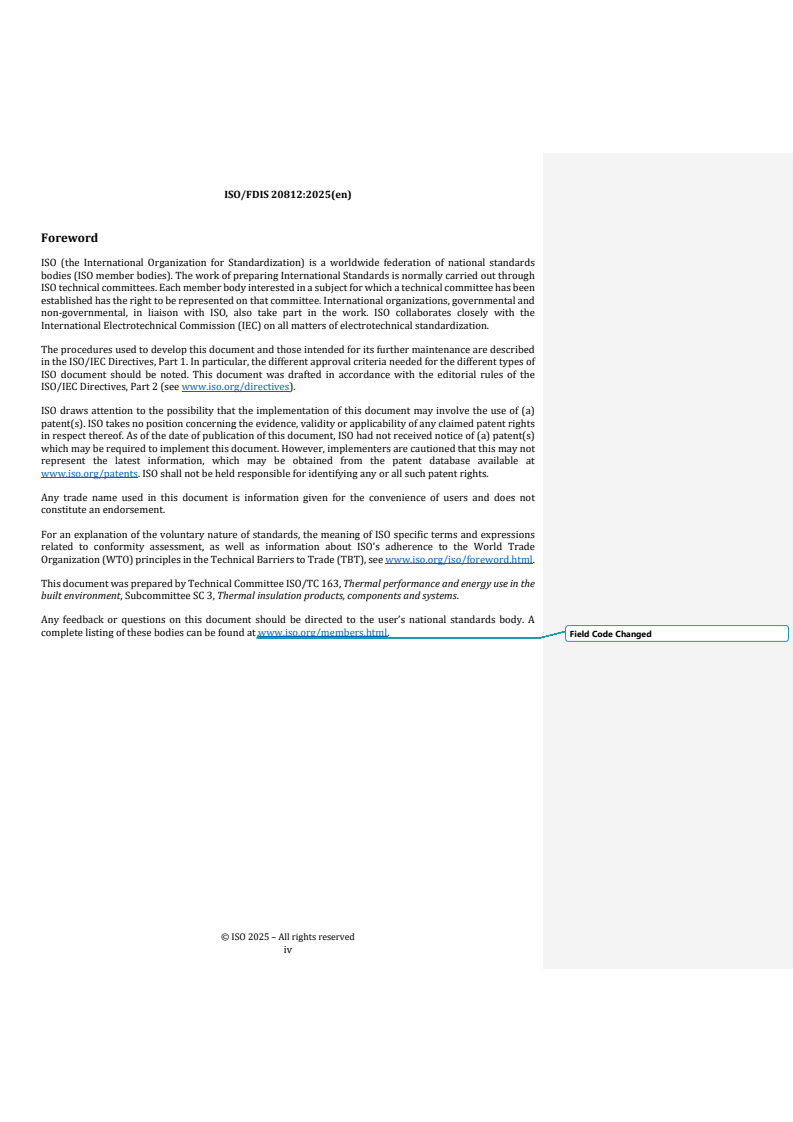

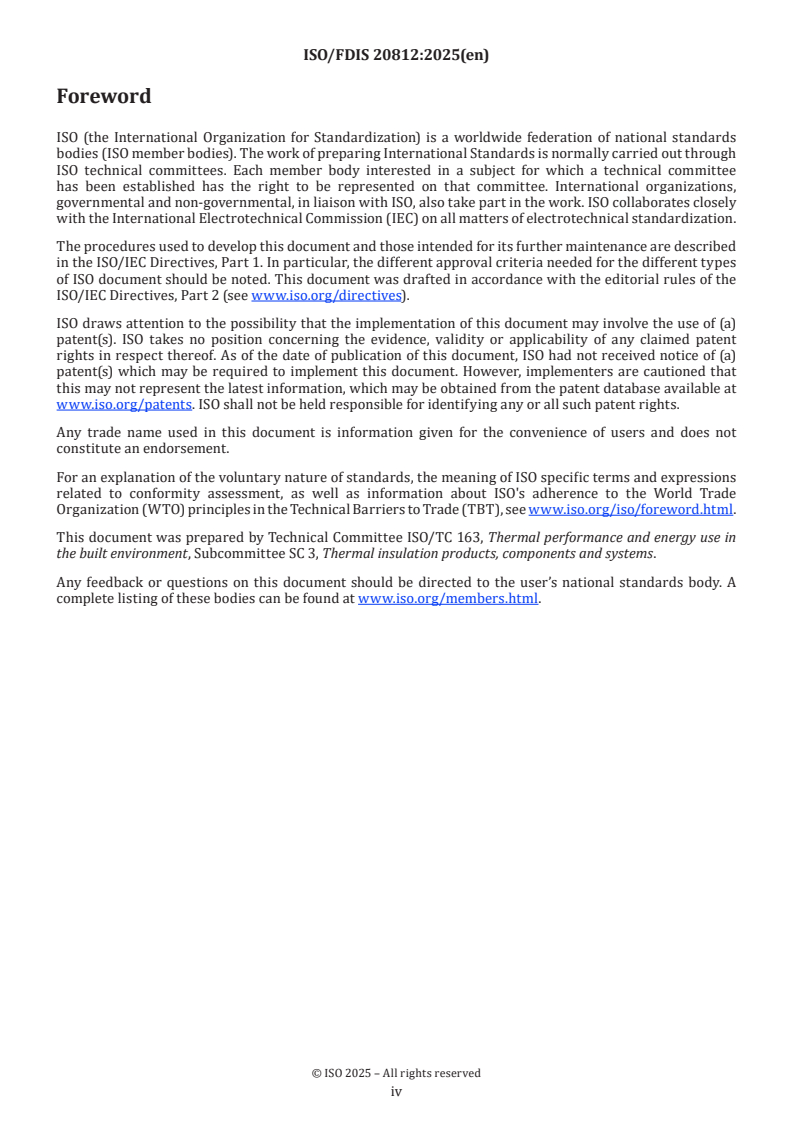

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had not received notice of (a) patent(s)
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 163, Thermal performance and energy use in the
built environment, Subcommittee SC 3, Thermal insulation products, components and systems.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
Field Code Changed
iv
ISO/FDIS 20812:2025(en)
Thermal insulation products for buildings— — Cellular glass products
— Specification
1 Scope
This document specifies the requirements and test methods for factory-made cellular glass products which
are used for thermal insulation of buildings. The products are manufactured in the form of slabs, faced or
unfaced boards, and one-sided blocks.
Products covered by this standarddocument are also used in prefabricated thermal insulation systems and
composite panels. The performance of systems incorporating these products is not covered.
This document describes product characteristics and test methods, designation code, marking and labelling.
This document does not apply to:
— — products with a declared thermal conductivity greater than 0,056 W/(m K) at 25 °C;
— — products for the insulation for the building equipment and industrial installations.
This document does not specify the required level of a given property to be achieved by a product to
demonstrate fitness for purpose in a particular application. Specific requirements agreed between the
purchaser and the supplier, e.g. type, dimensions and forms, regulatory compliance and inspection
requirements or certification requirements are outside the scope of this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 1182, Reaction to fire tests for products — Non-combustibility test
ISO 1716, Reaction to fire tests for products — Determination of the gross heat of combustion (calorific value)
ISO 8301, Thermal insulation — Determination of steady-state thermal resistance and related properties — Heat
flow meter apparatus
ISO 8302, Thermal insulation — Determination of steady-state thermal resistance and related properties —
Guarded hot plate apparatus
ISO 9229, Thermal insulation — Vocabulary
ISO 10456, Building materials and products — Hygrothermal properties — Tabulated design values and
procedures for determining declared and design thermal values
ISO 11925--2, Reaction to fire tests — Ignitability of products subjected to direct impingement of flame — Part
2: Single-flame source test
ISO 12344, Thermal insulating products for building applications — Determination of bending
behaviorbehaviour
ISO 12570, Hygrothermal performance of building materials and products — Determination of moisture content
by drying at elevated temperature
ISO/FDIS 20812:2025(en)
ISO 12572, Hygrothermal performance of building materials and products — Determination of water vapour
transmission properties — Cup method
ISO 16535, Thermal insulating products for building applications — Determination of long-term water
absorption by immersion
ISO 29465, Thermal insulating products for building applications — Determination of length and width
ISO 29466, Thermal insulating products for building applications — Determination of thickness
ISO 29467, Thermal insulating products for building applications — Determination of squareness
ISO 29468, Thermal insulating products for building applications — Determination of flatness
ISO 29469, Thermal insulating products for building applications — Determination of compression behaviour
ISO 29470, Thermal insulating products for building applications — Determination of the apparent density
ISO 29472, Thermal insulating products for building applications — Determination of dimensional stability
under specified temperature and humidity conditions
ISO 29765, Thermal insulating products for building applications — Determination of tensile strength
perpendicular to faces
ISO 29767, Thermal insulating products for building applications — Determination of short-term water
absorption by partial immersion
ISO 29769, Thermal insulating products for building applications — Determination of behaviour under point
load
ISO 29771, Thermal insulating materials for building applications — Determination of organic content
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 9229 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— — ISO Online browsing platform: available at https://www.iso.org/obp
— — IEC Electropedia: available at https://www.electropedia.org/
4 Symbols and abbreviated terms
4.1
b width mm
d thickness mm
l length mm
d nominal thickness of the product mm
N
λ thermal conductivity W/(m ⋅ K)
λ declared thermal conductivity W/(m ⋅ K)
D
ISO/FDIS 20812:2025(en)
δ water vapour permeability ng/( m ⋅ s ⋅ Pa)
Z water vapour resistance m ⋅ s ⋅ Pa/ng
CG cellular glass ——
CS compression strength kPa
BS bending strength kPa
PL(P) penetration under point load mm
TR tensile strength perpendicular to faces kPa
DS(70,-) dimensional stability at specified temperature %
DS(23,90) dime
...
