ISO/TS 17261:2005

TECHNICAL ISO/TS
SPECIFICATION 17261
First edition
2005-05-15
Intelligent transport systems —
Automatic vehicle and equipment
identification — Intermodal goods
transport architecture and terminology
Systèmes intelligents de transport — Identification automatique des
véhicules et de leur équipement — Architecture et terminologie du
transport intermodal de marchandises

Reference number
©
ISO 2005
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Normative references . 1
3 Terms and definitions. 3
4 Requirements . 9
4.1 General requirements. 9
4.2 Conceptual architecture. 9
4.3 Logical definition . 13
4.4 Functional architecture . 15
4.5 Application architecture. 15
4.6 Information architecture. 18
4.7 Object interactions. 19
4.8 System security architecture. 21
4.9 Resilience issues . 21
4.10 Performance issues . 21
4.11 Disaster recovery. 22
4.12 Migration issues. 22
4.13 System specification . 22
4.14 Implementation architecture. 22
Annex A (informative) Architectural views of logistic and distribution systems . 23

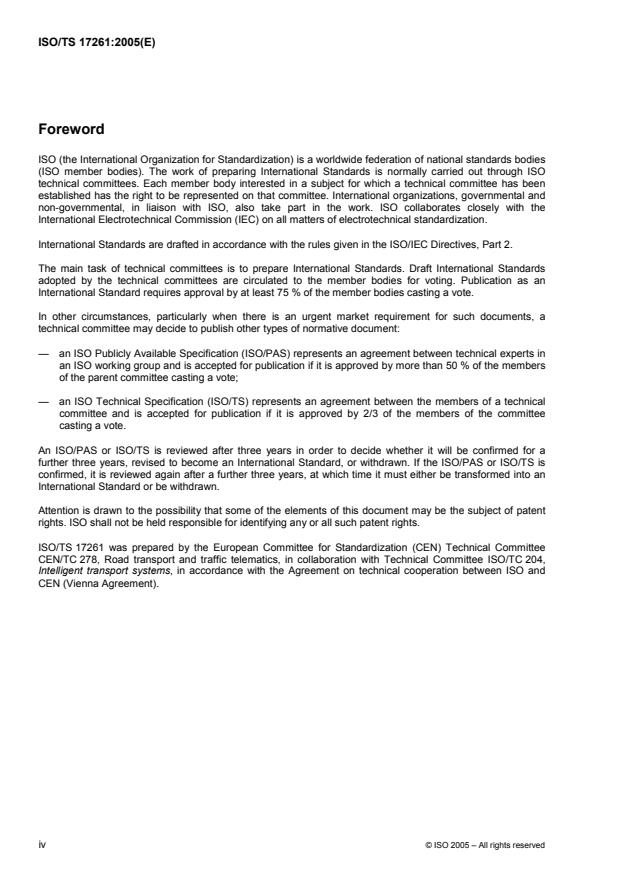

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of normative document:
— an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical experts in
an ISO working group and is accepted for publication if it is approved by more than 50 % of the members
of the parent committee casting a vote;
— an ISO Technical Specification (ISO/TS) represents an agreement between the members of a technical
committee and is accepted for publication if it is approved by 2/3 of the members of the committee
casting a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for a
further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or ISO/TS is
confirmed, it is reviewed again after a further three years, at which time it must either be transformed into an
International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TS 17261 was prepared by the European Committee for Standardization (CEN) Technical Committee
CEN/TC 278, Road transport and traffic telematics, in collaboration with Technical Committee ISO/TC 204,
Intelligent transport systems, in accordance with the Agreement on technical cooperation between ISO and
CEN (Vienna Agreement).
iv © ISO 2005 – All rights reserved

Introduction
This Technical Specification prescribes the overall parameters within which these subsidiary Standards and
Technical Specifications are constructed. The Architecture description defined in this document is presented
in a form consistent with the recommendations of ISO/TC 204/WG1, and is supported by that working group,
and is a consistent extension to EN ISO 14814 (AVI Reference architectures and terminology).
EN ISO 14814 provides an architecture context for AVI/AEI for road transport. CEN ISO/TS 17261 (this
Technical Specification) extends this architecture context to include intermodal and multimodal movements.
This document is part of a series of Standards defining AVI/AEI in the Intelligent Transport Systems/Road
Transport and Traffic Telematics (ITS/RTTT) environment. The following parts have been/shall also be issued
from CEN TC 278/WG12 to form a family of Standards for the Sector.
EN ISO 14814 AVI/AEI Reference architectures and terminology
EN ISO 14816 AVI/AEI Numbering and data structures
EN ISO 14815 AVI/AEI System specification
CEN ISO/TS 17261 AVI/AEI Intermodal goods transport reference architectures and terminology.
CEN ISO/TS 17262 AVI/AEI Intermodal goods transport: Numbering and data structures
CEN ISO/TS 17263 AVI/AEI Intermodal goods transport: System parameters
CEN ISO/TS 17264 AVI/AEI Intermodal goods transport: Interface requirements
An AVI/AEI interaction in an ITS/RTTT environment comprises an identification of On-Board Equipment (OBE)
by a reader/interrogator and may transfer additional data.
The data component in an ITS/RTTT environment provides the basis for unambiguous identification of the
OBE, and may also share a medium for a bi-directional interactive exchange of data between the host and
OBE and to other equipment (such as smart cards etc.).
The principles of data presentation determined in CEN ISO/TS 17262 have been adopted to provide an
interoperable architecture within a Standard framework. The use of Abstract Syntax Notation One (ASN.1)
PER is therefore an integral part of the data architecture determined in this Technical Specification.
The numbering and data structure shall be capable of operation both by read/write devices, and by read only
devices where there is no requirement (and sometimes no possibility) to write to the OBE.
A key feature of the structure is to provide interoperability of data constructs.
Within the ITS/RTTT sector, applications may range from simple vehicle and equipment identification to
complex International systems.
The reference architecture model and the data construct schemes described in this family of
Standards/Technical Specifications extend the approved AVI conceptual architecture to provide a
comprehensive conceptual and logical system architecture to describe the relationships and functionality for a
wide range of media so that the currency of the Technical Specification shall remain good for both existing
and future technologies. The Technical Specification recognises that there are existing AVI/AEI applications
and provides a means of supporting such data constructs within the Technical Specification.
In many cases it is necessary or desirable to use one air carrier frequency and protocol, but this is not always
possible nor even desirable in all situations.
In accordance with the resolutions of ISO TC 204 and CEN TC 278 the use of Abstract Syntax Notation One
(ASN.1) from ISO 8824 as a data definition structure is adopted. Its usage provides maximum interoperability
and conformance to existing ITS/RTTT and related Standards and Technical Specifications
vi © ISO 2005 – All rights reserved

1 Scope
This Technical Specification describes the conceptual and logical architecture for automatic vehicle and
Equipment identification (AVI/AEI) and supporting services in an intermodal/multimodal environment.
This Technical Specification presents a high level view of AEI intermodal and multimodal system Architecture.
The Technical Specification describes the key sub systems, their associated interfaces and interactions and
how they fit into System wide functions such as Management, Security and Information Flow.
The Architecture is product independent, e.g. individual modules within sub systems e.g. the data tag module
within the data capture sub system will be described in terms of system parameters not in terms of a defined
or named product specification.
The Technical Specification identifies the context of intermodal/multimodal AEI within the overall AVI/AEI
context and key external inter-dependencies and interfaces to the intermodal/multimodal Sector IT
infrastructure. These include interfaces to the external and internal users of the Intermodal/multimodal System
services and their associated IT systems, interfaces to Intermodal/multimodal management systems, existing
Intermodal/multimodal networks and System Operations, and specifically interfaces to item identification and
the domain of ISO/IEC SC 31, item logistics Standards. As an architecture it is designed to be complementary
and interlocking to that domain.
NOTE Iin addition to the work of this Technical Specification, the reader should be aware that there are a number of
ongoing architecture and terminology activities in a number of organizations such as the UNCEFACT and ISO/TC 154 that
relate to the movement of intermodal/multimodal goods. In respect of the architecture concepts described in this Technical
Specification it is important that there be ongoing collaboration between the ITS community and such bodies such that
semantic interoperability and syntactic coherence may be attained at information exchanges intermodally.
This Technical Specification relates to AVI/AEI units, but not to smaller containers and items being transported.
Whilst the architecture described within this Technical Specification shows the inter-relationship to the item
identification domain (see Annex A), for smaller items (pallet loads, trays, parcels etc.), Standardization will be
undertaken by ISO/IEC JTC 1 SC 31. Supporting Standards developed by ISO/TC 204 will be limited to
vehicle, trailer and AVI/AEI unit identification, whereas ISO/SC 31 Standards will work from units of pallet (and
equivalent) size down to item level.
This Technical Specification is intended to be complementary and consistent with the work of ISO/TC 104
(ISO Containers).
This Specification extends the conceptual and communication AVI architecture determined in EN ISO 14814
and is neither frequency nor air interface protocol specific. It provides maximum interoperability, has a high
population capability, and provides the possibility of upwards migration to more capable systems.
This Technical Specification does not include the air interface nor any implementation aspect, solely the
reference architectures. Subsequent Standards shall define data structures for general AVI/AEI and for
specific sectors of application.
NOTE This Technical Specification presents a number of views to describe the intermodal/multimodal environment.
Other organizations, such as UN/CEFACT, and other ITS Standards, may use views that are based on different
methodologies.
2 Normative references
This Technical Specification incorporates by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply to
this Technical Specification only when incorporated in it by amendment or revision. For undated references
the latest edition of the publication referred to applies (including amendments).
ISO/IEC 8824-1:1995, Information technology — Abstract Syntax Notation One (ASN.1) — Part 1:
Specification of basic notation, 1995-10-15
ISO/IEC 8824–1:1995, Amd 1:1996, Information technology — Abstract Syntax Notation One (ASN.1) —
Part 1: Specification of Basic Notation, Amendment 1 Rules of extensibility,1996-05-01
ISO/IEC 8824-2:1995, Information technology — Abstract Syntax Notation One (ASN.1) — Part 2: Information
object specification, 1995-10-15
ISO/IEC 8824-2:1995, Amd 1:1996, Information technology — Abstract Syntax Notation One (ASN.1) —
Part 2: Information object specification, Amendment 1 Rules of Extensibility,1996-05-01
ISO/IEC 8824-3:1995, Information technology — Abstract Syntax Notation One (ASN.1) — Part 3: Constraint
specification, 1995-10-15
ISO/IEC 8824–4:1995, Information technology — Abstract Syntax Notation One (ASN.1) — Part 4:
Parameterization of ASN.1 specifications, 1995-10-15
ISO/IEC 8825–1:1995, Information technology — ASN.1 encoding rules — Part 1: Specification of Basic
Encoding Rules (BER), Canonical Encoding Rules (CER) and Distinguished Encoding Rules (DER),
1995-10-15
ISO/IEC 8825–2:1996, Information technology — ASN.1 encoding rules — Part 2: Specification of Packed
Encoding Rules (PER), 1996-08-01
ISO 9897, Electronic Data Interchange
ISO 10374, Freight Containers — Coding, identification and marking
ISO 11179, TICS Data Registration Procedures
ISO 14812, Transport information and control systems, System architecture, Glossary of terms
ISO 14813, Transport Information and Control Systems, System architecture, taxonomy and terminology —
Parts 1 - 6: ITS Reference architecture
EN ISO 14814, Road transport and traffic telematics — Automatic vehicle and equipment identification —
Reference architectures and terminology (review)
ENV ISO 14816, Road transport and traffic telematics — Automatic vehicle and equipment identification —
Numbering and data structures
ENV ISO 14815, Road transport and traffic telematics — Automatic vehicle and equipment identification —
System specification
CEN ISO/TS 17262, AVI/AEI Intermodal goods transport: Numbering and data structures
CEN ISO/TS 17262, AVI/AEI Intermodal goods transport: System parameters
CEN ISO/TS 17264, AVI/AEI Intermodal goods transport: Interface requirements
ISO/IEC 18000-1, Automatic identification - Radio frequency identification for item management —
Communications and interfaces — Part 1: Part 1: Reference architecture and definition of parameters to be
standardized
ISO 14817, Data modelling: Data registration and data dictionary, Procedures for the ITS sector
ISO/IEC DIS 19501-1, Information technology — Unified Modelling Language (UML) — Part 1
2 © ISO 2005 – All rights reserved

3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14812 and the following apply.
3.1
Address
A data element designating the originating source or destination of data being transmitted
3.2
AEI (Automatic Equipment Identification)
The process of identifying equipment or entities that uses the surface transportation infrastructures by means
of OBE’s combined with the unambiguous data structure defined in these Standards. Within this series of
Standards, 'Equipment' indicates large equipment that is carried in, or forms an integral part of, a trailer or
trailer mounted unit.
3.3
Air interface
The conductor-free medium between an OBE and the reader/interrogator through which the linking of the OBE
to the reader /interrogator is achieved by means of electro-magnetic signals.
3.4
Application identifier
In the context of this reference architecture model and its numbering and data structures, one item of a data
element construct (usually the first octet) that uniquely identifies the domain of an ITS/RTTT information
exchange at an explicitly defined reference point (see Figure 5), usually at reference points “Alpha”, “Beta” or
“Zeta”). This octet shall identify that the message is a specific RTTT message.
3.5
ASN.1
Abstract Syntax Notation One, as defined in ISO 8824 and ISO 8825.
3.6
AVI (Automatic vehicle identification)
The process of identifying vehicles using OBE combined with the unambiguous data structure defined in these
Standards.
3.7
AVI/AEI System Operator
The commercial operator of an AVI/AEI/RTTT system that uses OBE('s) for the purposes defined in this
Technical Specification.
3.8
Bi-directional dialogue
Two way communications between Fixed Equipment and OBE('s).
3.9
Bill of lading
A document which evidences a contract of the carriage and the taking over or loading of the goods by the
carrier, and by which the carrier undertakes to deliver the goods against surrender of the document. A
provision in the document that the goods are to be delivered to the order of a named person, or to order, or to
bearer, constitutes such an undertaking. The document has the following functions:
 a receipt for goods, signed by a duly authorised person on behalf of the carriers;
 a document of title to the goods described therein;
 evidence of the terms and conditions of carriage agreed upon between the two parties.
3.10
Communication control
Fixed equipment function to control the communication between Fixed Equipment and OBE
3.11
Compatibility
Capability of two or more items or components of equipment or material to exist and/or function in the same
system or environment without modification, adaptation or mutual interference
3.12
Consignment
A separately identifiable amount of goods (available to be) transported from one consignor to one consignee
via one or more than one modes of transport and specified in one single transport document (ISO 14812)
3.13
Consignor
A party that provides goods to another party. A Consignor may be a manufacturer, trader, agent, or individual.
Also known as a “goods provider”.
3.14
Container
A receptacle for the transport of goods, especially one readily transferable from one form of transport to
another. See also non-ISO Container.
3.15
DSRC
See Dedicated short range communication.
3.16
Data element structure
A framework comprising a number of data elements in a prescribed form. Also known as a 'message'.
3.17
Dedicated Short Range Communication
A means of effecting local (short range) transactions between Fixed equipment and OBE('s) using an 'air
interface' comprising inductive or propagated signals between the Fixed equipment and OBE('s).
3.18
EDI (Electronic data interchange)
The passing of a data message, or series of messages, between computers and/or between different software
systems. Within this context an EDI message is normally compatible with the form specified in ISO 9897. EDI
is an instance of an EDT transaction
3.19
EDT (Electronic data transfer)
The passing of data sets comprising an entire message from one computer to another or from one software
system to another.
3.20
Goods provider
A party that provides goods to another party. A goods provider may be a manufacturer, trader, agent, or
individual. More commonly known as a “consignor”
3.21
Information
Data, documentation, and other relevant knowledge organized to inform and describe
4 © ISO 2005 – All rights reserved

3.22
Information manager
The function of managing information in a system. The role of information manager may be provided by one or
many actors. The role of Information Manager may be performed internally by one or more of the system
principal actors, or may be formed commercially or altruistically by one or more third parties.
3.23
Interchangeability
A condition which exists when two or more items possess such functional and physical characteristics as to be
equivalent in performance and durability, and are capable of being exchanged one for the other without
alteration of the items themselves, or of adjoining items, and without selection for fit and performance.
3.24
Intermodal transport
The movement of goods in one or more loading unit or vehicle which uses successively several modes of
transport without handling of the goods themselves when changing modes (CEN ISO/TS 17262,
CEN ISO/TS 17263).
3.25
Interoperability
The ability of systems to provide services to and accept services from other systems and to use the services
so exchanged to enable them to operate effectively together.
3.26
Interrogator
A device that performs the functions of a reader, but in addition has the ability to write new data to an OBE, or
change data held in the OBE memory via an air interface.
3.27
ISO Container
A large boxlike receptacle of standard design for the transport of goods. Defined in ISO 10374 (under revision).
See also ISO Container.
3.28
Item
An item of goods to be moved. An item may be a single unit, such as a letter, a bundle or box of units or other
units that will be bundled into a receptacle which will be carried in equipment (such as an ISO intermodal
container) as a sub component of an AEI item. Items are not defined in this family of Standards and are
defined by the Standards of ISO/IEC SC 31. Item identification for Logistics.
3.29
Journey
Within the AVI/AEI context, the physical movement of goods from the goods provider to the receiver.
3.30
Load
That which is to be transported from the consignor to the receiver. A load comprises the consignment,
packaging, pallets and or containers that are smaller than an ISO container
3.31
Manifest
Document which lists complete specifications of the goods loaded for transport to various destinations by a
vessel or other means of transport. As a rule cargo manifests are drawn up by the agents in the ports of
loading and are based upon the bills of lading. For shipping, a manifest represents a cumulating of bills of
lading for official and administrative purposes (ISO/TR 14812).
3.32
Media Adaptation
Function to adapt the communication media (air interface propagated modulation) to communication and
computing equipment.
3.33
Monologue
One way communication between the Fixed equipment and OBE('s).
3.34
Multimodal Transport
The carriage of goods by at least two different modes of transport. In contrast, intermodal transport implies
changing from mode to another using the same form of loading unit. Multimodal transport implies that either
there is more than one modal shift, or that loads may be broken into partial loads as part of a modal change
(ISO/TR 14812).
3.35
Non ISO container
Within the AVI/AEI context, a container used in the transport of goods that does not comply with any ISO
container Standard ( e.g.non compliant with ISO 10374).
3.36
Non returnable unit
One trip pallets, containers or packaging which is not returned to the consignor or returnables manager.
3.37
OBE (On board equipment)
A device on board or attached to the vehicle/equipment to perform the functionality of AVI/AEI.
3.38
Operator
see AVI/AEI System operator
3.39
Packed encoding rules (PER)
A standardised determination of data encoding to conform to the requirements of ISO 8824 ASN.1 data
notation. The “Packed Encoding Rules” are given in ISO 8825. Note that there are alternate forms of
encodation such as “Basic Encoding Rules” (BER). Within TICS Standards, reference to ASN.1 shall imply
also the use of PER as specified in ISO 8825 unless otherwise stated (ISO/TR 14812).
3.40
Packet
A collation of goods to be moved. An a packet may be a single unit, or a collection of smaller packets and
items that will be bundled into a receptacle which will be carried in equipment (such as an ISO intermodal
container) as a sub component of an AEI item. Packets are not defined in this family of Standards and are
defined by the Standards of ISO/IEC SC 31. Item identification for logistics.
3.41
Pallet
A wooden, plastic or metal platform that enables a bundle of goods to be moved around by a fork lift truck or
similar platform moving device that will be carried in equipment (such as an ISO Intermodal Container) as a
sub component of an AEI item. Pallets are not defined in this family of Standards and are defined by the
Standards of ISO/IEC SC 31 Item identification for logistics. See also 'AEI', 'items', 'packets', and 'receptacles'.
3.42
Programmable (device/OBE)
A device where all or part of the identity and memory can be reprogrammed many times by an external device,
but not during a normal 'on the fly' read/write cycle.
3.43
RCU
Returnable container unit. See also returnable unit.
6 © ISO 2005 – All rights reserved

3.44
Reader
A device that transmits a signal as a means of initiating a response in a compatible OBE. It subsequently
receives the modulated electro-magnetic response and decodes the data. See also 'interrogator'.
3.45
Read only (device/OBE)
A device which is programmed at the time of manufacture or prior to use and thereafter can only be read, with
no further opportunity to change any of the data held on the device nor its core identification.
3.46
Read/write (device/OBE)
A data mode corresponding to an OBE in which data content can be changed by means of a compatible
interrogator via the air interface.
3.47
Read/write cycle
A complete sequence of interaction by the reader/interrogator where the OBE is unambiguously identified and
new data, comprising either whole or part of the full data set, is written onto the OBE by means of the air
interface.
3.48
Receiver
Within the AVI/AEI context, one who receives goods as a result of a journey from a consignor.
3.49
Receptacle
A single unit, or a carrier of items and of smaller packets and items. A receptacle will normally take the form of
a bag, box or roller cage, which will be carried in equipment (such as an ISO Intermodal Container) as a sub
component of an AEI item. Packets are not defined in this family of Standards and are defined by the
Standards of ISO/IEC SC 31 Item identification for logistics.
3.50
Reference point
A data flow between two function blocks, where protocols shall define the information flow across the
reference point.
3.51
Returnable unit
Units (such as pallets, trays etc.) used as pat of a load, which are returned to the consignor or a returnables
manager.
3.52
Returnables
Returnable units, reject or surplus goods to be returned through the system to the consignor or returnables
manager
3.53
Returnables manager
A function that manages the supply, maintenance, and returns cycle of returnable units. The returnables
manager function may be performed by one or more of the principle actors in the system or by an independent
third party.
3.54
RFID (Radio Frequency Identification)
A common term describing an automatic identification system comprising one or more reader/interrogator(s)
and one or more OBE('s) in which communication and data transfer is achieved by wireless means of electro-
magnetic signals. Vary from low frequency (inductive) to microwave frequencies.
3.55
Smart Card
A device of credit card size incorporating an integrated circuit with microprocessor and memory.
3.56
Tag
See transponder
3.57
Transaction
Within the context of AVI/AEI, a completed exchange of information between the Fixed Equipment and an
OBE.
3.58
Transponder
An electronic transmitter/responder which responds to the receipt of suitable modulated or unmodulated
downlink signals and transmits predetermined information according to predefined protocols at a
predetermined frequency. The transmissions may be powered from energy obtained from the downlink or may
be assisted by an on-board power supply. Forms the core, but not necessarily the only, function of an OBE.
Within the AVI/AEI context it is fitted to AVI/AEI vehicle or equipment and its prime function is to provide the
identity of the item, but may also contain additional information. In some special purposes transponders can
be installed in fixed positions and read by mobile equipment.
3.59
Transport
Within the context of AVI/AEI, the vehicles/aircraft/ships used to move a consignment from the consignor to
the receiver or returnables back through the system.
3.60
Transport means
The vehicles, trailers, vessels, aircraft, or combination thereof, to perform the journey to deliver the
consignment to the receiver or return returnables, together with the driver/pilot/crew physically conducting the
Journey.
3.61
Transport documentation
Legal and commercial documents that accompany the transport means during a journey
3.62
Transport manager
The function that organizes the journey. The transport manager may be performed by one of the principal
actors in the system or by a third party.
3.63
Transport operator
The function that owns and or manages the transport means
3.64
Transport unit
A combination of the Load, Transport Means, and Transport Documentation
3.65
ULD
Unit Load Device. A container, designed to fit within the fuselage of an aircraft, used primarily for airfreight or
freight loads where part of the trip uses airfreight.
3.66
User
The vehicle/equipment or person carrying the OBE through the point of identification with the objective of
unambiguous identification of the OBE being carried
8 © ISO 2005 – All rights reserved

4 Requirements
4.1 General requirements
This Technical Specification determines an architectural framework for automatic equipment Identification
(AEI) in an intermodal or multimodal environment by means of an air interface link using electromagnetic
signals such as near-field inductive, radio, microwave, or infrared light.
The architecture herein described is shown in a simplified, object oriented modelling form, using the principles
of the Unified Modelling Language (UML) as its base.
Relevant parts of this Technical Specification, and especially requirements for ASN.1 have been developed in
accordance with the requirements of the Standards and 'Technical Specifications' developed by ISO/TC 204
WG 1(CEN TC 278 /WG 13).
4.2 Conceptual architecture
The 'mission' of this Technical Specification is:
‘To provide an 'enabling' reference architecture model for intermodal/multimodal AEI. The reference
architecture model Technical Specification is designed to accommodate, within the framework, a wide and
diverse variety of ITS/RTTT applications from simple AVI/AEI to more complex transactions with a wide
variety of uses, including the transfer of data relating to the manifest of loads and part loads and means of
identification of loads and part loads, in an ITS/RTTT environment. ‘
This Technical Specification is designed to consider the requirements for data to be transferred from on board
equipment to fixed equipment at the road or way side. As such it does not seek to determine precise load
information which may be determined by Standards emanating from ISO JTC 1 SC 31 or ISO/TC 104.
however, where such data is to be carried across the air interface between a tractor, vehicle, trailer, or the
equipment/load/part load itself in an ITS/RTTT environment, it provides a Technical Specification means for
data transactions across an ITS/RTTT interface. As such the syntax notation conforms to that defined in
ISO14813 part 6. Standard data schemes are also envisaged to complement those defined in ISO 14816, and
data containers are provided for local or private data schemes. Where IC cards are used as part of, or in
conjunction with, on board equipment, the data schemes determined in ISO 14816, ISO 17262, and
ISO 14817 are respected and a transfer means provided. Where item identifications schemes are provided by
ISO JTC 1 SC 31, these are supported so long as they are defined in ASN.1 as determined in ISO 14813
part 6, or in a standardised form supported by ISO 8824.
This Technical Specification accommodates the operation of systems of different capability. It enables the
interoperability of OBEs in an International environment, even though the operator systems themselves may
be significantly different, as long as there is a common air interface (at reference point “Delta” - see Figure 5)
and communication protocol. Even where information has to be collected by different air interfaces, the data,
once collected, is in a commonly interoperable format, and so may be used accurately and effectively within
an EDI/EDT environment.
Within the clauses immediately following, this reference architecture provides definition of following
perspectives required by ISO 14813:
a) Conceptual description
b) Logical definition
c) Object identification
d) Object interaction structure
e) Information (data) architecture
f) Physical definition
g) System security
h) Resilience issues
i) Performance issues
j) Disaster recovery
k) Migration issues (future proofing)
4.2.1 Conceptual architecture overview
Annex A provides an overview (repeated in Figure 1) and a number of different views of transport,
manufacturing, distribution and supply chains. Annex A shows all the principal views likely to be encountered
in such manufacturing/logistics/distribution/supply cycles. Each view represents different granularity according
to the importance of classes to that view. Whilst all views have interdependence with each other and the
overview, and are shown in the Annex for completeness. Two of the detailed views (Transport and
Information) have particular relevance to AVI/AEI.
Figure 1 provides a conceptual high-level overview of a transportation logistics system. It is important to
understand this context in order to comprehend the requirements for intermodal AVI/AEI.
Goods Provider
Transport Information Consignment
Receiver
FIGURE: The Supply Chain  1-Overview

Figure 1 — Conceptual overview of logistics/distribution chain
In Figure 1, the classes (objects) are shown with their key class relationships. Here at the highest level we can
see that for a consignor (goods provider), it is necessary to combine interactions of the consignment with
Transport and Information in order that they achieve the object of delivery, and there may be returns path
(hopefully returnable containers rather than rejected product), which provides a transport path back to the
sender or an equipment pool.
10 © ISO 2005 – All rights reserved

Figure 2 — Conceptual view of AVI/AEI system
Figure 2 expands the classes to show their key attributes. This shows key common attributes and is by way of
example, rather than a complete list for every class. Actual attributes may differ according to specific
implementations, and not all attributes may be present in all implementations. Figure 2 therefore represents
an instantiation of a typical AVI/AEI system representing both physical and information interactions.
This figure shows the relation of two (2) functions, the movement of the transport units (basic elements) and
the transport related various kinds of information managed by information manager.
This overview provides the context of 'The manufacturing/Logistics/ Distribution/Supply Cycle' and can be
viewed with greater granularity from the context of 'Transport', providing the context for intermodal AVI/AEI.
Figure 3 shows the view from the view of “Transportation”. Figure 3 is extracted from Annex A.
Non
Returnable
Unit (NRU)
Goods
Provider
Pallet
Returnable
Information
Unit (RU)
Returnables
Information Manager
Manager
Load
Communications
Transport
Equipment
Manager
Documentation
Transport
Operator
Vehicle
Registrar
Driver
Customs
Transport Means
& Border
Transport Unit
Tractor/Vehicle
Container
ISO
Trailer
Container
Journey
Non-ISO
Aircraft
Container
Vessel
Receiver
Figure: The Distribution/Supply chain from the view of Transport

Figure 3 — The distribution cycle from the view of the transport manager

As AVI/AEI is primarily about information, it is also important to view the architecture from the view of the
information manager. Figure 4, also extracted from Annex A shows the view from the information manager.
12 © ISO 2005 – All rights reserved

Information M anager
Returnables
Manager
Information
Goods
Provider
Pallet
Transport
Returnable Communications
Manager
Unit (RU) Equipment
Container
Transport
Non
Documentation
Operator
Returnable
Unit (NRU)
Transport
Means
Vehicle
Load
Registrar
Customs
& Border
T ransport Unit
Journey
Receiver
Figure: The Distribution/Supply chain from the view of The Information Manager

Figure 4 — The logistics / distribution / supply chain from the view of the information manager
4.3 Logical definition
The purpose of the Systems architecture specification (logical) is
 to provide Intermodal/multimodal with a logical product independent framework that can be used to help
identify and select the best in class technical components for inclusion into a coherent overall solution.
This selection process will occur both during procurement and afterwards when upgrading or replacing
technical products and or services.
 to provide Intermodal/multimodal with a road map for seamlessly evolving the Intermodal/multimodal
system IT infrastructure in line with the anticipated regional to global deployment of Intermodal/multimodal
system services.
 to provide potential suppliers of Intermodal/multimodal system technology and services with a logical
overview of the Intermodal/multimodal preferred architecture.
 to provide Intermodal/multimodal with a tool for maintaining (to the extent appropriate) overall design
control over the technical solution during the procurement, development , acceptance testing and live
operational phases of the project.
 to provide the architecture definition on which the underlying physical system design specification will
subsequently be based. The latter design document will need to be produced after the product selections
have been made and before the start of development and implementation phase.
The architecture is not intended to be prescriptive. It is simply put forward as a candidate for becoming the
intermodal/multimodal preferred architecture and presents the associated reasoning behind it. Suppliers
however are free to present solutions based on alternative models which will be considered on their merits by
intermodal/multimodal .
The conceptual architecture defined within this Technical Specification provides an 'enabling' reference
architecture model for generic AVI / AEI.

ON BOARD EQUIPMENT                       FIXED EQUIPMENT
(TAG)                       (Reader/Interrogator    Local host   Central System)

ON BOARD EQUIPMENT FIXED EQUIPMENT
CENTRAL
APPLICATION COMMUNICATION MEDIA MEDIA COMMUNICATION LOCAL
ADAPTION SYSTEM SYSTEM
PROCESSES CONTROL ADAPTION CONTROL
AVI/AEI
CC MA MA CC LS CS
APPL.
REFERENCE
POINTS
ZETA EPSILON DELTA GAMMA BETA ALPHA
AIR
INTERFACE
Figure 5 — Simple conceptual reference architecture model showing the context of AVI/AEI
Figure 5 describes, at a conceptual level, a generic system architecture in which AVI / AEI may be effected. It
labels the boundaries between functional entities as reference points. It is important to be aware that functions
and reference points do not necessarily correspond to discrete physical boxes or interfaces, but are used to
define 'entities' of a system that is being described. Taken together, the reference points provide a structure to
form a generic reference architecture model that is relevant to most ITS/RTTT environments that involve
...
