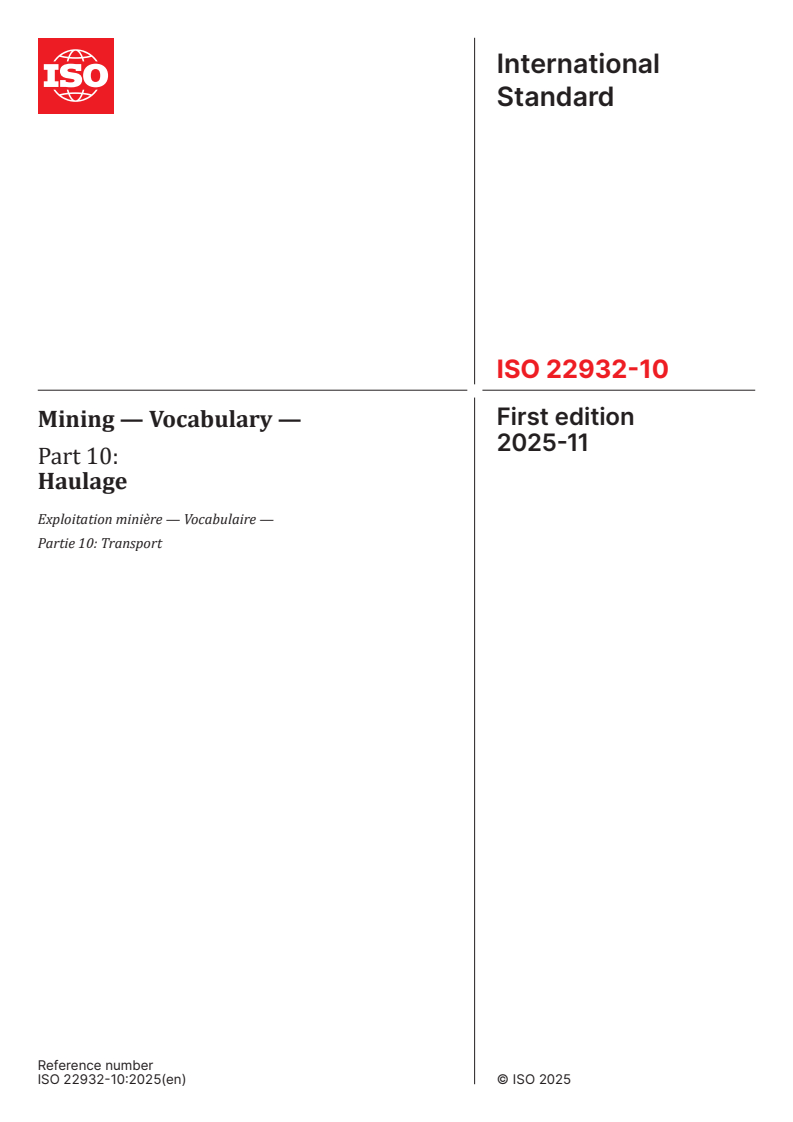

ISO 22932-10:2025

International
Standard
ISO 22932-10
First edition
Mining — Vocabulary —
2025-11
Part 10:
Haulage
Exploitation minière — Vocabulaire —
Partie 10: Transport
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
3.1 General .1
3.2 Loading .2
3.3 Haulage .4
3.4 Dumping/Unloading/Discharging . .45
Bibliography . 47
Index .48

iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 82, Mining.
A list of all parts in the ISO 22932 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
The ISO 22932 series has been prepared in order to standardize and to co-ordinate the global use of
technical terms and definitions in mining, for the benefit of the experts working on different types of mining
activities.
The need for the ISO 22932 series arose from the widely varying interpretation of terms used within the
industry and the prevalent use of more than one synonym.

v
International Standard ISO 22932-10:2025(en)
Mining — Vocabulary —
Part 10:
Haulage
1 Scope
This document specifies the commonly used terms in mine haulage.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1 General
3.1.1
automatic door
door which are actuated to open and close by the approach or position of a conveyance or vehicle
3.1.2
axle counter
mechanical counting device arranged to initiate a series of operations after the passage of a predetermined
number of vehicles
3.1.3
brow
portion of roadway floor which has marked longitudinal convexity
3.1.4
checkweigher
check-docking boss
check measurer
one who checks, in the interest of miners, the weighing of ore in mine cars (3.3.2.5.6) or other containers by
the company weighmaster
Note 1 to entry: See Reference [2].
3.1.5
creeper
feeder
slowly moving endless chain with provision for engaging the axles or dummy axles (3.3.2.6.3) of tubs
(3.3.2.5.9) or cars (3.3.2.5.6) to move them

3.1.6
flame arrester
device fitted to the inlet and exhaust systems of diesel engines to prevent the emission of flames or sparks
3.1.7
main transport
conveying or haulage (3.3.1.10) of mined material from the mining area subsidiary transport (3.1.9) to the
shaft bottom or surface
Note 1 to entry: See also subsidiary transport and underground haulage (3.3.1.38).
Note 2 to entry: See Reference [2].
3.1.8
chock
wedge shaped block placed in front of a wheel to brake a vehicle
3.1.9
subsidiary transport
conveying or haulage (3.3.1.10) of mineral along the working faces and outward to a junction or loading point
Note 1 to entry: See also main transport (3.1.7) and underground haulage (3.3.1.38).
Note 2 to entry: See Reference [2].
3.1.10
transportation
hauling (3.3.1.16), hoisting or moving from one place to another of material or people
3.1.11
transportation controller
person who by means of signals, is informed when and where vehicles or cars (3.3.2.5.6) are required and
can instruct the lorry or locomotive (3.3.2.5.3) drivers accordingly
3.1.12
underground transportation
transporting of ore, rock, people, materials, and supplies through shafts and haulage (3.3.1.10) ways
Note 1 to entry: Underground transportation (3.1.10) is including the loading of ore or rock into cars (3.3.2.5.6) and
carrying it to the surface.
Note 2 to entry: See also main transport (3.1.7) and subsidiary transport (3.1.9).
Note 3 to entry: See Reference [2].
3.1.13
gradient
inclination of profile grade line from the horizontal, expressed as a percentage
Note 1 to entry: See Reference [2].
3.1.14
ramp
incline connecting two levels in an open pit or underground mine
Note 1 to entry: See Reference [2].
3.2 Loading
3.2.1
bunker conveyor
long hopper having an integral conveyor(s) which is used to store the mineral and control its discharge

3.2.2
intermediate loading section
specially constructed section of trunk conveyor (3.3.3.1.87) structure sited at an intermediate transfer point
(3.3.1.36)
3.2.3
layer-loading
procedure for loading ore in railroad (3.3.2.1.1) cars (3.3.2.5.6) in horizontal layers
Note 1 to entry: Layer-loading is a simple and inexpensive method for smoothing out the irregularities in ore and
consists in shuttling two to six railroadcars, hooked together, past the loading boom (3.2.4) two or more at a time. This
results in a more uniform product.
Note 2 to entry: See Reference [2].
3.2.4
loading boom
hinged portion of a conveyor that is designed to receive materials at a fixed level and to discharge them at
varying levels
Note 1 to entry: Usually employed for loading ore into wagons.
Note 2 to entry: See Reference [2].
3.2.5
loading conveyor
conveyor adapted for loading bulk materials, packages, or objects into cars (3.3.2.5.6), trucks, or other
conveyors
Note 1 to entry: See Reference [2].
3.2.6
loading equipment
shovels or other machines singly or in combination used to load excavated or stockpiled materials into
trucks, mine cars (3.3.2.5.6), conveyors, or other transportation (3.1.10) or haulage (3.3.1.10) units
Note 1 to entry: See Reference [2].
3.2.7
loading head
part of a loading machine that gathers the material and places it on the machine's elevating conveyor
(3.3.3.1.34)
Note 1 to entry: See Reference [2].
3.2.8
loading hopper
hopper used to receive and direct material to a conveyor
Note 1 to entry: See Reference [2].
3.2.9
loading pan
box or scoop into which broken rock is shovelled in a sinking shaft while the hopper is traveling in the shaft
Note 1 to entry: A small hoist is used to lift and discharge the pans (3.3.3.1.64) into the hopper on its return to the
shaft bottom.
Note 2 to entry: See Reference [2].
3.2.10
loading point
point at which mineral is discharged from conveyors into mine cars (3.3.2.5.6), tubs (3.3.2.5.9) or skips

3.2.11
loading ramp
surface structure, often incorporating storage bins, used for gravity loading bulk material into transport
vehicles
Note 1 to entry: See Reference [2].
3.2.12
loading shovel
mechanical shovel able to operate as a forklift truck, a crane, or a loader
Note 1 to entry: See Reference [2].
3.2.13
loading station
device consisting of one or more plates (3.3.2.3.5), or a hopper receiving and placing material on the conveyor
belt for transport
Note 1 to entry: When such a loading station is located at the tail end (3.3.3.1.82), it is known as a tail-end loading
station.
Note 2 to entry: When it is located along the intermediate section, it is known as an intermediate loading station.
Note 3 to entry: See Reference [2].
3.2.14
peak loading
maximum number of tons of a specified material to be carried by a conveyor per minute in a specified
period of time
Note 1 to entry: See Reference [2].
3.2.15
scraper bar
flight
cross member fitted at intervals to the chain(s) of a scraper conveyor (3.3.3.4.24) or ore cutter to move the ore
3.2.16
self-loading dumper
dumper provided with a bucket, hinged by arms to the chassis, that scoops up the material and discharges it
backwards into the hopper
Note 1 to entry: Hydraulic rams control the lift arms, bucket movement, and dumping operation.
Note 2 to entry: See Reference [2].
3.2.17
stage loader
feeder (3.1.5) conveyor used primarily between the face and gate conveyors (3.3.3.1.41)
3.2.18
transverse loading
loading on a beam
Note 1 to entry: See Reference [2].
3.3 Haulage
3.3.1 General
3.3.1.1
circle haul
haulage (3.3.1.10) system in which the empty units enter the mine over one lateral and leave,
loaded, over the lateral nearest the tipple
Note 1 to entry: This system is utilized where laterals are built into the mine from the main road, whether outside the
outcrop or on the high-wall side of the mine workings. This system reduces the haul on the ore surface to a minimum,
except where there are only two laterals, one at each end of the workings.
Note 2 to entry: See Reference [2].
3.3.1.2
clearance
clear space between any part of vehicles or conveyors and the sides or roof of the roadway, and between
vehicles on adjacent tracks and/or conveyors
3.3.1.3
coupling
coupler
attachment by which vehicles can be linked to each other or to locomotives (3.3.2.5.3), or to a haulage
(3.3.1.10) rope
3.3.1.4
dual haulage
use of two types of haulage (3.3.1.10) at the same mine for transporting ore from the face to
the preparation plant
Note 1 to entry: Usually, ore is transported from the loading shovel to a transfer station by motorized units, and rail
haulage (3.3.1.10) is used to haul the ore from this point to the preparation plant.
Note 2 to entry: See Reference [2].
3.3.1.5
face haulage
transportation (3.1.10) of mined ore from the working face to an intermediate haulage (3.3.1.18)
Note 1 to entry: It is accomplished by shuttle cars (3.4.7), conveyors, locomotives (3.3.2.5.3), and mine cars (3.3.2.5.6),
or by combinations of such equipment.
Note 2 to entry: See also primary haulage (3.3.1.27).
Note 3 to entry: See Reference [2].
3.3.1.6
gathering haulage
portion of the haulage (3.3.1.10) system immediately adjacent to the face
Note 1 to entry: In longwall mining, the face belt or tubs (3.3.2.5.9) and track along the face constitute the gathering
haulage system.
Note 2 to entry: See Reference [2].
3.3.1.7
gravity haulage
jig haulage
self-act
system of haulage (3.3.1.10) in which the set of full cars (3.3.2.5.6) is lowered at the end of a rope, and
gravity force pulls up the empty cars (3.3.2.5.6), the rope being passed around a sheave (3.3.3.1.77) at the
top of the incline
Note 1 to entry: The speed of the haulage (3.3.1.10) is controlled by a band brake on the sheave.
Note 2 to entry: See Reference [2].

3.3.1.8
haul-cycle time
time it takes the scraper or truck to haul a load to the dumping area and return to position in the loading area
Note 1 to entry: See Reference [2].
3.3.1.9
haul distance
distance measured along the centreline or most direct practical route between the centre of the mass of
excavation and the centre of mass of the fill as finally placed
Note 1 to entry: It is the distance material is moved.
Note 2 to entry: See Reference [2].
3.3.1.10
haulage
drawing or conveying, in cars (3.3.2.5.6) or otherwise, or movement of workers, supplies, ore, and waste
both underground and on the surface
Note 1 to entry: In dividing the transportation (3.1.10) system according to the area served there is a) primary or face
haulage (3.3.1.5), b) secondary haulage (3.3.1.31), and c) main-line haulage (3.3.1.10).
Note 2 to entry: See Reference [2].
3.3.1.11
haulage hand
person employed on haulage (3.3.1.10) operations
3.3.1.12
haulage plant
mechanical installation for the tramming of rock or ore, operated by ropes, compressed air, or electricity
Note 1 to entry: See Reference [2].
3.3.1.13
haulage road
underground ropeway (3.3.5.1.14) used primarily for the transport of mineral or supplies by vehicle
3.3.1.14
haulage stage
mine roadway along which a load is moved by a single form of haulage (3.3.1.10) without coupling (3.3.1.3) or
uncoupling of cars (3.3.2.5.6) and without transfer from one form of haulage (3.3.1.10) to another
Note 1 to entry: See Reference [2].
3.3.1.15
haulageway
gangway, entry, or tunnel through which loaded or empty mine cars (3.3.2.5.6) are hauled
Note 1 to entry: See Reference [2].
3.3.1.16
hauling
movement of material from a loading point to dump point.
3.3.1.17
haul road
road designed to transfer heavy materials by haul trucks.

3.3.1.18
intermediate haulage
transportation (3.1.10) of mined ore from the face haulage (3.3.1.5) to that point where it is accessible to the
main line
Note 1 to entry: See also pass by (3.3.1.25).
Note 2 to entry: See Reference [2].
3.3.1.19
lay-by
siding in an underground haulage (3.3.1.38) track having a turnout (3.3.2.4.8) at one end only
Note 1 to entry: See also pass by (3.3.1.25).
3.3.1.20
locomotive haulage
transport of ore, workers, and materials underground by means of locomotive (3.3.2.5.3)-hauled mine cars
(3.3.2.5.6)
Note 1 to entry: The locomotive may be powered by battery, diesel, compressed air, trolley (3.3.2.5.7), or some
combination such as battery-trolley or trolley-cable reel.
Note 2 to entry: See Reference [2].
3.3.1.21
main haulage
portion of the haulage (3.3.1.10) system that moves the ore from the secondary haulage (3.3.1.31) system to
the shaft or mine opening
Note 1 to entry: See Reference [2].
3.3.1.22
main haulageway
principal transportation (3.1.10) road, drift, tunnel
Note 1 to entry: See Reference [2].
3.3.1.23
off-the-road hauling
hauling (3.3.1.16) that takes place off the public highways, generally on a mining or excavation site
Note 1 to entry: The hauling units used are generally higher and wider than those used in over-the-road hauling
(3.3.1.24) since highway restrictions do not limit size, mass.
Note 2 to entry: Compare with over-the-road hauling.
3.3.1.24
over-the-road hauling
hauling (3.3.1.16) over public highways, usually by a dump truck
Note 1 to entry: Various restrictions, such as mass, width of vehicle, safety features, guard against spillage, etc. must
be considered in the type equipment used.
Note 2 to entry: Compare with off-the-road hauling (3.3.1.23).
Note 3 to entry: See Reference [2].
3.3.1.25
pass by
siding in an underground haulage (3.3.1.38) track having a turnout (3.3.2.4.8) at both ends
to the main line
Note 1 to entry: See also lay-by (3.3.1.19).

3.3.1.26
pass by
loop of track around the shaft at the pit bottom
Note 1 to entry: See also lay-by (3.3.1.19).
3.3.1.27
primary haulage
short haul in which there is no secondary or mainline haulage (3.3.1.10)
Note 1 to entry: For example a mine is started into a hillside, using mine cars (3.3.2.5.6), track, and hand loaders.
Note 2 to entry: An empty car (3.3.2.5.6) is placed for the loader, and the loaded car is taken to the dump manually or
by machine, repeating the process for each loader.
Note 3 to entry: See Reference [2].
3.3.1.28
relay haulage
single-track, high-speed mine haulage (3.3.1.10) from one relay station to another
Note 1 to entry: Each operator has an exclusive track section between relay stations and can run at full speed since no
other haulage equipment is operating on the section. Side track at each relay station permits the operator to pick up or
drop off loads or empties, then make the return run.
Note 2 to entry: See Reference [2].
3.3.1.29
refuge hole
manhole
excavation at the side of a roadway in which persons can shelter while vehicles are passing
3.3.1.30
return wheel
terminal sheave (3.3.3.1.77) which reverses the direction of the rope in a haulage (3.3.1.10) system
3.3.1.31
secondary haulage
portion of the haulage (3.3.1.10) system that collects the ore from the various gathering-haulage delivery
points and delivers it to the main haulage (3.3.1.21) system
Note 1 to entry: See Reference [2].
3.3.1.32
strap lift
overhead moving rope with a grip attachment, to assist men in walking along steeply inclined roadways
3.3.1.33
surge wheel
fleet wheel
narrow drum of appropriate profile which drives a haulage (3.3.1.10) rope by friction
Note 1 to entry: The drum carries turns of the rope which slide across the surface as the drum revolves.
3.3.1.34
swilly
portion of a roadway floor which has marked longitudinal concavity

3.3.1.35
track haulage
movement or transportation (3.1.10) of excavated or mined materials in cars (3.3.2.5.6) or trucks running
on rails
Note 1 to entry: See Reference [2].
3.3.1.36
transfer point
place at which mineral is transferred from one conveyor to another
3.3.1.37
underchain haulage
haulage (3.3.1.10) in which the chains are placed beneath a mine car (3.3.2.5.6) at certain intervals with
suitable hooks that thrust against the car (3.3.2.5.6) axle
Note 1 to entry: See Reference [2].
3.3.1.38
underground haulage
transportation (3.1.10) of minerals from the working face to the shaft bottom.
Note 1 to entry: See also gravity haulage (3.3.1.7), haulage (3.3.1.10), locomotive haulage (3.3.1.20), main transport
(3.1.7), subsidiary transport (3.1.9).
Note 2 to entry: See Reference [2].
3.3.1.38.1
single-rope haulage
underground haulage (3.3.1.38) using a single rope which in empty trip (3.3.2.1.7) running in by gravity.
Note 1 to entry: See Reference [2].
3.3.2 Railway
3.3.2.1 General
3.3.2.1.1
railway
railroad
transport system for guided passage of trains (3.3.2.1.7) on rails
3.3.2.1.2
rail haulage system
materials transportation (3.1.10) system consisting of gondola cars (3.3.2.5.6), and the steel rails on which
the cars (3.3.2.5.6) are moved about with a suitably powered traction unit as a locomotive (3.3.2.5.3)
Note 1 to entry: See Reference [2].
3.3.2.1.3
rider
run rider
haulage (3.3.1.10) worker who travels with a train (3.3.2.1.7) of tubs (3.3.2.5.9)
3.3.2.1.4
platelayer
rolleyway person
who maintains the underground track and generally ensures the efficient operation of the haulage
(3.3.1.10) system
3.3.2.1.5
swing
extreme horizontal movement of a vehicle on a straight track produced by the cumulative effects of
clearances (3.3.1.2) between wheel flanges and rails, play in axle boxes etc
3.3.2.1.6
tractive effort
force available at the treads of the wheels of a locomotive (3.3.2.5.3) or tractor to move itself and the train
(3.3.2.1.7) of cars (3.3.2.5.6)
3.3.2.1.7
train
journey
trip
number of tubs (3.3.2.5.9) or cars (3.3.2.5.6) coupled together
3.3.2.1.8
tram
vehicle designed to carry supplies on conventional rail track
3.3.2.1.9
trammer
drawer
putter
person who moves tubs (3.3.2.5.9) from the face to a gathering point on the haulage (3.3.1.10) system either
3.3.2.2 Types of Haulage through railway
3.3.2.2.1
funicular railway
railway (3.3.2.1.1) that negotiates a steep gradient (3.1.13); the cars (3.3.2.5.6) are operated by cables and winches
Note 1 to entry: See also mountain railway (3.3.2.2.3).
Note 2 to entry: See Reference [2].
3.3.2.2.2
main-and-tail haulage
single-track haulage (3.3.1.35) system operated by a haulage (3.3.1.10) engine with two drums, each with a
separate rope
Note 1 to entry: The engine is usually located at the out end of the system. The main rope is attached to the out end
of the set of tubs (3.3.2.5.9), and the tail rope passes around a sheave (3.3.3.1.77) in, and is then attached to, the rear
end of the set. To draw the full set out, the main rope is wound in, the tail rope being allowed to run free. To draw the
empty set in, the tail rope is wound in, the main rope being allowed to run free. The tail rope is equal to twice the
length of the haulage road (3.3.1.13). The main-and-tail haulage is adopted when the gradient (3.1.13) is irregular and
the empty set will not run in by gravity.
Note 2 to entry: See Reference [2].
3.3.2.2.3
mountain railway
railway (3.3.2.1.1) having such steep gradients (3.1.13) that trains (3.3.2.1.7) are hauled up them by ropes or
by a rack locomotive (3.3.2.5.3)
Note 1 to entry: See also funicular railway (3.3.2.2.1).
Note 2 to entry: See Reference [2].

3.3.2.2.4
self-acting incline
system of haulage (3.3.1.10) on an inclined roadway in which descending full tubs (3.3.2.5.9) pull up the
ascending empty tubs (3.3.2.5.9)
3.3.2.3 Attachments of rail
3.3.2.3.1
back shunt
kick back
device in a rail system whereby the direction of vehicles is reversed, either by the reverse gradient (3.1.13)
or by mechanical action
3.3.2.3.2
back stay
bar hook
drag
rod attached to the back of a tub (3.3.2.5.9) and dragging between the rails, which will arrest the tub in the
event of run back
3.3.2.3.3
California crossing
arrangement of plates (3.3.2.3.5) and ramps (3.1.14) which is superimposed on a double track of rails, and
which can be slid along them, to provide a cross over, enabling rail vehicles to be transferred from one track
to the other without lifting
3.3.2.3.4
check rail
check plate
guide rail
rail or plate (3.3.2.3.5) to provide additional guidance for vehicles on rail track at curves and crossings
(3.3.2.4.3)
3.3.2.3.5
flat sheet
plate
flat metal sheet on which cars (3.3.2.5.6) can be manipulated and guided on the desired track
3.3.2.3.6
jack catch
monkey
pivoted axle catch situated on a haulage (3.3.1.10) track to prevent tubs (3.3.2.5.9) running back
3.3.2.3.7
runaway switch
catch points
track switch (3.3.2.3.9) by means of which runaway cars (3.3.2.5.6) can be derailed
3.3.2.3.8
stop block
block, usually of hardwood, placed across or between the track to prevent tubs (3.3.2.5.9) over running
3.3.2.3.9
switch
that part of a turnout (3.3.2.4.8), comprising a pair of tapered movable rails and their linkage, which diverts
a vehicle from one track to another
3.3.2.3.10
traverser
short length of rail track mounted on a low wheeled carriage so that it can be moved sideways to transfer
vehicles from one track to another

3.3.2.3.11
warwick
safety device, used on inclined haulage (3.3.1.10) ropes, consisting of a long bar pivoted from the roof which
is caused to fall or lie in the path of a runaway vehicle
3.3.2.4 Elements of rail route
3.3.2.4.1
bankhead
top of an inclined tracked haulage road (3.3.1.13) where the gradient (3.1.13) changes, thereby facilitating
the handling of vehicles
3.3.2.4.2
centre throw
distance by which the midpoint of the wheelbase of a rail vehicle, on the vertical centreline, moves
horizontally towards one side of the centreline of the track when the latter is curved
3.3.2.4.3
crossing
arrangement of rails by which one track crosses another
3.3.2.4.4
crossing vee
frog
fabricated or cast unit of rails forming the vee in a crossing (3.3.2.4.3)
3.3.2.4.5
end throw
distance by which a point at the end of a rail vehicle, on the vehicle centreline, moves horizontally towards
one side of the centreline of the track when the latter is curved
3.3.2.4.6
jazz rail
swan neck rail
short abruptly curved section of track designed to derail runaway tubs (3.3.2.5.9)
3.3.2.4.7
landing
part of an inclined tracked haulage (3.3.1.10) rope where the gradient (3.1.13) has been reduced to facilitate
the handling of vehicles; usually at a junction
3.3.2.4.8
turnout
arrangement by which one track (pair of rails) is caused to diverge into two separate tracks
3.3.2.5 Types of rail carrier vehicles
3.3.2.5.1
bogie
small four wheeled trolley (3.3.2.5.7)
3.3.2.5.2
electric haulage mine locomotive
haulage mine locomotive
electric mine locomotive (3.3.2.5.3) used for hauling (3.3.1.16)trains (3.3.2.1.7) of cars (3.3.2.5.6), which have
been gathered from the working faces of the mine, to the point of delivery of the cars (3.3.2.5.6)
Note 1 to entry: See Reference [2].

3.3.2.5.3
locomotive
wheeled rail bound machine providing motive power for a train (3.3.2.1.7) of wagons
Note 1 to entry: For safety requirements for underground rail locomotives see EN 1889-2. For general terms and
definitions of railway (3.3.2.1.1) applications see EN 17343.
3.3.2.5.4
paddy
spake
person riding train (3.3.2.1.7)
3.3.2.5.5
person riding car
rail mounted car (3.3.2.5.6) designed to transport men
3.3.2.5.6
mine car
car
large tub (3.3.2.5.9) used primarily for mineral haulage (3.3.1.10) underground
Note 1 to entry: Usually spring mounted and over 2,55 m capacity.
[SOURCE: BS 3618-10: 1967, modified — Note 1 to entry was originally part of the definition.]
3.3.2.5.7
trolley
low rail mounted carriage
3.3.2.5.8
trolley locomotive
electric locomotive (3.3.2.5.3) taking power from an overhead conductor either by pantograph or trolley
(3.3.2.5.7) pole
3.3.2.5.9
tub
small capacity rail borne vehicle used primarily for mineral haulage (3.3.1.10) underground
3.3.2.6 Attachments of rail carrier vehicles
3.3.2.6.1
clip
clamping device by which a tub (3.3.2.5.9) or a train (3.3.2.1.7) of tubs (3.3.2.5.9) can be attached to an
endless haulage (3.3.1.10) rope
3.3.2.6.2
drawbar
structural component of a tub (3.3.2.5.9) which transmits the haulage (3.3.1.10) force
3.3.2.6.3
dummy axle
rigidly mounted false axle or bar on a mine car (3.3.2.5.6) to provide a contact point with car stops (3.3.2.7.2),
rams and creepers (3.1.5)
3.3.2.6.4
lashing chain
short length of chain with a hook at each end used to attach tubs (3.3.2.5.9) to an endless haulage (3.3.1.10) rope

3.3.2.6.5
locker
sprag
wooden or iron bar placed between the spokes of a tub (3.3.2.5.9) or mine car (3.3.2.5.6) wheel to prevent
rotation
3.3.2.6.6
retarder
device operating on the wheels, axles or dummy axles (3.3.2.6.3), for slowing the speed of tubs (3.3.2.5.9) or
mine cars (3.3.2.5.6)
3.3.2.6.7
safety chain
chain connecting the cars (3.3.2.5.6) in a train (3.3.2.1.7) to prevent separation in the event of a coupling
(3.3.1.3) failure
3.3.2.6.8
tally
motty
token
tag attached to a full car (3.3.2.5.6) giving the identity of the person(s) responsible for filling it
3.3.2.7 Mechanism of rail carrier vehicles
3.3.2.7.1
car pusher
floor mounted pneumatic or hydraulic ram used to move tubs (3.3.2.5.9) or mine cars (3.3.2.5.6)
3.3.2.7.2
car stop
tub stop
mechanical device for arresting a tub (3.3.2.5.9) or mine car (3.3.2.5.6) and holding it in a predetermined
position
3.3.2.7.3
clip on
hang on
to attach a tub (3.3.2.5.9) or tubs (3.3.2.5.9) to a haulage (3.3.1.10) rope by a clip (3.3.2.6.1) or shackle
3.3.2.7.4
drawbar pull
tension in the drawbar (3.3.2.6.2) or coupling (3.3.1.3), usually that at the front of the leading vehicle in the
train (3.3.2.1.7)
3.3.2.7.5
knocking off
detaching a tub (3.3.2.5.9) from a haulage (3.3.1.10) rope
3.3.2.7.6
lash on
to attach tubs (3.3.2.5.9) to an endless rope by means of a lashing chain (3.3.2.6.4)
3.3.2.8
light railway
railway (3.3.2.1.1) built to narrow gage
Note 1 to entry: See Reference [2].
3.3.2.8.1
re-railer
fixed or portable device for restoring a derailed vehicle to the track while in motion

3.3.2.8.2
squeezer
device consisting of pivoted converging horizontal beams which grip the sides of a car (3.3.2.5.6) in order to
check its speed
3.3.3 Conveyors
3.3.3.1 General
3.3.3.1.1
arm conveyor
conveyor consisting of an endless belt, or one or more chains, to which are attached projecting arms, or
shelves, for handling packages or objects in a vertical or inclined path
Note 1 to entry: See Reference [2].
3.3.3.1.2
balanced vibrating conveyor
vibrating conveyor (3.3.3.1.90) in which the centre of gravity of the complete assembly is held constant by
having movement of the trough offset by opposite movement of some other element
Note 1 to entry: See Reference [2].
3.3.3.1.3
boom conveyor
conveyor mounted on a boom
Note 1 to entry: See Reference [2].
3.3.3.1.4
bridge conveyor
short conveyor used to transfer mineral from the delivery jib of a loading machine to a conveyor or vehicle
3.3.3.1.5
button rope conveyor
rope and button conveyor
conveyor consisting of a rope with disks or buttons attached at intervals, the upper flight running in a trough
Note 1 to entry: The material is dropped into the trough, and the conveyor either is actuated by the mass of the ore
in the trough when the trough is inclined forming a retarding conveyor (3.3.3.1.73), or moves the ore along the trough
where the gradient (3.1.13) is insufficient or adverse. In the one case a brake is provided; in the other, the sprockets
are actuated by a motor.
Note 2 to entry: See Reference [2].
3.3.3.1.6
carrousel conveyor
continuous platform or series of spaced platforms that move in a circular horizontal path
Note 1 to entry: See Reference [2].
3.3.3.1.7
conveyor
mechanical contrivance generally electrically driven, which extends from a receiving point to a discharge
point and conveys, transports, or transfers material between those points
Note 1 to entry: See Reference [2].

3.3.3.1.8
conveyor airlock
ventilation stopping or separation door through which a conveyor has to run
Note 1 to entry: It consists of at least two well-built partitions, each with some form of airlock designed to pass the belt
and yet to reduce to a minimum the leakage of air and the raising of dust. An airlock chute is sometimes used.
Note 2 to entry: See Reference [2].
3.3.3.1.9
conveyor creep
downward slippage of a conveyor on an inclined face
Note 1 to entry: With powered supports, this movement is likely to cause ram damage. Anchor stations are necessary
to arrest conveyor creep.
Note 2 to entry: See Reference [2].
3.3.3.1.10
conveyor elevator
conveyor that follows a path, part of which is substantially horizontal or on a slope less than the angle of
slide of the material and part of which is substantially vertical or on a slope steeper than the angle of slide
Note 1 to entry: See Reference [2].
3.3.3.1.11
conveyor emergency switch
specifically designed cable operated emergency stop switch (3.3.2.3.9) for use with conveyors or conveying
systems that are used with a pull cord running alongside or above the conveyor so that it may be reached
from any point along the conveyor
Note 1 to entry: See Reference [2].
3.3.3.1.12
conveyor face
longwall face on which the ore is loaded direct onto a face conveyor (3.3.3.1.37)
Note 1 to entry: See Reference [2].
3.3.3.1.13
conveyor-feeder operator
mill feeder
in ore dressing, smelting, and refining, a labourer who regulates flow of ore, coke, flue scrapings, or other
materials from bins, chutes, or belts into crushers, furnaces, or other equipment, or onto conveyor belts
leading to equipment
Note 1 to entry: See Reference [2].
3.3.3.1.14
conveyor loader
conveyor that at its extremity has a digging head that moves with the conveyor and works its
way under the ore, which, by the unequal shaking of the conveyor, is carried back to the car
Note 1 to entry: See Reference [2].
3.3.3.1.15
conveyor loader
person who loads on a conveyor
Note 1 to entry: See Reference [2].

3.3.3.1.16
conveyor person
loading-boom operator
person who sets up and tends chain, belt, or shaker (reciprocating) conveyors to transport
the ore about a tipple at the surface from working the working face in a mine
Note 1 to entry: See Reference [2].
3.3.3.1.17
conveyor person
beltperson
person who tends an endless conveyor belt used to transport rock from the crusher to
storage bins
Note 1 to entry: See Reference [2].
3.3.3.1.18
conveyor-operator tripper
conveyor-tripper operator
spreader operator
tripper person
person who unloads grain or ore from conveyor belt into bins or processing equipment by operating a tripper
(3.3.3.2.45)
Note 1 to entry: See Reference [2].
3.3.3.1.19
conveyor shaker type
conveyor designed to transport material along a line of troughs by means of a reciprocating or shaking motion
Note 1 to entry: See Reference [2].
3.3.3.1.20
conveyor shifter
member of a team responsible for advancing the face conveyor (3.3.3.1.37) as the ore is worked away
Note 1 to entry: See Reference [2].
3.3.3.1.21
conveyor track
path, parallel to the face, occupied by a longwall conveyor
Note 1 to entry: See Reference [2].
3.3.3.1.22
conveyor-type feeder
conveyor, such as apron, belt, chain, flight, pan (3.3.3.1.64), oscillating, screw, or vibrating, adapted for feeder
(3.1.5) service
Note 1 to entry: See Reference [2].
3.3.3.1.23
cross conveyor
conveyor used for transporting ore or waste from one room or working place through a crosscut to an
adjacent room or working place
Note 1 to entry: See Reference [2].

3.3.3.1.24
cross-pit conveyor
conveyor structure crossing (3.3.2.4.3) the benches of open pit mines to reduce the haul distance (3.3.1.9)
across the pit in terrace mining operations
Note 1 to entry: See Reference [2].
3.3.3.1.25
Cuylen conveyor
single-chain conveyor (3.3.3.4.8) with an open side to facilitate power loading
Note 1 to entry: See Reference [2].
3.3.3.1.26
deckplate
portion of an armoured flexible conveyor (3.3.3.4.3) along which mineral is moved
3.3.3.1.27
declining conveyor
conveyor transporting down a slope
Note 1 to entry: See Reference [2].
3.3.3.1.28
delivery end
head end
end of a conveyor from which the material is discharged
3.3.3.1.29
double helical bag conveyor
helical bag conveyor
closely spaced parallel tubes with right- and left-hand rounded helical threads rotating in opposite
directions, on which bags or other objects are carried while being conveyed
Note 1 to entry: See Reference [2].
3.3.3.1.30
double leg en masse conveyor
conveyor or elevator in which the carrying and return runs are operated in separated parallel and
adjacent casings
Note 1 to entry: See Reference [2].
3.3.3.1.31
double-unit conveyor
longwall conveyor layout from 183 to 256 m long, developed between two tailgates with a main gate in the
centre of the face
Note 1 to entry: The main gate conveyor (3.3.3.1.41) is served by two face conveyors (3.3.3.1.37) and may act as an
intake or a return airway. The tailgates may serve as supply roads.
Note 2 to entry: See Reference [2].
3.3.3.1.32
drive head
driving head
drive unit (3.3.3.1.33) of a conveyor when situated at the delivery end
3.3.3.1.33
drive unit
part of a conveyor which comprises the driving gear

3.3.3.1.34
elevating conveyor
mine underground conveyor used to discharge material at a point higher than that at which it was received
Note 1 to entry: See Reference [2].
3.3.3.1.35
extendable conveyor
for bulk materials it is usually of troughed design and may be lengthened or shortened
while in operation
Note 1 to entry: Commonly used in underground mine conveyor (3.3.3.2.17) work.
Note 2 to entry: See Reference [2].
3.3.3.1.36
extendable conveyor
for packaged materials, objects, or units, the conveyor may be one of several types
including roller, wheel, and belt conveyors (3.3.3.2.3)
Note 1 to entry: Construction is such that the conveyor may be lengthened or shortened within limits to suit
operating needs.
Note 2 to entry: See Reference [2].
3.3.3.1.37
face conveyor
conveyor used to transport mineral along a working face
3.3.3.1.38
feeder conveyor
auxiliary conveyor used to transport and regulate the flow of mineral between two points in a transport system
3.3.3.1.39
fluid conveyor coupling
device for overcoming the starting resistance of a conveyor fed by a constant-speed motor
Note 1 to entry: It is used to allow the motor to reach full speed before starting the conveyor.
Note 2 to entry: See Reference [2].
3.3.3.1.40
furnace conveyor
conveyor that moves material through a furnace
Note 1 to entry: See Reference [2].
3.3.3.1.41
gate conveyor
gate road conveyor that carries ore from one source or face only
Note 1 to entry: See Reference [2].
3.3.3.1.42
gathering conveyor
conveyor that is used to gather ore from other conveyors and deliver it either into mine cars (3.3.2.5.6) or
onto another conveyor
Note 1 to entry: See Reference [2].

3.3.3.1.43
grasshopper conveyor
oscillating conveyor
vibrating conveyor (3.3.3.1.90) having a relatively low frequency and large amplitude of motion
Note 1 to entry: See Reference [2].
3.3.3.1.44
gravity conveyor
continuous belt, system of rollers, or inclined chute down which loaded material gravitates without the
application of power
Note 1 to entry: See Reference [2].
3.3.3.1.45
hatch conveyor
several types of conveyors adapted to loading or unloading bulk materials, packages, or objects to or from
ships or barges
Note 1 to entry: See Reference [2].
3.3.3.1.46
haulage conveyor
conveyor to transport material between the gathering conveyor (3.3.3.1.42) and the outside
Note 1 to entry: Haulage conveyors are commonly classified as either intermediate or main haulage conveyors
(3.3.3.1.46.2).
Note 2 to entry: See Reference [2].
3.3.3.1.46.1
intermediate haulage conveyor
transportation (3.1.10) of materials between the gathering conveyor (3.3.3.1.42) and the main haulage
conveyor (3.3.3.1.46.2)
3.3.3.1.46.2
main haulage conveyor
conveyor is used to transport material between the intermediate haulage conveyor (3.3.3.1.46.1) and a car-
loading point or the outside
Note 1 to entry: See Reference [2].
3.3.3.1.47
helical conveyor
conveyor for handling ore, grain, cement, or similar bulk materials
Note 1 to entry: It comprises a horizontal shaft, with helical paddles or ribbons, which turn on its centreline inside a
stationary tube filled with the material.
Note 2 to entry: See Reference [2].
3.3.3.1.48
hydraulic conveyor
type of conveyor in which water jets form the conveying medium for bulk materials through pipes or troughs
Note 1 to entry: See Reference [2].
3.3.3.1.49
internal ribbon conveyor
trunnion supported, revolving cylinder, the inner surface of which is fitted with continuous or interrupted
ribbon flighting
Note 1 to entry: See Reference [2].

3.3.3.1.50
jigging c
...
