ISO 9159:1988
(Main)Road vehicles — Nozzle spouts for leaded gasoline and diesel fuel
Road vehicles — Nozzle spouts for leaded gasoline and diesel fuel
Specifies the dimensions of nozzle spouts on pumps for refuelling road vehicles, and their filling rates. Applies to nozzle spouts for leaded gasoline and diesel fuel for road vehicles. The figure shows a nozzle spout with a spring for safe hooking in the tank filler opening. The dimensions apply also to nozzle spouts with cams or depressions for safe hooking.
Véhicules routiers — Pistolets de remplissage pour essence au plomb et carburant diesel
La présente Norme internationale fixe les dimensions des pistolets de remplissage des pompes à essence, ainsi que leur débit. Elle s'applique aux pistolets de remplissage en essence au plomb ou en carburant diesel pour véhicules routiers.
General Information
- Status
- Published
- Publication Date
- 23-Mar-1988
- Technical Committee
- ISO/TC 22/SC 34 - Propulsion, powertrain and powertrain fluids
- Drafting Committee
- ISO/TC 22/SC 34 - Propulsion, powertrain and powertrain fluids
- Current Stage
- 9093 - International Standard confirmed
- Start Date
- 28-Oct-2025
- Completion Date
- 12-Feb-2026
Relations
- Effective Date
- 11-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
Overview
ISO 9159:1988 - "Road vehicles - Nozzle spouts for leaded gasoline and diesel fuel" specifies the dimensional and performance requirements for pump nozzle spouts used to refuel road vehicles. The standard defines physical geometry, safe hooking features (spring, cams or depressions), and permitted filling rates to ensure compatibility with vehicle tank filler openings and safe, reliable fuel dispensing. It applies to nozzle spouts for leaded gasoline and diesel fuel.
Key topics and requirements
- Scope: Dimensions and filling rates for nozzle spouts intended for road-vehicle refuelling; includes spouts with a spring or with cams/depressions for safe hooking in the tank filler opening.
- Flow (filling) rates:
- For leaded gasoline: qv < 50 Vmin.
- For diesel fuel: either qv < 50 Vmin or 50 Vmin < qv < 100 Vmin depending on spout dimensions (see standard figure).
- Dimensional controls (selected parameters from ISO 9159:1988):
- Nozzle pipe straight length: typically 80–95 mm for lower-flow spouts and 65–90 mm for higher-flow diesel spouts.
- Distance from nozzle end to sensor: ≤ 22 mm.
- Clearance from fuel-dispensing end to any nozzle body part: ≥ 165 mm (or 170–200 mm for certain diesel spouts).
- Anchor/spring outside diameter: ≤ 30 mm or ≤ 38 mm depending on spout class.
- Nozzle pipe bending radius: ranges such as 100–250 mm (lower-flow) and 120–160 mm (higher-flow).
- Bending angle of nozzle pipe: 21° ± 1.5°.
- Safe hooking details: The standard illustrates a nozzle spout with a spring-mounted hook and states that dimensions equally apply to spouts using cams or depressions for secure engagement with the tank filler opening.
- Manufacturer discretion: Overall spout shape may be chosen by the manufacturer provided the specified dimensions and functional requirements are met.
Applications and users
ISO 9159:1988 is used to ensure interoperability and safety across the fuel supply chain. Typical users include:
- Fuel dispenser and pump nozzle manufacturers designing spouts for gasoline and diesel dispensing.
- Petrol station equipment engineers and fuel station operators ensuring compliance and safe refuelling.
- Vehicle manufacturers and fuel-filler system designers verifying compatibility with filler openings.
- Testing and certification laboratories, regulators and standards bodies responsible for safety certification and compliance testing.
- Maintenance and aftermarket suppliers replacing or specifying nozzles for legacy systems.
Related standards
- ISO 4130 - Road vehicles: three-dimensional reference systems and fiducial marks, referenced by ISO 9159 for orientation/angle definitions.
Keywords: nozzle spouts, leaded gasoline, diesel fuel, refuelling, road vehicles, filling rates, dimensions, pump nozzle, tank filler opening, anchor spring, cams, safety.
ISO 9159:1988 - Road vehicles -- Nozzle spouts for leaded gasoline and diesel fuel
ISO 9159:1988 - Véhicules routiers -- Pistolets de remplissage pour essence au plomb et carburant diesel
ISO 9159:1988 - Véhicules routiers -- Pistolets de remplissage pour essence au plomb et carburant diesel
Get Certified
Connect with accredited certification bodies for this standard
ABS Quality Evaluations Inc.
American Bureau of Shipping quality certification.
Element Materials Technology
Materials testing and product certification.
ABS Group Brazil
ABS Group certification services in Brazil.
Sponsored listings
Frequently Asked Questions
ISO 9159:1988 is a standard published by the International Organization for Standardization (ISO). Its full title is "Road vehicles — Nozzle spouts for leaded gasoline and diesel fuel". This standard covers: Specifies the dimensions of nozzle spouts on pumps for refuelling road vehicles, and their filling rates. Applies to nozzle spouts for leaded gasoline and diesel fuel for road vehicles. The figure shows a nozzle spout with a spring for safe hooking in the tank filler opening. The dimensions apply also to nozzle spouts with cams or depressions for safe hooking.
Specifies the dimensions of nozzle spouts on pumps for refuelling road vehicles, and their filling rates. Applies to nozzle spouts for leaded gasoline and diesel fuel for road vehicles. The figure shows a nozzle spout with a spring for safe hooking in the tank filler opening. The dimensions apply also to nozzle spouts with cams or depressions for safe hooking.
ISO 9159:1988 is classified under the following ICS (International Classification for Standards) categories: 75.200 - Petroleum products and natural gas handling equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 9159:1988 has the following relationships with other standards: It is inter standard links to EN ISO 11148-4:2010, EN ISO 11148-3:2010, EN ISO 11148-6:2012, EN 13012:2012, EN ISO 11148-6:2010, EN ISO 11148-5:2011, EN ISO 11148-4:2012, EN ISO 11148-3:2012, EN 13012:2021. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 9159:1988 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IS0
INTERNATIONAL STANDARD
First edition
1988-04-01
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION
ORGANISATION INTERNATIONALE DE NORMALISATION
MEXJJYHAPOAHAFI OPrAHM3A~klR IlO CTAH~APTM3A~Wl
Road vehicles - Nozzle spouts for leaded gasoline
and diesel fuel
Whicules rou tiers - Pistolets de remplissage pour essence au plomb et carburant diesel
Reference number
IS0 9159: 1988 (E)
Foreword
IS0 (the International Organization for Standardization) is a worldwide federation of
national standards bodies (IS0 member bodies). The work of preparing International
Standards is normally carried out through IS0 technical committees. Each member
body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, govern-
mental and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated to
the member bodies for approval before their acceptance as International Standards by
the IS0 Council. They are approved in accordance with IS0 procedures ‘requiring at
least 75 % approval by the member bodies voting.
International Standard IS0 9159 was prepared by Technical Committee ISO/TC 22,
Road vehicles.
Users should note that all International Standards undergo revision from time to time
and that any reference made herein to any other International Standard implies its
latest edition, unless otherwise stated.
0 International Organization for Standardization, 1988 l
Printed in Switzerland

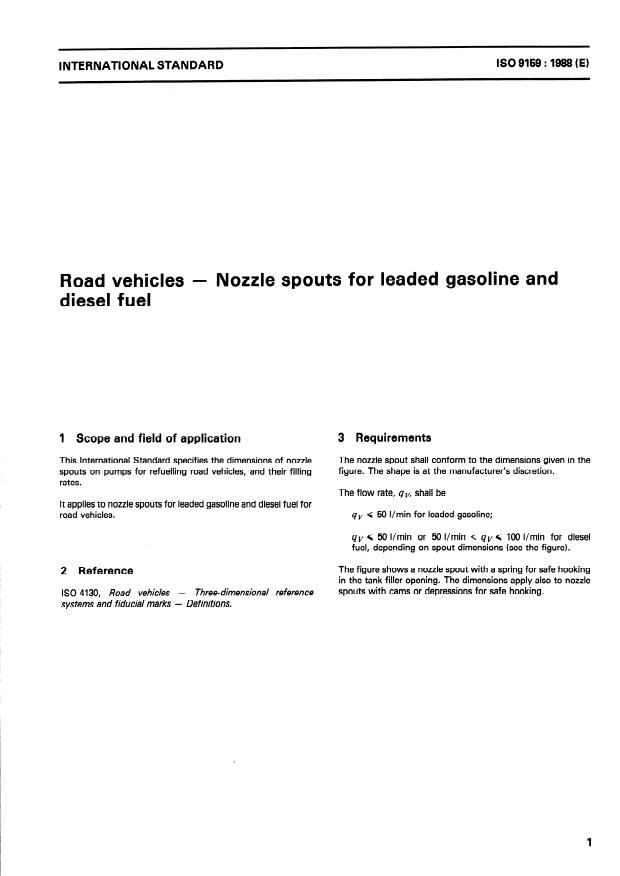

IS0 9159 : 1988 (E)
INTERNATIONAL STANDARD
Road vehicles - Nozzle spouts for leaded gasoline and
diesel fuel
1 Scope and field of application 3 Requirements
This International Standard specifies the dimensions o
...
ISO

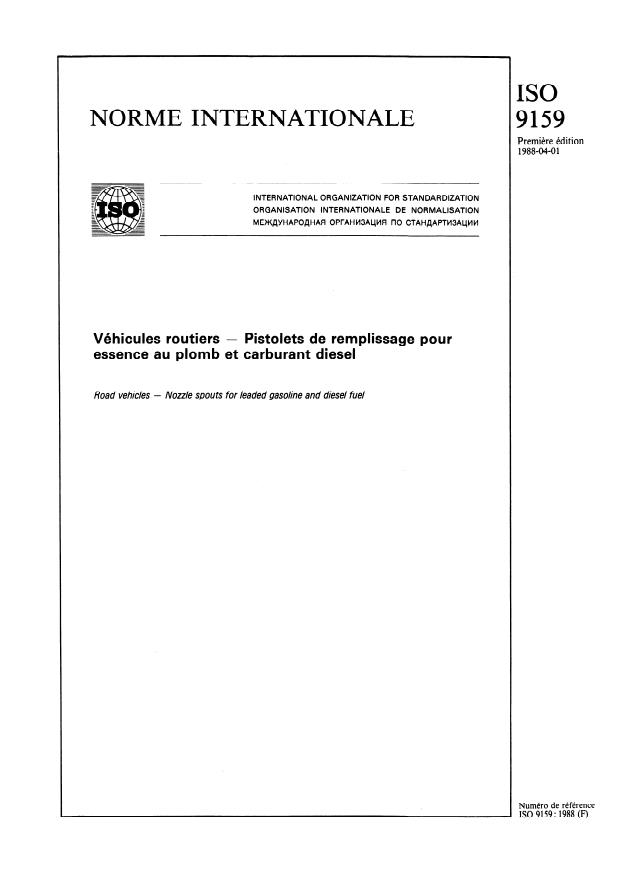

NORME INTERNATIONALE
Première édition
1988-04-01
I
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION
ORGANISATION INTERNATIONALE DE NORMALISATION
MEXflYHAPOJJHAR OPrAHM3AL&lR Il0 CTAHflAPTM3A~MM
Véhicules routiers - Pistolets de remplissage pour
essence au plomb et carburant diesel
Road vehicles - Nozzle spouts for leaded gasoline and diesel fuel
Numéro de référence
ISO 9159: 1988 (F)
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale
d’organismes nationaux de normalisation (comités membres de I’ISO). L’élaboration
des Normes internationales est normalement confiée aux comités techniques de I’ISO.
Chaque comité membre intéressé par une étude a le droit de faire partie du comité
technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec I’ISO participent également aux travaux.
Les projets de Normes internationales adoptés par les comités techniques sont soumis
aux comités membres pour approbation, avant leur acceptation comme Normes inter-
nationales par le Conseil de I’ISO. Les Normes internationales sont approuvées confor-
mément aux procédures de I’ISO qui requièrent l’approbation de 75 % au moins des
comités membres votants.
La Norme internationale ISO 9159 a été élaborée par le comité technique ISO/TC 22,
Véhicules routiers.
L’attention des utilisateurs est attirée sur le fait que toutes les Normes internationales
sont de temps en temps soumises à révision et que toute référence faite à une autre
Norme internationale dans le présent document implique qu’il s’agit, sauf indication
contraire, de la dernière édition.
Organisation internationale de normalisation, 1988
Imprimé en Suisse
NORME INTERNATIONALE ISO 9159 : 1988 (FI
Véhicules routiers - Pistolets de remplissage pour
essence au plomb et carburant diesel
3 Caractéristiques
1 Objet et domaine d’application
La présente Norme internationale fixe les dimensions des pisto- Les pistolets de remplissage doivent être conformes aux dimen-
lets
...
ISO
NORME INTERNATIONALE
Première édition
1988-04-01
I
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION
ORGANISATION INTERNATIONALE DE NORMALISATION
MEXflYHAPOJJHAR OPrAHM3AL&lR Il0 CTAHflAPTM3A~MM
Véhicules routiers - Pistolets de remplissage pour
essence au plomb et carburant diesel
Road vehicles - Nozzle spouts for leaded gasoline and diesel fuel
Numéro de référence
ISO 9159: 1988 (F)
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale
d’organismes nationaux de normalisation (comités membres de I’ISO). L’élaboration
des Normes internationales est normalement confiée aux comités techniques de I’ISO.
Chaque comité membre intéressé par une étude a le droit de faire partie du comité
technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec I’ISO participent également aux travaux.
Les projets de Normes internationales adoptés par les comités techniques sont soumis
aux comités membres pour approbation, avant leur acceptation comme Normes inter-
nationales par le Conseil de I’ISO. Les Normes internationales sont approuvées confor-
mément aux procédures de I’ISO qui requièrent l’approbation de 75 % au moins des
comités membres votants.
La Norme internationale ISO 9159 a été élaborée par le comité technique ISO/TC 22,
Véhicules routiers.
L’attention des utilisateurs est attirée sur le fait que toutes les Normes internationales
sont de temps en temps soumises à révision et que toute référence faite à une autre
Norme internationale dans le présent document implique qu’il s’agit, sauf indication
contraire, de la dernière édition.
Organisation internationale de normalisation, 1988
Imprimé en Suisse
NORME INTERNATIONALE ISO 9159 : 1988 (FI
Véhicules routiers - Pistolets de remplissage pour
essence au plomb et carburant diesel
3 Caractéristiques
1 Objet et domaine d’application
La présente Norme internationale fixe les dimensions des pisto- Les pistolets de remplissage doivent être conformes aux dimen-
lets
...
