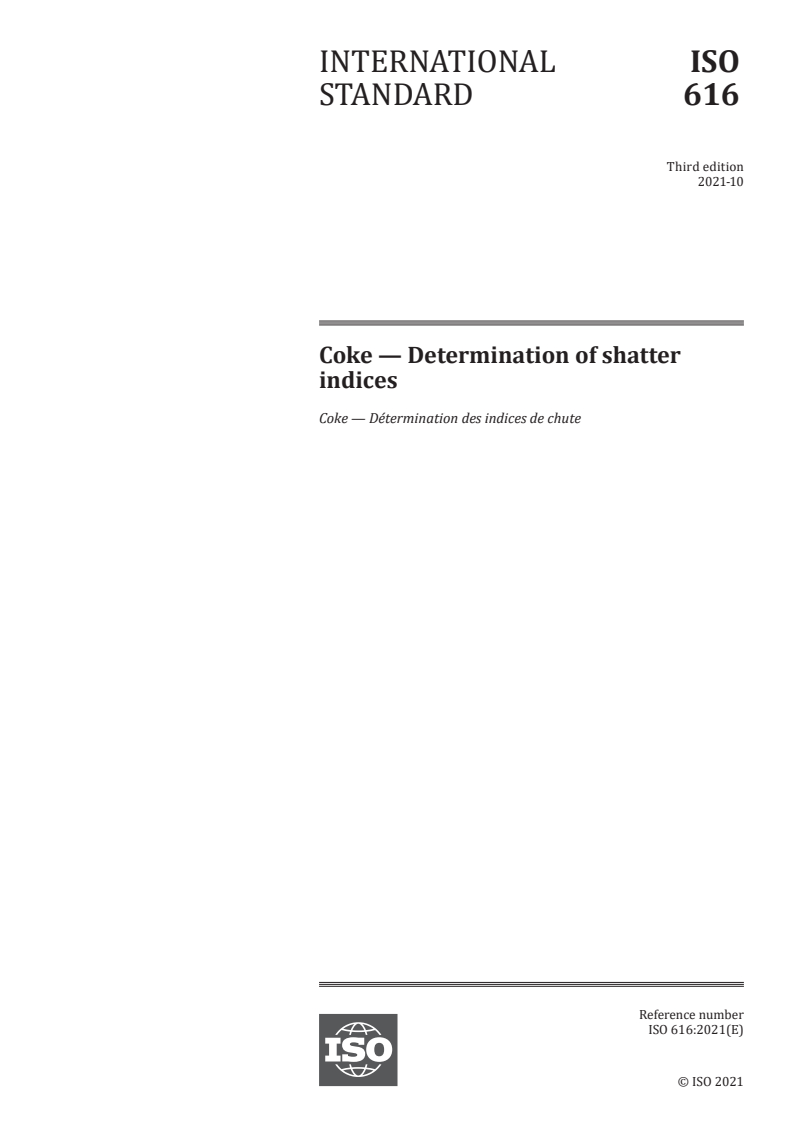

ISO 616:2021

INTERNATIONAL ISO
STANDARD 616
Third edition
2021-10
Coke — Determination of shatter
indices
Coke — Détermination des indices de chute
Reference number
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Apparatus . 1
6 Sampling and size analysis .3
7 Preparation of test portion . 3
8 Procedure .4
8.1 Determination . 4
8.2 Validity of determination . 4
9 Expression of results . 4
10 Precision . 5
10.1 General . 5
10.2 Repeatability limit . 5
10.3 Reproducibility . . 5
11 Test report . 5
iii

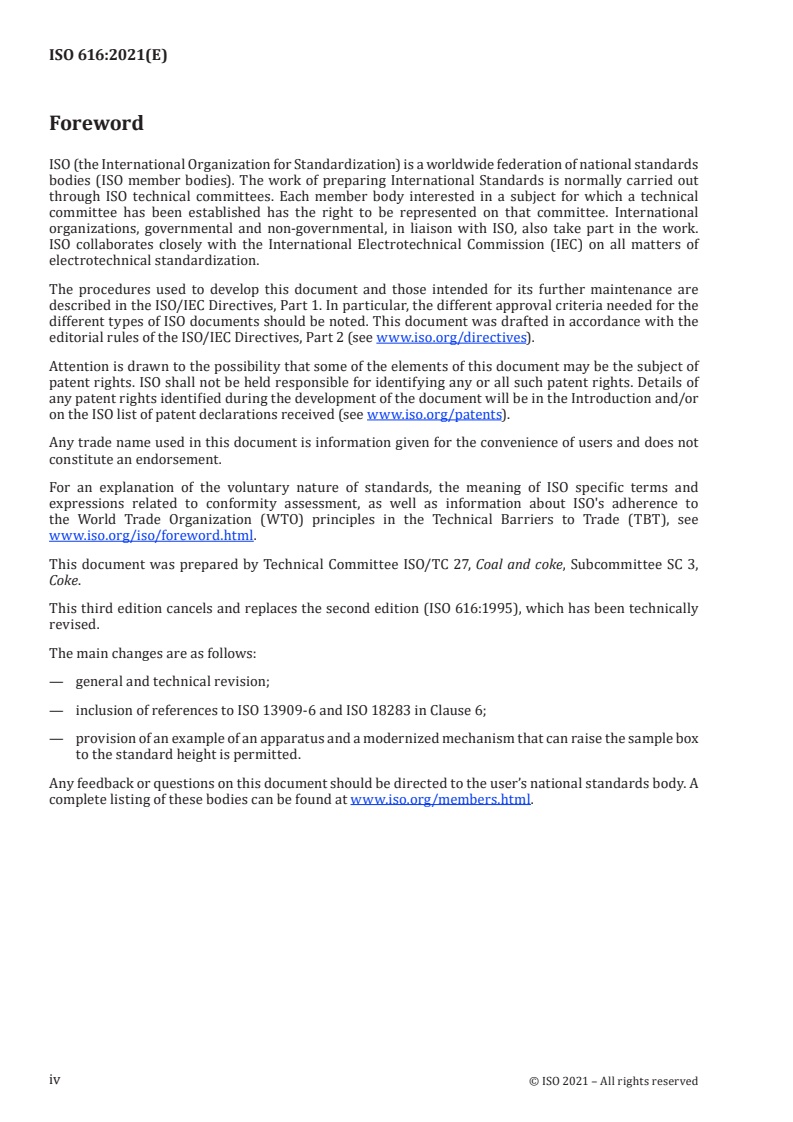

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 27, Coal and coke, Subcommittee SC 3,
Coke.
This third edition cancels and replaces the second edition (ISO 616:1995), which has been technically
revised.
The main changes are as follows:
— general and technical revision;
— inclusion of references to ISO 13909-6 and ISO 18283 in Clause 6;
— provision of an example of an apparatus and a modernized mechanism that can raise the sample box
to the standard height is permitted.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
The shatter index of coke is the percentage of test sample (initially plus 63 mm) that remains on a test
sieve of stated size of openings after the sample has been subjected to a specified dropping test.
The shatter index of coke can be determined for one test sieve or for each of a number of test sieves of
different sizes of holes (e.g. 80 mm and 40 mm). The higher the shatter index, the greater the resistance
of the coke to breakage into pieces which are smaller than the stated size.
The mean size of the coke before and after the shatter test may also be determined to give additional
information about the strength of the coke.
v
INTERNATIONAL STANDARD ISO 616:2021(E)
Coke — Determination of shatter indices
1 Scope
This document specifies a method for determining the strength of coke by the shatter test.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 579, Coke — Determination of total moisture
ISO 728, Coke — Size analysis by sieving
ISO 3310-2, Test sieves — Technical requirements and testing — Part 2: Test sieves of perforated metal
plate
ISO 13909-6, Hard coal and coke — Mechanical sampling — Part 6: Coke — Preparation of test samples
ISO 18283, Hard coal and coke — Manual sampling
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
shatter index
percentage of a specially prepared sample of coke remaining on a test sieve of stated size of openings
after the sample has been subjected to
...
