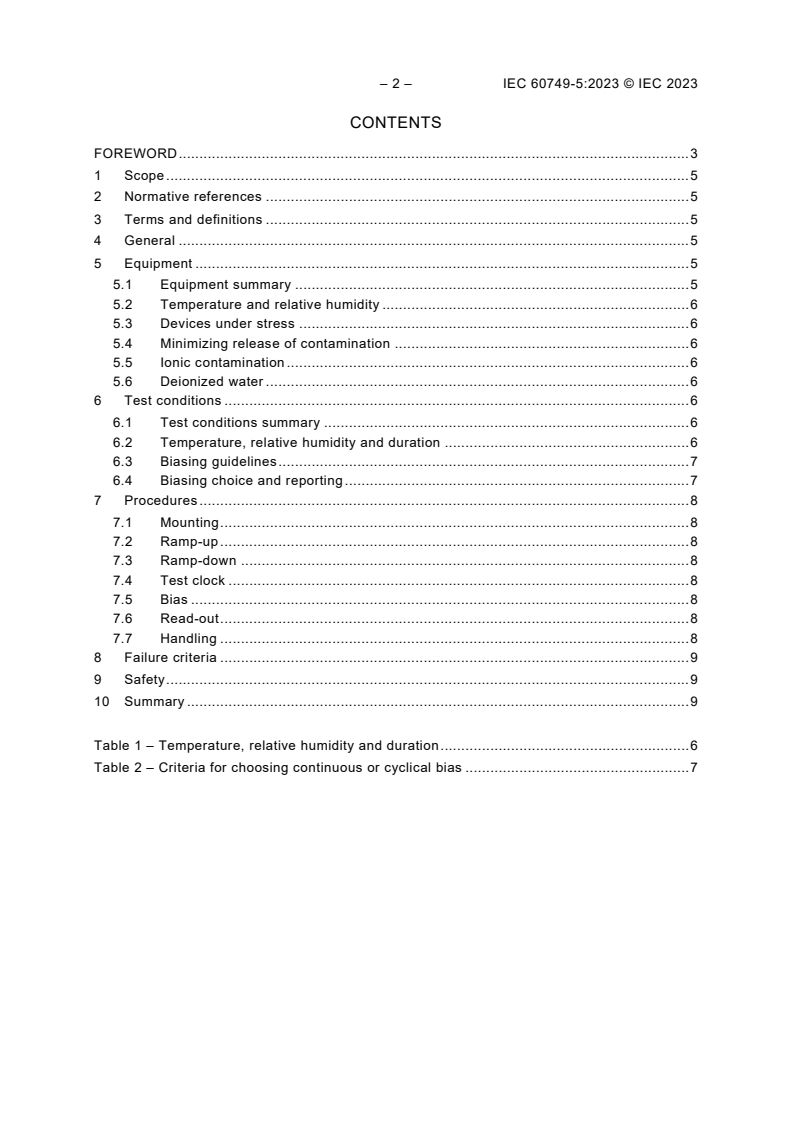

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General . 5
5 Equipment . 6
5.1 Equipment summary . 6
5.2 Temperature and relative humidity . 6
5.3 Devices under stress . 6
5.4 Minimizing release of contamination . 6
5.5 Ionic contamination . 6
5.6 Deionized water . 6
6 Test conditions . 6
6.1 Test conditions summary . 6
6.2 Temperature, relative humidity and duration . 6
6.3 Biasing guidelines . 7
6.4 Biasing choice and reporting . 8
7 Procedures . 8
7.1 Mounting . 8
7.2 Ramp-up . 8
7.3 Ramp-down . 8
7.4 Test clock . 9
7.5 Bias . 9
7.6 Read-out . 9
7.7 Handling . 9
8 Failure criteria . 9
9 Safety . 9
10 Summary . 9

Table 1 – Temperature, relative humidity and duration . 7
Table 2 – Criteria for choosing continuous or cyclical bias . 8

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
MECHANICAL AND CLIMATIC TEST METHODS –

Part 5: Steady-state temperature humidity bias life test

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition IEC 60749-5:2017. A vertical bar appears in the margin
wherever a change has been made. Additions are in green text, deletions are in
strikethrough red text.
– 4 – IEC 60749-5:2023 RLV © IEC 2023
IEC 60749-5 has been prepared by IEC technical committee 47: Semiconductor devices. It is
an International Standard.
This third edition, based on JEDEC document JESD22-A101D.01, cancels and replaces the
second edition published in 2017. lt is used with permission of the copyright holder, JEDEC
Solid State Technology Association. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the specification of the test equipment is changed to require the need to minimize relative
humidity gradients and maximize air flow between semiconductor devices under test;
b) the specification of the test equipment fixtures is changed to require the avoidance of
condensation on devices under test and on electrical fixtures connecting the devices to the
test equipment;
c) replacement of references to “virtual junction” with “die”.
The text of this International Standard is based on the following documents:
Draft Report on voting
47/2820/FDIS 47/2827/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 60749 series, under the general title Semiconductor devices –
Mechanical and climatic test methods, can be found in the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

SEMICONDUCTOR DEVICES –
MECHANICAL AND CLIMATIC TEST METHODS –

Part 5: Steady-state temperature humidity bias life test

1 Scope
This part of IEC 60749 provides a steady-state temperature and humidity bias life test to
evaluate the reliability of non-hermetic packaged solid-state semiconductor devices in humid
environments.
This test method is considered destructive.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60749-4, Semiconductor devices – Mechanical and climatic test methods – Part 4: Damp
heat, steady-state, highly accelerated stress test (HAST)
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
4 General
This test employs conditions of Temperature, humidity and bias which conditions are applied to
accelerate the penetration of moisture through the external protective material (encapsulant or
seal) or along the interface between the external protective material and the metallic conductors
which pass through it.
Where both this steady-state, humidity bias test and the damp heat, highly accelerated stress
test (HAST) of IEC 60749-4 are performed, the results of this 85 °C/85 % RH steady-state test
will take priority over the results of the HAST test, which is an accelerated test designed to
activate the same failure mechanisms.

– 6 – IEC 60749-5:2023 RLV © IEC 2023
5 Equipment
5.1 Equipment summary
The test requires a temperature-humidity test chamber capable of maintaining a specified
temperature and relative humidity continuously, while providing electrical connections to the
devices under test in a specified biasing configuration.
5.2 Temperature and relative humidity
The chamber shall be capable of providing controlled conditions of temperature and relative
humidity during ramp-up to, and ramp-down from the specified test conditions.
Care should be taken to ensure that The test chamber dry bulb temperature exceeds shall
exceed the wet bulb temperature at all times.
5.3 Devices under stress
Devices under stress shall be physically located to minimize temperature gradients. Devices
under test shall be physically located in order to minimize relative humidity gradients and
maximize air flow between devices.
5.4 Minimizing release of contamination
Care shall be exercised in the choice of Board and socket materials shall be chosen in order to
minimize release of contamination, and to minimize degradation due to corrosion and other
mechanisms.
5.5 Ionic contamination
The test apparatus (card cage, test boards, sockets, wiring, storage containers, etc.) shall be
controlled to avoid ionic contamination of the test devices.
The test devices shall be placed in the test apparatus to minimise ionic contamination from
items such as the card cage, test boards, sockets, wiring and storage containers.
5.6 Deionized water
Deionized water with a minimum resistivity of 1 × 104 Ωm at room temperature shall be used.
6 Test conditions
6.1 Test conditions summary
Test conditions consist of a temperature, relative humidity, and duration used in conjunction
with an electrical bias configuration specific to the device.
6.2 Temperature, relative humidity and duration
Unless otherwise required by the detail specification, the temperature, relative humidity and
test duration as shown in Table 1 shall be applied.

Table 1 – Temperature, relative humidity and duration
b
Temperature Temperature
a b c
Relative humidity Vapour pressure Duration
(dry bulb) (wet bulb)
°C % °C kPa h
−24
85 ± 2 85 ± 5 81,0 49,1
1 000
+168
a
Tolerances apply to the entire useable test area.
b
For information only.
c
The test conditions are to be applied continuously, except during any interim readouts, when the devices
should be returned to stress within the time specified in 7.6.

6.3 Biasing guidelines
Apply bias according to the following guidelines:
a) minimize power dissipation;
a) alternate pin bias as much as possible;
b) distribute potential differences across chip metallization as much as possible;
c) maximize voltage within operating range;
NOTE The priority of the above guidelines depends on the mechanism and specific device characteristics.
d) either of two kinds of bias can be used to satisfy these guidelines, whichever is more severe:
1) Continuous bias
The DC bias shall be applied continuously. Continuous bias is more severe than cycled
bias when the virtual junction temperature is <10 °C higher than the chamber ambient
temperature or, if the virtual junction temperature is not known when the heat dissipation
of the device under test (DUT) is less than 200 mW. If the heat dissipation of the DUT
exceeds 200 mW, then the virtual junction temperature should be calculated. If the
virtual junction temperature exceeds the chamber ambient temperature by more than
5 °C then the virtual junction temperature rise above the chamber ambient should be
included in reports of test results since acceleration of failure mechanisms will be
affected.
Continuous bias is more severe if the die temperature (T ) is <10 °C higher than the
j
chamber ambient temperature.
If the die temperature is not known, and the heat dissipation of the device under test
(DUT) is less than 200 mW, the die temperature is assumed to be less than 10 °C above
ambient temperature.
If the heat dissipation of the DUT exceeds 200 mW, the die temperature should be
calculated or measured.
If the die temperature exceeds the chamber ambient temperature by more than 5 °C, the
rise of the die temperature above the chamber ambient should be included in reports of
test results since acceleration of failure mechanisms will be affected.
NOTE 2 Based on the power dissipation and the thermal resistance or impedance that corresponds to the
mode of operation, the virtual junction temperature can be calculated from the formula T = T + (P x R )
j case th
or T = T + (P x R )
j amb th
where
T is the virtual junction temperature;
j
P is the power dissipation;
The virtual junction temperature is the theoretical temperature which is based on a simplified representation of
the thermal and electrical behaviour of the semiconductor device.

– 8 – IEC 60749-5:2023 RLV © IEC 2023
R is the thermal resistance.
th
2) Cycled bias
The DC voltage applied to the devices under test shall be periodically interrupted with
an appropriate frequency and duty cycle. If the biasing configuration results in a
temperature rise above the chamber ambient, ΔT , exceeding 10 °C, then cycled bias,
ja
when optimized for a specific device type, will be more severe than continuous bias.
Heating as a result of power dissipation tends to drive moisture away from the die and
thereby hinders moisture-related failure mechanisms. Cycled bias permits moisture
collection on the die during the off periods when device power dissipation does not occur.
Cycling the DUT bias with 1 h on and 1 h off is optimal for most plastic-encapsulated
microcircuits. The virtual junction die temperature, as calculated on the basis of the
known thermal impedance and dissipation should be quoted with the results whenever
it exceeds the chamber ambient by 5 °C or more.
6.4 Biasing choice and reporting
Criteria for choosing continuous or cyclical bias, and whether or not to report the amount by
which the virtual junction die temperature exceeds the chamber ambient temperature, are
summarized in Table 2.
Table 2 – Criteria for choosing continuous or cyclical bias
Include value of ΔT
Continuous or cyclical
ja
ΔT
ja
bias
in test report?
ΔT < 5 °C or power per DUT < 200 mW
Continuous No
ja
(ΔT ≥ 5 °C or power per DUT ≥ 200 mW),
ja
Continuous Yes
and ΔT < 10 °C
ja
a
ΔT ≥ 10 °C
Cyclical Yes
ja
a
Cycling the DUT bias with one hour on and one hour off is optimal for most plastic-encapsulated microcircuits.

7 Procedures
7.1 Mounting
The test devices shall be mounted in such a way as to expose them to a specified condition of
temperature and humidity as given in Table 1 with a specified electrical biasing condition.
Exposure of devices to excessively hot conditions, dry ambient conditions or conditions that
result in condensation on devices and electrical fixtures shall be avoided, particularly during
ramp-up and ramp-down. Appropriate attention should also be made to avoid any water dripping
on the devices under stress.
7.2 Ramp-up
The time to reach stable temperature and relative humidity conditions should shall be less than
3 h. Condensation on the devices under stress and/or fixtures/hardware shall be avoided at all
times by ensuring that the test chamber (dry bulb) temperature exceeds the wet-bulb
temperature at all times their temperature is always higher than the dew point temperature.
7.3 Ramp-down
Ramp-down should shall not exceed 3 h. Condensation shall be avoided by ensuring that the
test chamber (dry bulb) temperature exceeds the wet-bulb temperature at all times during ramp
down.
NOTE For a DUT with a cavity in the package, condensation can occur due to the length of the ramp down time.

7.4 Test clock
The test clock starts when the temperature and relative humidity reach the set points, and stops
at the beginning of ramp-down.
7.5 Bias
Bias application during ramp-up and ramp-down is optional. Bias should be verified after
devices are loaded, prior to the start of the test clock. Bias should also be verified after the test
clock stops, but before devices are removed from the chamber.
7.6 Read-out
An electrical test shall be performed not later than 48 h after the end of ramp-down.
For intermediate read-outs, devices should shall be returned to stress within 96 h of the end of
ramp-down. Moisture loss can be reduced by placing the device in sealed moisture barrier bag
sealed in ambient air bags (without vacuum or desiccant). When devices are placed in sealed
bags, the “test window clock” runs at one-third of the rate of devices exposed to laboratory
ambient conditions. Thus, the test window can be extended to as much as 144 h, and the time
to return to stress to as much as 288 h by enclosing the devices in moisture-proof bags.
The electrical test parameters should be chosen to preserve any defect (i.e. by limiting the
applied test current).
Additional time-to-test delay or the return-to-stress delay time is allowed if justified by technical
data.
7.7 Handling
Suitable hand-covering shall be used to manage devices, boards and fixtures. Contamination
control is important in any accelerated moisture stress test.
8 Failure criteria
A device has shall be considered to have failed if it does not pass the specified end point tests
or if its functionality cannot be demonstrated under nominal and worst-case conditions as
specified in the applicable procurement document or data sheet.
9 Safety
The equipment manufacturer’s recommendations and local safety regulations shall be followed.
10 Summary
The following details shall be specified in the applicable procurement document:
a) test duration, if other than that specified in Table 1;
b) measurements after test (see 7.6);
c) biasing configuration (see 6.3);
d) temperature of die during test if more than 5 °C above the chamber ambient (see 6.3 e) 1));
e) frequency and duty cycle of bias if cycled bias is to be used (see 6.3 e) 2)).

___________

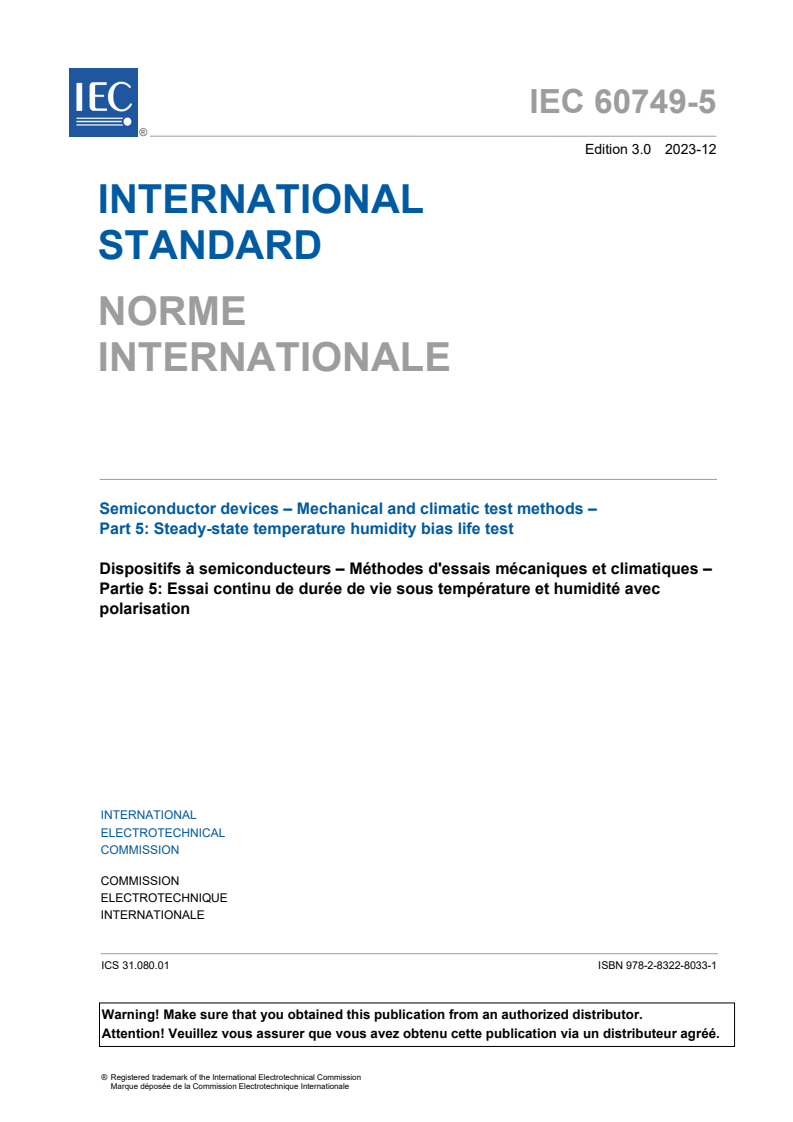

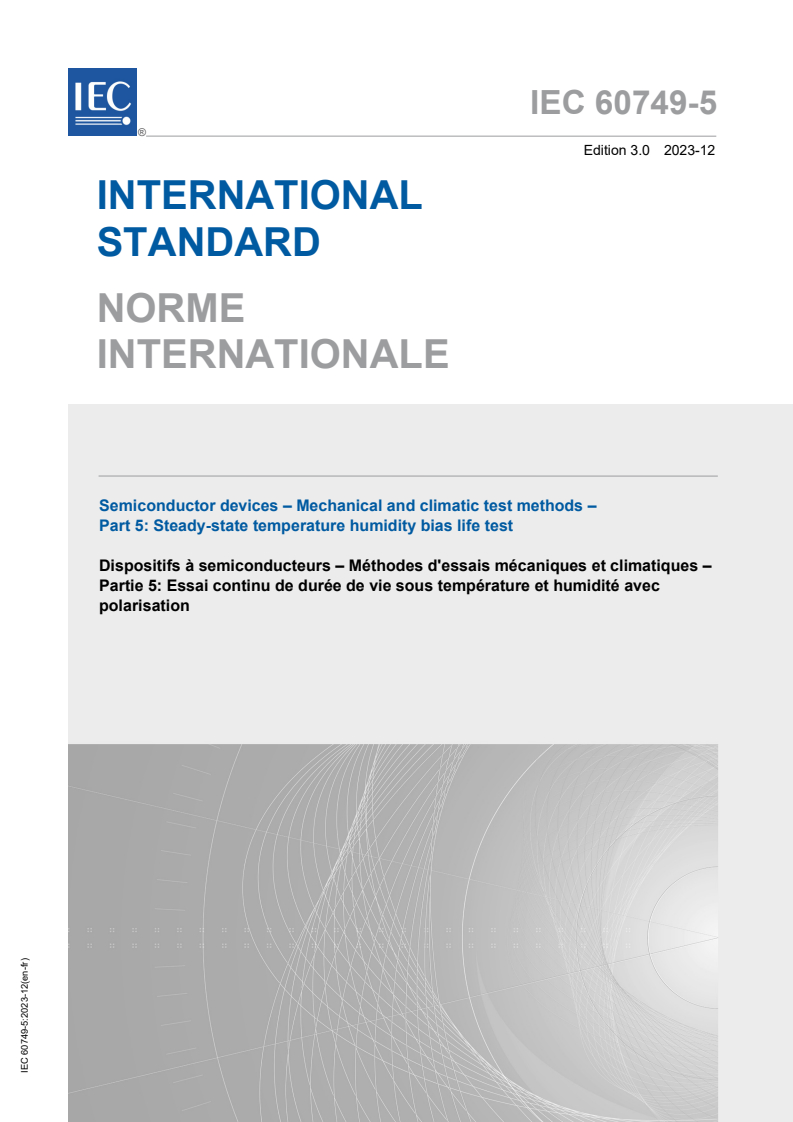

IEC 60749-5 ®
Edition 3.0 2023-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Semiconductor devices – Mechanical and climatic test methods –
Part 5: Steady-state temperature humidity bias life test

Dispositifs à semiconducteurs – Méthodes d'essais mécaniques et climatiques –
Partie 5: Essai continu de durée de vie sous température et humidité avec
polarisation
– 2 – IEC 60749-5:2023 © IEC 2023
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General . 5
5 Equipment . 5
5.1 Equipment summary . 5
5.2 Temperature and relative humidity . 6
5.3 Devices under stress . 6
5.4 Minimizing release of contamination . 6
5.5 Ionic contamination . 6
5.6 Deionized water . 6
6 Test conditions . 6
6.1 Test conditions summary . 6
6.2 Temperature, relative humidity and duration . 6
6.3 Biasing guidelines . 7
6.4 Biasing choice and reporting . 7
7 Procedures . 8
7.1 Mounting . 8
7.2 Ramp-up . 8
7.3 Ramp-down . 8
7.4 Test clock . 8
7.5 Bias . 8
7.6 Read-out . 8
7.7 Handling . 8
8 Failure criteria . 9
9 Safety . 9
10 Summary . 9

Table 1 – Temperature, relative humidity and duration . 6
Table 2 – Criteria for choosing continuous or cyclical bias . 7

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
MECHANICAL AND CLIMATIC TEST METHODS –

Part 5: Steady-state temperature humidity bias life test

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60749-5 has been prepared by IEC technical committee 47: Semiconductor devices. It is
an International Standard.
This third edition, based on JEDEC document JESD22-A101D.01, cancels and replaces the
second edition published in 2017. lt is used with permission of the copyright holder, JEDEC
Solid State Technology Association. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the specification of the test equipment is changed to require the need to minimize relative
humidity gradients and maximize air flow between semiconductor devices under test;

– 4 – IEC 60749-5:2023 © IEC 2023
b) the specification of the test equipment fixtures is changed to require the avoidance of
condensation on devices under test and on electrical fixtures connecting the devices to the
test equipment;
c) replacement of references to “virtual junction” with “die”.
The text of this International Standard is based on the following documents:
Draft Report on voting
47/2820/FDIS 47/2827/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 60749 series, under the general title Semiconductor devices –
Mechanical and climatic test methods, can be found in the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
SEMICONDUCTOR DEVICES –
MECHANICAL AND CLIMATIC TEST METHODS –

Part 5: Steady-state temperature humidity bias life test

1 Scope
This part of IEC 60749 provides a steady-state temperature and humidity bias life test to
evaluate the reliability of non-hermetic packaged semiconductor devices in humid
environments.
This test method is considered destructive.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60749-4, Semiconductor devices – Mechanical and climatic test methods – Part 4: Damp
heat, steady-state, highly accelerated stress test (HAST)
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
4 General
Temperature, humidity and bias conditions are applied to accelerate the penetration of moisture
through the external protective material (encapsulant or seal) or along the interface between
the external protective material and the metallic conductors which pass through it.
Where both this steady-state, humidity bias test and the damp heat, highly accelerated stress
test (HAST) of IEC 60749-4 are performed, the results of this 85 °C/85 % RH steady-state test
will take priority over the results of the HAST test, which is an accelerated test designed to
activate the same failure mechanisms.
5 Equipment
5.1 Equipment summary
The test requires a temperature-humidity test chamber capable of maintaining a specified
temperature and relative humidity continuously, while providing electrical connections to the
devices under test in a specified biasing configuration.

– 6 – IEC 60749-5:2023 © IEC 2023
5.2 Temperature and relative humidity
The chamber shall be capable of providing controlled conditions of temperature and relative
humidity during ramp-up to, and ramp-down from the specified test conditions.
The test chamber dry bulb temperature shall exceed the wet bulb temperature at all times.
5.3 Devices under stress
Devices under stress shall be physically located to minimize temperature gradients. Devices
under test shall be physically located in order to minimize relative humidity gradients and
maximize air flow between devices.
5.4 Minimizing release of contamination
Board and socket materials shall be chosen in order to minimize release of contamination, and
to minimize degradation due to corrosion and other mechanisms.
5.5 Ionic contamination
The test devices shall be placed in the test apparatus to minimise ionic contamination from
items such as the card cage, test boards, sockets, wiring and storage containers.
5.6 Deionized water
Deionized water with a minimum resistivity of 1 × 104 Ωm at room temperature shall be used.
6 Test conditions
6.1 Test conditions summary
Test conditions consist of a temperature, relative humidity, and duration used in conjunction
with an electrical bias configuration specific to the device.
6.2 Temperature, relative humidity and duration
Unless otherwise required by the detail specification, the temperature, relative humidity and
test duration as shown in Table 1 shall be applied.
Table 1 – Temperature, relative humidity and duration
b
Temperature
Temperature
a b c
Vapour pressure Duration
Relative humidity
(dry bulb) (wet bulb)
°C % °C kPa h
−24
85 ± 2 85 ± 5 81,0 49,1 1 000
+168
a
Tolerances apply to the entire useable test area.
b
For information only.
c
The test conditions are to be applied continuously, except during any interim readouts, when the devices
should be returned to stress within the time specified in 7.6.

6.3 Biasing guidelines
Apply bias according to the following guidelines:
a) minimize power dissipation;
b) alternate pin bias as much as possible;
c) distribute potential differences across chip metallization as much as possible;
d) maximize voltage within operating range;
NOTE The priority of the above guidelines depends on the mechanism and specific device characteristics.
e) either of two kinds of bias can be used to satisfy these guidelines, whichever is more severe:
1) Continuous bias
The DC bias shall be applied continuously.
Continuous bias is more severe if the die temperature (T ) is <10 °C higher than the
j
chamber ambient temperature.
If the die temperature is not known, and the heat dissipation of the device under test
(DUT) is less than 200 mW, the die temperature is assumed to be less than 10 °C above
ambient temperature.
If the heat dissipation of the DUT exceeds 200 mW, the die temperature should be
calculated or measured.
If the die temperature exceeds the chamber ambient temperature by more than 5 °C, the
rise of the die temperature above the chamber ambient should be included in reports of
test results since acceleration of failure mechanisms will be affected.
2) Cycled bias
The DC voltage applied to the devices under test shall be periodically interrupted with
an appropriate frequency and duty cycle. If the biasing configuration results in a
temperature rise above the chamber ambient, ΔT , exceeding 10 °C, then cycled bias,
ja
when optimized for a specific device type, will be more severe than continuous bias.
Heating as a result of power dissipation tends to drive moisture away from the die and
thereby hinders moisture-related failure mechanisms. Cycled bias permits moisture
collection on the die during the off periods when device power dissipation does not occur.
Cycling the DUT bias with 1 h on and 1 h off is optimal for most plastic-encapsulated
microcircuits. The die temperature, as calculated on the basis of the known thermal
impedance and dissipation should be quoted with the results whenever it exceeds the
chamber ambient by 5 °C or more.
6.4 Biasing choice and reporting
Criteria for choosing continuous or cyclical bias, and whether or not to report the amount by
which the die temperature exceeds the chamber ambient temperature, are summarized in
Table 2.
Table 2 – Criteria for choosing continuous or cyclical bias
Include value of ΔT
Continuous or cyclical
ja
ΔT
ja
bias
in test report?
ΔT < 5 °C or power per DUT < 200 mW
Continuous No
ja
(ΔT ≥ 5 °C or power per DUT ≥ 200 mW),
ja
Continuous Yes
and ΔT < 10 °C
ja
a
ΔT ≥ 10 °C
Yes
Cyclical
ja
a
Cycling the DUT bias with one hour on and one hour off is optimal for most plastic-encapsulated microcircuits.

– 8 – IEC 60749-5:2023 © IEC 2023
7 Procedures
7.1 Mounting
The test devices shall be mounted in such a way as to expose them to a specified condition of
temperature and humidity as given in Table 1 with a specified electrical biasing condition.
Exposure of devices to excessively hot conditions, dry ambient conditions or conditions that
result in condensation on devices and electrical fixtures shall be avoided, particularly during
ramp-up and ramp-down. Appropriate attention should also be made to avoid any water dripping
on the devices under stress.
7.2 Ramp-up
The time to reach stable temperature and relative humidity conditions shall be less than 3 h.
Condensation on the devices under stress and/or fixtures/hardware shall be avoided at all times
by ensuring that their temperature is always higher than the dew point temperature.
7.3 Ramp-down
Ramp-down shall not exceed 3 h. Condensation shall be avoided by ensuring that the test
chamber (dry bulb) temperature exceeds the wet-bulb temperature at all times during ramp
down.
NOTE For a DUT with a cavity in the package, condensation can occur due to the length of the ramp down time.
7.4 Test clock
The test clock starts when the temperature and relative humidity reach the set points, and stops
at the beginning of ramp-down.
7.5 Bias
Bi
...
