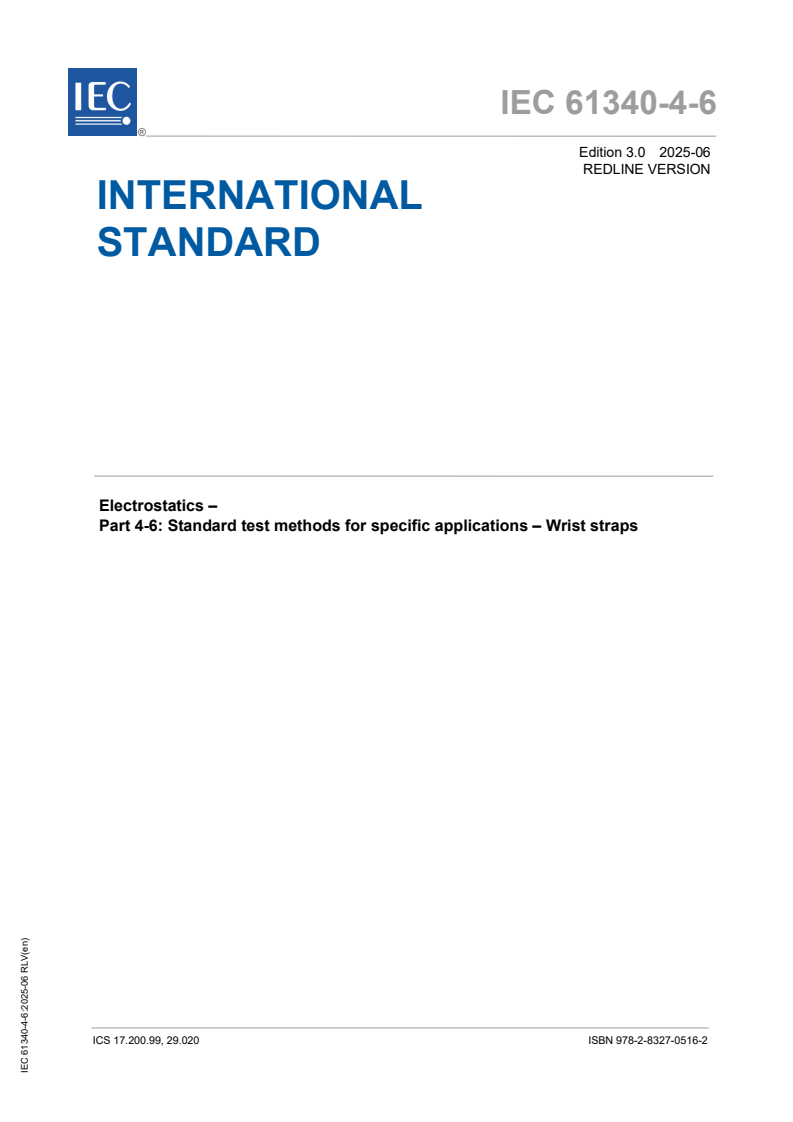

IEC 61340-4-6:2025

IEC 61340-4-6 ®
Edition 3.0 2025-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrostatics –
Part 4-6: Standard test methods for specific applications – Wrist straps

Electrostatique –
Partie 4-6: Méthodes d'essai normalisées pour des applications spécifiques –
Bracelets de conduction dissipative
ICS 17.200.99, 29.020 ISBN 978-2-8327-0474-5

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.

replaced and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications gratuitement tous les aperçus des publications, symboles
IEC en utilisant différents critères (numéro de référence, graphiques et le glossaire. Avec un abonnement, vous aurez
texte, comité d’études, …). Elle donne aussi des toujours accès à un contenu à jour adapté à vos besoins.
informations sur les projets et les publications remplacées
ou retirées. Electropedia - www.electropedia.org
Le premier dictionnaire d'électrotechnologie en ligne au
IEC Just Published - webstore.iec.ch/justpublished monde, avec plus de 22 500 articles terminologiques en
Restez informé sur les nouvelles publications IEC. Just anglais et en français, ainsi que les termes équivalents
Published détaille les nouvelles publications parues. dans 25 langues additionnelles. Egalement appelé
Disponible en ligne et une fois par mois par email. Vocabulaire Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-
nous: sales@iec.ch.
– 2 – IEC 61340-4-6:2025 © IEC 2025

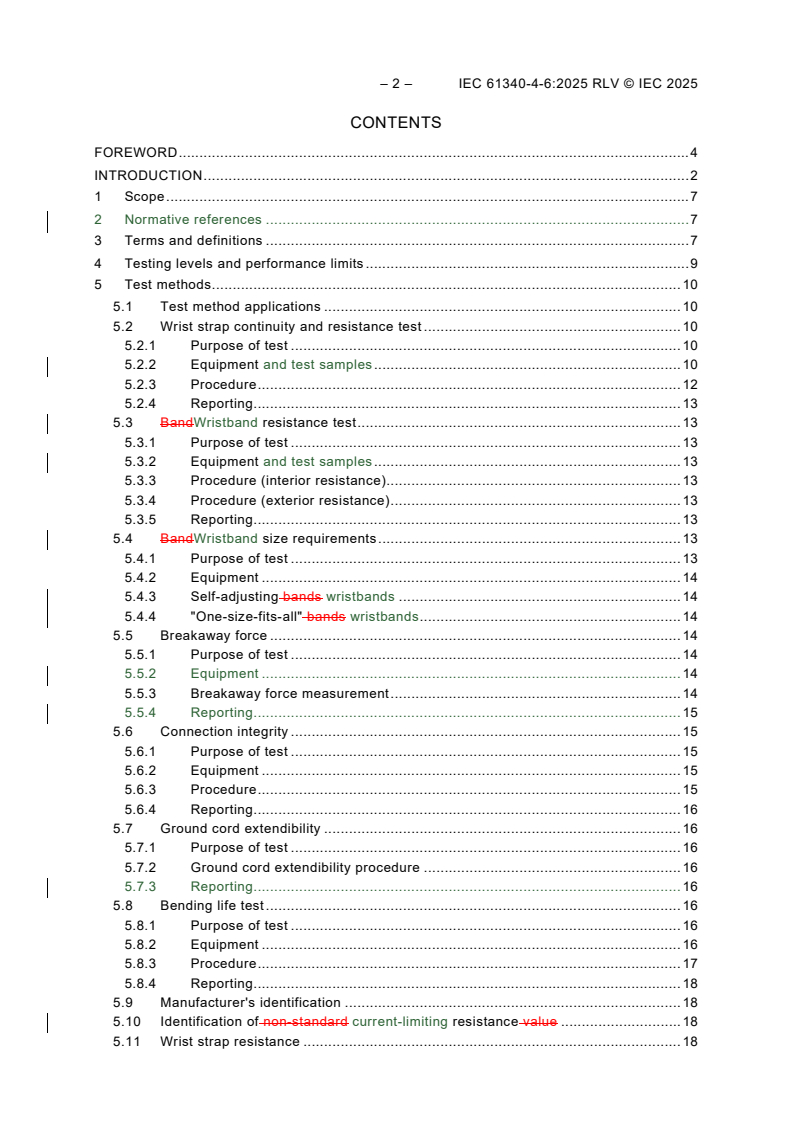

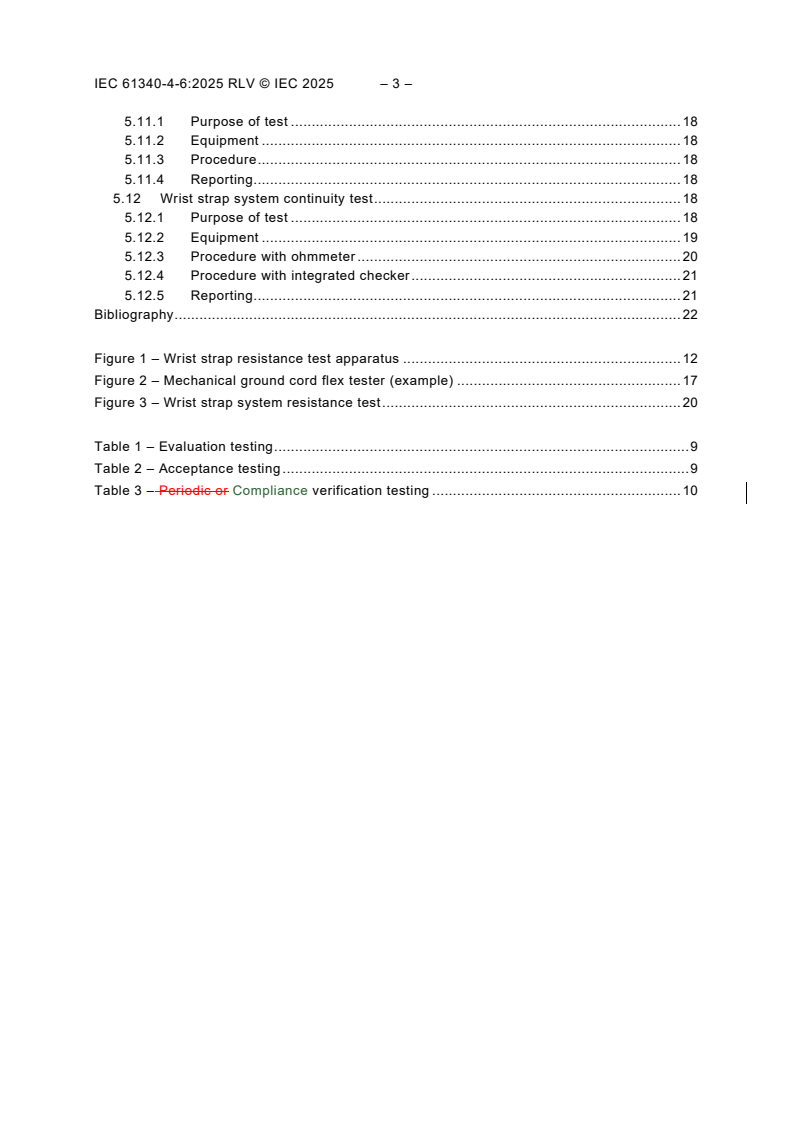

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Testing levels and performance limits . 9
5 Test methods . 10
5.1 Test method applications . 10
5.2 Wrist strap continuity and resistance test . 10
5.2.1 Purpose of test . 10
5.2.2 Equipment and test samples . 10
5.2.3 Procedure . 12
5.2.4 Reporting . 12
5.3 Wristband resistance test . 12
5.3.1 Purpose of test . 12
5.3.2 Equipment and test samples . 12
5.3.3 Procedure (interior resistance). 12
5.3.4 Procedure (exterior resistance) . 12
5.3.5 Reporting . 12
5.4 Wristband size requirements . 13
5.4.1 Purpose of test . 13
5.4.2 Equipment . 13
5.4.3 Self-adjusting wristbands . 13
5.4.4 "One-size-fits-all" wristbands . 13
5.5 Breakaway force . 13
5.5.1 Purpose of test . 13
5.5.2 Equipment . 13
5.5.3 Breakaway force measurement . 13
5.5.4 Reporting . 14
5.6 Connection integrity . 14
5.6.1 Purpose of test . 14
5.6.2 Equipment . 14
5.6.3 Procedure . 14
5.6.4 Reporting . 15
5.7 Ground cord extendibility . 15
5.7.1 Purpose of test . 15
5.7.2 Ground cord extendibility procedure . 15
5.7.3 Reporting . 15
5.8 Bending life test . 15
5.8.1 Purpose of test . 15
5.8.2 Equipment . 15
5.8.3 Procedure . 16
5.8.4 Reporting . 17
5.9 Manufacturer's identification . 17
5.10 Identification of current-limiting resistance . 17
5.11 Wrist strap resistance . 17

5.11.1 Purpose of test . 17
5.11.2 Equipment . 17
5.11.3 Procedure . 17
5.11.4 Reporting . 17
5.12 Wrist strap system continuity test . 17
5.12.1 Purpose of test . 17
5.12.2 Equipment . 18
5.12.3 Procedure with ohmmeter . 19
5.12.4 Procedure with integrated checker . 20
5.12.5 Reporting . 20
Bibliography . 21

Figure 1 – Wrist strap resistance test apparatus . 11
Figure 2 – Mechanical ground cord flex tester (example) . 16
Figure 3 – Wrist strap system resistance test . 19

Table 1 – Evaluation testing . 9
Table 2 – Acceptance testing . 9
Table 3 – Compliance verification testing . 9

– 4 – IEC 61340-4-6:2025 © IEC 2025
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROSTATICS –
Part 4-6: Standard test methods for specific applications – Wrist straps

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61340-4-6 has been prepared by IEC technical committee 101: Electrostatics. It is an
International Standard.
This third edition cancels and replaces the second edition published in 2015. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) editorial comments made during the review of the second edition were reviewed and
incorporated where appropriate;
b) normative references have been added to address the safety of equipment.

The text of this International Standard is based on the following documents:
Draft Report on voting
101/732/FDIS 101/738/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 61340 series, published under the general title Electrostatics, can
be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
– 6 – IEC 61340-4-6:2025 © IEC 2025
INTRODUCTION
This part of IEC 61340 has been developed to establish test methods for evaluating the
electrical and mechanical attributes of wrist straps used in an electrostatic control program.
Wrist straps are intended to connect the user to electrical ground, thus preventing electrostatic
charge on a user's body from attaining a level that can damage ESD susceptible devices or
assemblies.
Test methods and performance limits for evaluation, acceptance, and functional testing are
provided.
ELECTROSTATICS –
Part 4-6: Standard test methods for specific applications – Wrist straps

1 Scope
This part of IEC 61340 provides electrical and mechanical test methods and performance limits
for the evaluation, acceptance, and compliance verification testing of wrist straps.
NOTE All dimensions are nominal except where indicated.
This document is intended for testing wrist straps and wrist strap systems used for the
grounding of personnel engaged in working with ESD sensitive assemblies and devices.
It does not address constant monitoring systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61010-1, Safety requirements for electrical equipment for measurement, control, and
laboratory use – Part 1 General requirements
IEC 61010-2-030, Safety requirements for electrical equipment for measurement, control, and
laboratory use – Part 2-030 Particular requirements for equipment having testing or measuring
circuits
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
wrist strap
assembled device consisting of a wristband and ground cord that is designed to provide
electrical connection from a person's skin to ground
3.2
wrist strap system
wrist strap when properly worn by a person, where the electrical path includes the person, the
wristband and the ground cord
– 8 – IEC 61340-4-6:2025 © IEC 2025
3.3
wristband
portion of the wrist strap worn on the wrist
Note 1 to entry: The wristband maintains electrical contact with a person's skin.
3.4
ground cord
portion of the wrist strap that provides flexibility of movement while completing the electrical
circuit between the wristband and ground
3.5
evaluation testing
testing of a wrist strap to determine its electrical and mechanical performance abilities
Note 1 to entry: Data are in the form of values from laboratory testing.
3.6
acceptance testing
incoming tests to confirm proper marking and electrical functionality
Note 1 to entry: Data are in the form of visual inspection records and values or pass/fail notation.
3.7
compliance verification testing
end-use testing to confirm electrical functionality
Note 1 to entry: Data are in the form of pass/fail notation or resistance values.
3.8
current-limiting resistance
resistance value incorporated in series with the wrist strap's electrical path to ground
Note 1 to entry: This resistance limits electrical current that can pass through the ground cord in the event of
inadvertent user contact with an electrical potential.
3.9
resistance range
user-specified upper and lower resistance values which define the user-acceptable resistance
values of a wrist strap or wrist strap system
3.10
strain relief
construction feature designed to protect the connections and cord from premature failure
3.11
breakaway force
force required to disconnect the ground cord from the wristband

4 Testing levels and performance limits
This document specifies different types of testing for wrist straps. Table 1, Table 2 and Table 3
detail the three types of testing with the associated limits and subclause references to test
methods. The methods provide appropriate tests for the different levels of wrist strap
examination. Evaluation tests are laboratory tests for measuring the performance of a wrist
strap or for the comparison of wrist straps. Acceptance tests provide methods for incoming
goods inspection. Finally, the compliance verification or functional test is a simple check of
electrical continuity. This test shall be used on a regular, user defined basis, to ensure that the
wrist strap is electrically functional. Testing shall be carried out under ambient laboratory
conditions. The temperature and humidity at the time of testing shall be recorded and reported
in the test report.
NOTE Testing has shown that environmental conditions do not significantly affect test results.
Table 1 – Evaluation testing
Electrical Limit Test reference
Wrist strap continuity and resistance < 5 MΩ, or user-defined value 5.2
Wristband resistance Interior: ≤ 100 kΩ or user-defined value
5.3
Exterior: > 10 MΩ
Mechanical Limit Test reference
Wristband size As defined in 5.4 5.4
Breakaway force > 4,4 N and < 22,6 N 5.5
Cord and connector integrity > 22,6 N and > 66 % of cord strength 5.6
Ground cord extendibility Extension to manufacturer's specified length
5.7
with no loss of electrical continuity
Bending life ≥ 16 000 cycles 5.8

Marking Limit Test reference
Manufacturer's identification Logo or name or both 5.9
Identification of current-limiting resistance Prominent feature or value marked 5.10

Table 2 – Acceptance testing
Electrical Limit Test reference
Wrist strap resistance < 5 MΩ, or user-defined value 5.11

Marking Limit Test reference
Manufacturer's identification Logo or name or both 5.9
Identification of current-limiting resistance Prominent feature or value marked 5.10

Table 3 – Compliance verification testing
Electrical Limit Test reference
a
Wrist strap system continuity (as worn) 5.12
≤ 35 MΩ, or user-defined value
a
A user-defined lower limit of resistance can be required for safety or other considerations.

– 10 – IEC 61340-4-6:2025 © IEC 2025
Discrete current-limiting resistors should be located near the connection between the ground
cord and the wristband.
5 Test methods
5.1 Test method applications
Refer to Table 1, Table 2 and Table 3 for test method applications.
WARNING – Test procedures described in this document can expose personnel to potentially
hazardous electrical conditions. Appropriate electrical hazard reduction practices should be
exercised and proper earth grounding instructions for the equipment used should be followed
when performing tests. Safety requirements for electrical equipment for measurements are
given in IEC 61010-1 and IEC 61010-2-030.
If the test voltage exceeds 60 V DC, or 35 V DC in wet locations, the additional safety limits for
current and capacitive charge specified in IEC 61010-1 shall be applied.
5.2 Wrist strap continuity and resistance test
5.2.1 Purpose of test
This test measures the resistance between discrete parts of the wrist strap to evaluate
continuity.
5.2.2 Equipment and test samples
The equipment shall consist of the following:
• a test fixture (see Figure 1) comprising an insulative stand and two (25,0 ± 0,5) mm
diameter stainless steel cylinders, with one cylinder fixed to the stand directly above the
second. The second cylinder with a mass of (0,11 ± 0,01) kg is mounted in a slot in the
stand that allows free vertical movement;
• an ohmmeter or other instrument(s) capable of reading up to at least 100 MΩ with a test
voltage of 7 V to 100 V DC open circuit;
• test leads for connecting the ohmmeter to the test fixture and wrist strap
• six samples of wrist straps.

Dimensions in millimetres
a) Wristband test fixture construction

b) Test method
Key
1 fixed metal cylinder test probe, (25,0 ± 0,5) mm diameter 5 ohmmeter
2 hole for banana plug 6 wristband
3 movable metal cylinder test weight, (25,0 ± 0,5) mm diameter 7 ground cord
4 Insulative stand 8 test lead

Figure 1 – Wrist strap resistance test apparatus

– 12 – IEC 61340-4-6:2025 © IEC 2025
5.2.3 Procedure
Using the test fixture shown in Figure 1, place the wristband around the cylinders with the
wristband interior toward the cylinders and the ground cord connector on the right side and
parallel to the cylinders, evenly spaced between the cylinders. Allow the 0,11 kg cylinder to
move freely and stress the wristband. Referring to Figure 1, the ground cord (7) is replaced with
a test lead for wristband resistance measurements.
Connect the ground cord to the wristband.
Connect the ohmmeter to the top cylinder and to the ground connector of the ground cord.
Measure and record the resistance value.
Repeat the procedure for a total of six wrist straps.
5.2.4 Reporting
Report the resistance for each wrist strap.
5.3 Wristband resistance test
5.3.1 Purpose of test
Resistance of the wristband interior and exterior is determined.
5.3.2 Equipment and test samples
See 5.2.2.
5.3.3 Procedure (interior resistance)
Using the test fixture shown in Figure 1, place the wristband around the cylinders with the
wristband interior toward the cylinders and the ground cord connector on the right side and
parallel to the cylinders, evenly spaced between the cylinders. Allow the 0,11 kg cylinder to
move freely and stress the wristband.
Connect the ohmmeter to the top cylinder and to the ground cord connector on the wristband.
Measure and record the resistance value.
Repeat the procedure for a total of six wristbands.
5.3.4 Procedure (exterior resistance)
Using the test fixture shown in Figure 1, place the wristband around the cylinders with the
wristband exterior toward the cylinders and the ground cord connector on the right side and
parallel to the cylinders, evenly spaced between the cylinders. Allow the 0,11 kg cylinder to
move freely and stress the wristband.
Connect the ohmmeter to the top cylinder and the ground cord connector on the wristband.
Measure and record the resistance value.
Repeat the procedure for a total of six wristbands.
5.3.5 Reporting
Report the interior resistance and exterior resistance of each wristband.

5.4 Wristband size requirements
5.4.1 Purpose of test
Wristband sizes are determined by the wristband's ability to fit over a specifically sized cylinder.
A wristband's ability to expand to fit over a hand, yet contract to fit correctly around a wrist is
determined by fitting the wristband over specifically sized large and small cylinders.
NOTE A wristband is fitted correctly when it is sufficiently tight to maintain electrical continuity during normal
wearing conditions, but not so tight as to cause discomfort or harm to the wearer.
5.4.2 Equipment
The equipment shall consist of the following:
• 1 cylinder having an outside diameter of (4,3 ± 0,1) cm;
• 1 cylinder having an outside diameter of (5,3 ± 0,1) cm;
• 1 cylinder having an outside diameter of (8,25 ± 0,1) cm;
• 1 cylinder having an outside diameter of (8,9 ± 0,1) cm.
5.4.3 Self-adjusting wristbands
"Large"-sized self-adjustable expanding metal or fabric wristbands shall make 360° contact with
a 5,3 cm diameter cylinder and be capable of fitting over an 8,9 cm diameter cylinder.
"Small"-sized self-adjustable expanding metal or fabric wristbands shall make 360° contact with
a 4,3 cm diameter cylinder and be capable of fitting over an 8,25 cm diameter cylinder.
5.4.4 "One-size-fits-all" wristbands
"One-size-fits-all" wristbands shall make 360° contact on a 4,3 cm diameter cylinder and be
capable of sufficient expansion to fit over an 8,9 cm cylinder.
5.5 Breakaway force
5.5.1 Purpose of test
For personnel safety considerations, the wrist strap ground cord shall disconnect from the
wristband while worn in the event of an emergency. However, the ground cord shall remain
connected during normal use. The breakaway force of the cord from the wristband is measured
in the following procedure.
5.5.2 Equipment
Spring scale (also known as spring balance or Newton meter) in the range from 0 to 50 N with
an accuracy of better than 20 % in this range.
5.5.3 Breakaway force measurement
With the ground cord connected to the wristband in a normal manner and the wristband held in
a fixture or by hand, a force of > 4,4 N and < 22,6 N applied to the ground cord, perpendicular
to the wristband back plate shall be required to separate the ground cord from the wristband.
Given the variation of the design of wrist straps, it is not possible to provide a detailed
description of the test procedure. Nevertheless, users of this document shall adapt procedures
to suit the design of wrist straps that are in use and shall describe these procedures as far as
possible in test reports or product qualification plans. Variations in test procedures can be
significant when evaluating sample test results that are close to acceptance limits.

– 14 – IEC 61340-4-6:2025 © IEC 2025
5.5.4 Reporting
Report the breakaway force for the cord from the wristband.
5.6 Connection integrity
5.6.1 Purpose of test
The strength of the wire used as a ground cord is measured to the breaking point. The strengths
of the mechanical connections between the wire and the terminals used for ground connection
and wristband connection are measured.
5.6.2 Equipment
The equipment shall consist of the following:
• tensile tester capable of 6,35 cm per minute travel;
• clamps (grippers) for tensile tester;
• chart recorder or data logging device.
Given the variation in the design of wrist straps, it is not possible to provide full details of the
use of tensile testers. Nevertheless, users of this document shall adapt procedures to suit the
design of the wrist strap that is in use, shall describe the procedures in product qualification
plans, and shall include the following information in test reports: type of clamps, clamping force,
specimen length between clamps, and rate of extension. Variations in test procedures can be
significant when evaluating sample test results that are close to acceptance limits.
5.6.3 Procedure
5.6.3.1 General
Using the tensile tester and chart recorder or data logging device, test and record the tensile
strength (breaking point) of the ground cord, the ground connector to the ground cord, and the
wristband connector to the cord. Repeat the procedure for a total of six ground cords.
This is a test to failure so sufficient numbers of test samples should be on hand to complete the
evaluation.
5.6.3.2 Wire break strength
The ground cord under test is secured in the tensile tester by clamps gripping the wire between
a straight section of wire (not including the wire terminations). The tensile tester is then
activated, and the wire pulled to the breaking point.
5.6.3.3 Ground cord termination strength
The ground cord under test is secured in the tensile tester so that the wire is clamped in one
gripper and one termination end of the ground cord is clamped in the other gripper. The tensile
tester is then activated, and the ground cord stressed until the termination breaks or is
separated from the wire.
The same ground cord that is used in 5.6.3.2 can be used if sufficient wire length is available
for clamping in the tensile tester.

5.6.4 Reporting
Report the break strength of the wire and the break strength or pull off force of both terminations.
Calculate the percentage of the termination strength to wire strength by the following formula:
Termination break or pull-off point/wire break strength × 100 = % Termination strength.
5.7 Ground cord extendibility
5.7.1 Purpose of test
Retractable-type ground cords (coiled cords) shall be capable of being extended to the
manufacturer's specified working length (typically 1,5 m or 3,0 m) without pulling the wristband
away from the user's wrist to the extent that electrical continuity, as measured in 5.12, is
interrupted.
5.7.2 Ground cord extendibility procedure
While wearing the wrist strap assembly and performing the wrist strap system continuity test as
described in 5.12, extend the distance between the wristband and the integrated checker or
ohmmeter to the wrist strap manufacturer's specified working length of the ground cord.
This test can require two people to prevent dropping the instruments used for measuring the
electrical continuity of the wrist strap system.
5.7.3 Reporting
Report the resistance at the full extension of the coil cord.
5.8 Bending life test
5.8.1 Purpose of test
Ground cord flex life is determined.
5.8.2 Equipment
The equipment shall consist of the following:
• mechanical ground cord flex tester: machine that drives a stressing mechanism through an
arc of 120° ± 5° at a rate of approximately 2 000 cycles per hour (see Figure 2 for an
example of a flex tester). A flex tester designed to test more than one ground cord at a time
is acceptable.
NOTE Some testers that can test both ends of a ground cord or multiple ground cords at the same time have
been constructed.
Ground cords are attached to the stressing mechanism by means of a mounting that
simulates the wristband connector (i.e., a snap) and the ground connector (i.e. a banana
plug jack);
• a (0,45 ± 0,1) kg weight;
• an ohmmeter or other instrument(s) capable of reading up to at least 100 MΩ with a test
voltage of 7 V to 100 V DC open circuit;
• test leads for connecting the ohmmeter to the test fixture and wrist strap.

– 16 – IEC 61340-4-6:2025 © IEC 2025
Key
1 ohmmeter, 7 V to 100 V DC open circuit 7 stressing mechanism
1a low input 8 mounting fixture
1b high input 9 banana plug termination
2 female snap fastener termination           10 mechanical counter
3 wrist strap cord 11 mounting screw
4 motor control box 12 (0,45 ± 0,1) kg weight rigidly attached to the
wrist strap cord approximately 15 cm from the
5 30 r/min motor
cord termination
6 rotating disc
This Figure 2 shows the test set-up of a banana plug termination; the test is repeated with a female snap fastener
termination.
One stress cycle is the equivalent of one revolution of the rotating disc.
Figure 2 – Mechanical ground cord flex tester (example)
5.8.3 Procedure
Attach one end of a ground cord to a stressing mechanism. Connect the opposite end to a
0,45 kg weight and allow the ground cord to hang freely. Connect the resistance monitoring
cable to the ground cord conductor at the weighted end.
Start the flex tester. Six cords shall be tested with the wristband connection attached to the
stressing mechanism and six cords shall be tested with the ground connection attached to the
stressing mechanism.
5.8.4 Reporting
Ground cord failure is defined as the total resistance of the circuit exceeding the user-defined
value, or when there is visible evidence of mechanical failure in the cord jacket or strain relief.
Each ground cord shall have a minimum life of at least 8 000 cycles and the average of all
samples tested shall have a minimum life of 16 000 cycles.
5.9 Manufacturer's identification
Wrist straps should have the manufacturer's name or logo embossed, moulded or otherwise
permanently marked in a prominent location.
5.10 Identification of current-limiting resistance
Wrist straps incorporating a resistance other than 1,0 MΩ with a relative tolerance of ± 20 %,
shall be identified by having a prominent feature or the resistor value, marked on the ground
cord, or on the wrist strap component that contains the resistance (generally the ground cord).
5.11 Wrist strap resistance
5.11.1 Purpose of test
Resistance of the wrist strap is determined.
5.11.2 Equipment
The equipment shall consist of the following:
• an ohmmeter or other instrument(s) capable of reading up to at least 100 MΩ with a test
voltage of 7 V to 100 V DC open circuit;
• test leads for connecting the ohmmeter to the test fixture and wrist strap.
5.11.3 Procedure
Connect the wristband to the ground cord. Attach the ground cord termination end to an
ohmmeter lead (typically using an alligator clip). Place the wristband on an insulating surface
with the skin contact area of the wristband facing up. For wristbands with a metal skin contact
plate, touch the skin contact area of the wristband with the other ohmmeter lead probe using
hand pressure. For wristbands that do not have a metal plate for skin contact, increase the
ohmmeter probe contact area by placing a metal disc (conductive coin or other 12 mm nominal
diameter disc) on the wristband interior and contact the disc with the other ohmmeter lead probe
using hand pressure. Measure the resistance of the wrist strap. Repeat the test for a total of
six wrist straps.
5.11.4 Reporting
Report the resistance value of each wrist strap.
5.12 Wrist strap system continuity test
5.12.1 Purpose of test
This test verifies the acceptability of the resistance path of the wrist strap system using an
integrated wrist strap checker or an ohmmeter. This test shall be performed with the wrist strap
on the intended user(s) wrist. This test includes the wrist strap user's resistance as part of the
total system resistance.
– 18 – IEC 61340-4-6:2025 © IEC 2025
5.12.2 Equipment
The equipment shall consist of the following:
• an ohmmeter or integrated checker capable of reading up to at least 100 MΩ with a test
voltage of 7 V to 100 V DC open circuit;
• a hand held electrode in the form of a stainless-steel cylinder (15,0 ± 0,1) cm in length and
(2,5 ± 0,1) cm in diameter (only required if using an ohmmeter, see Figure 3 a));
• test lead for connecting the ohmmeter to the stainless steel cylinder.

a) Test using ohmmeter
b) Test using integrated checker
Key
1 wristband 5 ground cord
2 hand-held stainless-steel electrode 6 integrated checker
3 ohmmeter 7 contact area
4 ohmmeter lead
Figure 3 – Wrist strap system resistance test
5.12.3 Procedure with ohmmeter
Place the wristband on the user's wrist, attach the ground cord to the wristband, and attach the
ground cord to one terminal of the ohmmeter. Connect the hand-held electrode to the other
terminal of the ohmmeter using the ohmmeter lead. Grasp the cylinder with the hand closest to
the wristband. Measure and record the resistance of the wrist strap system (see Figure 3 a)).

– 20 – IEC 61340-4-6:2025 © IEC 2025
5.12.4 Procedure with integrated checker
Place the wristband on the user's wrist, attach the ground cord to the wristband and attach the
other end of the ground cord to the integrated checker. Touch the contact area on the integrated
checker with the fingers on the hand closest to the wristband and activate the integrated checker
following the manufacturer's instructions. Record the resistance or the "pass" or "fail" indication
(see Figure 3 b)).
5.12.5 Reporting
It is necessary to determine the resistance level for the pass and fail indications of the integrated
checker to ensure that the requirements of the end user are met with regard to personnel
grounding through the wrist strap system. Then, a "pass" indication from the integrated checker
indicates that the resistance of the wrist strap system is acceptable for use. A value of ≤ 35 MΩ
or a reading falling within the user-specified resistance range indicates that the wrist strap
system is acceptable for use.
Bibliography
IEC 61340-5-1, Electrostatics – Part 5-1: Protection of electronic devices from electrostatic
phenomena – General requirements
IEC TR 61340-5-2, Electrostatics – Part 5-2: Protection of electronic devices from electrostatic
phenomena – User guide
ANSI/ESD S1.1:2021, Standard for Wrist straps

___________
