– 2 – IEC 62228-3:2019/COR1:2023
IEC 2023

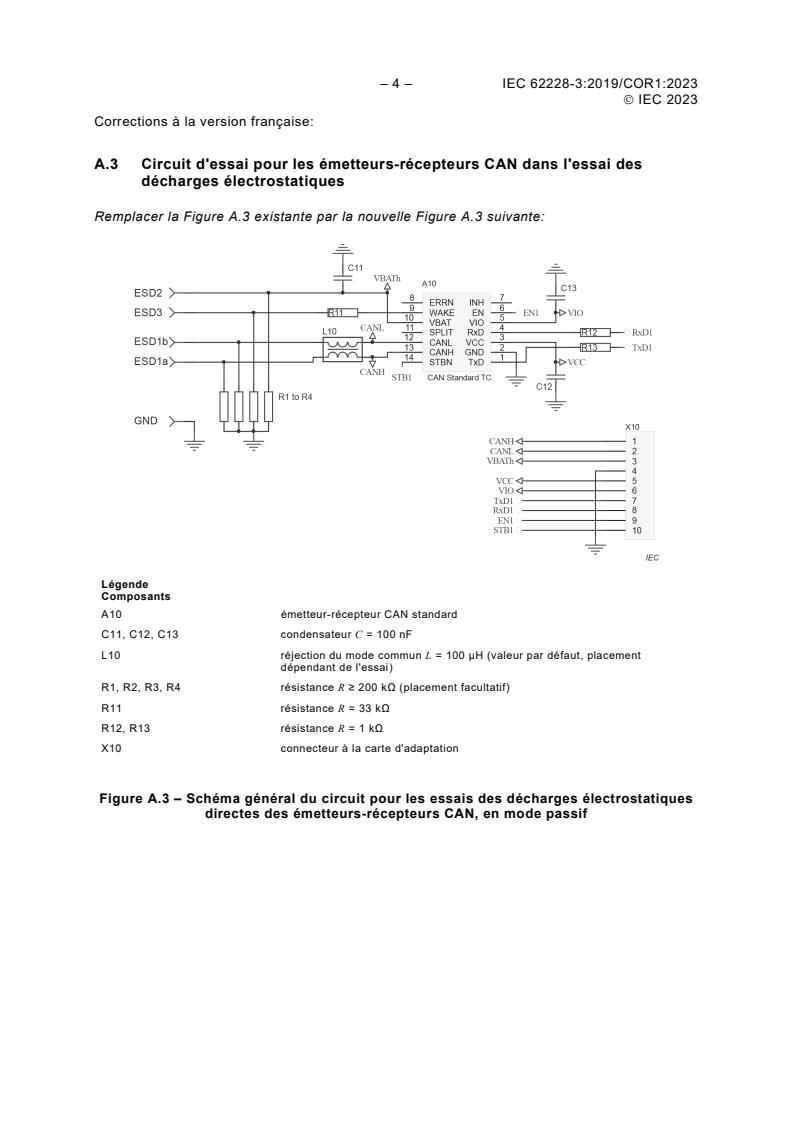

A.3 Test circuit for CAN transceiver for ESD test
Replace the existing Figure A.3 with the following new Figure A.3:
Key
Components
A10 CAN standard transceiver
C11, C12, C13 capacitor C = 100 nF
L10 common mode choke L = 100 µH (default value, placement depend on test
case)
R1, R2, R3, R4 resistor R ≥ 200 kΩ (placement is optional)
R11 resistor R = 33 kΩ
R12, R13 resistor R = 1 kΩ
X10 connector to adaptation board

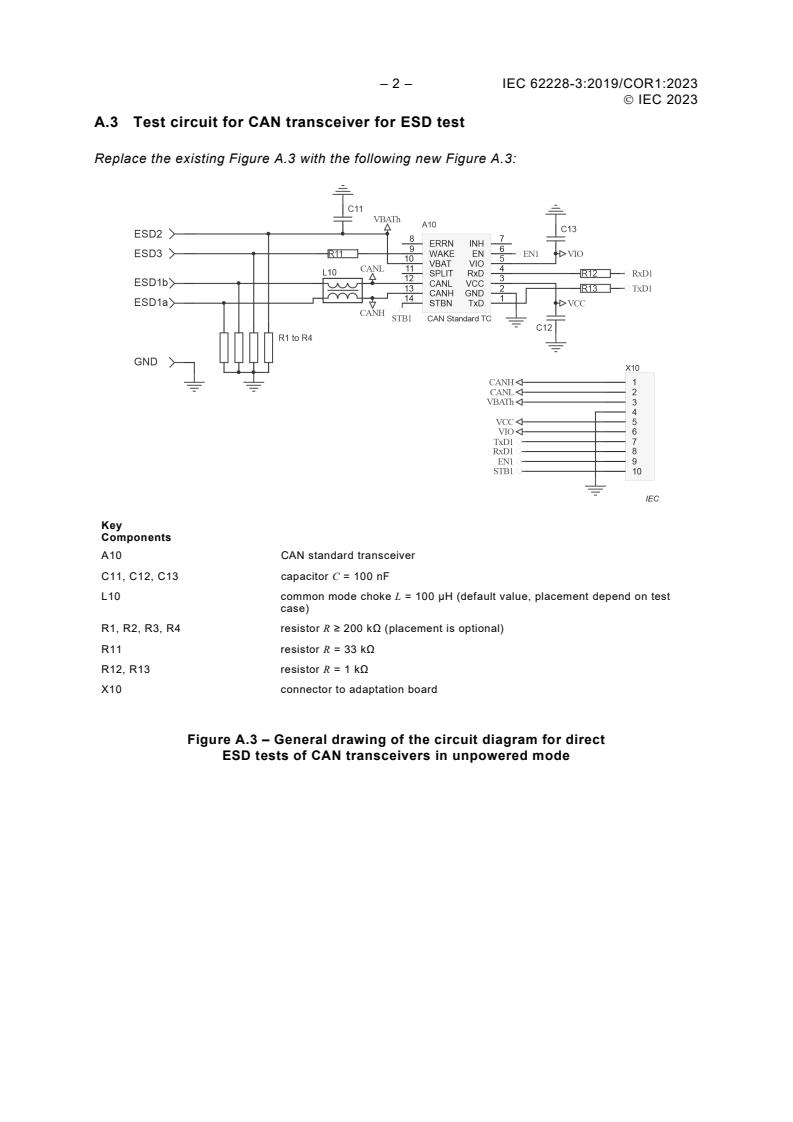

Figure A.3 – General drawing of the circuit diagram for direct
ESD tests of CAN transceivers in unpowered mode
IEC 62228-3:20
...
