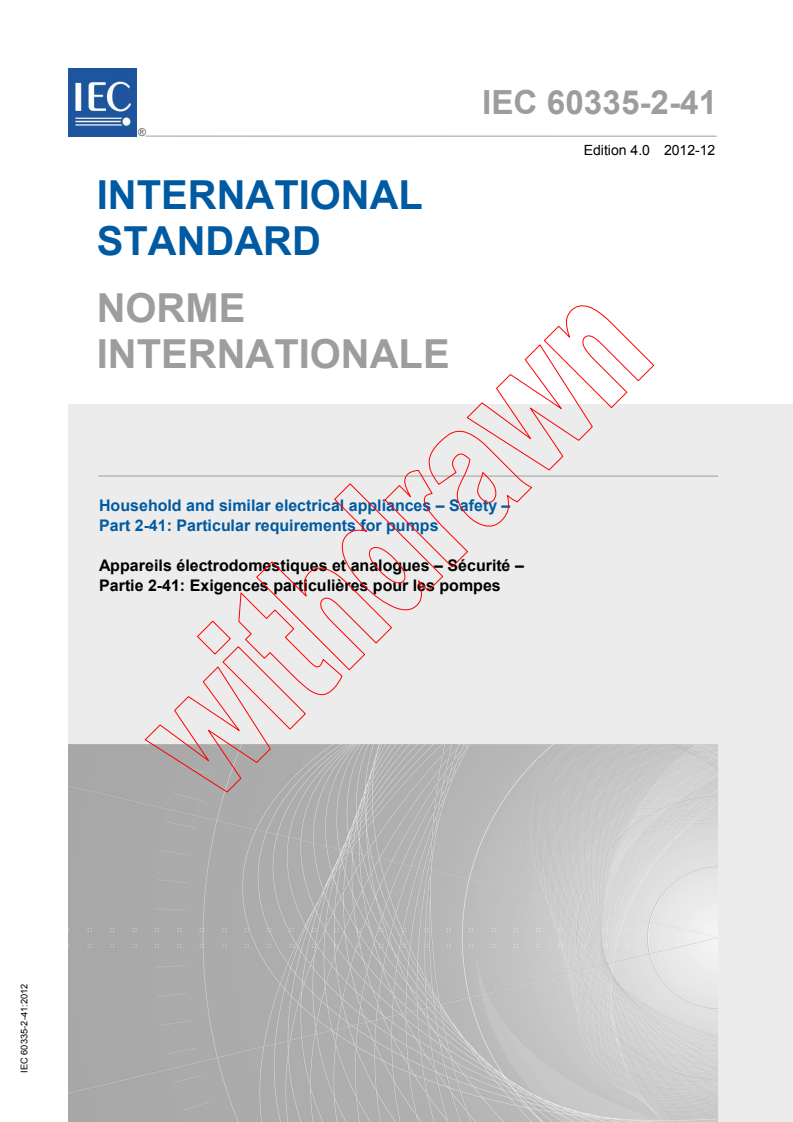

IEC 60335-2-41:2012

IEC 60335-2-41 ®
Edition 4.0 2012-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-41: Particular requirements for pumps

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-41: Exigences particulières pour les pompes

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.

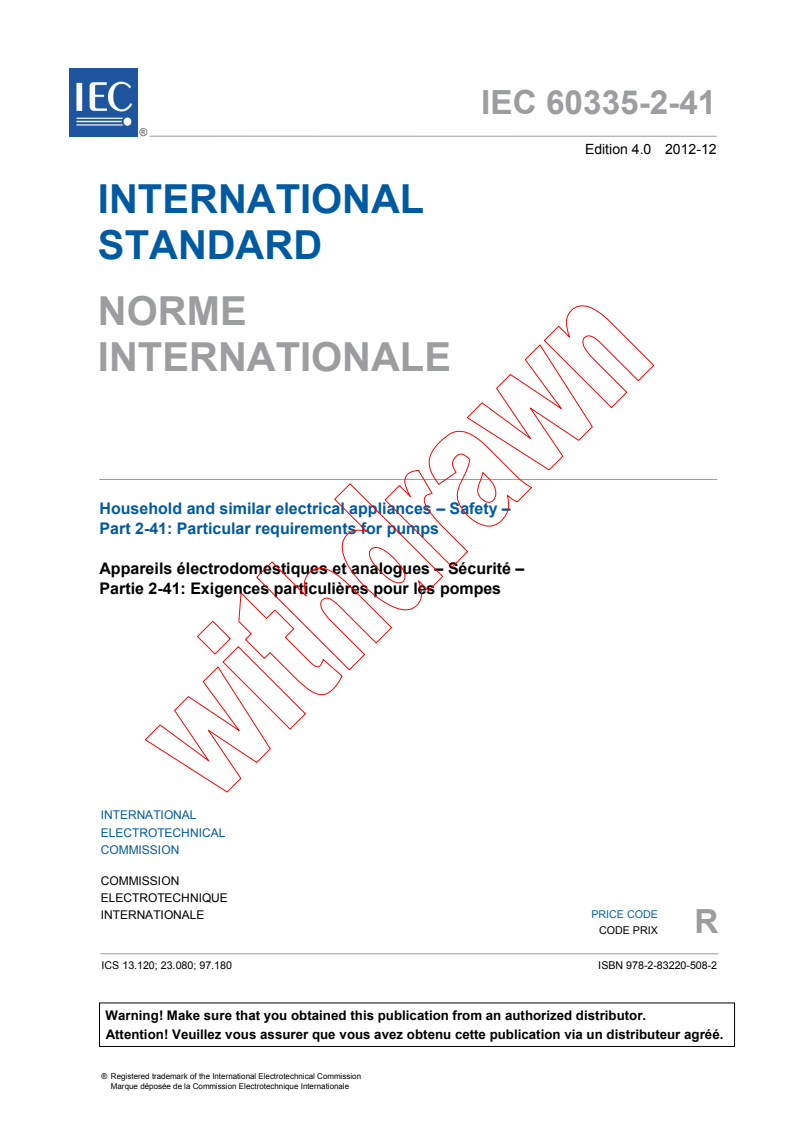

IEC 60335-2-41 ®
Edition 4.0 2012-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –

Part 2-41: Particular requirements for pumps

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-41: Exigences particulières pour les pompes

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX R
ICS 13.120; 23.080; 97.180 ISBN 978-2-83220-508-2

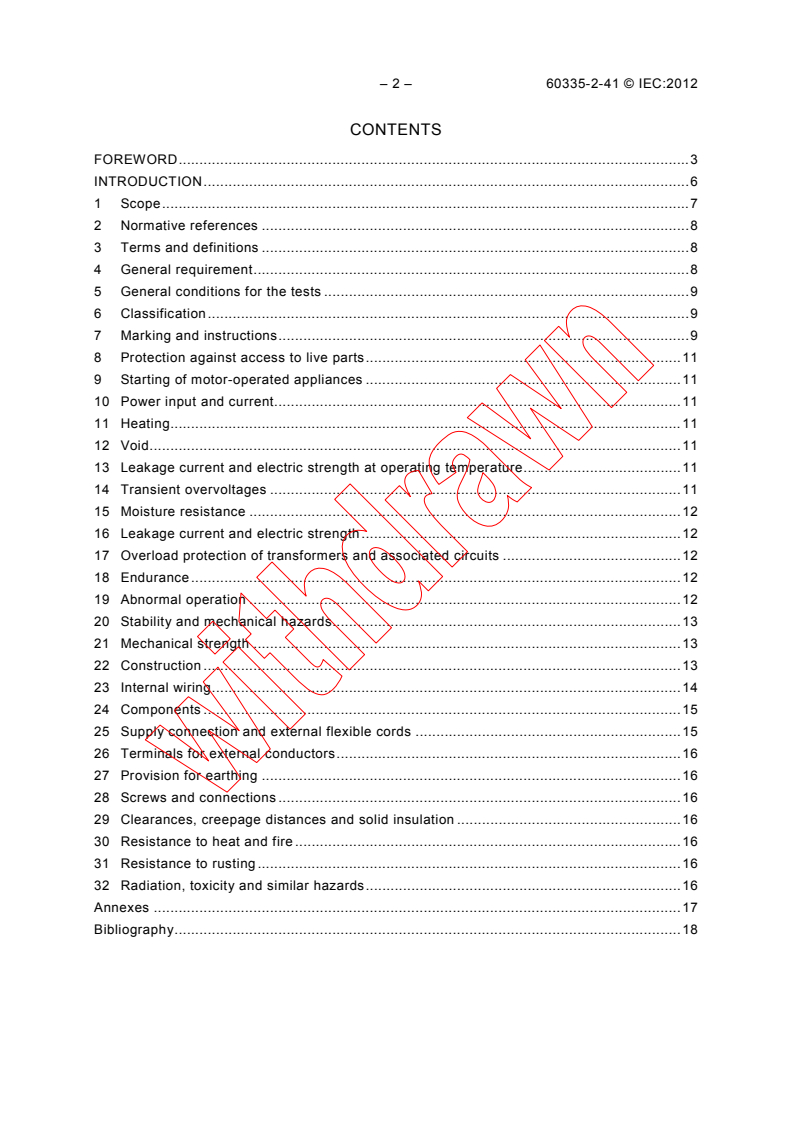

– 2 – 60335-2-41 © IEC:2012
CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 8
3 Terms and definitions . 8
4 General requirement . 8
5 General conditions for the tests . 9
6 Classification . 9
7 Marking and instructions . 9
8 Protection against access to live parts . 11
9 Starting of motor-operated appliances . 11
10 Power input and current. 11
11 Heating. 11
12 Void . 11
13 Leakage current and electric strength at operating temperature . 11
14 Transient overvoltages . 11
15 Moisture resistance . 12
16 Leakage current and electric strength . 12
17 Overload protection of transformers and associated circuits . 12
18 Endurance . 12
19 Abnormal operation . 12
20 Stability and mechanical hazards. 13
21 Mechanical strength . 13
22 Construction . 13
23 Internal wiring . 14
24 Components . 15
25 Supply connection and external flexible cords . 15
26 Terminals for external conductors . 16
27 Provision for earthing . 16
28 Screws and connections . 16
29 Clearances, creepage distances and solid insulation . 16
30 Resistance to heat and fire . 16
31 Resistance to rusting . 16
32 Radiation, toxicity and similar hazards . 16
Annexes . 17
Bibliography . 18

60335-2-41 © IEC:2012 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-41: Particular requirements for pumps

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances.
This fourth edition cancels and replaces the third edition published in 2002 including its
Amendment 1 (2004) and its Amendment 2 (2009). It constitutes a technical revision.
The principal changes in this edition as compared with the third edition of IEC 60335-2-41 are
as follows (minor changes are not listed):
• Added a normative reference to IEC 60364-7-702 and updated the title for
IEC 60364-7-701.
• Clarified the normal operation for pumps in 3.1.9.
• Added requirements for deep well pumps in 3.105 and 25.8.
• Modified 15.102 to indicate that the tube connecting the inlet to the outlet may go via a
tank containing a suitable volume of water so as to avoid overheating the pump.
• Deleted references in the bibliography.

– 4 – 60335-2-41 © IEC:2012
• Deleted or converted to normative the notes from 7.1, 22.101, and 22.106.
The text of this standard is based on the following documents:
FDIS Report on voting
61/4457/FDIS 61/4511/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fifth edition (2010) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for pumps.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
The following differences exist in the countries indicated below.

60335-2-41 © IEC:2012 – 5 –
– 6.1: Pumps intended to be used in or close to swimming pools, garden ponds and similar places may be
class 0I if their supply circuit incorporates a residual current device. Other pumps may be class 0I (Japan).
– 6.1: Class 0 aquarium pumps are allowed (USA).
– 6.1: Class II table fountain pumps are not allowed (USA).
– 7.12.1: Stationary pumps not incorporating a protective device are to be marked with the characteristics of
the device to be installed in the fixed wiring (USA).
– 15.1.1: The test is different (USA).
– 20.1: This test is only carried out on fountain pumps, the angle being 15° (USA).
– 22.105: The test is different (USA).

– 6 – 60335-2-41 © IEC:2012
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
60335-2-41 © IEC:2012 – 7 –
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-41: Particular requirements for pumps

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric pumps for liquids having a
temperature not exceeding 90 °C, intended for household and similar purposes, their rated
voltage being not more than 250 V for single-phase appliances and 480 V for other
appliances.
NOTE 101 Examples of appliances within the scope of this standard are
– aquarium pumps;
– pumps for garden ponds;
– shower-boost pumps;
– sludge pumps;
– submersible pumps;
– table fountain pumps;
– vertical wet pit pumps.
Appliances not intended for normal household use, but that nevertheless may be a source of
danger to the public, such as appliances intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 102 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements can be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour and similar authorities.
NOTE 103 This standard does not apply to
– stationary circulation pumps for heating and service water installations (IEC 60335-2-51);
– pumps for flammable liquids;
– pumps intended exclusively for industrial purposes;
– pumps intended to be used in locations where special conditions prevail, such as the presence of a corrosive
or explosive atmosphere (dust, vapour or gas);
– pumps incorporating chlorinators of the electrolytic type.
NOTE 104 Pumps incorporated in appliances are not covered by this standard unless a specific reference is
made.
– 8 – 60335-2-41 © IEC:2012
2 Normative references
This clause of Part 1 is applicable, except as follows.
Addition:
IEC 60364-7-701, Low voltage electrical installations – Part 7-701: Requirements for special
installations or locations – Locations containing a bath or shower
IEC 60364-7-702, Low voltage electrical installations – Part 7-702: Requirements for special
installations or locations – Swimming pools and fountains
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions:
Pumps are operated with the inlet in liquid at zero pressure, and the discharge outlet is
maintained between the minimum and maximum total head, so that the highest power input is
attained. The total head is measured between the inlet and the discharge outlet.
Sludge pumps are operated with water.
3.101
submersible pump
pump having the electrical part completely or partially immersed in liquid during normal use
Note 1 to entry: The motor windings may be dry, immersed in oil or in the pumped liquid.
3.102
vertical wet pit pump
pump having the electrical part separated from the hydraulic part and not immersed in liquid
during normal use
Note 1 to entry: Controls such as water level switches may be immersed in the liquid.
3.103
sludge pump
pump intended for moving a mixture of water and small solids
Note 1 to entry: Sludge pumps may be submersible pumps or vertical wet pit pumps.
3.104
shower-boost pump
pump for installation in the water supply system to increase the water flow for showering
purposes
3.105
deep well pump
multistage submersible pump intended to be used in bore wells
4 General requirement
This clause of Part 1 is applicable.

60335-2-41 © IEC:2012 – 9 –
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.7 Addition:
The liquid temperature is maintained between 0 °C and –5 °C of the temperature marked on
the pump.
5.101 Pumps are tested as portable appliances, unless they are fixed appliances.
5.102 Stationary pumps having a three-phase motor that does not incorporate a protective
device are installed with an appropriate device, in accordance with the instructions.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Submersible pumps for use in swimming pools when persons are in the pool shall be
class III with a rated voltage not exceeding 12 V.
Other submersible pumps for use in water and other conducting liquids shall be class I or
class III. However, aquarium pumps may be class II. Table fountain pumps for indoor use
may also be class II as long as their rated power input does not exceed 25 W.
Portable pumps for cleaning and other maintenance of swimming pools shall be class I or
class III.
Other pumps shall be class I, class II or class III.
6.2 Addition:
Submersible pumps shall be IPX8.
Portable pumps for cleaning and other maintenance of swimming pools shall be at least
IPX7.
Shower-boost pumps intended for installation outside of zones 1 and 2, as specified in
IEC 60364-7-701, shall be at least IPX2.
Other pumps shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
Pumps having a rated power input exceeding 50 W shall be marked with
– the minimum total head, in metres, if greater than zero;

– 10 – 60335-2-41 © IEC:2012
– the maximum operating depth, in metres, with a minimum of 1 m (for submersible
pumps);
– the direction of rotation (for pumps having three-phase motors).
Pumps shall be marked with the maximum liquid temperature, which shall not be less than
35 °C. If the temperature exceeds 35 °C, pumps shall be marked with the maximum period of
operation, unless they are intended for continuous operation.
7.6 Addition:
H minimum total head
min
maximum operating depth
. . . m
7.12 Addition:
The instructions for class I portable pumps for cleaning and other maintenance of swimming
pools shall include the substance of the following:
– the pump must not be used when people are in the water;
– the pump must be supplied through a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA.
The instructions for pumps marked with a temperature exceeding 35 °C shall state the
maximum period of operation and the minimum rest period, unless the pump is intended for
continuous operation at this temperature.
The instructions for submersible pumps for use in swimming pools shall state the substance
of the following:
Disconnect the pump from the supply mains before carrying out user maintenance
such as cleaning the filter.
7.12.1 Addition:
The installation instructions shall provide information on requirements specified for the
electrical installation and shall include reference to national wiring rules. If reference is made
to zones, the corresponding drawings shall be included.
The installation instructions shall state the substance of the following:
– the maximum total head, in metres (for pumps having a rated power input exceeding
50 W);
– pollution of the liquid could occur due to leakage of lubricants (for submersible pumps
and vertical wet pit pumps containing lubricants);
– a protective device is to be installed in the fixed wiring and its characteristics are to be
specified (for stationary pumps having a three-phase motor not incorporating a
protective device).
The installation instructions for pumps intended to be used in outdoor fountains, garden ponds
and similar places shall state that the pump is to be supplied through a residual current
device (RCD) having a rated residual operating current not exceeding 30 mA.
The installation instructions for class I pumps for swimming pools shall state that the pump is
to be supplied by an isolating transformer or supplied through a residual current device (RCD)
having a rated residual operating current not exceeding 30 mA.

60335-2-41 © IEC:2012 – 11 –
The installation instructions for class III pumps intended to be installed in zone 0 of a
swimming pool, as defined in IEC 60364-7-702, shall state that the transformer is to be
located outside zone 1.
The installation instructions for class II pumps intended to be fixed in zone 1 of a swimming
pool, as defined in IEC 60364-7-702, or fixed close to a garden pond or similar place, shall
state that the pump is to be located where flooding cannot occur.
NOTE A sump without an adequate outlet for the liquid is considered to be a place where flooding is likely to
occur.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Pumps are operated with the liquid maintained at the temperature marked on the pump. They
are operated until steady conditions are established unless they are marked with a maximum
period of operation. In this case, they are operated for the marked period followed by the rest
period specified in the instructions, the test being carried out for three cycles of operation.
Shower-boost pumps that are also supplied with cold water are operated with the cold water
at 15 °C ± 2 °C.
Pumps, other than shower-boost pumps, marked with a maximum period of operation are
also operated with the liquid maintained at 35 °C until steady conditions are established.
11.8 Addition:
For pumps marked with a liquid temperature exceeding 35 °C, the temperature rise of the
external enclosure is not measured.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.

– 12 – 60335-2-41 © IEC:2012
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.1.1 Addition:
Shower-boost pumps are subjected to the appropriate test of IEC 60529 both at rest and in
operation while supplied at rated voltage.
15.1.2 Addition:
Pumps classified IPX4 are tested with the inlet connected to the outlet by means of a tube
filled with water. The pump is supplied at rated voltage and the tube is positioned so that the
pump operates at any value between the minimum and maximum total head.
NOTE 101 The tube connecting the inlet to the outlet can go via a tank containing a suitable volume of water so
as to avoid overheating the pump.
Submersible pumps are immersed for 24 h in water containing approximately 1 % NaCl and
having a temperature of 30 °C ± 5 °C. The water pressure on the enclosure is equal to
– 1,5 times the pressure occurring at the maximum operating depth, when this depth does
not exceed 10 m;
– 1,3 times the pressure occurring at
• the maximum operating depth, or
• 15 m, if this is higher.
Before the test, the temperature of the pump is raised to within 5 K of the water temperature.
15.3 Addition:
Submersible pumps are not subjected to the test.
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is not applicable.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Addition:
Pumps are also subjected to the tests of 19.101 and 19.102.

60335-2-41 © IEC:2012 – 13 –
19.9 Not applicable.
19.101 Pumps are supplied at rated voltage and operated at approximately half the
maximum total head for 5 min, after which the inlet is removed from the liquid and the
operation continued for 7 h. Pumps are then operated again for 5 min at approximately half
the maximum total head.
If the pump becomes inoperable during the test, it is disconnected from the supply and filled
with water.
19.102 Pumps marked with a maximum period of operation are supplied at rated voltage
and operated under normal operation until steady conditions are established.
20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.
20.1 Addition:
Submersible pumps are not subjected to the test.
21 Mechanical strength
21.1 Modification:
For pumps, other than shower-boost pumps, the impact energy is increased to 1,0 J.
22 Construction
This clause of Part 1 is applicable except as follows.
22.6 Addition:
The seal is removed from the shaft of class II pumps. The pump is supplied at rated voltage
and operated for 10 min with the maximum head that can be achieved.
If a static pressure can occur, the test is repeated at a pressure corresponding to the
maximum total head.
The pump shall then withstand the electric strength test of 16.3.
Shower-boost pumps having a separate enclosure shall have a drain hole in the enclosure
positioned so that the water can drain out without impairing electrical insulation, unless water
cannot accumulate within the enclosure in normal use. The hole shall be at least 5 mm in
diameter or 20 mm in area with a width of least 3 mm.
22.18 Addition:
NOTE 101 Direct contact between copper and aluminium or their alloys is likely to result in corrosion.
22.40 Addition:
The requirement is not applicable to submersible pumps and vertical wet pit pumps.

– 14 – 60335-2-41 © IEC:2012
22.101 Pumps shall withstand the static pressure occurring in normal use.
Compliance is checked by the following test.
The pump is filled with water, ensuring that all air is removed. The pressure is raised
hydraulically to 1,2 times the pressure occurring at maximum total head and is maintained for
1 min.
Inspection shall show that there is no trace of water on insulation that could result in a
reduction of clearances and creepage distances below the values specified in Clause 29.
Submersible pumps and vertical wet pit pumps are not subjected to this test.
22.102 The material of the pump shall not be affected by the liquid for which the pump is
intended if a hazard could result.
Compliance is checked by inspection.
22.103 Submersible pumps and vertical wet pit pumps shall be constructed so that
pollution of the liquid by lubricants is prevented as far as possible.
Compliance is checked by inspection.
22.104 Submersible pumps, and vertical wet pit pumps, having a mass exceeding 3 kg
shall be constructed so that means for hoisting can be attached.
Compliance is checked by inspection.
22.105 Class I submersible pumps having a plastic enclosure shall be constructed so that
leakage of liquid into the motor does not result in a hazard.
Compliance is checked by the following test.
A hole is made in the plastic enclosure.
The pump is placed in the most unfavourable position intended in normal use. Water
containing approximately 1 % NaCl is poured into the enclosure at a rate of approximately 100
ml/min, avoiding live parts. The accumulating water shall come into contact with earthed
metal before it reaches live parts.
22.106 Shower-boost pumps shall be constructed so that they can be permanently
connected to the water supply.
Shower-boost pumps for wall mounting shall be constructed so that they can be securely
fixed independently of the connection to the water supply. Keyhole slots, hooks and similar
means, without any further means to prevent the pump from being inadvertently lifted off the
wall, are not considered to be adequate means for fixing the pump securely.
Compliance is checked by inspection.
23 Internal wiring
This clause of Part 1 is applicable.

60335-2-41 © IEC:2012 – 15 –
24 Components
This clause of Part 1 is applicable except as follows.
24.1.3 Addition:
Level switches are subjected to 50 000 cycles of operation.
24.2 Modification:
Level switches may be incorporated in interconnection cords.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable except as follows.
25.1 Modification:
Submersible pumps, other than class III pumps, shall be provided with a supply cord fitted
with a plug.
25.3 Modification:
Submersible pumps, other than class III pumps, shall be provided with a flexible cord.
25.5 Addition:
Type X attachment is not allowed for submersible pumps.
Type Z attachment is allowed for
– pumps having a rated power input not exceeding 100 W;
– pumps for garden ponds.
25.7 Addition:
For pumps intended for outdoor use and pumps intended for use in swimming pools, other
than class III pumps, the supply cord shall be polychloroprene sheathed or equivalent
synthetic elastomer and not be lighter than heavy polychloroprene sheathed cord (code
designation 60245 IEC 66). However, fixed pumps having a rated power input not
exceeding 1 kW and portable pumps having a mass not exceeding 5 kg may be fitted with
ordinary polychloroprene sheathed cord (code designation 60245 IEC 57).
NOTE 101 The mass of the pump is determined without water and without the supply cord.
25.8 Addition:
The supply cord of submersible pumps intended for outdoor use, other than class III
pumps, shall have a length of 10 m or at least 3 m in excess of the maximum operating depth
marked on the pump, whichever is greater.
The supply cord of other submersible pumps, other than class III pumps, aquarium pumps
and table fountain pumps, shall have a length of at least 3 m in excess of the maximum
operating depth marked on the pump.

– 16 – 60335-2-41 © IEC:2012
The supply cord of deep well pumps shall have a length of at least 3 m in excess of the
maximum well depth, unless the deep well pump is provided with a coupling device having at
least the same degree of protection as required for the pump.
25.14 Addition:
Portable pumps, except table fountain pumps and aquarium pumps, are subjected to the
test.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable.
28 Screws and connections
This clause of Part 1 is applicable.
29 Clearances, creepage distances and solid insulation
This clause of Part 1 is applicable.
30 Resistance to heat and fire
This clause of Part 1 is applicable except as follows.
30.2 Modification:
For submersible pumps if their live parts are completely contained within an enclosure of
metal or porcelain and the instructions state that the pump shall be supplied through a
residual current device (RCD) having a rated residual operating current not exceeding 30 mA,
30.2.1 is applicable. For other pumps 30.2.3 is applicable.
31 Resistance to rusting
This clause of Part 1 is applicable.
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

60335-2-41 © IEC:2012 – 17 –
Annexes
The annexes of Part 1 are applicable.

– 18 – 60335-2-41 © IEC:2012
Bibliography
The bibliography of Part 1 is applicable except as follows.
Addition:
IEC 60335-2-51, Household and similar electrical appliances – Safety – Part 2-51: Particular
requirements for stationary circulation pumps for heating and service water installations

____________
– 20 – 60335-2-41 © CEI:2012
SOMMAIRE
AVANT-PROPOS . 21
INTRODUCTION . 24
1 Domaine d’application . 25
2 Références normatives . 26
3 Termes et définitions . 26
4 Exigences générales . 27
5 Conditions générales d’essais . 27
6 Classification . 27
7 Marquage et instructions . 28
8 Protection contre l’accès aux parties actives . 29
9 Démarrage des appareils à moteur . 29
10 Puissance et courant . 29
11 Echauffements . 29
12 Vacant . 30
13 Courant de fuite et rigidité diélectrique à la température de régime . 30
14 Surtensions transitoires . 30
15 Résistance à l’humidité . 30
16 Courant de fuite et rigidité diélectrique . 31
17 Protection contre la surcharge des transformateurs et des circuits associés . 31
18 Endurance . 31
19 Fonctionnement anormal . 31
20 Stabilité et dangers mécaniques . 31
21 Résistance mécanique . 31
22 Construction . 32
23 Conducteurs internes . 33
24 Composants . 33
25 Raccordement au rése
...
