IEC 60332-1-2:2004/AMD1:2015
(Amendment)Amendment 1 - Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
Amendment 1 - Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
Amendement 1 - Essais des câbles électriques et à fibres optiques soumis au feu - Partie 1-2: Essai de propagation verticale de la flamme sur conducteur ou câble isolé - Procédure pour flamme à prémélange de 1 kW
General Information
- Status
- Published
- Publication Date
- 27-Jul-2015
- Technical Committee
- TC 20 - Electric cables
- Drafting Committee
- WG 18 - TC 20/WG 18
- Current Stage
- PPUB - Publication issued
- Start Date
- 28-Jul-2015
- Completion Date
- 31-Aug-2015
Relations
- Effective Date
- 05-Sep-2023
- Effective Date
- 05-Sep-2023
Overview
IEC 60332-1-2:2004/AMD1:2015 is an important amendment to the international standard concerning fire safety tests on electric and optical fibre cables. This amendment focuses specifically on testing the vertical flame propagation behavior of a single insulated wire or cable using a 1 kW pre-mixed flame. Developed by the International Electrotechnical Commission (IEC) Technical Committee 20 on Electric Cables, this update refines the testing procedures to ensure consistent and reliable fire performance assessment under controlled fire conditions.
Fire safety in cables is critical as it directly affects the overall safety of electrical installations, especially in environments where flame spread must be minimized to prevent larger fire hazards. This amendment advances the methodology by clarifying sample preparation, flame application, positioning of test specimens, and precise measurement techniques.
Key Topics
Test Scope and Procedure
The amendment defines a standardized method to test vertical flame propagation on a single insulated wire or cable section. It specifies the use of a 1 kW pre-mixed blue flame applied for a determined time based on cable diameter to replicate fire exposure realistically.Sample Preparation and Measurement
Samples must be insulated conductors or cables, each measuring approximately 600 ± 25 mm in length. The diameter measurement techniques have been updated to align with IEC 60811-203, ensuring accurate and repeatable determination of cable dimensions critical for test timing.Sample Positioning in Test Apparatus
The test cable is mounted vertically and centered in a metal enclosure set 50 mm from the base, secured with copper wires. Precise spatial arrangements for the test specimen position and the burner flame impact point are mandated to maintain consistency between tests.Flame Application and Duration
Burning parameters require the burner to be angled at 45° ± 2° to the vertical axis with the flame tip impinging exactly 475 ± 5 mm from the upper support's bottom edge. The flame application duration correlates to the measured overall diameter, with specific rules for round and non-circular cables to address various cable geometries rigorously.Updates to Normative References and Terminology
The amendment incorporates new normative references including IEC 60811-203 for dimensional measurement and aligns terminology for fire safety with ISO 13943 definitions, supporting clarity and harmonization with other international fire safety standards.
Applications
Cable Manufacturing and Quality Assurance
Manufacturers utilize IEC 60332-1-2:2004/AMD1:2015 to verify their insulated wires and cables meet fire safety criteria, ensuring products resist vertical flame spread and reduce fire propagation risks in installed conditions.Building and Electrical Safety Compliance
Regulatory bodies and safety inspectors may reference this test method to confirm that electrical installations conform to fire safety standards, fostering safer building environments, especially in high-risk areas like public buildings, transportation systems, and industrial facilities.Product Development and Certification
The amendment guides test labs and certifiers in performing consistent, standardized flame propagation tests, facilitating product certifications required for international trade and market access.Fire Risk Assessment and Engineering
Fire safety engineers incorporate test results based on this standard in assessing overall building fire risk and designing fire-retardant cable systems to comply with stringent safety regulations.
Related Standards
- IEC 60332-1-1 – Specifies the test apparatus and burner details referenced for flame application positioning in the amendment.
- IEC 60811-203 – Provides test methods for measurement of overall cable dimensions, adopted in this amendment for determining flame application duration.
- ISO 13943 – Fire safety vocabulary standard offering key terms and definitions used to harmonize technical language.
- Other IEC cables standards related to fire resistance testing, including parts addressing horizontal flame tests, circuit integrity under fire, and smoke emission.
Implementing the IEC 60332-1-2:2004/AMD1:2015 amendment ensures that single insulated cables withstand flame exposure according to internationally recognized criteria. This contributes to safer electrical infrastructure with reliable assessment tools enhancing cable fire performance verification. For industry professionals, staying current with this amendment supports compliance, product safety, and improved fire risk mitigation strategies in cable-based applications.
IEC 60332-1-2:2004/AMD1:2015 - Amendment 1 - Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
Frequently Asked Questions
IEC 60332-1-2:2004/AMD1:2015 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 1 - Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame". This standard covers: Amendment 1 - Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
Amendment 1 - Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
IEC 60332-1-2:2004/AMD1:2015 is classified under the following ICS (International Classification for Standards) categories: 13.220.40 - Ignitability and burning behaviour of materials and products; 29.020 - Electrical engineering in general; 29.060.20 - Cables. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60332-1-2:2004/AMD1:2015 has the following relationships with other standards: It is inter standard links to IEC 60332-1-2:2004, IEC 60332-1-2:2025. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase IEC 60332-1-2:2004/AMD1:2015 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of IEC standards.
Standards Content (Sample)
IEC 60332-1-2 ®
Edition 1.0 2015-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
G ROUP SAFETY PUBLICATION
PU BLICATION GROUPÉE DE SÉCURITÉ
AMENDMENT 1
AMENDEMENT 1
Tests on electric and optical fibre cables under fire conditions –
Part 1-2: Test for vertical flame propagation for a single insulated wire or cable –
Procedure for 1 kW pre-mixed flame
Essais des câbles électriques et à fibres optiques soumis au feu –
Partie 1-2: Essai de propagation verticale de la flamme sur conducteur ou câble
isolé – Procédure pour flamme à prémélange de 1 kW
IEC 60332-1-2:2004-07/AMD1:2015-07(en-fr)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des
CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60332-1-2 ®
Edition 1.0 2015-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
G ROUP SAFETY PUBLICATION
PU BLICATION GROUPÉE DE SÉCURITÉ
AMENDMENT 1
AMENDEMENT 1
Tests on electric and optical fibre cables under fire conditions –
Part 1-2: Test for vertical flame propagation for a single insulated wire or cable –
Procedure for 1 kW pre-mixed flame
Essais des câbles électriques et à fibres optiques soumis au feu –
Partie 1-2: Essai de propagation verticale de la flamme sur conducteur ou câble
isolé – Procédure pour flamme à prémélange de 1 kW
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.220.40; 29.020; 29.060.20 ISBN 978-2-8322-2799-2

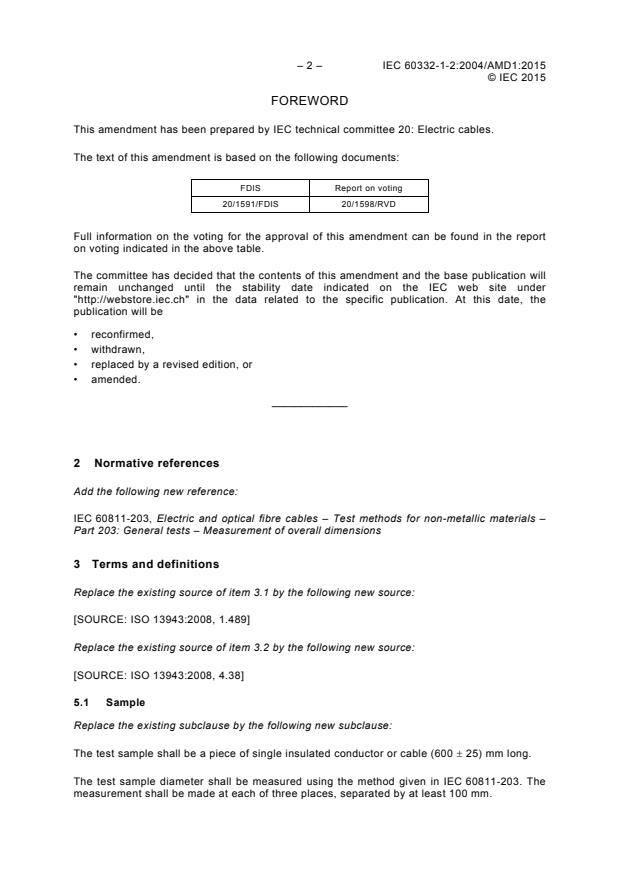

– 2 – IEC 60332-1-2:2004/AMD1:2015
© IEC 2015
FOREWORD
This amendment has been prepared by IEC technical committee 20: Electric cables.
The text of this amendment is based on the following documents:
FDIS Report on voting
20/1591/FDIS 20/1598/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
2 Normative references
Add the following new reference:
IEC 60811-203, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 203: General tests – Measurement of overall dimensions
3 Terms and definitions
Replace the existing source of item 3.1 by the following new source:
[SOURCE: ISO 13943:2008, 1.489]
Replace the existing source of item 3.2 by the following new source:
[SOURCE: ISO 13943:2008, 4.38]
5.1 Sample
Replace the existing subclause by the following new subclause:
The test sample shall be a piece of single insulated conductor or cable (600 ± 25) mm long.
The test sample diameter shall be measured using the method given in IEC 60811-203. The
measurement shall be made at each of three places, separated by at least 100 mm.
© IEC 2015
The average of the three values obtained shall be rounded to obtain the overall diameter. If
the calculation gives 5 or more for the second decimal figure, raise the first to the next
number; thus, for example, 5,75 is rounded to 5,8. If the calculation gives 4 or less for the
second decimal figure, maintain the first number; thus, for example, 5,74 is rounded to 5,7.
The overall diameter obtained shall be used for the selection of the time for flame application.
5.3 Positioning of test piece
Replace the existing subclause by the following new subclause:
The test piece shall be straightened and secured to two horizontal supports by means of a
suitable size of copper wire, in a vertical position in the centre of the metal enclosure, as
described in IEC 60332-1-1, so that the distance between the bottom of the upper support and
the top of the lower support is (550 ± 5) mm. In addition, the test piece shall be positioned so
that the bottom of the specimen is approximately 50 mm from the base of the enclosure (see
Figure 1).
The verti
...
