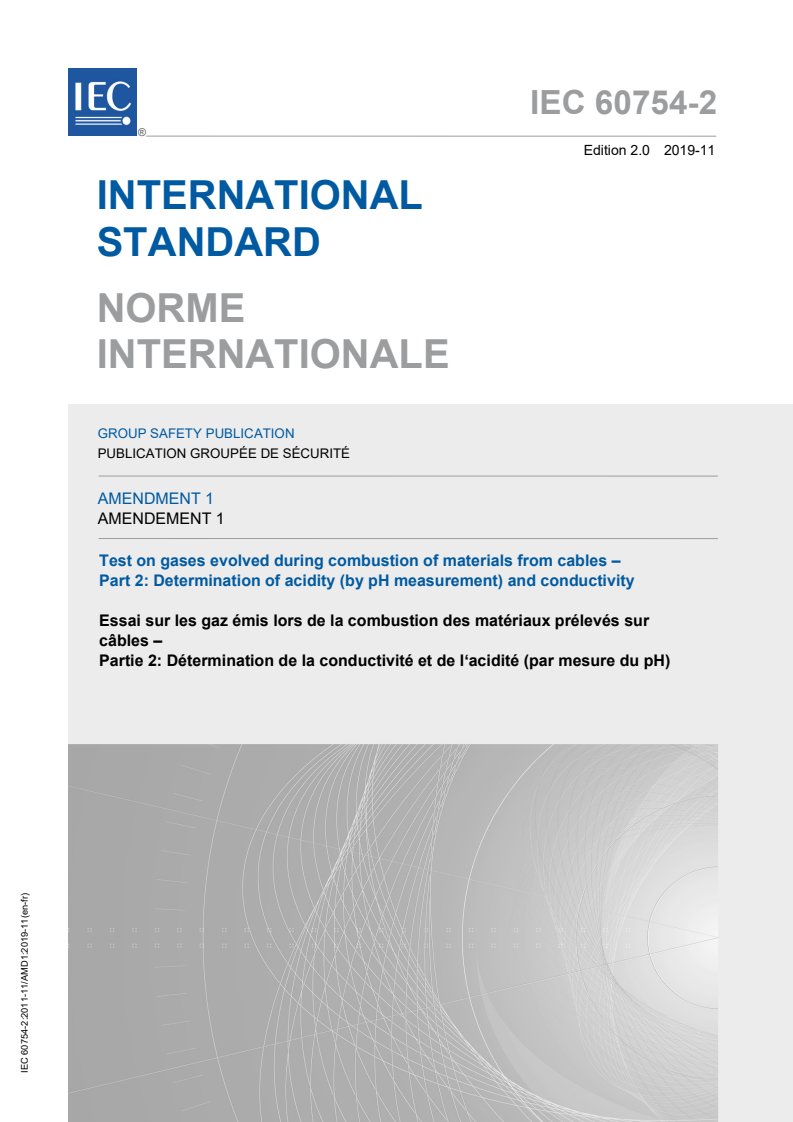

IEC 60754-2:2011/AMD1:2019

IEC 60754-2 ®
Edition 2.0 2019-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
G ROUP SAFETY PUBLICATION
PU BLICATION GROUPÉE DE SÉCURITÉ

AMENDMENT 1
AMENDEMENT 1
Test on gases evolved during combustion of materials from cables –
Part 2: Determination of acidity (by pH measurement) and conductivity

Essai sur les gaz émis lors de la combustion des matériaux prélevés sur
câbles –
Partie 2: Détermination de la conductivité et de l‘acidité (par mesure du pH)

IEC 60754-2:2011-11/AMD1:2019-11(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

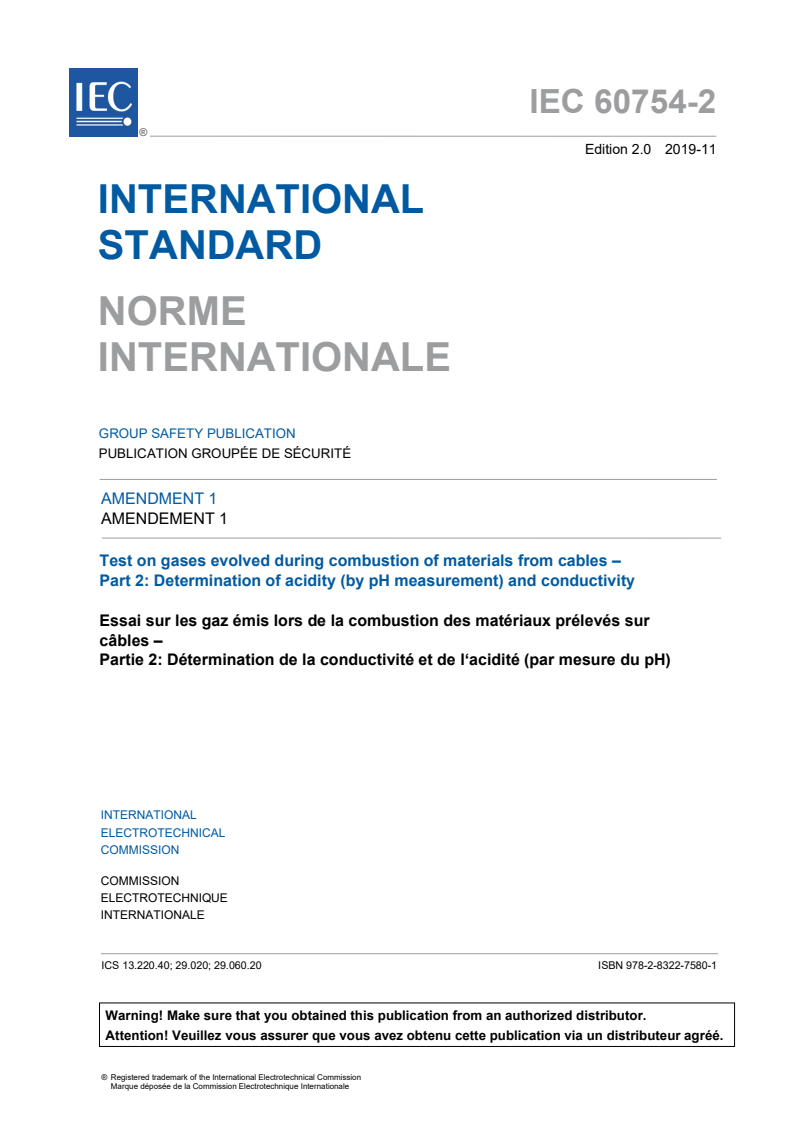

IEC 60754-2 ®
Edition 2.0 2019-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
G ROUP SAFETY PUBLICATION
PU BLICATION GROUPÉE DE SÉCURITÉ

AMENDMENT 1
AMENDEMENT 1
Test on gases evolved during combustion of materials from cables –

Part 2: Determination of acidity (by pH measurement) and conductivity

Essai sur les gaz émis lors de la combustion des matériaux prélevés sur

câbles –
Partie 2: Détermination de la conductivité et de l‘acidité (par mesure du pH)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.220.40; 29.020; 29.060.20 ISBN 978-2-8322-7580-1

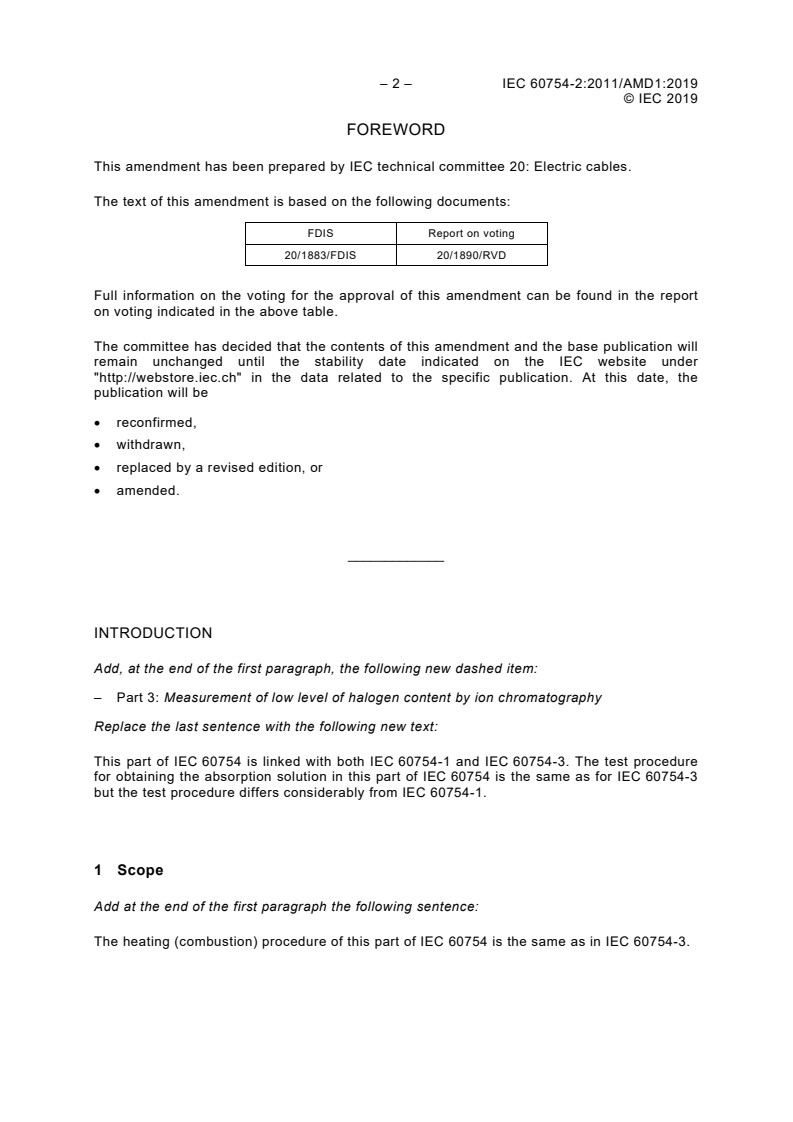

– 2 – IEC 60754-2:2011/AMD1:2019
© IEC 2019
FOREWORD
This amendment has been prepared by IEC technical committee 20: Electric cables.
The text of this amendment is based on the following documents:
FDIS Report on voting
20/1883/FDIS 20/1890/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
INTRODUCTION
Add, at the end of the first paragraph, the following new dashed item:
– Part 3: Measurement of low level of halogen content by ion chromatography
Replace the last sentence with the following new text:
This part of IEC 60754 is linked with both IEC 60754-1 and IEC 60754-3. The test procedure
for obtaining the absorption solution in this part of IEC 60754 is the same as for IEC 60754-3
but the test procedure differs considerably from IEC 60754-1.

1 Scope
Add at the end of the first paragraph the following sentence:
The heating (combustion) procedure of this part of IEC 60754 is the same as in IEC 60754-3.

© IEC 2019
5.4 Combustion boats
In the last paragraph, replace the sentence “The combustion boat shall then be weighed to an
accuracy of 0,1 mg until two identical consecutive weights are obtained.” with the following
new text:
The combustion boat shall then be weighed with an analytical balance until two identical
consecutive measurements in mg, rounded to one decimal figure, are obtained. The accuracy
is described in 5.7.
5.6 Air supply system
Replace the second and third paragraphs, including the NOTE, with the following:
2 -3
The flow rate of air, ρ, shall be 20 m/h × (π/4) x D x 10 with a tolerance of ±10 %, where D
is the internal diameter of the quartz tube.
EXAMPLE
2 -3
If D = 30 mm, 20 m/h × (π/4) × D x 10 = 14,1 l/h, and the flow rate can be in the range 12,7 l/h to 15,5 l/h.
2 -3
If D = 46 mm, 20 m/h × (π/4) × D x 10 = 33,2 l/h, and the flow rate can be in the range 29,9 l/h to 36,5 l/h.
NOTE The flow rate of air, ρ, is related to the velocity, v , according to the formula
π D²
−3
ρ=v ××10
where
D is the internal diameter of the tube (mm);
ρ is the flow rate of air (l/h);
v is the speed of air (m/h).
2 -3
If v = 20 m/h, this becomes, ρ = 15,7 m/h × D x 10 .
Replace under Method 2 the second sentence with the following:
The air shall be filtered and dried and shall be introduced on the inlet side of the quartz glass
tube (see Figure 4).
5.7 Analytical balance
Replace the sentence with the following:
The balance shall have a resolution and an accuracy of ±0,1 mg or better.

5.8 Laboratory glassware
Replace “ISO 1042” with “ISO 1042 Class B”.

– 4 – IEC 60754-2:2011/AMD1:2019
© IEC 2019
6.3 Mass of specimen
In the first paragraph, replace the first sentence with the following: Weigh the combustion
boat (m ) as defined in 5.4.
In the first paragraph, at the end of the second sentence, replace the text “which shall be
weighed to an accuracy of 0,1 mg” with “which shall be weighed with an analytical balance so
a measurement in mg, rounded to one decimal figure (m ), is obtained.”
7.4 Washing procedure
Replace, at the end of the last sentence, “made up to 1 000 ml” with “made up to the 1 000 ml
mark.”.
8.1 General method
Replace the second paragraph with the following new text:
If, in the case of reporting against a performance requirement, the coefficient of variation is
higher than 5 % and the difference between the requirement and the mean value is less than
or equal to 2,5 times the standard deviation, a further three tests shall be carried out and the
mean value, standard deviation and coefficient of variation shall be recalculated using the six
values. If the difference be
...
