IEC 60730-2-6:2015
(Main)Automatic electrical controls - Part 2-6: Particular requirements for automatic electrical pressure sensing controls including mechanical requirements
Automatic electrical controls - Part 2-6: Particular requirements for automatic electrical pressure sensing controls including mechanical requirements
IEC 60730-2-6:2015 applies to automatic electrical pressure sensing controls with a minimum gauge pressure rating of -60 kPa and a maximum gauge pressure rating of 4,2 MPa, for use in, on or in association with, equipment. The equipment may use electricity, gas, oil, solid fuel, solar thermal energy, etc. or a combination thereof. This standard is also applicable to individual pressure sensing controls utilized as part of a control system or pressure sensing controls which are mechanically integral with multi-functional controls having non-electrical outputs. Automatic electrical pressure sensing controls for equipment used by the public, such as equipment intended to be used by laymen in shops, in light industry and on farms, are within the scope of this standard. This standard does not apply to pressure sensing controls intended exclusively for industrial process applications unless explicitly mentioned in the relevant equipment standard. This standard applies to inherent safety, operating values, operating sequences where such are associated with equipment protection, and to the testing of automatic electrical pressure sensing controls used in, on or in association with equipment. This standard is also applicable to the functional safety of low complexity safety related pressure sensing controls and systems. This standard is also applicable to pressure sensing controls for appliances within the scope of IEC 60335-1. This third edition cancels and replaces the second edition published in 2007. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- aligns the text with IEC 60730-1, Edition 5;
- modifies requirements for Class B control function (H.27.1.2.2);
- modifies requirements for Class C control function (H.27.1.2.3) and
- modifies requirements for faults during lock-out or safety- shut-down. Key words: sensing controls, control systems, pressure sensing
This publication is to be read in conjunction with IEC 60730-1:2013.
Dispositifs de commande électrique automatiques - Partie 2-6: Exigences particulières pour les dispositifs de commande électrique automatiques sensibles à la pression y compris les exigences mécaniques
IEC 60730-2-6:2015 s'applique aux dispositifs de commande électrique automatiques sensibles à la pression avec des caractéristiques assignées de pression minimales de -60 kPa et des caractéristiques assignées de pression maximales de 4,2 Mpa, destinés à être utilisés dans, sur ou avec des matériels. Les matériels peuvent utiliser l'électricité, le gaz, le pétrole, des combustibles solides, l'énergie thermique solaire, etc. ou une combinaison de ces sources d’énergie. La présente norme s’applique également aux dispositifs de commande sensibles à la pression individuels utilisés comme partie d'un système de commande ou comme dispositifs de commande sensibles à la pression intégrés mécaniquement dans des dispositifs de commande multifonctions ayant des sorties non électriques. Les dispositifs de commande électrique automatiques sensibles à la pression pour matériels utilisés par le public, par exemple les matériels destinés à être utilisés par des personnes inexpérimentées dans les magasins, l’industrie légère et dans les fermes, relèvent du domaine d’application de la présente norme.
La présente norme ne s'applique pas aux dispositifs de commande sensibles à la pression prévus exclusivement pour des applications industrielles, sauf mention contraire dans la norme de matériel appropriée. La présente norme s’applique à la sécurité intrinsèque, aux valeurs de fonctionnement et aux séquences de fonctionnement dans la mesure où elles interviennent dans la protection des matériels, ainsi qu’aux essais des dispositifs de commande électrique automatiques sensibles à la pression utilisés dans, sur ou avec des matériels.
La présente norme s’applique également aux systèmes et dispositifs de commande sensibles à la pression de sécurité fonctionnelle et de sécurité peu complexe.
La présente norme s'applique également aux dispositifs de commande sensibles à la pression pour appareils d’utilisation faisant partie du domaine d'application de l’IEC 60335-1.
Cette troisième édition annule et remplace la deuxième édition parue en 2007. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- alignement du texte de cette édition sur celui de l’IEC 60730-1, Édition 5;
- modification des exigences de la fonction de commande de classe B (H.27.1.2.2);
- modification des exigences de la fonction de commande de classe C (H.27.1.2.3);
- modification des exigences relatives aux pannes pendant le verrouillage ou l’arrêt de sécurité.
La présente partie 2 est destinée à être utilisée conjointement avec l’IEC 60730-1:2013
Mots clés: commande sensibles, système de commande, sensibles à la pression
General Information
Relations
Buy Standard
Standards Content (Sample)
IEC 60730-2-6 ®
Edition 3.0 2015-04
INTERNATIONAL
STANDARD
Automatic electrical controls –
Part 2-6: Particular requirements for automatic electrical pressure sensing
controls including mechanical requirements
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 60730-2-6 ®
Edition 3.0 2015-04
INTERNATIONAL
STANDARD
Automatic electrical controls –
Part 2-6: Particular requirements for automatic electrical pressure sensing
controls including mechanical requirements
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 97.120 ISBN 978-2-8322-2587-5

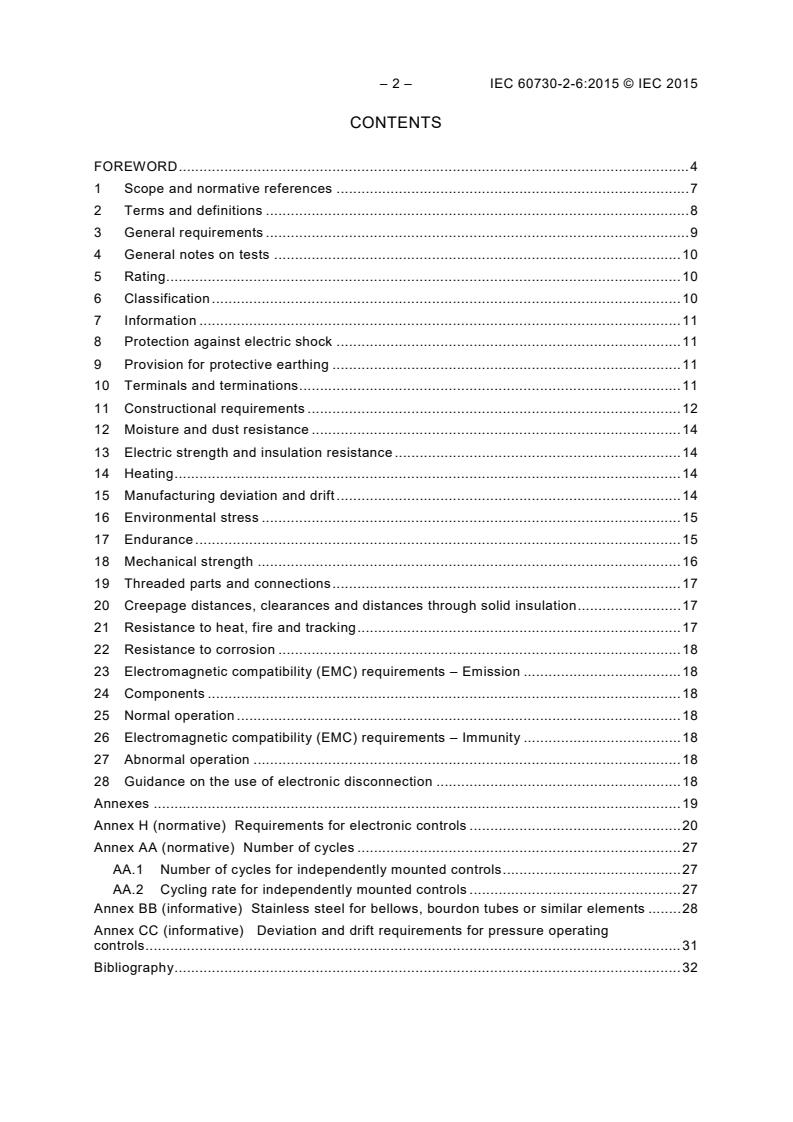

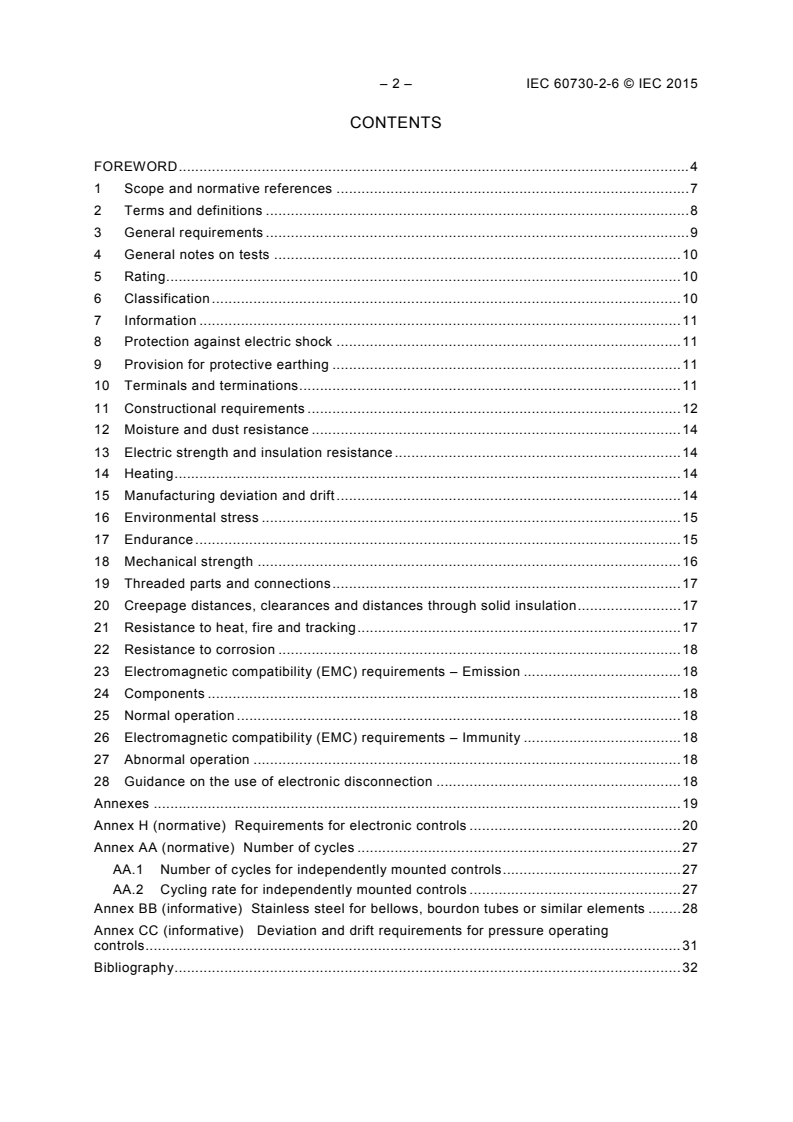

– 2 – IEC 60730-2-6 © IEC 2015
