(Main)Technical Requirements for Current Collectors for ground-level feeding system on road vehicles in operation
Technical Requirements for Current Collectors for ground-level feeding system on road vehicles in operation
This document specifies the general characteristics which are to be applied to ground level current collector devices, to enable conductive current collection by road vehicles from a feeding track integrated in the roadway. It defines the interfaces between the current collector device and its environment as well as the electrical safety concept. It also specifies the necessary tests for the current collector devices and gives recommendations for their maintenance. This document is applicable to current collector devices on road vehicles for ground-level feeding operation on electrified public roads and highways. This document is not applicable to motorcycles (including tricycles and quadricycles). This document is not applicable to vehicles or electric buses with dynamic or static inductive charging systems and related power supplies.
Technische Anforderungen an Stromabnehmer für bodennahe Einspeiseanlagen in Straßenfahrzeugen im Betrieb
Exigences techniques relatives aux capteurs de courant pour les systèmes d'alimentation au sol sur les véhicules routiers
Tehnične zahteve za tokovne odjemnike za prizemno električno napajanje za cestna vozila v obratovanju
Ta dokument določa splošne lastnosti, ki jih je treba zagotoviti tokovnim odjemnikom na tleh za odjem konduktivnih tokov s strani cestnih vozil iz napajalne tračnice, vgrajene v cestišče.
Določa vmesnike med tokovnim odjemnikom in njegovo okolico ter koncept električne varnosti.
Prav tako določa potrebne preskuse za tokovne odjemnike in navaja priporočila za njihovo vzdrževanje.
Ta dokument se uporablja za tokovne odjemnike na cestnih vozilih za talno napajanje na elektrificiranih javnih cestah in avtocestah.
Dokument se ne uporablja za motorna kolesa (vključno s trikolesnimi in štirikolesnimi vozili).
Dokument se ne uporablja za vozila ali električne avtobuse z dinamičnim ali statično induktivnim sistemom polnjenja in s tem povezanim napajanjem.
General Information
Standards Content (Sample)

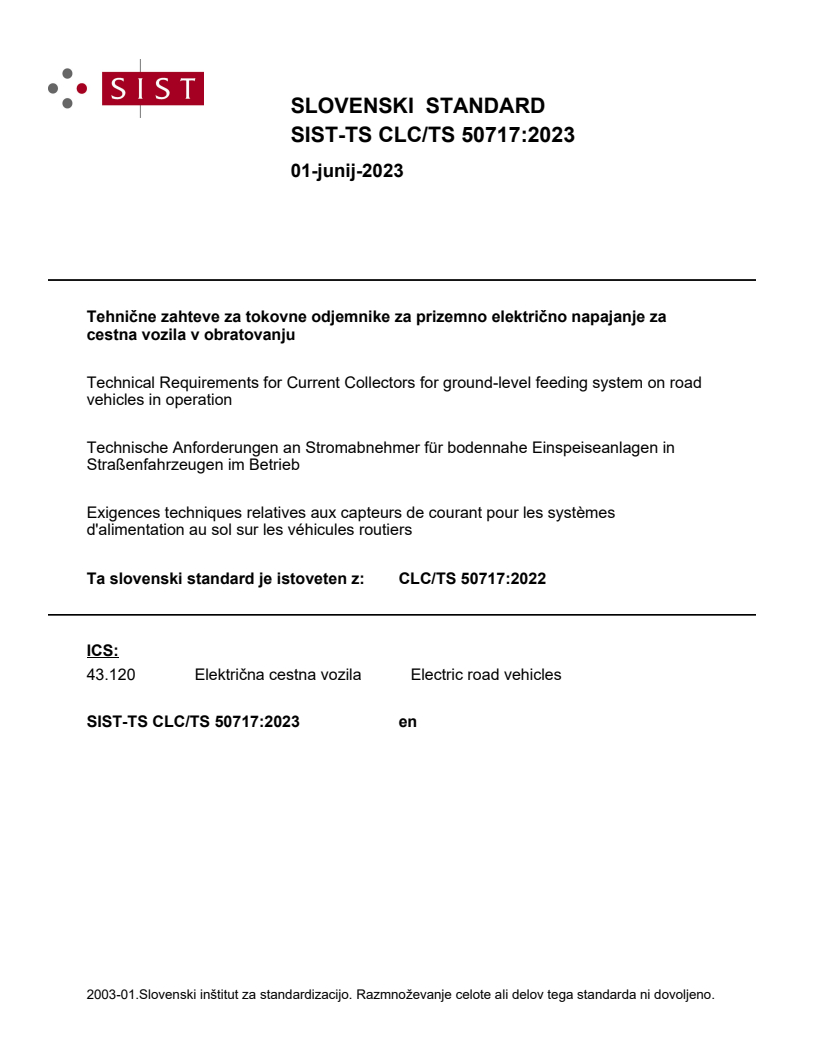

SLOVENSKI STANDARD
SIST-TS CLC/TS 50717:2023
01-junij-2023
Tehnične zahteve za tokovne odjemnike za prizemno električno napajanje za
cestna vozila v obratovanju
Technical Requirements for Current Collectors for ground-level feeding system on road
vehicles in operation
Technische Anforderungen an Stromabnehmer für bodennahe Einspeiseanlagen in
Straßenfahrzeugen im Betrieb
Exigences techniques relatives aux capteurs de courant pour les systèmes
d'alimentation au sol sur les véhicules routiers
Ta slovenski standard je istoveten z: CLC/TS 50717:2022
ICS:
43.120 Električna cestna vozila Electric road vehicles
SIST-TS CLC/TS 50717:2023 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST-TS CLC/TS 50717:2023
---------------------- Page: 2 ----------------------
SIST-TS CLC/TS 50717:2023
TECHNICAL SPECIFICATION CLC/TS 50717
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION December 2022
ICS 43.120
English Version
Technical Requirements for Current Collectors for ground-level
feeding system on road vehicles in operation
Exigences techniques relatives aux capteurs de courant Technische Anforderungen an Stromabnehmer für
pour les systèmes d'alimentation au sol sur les véhicules bodennahe Einspeiseanlagen in Straßenfahrzeugen im
routiers Betrieb
This Technical Specification was approved by CENELEC on 2022-11-07.
CENELEC members are required to announce the existence of this TS in the same way as for an EN and to make the TS available promptly
at national level in an appropriate form. It is permissible to keep conflicting national standards in force.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. CLC/TS 50717:2022 E
---------------------- Page: 3 ----------------------
SIST-TS CLC/TS 50717:2023
CLC/TS 50717:2022 (E)

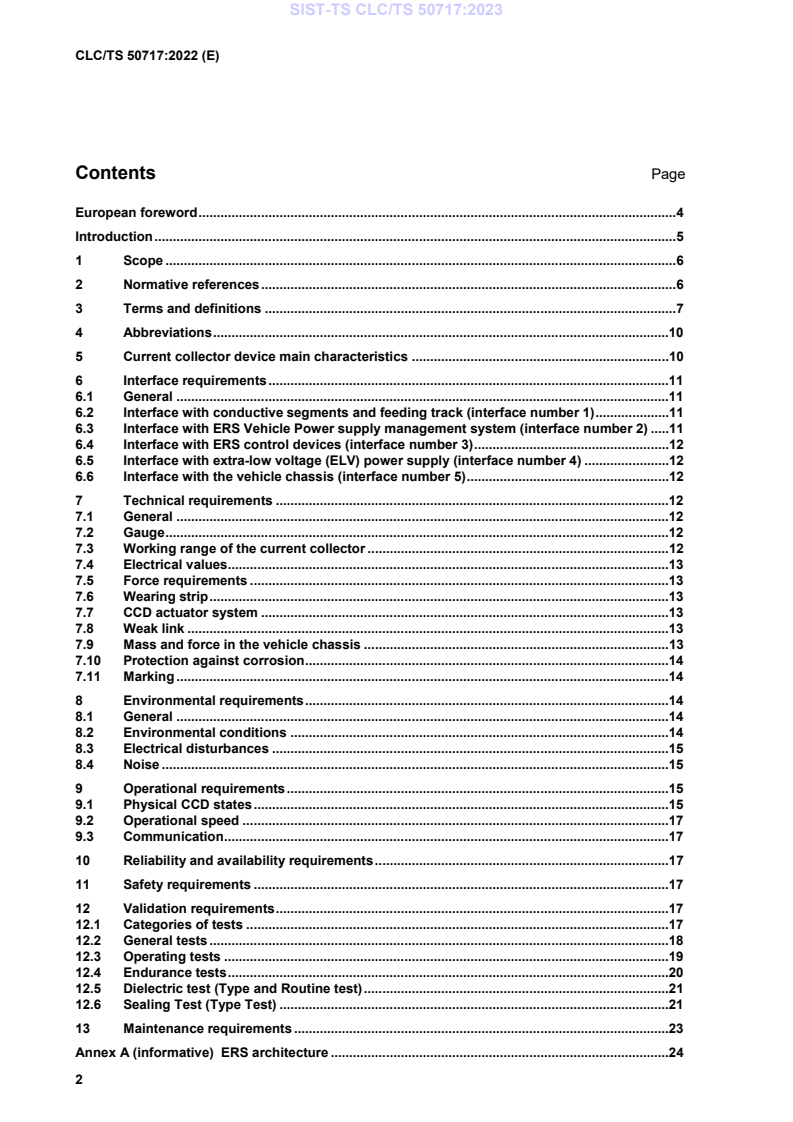

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Abbreviations .10
5 Current collector device main characteristics .10
6 Interface requirements .11
6.1 General .11
6.2 Interface with conductive segments and feeding track (interface number 1) .11
6.3 Interface with ERS Vehicle Power supply management system (interface number 2) .11
6.4 Interface with ERS control devices (interface number 3) .12
6.5 Interface with extra-low voltage (ELV) power supply (interface number 4) .12
6.6 Interface with the vehicle chassis (interface number 5) .12
7 Technical requirements .12
7.1 General .12
7.2 Gauge .12
7.3 Working range of the current collector .
...
