EN 61340-4-3:2001

SLOVENSKI STANDARD
01-september-2002
Electrostatics - Part 4-3: Standard test methods for specific applications -
Footwear
Electrostatics -- Part 4-3: Standard test methods for specific applications - Footwear
Elektrostatik -- Teil 4-3: Standard-Prüfverfahren für spezielle Anwendungen - Schuhwerk
Electrostatique -- Partie 4-3: Méthodes d'essai normalisées pour des applications
spécifiques - Chaussures
Ta slovenski standard je istoveten z: EN 61340-4-3:2001
ICS:
17.220.99 Drugi standardi v zvezi z Other standards related to
elektriko in magnetizmom electricity and magnetism
61.060 Obuvala Footwear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 61340-4-3
NORME EUROPÉENNE
EUROPÄISCHE NORM November 2001
ICS 17.220.99; 29.020; 61.060
English version
Electrostatics
Part 4-3: Standard test methods for specific applications -
Footwear
(IEC 61340-4-3:2001)
Electrostatique Elektrostatik
Partie 4-3: Méthodes d'essai normalisées Teil 4-3: Standard-Prüfverfahren für
pour des applications spécifiques - spezielle Anwendungen -
Chaussures Schuhwerk
(CEI 61340-4-3:2001) (IEC 61340-4-3:2001)
This European Standard was approved by CENELEC on 2001-10-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands,
Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2001 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61340-4-3:2001 E

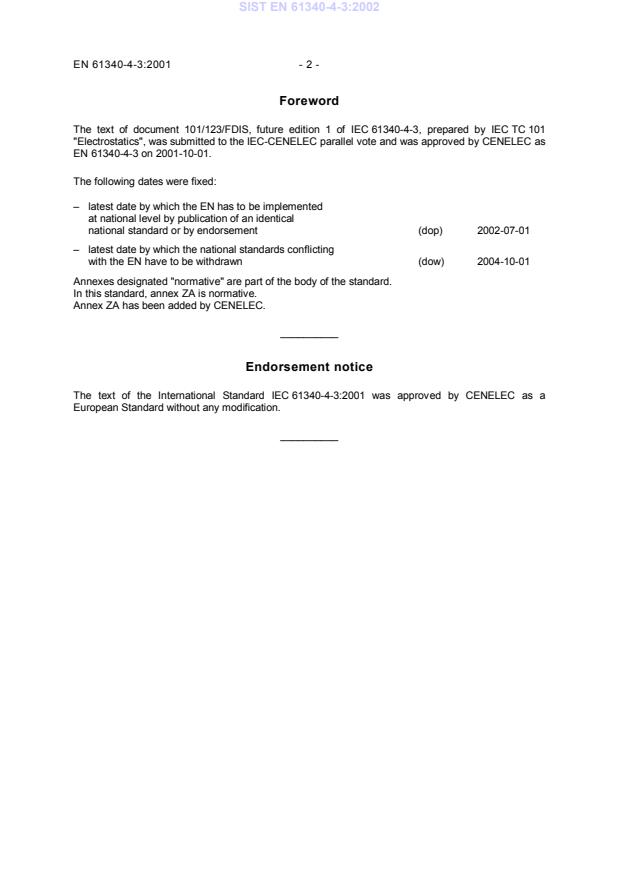

Foreword
The text of document 101/123/FDIS, future edition 1 of IEC 61340-4-3, prepared by IEC TC 101
"Electrostatics", was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 61340-4-3 on 2001-10-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2002-07-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2004-10-01
Annexes designated "normative" are part of the body of the standard.
In this standard, annex ZA is normative.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61340-4-3:2001 was approved by CENELEC as a
European Standard without any modification.
__________
- 3 - EN 61340-4-3:2001
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 61340-2-3 2000 Electrostatics EN 61340-2-3 2000
Part 2-3: Methods of test for
determining the resistance and
resistivity of solid planar materials used
to avoid electrostatic charge
accumulation
NORME
CEI
INTERNATIONALE IEC
61340-4-3
INTERNATIONAL
Première édition
STANDARD
First edition
2001-08
Electrostatique –
Partie 4-3:
Méthodes d’essai normalisées pour
des applications spécifiques –
Chaussures
Electrostatics –
Part 4-3:
Standard test methods for specific applications –
Footwear
© IEC 2001 Droits de reproduction réservés ⎯ Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun procédé, any form or by any means, electronic or mechanical,
électronique ou mécanique, y compris la photocopie et les including photocopying and microfilm, without permission in
microfilms, sans l'accord écrit de l'éditeur. writing from the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http://www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
H
PRICE CODE
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue

61340-4-3 © IEC:2001 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROSTATICS –
Part 4-3: Standard test methods for specific applications –
Footwear
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International Organization
for Standardization (ISO) in accordance with conditions determined by agreement between the two
organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61340-4-3 has been prepared by IEC technical committee 101:
Electrostatics.
The text of this standard is based on the following documents:
FDIS Report on voting
101/123/FDIS 101/124/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
The committee has decided that the contents of this publication will remain unchanged
until 2011. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
61340-4-3 © IEC:2001 – 5 –
INTRODUCTION
Footwear, especially shoes, have become an important electrostatic control device in all areas,
but particularly in electronics manufacturing. Standards exist from various national committees
and these have served as guidance in the preparation of this first International Standard for
electrostatic control footwear.
Control of unwanted electrostatic charge is of particular importance where personnel work
around electrostatic-sensitive processes, materials or items. In many cases, devices such as
wrist straps or other devices are employed to provide an electrical bond between a person’s
skin and a ground connection. Many instances exist in industry where wrist straps or other
tethering devices cannot be safely or conveniently applied, but there is still a need to provide a
ground connection for personnel. A convenient method to provide a ground connection for
personnel is through their feet while standing or walking on a defined and properly specified
electrostatic control floor surface.
The measurement method described in this part of IEC 61340 can be used to monitor electrical
specifications of footwear during manufacture, prior to selection by an end user or periodically
during use. The method described involves the use of a specific set of test equipment and
instruments. Other equipment and instruments may be used to measure
...
