CLC

EN IEC 61076-3-119:2018

(Main)

Connectors for electrical and electronic equipment - Product requirements - Part 3-119: Rectangular connectors - Detail specification for shielded and unshielded, free and fixed 10-way connectors with push-pull coupling for industrial environments for data transmission with frequencies up to 100 MHz

Connectors for electrical and electronic equipment - Product requirements - Part 3-119: Rectangular connectors - Detail specification for shielded and unshielded, free and fixed 10-way connectors with push-pull coupling for industrial environments for data transmission with frequencies up to 100 MHz

IEC 61076-3-119:2017(E) establishes specifications and test requirements for 10-way shielded and unshielded rectangular, free and fixed connectors, with push-pull coupling, for data transmission with frequencies up to 100 MHz and for use in industrial environments. This document specifies free and fixed connectors with round contacts, suitable for screw or crimp terminations. Other terminations techniques, such as solder or printed board connections are upon agreement between manufacturer and user. The free and fixed connectors have a push-pull locking mechanism for IP65 and IP67 protection according to IEC 60529. Connectors according this document are without breaking capacity COC according to 3.9 of IEC 61984:2008, therefore they are not intended to be engaged or disengaged in normal use when live or under load, if not otherwise specified by the manufacturer. Key words: Connectors, Rectangular Connectors, 10 Way Connectors, Push-Pull Coupling

Steckverbinder für elektronische Einrichtungen - Produktanforderungen - Teil 3-119: Rechteckige Steckverbinder - Bauartspezifikation für geschirmte und ungeschirmte, freie und feste Steckverbinder, 10-polig, mit Push-pull-Verriegelung für industrielle Umgebungen für Datenübertragungen mit Frequenzen bis zu 100 MHz

Connecteurs pour équipements électriques et électroniques - Exigences de produit - Partie 3-119: Connecteurs rectangulaires - Spécification particulière pour les fiches et les embases écrantées et non écrantées à 10 voies avec couplage de type pousser-tirer dans des environnements industriels pour la transmission de données à des fréquences jusqu'à 100 MHz

IEC 61076-3-119:2017 établit les spécifications et les exigences d’essai pour les connecteurs rectangulaires, libres et fixes protégés à 10 voies, avec couplage push-pull, pour la transmission de données avec des fréquences allant jusqu’à 100 MHz et pour une utilisation dans les environnements industriels. Ce document spécifie les connecteurs libres et fixes avec des contacts ronds, adaptés aux terminaisons de vis ou de sertissage. D’autres techniques de terminaison, telles que les connexions de soudure ou de panneau imprimé sont sur accord entre le fabricant et l’utilisateur. Les connecteurs libres et fixes disposent d’un mécanisme de verrouillage push-pull pour la protection IP65 et IP67 selon IEC 60529. Selon ce document, les connecteurs sont sans rupture de capacité COC conformément à 3.9 de l’IEC 61984:2008, donc ils ne sont pas destinés à être engagés ou désengagés dans une utilisation normale lorsqu’ils vivent ou sont sous charge, si ce n’est autrement spécifié par le fabricant. Mots clés : Connecteurs, Connecteurs rectangulaires, Connecteurs 10 voies, Couplage Push-Pull

Konektorji za električno in elektronsko opremo - Zahteve za izdelek - 3-119. del: Pravokotni konektorji - Podrobna specifikacija za konektorje z oklepom in brez oklepa, proste ali pritrjene, 10-polne, z zaklepnim spajanjem, za industrijska okolja, za prenos podatkov s frekvencami do 100 MHz (IEC 61076-3-119:2017)

Ta del standarda IEC 61076-3 določa specifikacijo in preskusne zahteve za 10-polne pravokotne proste ali pritrjene konektorje z oklepom ali brez in zaklepnim spajanjem za prenos podatkov s frekvencami do 100 MHz ter za uporabo v industrijskih okoljih.
Ta dokument določa proste in pritrjene konektorje z okroglimi kontakti, ki so primerni za vijačno ali stiskalno spajanje. Druge tehnike spajanja, kot so spajkanje ali priklop na tiskano vezje, so predmet dogovora med proizvajalcem in uporabnikom. Prosti in pritrjeni konektorji so opremljeni z mehanizmom za zaklepno spajanje za zaščito IP65 in IP67 skladno s standardom IEC 60529.
Konektorji, združljivi s tem dokumentom, so brez zmogljivosti prekinitve COC skladno s točko 3.9 standarda EC 61984:2008 in niso zasnovani za odklop ali priklop pri običajni uporabi, ko so pod napetostjo ali obremenitvijo, razen če proizvajalec ne določi drugače.

General Information

Status
Published
Publication Date
15-Mar-2018
Withdrawal Date
11-Jan-2021
ICS
31.220.10 - Plug-and-socket devices. Connectors
Technical Committee
CLC/SR 48B - Connectors
Drafting Committee
IEC/SC 48B - IEC_SC_48B
Current Stage
6060 - Document made available - Publishing
Start Date
16-Mar-2018
Completion Date
16-Mar-2018
Ref Project
SIST EN IEC 61076-3-119:2018 - Connectors for electrical and electronic equipment - Product requirements - Part 3-119: Rectangular connectors - Detail specification for shielded and unshielded, free and fixed 10-way connectors with push-pull coupling for industrial environments for data transmission with frequencies up to 100 MHz (IEC 61076-3-119:2017)

Buy Standard

EN IEC 61076-3-119:2018EN IEC 61076-3-119:2018
PreviousNext
Standard
EN IEC 61076-3-119:2018
English language
39 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Connectors for electrical and electronic equipment - Product requirements - Part 3-119: Rectangular connectors - Detail specification for shielded and unshielded, free and fixed 10-way connectors with push-pull coupling for industrial environments for data transmission with frequencies up to 100 MHz (IEC 61076-3-119:2017)31.220.10Plug-and-socket devices. ConnectorsICS:Ta slovenski standard je istoveten z:EN IEC 61076-3-119:2018SIST EN IEC 61076-3-119:2018en01-junij-2018SIST EN IEC 61076-3-119:2018SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN IEC 61076-3-119
March 2018 ICS 31.220.10
English Version
Connectors for electrical and electronic equipment - Product requirements - Part 3-119: Rectangular connectors - Detail specification for shielded and unshielded, free and fixed 10-way connectors with push-pull coupling for industrial environments for data transmission with frequencies up to 100 MHz (IEC 61076-3-119:2017)
Connecteurs pour équipements électriques et électroniques - Exigences de produit - Partie 3-119: Connecteurs rectangulaires - Spécification particulière pour les fiches et les embases écrantées et non écrantées à 10 voies avec couplage de type pousser-tirer dans des environnements industriels pour la transmission de données à des fréquences jusqu'à 100 MHz (IEC 61076-3-119:2017)
Steckverbinder für elektronische Einrichtungen - Produktanforderungen - Teil 3-119: Rechteckige Steckverbinder - Bauartspezifikation für geschirmte und ungeschirmte, freie und feste Steckverbinder, 10-polig, mit Push-pull-Verriegelung für industrielle Umgebungen für Datenübertragungen mit Frequenzen bis zu 100 MHz (IEC 61076-3-119:2017) This European Standard was approved by CENELEC on 2018-01-12. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Rue de la Science 23,
B-1040 Brussels © 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61076-3-119:2018 E SIST EN IEC 61076-3-119:2018

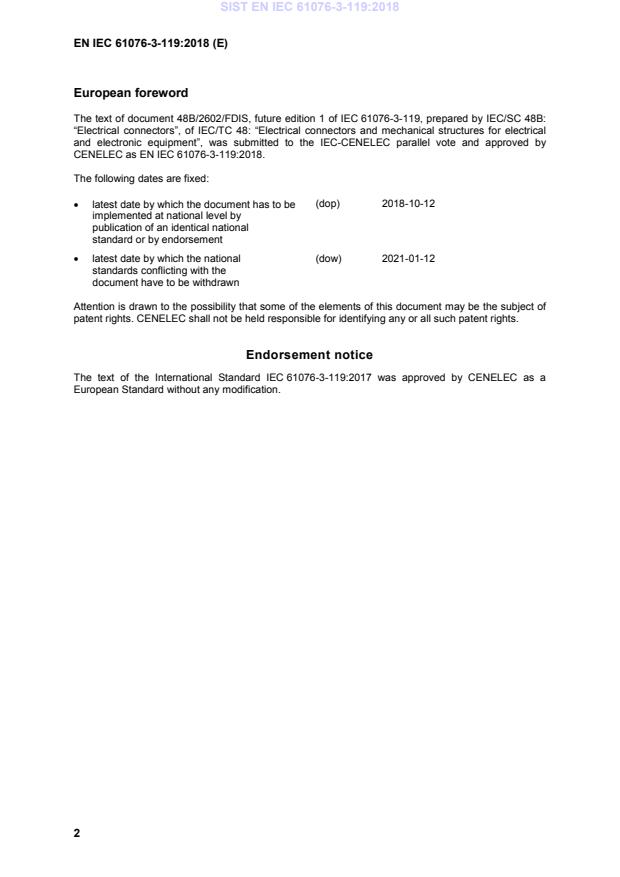

European foreword The text of document 48B/2602/FDIS, future edition 1 of IEC 61076-3-119, prepared by IEC/SC 48B: “Electrical connectors”, of IEC/TC 48: “Electrical connectors and mechanical structures for electrical and electronic equipment”, was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61076-3-119:2018.
The following dates are fixed: • latest date by which the document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2018-10-12 • latest date by which the national standards conflicting with the document have to be withdrawn (dow) 2021-01-12
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Endorsement notice The text of the International Standard IEC 61076-3-119:2017 was approved by CENELEC as a European Standard without any modification. SIST EN IEC 61076-3-119:2018

3 Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1
Where an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
NOTE 2
Up-to-date information on the latest versions of the European Standards listed in this annex is available here: www.cenelec.eu.
Publication Year Title EN/HD Year IEC 60050-581 2008
International Electrotechnical Vocabulary - Part 581: Electromechanical components for electronic equipment - -
IEC 60068-1 -
Environmental testing -- Part 1: General and guidance EN 60068-1 -
IEC 60068-2-20 2008
Environmental testing -- Part 2-20: Tests - Test T: Test methods for solderability and resistance to soldering heat of devices with leads EN 60068-2-20 2008
IEC 60352-2 -
Solderless connections -- Part 2: Crimped connections - General requirements, test methods and practical guidance EN 60352-2 -
IEC 60352-5 -
Solderless connections -- Part 5: Press-in connections - General requirements, test methods and practical guidance EN 60352-5 -
IEC 60512-1-1 -
Connectors for electronic equipment - Tests and measurements -- Part 1-1: General examination - Test 1a: Visual examination EN 60512-1-1 -
IEC 60512-1-2 -
Connectors for electronic equipment - Tests and measurements -- Part 1-2: General examination - Test 1b: Examination of dimension and mass EN 60512-1-2 -
IEC 60512-2-1 -
Connectors for electronic equipment - Tests and measurements -- Part 2-1: Electrical continuity and contact resistance tests - Test 2a: Contact resistance - Millivolt level method EN 60512-2-1 -
IEC 60512-3-1 -
Connectors for electronic equipment - Tests and measurements -- Part 3-1: Insulation tests - Test 3a: Insulation resistance EN 60512-3-1 -
IEC 60512-4-1 -
Connectors for electronic equipment - Tests and measurements -- Part 4-1: Voltage stress tests - Test 4a: Voltage proof EN 60512-4-1 -
IEC 60512-5-1 -
Connectors for electronic equipment - Tests and measurements -- Part 5-1: Current-carrying capacity tests - Test 5a: Temperature rise EN 60512-5-1 -
4 IEC 60512-6-3 -
Connectors for electronic equipment - Tests and measurements -- Part 6-3: Dynamic stress tests - Test 6c: Shock EN 60512-6-3 -
IEC 60512-6-4 -
Connectors for electronic equipment - Tests and measurements -- Part 6-4: Dynamic stress tests - Test 6d: Vibration (sinusoidal) EN 60512-6-4 -
IEC 60512-9-1 -
Connectors for electronic equipment - Tests and measurements -- Part 9-1: Endurance tests - Test 9a: Mechanical operation EN 60512-9-1 -
IEC 60512-11-1 -
Electromechanical components for electronic equipment - Basic testing procedures and measuring methods -- Part 11: Climatic tests -- Section 1: Test 11a - Climatic sequence EN 60512-11-1 -
IEC 60512-11-3 -
Connectors for electronic equipment - Tests and measurements -- Part 11-3: Climatic tests - Test 11c: Damp heat, steady state EN 60512-11-3 -
IEC 60512-11-4 -
Connectors for electronic equipment - Tests and measurements -- Part 11-4: Climatic tests - Test 11d: Rapid change of temperature EN 60512-11-4 -
IEC 60512-11-7 -
Connectors for electronic equipment - Tests and measurements -- Part 11- 7: Climatic tests - Test 11g: Flowing mixed gas corrosion test EN 60512-11-7 -
IEC 60512-11-9 -
Connectors for electronic equipment - Tests and measurements -- Part 11-9: Climatic tests - Test 11i: Dry heat EN 60512-11-9 -
IEC 60512-11-10 -
Connectors for electronic equipment - Tests and measurements -- Part 11-10: Climatic tests - Test 11j: Cold EN 60512-11-10 -
IEC 60512-11-12 -
Connectors for electronic equipment - Tests and measurements -- Part 11-12: Climatic tests - Test 11m: Damp heat, cyclic EN 60512-11-12 -
IEC 60512-13-2 -
Connectors for electronic equipment - Tests and measurements -- Part 13-2: Mechanical operating tests - Test 13b: Insertion and withdrawal forces EN 60512-13-2 -
IEC 60512-13-5 -
Connectors for electronic equipment - Tests and measurements -- Part 13-5: Mechanical operating tests - Test 13e: Polarizing and keying method EN 60512-13-5 -
IEC 60512-15-1 -
Connectors for electronic equipment - Tests and measurements -- Part 15-1:Connector tests (mechanical) - Test 15a: Contact retention in insert EN 60512-15-1 -
IEC 60512-15-6 -
Connectors for electronic equipment - Tests and measurements -- Part 15-6: Connector tests (mechanical) - Test 15f: Effectiveness of connector coupling devices EN 60512-15-6 -
IEC 60512-15-7 -
Connectors for electronic equipment - Tests and measurements -- Part 15-7: Connector tests (mechanical) - Test 15g: Robustness of protective cover attachment EN 60512-15-7 -
5 IEC 60512-16-5 -
Connectors for electronic equipment - Tests and measurements -- Part 16-5: Mechanical tests on contacts and terminations - Test 16e: Gauge retention force (resilient contacts) EN 60512-16-5 -
IEC 60512-26-100 -
Connectors for electronic equipment - Tests and measurements -- Part 26-100: Measurement setup, test and reference arrangements and measurements for connectors according to IEC 60603-7 - Tests 26a to 26g EN 60512-26-100 -
IEC 60529 1989
Degrees of protection provided by enclosures (IP Code) EN 60529 1991
- -
+ corrigendum May 1993
+ A1 1999
+ A1 2000
+ A2 2013
+ A2 2013
IEC 60999-1 1999
Connecting devices - Electrical copper conductors - Safety requirements for screw-type and screwless-type clamping units -- Part 1: General requirements and particular requirements for clamping units for conductors from 0,2 mm² up to 35 mm² (included) EN 60999-1 2000
IEC 61076-1 2006
Connectors for electronic equipment - Product requirements -- Part 1: Generic specification EN 61076-1 2006
IEC 61984 2008
Connectors - Safety requirements and tests EN 61984 2009
IEC 62197-1 2006
Connectors for electronic equipment - Quality assessment requirements -- Part 1: Generic specification EN 62197-1 2006
IEC 62430 2009
Environmentally conscious design for electrical and electronic products EN 62430 2009
IEC Guide 109 -
Environmental aspects - Inclusion in electrotechnical product standards - -
ISO 128 series
Technical drawings_- General principles of presentation_- Part_1: Introduction and index - -
ISO 1101 2017
Geometrical product specifications (GPS) - Geometrical tolerancing - Tolerances of form, orientation, location and run-out EN ISO 1101 2017
ISO 1302 2002
Geometrical Product Specifications (GPS) - Indication of surface texture in technical product documentation EN ISO 1302 2002
ISO 11469 2016
Plastics - Generic identification and marking of plastics products EN ISO 11469 2016
IEC 61076-3-119 Edition 1.0 2017-12 INTERNATIONAL STANDARD
Connectors for electrical and electronic equipment – Product requirements –
Part 3-119: Rectangular connectors – Detail specification for shielded and unshielded, free and fixed 10-way connectors with push-pull coupling for industrial environments for data transmission with frequencies
up to 100 MHz
INTERNATIONAL ELECTROTECHNICAL COMMISSION
ICS 31.220.10
ISBN 978-2-8322-5112-6
– 2 – IEC 61076-3-119:2017 © IEC 2017 CONTENTS FOREWORD . 5 INTRODUCTION . 7 1 Scope . 9 2 Normative references . 9 3 Terms and definitions . 11 4 Technical information . 12 4.1 Ratings and characteristics . 12 4.1.1 Rated current . 12 4.1.2 Rated voltage . 12 4.1.3 Insulation resistance . 12 4.1.4 Voltage proof . 12 4.2 Performance levels . 12 4.3 Compatibility levels . 12 4.4 Climatic categories . 12 4.5 Clearance and creepage distances . 12 4.6 Marking . 13 5 Dimensional information . 13 5.1 General . 13 5.2 Isometric view and common features . 13 5.3 Engagement (mating) information – Contact levels and sequencing . 13 5.4 Fixed connectors . 14 5.4.1 Dimensions . 14 5.4.2 Terminations .
...
