Technical product documentation (TPD) - General principles of presentation - Part 15: Presentation of shipbuilding drawings

ISO 128-15:2013 specifies the presentation of shipbuilding drawings for general use on metal hulls.

Documentation technique de produits (TPD) — Principes généraux de représentation — Partie 15: Représentation des dessins de construction navale

General Information

Status
Published
Publication Date
24-Jun-2013
Current Stage
9060 - Close of review
Completion Date
02-Dec-2030

Relations

Effective Date
23-Nov-2013

Overview

ISO 128-15:2013 - "Technical product documentation (TPD) - General principles of presentation - Part 15: Presentation of shipbuilding drawings" - defines how shipbuilding drawings for metal hulls should be presented. It establishes clear rules for layout, views, sections, simplified representation, coding and graphic symbols to ensure consistent, unambiguous ship drawings used in design, construction, inspection and documentation.

Key Topics and Requirements

  • Scope: Presentation rules specifically for shipbuilding drawings on metal hulls (orthographic projection required).
  • Views and layout: Basic views include side, plan, bow and stern. Drawings place the stern to the left and the bow to the right; view names appear at the top. Guidance for layout of whole-vessel and block-structure drawings is provided.
  • Directional and sectional views: Directional views are labeled with identification letters; sectional and partial sectional views show symmetry, breaking/wavy lines and projection directions.
  • Frame and section rules: Frame sections, general sections and sub‑sections are identified with symbols, frame numbers and projection directions; magnified sections and sub‑section numbering are specified.
  • Partial detailed drawings: Enlarged details are encircled and coded; multiple enlargements are numbered and scales indicated.
  • Special drawing methods: Includes moulded line projection, overlapping drawings, unidirectional development for shell plates, double and unsymmetrical representations.
  • Simplified representation: Standard symbols for swaged casings, grooved bulkheads, manholes and lightening holes to simplify repetitive features.
  • Coding and arrangement: Conventions for stations (e.g., station 0 at after perpendicular), waterlines (e.g., 1000WL), buttock lines, frame numbering (every five frames for full-ship drawings), outer shell plate coding (strakes coded K, S, A, B, C...), stringers and tank/hold codes (with P/C/S suffixes).
  • Graphic symbols: Standardized symbols (amidship, centerline CL, waterline WL, frame no. FR, etc.) are listed to ensure consistent interpretation.

Applications and Users

ISO 128-15 is essential for:

  • Naval architects and ship designers creating technical drawings
  • Shipyards and structural engineers producing fabrication and block drawings
  • Class societies, surveyors and inspectors reviewing documentation
  • CAD specialists implementing drawing templates and drafting standards

Using ISO 128-15 ensures accurate communication across multidisciplinary shipbuilding teams, reduces drawing errors, and supports consistent CAD output and microcopying.

Related Standards

Normative and related references include:

  • ISO 128-25 (Lines on shipbuilding drawings)
  • ISO 3098-2 (Lettering)
  • ISO 5455 (Scales)
  • ISO 5457 (Drawing sheet sizes/layout)
  • ISO 6428 (Microcopying)
  • Other parts of ISO 128 covering views, sections and line conventions

Keywords: ISO 128-15, shipbuilding drawings, technical product documentation, TPD, metal hulls, ship design, drafting standards, hull sections, coding conventions.

Standard

ISO 128-15:2013 - Technical product documentation (TPD) -- General principles of presentation

English language
12 pages
sale 15% off
Preview
sale 15% off
Preview

Frequently Asked Questions

ISO 128-15:2013 is a standard published by the International Organization for Standardization (ISO). Its full title is "Technical product documentation (TPD) - General principles of presentation - Part 15: Presentation of shipbuilding drawings". This standard covers: ISO 128-15:2013 specifies the presentation of shipbuilding drawings for general use on metal hulls.

ISO 128-15:2013 specifies the presentation of shipbuilding drawings for general use on metal hulls.

ISO 128-15:2013 is classified under the following ICS (International Classification for Standards) categories: 01.100.20 - Mechanical engineering drawings. The ICS classification helps identify the subject area and facilitates finding related standards.

ISO 128-15:2013 has the following relationships with other standards: It is inter standard links to ISO 128-1:2020. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

You can purchase ISO 128-15:2013 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.

Standards Content (Sample)


INTERNATIONAL ISO
STANDARD 128-15
First edition
2013-07-01
Technical product documentation
(TPD) — General principles of
presentation —
Part 15:
Presentation of shipbuilding drawings
Documentation technique de produits (TPD) — Principes généraux de
représentation —
Partie 15: Représentation des dessins de construction navale
Reference number
©
ISO 2013
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 General principles . 1
4 Presentation of drawings . 1
4.1 Basic requirements . 1
4.2 View . 2
4.3 Sectional view . 3
4.4 Section . 3
4.5 Partial detailed drawing . . 6
4.6 Special drawing methods . 7
4.7 Simplified representation . 7
5 Coding and arrangement . 9
5.1 The coding of station, waterline and buttock lines . 9
5.2 Coding of frame . 9
5.3 Coding of the outer shell plate .10
5.4 Coding of stringer .10
5.5 Coding of liquid tank and cargo hold .10
6 Graphic symbols .10
Bibliography .12

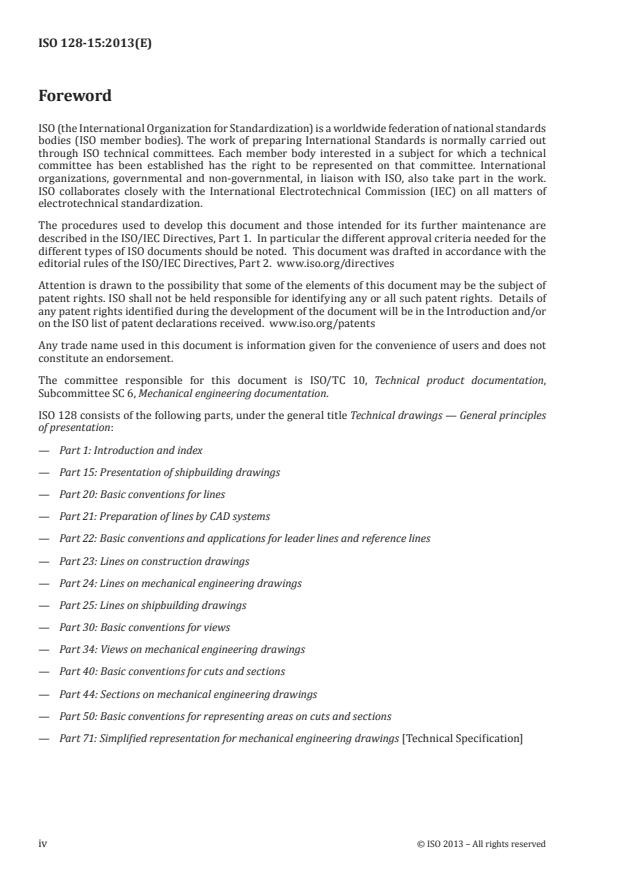

Foreword
