Connectors for electrical and electronic equipment - Product requirements - Part 2-010: Circular connectors - Detail specification for connectors with outer or inner push-pull locking mechanism, based on mating interfaces according to IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 and IEC 61076-2-113

IEC 61076-2-010:2021 specifies circular connectors with a push-pull locking mechanism of a size derived from, and thus being compatible with M12 screw-locking connectors (free connectors with screw-locking according to IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 or IEC 61076-2-113 are compatible with push‑pull fixed interfaces according to this document) and with mating interfaces according to IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 (except codings E in general and coding F for inner push-pull) or IEC 61076-2-113. A fixed connector with push-pull locking according to this document is intermateable with a correspondingly coded free connector with M12 screw-locking according to any of the above mentioned standards. M12 is the dimension of the thread of the screw-locking mechanism of circular connectors with M12 screw-locking. IEC 61076-2-012 defines another inner push-pull for fixed female connectors which is however not compatible to the inner push-pull defined in this document. Annex C shows the different styles of female free connectors to extend male free connectors. This document covers both: a) power connectors with current ratings up to 16 A and voltage ratings up to 630 V, typically used for power supply and power applications in industrial premises, and b) connectors for data and signal transmission with frequencies up to 500 MHz. These connectors consist of both, fixed and free connectors, either rewirable or non-rewirable, with M12 push-pull locking as explained above. Male connectors have round contacts from Ø 0,6 mm up to Ø 1,5 mm. In addition, the push-pull mechanisms consist of 2 different push-pull designs: c) An outer push-pull for male and female fixed connector, where the locking groove is placed onto the outer cylindric surface of the housing. The outer push-pull for female fixed connectors is made for 2 different types of male connectors. It has locking means for both types on its outer surface. For design and dimensions see 5.3.2 and 5.3.3. d) An inner push-pull for female fixed connectors and for male free connectors, where the locking means are placed onto the inner cylindric surface of the housing. For design and dimensions see 5.3.4. The different codings provided by IEC 61076-2 series detail specifications mentioned within this document prevent the mating of accordingly coded male or female connectors to any other similarly sized interfaces, covered by other standards and the cross-mating between the different codings provided by any other IEC 61076-2 series detail specification mentioned within this document.

Steckverbinder für elektrische und elektronische Einrichtungen – Produktanforderungen - Teil 2-010: Rundsteckverbinder– Bauartspezifikation für Push-pull-Steckverbinder mit äußerem Verriegelungsmechanismus, basierend auf Kontaktschnittstellen nach IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 und IEC 61076-2-113

Connecteurs pour équipements électriques et électroniques - Exigences de produit - Partie 2-010: Connecteurs circulaires - Spécification particulière relative aux connecteurs avec mécanisme de verrouillage de type pousser-tirer externe ou interne, basés sur des interfaces d’accouplement conformes à l’IEC 61076-2-101, l’IEC 61076-2-109, l’IEC 61076-2-111 et l’IEC 61076-2-113

IEC 61076-2-010:2021 spécifie les connecteurs circulaires pourvus d’un mécanisme de verrouillage de type pousser-tirer dont la taille est dérivée des connecteurs M12 avec verrouillage à vis (les fiches avec verrouillage à vis conformes à l’IEC 61076‑2‑101, l’IEC 61076-2-109, l’IEC 61076-2-111 ou l’IEC 61076‑2‑113 sont compatibles avec les interfaces d’embase de type pousser-tirer conformes au présent document) et d’interfaces d’accouplement conformes à l’IEC 61076‑2‑101, l’IEC 61076-2-109, l’IEC 61076-2-111 (sauf les détrompages E en général et le détrompage F pour les verrouillages internes de type pousser-tirer) ou l’IEC 61076-2-113. Une embase avec verrouillage de type pousser-tirer conforme au présent document est accouplable avec une fiche présentant le détrompage correspondant avec un verrouillage à vis M12, conformément à l’une quelconque des normes susmentionnées. M12 désigne la dimension du filetage du mécanisme de verrouillage à vis des connecteurs circulaires avec verrouillage à vis M12. L’IEC 61076-2-012 définit un autre verrouillage interne de type pousser-tirer pour les embases femelles, qui n’est cependant pas compatible avec le verrouillage interne de type pousser-tirer défini dans le présent document. L’Annexe C donne les différents modèles de fiches femelles adaptables sur les fiches mâles. Le présent document couvre à la fois: a) les connecteurs d’alimentation avec des courants assignés allant jusqu’à 16 A et des tensions assignées allant jusqu’à 630 V, généralement employés pour des applications d’alimentation et de puissance dans des locaux industriels, et b) les connecteurs pour les transmissions de données et de signaux avec des fréquences allant jusqu’à 500 MHz. Ces connecteurs se composent à la fois d’embases et de fiches, démontables ou non démontables, avec un verrouillage de type pousser-tirer M12 comme expliqué précédemment. Les connecteurs mâles possèdent des contacts arrondis d’un diamètre compris entre Ø 0,6 mm et Ø 1,5 mm. De plus, les mécanismes pousser-tirer présentent 2 conceptions différentes: c) un mécanisme pousser-tirer externe pour les embases mâle et femelle, dont la rainure de verrouillage est placée sur la surface cylindrique extérieure du boîtier. Le mécanisme pousser-tirer externe pour embases femelles est conçu pour 2 types différents de connecteurs mâles. Il possède des dispositifs de verrouillage pour ces deux types de connecteurs sur sa surface extérieure; Pour la conception et les dimensions, voir 5.3.2 et 5.3.3. d) un mécanisme pousser-tirer interne pour les embases femelles et les fiches mâles, dont les dispositifs de verrouillage sont placés sur la surface cylindrique intérieure du boîtier. Pour la conception et les dimensions, voir 5.3.4. Les différents détrompages prévus par les spécifications particulières de la série IEC 61076-2 et mentionnés dans le présent document, empêchent l’accouplement de connecteurs mâles et femelles avec de tels détrompeurs avec une quelconque autre interface de taille semblable couverte par d’autres normes, ainsi que l’accouplement croisé entre les différents détrompages prévus par une quelconque autre spécification particulière de la série IEC 61076-2 mentionnée dans le présent document.

Konektorji za električno in elektronsko opremo - Zahteve za izdelek - 2-010. del: Okrogli konektorji - Podrobna specifikacija za konektorje z zunanjim ali notranjim zaklepnim mehanizmom na osnovi vmesnikov v skladu s standardi IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 in IEC 61076-2-113 (IEC 61076-2-010:2021)

General Information

Status
Published
Publication Date
29-Jul-2021
Technical Committee
CLC/SR 48B - Connectors
Drafting Committee
IEC/SC 48B - IEC_SC_48B
Current Stage
6060 - Document made available - Publishing
Start Date
30-Jul-2021
Due Date
31-Oct-2018
Completion Date
30-Jul-2021

Overview

EN IEC 61076-2-010:2021 is a product-level detail specification for circular connectors with outer or inner push‑pull locking that are dimensionally compatible with M12 screw‑locking interfaces. The standard defines fixed and free connector types (rewirable or non‑rewirable), mechanical designs (outer and inner push‑pull), contact sizes, ratings and performance levels for both power and data/signal applications. It ensures intermateability with corresponding M12 screw‑locking free or fixed connectors defined in IEC 61076‑2‑101/109/111/113 and prevents unwanted cross‑mating through coding.

Key topics and technical requirements

  • Mechanical interfaces: Detailed dimensions for outer and inner push‑pull locking mechanisms (two push‑pull styles) and mating interfaces; male contacts Ø 0.6 mm to Ø 1.5 mm.
  • Compatibility & coding: M12-derived dimensions ensure fixed push‑pull connectors intermate with compatible M12 screw‑locking free connectors; coding schemes prevent cross‑mating. Note: the inner push‑pull in IEC 61076‑2‑012 is not compatible with the inner design in this document.
  • Electrical ratings: Covers power connectors up to 16 A and 630 V, and data/signal connectors for frequencies up to 500 MHz (suitable for many industrial signal and high‑frequency transmission needs).
  • Performance & tests: Defines electrical (contact resistance, insulation, voltage proof), mechanical (mating endurance, insertion/separation forces, coupling effectiveness), environmental (climatic categories, IP protection), vibration and shock requirements and a structured test schedule. The standard references IEC 60512 test methods and other international test standards.
  • Safety & marking: Requirements for rated voltage/current, insulation coordination, markings and safety aspects per connector safety and test norms (e.g., IEC 61984, IEC 60664‑1).

Practical applications

  • Industrial automation and control systems (power distribution to sensors/actuators)
  • Machine building, robotics and motion control where quick push‑pull mating is required
  • Harsh‑environment signal and data links requiring defined IP protection and vibration/shock resistance
  • Equipment designers and OEMs specifying compact power + signal interconnects with M12 compatibility

Who should use this standard

  • Connector manufacturers and product designers for compliant M12 push‑pull connector lines
  • OEMs and system integrators specifying reliable industrial interconnects
  • Test laboratories and compliance engineers performing IEC/EN connector qualification
  • Procurement and certification teams ensuring intermateability and safety in industrial installations

Related standards

  • IEC/EN 61076‑2‑101, ‑109, ‑111, ‑113 (M12 screw‑locking detail specs)
  • IEC 61076‑2‑012 (different inner push‑pull - not compatible)
  • IEC 60512 series (tests and measurements), IEC 61984 (connector safety), IEC 60664‑1 (insulation coordination)

Keywords: EN IEC 61076-2-010:2021, push-pull locking, M12 push-pull, circular connectors, industrial connectors, power connectors, data transmission, intermateable connectors, connector standards.

Standard

EN IEC 61076-2-010:2021

English language
55 pages
Preview
Preview
e-Library read for
1 day

Frequently Asked Questions

EN IEC 61076-2-010:2021 is a standard published by CLC. Its full title is "Connectors for electrical and electronic equipment - Product requirements - Part 2-010: Circular connectors - Detail specification for connectors with outer or inner push-pull locking mechanism, based on mating interfaces according to IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 and IEC 61076-2-113". This standard covers: IEC 61076-2-010:2021 specifies circular connectors with a push-pull locking mechanism of a size derived from, and thus being compatible with M12 screw-locking connectors (free connectors with screw-locking according to IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 or IEC 61076-2-113 are compatible with push‑pull fixed interfaces according to this document) and with mating interfaces according to IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 (except codings E in general and coding F for inner push-pull) or IEC 61076-2-113. A fixed connector with push-pull locking according to this document is intermateable with a correspondingly coded free connector with M12 screw-locking according to any of the above mentioned standards. M12 is the dimension of the thread of the screw-locking mechanism of circular connectors with M12 screw-locking. IEC 61076-2-012 defines another inner push-pull for fixed female connectors which is however not compatible to the inner push-pull defined in this document. Annex C shows the different styles of female free connectors to extend male free connectors. This document covers both: a) power connectors with current ratings up to 16 A and voltage ratings up to 630 V, typically used for power supply and power applications in industrial premises, and b) connectors for data and signal transmission with frequencies up to 500 MHz. These connectors consist of both, fixed and free connectors, either rewirable or non-rewirable, with M12 push-pull locking as explained above. Male connectors have round contacts from Ø 0,6 mm up to Ø 1,5 mm. In addition, the push-pull mechanisms consist of 2 different push-pull designs: c) An outer push-pull for male and female fixed connector, where the locking groove is placed onto the outer cylindric surface of the housing. The outer push-pull for female fixed connectors is made for 2 different types of male connectors. It has locking means for both types on its outer surface. For design and dimensions see 5.3.2 and 5.3.3. d) An inner push-pull for female fixed connectors and for male free connectors, where the locking means are placed onto the inner cylindric surface of the housing. For design and dimensions see 5.3.4. The different codings provided by IEC 61076-2 series detail specifications mentioned within this document prevent the mating of accordingly coded male or female connectors to any other similarly sized interfaces, covered by other standards and the cross-mating between the different codings provided by any other IEC 61076-2 series detail specification mentioned within this document.

IEC 61076-2-010:2021 specifies circular connectors with a push-pull locking mechanism of a size derived from, and thus being compatible with M12 screw-locking connectors (free connectors with screw-locking according to IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 or IEC 61076-2-113 are compatible with push‑pull fixed interfaces according to this document) and with mating interfaces according to IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 (except codings E in general and coding F for inner push-pull) or IEC 61076-2-113. A fixed connector with push-pull locking according to this document is intermateable with a correspondingly coded free connector with M12 screw-locking according to any of the above mentioned standards. M12 is the dimension of the thread of the screw-locking mechanism of circular connectors with M12 screw-locking. IEC 61076-2-012 defines another inner push-pull for fixed female connectors which is however not compatible to the inner push-pull defined in this document. Annex C shows the different styles of female free connectors to extend male free connectors. This document covers both: a) power connectors with current ratings up to 16 A and voltage ratings up to 630 V, typically used for power supply and power applications in industrial premises, and b) connectors for data and signal transmission with frequencies up to 500 MHz. These connectors consist of both, fixed and free connectors, either rewirable or non-rewirable, with M12 push-pull locking as explained above. Male connectors have round contacts from Ø 0,6 mm up to Ø 1,5 mm. In addition, the push-pull mechanisms consist of 2 different push-pull designs: c) An outer push-pull for male and female fixed connector, where the locking groove is placed onto the outer cylindric surface of the housing. The outer push-pull for female fixed connectors is made for 2 different types of male connectors. It has locking means for both types on its outer surface. For design and dimensions see 5.3.2 and 5.3.3. d) An inner push-pull for female fixed connectors and for male free connectors, where the locking means are placed onto the inner cylindric surface of the housing. For design and dimensions see 5.3.4. The different codings provided by IEC 61076-2 series detail specifications mentioned within this document prevent the mating of accordingly coded male or female connectors to any other similarly sized interfaces, covered by other standards and the cross-mating between the different codings provided by any other IEC 61076-2 series detail specification mentioned within this document.

EN IEC 61076-2-010:2021 is classified under the following ICS (International Classification for Standards) categories: 31.220.10 - Plug-and-socket devices. Connectors. The ICS classification helps identify the subject area and facilitates finding related standards.

You can purchase EN IEC 61076-2-010:2021 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.

Standards Content (Sample)


SLOVENSKI STANDARD
01-september-2021
Konektorji za električno in elektronsko opremo - Zahteve za izdelek - 2-010. del:
Okrogli konektorji - Podrobna specifikacija za konektorje z zunanjim ali notranjim
zaklepnim mehanizmom na osnovi vmesnikov v skladu s standardi IEC 61076-2-
101, IEC 61076-2-109, IEC 61076-2-111 in IEC 61076-2-113 (IEC 61076-2-010:2021)
Connectors for electrical and electronic equipment - Product requirements - Part 2-010:
Circular connectors - Detail specification for connectors with outer or inner push-pull
locking mechanism, based on mating interfaces according to IEC 61076-2-101, IEC
61076-2-109, IEC 61076-2-111 and IEC 61076-2-113 (IEC 61076-2-010:2021)
Steckverbinder für elektrische und elektronische Einrichtungen – Produktanforderungen -
Teil 2-010: Rundsteckverbinder– Bauartspezifikation für Push-pull-Steckverbinder mit
äußerem Verriegelungsmechanismus, basierend auf Kontaktschnittstellen nach IEC
61076-2-101, IEC 61076-2-109, IEC 61076-2-111 und IEC 61076-2-113 (IEC 61076-2-
010:2021)
Connecteurs pour équipements électriques et électroniques - Exigences de produit -
Partie 2-010: Connecteurs circulaires - Spécification particulière relative aux connecteurs
avec mécanisme de verrouillage de type pousser-tirer externe ou interne, basés sur des
interfaces d’accouplement conformes à l’IEC 61076-2-101, l’IEC 61076-2-109, l’IEC
61076-2-111 et l’IEC 61076-2-113 (IEC 61076-2-010:2021)
Ta slovenski standard je istoveten z: EN IEC 61076-2-010:2021
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61076-2-010

NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2021
ICS 31.220.10
English Version
Connectors for electrical and electronic equipment - Product
requirements - Part 2-010: Circular connectors - Detail
specification for connectors with outer or inner push-pull locking
mechanism, based on mating interfaces according to IEC 61076-
2-101, IEC 61076-2-109, IEC 61076-2-111 and IEC 61076-2-113
(IEC 61076-2-010:2021)
Connecteurs pour équipements électriques et électroniques Steckverbinder für elektrische und elektronische
- Exigences de produit - Partie 2-010: Connecteurs Einrichtungen - Produktanforderungen - Teil 2-010:
circulaires - Spécification particulière relative aux Rundsteckverbinder- Bauartspezifikation für Push-pull-
connecteurs avec mécanisme de verrouillage de type Steckverbinder mit äußerem Verriegelungsmechanismus,
pousser-tirer externe ou interne, basés sur des interfaces basierend auf Kontaktschnittstellen nach IEC 61076-2-101,
d'accouplement conformes à l'IEC 61076-2-101, l'IEC IEC 61076-2-109, IEC 61076-2-111 und IEC 61076-2-113
61076-2-109, l'IEC 61076-2-111 et l'IEC 61076-2-113 (IEC 61076-2-010:2021)
(IEC 61076-2-010:2021)
This European Standard was approved by CENELEC on 2021-07-01. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61076-2-010:2021 E

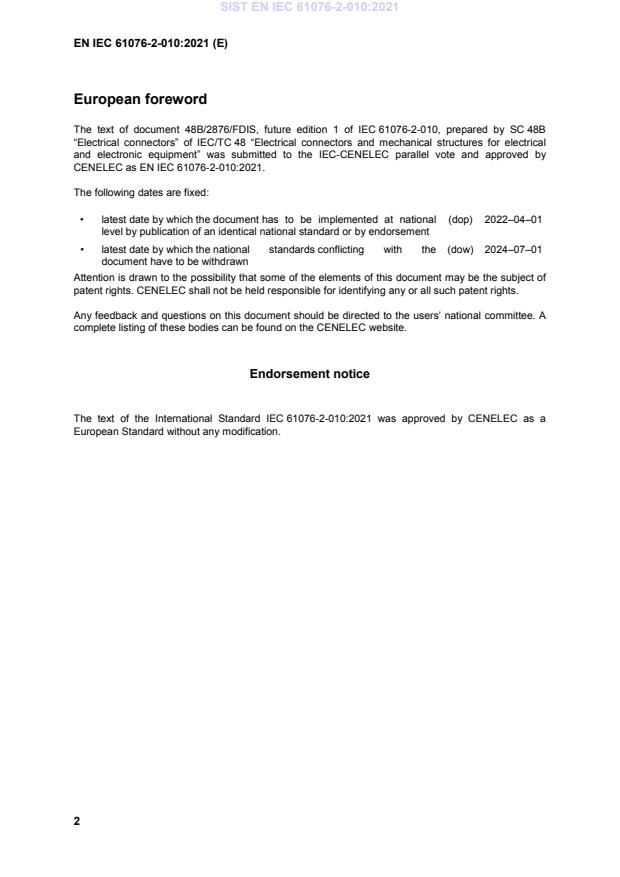

European foreword
The text of document 48B/2876/FDIS, future edition 1 of IEC 61076-2-010, prepared by SC 48B
“Electrical connectors” of IEC/TC 48 “Electrical connectors and mechanical structures for electrical
and electronic equipment” was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 61076-2-010:2021.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2022–04–01
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024–07–01
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61076-2-010:2021 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-581 2008 International Electrotechnical Vocabulary - - -
Part 581: Electromechanical components
for electronic equipment
IEC 60068-1 - Environmental testing - Part 1: General EN 60068-1 -
and guidance
IEC 60512-1 - Connectors for electrical and electronic EN IEC 60512-1 -
equipment - Tests and measurements -
Part 1: Generic specification
IEC 60512-2–1 - Connectors for electronic equipment - EN 60512-2–1 -
Tests and measurements - Part 2–1:
Electrical continuity and contact resistance
tests - Test 2a: Contact resistance -
Millivolt level method
IEC 60512-3–1 - Connectors for electronic equipment - EN 60512-3–1 -
Tests and measurements - Part 3–1:
Insulation tests - Test 3a: Insulation
resistance
IEC 60512-4–1 - Connectors for electronic equipment - EN 60512-4–1 -
Tests and measurements - Part 4–1:
Voltage stress tests - Test 4a: Voltage
proof
IEC 60512-5–1 - Connectors for electronic equipment - EN 60512-5–1 -
Tests and measurements - Part 5–1:
Current-carrying capacity tests - Test 5a:
Temperature rise
IEC 60512-6–3 - Connectors for electronic equipment - EN 60512-6–3 -
Tests and measurements - Part 6–3:
Dynamic stress tests - Test 6c: Shock
IEC 60512-6–4 - Connectors for electronic equipment - EN 60512-6–4 -
Tests and measurements - Part 6–4:
Dynamic stress tests - Test 6d: Vibration
(sinusoidal)
IEC 60512-9–1 - Connectors for electronic equipment - EN 60512-9–1 -
Tests and measurements - Part 9–1:
Endurance tests - Test 9a: Mechanical
operation
IEC 60512-13–1 - Connectors for electronic equipment - EN 60512-13–1 -
Tests and measurements - Part 13–1:
Mechanical operation tests - Test 13a:
Engaging and separating forces
IEC 60512-13–2 - Connectors for electronic equipment - EN 60512-13–2 -
Tests and measurements - Part 13–2:
Mechanical operation tests - Test 13b:
Insertion and withdrawal forces
IEC 60512-13–5 - Connectors for electronic equipment - EN 60512-13–5 -
Tests and measurements - Part 13–5:
Mechanical operation tests - Test 13e:
Polarizing and keying method
IEC 60512-15–6 - Connectors for electronic equipment - EN 60512-15–6 -
Tests and measurements - Part 15–6:
Connector tests (mechanical) - Test 15f:
Effectiveness of connector coupling
devices
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
- -  + corrigendum May 1993
+ A1 1999  + A1 2000
+ A2 2013  + A2 2013
IEC 60664-1 - Insulation coordination for equipment EN IEC 60664-1 -
within low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60998-2–1 2002 Connecting devices for low-voltage circuits EN 60998-2–1 2004
(mod) for household and similar purposes - Part
2–1: Particular requirements for connecting
devices as separate entities with screw-
type clamping units
IEC 61076-1 2006 Connectors for electronic equipment - EN 61076-1 2006
Product requirements - Part 1: Generic
specification
+ A1 2019 + A1 2019
IEC 61076-2–012 - Connectors for electrical and electronic EN IEC 61076-2– -
equipment - Product Requirements - Part012
2–012: Circular connectors - Detail
specification for connectors with inner
push-pull locking based on M12 connector
interfaces according to IEC 61076-2–101,
IEC 61076-2–109, IEC 61076-2–111 and
IEC 61076-2–113
IEC 61076-2–101 2012 Connectors for electronic equipment - EN 61076-2–101 2012
Product requirements - Part 2–101:
Circular connectors - Detail specification
for M12 connectors with screw-locking
IEC 61076-2–109 2014 Connectors for electronic equipment - EN 61076-2–109 2014
Product requirements - Part 2–109:
Circular connectors - Detail specification
for connectors with M 12 × 1 screw-
locking, for data transmission frequencies
up to 500 MHz
IEC 61076-2–111 2017 Connectors for electrical and electronic EN IEC 61076-2– 2018
equipment - Product requirements - Part111
2–111: Circular connectors - Detail
specification for power connectors with
M12 screw-locking
IEC 61076-2–113 2017 Connectors for electronic equipment - EN 61076-2–113 2017
Product requirements - Part 2–113:
Circular connectors - Detail specification
for connectors with M12 screw locking with
power and signal contacts for data
transmission with frequency up to 100 MHz
IEC 61984 - Connectors - Safety requirements and EN 61984 -
tests
IEC 61076-2-010 ®
Edition 1.0 2021-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment – Product requirements –

Part 2-010: Circular connectors – Detail specification for connectors with outer

or inner push-pull locking mechanism, based on mating interfaces according to

IEC 61076‑2‑101, IEC 61076‑2‑109, IEC 61076‑2‑111 and IEC 61076‑2‑113

Connecteurs pour équipements électriques et électroniques – Exigences de

produit –
Partie 2-010: Connecteurs circulaires – Spécification particulière relative aux

connecteurs avec mécanisme de verrouillage de type pousser-tirer externe ou

interne, basés sur des interfaces d’accouplement conformes à

l’IEC 61076‑2‑101, l’IEC 61076‑2‑109, l’IEC 61076‑2‑111 et l’IEC 61076‑2‑113

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220.10 ISBN 978-2-8322-9812-1

– 2 – IEC 61076-2-010:2021 © IEC 2021
CONTENTS
FOREWORD . 6
INTRODUCTION . 8
1 Scope . 10
2 Normative references . 11
3 Terms and definitions . 12
4 Technical information . 13
4.1 System of levels. 13
4.1.1 Performance levels . 13
4.1.2 Compatibility levels, according to IEC 61076-1 . 13
4.2 Classification into climatic categories . 13
4.3 Contact terminations . 13
4.4 Available connector codings . 13
4.5 Ratings . 15
4.6 Marking . 15
4.7 Safety aspects . 15
5 Dimensional information . 15
5.1 General . 15
5.2 Survey of styles and variants . 15
5.2.1 General . 15
5.2.2 Fixed connectors . 15
5.2.3 Free connectors . 22
5.3 Interface dimension . 31
5.3.1 General . 31
5.3.2 Outer push-pull locking: male fixed connector side view . 32
5.3.3 Outer push-pull locking: female fixed connector side view with details
and engage-plane definition for male free cable connectors type 1 and 2 . 33
5.3.4 Inner push-pull locking: female fixed connector side view and male free
connector side view with details for both . 36
5.4 Gauges – Sizing gauges and retention force gauges . 39
6 Characteristics . 39
6.1 Classification into climatic category . 39
6.2 Electrical characteristics . 39
6.2.1 Voltage proof . 39
6.2.2 Rated voltage – Rated impulse voltage – Pollution degree . 39
6.2.3 Current-carrying capacity . 40
6.2.4 Contact resistance . 40
6.2.5 Insulation resistance. 40
6.2.6 Transmission performance . 40
6.3 Mechanical characteristics . 40
6.3.1 Mating interface . 40
6.3.2 Push-pull locking mechanism . 41
6.4 Other characteristics . 42
6.4.1 Vibration (sinusoidal) . 42
6.4.2 Shock . 42
6.4.3 Degree of protection provided by enclosures (IP code) . 42
7 Test schedule . 42
7.1 General . 42

IEC 61076-2-010:2021 © IEC 2021 – 3 –
7.2 Test schedule . 43
7.2.1 Test group P – Preliminary . 43
7.2.2 Test group AP – Dynamic/climatic . 43
7.2.3 Test group BP – Mechanical endurance . 43
7.2.4 Test group CP – Electrical load . 44
7.2.5 Test group DP – Chemical resistivity . 44
7.2.6 Test group EP – Connection method tests . 44
7.2.7 Test group FP – Electrical transmission requirements . 44
Annex A (informative) Diameter and position of the female connector body . 45
A.1 Diameter of the female connector body . 45
A.2 Position of female connector body for connectors with outer push-pull
locking . 45
A.3 Position of female connector body for connectors with inner push-pull
locking . 46
Annex B (informative) Example for L-coded connector and comparison between

screw- and inner push-pull-locking . 48
Annex C (informative) Styles of female free connectors to extend free male cable
connectors . 50

Figure 1 – Tube insert, male contacts, thread for M12 screw locking on tube . 17
Figure 2 – Fixed connector, male contacts, with M12 screw locking and outer push-pull

locking, square flange front mounting. 17
Figure 3 – Fixed connector, male contacts, with M12 screw locking and outer push-pull
locking, with wire ends, single hole front mounting thread M16 × 1,5 . 18
Figure 4 – Fixed connector, male contacts, with M12 screw locking and outer push-pull
locking, with wire ends, single hole front mounting thread M20 × 1,5 . 18
Figure 5 – Fixed connector, female contacts, with M12 screw locking and outer push-

pull locking, with wire ends, single hole front mounting thread M16 × 1,5 . 19
Figure 6 – Fixed connector, female contacts, with M12 screw locking and outer push-
pull locking, with wire ends, single hole front mounting thread M20 × 1,5 . 19
Figure 7 – Fixed connector, female contacts, with M12 screw locking and outer push-
pull locking, with wire ends, single hole front mounting thread M16 × 1,5 and mounting
orientation . 20
Figure 8 – Fixed connector, female contacts, with M12 screw locking and outer push-
pull locking, with wire ends, single hole rear mounting thread M16 × 1,5 . 20
Figure 9 – Fixed connector, female contacts, with M12 screw locking and inner push-
pull locking, with wire ends, single hole front mounting thread M16 × 1,5 . 21
Figure 10 – Fixed connector, female contacts, with M12 screw locking and inner push-
pull locking, with wire ends, single hole front mounting thread M20 × 1,5 . 21
Figure 11 – Fixed connector, female contacts, with M12 screw locking and inner push-
pull locking, with wire ends, single hole front mounting thread M16 × 1,5 and mounting
orientation . 22
Figure 12 – Fixed connector, female contacts, with M12 screw locking and inner push-

pull locking, with wire ends, single hole rear mounting thread M16 × 1,5 . 22
Figure 13 – Rewirable connector, male contacts, straight version, with outer push-pull
locking . 23
Figure 14 – Rewirable connector, male contacts, angled version, with outer push-pull
locking . 24
Figure 15 – Non-rewirable connector, male contacts, straight version, with outer push

pull locking . 24

– 4 – IEC 61076-2-010:2021 © IEC 2021
Figure 16 – Non-rewirable connector, male contacts, angled version, with outer push-
pull locking . 25
Figure 17 – Rewirable connector, female contacts, straight version, with outer push-

pull locking . 26
Figure 18 – Rewirable connector, female contacts, angled version, with outer push-pull
locking . 27
Figure 19 – Non-rewirable connector, female contacts, straight version, with outer
push-pull locking . 28
Figure 20 – Non-rewirable connector, female contacts, angled version, with outer push-

pull locking . 28
Figure 21 – Rewirable connector, male contacts, straight version, with inner push-pull
locking . 29
Figure 22 – Rewirable connector, male contacts, angled version, with inner push-pull
locking . 30
Figure 23 – Non-rewirable connector, male contacts, straight version, with inner push-

pull locking . 30
Figure 24 – Non-rewirable connector, male contacts, angled version, with inner push-
pull locking . 31
Figure 25 – Outer push-pull locking: male fixed connector side view . 32
Figure 26 – Outer push-pull locking: female fixed connector side view with details and
engage-plane definition for male free cable connector . 34
Figure 27 – Inner push-pull-locking: female fixed connector side view and male free
connector side view with details for both . 37
Figure A.1 – Diameter of the female connector body . 45
Figure A.2 – Position of the female insulating body for connectors with outer push-pull
locking . 46
Figure A.3 – Female fixed connector side view and position of insulating body . 47
Figure B.1 – Dimensions for L-coded interface dimensions according to
IEC 61076-2-111 . 48

Table 1 – Content of document . 9
Table 2 – Available connector codings . 14
Table 3 – Styles of fixed connectors . 16
Table 4 – Styles of free connectors . 23
Table 5 – Dimensions of style JM-OP, Figure 13 . 23
Table 6 – Dimensions of style KM-OP, Figure 14 . 24
Table 7 – Dimensions of style LM-OP, Figure 15. 25
Table 8 – Dimensions of style MM-OP, Figure 16 . 25
Table 9 – Dimensions of style JF-OP, Figure 17 . 26
Table 10 – Dimensions of style KF-OP, Figure 18 . 27
Table 11 – Dimensions of style LF-OP, Figure 19 . 28
Table 12 – Dimensions of style MF-OP, Figure 20 . 29
Table 13 – Dimensions of style JM-IP, Figure 21 . 29
Table 14 – Dimensions of style KM-IP, Figure 22 . 30
Table 15 – Dimensions of style LM-IP, Figure 23 . 31
Table 16 – Dimensions of style MM-IP, Figure 24 . 31
Table 17 – Dimensions of fixed connector with push pull housing and male contacts . 33

IEC 61076-2-010:2021 © IEC 2021 – 5 –
Table 18 – Dimensions for Figure 26. 35
Table 19 – Dimensions of CA for Figure 26 . 36
Table 20 – Dimensions of CD for Figure 26 . 36
Table 21 – Dimensions of CC for Figure 26 . 36
Table 22 – Dimensions for Figure 27. 38
Table 23 – Dimensions of engage-plane for Figure 27 . 39
Table 24 – Climatic category . 39
Table 25 – Insertion and withdrawal forces for the locking mechanism . 41
Table 26 – Number of test specimens . 43
Table 27 – Test group BP . 43
Table A.1 – Diameter of the female connector body, dimension X . 45
Table A.2 – Dimension DAB . 46
Table A.3 – Dimension FP for Figure A.3 . 47
Table B.1 – Comparison of dimension between screw- and push-pull-locking . 49
Table C.1 – Female free connector styles to extend push-pull free male connectors . 50

– 6 – IEC 61076-2-010:2021 © IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRICAL AND ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-010: Circular connectors – Detail specification for connectors
with outer or inner push-pull locking mechanism, based on mating
interfaces according to IEC 61076-2-101, IEC 61076-2-109,
IEC 61076-2-111 and IEC 61076-2-113

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61076-2-010 has been prepared by subcommittee 48B: Electrical
connectors, of IEC technical committee 48: Electrical connectors and mechanical structures for
electrical and electronic equipment.
The text of this International Standard is based on the following documents:
FDIS Report on voting
48B/2876/FDIS 48B/2887/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
IEC 61076-2-010:2021 © IEC 2021 – 7 –
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 61076 series, published under the general title Connectors for
electrical and electronic equipment – Product requirements, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 8 – IEC 61076-2-010:2021 © IEC 2021
INTRODUCTION
The International Electrotechnical Commission (IEC) draws attention to the fact that it is claimed
that compliance with this International Standard may involve the use of patent(s) concerning
the free connectors
The IEC takes no position concerning the evidence, validity and scope of these patent rights.
The holder of this patent right has assured the IEC that he/she is willing to give free licences
with applicants throughout the world. In this respect, the statement of the holder of this patent
right is registered with the IEC.
Information may be obtained from:
Molex LLC
2222 Wellington Court
Lisle, IL60532
USA
HARTING Electronics GmbH
Marienwerderstraße 3
32339 Espelkamp
Germany
IEC 61076-2-010:2021 © IEC 2021 – 9 –
Table 1 – Content of document
IEC SC 48B – Electrical connectors
Specification available from:
IEC 61076-2-010 Ed. 1
IEC General secretariat
Or from the addresses shown on the inside cover.
DETAIL SPECIFICATION in accordance with IEC 61076-1
Circular M12 connectors with push-
pull locking for power and/or signal
and/or data transmission
Fixed connectors with male and
female contacts, mateable with M12
screw or push-pull plugs
Free cable connectors with male or
female contacts with push-pull
locking
Rewireable – Non-rewirable
Fixed connectors, with front, rear or
single hole mounting
Straight and right-angled free cable
connectors
Table 1 shows the content of this document.

– 10 – IEC 61076-2-010:2021 © IEC 2021
CONNECTORS FOR ELECTRICAL AND ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-010: Circular connectors – Detail specification for connectors
with outer or inner push-pull locking mechanism, based on mating
interfaces according to IEC 61076-2-101, IEC 61076-2-109,
IEC 61076-2-111 and IEC 61076-2-113

1 Scope
This part of IEC 61076-2 specifies circular connectors with a push-pull locking mechanism of a
size derived from, and thus being compatible with M12 screw-locking connectors (free
connectors with screw-locking according to IEC 61076-2-101, IEC 61076-2-109,
IEC 61076-2-111 or IEC 61076-2-113 are compatible with push-pull fixed interfaces according
to this document) and with mating interfaces according to IEC 61076-2-101, IEC 61076-2-109,
IEC 61076-2-111 (except codings E in general and coding F for inner push-pull) or
IEC 61076-2-113.
A fixed connector with push-pull locking according to this document is intermateable with a
correspondingly coded free connector with M12 screw-locking according to any of the above
mentioned standards.
NOTE 1 M12 is the dimension of the thread of the screw-locking mechanism of circular connectors with M12 screw-
locking.
NOTE 2 IEC 61076-2-012 defines another inner push-pull for fixed female connectors which is however not
compatible to the inner push-pull defined in this document. Annex C shows the different styles of female free
connectors to extend male free connectors.
This document covers both:
a) power connectors with current ratings up to 16 A and voltage ratings up to 630 V, typically
used for power supply and power applications in industrial premises, and
b) connectors for data and signal transmission with frequencies up to 500 MHz.
These connectors consist of both, fixed and free connectors, either rewirable or non-rewirable,
with M12 push-pull locking as explained above. Male connectors have round contacts from Ø
0,6 mm up to Ø 1,5 mm. In addition, the push-pull mechanisms consist of 2 different push-pull
designs:
c) An outer push-pull for male and female fixed connector, where the locking groove is placed
onto the outer cylindric surface of the housing. The outer push-pull for female fixed
connectors is made for 2 different types of male connectors. It has locking means for both
types on its outer surface.
NOTE 3 For design and dimensions see 5.3.2 and 5.3.3.
d) An inner push-pull for female fixed connectors and for male free connectors, where the
locking means are placed onto the inner cylindric surface of the housing.
NOTE 4 For design and dimensions see 5.3.4.
The different codings provided by IEC 61076-2 series detail specifications mentioned within this
document prevent the mating of accordingly coded male or female connectors to any other
similarly sized interfaces, covered by other standards and the cross-mating between the
different codings provided by any other IEC 61076-2 series detail specification mentioned within
this document.
IEC 61076-2-010:2021 © IEC 2021 – 11 –
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050-581:2008, International Electrotechnical Vocabulary (IEV) – Part 581:
Electromechanical components for electronic equipment
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 60512-1, Connectors for electrical and electronic equipment – Tests and measurements –
Part 1: Generic specification
IEC 60512-2-1, Connectors for electronic equipment – Tests and measurements – Part 2-1:
Electrical continuity and contact resistance tests – Test 2a: Contact resistance – Millivolt level
method
IEC 60512-3-1, Connectors for electronic equipment – Tests and measurements – Part 3-1:
Insulation tests – Test 3a: Insulation resistance
IEC 60512-4-1, Connectors for electronic equipment – Tests and measurements – Part 4-1:
Voltage stress tests – Test 4a: Voltage proof
IEC 60512-5-1, Connectors for electronic equipment – Tests and measurements – Part 5-1:
Current-carrying capacity tests – Test 5a: Temperature rise
IEC 60512-6-3, Connectors for electronic equipment – Tests and measurements – Part 6-3:
Dynamic stress tests – Test 6c: Shock
IEC 60512-6-4, Connectors for electronic equipment – Tests and measurements – Part 6-4:
Dynamic stress tests – Test 6d: Vibration (sinusoidal)
IEC 60512-9-1, Connectors for electronic equipment – Tests and measurements – Part 9-1:
Endurance tests – Test 9a: Mechanical operation
IEC 60512-13-1, Connectors for electronic equipment – Tests and measurements – Part 13-1:
Mechanical operation tests – Test 13a: Engaging and separating forces
IEC 60512-13-2, Connectors for electronic equipment – Tests and measurements – Part 13-2:
Mechanical operation tests – Test 13b: Insertion and withdrawal forces
IEC 60512-13-5, Connectors for electronic equipment – Tests and measurements – Part 13-5:
Mechanical operation tests – Test 13e: Polarizing and keying method
IEC 60512-15-6, Connectors for electronic equipment – Tests and measurements – Part 15-6:
Connector tests (mechanical) – Test 15f: Effectiveness of connector coupling devices
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
IEC 60529:1989/AMD1:1999
IEC 60529:1989/AMD2:2013
IEC 60664-1, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests

– 12 – IEC 61076-2-010:2021 © IEC 2021
IEC 60998-2-1:2002, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-1: Particular requirements for connecting devices as separate entities with
screw-type clamping units
IEC 61076-1:2006, Connectors for electronic equipment – Product requirements – Part 1:
Generic specification
IEC 61076-1:2006/AMD1:2019
IEC 61076-2-012, Connectors for electrical and electronic equipment – Product requirements
Part 2-012: Circular connectors – Detail specification for connectors with inner push-pull
locking, based on M12 connector interfaces according to IEC 61076-2-101, IEC 61076-2-109,
IEC 61076-2-111 and IEC 61076-2-113
IEC 61076-2-101:2012, Connectors for electronic equipment – Product requirements –
Part 2-101: Circular connectors – Detail specification for M12 connectors with screw-locking
IEC 61076-2-109:2
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

Loading comments...

この記事は、プッシュ-プルロッキングメカニズムを備えた円形コネクタの仕様について説明しています。これらのコネクタはM12ねじロックコネクタとの互換性があり、IEC規格に基づくマーティングインタフェースに対応しています。本文書は、産業用電源および電力応用に典型的に使用される電力コネクタ、および最大500MHzの周波数でのデータおよび信号伝送に使用されるコネクタをカバーしています。コネクタは、有線または無線接続可能な固定コネクタおよびフリーコネクタ、M12プッシュ-プルロッキングを含んでいます。メスコネクタは0.6mmから1.5mmまでの異なるサイズの接触ピンを持ちます。さらに、コネクタには外部プッシュ-プルメカニズムおよび内部プッシュ-プルメカニズムの2つの異なるデザインがあります。IEC 61076-2シリーズの詳細仕様で提供される異なるコーディングは、他の標準でカバーされている同様のサイズのインタフェースとのマッチングを防止します。

The article discusses the specifications for circular connectors with push-pull locking mechanisms. These connectors are derived from M12 screw-locking connectors and are compatible with mating interfaces according to certain IEC standards. The document covers both power connectors used for industrial power applications and connectors for data and signal transmission. Male connectors have round contacts ranging from Ø 0.6 mm to Ø 1.5 mm. The push-pull mechanisms include an outer push-pull for male and female fixed connectors and an inner push-pull for female fixed connectors and male free connectors. The different codings provided in the IEC 61076-2 series prevent mating with other similarly sized interfaces covered by different standards.

The article discusses the specifications for circular connectors with push-pull locking mechanisms. These connectors are compatible with M12 screw-locking connectors and mating interfaces according to specific IEC standards. The document covers power connectors for industrial applications and connectors for data and signal transmission. The connectors have different push-pull designs, including an outer push-pull for male and female fixed connectors and an inner push-pull for female fixed connectors and male free connectors. The article also mentions different codings provided by IEC 61076-2 series detail specifications to prevent mating with incompatible interfaces.

この記事では、M12のねじ締めロックコネクターから派生した、プッシュ-プル式のロックメカニズムを持つ円形コネクターの仕様について説明しています。これらのコネクターは、IEC 61076-2-101、IEC 61076-2-109、IEC 61076-2-111、またはIEC 61076-2-113に従うねじ締めロックを使用するフリーコネクター(IEC 61076-2-010:2021による固定プッシュ-プルインタフェースと互換性がある)およびIEC 61076-2-101、IEC 61076-2-109、IEC 61076-2-111(Eコーディング一般と内部プッシュ-プル用のFコーディングを除く)またはIEC 61076-2-113に従う連結インタフェースと互換性があります。この規格に従ったプッシュ-プルロックの固定コネクターは、上記のいずれかの基準に従った対応するコーディングを持つM12ねじ締めロックのフリーコネクターと接続できます。ここでのM12は、M12ねじ締めロックコネクターのねじ締めメカニズムのサイズを指します。IEC 61076-2-012では、この規格で定義された内部プッシュ-プルとは互換性のない固定女性コネクター用の別の内部プッシュ-プルが定義されています。付録Cでは、さまざまなスタイルの女性フリーコネクターが男性フリーコネクターの拡張に使用される様子が示されています。この規格は次の2つをカバーしています:a)最大16Aの電流定格および最大630Vの電圧定格を持つ産業用電源および電力応用に一般的に使用される電力コネクター、b)最大500MHzの周波数でデータおよび信号伝送用のコネクター。これらのコネクターには、上記のようにM12プッシュ-プルロックを備えた固定およびフリーコネクター(再接続可能または非再接続可能)が含まれます。男性コネクターには、Ø 0.6mmからØ 1.5mmの丸いコンタクトがあります。さらに、プッシュ-プルメカニズムには2つの異なるプッシュ-プルデザインがあります:c)固定コネクター用の外部プッシュ-プルで、ロック溝はハウジングの外部円筒面に配置されます。女性固定コネクター用の外部プッシュ-プルは、2種類の男性コネクターに対して外部表面にロック手段を備えています。設計および寸法については、5.3.2および5.3.3を参照してください。d)女性固定コネクターおよび男性フリーコネクター用の内部プッシュ-プルは、ロック手段がハウジングの内部円筒面に配置されています。設計および寸法については、5.3.4を参照してください。この文書に記載されているIEC 61076-2シリーズの詳細仕様によって提供される異なるコーディングは、他の規格でカバーされる同様のサイズのインタフェースとのマッチングを防止し、この文書に記載されている他のIEC 61076-2シリーズの詳細仕様で提供される異なるコーディング間のクロスマッチングも防止します。

이 문서는 M12 나사 잠금 커넥터에서 파생된 크기를 가진 푸시-풀 잠금 메커니즘을 갖춘 원형 커넥터에 대한 명세를 설명한다. 이것은 IEC 61076-2-010:2021에 따라 M12 나사 잠금에 따른 자유 커넥터 (IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 또는 IEC 61076-2-113에 따른 나사 잠금을 사용하는 자유 커넥터는 이 문서에 따른 고정 푸시-풀 인터페이스와 호환됨)와 IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 (E 코딩을 제외한 일반적인 코딩 및 내부 푸시-풀을 위한 F 코딩) 또는 IEC 61076-2-113에 따른 연결 인터페이스를 갖추고 있다. 이 문서에 따른 푸시-풀 잠금 고정 커넥터는 위에서 언급한 모든 표준에 따른 적절한 코딩을 가진 M12 나사 잠금에 맞춰 연결이 가능하다. M12은 M12 나사 잠금 원형 커넥터의 나사 잠금 메커니즘의 크기를 나타낸다. IEC 61076-2-012는이 문서에 정의된 내부 푸시-풀과는 호환되지 않는 고정 여성 커넥터에 대한 또 다른 내부 푸시-풀을 정의한다. 부록 C에서는 여성 자유 커넥터의 다양한 스타일이 남성 자유 커넥터를 확장하는 것을 보여준다. 이 문서는 다음을 커버한다: a) 전원 공급 및 산업 시설에서 전원 공급 및 전원 응용에 일반적으로 사용되는 최대 16A 및 최대 630V의 전류 등급을 가진 전원 커넥터, b) 최대 500MHz의 주파수를 가지는 데이터 및 신호 전송을 위한 커넥터. 이러한 커넥터에는 M12 푸시-풀 잠금을 갖춘 고정 및 자유 커넥터 (재연결 가능 또는 재연결 불가능)이 포함된다. 남성 커넥터는 Ø 0.6mm에서 Ø 1.5mm까지의 원형 접점을 갖추고 있다. 또한, 푸시-풀 메커니즘은 2개의 다른 푸시-풀 디자인으로 구성된다: c) 외부 푸시-풀은 남성 및 여성 고정 커넥터에 대한 것이며, 잠금홈이 하우징의 외부 원통형 표면에 배치된다. 여성 고정 커넥터용 외부 푸시-풀은 외부 표면에 두 종류의 남성 커넥터에 대한 잠금 수단을 갖추고 있다. 디자인과 크기는 5.3.2 및 5.3.3을 참조하라. d) 내부 푸시-풀은 여성 고정 커넥터 및 남성 자유 커넥터에 대한 것이며, 잠금 수단이 하우징의 내부 원통형 표면에 배치된다. 디자인과 크기는 5.3.4를 참조하라. 이 문서에 나열된 IEC 61076-2 시리즈 상세명세서에서 제공된 다른 코딩은 이 문서에 언급된 다른 표준 및 IEC 61076-2 시리즈 상세명세서에서 제공된 다른 코딩 간에 대한 성공적인 매핑을 방지한다.

이 기사는 푸시-풀 잠금 메커니즘을 갖춘 원형 커넥터의 사양에 대해 다루고 있습니다. 이 커넥터들은 M12 나사 잠금 커넥터와 IEC 표준에 따른 마팅 인터페이스와 호환됩니다. 이 문서는 산업용 전원 공급 및 전원 응용에 주로 사용되는 전원 커넥터 및 500MHz까지의 주파수에 대한 데이터 및 신호 전송용 커넥터를 포함합니다. 커넥터는 고정형과 자유형 커넥터, 경재방지형 또는 비경재방지형 커넥터로 구성되며, M12 푸시-풀 잠금 기능을 갖추고 있습니다. 남성 커넥터는 0.6 mm에서 1.5 mm까지 다양한 선경을 갖추고 있습니다. 또한, 커넥터는 외부 푸시-풀 메커니즘과 내부 푸시-풀 메커니즘으로 구성되며, 이는 각각 고정형 여성 커넥터와 남성 자유형 커넥터에서 사용됩니다. IEC 61076-2 시리즈의 세부 사양에서 제공되는 서로 다른 코딩은 해당 코딩과 비슷한 크기의 다른 표준에 따른 인터페이스와의 결합을 방지합니다.
