EN IEC 61010-031:2023
(Main)Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
IEC 61010-031:2022 specifies safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement, and their related accessories. These probe assemblies are for non-contact or direct electrical connection between a part and electrical test and measurement equipment. They can be fixed to the equipment or be detachable accessories for the equipment. It has the status of a group safety publication in accordance with IEC Guide 104. This third edition cancels and replaces the second edition published in 2015, and Amendment 1:2018. IEC 61010-031 is a stand-alone standard. This edition includes the following significant technical changes with respect to the previous edition:
the scope has been made succinct. General information from the scope of Edition 2 has been moved to a new Clause 4. Consequently, Clause 4 to Clause 8 of Edition 2 have been renumbered. Clause 9 of Edition 2 has been deleted;
in Clause 2, normative references have been dated and new normative references have been added;
in 3.1.4, the definition of probe tip has been modified;
in 4.1, there is no longer any differentiation between high voltage and low voltage probe assemblies. Type C probe assemblies have been merged with Type B probe assemblies;
in 4.1 d) "Kelvin" probes have been added to the list of probe assemblies as a new Type E and a new Figure 5;
in 4.1 e), probes for voltage measurement without electrical connection to conductors have been added to the list of probe assemblies as a new Type F and a new Figure 6;
in 4.2.1, spread of fire is no longer considered as a hazard;
Subclause 4.4.2.5 from Edition 2 has been deleted;
Subclause 4.4.4.3 from Edition 2 has been deleted;
in 5.4.4.1 consideration has been given to spacings and impedance;
in 6.1.1, removable parts of probe tips which bear markings are allowed;
in 6.1.5, the voltage to be marked for measurement categories is the AC line-to-neutral or DC voltage;
in 7.4.2, requirements for unmated connectors have been modified as follows:
Table 2 has been modified and expanded,
a calculation method for clearances of connectors above 20 kV has been defined,
creepage distances have been aligned with clearances;
in 7.4.3.1 and 7.4.3.5, requirements for IP2X probe tips with retractable sleeve have been added;
in 7.4.3.2, Probe tips are now applicable to non-contact probe assemblies;
in 7.5.2.3.2, the values of Table 5 have been modified;
Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte - Teil 031: Sicherheitsbestimmungen für handgehaltenes und handgeführtes Messzubehör zum elektrischen Messen und Prüfen
Exigences de sécurité pour appareils électriques de mesurage, de régulation et de laboratoire - Partie 031: Exigences de sécurité pour sondes équipées tenues à la main et manipulées pour mesurage et essais électriques
L’IEC 61010-031:2022 spécifie les exigences de sécurité relatives aux sondes équipées tenues à la main et manipulées prévues pour le mesurage et les essais électriques, ainsi que leurs accessoires connexes. Ces sondes équipées sont prévues pour une connexion sans contact électrique ou une connexion électrique directe entre une partie et un appareil de mesure et d’essai électrique. Elles peuvent être solidaires de l’appareil ou en être des accessoires détachables. Elle a le statut d’une publication groupée de sécurité conformément au Guide IEC 104. Cette troisième édition annule et remplace la deuxième édition parue en 2015 et l’Amendement 1:2018. L’IEC 61010-031 est une norme autonome. Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
le domaine d’application a été raccourci. Les informations générales du domaine d’application de l’Edition 2 ont été déplacées dans un nouvel Article 4. Par conséquent, les Articles 4 à 8 de l’Edition 2 ont été renumérotés. L’Article 9 de l’Edition 2 a été supprimé;
à l’Article 2, les références normatives ont été datées et de nouvelles références normatives ont été ajoutées;
en 3.1.4, la définition de pointe de touche a été modifiée;
en 4.1, il n’y a plus de distinction entre les sondes équipées haute tension et basse tension. Les sondes équipées de types B et C ont été fusionnées;
en 4.1 d), les sondes "Kelvin" ont été ajoutées à la liste des sondes équipées en tant que nouveau type E, ainsi qu’une nouvelle Figure 5;
en 4.1 e), des sondes de mesure de la tension sans connexion électrique aux conducteurs ont été ajoutées à la liste des sondes équipées en tant que nouveau type F, ainsi qu’une nouvelle Figure 6;
en 4.2.1, la propagation du feu n’est plus considérée comme un danger;
le paragraphe 4.4.2.5 de l’Edition 2 a été supprimé;
le paragraphe 4.4.4.3 de l’Edition 2 a été supprimé;
en 5.4.4.1, une attention particulière a été accordée aux espacements et à l’impédance;
en 6.1.1, les parties amovibles des pointes de touche qui portent des marquages sont autorisées;
en 6.1.5, la tension à marquer pour les catégories de mesure est la tension alternative phase-neutre ou la tension continue;
en 7.4.2, les exigences relatives aux connecteurs découplés ont été modifiées comme suit:
le Tableau 2 a été modifié et étendu;
une méthode de calcul des distances d’isolement des connecteurs au-delà de 20 kV a été définie;
les lignes de fuite ont été alignées avec les distances d’isolement;
en 7.4.3.1 et 7.4.3.5, des exigences ont été ajoutées pour les pointes de touche IP2X avec ma
Varnostne zahteve za električno opremo za meritve, nadzor in laboratorijsko uporabo - 031. del: Varnostne zahteve za sestave ročnih sond za električne meritve in preskušanja (IEC 61010-031:2022)
Ta del standarda IEC 61010 določa varnostne zahteve za sestave ročnih in ročno vodenih sond za električna preskušanja in meritve ter pripadajočo dodatno opremo. Ti sestavi sond so namenjeni brezkontaktni ali neposredni električni povezavi med delom in električnimi preskušanji ter merilno opremo. Pritrdijo se lahko na opremo ali so odstranljivi dodatki za opremo.
Ta publikacija skupinske varnosti, ki se osredotoča na bistvene varnostne zahteve, se uporablja predvsem kot standard o varnosti izdelka za izdelke, ki so omenjeni v okviru publikacije, vendar je namenjena tudi tehničnim odborom pri pripravi publikacij za izdelke, ki so podobni izdelkom, omenjenim v okviru te publikacije skupinske varnosti, skladno z načeli vodil IEC 104 in ISO/IEC 51.
Ena od dolžnosti tehničnega odbora je, da med pripravo publikacij uporablja osnovne varnostne publikacije in/ali publikacije skupinske varnosti, kadar je to primerno.
General Information
Relations
Standards Content (Sample)

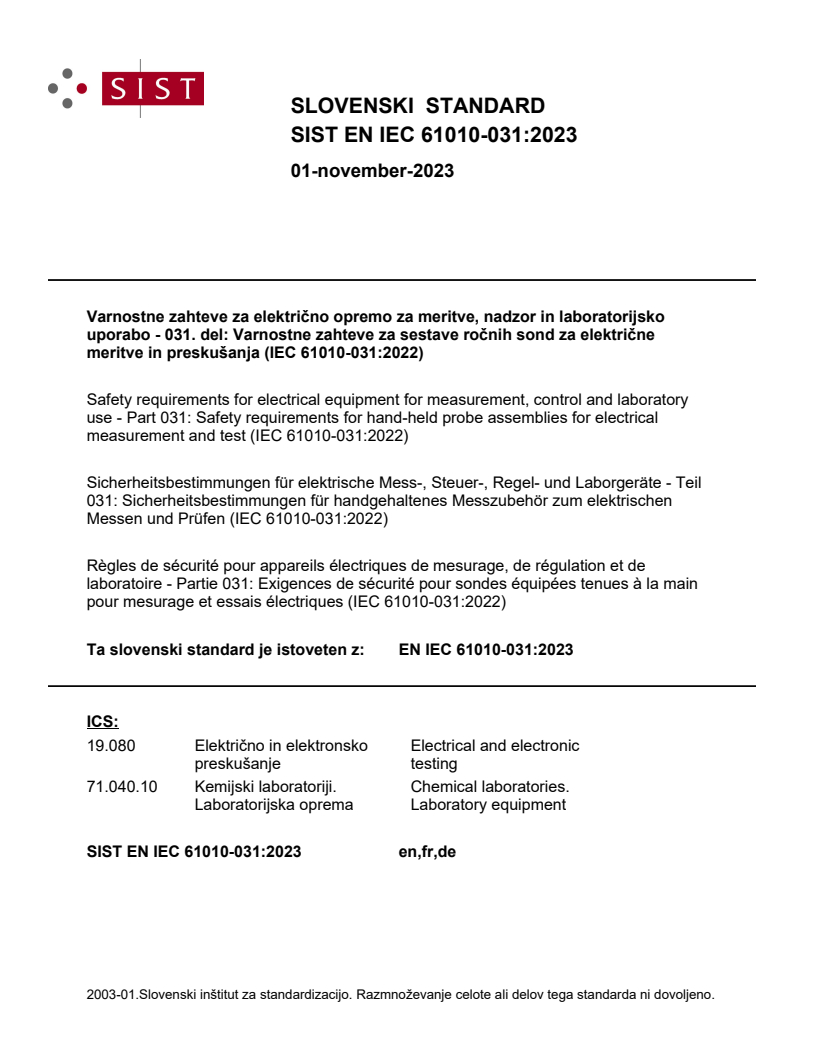

SLOVENSKI STANDARD
01-november-2023
Varnostne zahteve za električno opremo za meritve, nadzor in laboratorijsko
uporabo - 031. del: Varnostne zahteve za sestave ročnih sond za električne
meritve in preskušanja (IEC 61010-031:2022)
Safety requirements for electrical equipment for measurement, control and laboratory
use - Part 031: Safety requirements for hand-held probe assemblies for electrical
measurement and test (IEC 61010-031:2022)
Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte - Teil
031: Sicherheitsbestimmungen für handgehaltenes Messzubehör zum elektrischen
Messen und Prüfen (IEC 61010-031:2022)
Règles de sécurité pour appareils électriques de mesurage, de régulation et de
laboratoire - Partie 031: Exigences de sécurité pour sondes équipées tenues à la main
pour mesurage et essais électriques (IEC 61010-031:2022)
Ta slovenski standard je istoveten z: EN IEC 61010-031:2023
ICS:
19.080 Električno in elektronsko Electrical and electronic
preskušanje testing
71.040.10 Kemijski laboratoriji. Chemical laboratories.
Laboratorijska oprema Laboratory equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 61010-031
NORME EUROPÉENNE
EUROPÄISCHE NORM May 2023
ICS 19.080 Supersedes EN 61010-031:2015; EN 61010-
031:2015/A1:2021; EN 61010-031:2015/A11:2021
English Version
Safety requirements for electrical equipment for measurement,
control, and laboratory use - Part 031: Safety requirements for
hand-held and hand-manipulated probe assemblies for electrical
test and measurement
(IEC 61010-031:2022)
Exigences de sécurité pour appareils électriques de Sicherheitsbestimmungen für elektrische Mess-, Steuer-,
mesurage, de régulation et de laboratoire - Partie 031: Regel- und Laborgeräte - Teil 031:
Exigences de sécurité pour sondes équipées tenues à la Sicherheitsbestimmungen für handgehaltenes und
main et manipulées pour mesurage et essais électriques handgeführtes Messzubehör zum elektrischen Messen und
(IEC 61010-031:2022) Prüfen
(IEC 61010-031:2022)
This European Standard was approved by CENELEC on 2023-03-06. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61010-031:2023 E

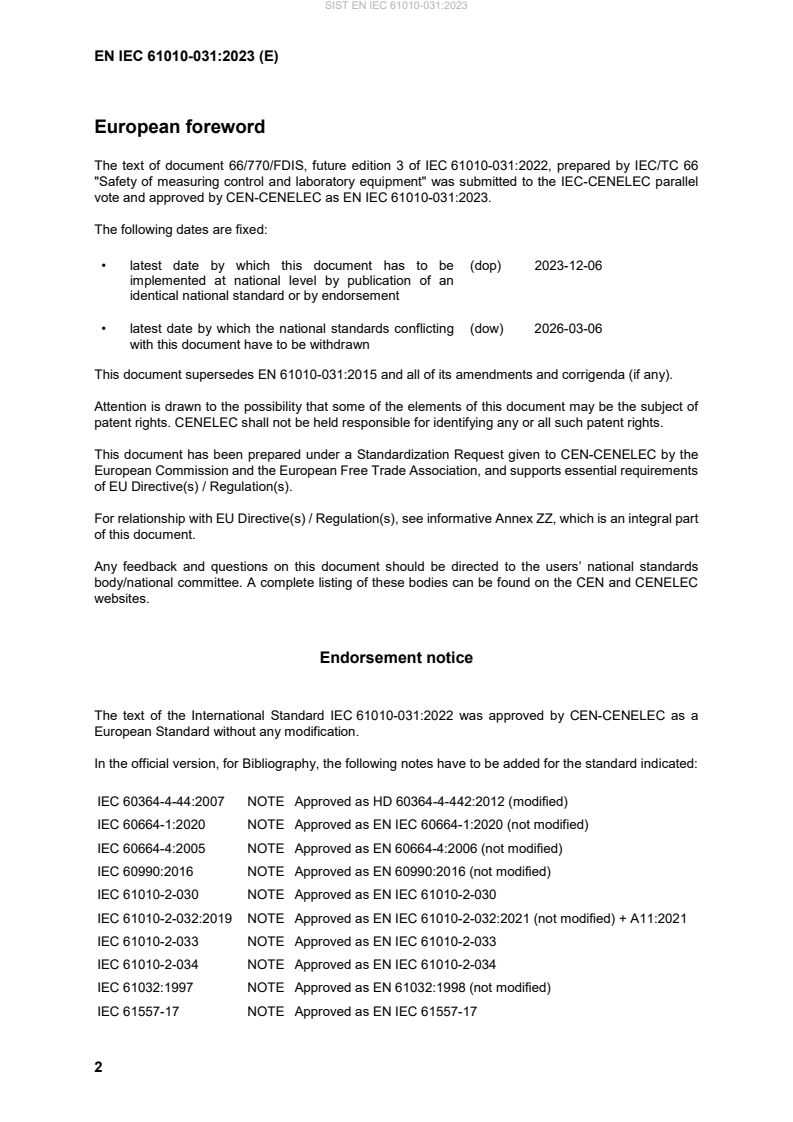

European foreword
The text of document 66/770/FDIS, future edition 3 of IEC 61010-031:2022, prepared by IEC/TC 66
"Safety of measuring control and laboratory equipment" was submitted to the IEC-CENELEC parallel
vote and approved by CEN-CENELEC as EN IEC 61010-031:2023.
The following dates are fixed:
• latest date by which this document has to be (dop) 2023-12-06
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards conflicting (dow) 2026-03-06
with this document have to be withdrawn
This document supersedes EN 61010-031:2015 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a Standardization Request given to CEN-CENELEC by the
European Commission and the European Free Trade Association, and supports essential requirements
of EU Directive(s) / Regulation(s).
For relationship with EU Directive(s) / Regulation(s), see informative Annex ZZ, which is an integral part
of this document.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN and CENELEC
websites.
Endorsement notice
The text of the International Standard IEC 61010-031:2022 was approved by CEN-CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60364-4-44:2007 NOTE Approved as HD 60364-4-442:2012 (modified)
IEC 60664-1:2020 NOTE Approved as EN IEC 60664-1:2020 (not modified)
IEC 60664-4:2005 NOTE Approved as EN 60664-4:2006 (not modified)
IEC 60990:2016 NOTE Approved as EN 60990:2016 (not modified)
IEC 61010-2-030 NOTE Approved as EN IEC 61010-2-030
IEC 61010-2-032:2019 NOTE Approved as EN IEC 61010-2-032:2021 (not modified) + A11:2021
IEC 61010-2-033 NOTE Approved as EN IEC 61010-2-033
IEC 61010-2-034 NOTE Approved as EN IEC 61010-2-034
IEC 61032:1997 NOTE Approved as EN 61032:1998 (not modified)
IEC 61557-17 NOTE Approved as EN IEC 61557-17
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60027-1 1992 Letters symbols to be used in electrical EN 60027-1 2006
+ AMD1 technology - Part 1: General + A2 2007
+ AMD2
IEC 60027-2 2019 Letter symbols to be used in electrical EN IEC 60027-2 2019
technology - Part 2: Telecommunications
and electronics
IEC 60027-4 2006 Letter symbols to be used in electrical EN 60027-4 2007
technology - Part 4: Rotating electric
machines
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
+ Corrigendum May 1993
+ AMD1 1999 + A1 2000
2013 + A2 2013
+ AMD2
+ A2:2013/AC 2019-02
+ AC 2016-12
IEC 61010-1 2010 Safety requirements for electrical EN 61010-1 2010
+ AMD1 2016 equipment for measurement, control and + A1 2019
laboratory use - Part 1: General
+ A1:2019/AC 2019-04
requirements
IEC 61180 2016 High-voltage test techniques for low- EN 61180 2016
voltage equipment - Definitions, test and
procedure requirements, test equipment
Annex ZZ
(informative)
Relationship between this European standard and the safety
objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be
covered
This European Standard has been prepared under a Commission’s standardization request relating to
harmonized standards in the field of the Low Voltage Directive, M/511, to provide one voluntary means
of conforming to safety objectives of Directive 2014/35/EU of the European Parliament and of the
Council of 26 February 2014 on the harmonization of the laws of the Member States relating to the
making available on the market of electrical equipment designed for use within certain voltage limits
[2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive, compliance
with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of the scope of
this standard, a presumption of conformity with the corresponding safety objectives of that Directive,
and associated EFTA regulations.
Table ZZ.1 — Correspondence between this European standard and Annex I of Directive
2014/35/EU [2014 OJ L96]
Clause(s) /
Safety objectives of Directive
subclause(s)
Remarks / Notes
2014/35/EU (Annex I)
of this EN
1. General conditions
1 (a) the essential characteristics, the 6 This standard only deals with
recognition and observance of which will accessories for measuring
ensure that electrical equipment will be equipment.
used safely and in applications for which
it was made, shall be marked on the
electrical equipment, or, if this is not
possible, on an accompanying document
1 (b) the electrical equipment, together 6.4
with its component parts, shall be made
in such a way as to ensure that it can be
safely and properly assembled and
connected
1 (c) the electrical equipment shall be so 6.4, Annex F
designed and manufactured as to ensure See also the
that protection against the hazards set details in points 2
out in points 2 and 3 is ensured, and 3
providing that the equipment is used in
applications for which it was made and is
adequately maintained
2. Protection against hazards arising from the electrical equipment
Measures of a technical nature shall be laid down in accordance with point 1, in order to ensure that:
2 (a) persons and domestic animals are 5, 7, 9.1, 9.2, 11,
adequately protected against the danger Annex A,
of physical injury or other harm which Annex D
might be caused by direct or indirect
contact
Clause(s) /
Safety objectives of Directive
subclause(s)
Remarks / Notes
2014/35/EU (Annex I)
of this EN
2 (b) temperatures, arcs or radiation 5, 5.5.2, 7.3.1, The products dealt with in this
which would cause a danger, are not 7.3.2, 9.2, 10, 12, standard are all passive
produced 13 accessories.
2 (c) persons, domestic animals and 8, 11.2 The products dealt with in this
property are adequately protected standard are all passive
against non-electrical dangers caused by accessories.
the electrical equipment which are
revealed by experience
2 (d) the insulation is suitable for 5, 7.7, 9
foreseeable conditions Annex D
3. Protection against hazards which may be caused by external influences on the electrical
equipment
Technical measures shall be laid down in accordance with point 1, in order to ensure that the electrical
equipment:
3 (a) meets the expected mechanical 5, 8, 9.1, 11.2
requirements in such a way that persons,
domestic animals and property are not
endangered
3 (b) is resistant to non-mechanical 5, 7.5, 9.2, 10
influences in expected environmental
conditions, in such a way that persons,
domestic animals and property are not
endangered
3 (c) does not endanger persons, 5, 9.1, 10, 12, 13
domestic animals and property in
foreseeable conditions of overload
WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European Union.
WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
IEC 61010-031 ®
Edition 3.0 2022-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety requirements for electrical equipment for measurement, control, and
laboratory use –
Part 031: Safety requirements for hand-held and hand-manipulated probe
assemblies for electrical test and measurement
Exigences de sécurité pour appareils électriques de mesurage, de régulation
et de laboratoire –
Partie 031: Exigences de sécurité pour sondes équipées tenues à la main
et manipulées pour mesurage et essais électriques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 19.080 ISBN 978-2-8322-6196-5
– 2 – IEC 61010-031:2022 © IEC 2022
CONTENTS
FOREWORD . 7
1 Scope . 10
2 Normative references . 10
3 Terms and definitions . 11
3.1 Parts and accessories . 11
3.2 Quantities . 12
3.3 Tests .
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
