EUROPEAN STANDARD
EN 60745-2-5
NORME EUROPÉENNE
March 2007
EUROPÄISCHE NORM
ICS 25.140.20; 25.140.30 Supersedes EN 60745-2-5:2003

English version
Hand-held motor-operated electric tools -
Safety -
Part 2-5: Particular requirements for circular saws
(IEC 60745-2-5:2006, modified)

Outils électroportatifs à moteur -  Handgeführte motorbetriebene
Sécurité - Elektrowerkzeuge -
Partie 2-5: Règles particulières Sicherheit -
pour les scies circulaires Teil 2-5: Besondere Anforderungen
(CEI 60745-2-5:2006, modifiée) für Kreissägen
(IEC 60745-2-5:2006, modifiziert)

This European Standard was approved by CENELEC on 2006-11-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2007 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60745-2-5:2007 E

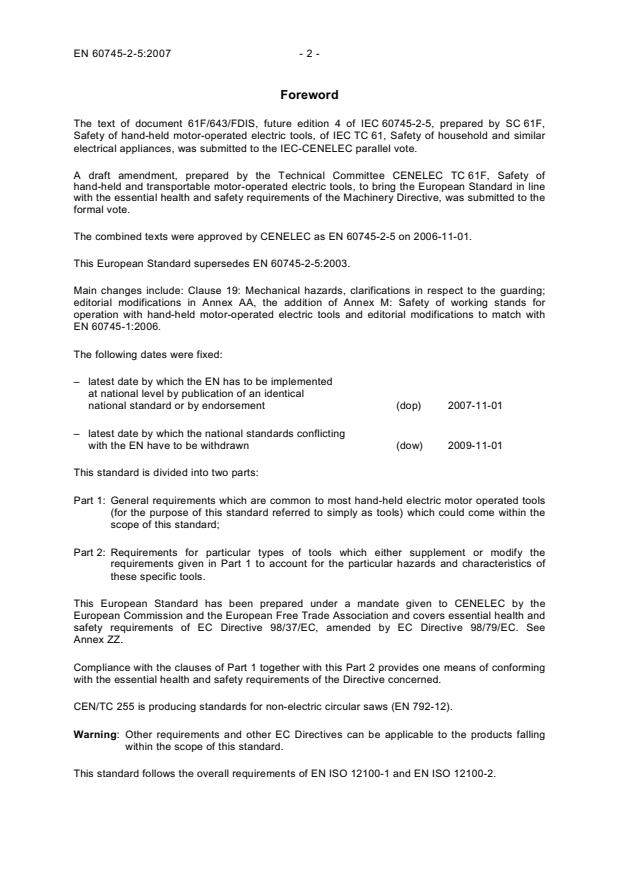

Foreword
The text of document 61F/643/FDIS, future edition 4 of IEC 60745-2-5, prepared by SC 61F,
Safety of hand-held motor-operated electric tools, of IEC TC 61, Safety of household and similar
electrical appliances, was submitted to the IEC-CENELEC parallel vote.
A draft amendment, prepared by the Technical Committee CENELEC TC 61F, Safety of
hand-held and transportable motor-operated electric tools, to bring the European Standard in line
with the essential health and safety requirements of the Machinery Directive, was submitted to the
formal vote.
The combined texts were approved by CENELEC as EN 60745-2-5 on 2006-11-01.
This European Standard supersedes EN 60745-2-5:2003.
Main changes include: Clause 19: Mechanical hazards, clarifications in respect to the guarding;
editorial modifications in Annex AA, the addition of Annex M: Safety of working stands for
operation with hand-held motor-operated electric tools and editorial modifications to match with
EN 60745-1:2006.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2007-11-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-11-01
This standard is divided into two parts:
Part 1: General requirements which are common to most hand-held electric motor operated tools
(for the purpose of this standard referred to simply as tools) which could come within the
scope of this standard;
Part 2: Requirements for particular types of tools which either supplement or modify the
requirements given in Part 1 to account for the particular hazards and characteristics of
these specific tools.
This European Standard has been prepared under a mandate given to CENELEC by the
European Commission and the European Free Trade Association and covers essential health and
safety requirements of EC Directive 98/37/EC, amended by EC Directive 98/79/EC. See
Annex ZZ.
Compliance with the clauses of Part 1 together with this Part 2 provides one means of conforming
with the essential health and safety requirements of the Directive concerned.
CEN/TC 255 is producing standards for non-electric circular saws (EN 792-12).
Warning: Other requirements and other EC Directives can be applicable to the products falling
within the scope of this standard.
This standard follows the overall requirements of EN ISO 12100-1 and EN ISO 12100-2.

- 3 - EN 60745-2-5:2007
This Part 2-5 is to be used in conjunction with EN 60745-1:2006. When this standard states
"addition", "modification" or "replacement", the relevant text in Part 1 is to be adapted accordingly.
Subclauses, tables and figures which are additional to those in Part 1 are numbered starting from
101; additional annexes are lettered AA, BB, etc.
Subclauses, tables and figures which are additional to those in IEC 60745-2-5:2006 are prefixed
“Z”.
Annexes ZA and ZZ have been added by CENELEC.
NOTE In this standard the following print types are used:
- requirements proper; in roman type
- test specifications: in italic type;
- explanatory matter: in smaller roman type.
__________
Endorsement notice
The text of the International Standard IEC 60745-2-5:2006 was approved by CENELEC as a
European Standard with agreed common modifications as given below.
COMMON MODIFICATIONS
2 Normative references
Replace the text by:
This clause of Part 1 is applicable, except as follows:
Addition:
EN 847-1:1997, Tools for woodworking - Safety requirements - Part 1: Milling tools and circular
saw blades
6 Void
Replace by:
6 Environmental requirements
This clause of Part 1 is applicable, except as follows:
6.1.2.4 Modification:
Circular saws are held and used as specified in 6.1.2.5.
6.1.2.5 Modification:
Circular saws are tested under load observing the conditions shown in Table Z101.

- 5 - EN 60745-2-5:2007
Table Z101 – Operating conditions for circular saws
Cutting a horizontal piece of chipboard with minimum dimensions
Orientation
800 mm x 600 mm and a thickness depending on maximum cutting depth of
the circular saw
maximum cutting depth 40 mm: chipboard thickness 19 mm
maximum cutting depth > 40 mm: chipboard thickness 38 mm
The board shall be firmly fixed by screws or clamps to a test bench using
resilient material. It shall be mounted so that it does not have any significant
resonance in the frequency range that can influence the test result.
The board excess end shall be 250 mm from the clamped area and shall be
readjusted at the beginning of each series of tests.
Tool bit New blade as recommended by the manufacturer for cutting chipboard
Feed force Just sufficient to cut at a brisk pace. Equal force shall be applied to both
handles, if applicable. Excessive grip forces shall be avoided.
Test cycle One test cycle is given by cutting off one approximately 10 mm wide strip (set
by rip fence if available) across the 600 mm width of the chipboard.
The measurement starts when the blade enters the wood and finishes when
the blade leaves the wood.
6.2 Vibration
6.2.4.2 Location of measurement
Addition:
Figure Z101 shows the positions on the main handle and the auxiliary handle, if applicable.
6.2.6.3 Operating conditions
Addition:
Circular saws are tested under load observing the conditions shown in Table Z101.
6.2.7.2 Declaration of the vibration emission value
Addition:
The vibration emission value a of the handle with the highest emission and the uncertainty K
h
shall be declared.
8 Marking and instructions
8.12.2 a) Add to the addition:
Z101) Instruction on the correct use of the dust collection system
Z102) Instruction to wear a dust mask
Z103) Instruction to only use saw blades recommended
Z104) Instruction to always wear hearing protection

8.12.2 b) Add to the addition:
Z101) Maximum cutting depth
19 Mechanical hazards
Add after 19.106:
19.Z101 The saw blade(s) delivered with the tool shall comply with EN 847-1.
Compliance is checked by inspection.
21 Construction
Add:
21.Z1 Addition:
Circular saws are considered to be tools where a considerable amount of dust is produced.

- 7 - EN 60745-2-5:2007
Add the following new figure:
Figure Z101 – Positions of transducers for circular saws

Annex M
(normative)
Safety of working stands for operation
with hand-held motor-operated electric tools
M.19.1.302.2.3 Replace the last paragraph by:
– For riving knife mounted saw blade guards, the guard shall be subjected to a load of 5 N
at the front edge of the guard as defined in Figure M.302. The maximum deflection shall
not be more than 15 mm.
– For separately from riving knife mounted saw blade guards, the guard shall be subjected
to a load of 20 N at the front edge of the guard as defined in Figure M.302. The maximum
deflection shall not be more than 8,0 mm.

- 9 - EN 60745-2-5:2007
Add the following annexes:
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year

– – Tools for woodworking - Safety EN 847-1 1997
requirements -
Part 1: Milling tools and circular saw
blades
Annex ZZ
(informative)
Coverage of Essential Requirements of EC Directives
This European Standard has been prepared under a mandate given to CENELEC by the
European Commission and the European Free Trade Association and within its scope the
standard covers all relevant essential requirements as given in Annex I EC Directive 98/37/EC
(Machinery Directive), amended by Directive 98/79/EC.
Compliance with this standard provides one means of conformity with the specified essential
requirements of the Directives concerned.
WARNING: Other requirements and other EC Directives may be applicable to the products falling
within the scope of this standard.
_______
NORME CEI
INTERNATIONALE
IEC
60745-2-5
INTERNATIONAL
Quatrième édition
STANDARD
Fourth edition
2006-07
Outils électroportatifs à moteur –
Sécurité –
Partie 2-5:
Règles particulières pour
les scies circulaires
Hand-held motor-operated electric tools –
Safety –
Part 2-5:
Particular requirements for circular saws

 IEC 2006 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
X
PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

60745-2-5  IEC:2006 – 3 –
CONTENTS
FOREWORD.7

1 Scope.11
2 Normative references .11
3 Terms and definitions .11
4 General requirements .13
5 General conditions for the tests .13
6 Void.13
7 Classification.13
8 Marking and instructions.13
9 Protection against access to live parts.21
10 Starting .21
11 Input and current .21
12 Heating .21
13 Leakage current .21
14 Moisture resistance .21
15 Electric strength .21
16 Overload protection of transformers and associated circuits .21
17 Endurance.21
18 Abnormal operation .23
19 Mechanical hazards.23
20 Mechanical strength .33
21 Construction .33
22 Internal wiring.33
23 Components .33
24 Supply connection and external flexible cords .33
25 Terminals for external conductors.33
26 Provision for earthing .33
27 Screws and connections .35
28 Creepage distances, clearances and distances through insulation.35
29 Resistance to heat, fire and tracking.35
30 Resistance to rusting.35
31 Radiation, toxicity and similar hazards.35

Annexes .53
Annex K (normative) Battery tools and battery packs .53
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources.53
Annex M (normative) Safety of working stands for operation with hand-held motor-
)
operated electric tools .55

60745-2-5  IEC:2006 – 5 –
Annex AA (normative) Additional requirements for saws with a riving knife .83
Annex BB (normative) Additional requirements for lower guards for saws without a
riving knife .89

Bibliography.91

Figure 101 – Circular saw with outer pendulum guard .37
Figure 102 – Circular saw with inner pendulum guard .37
Figure 103 – Circular saw with tow guard.37
Figure 104 – Plunge type saw.37
Figure 105 – Test probe 'a' .39
Figure 106 – Aperture for blade and/or riving knife in the lower guard and aperture of
the upper guard .39
Figure 107 – Distance from the gripping surface to the blade’s cutting zone .41
Figure 108a – Height of viewing aperture.43
Figure 108b – Dimension U.43
Figure 108 – Height restriction of the viewing aperture (see 19.101.2.1) .43
Figure 109 – Distance from the edge of the lateral side of the upper guard
to the guide plate .45
Figure 110 – Test probe 'b' .45
Figure 111 – Accessibility to the front cutting edge zone.47
Figure 112 – Blade exposure angle of the lower guard.49
Figure 113 – Principal dimensions of the guide plate .49
Figure 114 – Flange characteristics .51
Figure M.301 – Saw table fitted with hand-held circular saw .73
Figure M.302 – Testing the stability of the guard support .75
Figure M.303 – Saw table dimensions.77
Figure M.304 – Position of the outfeed end of the rip fence.77
Figure M.305 – Rip fence in low position.79
Figure M.306 – Examples of shapes of slot for locating cross-cut fence on saw tables.79
Figure M.307 – Examples of push stick and push blocks.81
Figure AA.101 – Riving knife stability test .87
Figure AA.102 – Riving knife adjustment.87

60745-2-5  IEC:2006 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –
SAFETY –
Part 2-5: Particular requirements for circular saws

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60745-2-5 has been prepared by subcommittee 61F: Safety of
hand-held motor-operated electric tools, of IEC technical committee 61: Safety of household
and similar electrical appliances.
This fourth edition cancels and replaces the third edition published in 2003, of which it
constitutes a technical revision. Main changes include: Clause 19: Mechanical hazards,
clarifications in respect to the guarding, editorial modifications in Annex AA, the addition of
Annex M: Safety of working stands for operation with hand-held motor-operated electric tools
and editorial modifications to match with the fourth edition of IEC 60745-1.

60745-2-5  IEC:2006 – 9 –
The text of this standard is based on the following documents:
FDIS Report on voting
61F/643/FDIS 61F/644/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This Part 2-5 is to be used in conjunction with the latest edition of IEC 60745-1, Hand-held
motor-operated electric tools – Safety – Part 1: General requirements. It was established on
the basis of the fourth edition (2006) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60745-1.
This part 2 supplements or modifies the corresponding clauses of IEC 60745-1, so as to
convert that publication into the IEC standard: Safety requirements for circular saws.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2  The following numbering system is used:
– subclauses, items, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– additional annexes are lettered AA, BB, etc.
NOTE 3  In this standard, the following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type.
A list of all parts of IEC 60745 series, under the general title Hand-held motor-operated
electric tools – Safety, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
60745-2-5  IEC:2006 – 11 –
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –
SAFETY –
Part 2-5: Particular requirements for circular saws

1 Scope
This clause of Part 1 is applicable, except as follows:
Addition:
This standard applies to all types of circular saws. Circular saws hereinafter will be referred to
as saws. This standard does not apply to saws used with abrasive wheels.
2 Normative references
This clause of Part 1 is applicable.
3 Terms and definitions
This clause of Part 1 is applicable, except as follows:
Additional definitions:
3.101
circular saw
tool intended for cutting various materials with a rotating toothed blade
3.102
cutting edge zone
the outer 20 % of the blade’s radius
3.103
guide plate
the part of the saw resting on the material to be cut (see Figure 113)
3.104
lower guard
movable blade-covering device which, in the closed or rest position, is generally situated
below the guide plate
3.105
upper guard
fixed and/or movable cover of the blade situated above the guide plate
3.106
riving knife
metal part placed in the plane of the saw blade with the intent of preventing the workpiece
from closing on the rear part of the saw blade

60745-2-5  IEC:2006 – 13 –
3.107
saw with outer pendulum guard
saw having a lower guard which swings outside the upper guard (see Figure 101)
3.108
saw with inner pendulum guard
saw having a lower guard which swings inside the upper guard (see Figure 102)
3.109
saw with tow guard
saw having a lower guard which slides along the upper guard (see Figure 103)
3.110
kickback
sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to
lift up and out of the workpiece
3.111
plunge type saw
saw having only an upper guard into which the saw blade retracts when not in use (see
Figure 104)
4 General requirements
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable.
6 Void
7 Classification
This clause of Part 1 is applicable.
8 Marking and instructions
This clause of Part 1 is applicable, except as follows:
8.1 Addition:
Saws shall be marked with:
− direction of rotation, indicated on the tool by an arrow, raised or recessed or by any other
means no less visible and indelible;
− rated no-load speed of the output spindle;
− recommended blade diameter.
60745-2-5  IEC:2006 – 15 –
8.12.2 a) Addition:
101) Instructions not to use any abrasive wheels
102) For saws with riving knife the instruction shall include the following:
Instructions to ensure that the riving knife is adjusted so that the distance between the
riving knife and the rim of the blade is not more than 5 mm, and the rim of the blade
does not extend more than 5 mm beyond the lowest edge of the riving knife.
8.12.2 b) Addition
101) Instructions for the blade changing procedure
Additional subclause:
8.12.1.101 The following additional safety instructions shall be given. If in English they shall
be verbatim and in the following order as applicable and equivalent in any other language.
This part may be printed separately from the general safety instructions.
All notes are not to be printed, they are information for the designer of the manual.
8.12.1.101.1 Safety instructions for all saws
a) DANGER: Keep hands away from cutting area and the blade. Keep your second
hand on auxiliary handle, or motor housing. If both hands are holding the saw, they
cannot be cut by the blade.
NOTE For circular saws with 140 mm or smaller diameter blades, the "Keep your second hand on auxiliary
handle, or motor housing" may be omitted.
b) Do not reach underneath the workpiece. The guard cannot protect you from the blade
below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of
the blade teeth should be visible below the workpiece.
d) Never hold piece being cut in your hands or across your leg. Secure the workpiece
to a stable platform. It is important to support the work properly to minimize body
exposure, blade binding, or loss of control.
e) Hold power tool by insulated gripping surfaces when performing an operation where
the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire
will also make exposed metal parts of the power tool "live" and shock the operator.
f) When ripping always use a rip fence or straight edge guide. This improves the
accuracy of cut and reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round) of arbour
holes. Blades that do not match the mounting hardware of the saw will run eccentrically,
causing loss of control.
h) Never use damaged or incorrect blade washers or bolt. The blade washers and bolt
were specially designed for your saw, for optimum performance and safety of operation.

60745-2-5  IEC:2006 – 17 –
8.12.1.101.2 Further safety instructions for all saws
Causes and operator prevention of kickback:
− kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an
uncontrolled saw to lift up and out of the workpiece toward the operator;
− when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and
the motor reaction drives the unit rapidly back toward the operator;
− if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the
blade can dig into the top surface of the wood causing the blade to climb out of the kerf
and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and
can be avoided by taking proper precautions as given below.
a) Maintain a firm grip with both hands on the saw and position your arms to resist
kickback forces. Position your body to either side of the blade, but not in line with
the blade. Kickback could cause the saw to jump backwards, but kickback forces can be
controlled by the operator, if proper precautions are taken.
NOTE For circular saws with 140 mm or smaller diameter blades, the words "with both hands" may be
omitted.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger
and hold the saw motionless in the material until the blade comes to a complete
stop. Never attempt to remove the saw from the work or pull the saw backward while
the blade is in motion or kickback may occur. Investigate and take corrective actions
to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check
that saw teeth are not engaged into the material. If saw blade is binding, it may walk
up or kickback from the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback. Large
panels tend to sag under their own weight. Supports must be placed under the panel on
both sides, near the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades. Unsharpened or improperly set blades produce
narrow kerf causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before
making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when making a "plunge cut" into existing walls or other blind
areas. The protruding blade may cut objects that can cause kickback.

60745-2-5  IEC:2006 – 19 –
8.12.1.101.3 Safety instructions for saws shown in Figures 101, 102 and 103
a) Check lower guard for proper closing before each use. Do not operate the saw if
lower guard does not move freely and close instantly. Never clamp or tie the lower
guard into the open position. If saw is accidentally dropped, lower guard may be bent.
Raise the lower guard with the retracting handle and make sure it moves freely and does
not touch the blade or any other part, in all angles and depths of cut.
NOTE Alternate wording may be substituted for "retracting handle."
b) Check the operation of the lower guard spring. If the guard and the spring are not
operating properly, they must be serviced before use. Lower guard may operate
sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Lower guard may be retracted manually only for special cuts such as "plunge cuts"
and "compound cuts." Raise lower guard by retracting handle and as soon as blade
enters the material, the lower guard must be released. For all other sawing, the lower
guard should operate automatically.
NOTE Alternate wording may be substituted for "retracting handle."
d) Always observe that the lower guard is covering the blade before placing saw down
on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards,
cutting whatever is in its path. Be aware of the time it takes for the blade to stop after
switch is released.
8.12.1.101.4 Safety instructions for saws shown in Figure 104
a) Check guard for proper closing before each use. Do not operate the saw if guard
does not move freely and enclose the blade instantly. Never clamp or tie the guard
with the blade exposed. If saw is accidentally dropped, guard may be bent. Check to
make sure that guard moves freely and does not touch the blade or any other part, in all
angles and depths of cut.
b) Check the operation and condition of the guard return spring. If the guard and the
spring are not operating properly, they must be serviced before use. Guard may
operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Assure that the guide plate of the saw will not shift while performing the “plunge
cut” when the blade bevel setting is not at 90°. Blade shifting sideways will cause
binding and likely kick back.
d) Always observe that the guard is covering the blade before placing saw down on
bench or floor. An unprotected, coasting blade will cause the saw to walk backwards,
cutting whatever is in its path. Be aware of the time it takes for the blade to stop after
switch is released.
8.12.1.101.5 Additional safety instructions for all saws with riving knife
a) Use the appropriate riving knife for the blade being used. For the riving knife to work,
it must be thicker than the body of the blade but thinner than the tooth set of the blade.

60745-2-5  IEC:2006 – 21 –
b) Adjust the riving knife as described in this instruction manual. Incorrect spacing,
positioning and alignment can make the riving knife ineffective in preventing kickback.
c) Always use the riving knife except when plunge cutting. Riving knife must be
replaced after plunge cutting. Riving knife causes interference during plunge cutting and
can create kickback.
d) For the riving knife to work, it must be engaged in the workpiece. The riving knife is
ineffective in preventing kickback during short cuts.
e) Do not operate the saw if riving knife is bent. Even a light interference can slow the
closing rate of a guard.
9 Protection against access to live parts
This clause of Part 1 is applicable.
10 Starting
This clause of Part 1 is applicable.
11 Input and current
This clause of Part 1 is applicable.
12 Heating
This clause of Part 1 is applicable.
13 Leakage current
This clause of Part 1 is applicable.
14 Moisture resistance
This clause of Part 1 is applicable.
15 Electric strength
This clause of Part 1 is applicable.
16 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
17 Endurance
This clause of Part 1 is applicable.

60745-2-5  IEC:2006 – 23 –
18 Abnormal operation
This clause of Part 1 is applicable.
19 Mechanical hazards
This clause of Part 1 is applicable, except as follows:
19.1 Replacement:
Saws shall be so guarded as to minimise the risk of accidental access to the rotating blade as
far as conditions of use will permit. Guarding systems shall not be removable without the aid
of a tool.
There are four commonly used guarding systems for saws, as shown in Figures 101, 102, 103
and 104. Guarding systems can be designed with the blade on the right or on the left side of
the saw. These guarding systems shall comply with the requirements of 19.101 and 19.102.
Each one of these guarding system types can be designed with or without the riving knife
(item 6 in the figures).
− If a guarding system is designed with a riving knife, it shall meet the additional
requirements of Annex AA.
− If a guarding system is designed without a riving knife, it shall meet the additional
requirements of Annex BB.
Other means of achieving the necessary degree of mechanical safety are allowed, provided
that these are as equally effective and reliable as those specified.
Compliance is checked by inspection.
19.3 This subclause is not applicable.
Additional subclauses:
19.101 Guarding above the guide plate
19.101.1 The blade above the guide plate shall be guarded by the upper guard.
19.101.2 Apertures in the guarding system above the guide plate, unless otherwise specified
below, shall be designed such that the test probe ‘a’ of Figure 105, when inserted at any
angle and to the depth allowed by its stop, shall not be able to contact the cutting edge zone
of any recommended blade.
19.101.2.1 On the motor side of the upper guard, adjacent to the cutting edge zone at the
front of the blade, an aperture may be provided for viewing the line of the cut. This viewing
aperture shall either meet the requirements of 19.101.2, as illustrated in Figure 106, or it shall
be limited by proximity and height restrictions.
ƒ Proximity restriction
The straight line distance from a defined measuring point on the auxiliary handle surface to
the cutting edge zone of any recommended blade shall be a minimum of 120 mm as shown in
Figure 107. If there is no auxiliary handle provided, the distance shall be measured from the
motor casing. If the motor casing is not suitable for grasping, the measurement is made from
the geometric centre of the switch trigger grasping surface with the switch in the off position.

60745-2-5  IEC:2006 – 25 –
Compliance is checked by the following measurements, which shall be conducted with the
guide plate set to any depth of cut and 90°.
To establish the measuring point on the auxiliary handle or the motor casing, follow the
procedure outlined below. The guide plate is set to maximum depth of cut and 90°.
a) Establish the closest (A) and the most distant (B) points on the auxiliary handle or motor
casing defined grasping surface from the blade. For the motor casing, the closest (A) point
to the blade is assumed to be in the plane of the main handle farthest from the blade.
Equidistant between points (A) and (B), but not more than 45 mm away from point (A),
draw the vertical intersecting line of the plane parallel with the blade and the surface of
the auxiliary handle or motor casing, as applicable.
b) Establish the closest (C) and the most distant (D) point from the plane of the guide plate
on the auxiliary handle or motor casing defined grasping surface. Equidistant between
points (C) and (D), draw the horizontal intersecting line of the plane parallel with the guide
plate and the surface of the auxiliary handle or motor casing, as applicable.
c) The intersection of the vertical and horizontal lines drawn on the applicable surface is the
defined measuring point.
ƒ Height restriction
The height of the viewing aperture (H) measured from the bottom plane of the guide plate, as
shown in Figure 108a, is limited to the point where the line of sight, from the ordinary
operator’s head position to the tip of the saw blade cutting the wood, is intersecting the outer
surface of the upper guard.
The maximum permissible height H, in millimetres, is given by the formula
848 U
H =
205 + S
where
U is the maximum distance, in millimetres, from the cutting edge zone to the outer surface of
the upper guard at the top end of the viewing aperture, measured perpendicularly to the
plane of the saw blade (see Figure 108b);
S is the distance, in millimetres, from the plane of the saw blade to a parallel centreplane of
the switch handle (see Figure 108c).
Compliance is checked by measurement, which shall be conducted with the guide plate set to
maximum depth of cut and 90°.
19.101.2.2 The upper guard on the side opposite the motor need not completely cover the
blade.
...
