EN IEC 61340-5-1:2024
(Main)Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena - General requirements
Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena - General requirements
IEC 61340-5-1:2024 applies to organizations that: manufacture, process, assemble, install, package, label, service, test, inspect, transport, or otherwise handle electrical or electronic parts, assemblies and equipment with withstand voltages greater than or equal to 100 V human body model (HBM) and 200 V charge device model (CDM). Also, protection from isolated conductors is addressed by limiting the voltage on isolated conductors to less than 35 V. ESDS with lower withstand voltages can require additional control elements or adjusted limits. Processes designed to handle items that have lower ESD withstand voltage(s) can still claim compliance to this document. This document provides the requirements for an ESD control program. IEC TR 61340-5-2 provides guidance on the implementation of this document. This document does not apply to electrically initiated explosive devices, flammable liquids, gases, and powders. The purpose of this document is to provide the administrative and technical requirements for establishing, implementing, and maintaining an ESD control program (hereinafter referred to as the “program”). This edition includes the following significant technical changes with respect to the previous edition: a) definitions have been added to the document; b) updates to product qualification requirements; c) subclause 5.3.3 now includes a reference to groundable static control garment systems; d) Table 2 was replaced; e) subclause 5.3.4.2 was updated to define what an insulator is; f) subclause 5.3.4.3 was updated to include a definition for isolated conductor; g) Table 3 was updated, technical items added, including a reference to IEC 61340-5-4 for compliance verification testing; h) Table 4 was added as a summary of the requirements in IEC 61340-5-3 and to include requirements for compliance verification of packaging; i) Annex A was replaced: the former Annex is no longer required. Annex A are examples of tailoring.
Elektrostatik - Teil 5-1: Schutz von elektronischen Bauelementen gegen elektrostatische Phänomene - Allgemeine Anforderungen
Electrostatique - Partie 5-1: Protection des dispositifs électroniques contre les phénomènes électrostatiques - Exigences générales
L'IEC 61340-5-1:2024 s'applique aux organisations concernant: la fabrication, le traitement, l'assemblage, l'installation, l'emballage, l'étiquetage, l'entretien, l'essai, l'examen, le transport ou bien la manipulation des pièces, des ensembles et des équipements électriques ou électroniques qui présentent des tensions de tenue supérieures ou égales à 100 V sur le modèle du corps humain (HBM) et 200 V sur le modèle de dispositif chargé (CDM). En outre, la protection des conducteurs isolés est procurée en limitant la tension sur les conducteurs isolés à moins de 35 V. Les ESDS qui présentent des tensions de tenue inférieures peuvent exiger des éléments de maîtrise supplémentaires ou des limites adaptées. Les processus conçus pour manipuler des éléments qui présentent une ou plusieurs tensions de tenue aux DES inférieures peuvent toujours être déclarés conformes au présent document. Le présent document fournit les exigences relatives à un programme de maîtrise des DES. L'IEC TR 61340-5-2 fournit des recommandations pour la mise en œuvre du présent document. Le présent document ne s'applique pas aux dispositifs explosifs à déclenchement électronique ni aux liquides, gaz et poudres inflammables. L'objectif du présent document est de fournir les exigences administratives et techniques pour l'établissement, la mise en œuvre et la maintenance d'un programme de maîtrise des DES (ci‑après dénommé "programme"). Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) des définitions ont été ajoutées au document; b) les exigences de qualification produit ont été mises à jour; c) le 5.3.3 inclut désormais une a référence aux systèmes de vêtements de contrôle des DES pouvant être reliés à la terre; d) le Tableau 2 a été remplacé; e) le 5.3.4.2 a été mis à jour pour définir ce qu'est un isolant; f) le 5.3.4.3 a été mis à jour pour inclure une définition de ce qu'est un conducteur isolé; g) le Tableau 3 a été mis à jour, des éléments techniques ont été ajoutés, y compris une référence à l'IEC 61340-5-4 pour les essais de vérification de conformité; h) le Tableau 4 été ajouté pour récapituler les exigences de l'IEC 61340-5-3 et inclure les exigences relatives à la vérification de la conformité des emballages; i) l'Annexe A été remplacée, l'ancienne annexe n'étant plus nécessaire. L'Annexe A donne des exemples d'adaptation.
Elektrostatika - 5-1. del: Zaščita elektronskih naprav pred elektrostatskimi pojavi - Splošne zahteve (IEC 61340-5-1:2024)
Standard IEC 61340-5-1:2024 se uporablja za organizacije, ki izdelujejo, obdelujejo, sestavljajo, nameščajo, pakirajo, označujejo, servisirajo, preskušajo, pregledujejo, prevažajo ali drugače upravljajo električne ali elektronske dele, sestave in opremo z vzdržno napetostjo, ki je enaka ali večja od 100 V po modelu človeškega telesa (HBM) oziroma 200 V po modelu z elektrostatično nabitim elementom (CDM). Obravnavana je tudi zaščita pred izoliranimi vodniki z omejitvijo napetosti na izoliranih vodnikih na manj kot 35 V. Pri napravah, občutljivih za elektrostatično razelektritev (ESDS), z manjšo vzdržno napetostjo so lahko potrebni dodatni krmilni elementi ali prilagojene omejitve. Pri postopkih, zasnovanih za obravnavo elementov z manjšo vzdržno napetostjo elektrostatične razelektritve (ESD), se lahko še vedno zahteva skladnost s tem dokumentom. Ta dokument določa zahteve za nadzorni program ESD. Standard IEC TR 61340-5-2 podaja navodila za upoštevanje tega dokumenta. Ta dokument se ne uporablja za elektronsko sprožene eksplozivne naprave, vnetljive tekočine, pline in praške. Namen tega dokumenta je podati administrativne in tehnične zahteve za vzpostavljanje, izvajanje in vzdrževanje nadzornega programa ESD (v nadaljnjem besedilu »program«). Ta izdaja v primerjavi s prejšnjo vključuje naslednje pomembne tehnične spremembe:
a) v dokument so bile dodane definicije;
b) zahteve za kakovost izdelkov so bile posodobljene;
c) podtočka 5.3.3 zdaj vključuje sklic na sisteme oblačil za zaščito pred statično elektriko z ozemljitvijo;
d) preglednica 2 je bila zamenjana;
e) podtočka 5.3.4.2 je bila posodobljena z opredelitvijo izolatorja;
f) podtočka 5.3.4.3 je bila posodobljena z definicijo izoliranega vodnika;
g) preglednica 3 je bila posodobljena, dodane so bile tehnične postavke, vključno s sklicem na standard IEC 61340-5-4 za preskuse preverjanja skladnosti;
h) dodana je bila preglednica 4, v kateri so povzete zahteve standarda IEC 61340-5-3 in ki vključuje zahteve za preverjanje skladnosti embalaže;
i) dodatek A je bil zamenjan: prejšnji dodatek ni več potreben. V dodatku A so podani primeri prilagajanja.
General Information
Relations
Overview
EN IEC 61340-5-1:2024 (Electrostatics - Part 5-1) specifies the general requirements for protection of electronic devices from electrostatic phenomena. It defines administrative and technical requirements for establishing, implementing and maintaining an ESD control program for organizations that manufacture, process, assemble, install, package, label, service, test, inspect, transport or otherwise handle electronic parts and equipment with withstand voltages ≥ 100 V (HBM) and ≥ 200 V (CDM). The standard also addresses protection from isolated conductors by limiting voltages to less than 35 V. It does not apply to electrically initiated explosive devices or flammable liquids, gases and powders.
Key topics and requirements
- ESD control program structure
- Program plan, training plan, product qualification plan and compliance verification plan.
- Role of an ESD control program manager/coordinator and tailoring options.
- Technical controls
- Grounding and equipotential bonding systems.
- Personnel grounding (wrist straps, footwear, garment systems - includes reference to groundable static control garment systems).
- Definition and management of ESD protected areas (EPA).
- Use of ionizers where insulators or isolated conductors are present (35 V guidance).
- Packaging and marking
- Requirements for ESD-safe packaging and marking; Table 4 summarizes IEC 61340-5-3 packaging requirements and verification.
- Compliance verification
- Mandatory verification planning and test references - includes a reference to IEC/TS 61340-5-4 for compliance verification testing.
- Updates in 2024 edition
- New and clarified definitions (insulator, isolated conductor).
- Updated product qualification and technical tables (Tables 2–4).
- Annex A revised to provide tailoring examples.
Practical applications
Who uses EN IEC 61340-5-1:2024:
- Electronics manufacturers, contract manufacturers (EMS), assembly and test houses.
- Packaging engineers, quality and compliance teams, ESD program managers, logistics and transport operations.
- Design and facilities engineers establishing EPAs, grounding systems and personnel grounding solutions.
Typical use cases:
- Designing and documenting an ESD control program to protect sensitive devices (HBM/CDM limits).
- Specifying grounding, footwear, wrist straps, garments and ionization for production lines.
- Preparing packaging and marking to meet ESD protection and compliance verification requirements.
- Planning and executing compliance verification testing per IEC 61340 series.
Related standards
- IEC 61340-5-3 (packaging properties and requirements)
- IEC/TS 61340-5-4 (compliance verification guidance)
- IEC 61340-2-3 and IEC 61340-4-x series (test methods for materials, flooring, footwear, wrist straps, ionization, shielding bags, garments)
- Referenced safety/installation standards listed in Annex ZA (e.g., IEC 60749‑26/27/28, IEC 61010‑1, IEC 61140)
Keywords: EN IEC 61340-5-1:2024, ESD control program, electrostatics, ESD protected area (EPA), HBM, CDM, isolated conductor, grounding, compliance verification.
Frequently Asked Questions
EN IEC 61340-5-1:2024 is a standard published by CLC. Its full title is "Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena - General requirements". This standard covers: IEC 61340-5-1:2024 applies to organizations that: manufacture, process, assemble, install, package, label, service, test, inspect, transport, or otherwise handle electrical or electronic parts, assemblies and equipment with withstand voltages greater than or equal to 100 V human body model (HBM) and 200 V charge device model (CDM). Also, protection from isolated conductors is addressed by limiting the voltage on isolated conductors to less than 35 V. ESDS with lower withstand voltages can require additional control elements or adjusted limits. Processes designed to handle items that have lower ESD withstand voltage(s) can still claim compliance to this document. This document provides the requirements for an ESD control program. IEC TR 61340-5-2 provides guidance on the implementation of this document. This document does not apply to electrically initiated explosive devices, flammable liquids, gases, and powders. The purpose of this document is to provide the administrative and technical requirements for establishing, implementing, and maintaining an ESD control program (hereinafter referred to as the “program”). This edition includes the following significant technical changes with respect to the previous edition: a) definitions have been added to the document; b) updates to product qualification requirements; c) subclause 5.3.3 now includes a reference to groundable static control garment systems; d) Table 2 was replaced; e) subclause 5.3.4.2 was updated to define what an insulator is; f) subclause 5.3.4.3 was updated to include a definition for isolated conductor; g) Table 3 was updated, technical items added, including a reference to IEC 61340-5-4 for compliance verification testing; h) Table 4 was added as a summary of the requirements in IEC 61340-5-3 and to include requirements for compliance verification of packaging; i) Annex A was replaced: the former Annex is no longer required. Annex A are examples of tailoring.
IEC 61340-5-1:2024 applies to organizations that: manufacture, process, assemble, install, package, label, service, test, inspect, transport, or otherwise handle electrical or electronic parts, assemblies and equipment with withstand voltages greater than or equal to 100 V human body model (HBM) and 200 V charge device model (CDM). Also, protection from isolated conductors is addressed by limiting the voltage on isolated conductors to less than 35 V. ESDS with lower withstand voltages can require additional control elements or adjusted limits. Processes designed to handle items that have lower ESD withstand voltage(s) can still claim compliance to this document. This document provides the requirements for an ESD control program. IEC TR 61340-5-2 provides guidance on the implementation of this document. This document does not apply to electrically initiated explosive devices, flammable liquids, gases, and powders. The purpose of this document is to provide the administrative and technical requirements for establishing, implementing, and maintaining an ESD control program (hereinafter referred to as the “program”). This edition includes the following significant technical changes with respect to the previous edition: a) definitions have been added to the document; b) updates to product qualification requirements; c) subclause 5.3.3 now includes a reference to groundable static control garment systems; d) Table 2 was replaced; e) subclause 5.3.4.2 was updated to define what an insulator is; f) subclause 5.3.4.3 was updated to include a definition for isolated conductor; g) Table 3 was updated, technical items added, including a reference to IEC 61340-5-4 for compliance verification testing; h) Table 4 was added as a summary of the requirements in IEC 61340-5-3 and to include requirements for compliance verification of packaging; i) Annex A was replaced: the former Annex is no longer required. Annex A are examples of tailoring.
EN IEC 61340-5-1:2024 is classified under the following ICS (International Classification for Standards) categories: 17.220.99 - Other standards related to electricity and magnetism; 29.020 - Electrical engineering in general. The ICS classification helps identify the subject area and facilitates finding related standards.
EN IEC 61340-5-1:2024 has the following relationships with other standards: It is inter standard links to EN 61340-5-1:2016, EN 61340-5-1:2016/AC:2017-05. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN IEC 61340-5-1:2024 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.
Standards Content (Sample)

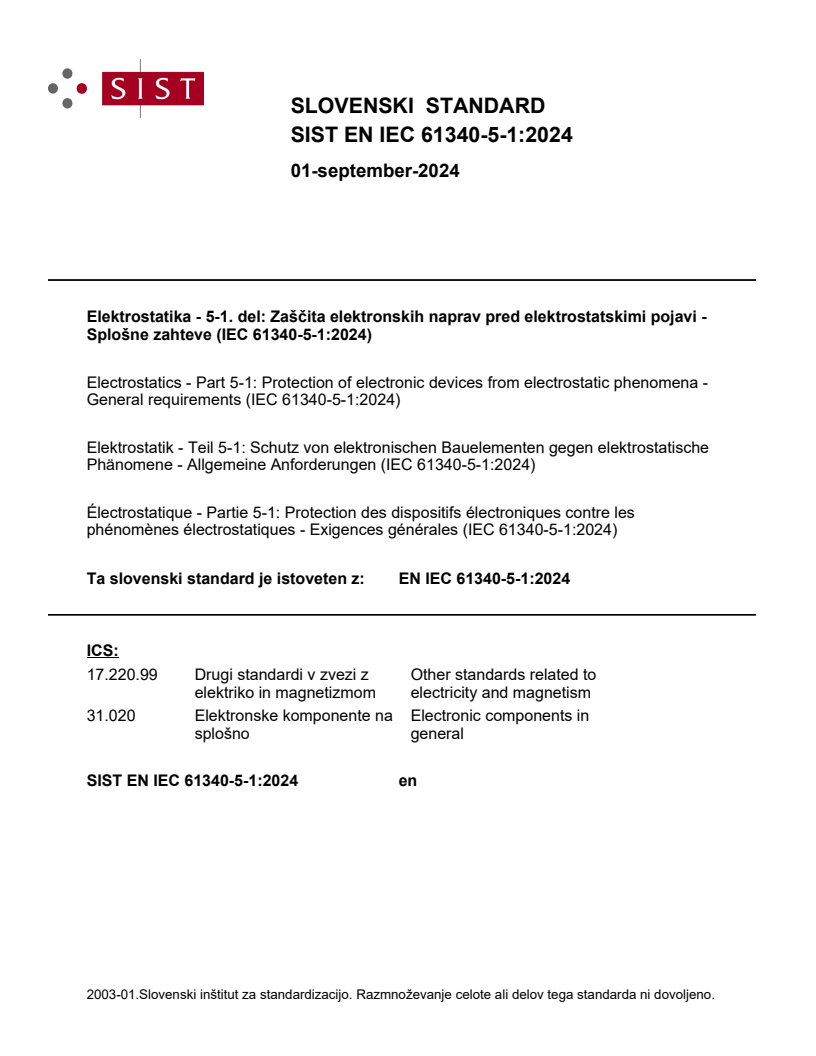

SLOVENSKI STANDARD
01-september-2024
Elektrostatika - 5-1. del: Zaščita elektronskih naprav pred elektrostatskimi pojavi -
Splošne zahteve (IEC 61340-5-1:2024)
Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena -
General requirements (IEC 61340-5-1:2024)
Elektrostatik - Teil 5-1: Schutz von elektronischen Bauelementen gegen elektrostatische
Phänomene - Allgemeine Anforderungen (IEC 61340-5-1:2024)
Électrostatique - Partie 5-1: Protection des dispositifs électroniques contre les
phénomènes électrostatiques - Exigences générales (IEC 61340-5-1:2024)
Ta slovenski standard je istoveten z: EN IEC 61340-5-1:2024
ICS:
17.220.99 Drugi standardi v zvezi z Other standards related to
elektriko in magnetizmom electricity and magnetism
31.020 Elektronske komponente na Electronic components in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

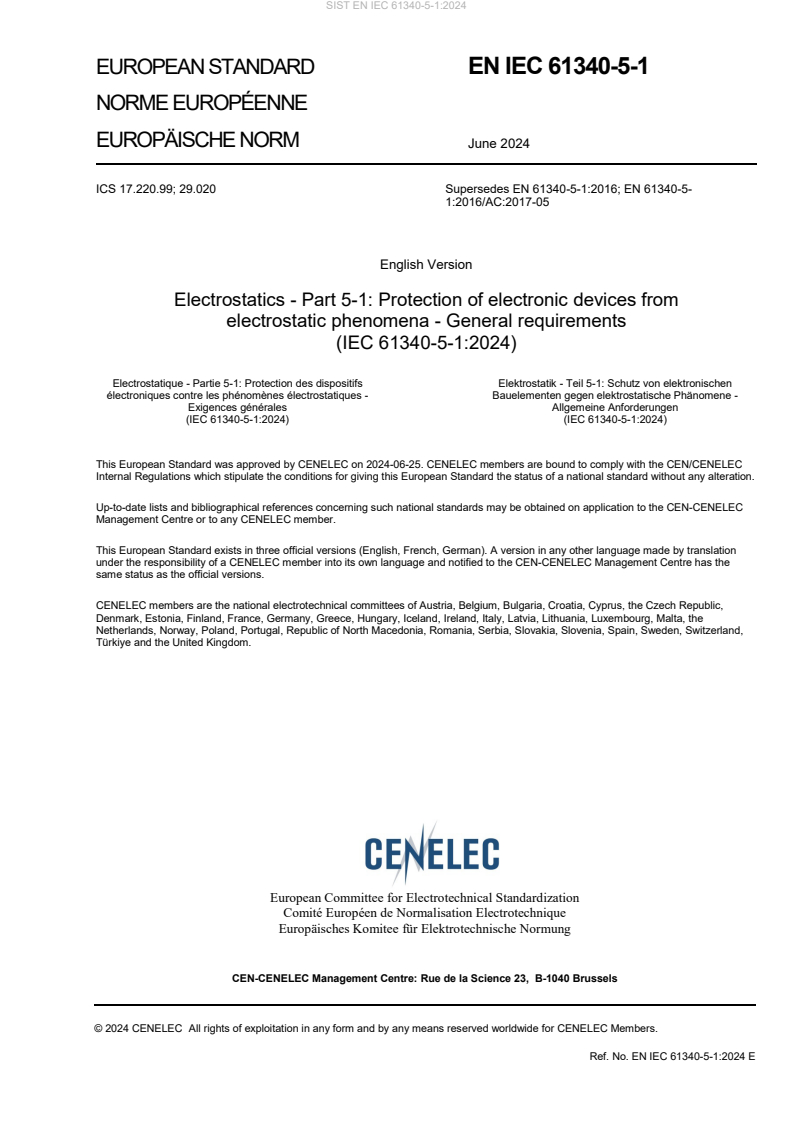

EUROPEAN STANDARD EN IEC 61340-5-1
NORME EUROPÉENNE
EUROPÄISCHE NORM June 2024
ICS 17.220.99; 29.020 Supersedes EN 61340-5-1:2016; EN 61340-5-
1:2016/AC:2017-05
English Version
Electrostatics - Part 5-1: Protection of electronic devices from
electrostatic phenomena - General requirements
(IEC 61340-5-1:2024)
Electrostatique - Partie 5-1: Protection des dispositifs Elektrostatik - Teil 5-1: Schutz von elektronischen
électroniques contre les phénomènes électrostatiques - Bauelementen gegen elektrostatische Phänomene -
Exigences générales Allgemeine Anforderungen
(IEC 61340-5-1:2024) (IEC 61340-5-1:2024)
This European Standard was approved by CENELEC on 2024-06-25. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61340-5-1:2024 E

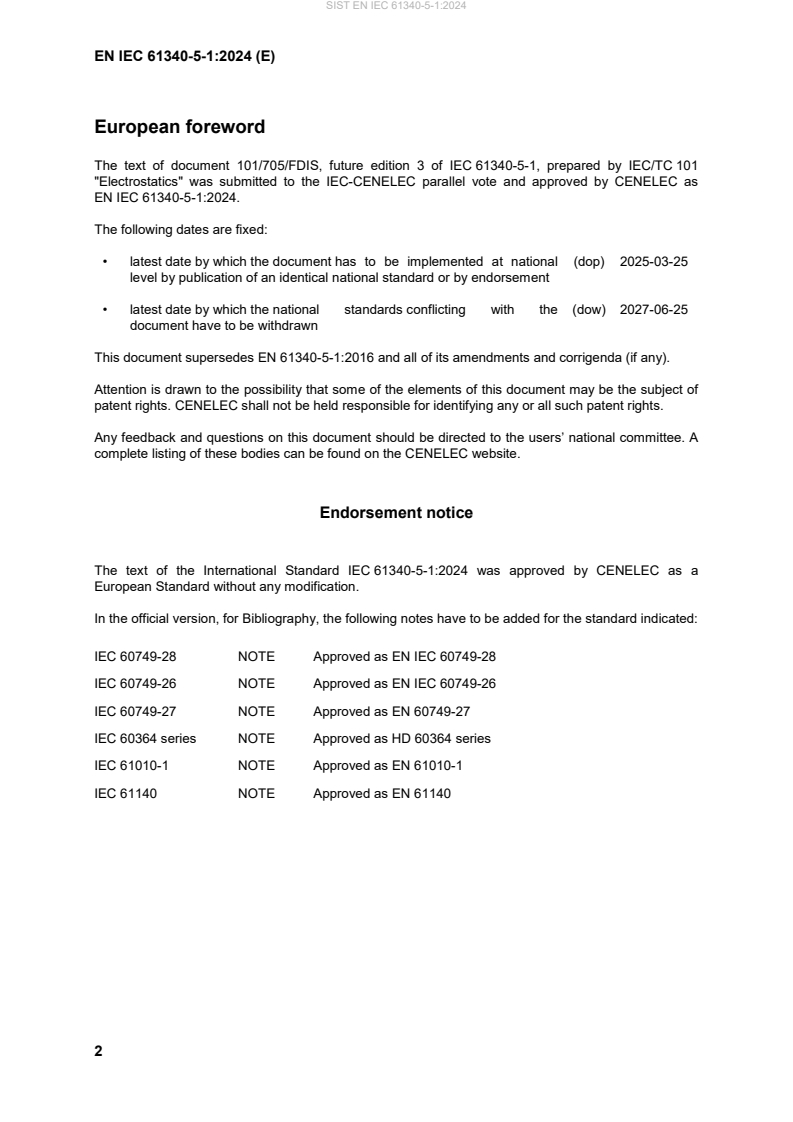

European foreword
The text of document 101/705/FDIS, future edition 3 of IEC 61340-5-1, prepared by IEC/TC 101
"Electrostatics" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-03-25
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-06-25
document have to be withdrawn
This document supersedes EN 61340-5-1:2016 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61340-5-1:2024 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60749-28 NOTE Approved as EN IEC 60749-28
IEC 60749-26 NOTE Approved as EN IEC 60749-26
IEC 60749-27 NOTE Approved as EN 60749-27
IEC 60364 series NOTE Approved as HD 60364 series
IEC 61010-1 NOTE Approved as EN 61010-1
IEC 61140 NOTE Approved as EN 61140
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 61340-2-3 - Electrostatics - Part 2-3: Methods of test EN 61340-2-3 -
for determining the resistance and
resistivity of solid materials used to avoid
electrostatic charge accumulation
IEC 61340-4-1 - Electrostatics - Part 4-1: Standard test EN 61340-4-1 -
methods for specific applications -
Electrical resistance of floor coverings and
installed floors
IEC 61340-4-3 - Electrostatics – Part 4-3: Standard test EN IEC 61340-4-3 -
methods for specific applications –
Footwear
IEC 61340-4-5 - Electrostatics – Part 4-5: Standard test EN IEC 61340-4-5 -
methods for specific applications –
Methods for characterizing the electrostatic
protection of footwear and flooring in
combination with a person
IEC 61340-4-6 - Electrostatics - Part 4-6: Standard test EN 61340-4-6 -
methods for specific applications - Wrist
straps
IEC 61340-4-7 - Electrostatics - Part 4-7: Standard test EN 61340-4-7 -
methods for specific applications -
Ionization
IEC 61340-4-8 - Electrostatics - Part 4-8: Standard test EN 61340-4-8 -
methods for specific applications -
Electrostatic discharge shielding - Bags
IEC 61340-4-9 - Electrostatics - Part 4-9: Standard test EN 61340-4-9 -
methods for specific applications -
Garments
IEC 61340-5-3 - Electrostatics - Part 5-3: Protection of EN IEC 61340-5-3 -
electronic devices from electrostatic
phenomena - Properties and requirements
classification for packaging intended for
electrostatic discharge sensitive devices
IEC/TS 61340-5-4 - Electrostatics - Part 5-4: Protection of - -
electronic devices from electrostatic
phenomena - Compliance verification
IEC 61340-5-1 ®
Edition 3.0 2024-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrostatics –
Part 5-1: Protection of electronic devices from electrostatic phenomena –
General requirements
Électrostatique –
Partie 5-1: Protection des dispositifs électroniques contre les phénomènes
électrostatiques – Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.99, 29.020 ISBN 978-2-8322-8889-4
– 2 – IEC 61340-5-1:2024 © IEC 2024
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 8
3.1 Terms and definitions . 8
3.2 Abbreviated terms . 9
4 Personnel safety . 10
5 ESD control program . 10
5.1 General . 10
5.1.1 ESD control program requirements . 10
5.1.2 ESD control program manager or coordinator . 10
5.1.3 Tailoring . 10
5.2 ESD control program administrative requirements . 10
5.2.1 ESD control program plan . 10
5.2.2 Training plan . 11
5.2.3 Product qualification plan . 11
5.2.4 Compliance verification plan . 12
5.3 ESD control program plan technical requirements . 12
5.3.1 General . 12
5.3.2 Grounding/equipotential bonding systems . 12
5.3.3 Personnel grounding . 14
5.3.4 ESD protected areas (EPA) . 15
5.3.5 Packaging. 18
5.3.6 Marking . 18
Annex A (informative) Tailoring examples . 19
Bibliography . 21
Figure 1 – Schematic of an EPA with a ground reference . 13
Figure 2 – Schematic of an equipotential bonding system . 14
Table 1 – Grounding/bonding requirements . 14
Table 2 – Personnel grounding requirements . 15
Table 3 – EPA technical requirements . 17
Table 4 – Packaging requirements . 18
IEC 61340-5-1:2024 © IEC 2024 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROSTATICS –
Part 5-1: Protection of electronic devices from
electrostatic phenomena – General requirements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61340-5-1 has been prepared by IEC technical committee 101: Electrostatics. It is an
International Standard.
This third edition cancels and replaces the second edition published in 2016. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) definitions have been added to the document;
b) updates to product qualification requirements;
c) subclause 5.3.3 now includes a reference to groundable static control garment systems;
d) Table 2 was replaced;
– 4 – IEC 61340-5-1:2024 © IEC 2024
e) subclause 5.3.4.2 was updated to define what an insulator is;
f) subclause 5.3.4.3 was updated to include a definition for isolated conductor;
g) Table 3 was updated, technical items added, including a reference to IEC 61340-5-4 for
compliance verification testing;
h) Table 4 was added as a summary of the requirements in IEC 61340-5-3 and to include
requirements for compliance verification of packaging;
i) Annex A was replaced: the former Annex is no longer required. Annex A are examples of
tailoring.
The text of this International Standard is based on the following documents:
Draft Report on voting
101/705A/FDIS 101/710/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 61340 series, published under the general title Electrostatics, can
be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IEC 61340-5-1:2024 © IEC 2024 – 5 –
INTRODUCTION
This part of IEC 61340 covers the requirements necessary to design, establish, implement and
maintain an electrostatic discharge (ESD) control program for activities that: manufacture,
process, assemble, install, package, label, service, test, inspect, transport, or otherwise handle
electrical or electronic parts, assemblies, and equipment susceptible to damage by electrostatic
discharges greater than or equal to 100 V human body model (HBM), 200 V charged device
model (CDM), and 35 V on isolated conductors. The 35 V limit is related to the level achievable
using ionizers specified in this document.
Any contact and physical separation of materials or flow of solids, liquids, or particle-laden
gases can generate electrostatic charges. Common sources of ESD include charged:
personnel, conductors, common polymeric materials, and processing equipment. ESD damage
can occur when:
• a charged person or object comes into contact with an ESD sensitive device (ESDS);
• an ESDS comes into direct contact with a conductive surface while exposed to an
electrostatic field;
• a charged ESDS comes into contact with another conductive surface which is at a different
electrical potential. This surface can be grounded or ungrounded.
Examples of ESDS are microcircuits, discrete semiconductors, thick and thin film resistors,
hybrid devices, printed circuit boards and piezoelectric crystals. It is possible to determine
device and item susceptibility by exposing the device to simulated ESD events. The ESD
withstand voltage determined by sensitivity tests using simulated ESD events does not
necessarily represent the ability of the device to withstand ESD from real sources at that voltage
level. However, the levels of sensitivity are used to establish a baseline of susceptibility data
for comparison of devices with equivalent part numbers from different manufacturers. Three
different models have been used for qualification of electronic components – HBM, MM, and
CDM. In current practice devices are qualified only using HBM and CDM susceptibility tests.
This document covers the ESD control program requirements necessary for setting up a
program to handle ESDS, based on the historical experience of both military and commercial
organizations. The fundamental ESD control principles that form the basis of this document are
as follows.
• Avoid a discharge from any charged, conductive object (personnel and especially automated
handling equipment) into the ESDS. This can be accomplished by bonding or electrically
connecting all conductors in the environment, including personnel, to a known ground or
contrived ground (as on board ship or on aircraft). This attachment creates an equipotential
balance between all conducting objects and personnel. Electrostatic protection can be
maintained at a potential different from a “zero” voltage ground potential as long as all
conductive objects in the system are at the same potential.
• Avoid a discharge from any charged ESD sensitive device. Charging can result from direct
contact and separation or it can be induced by an electric field. Necessary insulators in the
environment cannot lose their electrostatic charge by attachment to ground. Ionization
systems provide neutralization of charges on these necessary insulators (circuit board
materials and some device packages are examples of necessary insulators). The ESD
hazard created by electrostatic charges on the necessary insulators in the workplace is
assessed to ensure that appropriate actions are implemented, according to the risk.
– 6 – IEC 61340-5-1:2024 © IEC 2024
• Once outside of an electrostatic discharge protected area (hereinafter referred to as an
EPA) it is generally not possible to control the above items; therefore, ESD protective
packaging can be required. ESD protection can be achieved by enclosing ESD sensitive
products in static protective materials, although the type of material depends on the situation
and destination. Inside an EPA, static dissipative materials can provide adequate protection.
Outside an EPA, static discharge shielding materials are recommended. Whilst all of these
materials are not discussed in this document, it is important to recognize the differences in
their application. For more information see IEC 61340-5-3 and IEC TR 61340-5-5 [1] .
Each organization has different processes, and so will require a different blend of ESD
prevention measures for an optimum ESD control program. Measures should be selected,
based on technical necessity, and carefully documented in an ESD control program plan, so
that all concerned can be sure of the program requirements.
Training is an essential part of an ESD control program in order to ensure that the personnel
involved understand the equipment and procedures they are to use in order to be in compliance
with the ESD control program plan. Training is also essential in raising awareness and
understanding of ESD issues. Without training, personnel are often a major source of ESD risk.
With training, they become an effective first line of defence against ESD damage. Product
qualification ensures that equipment sourced for use in the ESD control program meets the
technical requirements before it is placed in service.
A product qualification plan details the criteria to be used for selection of ESD control items.
Regular compliance verification checks and tests are essential to ensure that equipment
remains effective and that the ESD control program is correctly implemented in compliance with
the ESD control program plan.
_____________
Numbers in square brackets refer to the bibliography.
IEC 61340-5-1:2024 © IEC 2024 – 7 –
ELECTROSTATICS –
Part 5-1: Protection of electronic devices from
electrostatic phenomena – General requirements
1 Scope
This part of IEC 61340 applies to organizations that: manufacture, process, assemble, install,
package, label, service, test, inspect, transport, or otherwise handle electrical or electronic
parts, assemblies and equipment with withstand voltages greater than or equal to 100 V human
body model (HBM) and 200 V charge device model (CDM). Also, protection from isolated
conductors is addressed by limiting the voltage on isolated conductors to less than 35 V. ESDS
with lower withstand voltages can require additional control elements or adjusted limits.
Processes designed to handle items that have lower ESD withstand voltage(s) can still claim
compliance to this document.
This document provides the requirements for an ESD control program. IEC TR 61340-5-2 [2]
provides guidance on the implementation of this document.
This document does not apply to electrically initiated explosive devices, flammable liquids,
gases, and powders.
The purpose of this document is to provide the administrative and technical requirements for
establishing, implementing, and maintaining an ESD control program (hereinafter referred to as
the “program”).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61340-2-3, Electrostatics – Part 2-3: Methods of test for determining the resistance and
resistivity of solid materials used to avoid electrostatic charge accumulation
IEC 61340-4-1, Electrostatics – Part 4-1: Standard test methods for specific applications –
Electrical resistance of floor coverings and installed floors
IEC 61340-4-3, Electrostatics – Part 4-3: Standard test methods for specific applications –
Footwear
IEC 61340-4-5, Electrostatics – Part 4-5: Standard test methods for specific applications –
Methods for characterizing the electrostatic protection of footwear and flooring in combination
with a person
IEC 61340-4-6, Electrostatics – Part 4-6: Standard test methods for specific applications – Wrist
straps
IEC 61340-4-7, Electrostatics – Part 4-7: Standard test methods for specific applications –
Ionization
– 8 – IEC 61340-5-1:2024 © IEC 2024
IEC 61340-4-8, Electrostatics – Part 4-8: Standard test methods for specific applications –
Electrostatic discharge shielding – Bags
IEC 61340-4-9, Electrostatics – Part 4-9: Standard test methods for specific applications –
Garments
IEC 61340-5-3, Electrostatics – Part 5-3: Protection of electronic devices from electrostatic
phenomena – Properties and requirements classification for packaging intended for
electrostatic discharge sensitive devices
IEC TS 61340-5-4, Electrostatics – Part 5-4: Protection of electronic devices from electrostatic
phenomena – Compliance verification
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
NOTE For the purposes of this document “earth” and “ground” have the same meaning.
3.1.1
charged device model
CDM
ESD stress model that approximates the discharge event that occurs when a charged
component is quickly discharged to another object at a different electrostatic potential
Note 1 to entry: Charged device model is described in IEC 60749-28 [3].
Note 2 to entry: This note only applies to the French language.
3.1.2
common ground point
grounded device or location where the conductors of two or more ESD control items are bonded
3.1.3
common connection point
device or location where the conductors of two or more ESD control items are connected in
order to bring the ESD control items to the same electrical potential through equipotential
bonding
3.1.4
equipotential bonding
electrical connection of items used to control ESD so that they are at substantially the same
voltage under normal and fault conditions
3.1.5
electrostatic discharge
ESD
rapid transfer of charge between bodies that are at different electrostatic potentials
IEC 61340-5-1:2024 © IEC 2024 – 9 –
3.1.6
ESD control items
materials or products designed to either prevent the generation of static charge or dissipate
static charges that have been generated, or both, so as to prevent damage to ESD sensitive
devices
3.1.7
ESD protected area
EPA
area in which an ESDS can be handled with accepted risk of damage as a result of electrostatic
discharge or fields
3.1.8
ESD sensitive device
ESDS
sensitive device, integrated circuit or assembly that can be damaged by electrostatic discharge
3.1.9
ESD withstand voltage
highest voltage level in an ESD stress model test that does not cause failure
Note 1 to entry: The device passes all tested lower voltages.
3.1.10
functional ground
terminal used to connect parts to ground for reasons other than safety
3.1.11
human body model
HBM
ESD stress model that approximates the discharge from the fingertip of a typical human being
onto a pin of a device with another pin grounded
Note 1 to entry: Human body model is described in IEC 60749-26 [4].
3.1.12
organization
company, group or body that handles ESDS
Note 1 to entry: For the purposes of this document an organization can be an individual person.
3.1.13
protective earth
terminal used to connect parts to earth for safety reasons
3.1.14
unprotected ESDS
ESDS without ESD protective packaging or coverings
3.1.15
worksurface
surface where any type of work or processing can be performed on an unprotected ESDS
3.2 Abbreviated terms
CDM charge device model
EPA electrostatic protected area
ESD electrostatic discharge
ESDS ESD sensitive devices
– 10 – IEC 61340-5-1:2024 © IEC 2024
HBM human body model
...
SIST EN IEC 61340-5-1:2024は、電子機器を静電気現象から保護するための一般的要求事項を定義した標準であり、電気または電子部品、アセンブリ、機器の製造、加工、組立、設置、パッケージング、ラベリング、サービス、テスト、検査、輸送、またはそれに類似の処理を行う組織に適用されます。本標準は、人体モデル（HBM）に対して100 V以上、荷電デバイスモデル（CDM）に対して200 V以上の耐圧を持つ電子機器に対する基準を定めており、孤立した導体に対しては35 V未満の電圧に制限を設けることで安全性を高めています。 この標準の強みは、ESD制御プログラムの設立、実施、維持に必要な管理的および技術的要件を明確に示している点にあります。例えば、新たに追加された定義や製品資格要件の更新により、企業はより具体的な基準に基づいて静電気対策を講じることが可能になります。また、グラウンディング可能な静電気制御用衣料系統への言及や、静絶縁体および孤立導体の定義もなされており、実務における理解を深める内容となっています。 さらに、IEC TR 61340-5-2がこの文書の実施に関するガイダンスを提供しているため、ユーザーは実装の際に便利な情報を得られると同時に、国際的な標準に準拠した形での導入が可能です。この文書は、特にESD耐圧が低い製品に対しても追加の制御要素や調整された限度を設けることで、広範な適用範囲を持っています。全体として、SIST EN IEC 61340-5-1:2024は、静電気対策の重要性を強調し、効果的なESD制御プログラムを確立するための重要な手引きであり、現代の電子機器産業において極めて関連性の高い文書であると言えます。
Le document SIST EN IEC 61340-5-1:2024 fournit une norme essentielle pour la protection des appareils électroniques contre les phénomènes électrostatiques. Son champ d'application est vaste, englobant les organisations qui fabriquent, traitent, assemblent, installent, emballent, étiquettent, réparent, testent, inspectent, transportent ou manipulent des pièces, des ensembles et des équipements électriques ou électroniques dont les tensions de tenue dépassent ou égalent 100 V selon le modèle de corps humain (HBM) et 200 V selon le modèle de dispositif chargé (CDM). Ce document aborde également la protection contre les conducteurs isolés en limitant la tension à moins de 35 V. La norme présente plusieurs points forts notables. Tout d'abord, elle établit des exigences claires pour un programme de contrôle ESD, ce qui permet aux entreprises de minimiser les risques associés à l'électrostatique. De plus, la mise à jour de cette édition par rapport à la précédente apporte des définitions précises et actualisées, des exigences de qualification des produits et des références à de nouveaux systèmes de vêtements de contrôle statique, renforçant ainsi la pertinence technique du document. Les modifications significatives, telles que le remplacement de certains tableaux et l’ajout de définitions cruciales, offrent une clarté accrue sur des éléments tels que les conducteurs isolés et les exigences de vérification de la conformité. Ces améliorations contribuent à une meilleure compréhension et à une mise en œuvre plus efficace des programmes de contrôle ESD, ce qui est fondamental pour les industries traitant des dispositifs sensibles à l'électricité statique. Enfin, ce document n'est pas seulement adapté aux installations manipulant des appareils avec des tensions de tenue élevées, mais il peut également être appliqué à des processus traitant des objets ayant des tensions de tenue ESD plus faibles en permettant la mise en œuvre de contrôles supplémentaires. Cette flexibilité fait de la norme une ressource pertinente pour de nombreuses organisations. Le lien avec le IEC TR 61340-5-2 pour l'implémentation des recommandations renforce également son utilité. Dans l'ensemble, la norme SIST EN IEC 61340-5-1:2024 est un guide essentiel et pragmatique pour toute organisation cherchant à se conformer aux exigences de protection contre les phénomènes électrostatiques, assurant ainsi une protection adéquate des équipements et une minimisation des risques associés.
The standard EN IEC 61340-5-1:2024 provides a comprehensive framework for the protection of electronic devices from electrostatic phenomena. It is designed for organizations involved in the manufacturing, processing, and handling of electrical and electronic components, ensuring they meet stringent requirements for Electrostatic Discharge (ESD) control. The document's scope is well-defined, applying to entities that deal with parts and assemblies that have withstand voltages at or above 100 V for the human body model (HBM) and 200 V for the charge device model (CDM). One of the standard's key strengths is its thorough delineation of the requirements necessary for an effective ESD control program. The inclusion of specific voltage limitations, such as capping isolated conductor voltages at less than 35 V and addressing devices with lower withstand voltages, allows for a broader application and understanding of ESD risks in various contexts. The standard’s adaptability enables organizations handling items with different ESD sensitivity levels to still maintain compliance. Notably, the 2024 edition introduces significant technical enhancements compared to earlier versions. New definitions and updates to product qualification requirements enhance clarity and precision in understanding compliance expectations. For instance, the reference to groundable static control garment systems under subclause 5.3.3 and the updated definitions for insulators and isolated conductors in subclauses 5.3.4.2 and 5.3.4.3 provide practical guidance to organizations in implementing appropriate control measures. Furthermore, key tables within the document have been revised to reflect contemporary practices, including an updated Table 3 that integrates compliance verification testing references, and the addition of Table 4 consolidating requirements from associated standards. The structural updates, including the replacement of Annex A, signify a move towards a more streamlined and user-friendly approach, focusing on the tailoring examples no longer being necessary for ensuring compliance. In summary, the EN IEC 61340-5-1:2024 standard successfully addresses the dynamic needs of electronics manufacturing and handling, providing organizations with a robust blueprint for establishing a sound ESD control program. Its relevance is underscored by the increasing prevalence of sensitive electronic devices, making adherence to its requirements crucial for ensuring device integrity and operational reliability in today's technology-driven landscape.
Die Norm EN IEC 61340-5-1:2024 behandelt den Schutz elektronischer Geräte vor elektrostatischen Phänomenen und enthält allgemeine Anforderungen, die für eine Vielzahl von Organisationen relevant sind, die elektrische oder elektronische Teile und Ausrüstungen handhaben müssen. Der Anwendungsbereich dieser Norm ist umfassend, da sie für Unternehmen gilt, die industrielle Prozesse im Bereich der Herstellung, Montage, Installation, Verpackung, Kennzeichnung, Wartung, Prüfung, Inspektion, Transport oder andere Handlungen an elektronischen Bauteilen mit bestimmenden Durchschlagspannungen von 100 V (HBM) und 200 V (CDM) durchführen. Ein herausragendes Merkmal dieser Norm ist die detaillierte Beschreibung der Anforderungen für ein ESD-Kontrollprogramm. Diese Anforderungen sind für Organisationen von höchster Relevanz, da sie sicherstellen, dass geeignete Maßnahmen zum Schutz vor elektrostatischer Entladung (ESD) getroffen werden, insbesondere in Umgebungen, wo elektronische Bauteile gehandhabt werden. Die Norm dient als Leitfaden zur Etablierung, Umsetzung und Pflege eines solchen Programms. Der Verweis auf IEC TR 61340-5-2 bietet zusätzlich wertvolle Hinweise zur praktischen Implementierung dieser Anforderungen. Die normativen Veränderungen im Vergleich zur vorherigen Ausgabe sind signifikant. Die neuen Definitionen und Aktualisierungen der Produktqualitätsanforderungen sowie die Einführung neuer Tabellen und Anpassungen in bestimmten Unterklauseln verbessern die Klarheit und Anwendbarkeit der Norm. Zum Beispiel wurde in Unterklausel 5.3.3 auf bodenbare, statische Kontrollkleidungssysteme hingewiesen, was für die Praktiker in der Branche von großem Nutzen ist. Die technische Erneuerung und die zusätzliche Tabelle zur Compliance-Überprüfung geben Organisationen klare Richtlinien, um die Einhaltung der aktuellen Anforderungen zu gewährleisten. Die Norm beleuchtet auch den Schutz von isolierten Leitern, indem sie deren Spannungsgrenzen auf weniger als 35 V festlegt. Diese Maßnahme ist besonders wichtig, um die Sicherheit bei der Handhabung von elektronischen Bauteilen zu gewährleisten. Für ESD-sensible Geräte (ESDS) mit niedrigeren Spannungswerten bietet die Norm ebenfalls Ansätze zur Notwendigkeit zusätzlicher Steuerungselemente, was den umfassenden Ansatz zur Risikominderung unterstreicht. Mit den beschriebenen Anforderungen und den systematischen Änderungen stellt EN IEC 61340-5-1:2024 sicher, dass Unternehmen, die mit elektrischen und elektronischen Komponenten arbeiten, über ein robustes Rahmenwerk verfügen, um die Sicherheit und Langlebigkeit ihrer Produkte zu gewährleisten. Die Relevanz dieser Norm ist unbestritten, da sie Unternehmen hilft, das Risiko elektrostatischer Entladungen zu minimieren und damit potenzielle Schäden an empfindlichen elektronischen Bauteilen zu verringern.
SIST EN IEC 61340-5-1:2024 문서는 전자 장치를 정전기 현상으로부터 보호하기 위한 일반 요구사항을 다룬다. 이 표준의 범위는 100V 이상의 인간 몸 모델(HBM)과 200V의 전하 장치 모델(CDM) 견딜 수 있는 전기 또는 전자 부품, 조립체 및 장비를 제조, 가공, 조립, 설치, 포장, 라벨링, 서비스, 테스트, 검사, 운송 또는 기타 방식으로 처리하는 조직에 적용된다. 또한, 고립 도체의 전압을 35V 미만으로 제한하여 고립 도체로부터의 보호도 다룬다. 이와 같은 규정은 전자기기 및 부품의 안전성과 신뢰성을 확보하는 데 중요한 역할을 한다. 이 문서의 주요 강점은 전자기기의 정전기 방지 프로그램(ESD 제어 프로그램)을 설정, 구현 및 유지 관리하기 위한 행정적 및 기술적 요건을 제공한다는 것이다. 새로운 판에서 추가된 정의와 제품 자격 요건의 업데이트, 정전기 방지 의류 시스템에 대한 언급 등은 표준의 적용성을 더욱 높이고 있다. 더욱이, IEC TR 61340-5-2에 대한 참조는 문서의 구현에 대한 명확한 지침을 제공하여 사용자들이 필요한 절차를 이해하고 따를 수 있도록 돕는다. 특히, Document의 테이블 업데이트 및 고립 도체에 대한 정의는 정전기 방지 관리의 표준성을 강화하며, 포장 검증 요건을 포함한 새로운 부록은 다양한 산업에서의 구체적인 요구사항을 효과적으로 반영하고 있다. 이 모든 점에서 SIST EN IEC 61340-5-1:2024 문서는 전자기기 보호 분야에서의 최신 기준을 제시하며, 관련 산업에 필수적인 지침을 제공하는 문서로서의 중요성을 갖고 있다.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
