EN 60700-1:1998/A2:2008

SLOVENSKI STANDARD
01-februar-2009
7LULVWRUVNLYHQWLOLHOHNWURQNH]DYLVRNRQDSHWRVWQLHQRVPHUQLSUHQRV+9'&
HOHNWULþQHHQHUJLMHGHO(OHNWULþQRSUHVNXãDQMH,(&$
Thyristor valves for high voltage direct current (HVDC) power transmission - Part 1:
Electrical testing (IEC 60700-1:1998/A2:2008)
Thyristorventile für Hochspannungsgleichstrom-Energieübertragung (HGÜ) - Teil 1:
Elektrische Prüfung (IEC 60700-1:1998/A2:2008)
Valves à thyristors pour le transport d'énergie en courant continu à haute tension
(CCHT) - Partie 1: Essais électriques (CEI 60700-1:1998/A2:2008)
Ta slovenski standard je istoveten z: EN 60700-1:1998/A2:2008
ICS:
29.200 8VPHUQLNL3UHWYRUQLNL Rectifiers. Convertors.
6WDELOL]LUDQRHOHNWULþQR Stabilized power supply
QDSDMDQMH
31.080.20 Tiristorji Thyristors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60700-1/A2
NORME EUROPÉENNE
December 2008
EUROPÄISCHE NORM
ICS 29.200; 31.080.20
English version
Thyristor valves for high voltage direct current (HVDC)
power transmission -
Part 1: Electrical testing
(IEC 60700-1:1998/A2:2008)
Valves à thyristors pour le transport Thyristorventile
d'énergie en courant continu für Hochspannungsgleichstrom-
à haute tension (CCHT) - Energieübertragung (HGÜ) -
Partie 1: Essais électriques Teil 1: Elektrische Prüfung
(CEI 60700-1:1998/A2:2008) (IEC 60700-1:1998/A2:2008)

This amendment A2 modifies the European Standard EN 60700-1:1998; it was approved by CENELEC on
2008-11-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60700-1:1998/A2:2008 E

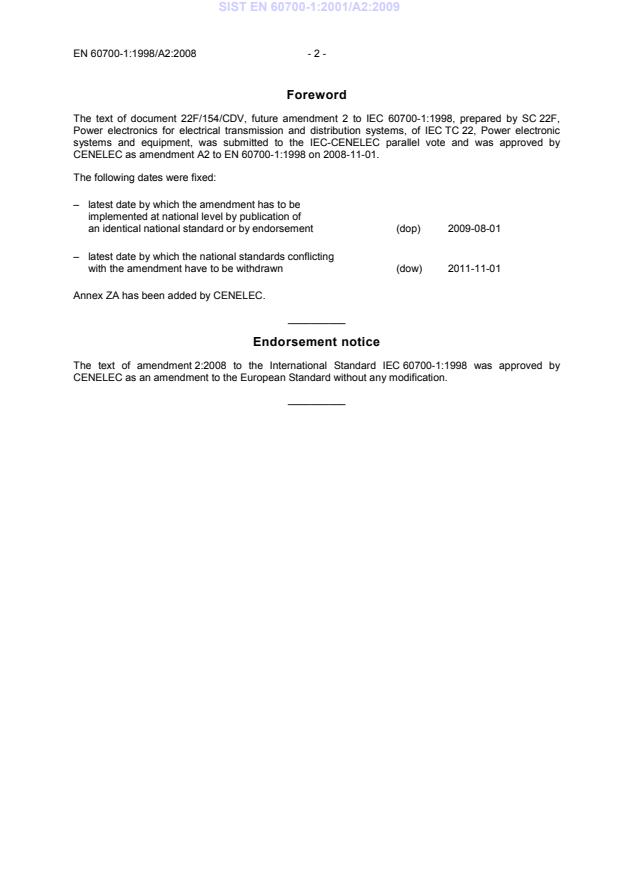

Foreword
The text of document 22F/154/CDV, future amendment 2 to IEC 60700-1:1998, prepared by SC 22F,
Power electronics for electrical transmission and distribution systems, of IEC TC 22, Power electronic
systems and equipment, was submitted to the IEC-CENELEC parallel vote and was approved by
CENELEC as amendment A2 to EN 60700-1:1998 on 2008-11-01.
The following dates were fixed:
– latest date by which the amendment has to be
implemented at national level by publication of
an identical national standard or by endorsement (dop) 2009-08-01
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2011-11-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of amendment 2:2008 to the International Standard IEC 60700-1:1998 was approved by
CENELEC as an amendment to the European Standard without any modification.
__________
- 3 - EN 60700-1:1998/A2:2008
Replace Annex ZA of EN 60700-1:1998 + A1:2003 by:
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60060 Series High-voltage test techniques HD 588.1 S1 1991
EN 60060 Series
IEC 60060-1 1989 High-voltage test techniques - HD 588.1 S1 1991
Part 1: General definitions and test
requirements
1) 2)
IEC 60071-1 - Insulation co-ordination - EN 60071-1 2006
Part 1: Definitions, principles and rules

IEC 60099 (mod) Series Surge arresters EN 60099 Series

IEC 60270 2000 High-voltage test techniques - EN 60270 2001
Partial discharge measurements

IEC 61803 1999 Determination of power losses EN 61803 1999
in high-voltage direct current (HVDC)
converter stations
ISO/IEC Guide 25 1990 General requirements for the competence - -
of calibration and testing laboratories

1)
Undated reference.
2)
Valid edition at date of issue.

IEC 60700-1
Edition 1.0 2008-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 2
AMENDEMENT 2
Thyristor valves for high voltage direct current (HVDC) power transmission –
Part 1: Electrical testing
Valves à thyristors pour le transport d'énergie en courant continu à haute
tension (CCHT) –
Partie 1: Essais électriques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
J
CODE PRIX
ICS 29.200; 31.080.20 ISBN 2-8318-9955-9
– 2 – 60700-1 Amend. 2 © IEC:2008
FOREWORD
This amendment has been prepared by subcommittee 22F: Power electronics for electrical
transmission and distribution systems, of IEC technical committee 22: Power electronic
systems and equipment.
The text of this amendment is based on the following documents:
CDV Report on voting
22F/154/CDV 22F/164/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be reconfirmed.
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
Page 3
CONTENTS
On page 7, replace the title of Clause 13 by the following:
13 Testing of special features and fault tolerance
Delete Annex C.
Page 11
2 Normative references
Replace the fourth reference by the following:
IEC 60071-1, Insulation co-ordination – Part 1: Definitions, principles and rules
Replace the sixth reference by the following:
IEC 60270:2000, High-voltage test techniques – Partial discharge measurements

60700-1 Amend. 2 © IEC:2008 – 3 –
Page 15
3.2 Valve construction terms
Add the following term and definition after 3.2.6 (introduced by Amendment 1):
3.2.7
multiple valve unit
MVU
single physical structure comprising more than one valve with a common mechanical support
structure
Page 19
4.2 Atmospheric correction
Replace the first dash by the following:
– pressure:
a) If the insulation coordination of the tested part of the thyristor valve is based on standard
rated withstand voltages according to IEC 60071-1, correction factors are only applied for
altitudes exceeding 1 000 m. Hence, if the altitude of the site a at which the equipment
s
=101,3 kPa)
will be installed is ≤1 000 m, then the standard atmospheric air pressure (b
shall be used with no correction for altitude. If a >1 000 m, then the standard procedure
s
according to IEC 60060-1 is used except that the reference atmospheric pressure b is
replaced by the atmospheric pressure corresponding to an altitude of 1 000 m (b ).
1 000 m
b) If the insulation coordination of the tested part of the thyristor valve is not based on
standard rated withstand voltages according to IEC 60071-1, then the standard procedure
according to IEC 60060-1 is used with the reference atmospheric pressure b
(b =101,3 kPa);
4.4 Criteria for successful type testing
In the first line, replace “ascertains that” by “shows that”.
