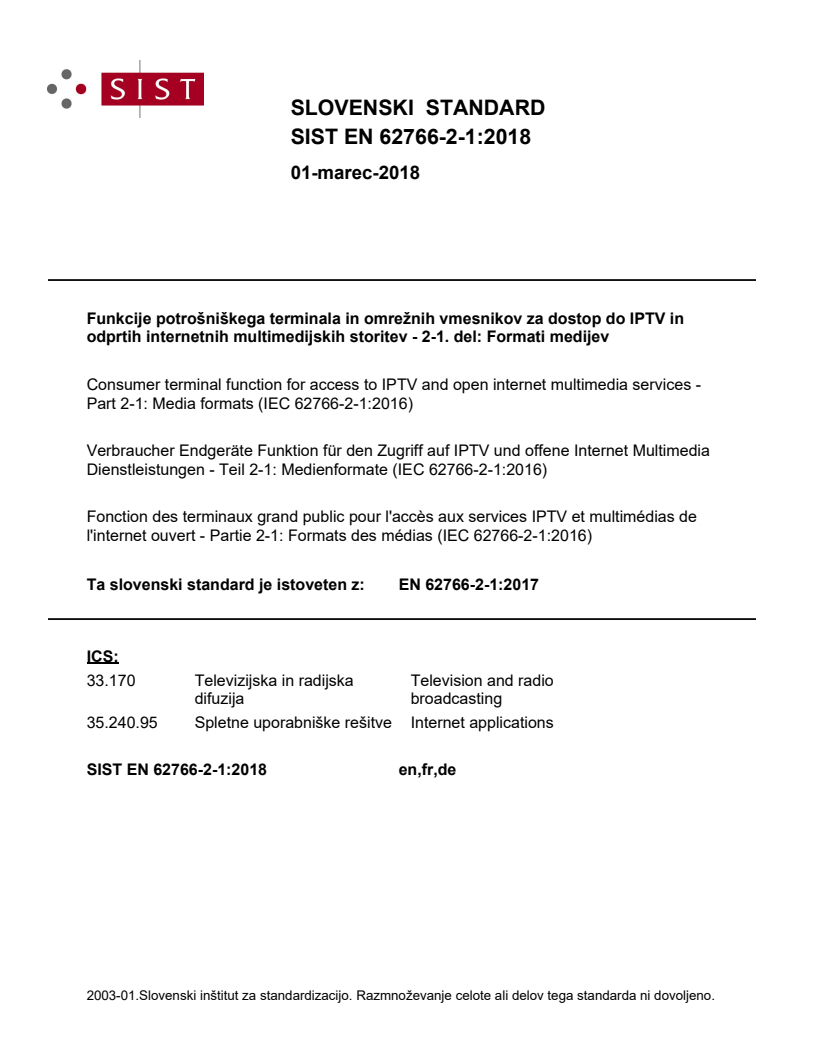

EN 62766-2-1:2017

SLOVENSKI STANDARD
01-marec-2018
Funkcije potrošniškega terminala in omrežnih vmesnikov za dostop do IPTV in
odprtih internetnih multimedijskih storitev - 2-1. del: Formati medijev
Consumer terminal function for access to IPTV and open internet multimedia services -
Part 2-1: Media formats (IEC 62766-2-1:2016)
Verbraucher Endgeräte Funktion für den Zugriff auf IPTV und offene Internet Multimedia
Dienstleistungen - Teil 2-1: Medienformate (IEC 62766-2-1:2016)
Fonction des terminaux grand public pour l'accès aux services IPTV et multimédias de
l'internet ouvert - Partie 2-1: Formats des médias (IEC 62766-2-1:2016)
Ta slovenski standard je istoveten z: EN 62766-2-1:2017
ICS:
33.170 Televizijska in radijska Television and radio
difuzija broadcasting
35.240.95 Spletne uporabniške rešitve Internet applications
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

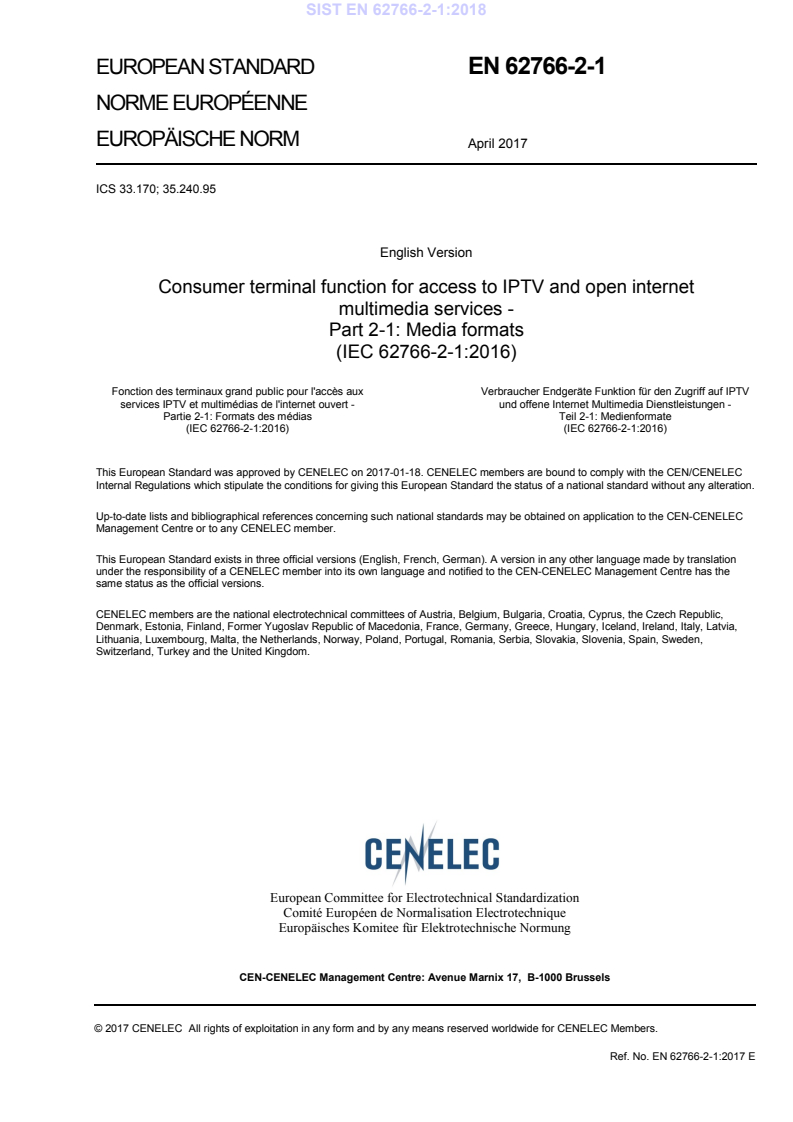

EUROPEAN STANDARD EN 62766-2-1

NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2017
ICS 33.170; 35.240.95
English Version
Consumer terminal function for access to IPTV and open internet
multimedia services -
Part 2-1: Media formats
(IEC 62766-2-1:2016)
Fonction des terminaux grand public pour l'accès aux Verbraucher Endgeräte Funktion für den Zugriff auf IPTV
services IPTV et multimédias de l'internet ouvert - und offene Internet Multimedia Dienstleistungen -
Partie 2-1: Formats des médias Teil 2-1: Medienformate
(IEC 62766-2-1:2016) (IEC 62766-2-1:2016)
This European Standard was approved by CENELEC on 2017-01-18. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62766-2-1:2017 E

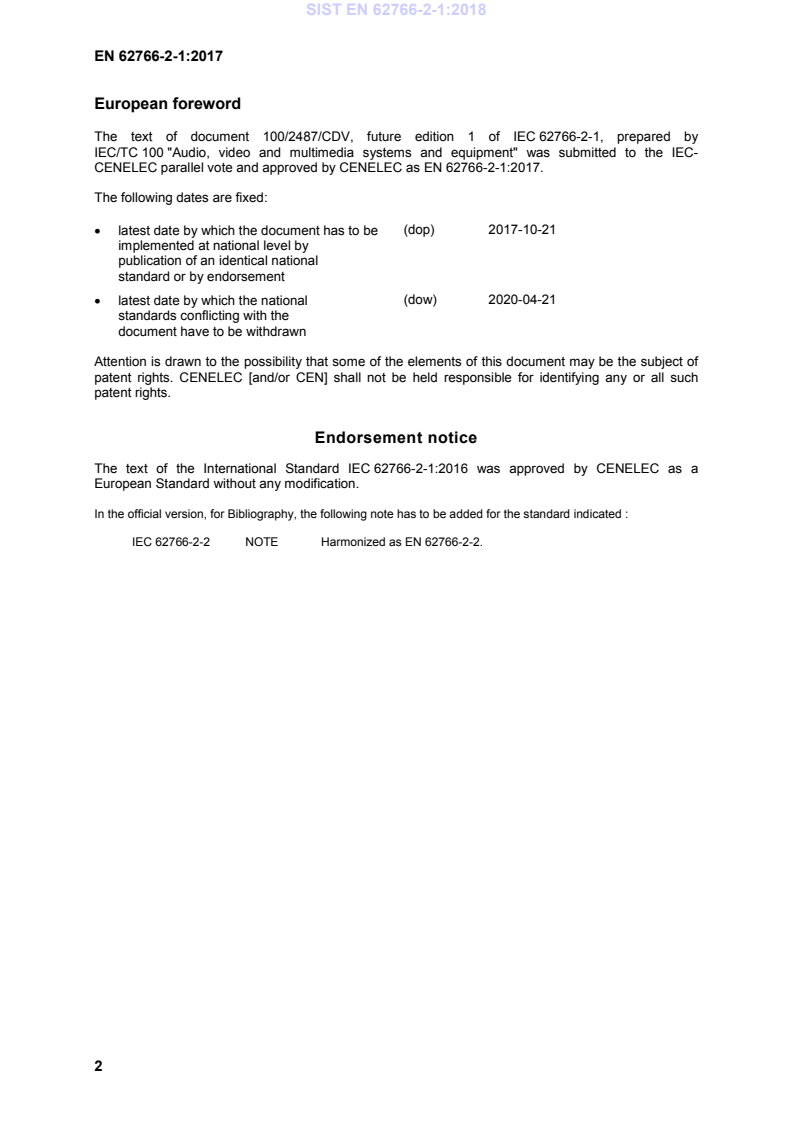

European foreword
The text of document 100/2487/CDV, future edition 1 of IEC 62766-2-1, prepared by
IEC/TC 100 "Audio, video and multimedia systems and equipment" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN 62766-2-1:2017.

The following dates are fixed:
(dop) 2017-10-21
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2020-04-21
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 62766-2-1:2016 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated :

IEC 62766-2-2 NOTE Harmonized as EN 62766-2-2.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu
Publication Year Title EN/HD Year

IEC 62481-2 2013 Digital living network alliance (DLNA) EN 62481-2 2014
home networked device interoperability
guidelines - Part 2: DLNA media formats
Consumer terminal function for access to 1)
IEC 62766-1 -  EN 62766-1 -
IPTV and open internet multimedia
services - Part 1: General
IEC 62766-3 2016 Consumer terminal function for access to EN 62766-3 2017
IPTV and open internet multimedia
services - Part 3: Content metadata
IEC 62766-4-1 -  Consumer terminal function for access to - -
IPTV and open multimedia services -
Part 4-1: Protocols
IEC 62766-5-1 -  Consumer terminal function for access to - -
IPTV and open multimedia services -
Part 5-1: Declarative Application
Environment
Consumer terminal function for access to
IEC 62766-6 -  - -
IPTV and open internet multimedia
services - Part 6: Procedural application
environment
IEC 62766-7 -  Consumer terminal function for access to - -
IPTV and open multimedia services -
Part 7: Authentication, Content Protection
and Service Protection
ISO/IEC 11172-3 1993 Information technology - Coding of moving EN ISO/IEC 11172-3 1995
pictures and associated audio for digital

storage media at up to about 1,5 Mbit/s -
COR1 1996
Part 3: Audio
ISO/IEC 13818-1 2015 Information technology - Generic coding of - -
moving pictures and associated audio
information - Part 1: Systems
ISO/IEC 13818-2 2013 Information technology - Generic coding of - -
moving pictures and associated audio
information - Part 2: Video
1)
At draft stage.
Publication Year Title EN/HD Year

ISO/IEC 14496-2 2004 Information Technology - Coding of audio- - -
visual objects - Part 2: Visual
ISO/IEC 14496-3 2009 Information technology - Coding of audio- - -
visual objects - Part 3: Audio
ISO/IEC 14496-10 2005 Information technology - Coding of audio- - -
visual objects - Part 10: Advanced Video
Coding
ISO/IEC 14496-12 2012 Information technology - Coding of audio- - -
visual objects - Part-12: ISO base media
file format
ISO/IEC 14496-14 2003 Information technology - Coding of Audio- - -
Visual Objects - Part 14: MP4 file format
ISO/IEC 14496-15 2014 Information technology - Coding of audio- - -
visual objects - Part 15: Carriage of
network abstraction layer (NAL) unit
structured video in ISO base media file
format
ISO/IEC 23001-7 2015 Information technology - MPEG systems - -
technologies - Part 7: Common encryption
in ISO base media file format files
ISO/IEC 23003-1 2007 Information technology - MPEG audio - -
+ COR2 2009 technologies - Part 1: MPEG Surround
ITU-T -  Pulse code modulation (PCM) of voice - -
Recommendation frequencies
G.711
ITU-T -  Low-complexity, full-band audio coding for - -
Recommendation high-quality, conversational applications
G.719
ITU-T -  7 kHz audio-coding within 64 kbit/s - -
Recommendation
G.722
ITU-T 2012 Coding of speech at 8 kbit/s using - -
Recommendation conjugate-structure algebraic-code-excited
G.729 linear prediction (CS-ACELP)
ITU-T -  G.729-based embedded variable bit-rate - -
Recommendation coder: An 8-32 kbit/s scalable wideband
G.729.1 coder bitstream interoperable with G.729
ITU-T -  Information technology - Generic coding of - -
Recommendation moving pictures and associated audio
H.262 information: Video
ITU-T 2005 Video coding for low bitrate communication - -
Recommendation
H.263
ITU-T -  Advanced video coding for generic - -
Recommendation audiovisual services
H.264
ETSI EN 300 468 2012 Digital Video Broadcasting (DVB); - -
V1.13.1 Specification for Service Information (SI) in
DVB systems
Publication Year Title EN/HD Year

ETSI EN 300 472 2003 Digital Video Broadcasting (DVB) - - -
V1.3.1 Specification for conveying ITU-R system
B teletext in DVB bitstreams
ETSI EN 300 743 2011 Digital Video Broadcasting (DVB); - -
V1.4.1 Subtitling systems
ETSI TS 101 154 2012 Digital Video Broadcasting (DVB); - -
V1.11.1 Specification for the use of Video and
Audio Coding in Broadcasting applications
based on the MPEG-2 Transport Stream
ETSI TS 101 547 2012 Digital Video Broadcasting (DVB); Frame - -
V1.1.1 Compatible Plano-stereoscopic 3DTV
ETSI TS 102 034 2014 Digital Video Broadcasting (DVB); - -
V1.5.1 Transport of MPEG-2 TS Based DVB
Services over IP Networks
ETSI TS 102 114 2012 DTS Coherent Acoustics; Core and - -
V1.4.1 Extensions
ETSI TS 102 366 2008 Digital Audio Compression (AC-3, - -
V1.2.1 Enhanced AC-3) Standard
ETSI TS 102 809 2013 Digital Video Broadcasting (DVB); - -
V1.2.1 Signalling and carriage of interactive
applications and services in hybrid
broadcast / broadband environments
ETSI TS 126 114 2011 IMS Multimedia Telephony; media handling - -
V10.0.0 and interaction
ETSI TS 181 005 2009 TISPAN Service and Capability - -
V3.3.1 Requirements
3GPP TS 26.171, Speech codec speech processing functions; Adaptive Multi-Rate - Wideband (AMR-
WB) speech codec; General description

3GPP TS 26.190, Speech codec speech processing functions; Adaptive Multi-Rate - Wideband (AMR-
WB) speech codec; Transcoding functions

3GPP TS 26.234 (2010-06), Transparent end-to-end Packet-switched; Streaming Service (PSS);
Protocols and codecs (Release 9)

3GPP TS 26.245, Transparent end-to-end Packet switched Streaming Service (PSS); Timed text
format
3GPP TS 26.290, Audio codec processing functions; Extended Adaptive Multi-Rate - Wideband
(AMR-WB+) codec; Transcoding functions

3GPP TS 26.401, General audio codec audio processing functions; Enhanced aacPlus general audio
codec; General description
Marlin Developer Community, Marlin Broadband Transport Stream Specification, Version 1.0, July
2008, available from http://www.marlin-community.com/develop/downloads

Marlin Developer Community, Marlin Dynamic Media Zones, Version 1.1, available from
http://www.marlin-community.com/develop/downloads

Marlin Developer Community, "Marlin – File Formats Specification", Version 1.1, July 2008, and latest
version of “Marlin Errata: Marlin – File Formats Specification V1.1”, available from http://www.marlin-
community.com/develop/downloads.

Marlin Developer Community, OMArlin Specification, Version 1.0.1, July 2008, available from
http://www.marlin-community.com/develop/downloads

3GPP TS 26.071, Mandatory speech CODEC speech processing functions; AMR speech Codec;
General description
Consumer Technology Association CTA-708-E (2013), Digital Television (DTV) Closed Captioning

CompuServe Incorporated, Columbus, Ohio, Graphics Interchange Format version 89a, © 1987, 1988,
1989, 1990
Eric Hamilton, C-Cube Microsystems, September 1, 1992, JPEG File Interchange Format,
Version 1.02
IEC 62766-2-1 ®
Edition 1.0 2016-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Consumer terminal function for access to IPTV and open internet multimedia

services –
Part 2-1: Media formats
Fonction des terminaux grand public pour l'accès aux services IPTV et

multimédias de l'internet ouvert –

Partie 2-1: Formats des médias

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.170; 35.240.95 ISBN 978-2-8322-3679-6

− 2 − IEC 62766-2-1:2016  IEC 2016
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 10
3.1 Terms and definitions . 10
3.2 Abbreviated terms . 10
4 Audio/video media formats . 11
5 Systems layer . 15
5.1 General . 15
5.2 MPEG-2 transport stream . 15
5.3 MP4 file format . 17
5.4 Service usage . 18
6 Video . 18
6.1 General . 18
6.2 Formats . 19
6.2.1 General . 19
6.2.2 High-definition profile . 19
6.2.3 Standard Definition profile . 20
6.2.4 Video telephony profile . 20
6.2.5 Sub-picture profile . 20
6.2.6 Video formats for mobile audio/video services . 21
6.2.7 H.264/AVC GOP structure . 21
6.2.8 3D . 22
6.3 Service usage . 22
7 Subtitles . 23
7.1 General . 23
7.2 Formats . 23
7.3 Service usage . 23
8 Teletext . 23
8.1 General . 23
8.2 Formats . 23
8.3 Service usage . 24
9 Audio . 24
9.1 General . 24
9.2 Formats . 25
9.2.1 HE-AAC and AAC . 25
9.2.2 AC-3 . 26
9.2.3 Enhanced AC-3 . 26
9.2.4 MPEG-1 Layer II . 26
9.2.5 MPEG-1 Layer III . 26
9.2.6 WAVE . 26
9.2.7 DTS-HD . 27
9.2.8 MPEG Surround . 27
9.2.9 Audio Formats for voice and video telephony . 28
9.2.10 Audio formats for mobile audio/video services . 28

IEC 62766-2-1:2016  IEC 2016 − 3 −
9.3 Platform usage . 29
9.3.1 Audible notifications and audio clips . 29
9.3.2 Audio description . 29
9.3.3 Clean audio . 29
9.3.4 Audio output interfaces . 29
10 Still pictures and graphics . 29
10.1 General . 29
10.2 JPEG . 30
10.3 GIF . 30
10.4 PNG . 30
Bibliography . 31

Figure 1 – Media formats stack . 6

Table 1 – Audio/video media formats for 25-Hz video systems . 12
Table 2 – Audio/video media formats for 30-Hz video systems . 13
Table 3 – Protected audio/video media formats . 13
Table 4 – Pure audio media formats. 14
Table 5 – Graphics media formats . 14
Table 6 – Audio/video media formats for video telephony . 14
Table 7 – Audio formats for voice and video telephony (narrow-band) . 14
Table 8 – Audio formats for voice and video telephony (wide-band) . 15
Table 9 – Audio formats for voice and video telephony (super-wideband) . 15
Table 10 – Subtitle format for mobile audio/video Services . 15
Table 11 – Systems layer formats for content services . 18
Table 12 – Sub-picture formats . 21

− 4 − IEC 62766-2-1:2016  IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONSUMER TERMINAL FUNCTION FOR ACCESS TO IPTV
AND OPEN INTERNET MULTIMEDIA SERVICES –

Part 2-1: Media formats
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62766-2-1 has been prepared by IEC technical committee 100:
Audio, video and multimedia systems and equipment.
The text of this standard is based on the following documents:
CDV Report on voting
100/2487/CDV 100/2657/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This International Standard is to be used in conjunction with IEC 62766-1.

IEC 62766-2-1:2016  IEC 2016 − 5 −
A list of all parts in the IEC 62766 series, published under the general title Consumer terminal
function for access to IPTV and open internet multimedia services can be found on the IEC
website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
− 6 − IEC 62766-2-1:2016  IEC 2016
INTRODUCTION
The IEC 62766 series is based on a series of specifications that was originally developed by
the OPEN IPTV FORUM (OIPF). They specify the user-to-network interface (UNI) for
consumer terminals to access IPTV and open internet multimedia services over managed or
non-managed networks as defined by OIPF.
The set of media formats specified in this standard comprises:
• audio-video media formats (Clause 4), being combinations of the individual formats below.
• systems layer formats (Clause 5),
• video codecs and their usage (Clause 6),
• subtitle formats and their usage (Clause 7),
• teletext formats and their usage (Clause 8),
• audio codecs and their usage (Clause 9), and
• graphics and still image codecs and formats (Clause 10).
For each of these codecs and formats, it is specified how they apply to the overall system and
to the various IPTV services (described in IEC 62766-1), including the implications for
interoperability.
Figure 1 summarises the set of media formats specified by the present document in the form
of a media formats stack. Media formats are specified at the content layer (audio, video, etc.)
and for the systems layer. Transport protocols below the systems layer are specified in
IEC 62766-4-1.
Audio, video, subtitle, teletext formats
BBTS PF PDCF MIPMP DCF CENC
TS or TTS MP4 / ISOBMFF
Transport protocols
(specified in IEC 62766-4-1)
IEC
Figure 1 – Media formats stack

IEC 62766-2-1:2016  IEC 2016 − 7 −
CONSUMER TERMINAL FUNCTION FOR ACCESS TO IPTV
AND OPEN INTERNET MULTIMEDIA SERVICES –

Part 2-1: Media formats
1 Scope
This part of IEC 62766 specifies formats for the audio/video content provided by IPTV
services using fixed line access networks or mobile access networks and voice and video
telephony services. It does not apply to the broadcast channel input of hybrid devices except
where explicitly specified.
This part of IEC 62766 defines formats for the delivery of 3D video. At the present time,
delivery to fixed terminals is targeted. No special provision is made for mobile or portable
devices.
This standard defines the media formats utilised on the UNI reference point UNIT-17 of the
Open IPTV Forum functional architecture.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 62481-2:2013, Digital living network alliance (DLNA) home networked device
interoperability guidelines – Part 2: DLNA media formats
, Consumer terminal function for access to IPTV and open internet multimedia
IEC 62766-1
services – part 1: General
IEC 62766-3:2016, Consumer terminal function for access to IPTV and open internet
multimedia services – part 3: Content metadata
IEC 62766-4-1 , Consumer terminal function for access to IPTV and open internet multimedia
services – part 4-1: Protocols
IEC 62766-5-1 , Consumer terminal function for access to IPTV and open internet multimedia
services – part 5-1: Declarative application environment
IEC 62766-6 , Consumer terminal function for access to IPTV and open internet multimedia
services – part 6: Procedural application environment
___________
Under preparation. Stage at the time of publication: IEC/CDV 62766-1:2015
Under preparation. Stage at the time of publication: IEC/CDV 62766-4-1:2015
Under preparation. Stage at the time of publication: IEC/CDV 62766-5-1:2015
Under preparation. Stage at the time of publication: IEC/CDV 62766-6:2015

− 8 − IEC 62766-2-1:2016  IEC 2016
IEC 62766-7:— , Consumer terminal function for access to IPTV and open internet multimedia
services – part 7: Authentication, content protection and service protection
ISO/IEC 11172-3, Information technology – Coding of moving pictures and associated audio
for digital storage media at up to about 1,5 Mbit/s – Part 3: Audio
ISO/IEC 11172-3:1993/Cor 1:1996
ISO/IEC 13818-1:2015, Information technology – Generic coding of moving pictures and
associated audio information – Part 1: Systems
ISO/IEC 13818-2:2013, Information technology – Generic coding of moving pictures and
associated audio information – Part 2: Video
ISO/IEC 14496-2:2004, Information technology – Coding of audio-visual objects – Part 2:
Visual
ISO/IEC 14496-3:2009, Information technology – Coding of audio-visual objects – Part 3:
Audio
ISO/IEC 14496-10:2005, Information technology – Coding of audio-visual objects – Part 10:
Advanced video coding
ISO/IEC 14496-12:2012, Information technology – Coding of audio-visual objects – Part 12:
ISO base media file format
ISO/IEC 14496-14:2003, Information technology – Coding of audio-visual objects – Part 14:
MP4 file format
ISO/IEC 14496-15:2014, Information technology – Coding of audio-visual objects – Part 15:
Carriage of network abstraction layer (NAL) unit structured video in ISO base media file
format
ISO/IEC 23001-7:2015, Information technology – MPEG systems technologies – Part 7:
Common encryption in ISO base media file format files
ISO/IEC 23003-1:2007, Information technology – MPEG audio technologies – Part 1: MPEG
Surround
ISO/IEC 23003-1:2007/Cor:2009
ITU-T Recommendation G.711, Pulse code modulation (PCM) of voice frequencies
ITU-T Recommendation G.719, Low-complexity, full-band audio coding for high-quality,
conversational applications
ITU-T Recommendation G.722, 7 kHz Audio Coding within 64 Kbit/s
ITU-T Recommendation G.729 (2012), Coding of speech at 8 kbit/s using conjugate-structure
algebraic-code-excited linear prediction (CS-ACELP)
ITU-T Recommendation G.729.1, G.729 based Embedded Variable bit-rate coder: An 8-32
Kbit/s scalable wideband coder bitstream interoperable with G.729
___________
Under preparation. Stage at the time of publication: IEC/CDV 62766-7:2015

IEC 62766-2-1:2016  IEC 2016 − 9 −
ITU-T Recommendation H.262, Information technology – Generic coding of moving pictures
and associated audio information: Video
ITU-T Recommendation H.263 (2005), Video coding for low bitrate communication
ITU-T Recommendation H.264, Advanced video coding for generic audiovisual services
ETSI EN 300 468 V1.13.1 (2012-08), Digital Video Broadcasting (DVB); Specification for
Service Information (SI) in DVB systems
ETSI EN 300 472 V1.3.1 (2003-05), Digital Video Broadcasting (DVB); Specification for
conveying ITU-R System B Teletext in DVB bitstreams
ETSI EN 300 743 V1.4.1 (2011-10), Digital Video Broadcasting (DVB); Subtitling systems
ETSI TS 101 154 V1.11.1 (2012-11), Digital Video Broadcasting (DVB); Specification for the
use of Video and Audio Coding in Broadcasting applications based on the MPEG-2 Transport
Stream
ETSI TS 101 547 V1.1.1 (2012-01), Digital Video Broadcasting (DVB); Frame Compatible
Plano-stereoscopic 3DTV
ETSI TS 102 034 V1.5.1 (2014-05), Digital Video Broadcasting (DVB); Transport of MPEG-2
TS Based DVB Services over IP Networks
ETSI TS 102 114 V1.4.1 (2012-09), DTS Coherent Acoustics; Core and Extensions
ETSI TS 102 366 V1.2.1 (2008-08), Digital Audio Compression (AC-3, Enhanced AC-3)
Standard
ETSI TS 102 809 V1.2.1 (2013-07), Digital Video Broadcasting (DVB); Signalling and carriage
of interactive applications and services in hybrid broadcast / broadband environments
ETSI TS 126 114 V10.0.0 (2011-04), IMS Multimedia Telephony; media handling and
interaction
ETSI TS 181 005 V3.3.1 (2009-12), TISPAN Service and Capability Requirements
3GPP TS 26.171, Speech codec speech processing functions; Adaptive Multi-Rate –
Wideband (AMR-WB) speech codec; General description
3GPP TS 26.190, Speech codec speech processing functions; Adaptive Multi-Rate –
Wideband (AMR-WB) speech codec; Transcoding functions
3GPP TS 26.234 (2010-06), Transparent end-to-end Packet-switched; Streaming Service
(PSS); Protocols and codecs (Release 9)
3GPP TS 26.245, Transparent end-to-end Packet switched Streaming Service (PSS); Timed
text format
3GPP TS 26.290, Audio codec processing functions; Extended Adaptive Multi-Rate –
Wideband (AMR-WB+) codec; Transcoding functions
3GPP TS 26.401, General audio codec audio processing functions; Enhanced aacPlus
general audio codec; General description

− 10 − IEC 62766-2-1:2016  IEC 2016
Marlin Developer Community, Marlin Broadband Transport Stream Specification, Version 1.0,
July 2008, available from http://www.marlin-community.com/develop/downloads
Marlin Developer Community, Marlin Dynamic Media Zones, Version 1.1, available from
http://www.marlin-community.com/develop/downloads
Marlin Developer Community, "Marlin – File Formats Specification", Version 1.1, July 2008,
and latest version of “Marlin Errata: Marlin – File Formats Specification V1.1”, available from
http://www.marlin-community.com/develop/downloads.
Marlin Developer Community, OMArlin Specification, Version 1.0.1, July 2008, available from
http://www.marlin-community.com/develop/downloads
3GPP TS 26.071, Mandatory speech CODEC speech processing functions; AMR speech
Codec; General description
Consumer Technology Association CTA-708-E (2013), Digital Television (DTV) Closed
Captioning
CompuServe Incorporated, Columbus, Ohio, Graphics Interchange Format version 89a, ©
1987, 1988, 1989, 1990
Eric Hamilton, C-Cube Microsystems, September 1, 1992, JPEG File Interchange Format,
Version 1.02
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms, definitions and abbreviated terms given in
IEC 62766-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 Terms and definitions
3.1.1
mobile audio/video service
IPTV service delivered using mobile access networks and protocols
3.2 Abbreviated terms
AAC Advanced Audio Coding
AAC LC AAC Low Complexity
ADPCM Adaptive Differential Pulse-Code Modulation
AIT Application Information Table
AMR Adaptive Multi-Rate
AMR-WB Adaptive Multi-Rate Wideband
ATSC Advanced Television Systems Committee
CoD Content on Demand
DCF DRM Content Format
DRM Digital Rights Management
IEC 62766-2-1:2016  IEC 2016 − 11 −
DSM-CC Digital Storage Media – Command and Control
DVB Digital Video Broadcasting
EBU European Broadcasting Union
EIT Event Information Table
ETSI European Telecommunications Standards Institute
Fps Frames per second
GIF Graphics Interchange Format
GOP Group Of Pictures
HD High Definition
HE-AAC High Efficiency-AAC
JPEG Joint Photographic Experts Group
MPEG Moving Pictures Expert Group
MPS MPEG Surround
OMA Open Mobile Alliance
PAT Program Association Table
PCM Pulse-Code Modulation
PDCF Pacjketised DRM Content Format
PID Packed Identifier
PMT Program MapTable
PNG Portable Network Graphics
PS Parametric Stereo
PSI Programme Specific Information
SbS Side by Side
SBR Spectral Band Replication
SD Standard Definition
SI Service Information
S/PDIF Sony/Philips Digital Interconnect Format
TaB Top and Bottom
TTS Timestamped Transport Stream
UDP User Datagram Protocol
WAV Waveform Audio File Format
4 Audio/video media formats
A set of audio/video media formats is defined, being combinations of audio, video and
systems layer formats defined in the following subclauses.
The TS and TTS systems layer formats are specified in 5.2. The protection layers BBTS and
PF are specified in IEC 62766-7.
MP4 systems layer format is specified in 5.3. The protection layers PDCF, MIPMP, CENC and
DCF are specified in IEC 62766-7.
Video formats are defined in 6.2 and audio formats in 9.2.
IEC 62766-3 specifies how the media format of content is signalled in the metadata.

− 12 − IEC 62766-2-1:2016  IEC 2016
For audio/video content in 25-Hz video systems, the audio/video media format combinations
are defined in Table 1.
Table 1 – Audio/video media formats for 25-Hz video systems
System format Video format Audio format MIME type
TS AVC_HD_25 HEAAC video/mpeg or video/mp2t
AVC_SD_25 HEAAC2
AVC_SP_25 HEAAC_MPS
AVC_3D_25 MPEG1_L2
MPEG1_L2_MPS
AC3
E-AC3
DTS
TTS AVC_HD_25 HEAAC video/vnd.dlna.mpeg-tts
AVC_SD_25 HEAAC2
AVC_SP_25 HEAAC_MPS
AVC_3D_25 MPEG1_L2
MPEG1_L2_MPS
AC3
E-AC3
DTS
MP4 AVC_HD_25 HEAAC video/mp4
AVC_SD_25 HEAAC2
AVC_SP_25 HEAAC_MPS
AVC_3D_25 MPEG1_L2
MPEG1_L2_MPS
AC3
E-AC3
DTS
TS MPEG2_SD_25 MPEG1_L2 video/mpeg or video/mp2t
MPEG2_SP_25 MPEG1_L2_MPS AC3
E-AC3
TTS MPEG2_SD_25 MPEG1_L2 video/vnd.dlna.mpeg-tts
MPEG2_SP_25 MPEG1_L2_MPS AC3
E-AC3
For audio/video content in 30-Hz video systems the audio/video media format combinations
are defined in Table 2.
IEC 62766-2-1:2016  IEC 2016 − 13 −
Table 2 – Audio/video media formats for 30-Hz video systems
System Format Video Format Audio Format MIME type
TS AVC_HD_30 HEAAC video/mpeg or
video/mp2t
AVC_SD_30 HEAAC2
AVC_SP_30 HEAAC_MPS
AVC_3D_30 AC3
E-AC3
DTS
TTS AVC_HD_30 HEAAC video/vnd.dlna.mpeg-tts
AVC_SD_30 HEAAC2
AVC_SP_30 HEAAC_MPS
AVC_3D_30 AC3
E-AC3
DTS
MP4 AVC_HD_30 HEAAC video/mp4
AVC_SD_30 HEAAC2
AVC_SP_30 HEAAC_MPS
AVC_3D_30 AC3
E-AC3
DTS
For protected audio/video content, the protected audio/video media format combinations are
defined in Table 3.
Table 3 – Protected audio/video media formats
System format Protection format Video format Audio format MIME type
TS BBTS A combination of video format and audio video/mpeg or
format used for TS system, as defined by video/mp2t
PF
Table 1 and Table 2
TTS BBTS A combination of video format and audio video/vnd.dlna.mpeg-
format used for TTS system, as defined by tts
PF
Table 1 and Table 2)
MP4 PDCF A combination of video format and audio video/mp4
format used for MP4 system, as defined by
MIPMP
Table 1 and Table 2
CENC
DCF A combination of video format and audio application/vnd.oma.
format used for MP4 system, as defined by drm.dcf
Table 1 and Table 2
The following audio media formats are defined that are independent of the video system, as
shown in Table 4.
− 14 − IEC 62766-2-1:2016  IEC 2016
Table 4 – Pure audio media formats
Audio format MIME type
MPEG1_L3 audio/mpeg
HEAAC audio/mp4 or audio/3gpp
WAV audio/x-wav
DTS audio/vnd.dts.hd
AMR audio/amr
AMR-WB audio/amr-wb
AMR-WB+ audio/amr-wb+
HEAAC2 audio/mp4 or audio/3gpp
AC3 audio/ac3
E-AC3 audio/eac3
NOTE The HEAAC and HEAAC2 pure audio media formats imply carriage of the
respective audio content inside the MP4 system format container.

Table 5 defines the graphics formats for usage as specified in Clause 10.
Table 5 – Graphics media formats
Image format MIME type
JPEG image/jpeg
GIF image/gif
PNG image/png
Table 6 defines the video media formats for video telephony services.
Table 6 – Audio/video media formats for video telephony
Video format MIME type
H263 video/H263
video/H263-1998
video/H263-2000
MP4V video/MP4V-ES
AVC_VDC video/H264
Table 7 defines the audio media formats for narrow-band voice and video telephony services.
Table 7 – Audio formats for voice and video telephony (narrow-band)
Audio format MIME type
G711 audio/PCMA
audio/PCMU
AMR audio/AMR
G729A audio/G729
Table 8 defines the audio media formats for wide-band voice and video telephony services.

IEC 62766-2-1:2016  IEC 2016 − 15 −
Table 8 – Audio formats for voice and video telephony (wide-band)
Audio format MIME type
G722 audio/G722
AMRWB audio/AMR-WB
G7291 audio/G7291
Table 9 defines the audio media formats for super-wideband voice and video telephony
services.
Table 9 – Audio formats for voice and video telephony (super-wideband)
Audio format MIME type
AACLD audio/mpeg4-generic
AACELD audio/mpeg4-generic
G719 audio/G719
Table 10 defines the text format for subtitles provided for mobile audio/video services.
Table 10 – Subtitle format for mobile audio/video Services
Subtitle Format MIME type
3GPP-TT video/3gpp-tt
5 Systems layer
5.1 General
At the systems layer, two formats for the carriage of audio/video content are defined, namely
MPEG-2 transport stream and MP4 file format.
Audio/video content protection is performed at the systems layer, as defined in IEC 62766-7.
This standard describes the protected formats in relation to the total set of media format
definitions.
5.2 MPEG-2 transport stream
The carriage of audio/video content and related information (e.g. subtitles) in an MPEG-2
transport stream shall be in compliance with ETSI TS 101 154:2012, Clause 4, with the
following additional constraints:
• Only a single program shall be contained in the transport stream. The transport stream
shall contain only one program map table (PMT).
• The “TS Optional-SI” profile of PSI/SI carria
...
