EN 60309-2:1999/A1:2007

SLOVENSKI STANDARD
01-januar-2008
1DGRPHãþD
SIST EN 60309-2:2000/A11:2006
9WLþLYWLþQLFHLQVSRMNH]DLQGXVWULMVNHQDPHQHGHO=DKWHYH]DGLPHQ]LMVNR
L]PHQOMLYRVWSULERUDVWUQLLQSXãDPL,(&$VSUHPHQMHQ
Plugs, socket-outlets and couplers for industrial purposes - Part 2: Dimensional
interchangeability requirements for pin and contact-tube accessories (IEC 60309-
2:1999/A1:2005 modified)
Stecker, Steckdosen und Kupplungen für industrielle Anwendungen - Teil 2:
Anforderungen und Hauptmaße für die Austauschbarkeit von Stift- und
Buchsensteckvorrichtungen (IEC 60309-2:1999/A1:2005 modifiziert)
Prises de courant pour usages industriels - Partie 2: Regles d'interchangeabilité
dimensionnelle pour les appareils a broches et alvéoles (IEC 60309-2:1999/A1:2005
modifiée
Ta slovenski standard je istoveten z: EN 60309-2:1999/A1:2007
ICS:
29.120.30 9WLþLYWLþQLFHVSRMNH Plugs, socket-outlets,
couplers
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60309-2/A1
NORME EUROPÉENNE
April 2007
EUROPÄISCHE NORM
ICS 29.120.30 Supersedes EN 60309-2:1999/A11:2004

English version
Plugs, socket-outlets and couplers
for industrial purposes -
Part 2: Dimensional interchangeability requirements
for pin and contact-tube accessories
(IEC 60309-2:1999/A1:2005, modified)

Prises de courant  Stecker, Steckdosen und Kupplungen
pour usages industriels - für industrielle Anwendungen -
Partie 2: Règles d'interchangeabilité Teil 2: Anforderungen und Hauptmaße
dimensionnelle pour les appareils für die Austauschbarkeit von Stift- und
à broches et alvéoles Buchsensteckvorrichtungen
(CEI 60309-2:1999/A1:2005, modifié) (IEC 60309-2:1999/A1:2005, modifiziert)

This amendment A1 modifies the European Standard EN 60309-2:1999; it was approved by CENELEC on
2006-11-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2007 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60309-2:1999/A1:2007 E

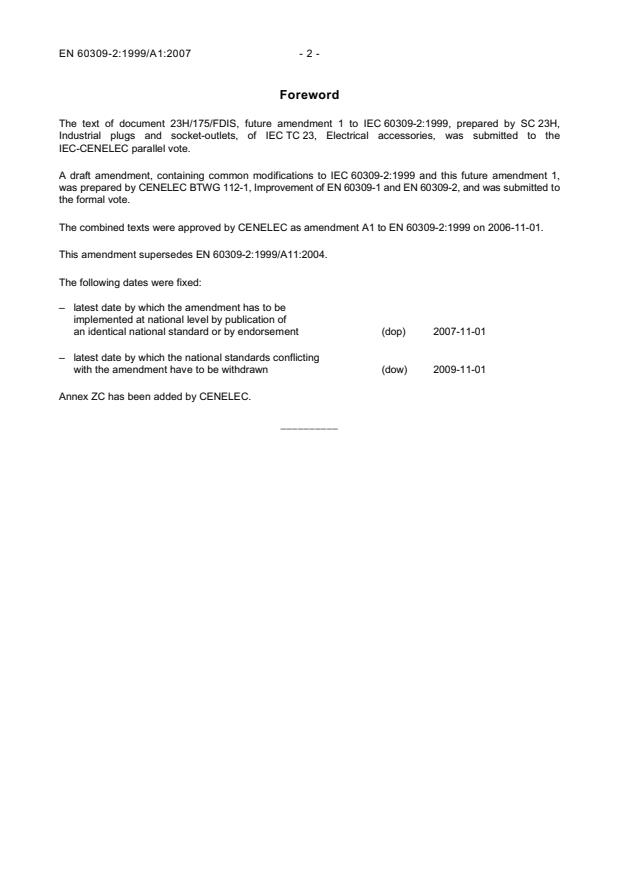

Foreword
The text of document 23H/175/FDIS, future amendment 1 to IEC 60309-2:1999, prepared by SC 23H,
Industrial plugs and socket-outlets, of IEC TC 23, Electrical accessories, was submitted to the
IEC-CENELEC parallel vote.
A draft amendment, containing common modifications to IEC 60309-2:1999 and this future amendment 1,
was prepared by CENELEC BTWG 112-1, Improvement of EN 60309-1 and EN 60309-2, and was submitted to
the formal vote.
The combined texts were approved by CENELEC as amendment A1 to EN 60309-2:1999 on 2006-11-01.
This amendment supersedes EN 60309-2:1999/A11:2004.
The following dates were fixed:
– latest date by which the amendment has to be
implemented at national level by publication of
(dop) 2007-11-01
an identical national standard or by endorsement
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2009-11-01
Annex ZC has been added by CENELEC.
__________
- 3 - EN 60309-2:1999/A1:2007
Endorsement notice
The text of amendment 1:2005 to the International Standard IEC 60309-2:1999 was approved by CENELEC
as an amendment to the European Standard with agreed common modifications as given below.
COMMON MODIFICATIONS
1 Scope
Add the following:
This European Standard applies to Series I products only.
Series II products are not allowed and not suitable for use in Europe: reference and requirements for
Series II products are reported in this standard for information only and shall be ignored.
This European Standard apply to products intended to be used with cable with metric sizes (mm²) only.
Reference and requirements to AWG and MCM cables are present in the relevant IEC publication and they
are reported in this standard for information only.
See Annex ZC for a list of references to Series II and/or AWG/MCM cable which are excluded from this
standard.
Add the following new annex:
Annex ZC
(normative)
References to Series II and/or AWG/MCM cables
which are excluded from this standard
EN 60309-2
Subclause 5.2 Table 101
Subclause 7.1
Subclause 7.5
Subclause 7.7
Subclause 8.1 Table 102 and Table 104
Subclause 8.2 and Table 105 and Table 106
Subclause 11.9 Table 107
Clause 13 Table 109 Note 1 (100 A)
Clause 14 (60 A and 100 A)
Subclause 15.2 Table 112
Standard Sheet 2-I and Note 4
Standard Sheet 2-II
Standard Sheet 2-III
Standard Sheet 2-IIIa and Note 6
Standard Sheet 2-IV
Standard Sheet 2-IVa
EN 60309-2/A1
Subclause 11.101.2 Table 107
NORME CEI
INTERNATIONALE
IEC
60309-2
INTERNATIONAL
STANDARD
AMENDEMENT 1
AMENDMENT 1
2005-10
Amendement 1
Prises de courant pour usages industriels –
Partie 2:
Règles d'interchangeabilité dimensionnelle
pour les appareils à broches et alvéoles

Amendment 1
Plugs, socket-outlets and couplers
for industrial purposes –
Part 2:
Dimensional interchangeability requirements
for pin and contact-tube accessories
 IEC 2005 Droits de reproduction réservés  Copyright - all rights reserved
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
M
Commission Electrotechnique Internationale
PRICE CODE
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

60309-2 Amend. 1  IEC:2005 – 3 –
FOREWORD
This amendment has been prepared by subcommittee 23H:Industrial plugs and socket-outlets,
of IEC technical committee 23: Electrical accessories.
The text of this amendment is based on the following documents:
FDIS Report on voting
23H/175/FDIS 23H/183RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
1 Scope
Add, after the fourth paragraph, the following text:
This standard applies to accessories with screwless type terminals or insulation piercing
terminals, with a rated current up to and including 16 A for Series I and 20 A for Series II .
NOTE In the following countries, this standard applies to accessories with screwless type terminals or insulation
piercing terminals, with a rated current up to and including 32 A for Series I and 30 A for Series II : DE, IT.
4 General
4.1 The last paragraph of this subclause of Part 1 is not applicable.
See Amendment 1 of IEC 60309-1.
5 Standard ratings
Add the following new subclause:
5.101 The standard IP ratings according to IEC 60529 are:
– IP44,
– IP67,
– IP66/IP67.
60309-2 Amend. 1  IEC:2005 – 5 –
6 Classification
6.1.2 Replace the existing text by the following:
6.1.2 This clause of Part 1 is applicable.
7 Marking
7.2 Replace the existing text by the following:
7.2 This clause of Part 1 is applicable.
7.5 Add, after the last dash, the following:
– for accessories having a rated operating voltage not exceeding 50 V, 8 h clock position for
portable electric incubator : +12, +24.
8 Dimensions
Replace the second paragraph after Table 102 by:
For accessories having rated operating voltages not exceeding 50 V, the position of the minor
key or keyway shall be as shown in Tables 103-1 or 103-2
Replace title of Table 103 by:
Table 103-1 – General purpose accessories with rated voltage not exceeding 50 V
Add the following new Table 103-2:
Table 103-2 – Special application accessories with rated voltage not exceeding 50 V
Rated Rated current Numbers of Other characteristics and application Minor key or
operating poles keyway
voltage position *
Portable electric incubators – use at 12 V d.c. or
25 V 32 A 3 8
24 V d.c. on ambulances or helicopters
* The minor key or keyway is indicated by the relevant number.

Replace the paragraph after Table 103 by:
Positions 1 and 9 are reserved for future standardisation. For constructional reasons,
positions 5, 6 and 7 cannot be used.

60309-2 Amend. 1  IEC:2005 – 7 –
11 Terminals
Replace title and the complete clause by the following:
11 Terminals and terminations
This clause of Part 1 is applicable except as follows:
11.2.1 Addition:
Screw type terminals may be identified by the terminal sizes given in the Table 107.
NOTE For screw type terminals not identified by terminal sizes given in the Table 107, Part 1 is applicable.
Screw type terminals identified by terminal sizes shall comply with standard sheets as
specified in 11.101 of this standard and are not subject to test as in 11.5 of Part 1.
Add the following new subclause:
11.101 Screw type terminals identified by terminal sizes
11.101.1 Terminals shall comply with the standard sheets as specified below, except those
for standard sheets 2-X, 2-XI and 2-XII. For these standard sheets, the length of thread in the
fixed part or nut and the length of thread on the screw or stud may be reduced, if the
mechanical strength of the terminal is adequate and at least two full threads of every
clamping screw are in engagement when a conductor of the most unfavourable cross-
sectional area is clamped.
Standard sheet 2-X applies to pillar terminals.
Standard sheet 2-XI applies to screw terminals and stud terminals.
Standard sheet 2-XII applies to saddle terminals.
Standard sheet 2-XIII applies to lug terminals.
Mantle terminals shall comply with standard sheet 2-X with regard to the dimensions D and e.
Terminals which are essentially of the pillar type, but with the part with the hole for the
conductor slotted to enable the conductor to be moved laterally into position, shall comply
with standard sheet 2-X. Anyhow, the maximum gap between the conductor restraining parts
on the side where the slot is located shall comply with standard sheet 2-XI.
If the required length of thread in a terminal screw hole is obtained by plunging, the edge of
the extrusion shall be reasonably smooth and the length of the thread shall exceed the
specified minimum value by at least 0,5 mm.
Compliance is checked by inspection, by measurement and, for terminals with a reduced
length of thread, by test of 11.101.2.
The maximum gap between the conductor restraining parts is checked by means of a steel
gauge pin with a diameter equal to e ± 0,05 mm.

60309-2 Amend. 1  IEC:2005 – 9 –
For terminals without pressure plate(s) or the like, complying with standard sheet 2-X, the
clamping screw is screwed fully home without a conductor in position. It shall not then be
possible to insert the gauge pin between the threaded part of the screw and the wall of the
conductor space.
For terminals complying with standard sheet 2-XI, and for terminals with a pressure plate or
the like complying with standard sheet 2-X, where it is not appropriate to insert the gauge pin
in all positions, a conductor is clamped in the terminal.
For terminals complying with standard sheet 2-X, the conductor is in the form of a rod with a
diameter equal to that corresponding to the middle cross-sectional area of the range specified
for the particular terminal, and having a flat end perpendicular to the axis.
For terminals complying with standard sheet 2-XI, the conductor is solid and has a diameter D
as specified in this standard sheet.
With this conductor in position, it shall not be possible to insert the gauge pin, applied in a
direction parallel to the axis of the conductor, into any gap through which a wire of a stranded
conductor might escape.
The minimum distance between the clamping screw and the end of the conductor, when fully
inserted, is specified in standard sheet 2-X. It is checked by means of the rod conductor
specified above, which shall pass into the conductor space for a distance, beyond the
threaded hole, at Ieast equal to the minimum distance specified.
For terminals with pressure plate(s) complying with standard sheet 2-X, the gauge pin is
applied to the gap between the pressure plate and the wall of the conductor space.
The following negative deviations from the specified values are allowed for the minimum
nominal thread diameter of the screw:
– 0,15 mm for screws with a nominal diameter not exceeding 5 mm;
– 0,22 mm for screws with a nominal diameter over 5 mm but not exceeding 10 mm;
– 0,27 mm for screws with a nominal diameter of over 10 mm.
This subclause does not exclude terminals of types other than those shown in the standard
sheets. Such terminals shall, however, comply with the other requirements of this clause as
far as is reasonable, and it may be necessary to
...
