EN 61915-1:2008

SLOVENSKI STANDARD
01-marec-2008
1L]NRQDSHWRVWQHVWLNDOQHLQNUPLOQHQDSUDYH3URILOLQDSUDY]DLQGXVWULMVNH
QDSUDYHYNOMXþHQHYRPUHåMHGHO6SORãQDSUDYLOD]DUD]YRMSURILORYQDSUDY
,(&
Low-voltage switchgear and controlgear - Device profiles for networked industrial devices
- Part 1: General rules for the development of device profiles (IEC 61915-1:2007)
Niederspannungsschaltgeräte - Geräteprofile für vernetzte industrielle Schaltgeräte - Teil
1: Allgemeine Festlegungen für die Entwicklung von Geräteprofilen (IEC 61915-1:2007)
Appareillage à basse tension - Profils d'appareil pour les appareils industriels mis en
réseau - Partie 1: Règles générales pour le développement de profils d'appareil (CEI
61915-1:2007)
Ta slovenski standard je istoveten z: EN 61915-1:2008
ICS:
29.130.20
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61915-1
NORME EUROPÉENNE
January 2008
EUROPÄISCHE NORM
ICS 29.130.20
English version
Low-voltage switchgear and controlgear -
Device profiles for networked industrial devices -
Part 1: General rules for the development of device profiles
(IEC 61915-1:2007)
Appareillage à basse tension -  Niederspannungsschaltgeräte -
Profils d'appareil pour les appareils Geräteprofile für vernetzte
industriels mis en réseau - industrielle Schaltgeräte -
Partie 1: Règles générales pour le Teil 1: Allgemeine Festlegungen für die
développement de profils d'appareil Entwicklung von Geräteprofilen
(CEI 61915-1:2007) (IEC 61915-1:2007)

This European Standard was approved by CENELEC on 2007-12-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61915-1:2008 E

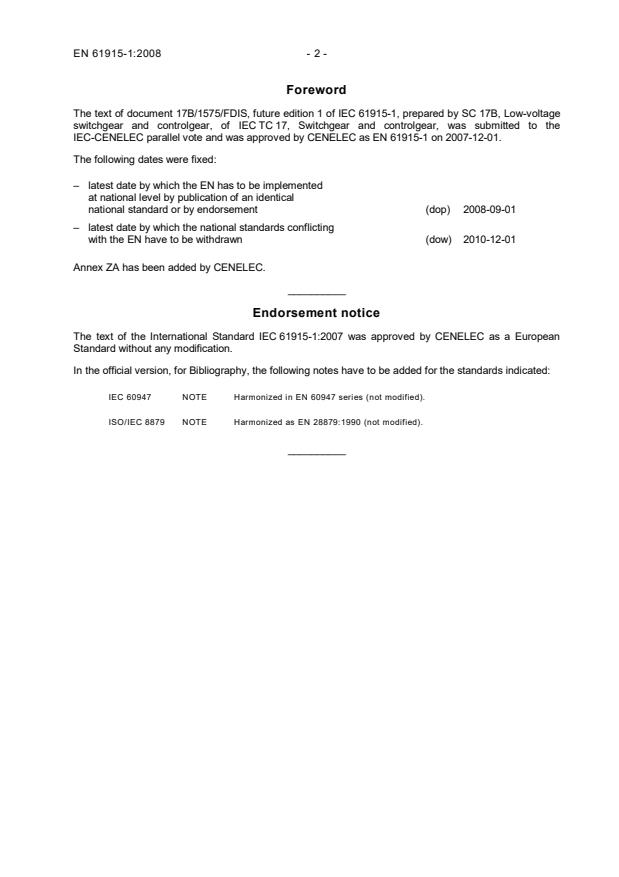

Foreword
The text of document 17B/1575/FDIS, future edition 1 of IEC 61915-1, prepared by SC 17B, Low-voltage
switchgear and controlgear, of IEC TC 17, Switchgear and controlgear, was submitted to the
IEC-CENELEC parallel vote and was approved by CENELEC as EN 61915-1 on 2007-12-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2008-09-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2010-12-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61915-1:2007 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60947 NOTE Harmonized in EN 60947 series (not modified).
ISO/IEC 8879 NOTE Harmonized as EN 28879:1990 (not modified).
__________
- 3 - EN 61915-1:2008
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
IEC 60559 1989 Binary floating-point arithmetic for HD 592 S1 1991
microprocessor systems
IEC 61131-3 2003 Programmable controllers - EN 61131-3 2003
Part 3: Programming languages
IEC/TR 62390 2005 Common automation device - Profile - -
guideline
ISO 1000 1992 SI units and recommendations for the use of - -
A1 1998 their multiples and of certain other units

ISO 15745 Series Industrial automation systems and - -
integration - Open systems application
integration framework
ISO/IEC 10646 2003 Information technology - Universal multiple-- -
octet coded character set (UCS)

ISO/IEC 19501 2005 Information technology - Open Distributed - -
Processing - Unified Modeling Language
(UML) Version 1.4.2
IEC 61915-1
Edition 1.0 2007-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Low-voltage switchgear and controlgear – Device profiles for networked
industrial devices –
Part 1: General rules for the development of device profiles

Appareillage à basse tension – Profils d’appareil pour les appareils industriels
mis en réseau –
Partie 1: Règles générales pour le développement de profils d’appareil

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
XD
CODE PRIX
ICS 29.130.20 ISBN 2-8318-9394-1

– 2 – 61915-1 © IEC:2007
CONTENTS
FOREWORD.6
INTRODUCTION.8

1 Scope.9
2 Normative references .9
3 Definitions, abbreviations and symbols .10
3.1 Terms and definitions .10
3.2 Abbreviations and symbols.12
4 Device profiles .12
4.1 General .12
4.2 Root device profile .13
4.3 Manufacturer's device profile.13
4.3.1 General .13
4.3.2 Manufacturer's device profile created using a root device profile .14
4.3.3 Manufacturer's device profile created without using a root device
profile .14
4.4 Profile relationships.15
5 Creating a root device profile using the device profile template .15
5.1 General .15
5.2 Root device profile header.16
5.2.1 General .16
5.2.2 Root device profile ID .16
5.2.3 Root device profile version .16
5.2.4 Root device profile release date .17
5.2.5 Device description .17
5.3 Parameters (root device profile) .17
5.3.1 General .17
5.3.2 Parameter name (mandatory) .17
5.3.3 Data type (mandatory) .17
5.3.4 Units (mandatory) .18
5.3.5 Offset and multiplier (mandatory).18
5.3.6 Range (mandatory).19
5.3.7 Access (mandatory).19
5.3.8 Required (mandatory).19
5.3.9 Parameter description (optional).20
5.3.10 Recommended parameters for device identification .20
5.4 Complex data types (root device profile).21
5.4.1 General .21
5.4.2 Array data type.21
5.4.3 Structured data type .22
5.4.4 Enumerated data type .24
5.5 Parameter assemblies (root device profile).25
5.5.1 General .25
5.5.2 Parameter assembly name (mandatory).26
5.5.3 Access (mandatory).26
5.5.4 Required (mandatory).26

61915-1 © IEC:2007 – 3 –
5.5.5 Parameter assembly data (mandatory) .26
5.6 Parameter groups (root device profile) .27
5.6.1 General .27
5.6.2 Group name (mandatory).28
5.6.3 Group type (mandatory).28
5.6.4 Number of members (mandatory) .28
5.6.5 Required (mandatory).28
5.6.6 Description (optional) .28
5.6.7 Additional information (optional) .28
5.6.8 Member names (mandatory) .28
5.7 Functional elements (root device profile) .28
5.7.1 General .28
5.7.2 Functional structure diagram (optional).30
5.7.3 Functional element list (optional) .31
5.8 State model (root device profile).31
5.8.1 General .31
5.8.2 State model name .31
5.8.3 State chart diagrams .32
5.8.4 State transition tables.33
5.9 Services (root device profile) .36
5.9.1 General .36
5.9.2 Service name (mandatory).36
5.9.3 Request parameter group (optional) .36
5.9.4 Response parameter group (optional).36
5.9.5 Required (mandatory).36
5.9.6 Description (optional) .36
5.9.7 Additional information (optional) .36
6 Creating a manufacturer's device profile using a root device profile.37
6.1 General .37
6.2 Manufacturer’s device profile header .37
6.2.1 General .37
6.2.2 Manufacturer’s device profile ID (mandatory).37
6.2.3 Manufacturer’s device profile description (optional) .37
6.2.4 Manufacturer’s device profile version (mandatory) .38
6.2.5 Manufacturer’s device profile release date (mandatory) .38
6.2.6 Manufacturer ID (mandatory) .38
6.2.7 Model compatibility (optional) .38
6.2.8 Software compatibility (optional) .38
6.2.9 Hardware compatibility (optional).38
6.2.10 Profile type (mandatory) .38
6.2.11 Profile availability (mandatory) .39
6.2.12 Additional information (optional) .39
6.3 Implementation of root device profile parameters .39
6.4 Parameters (manufacturer-specific).39
6.5 Implementation of root device profile complex data types .40
6.6 Complex data types (manufacturer-specific) .40
6.7 Implementation of root device profile parameter assemblies.40
6.8 Parameter assemblies (manufacturer-specific) .41
6.9 Implementation of root device profile parameter groups.41

– 4 – 61915-1 © IEC:2007
6.10 Parameter groups (manufacturer-specific) .42
6.11 Implementation of root device profile functional elements.42
6.12 Functional elements (manufacturer-specific) .43
6.13 State model (manufacturer-specific) .43
6.14 Implementation of root device profile services .43
6.15 Services (manufacturer-specific) .44
7 Creating a manufacturer's device profile without using a root device profile.44
7.1 General .44
7.2 Manufacturer’s device profile header .45
7.2.1 General .45
7.2.2 Manufacturer’s device profile ID (mandatory).45
7.2.3 Manufacturer’s device profile description (optional) .45
7.2.4 Manufacturer’s device profile version (mandatory) .45
7.2.5 Manufacturer’s device profile release date (mandatory) .45
7.2.6 Manufacturer ID (mandatory) .45
7.2.7 Model compatibility (optional) .45
7.2.8 Software compatibility (optional) .45
7.2.9 Hardware compatibility (optional).45
7.2.10 Profile type (optional) .45
7.2.11 Profile availability (optional).45
7.2.12 Additional information (optional) .45
7.3 Root device profile header.46
7.3.1 Root device profile ID .46
7.3.2 Root device profile version .46
7.3.3 Root device profile release date .46
7.3.4 Device description (optional) .46
7.4 Parameters (root device profile) .46
7.5 Parameters (manufacturer-specific).46
7.6 Complex data types (root device profile).46
7.7 Complex data types (manufacturer-specific) .46
7.8 Parameter assemblies (root device profile).46
7.9 Parameter assemblies (manufacturer-specific) .46
7.10 Parameter groups (root device profile) .46
7.11 Parameter groups (manufacturer-specific) .46
7.12 Functional elements (root device profile) .46
7.13 Functional elements (manufacturer-specific) .46
7.14 State model (root device profile).47
7.15 State model (manufacturer-specific) .47
7.16 Services (root device profile) .47
7.17 Services (manufacturer-specific) .47

Annex A (normative) Device profile template.48
Annex B (informative) Device profile examples .55
Annex C (informative) Profile creation guidelines .78
Annex D (informative) Profile exchange language .79
Annex E (informative) Categories of parameters .91

Bibliography.93

61915-1 © IEC:2007 – 5 –
Figure 1 – Relationship between IEC 61915-1 and device profiles .15
Figure 2 – Array data type example .21
Figure 3 – Structured data type example.22
Figure 4 – Enumerated data type examples .24
Figure 5 – Example description format (1).27
Figure 6 – Example description format (2).27
Figure 7 – Example description format (3).27
Figure 8 – Example device structure .29
Figure 9 – Combination motor starter example.30
Figure 10 – Example of a state chart diagram for a photoelectric switch .32
Figure 11 – Example of a state chart diagram for a motor starter .33
Figure 12 – State transition table for the photoelectric switch example.34
Figure 13 – State transition table for the motor starter example .35
Figure A.1 – Device profile template .54
Figure B.1 – Example of a root device profile – Photoelectric switch .59
Figure B.2 – Example of a root device profile − Motor starter .69
Figure B.3 – Example of a generic device profile created using a root device profile.73
Figure B.4 – Example of a specific device profile created without using a root device
profile .77
Figure C.1 – Simple proximity switch parameter assembly .78
Figure C.2 – Diagnostic proximity switch parameter assembly .78
Figure D.1 – Overview of an ISO 15745 device profile .80
Figure D.2 – Device profile schema structure.90

Table 1 – Valid simple data types .18
Table A.1 – Contents of the “Required” field in a device profile .48
Table D.1 – Mapping for a root device profile (ProfileHeader) .80
Table D.2 – Example mapping for a root device profile (ProfileBody) .81
Table D.3 – Correspondence with ISO 15745 for a manufacturer’s device profile.81
Table D.4 – Example mapping for a manufacturer’s device profile (ProfileBody) .82

– 6 – 61915-1 © IEC:2007
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR –
DEVICE PROFILES FOR NETWORKED INDUSTRIAL DEVICES –

Part 1: General rules for the development of device profiles

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61915-1 has been prepared by subcommittee 17B: Low-voltage
switchgear and controlgear, of IEC technical committee 17: Switchgear and controlgear.
This first edition cancels and replaces the IEC/TS 61915 technical specification published in
2003. It now has the status of an International Standard.
The text of this standard is based on the following documents:
FDIS Report on voting
17B/1575/FDIS 17B/1583/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

61915-1 © IEC:2007 – 7 –
A list of all the parts in the IEC 61915 series, under the general title Low-voltage switchgear
and controlgear – Device profiles for networked industrial devices, can be found on the IEC
website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 8 – 61915-1 © IEC:2007
INTRODUCTION
The purpose of this International Standard is to provide a framework within which IEC product
committees can define profiles for devices within their scope.
NOTE This framework follows the principles given in IEC/TR 62390, the “Common automation device – Profile
guideline”, and refers to ISO 15745, “Industrial automation systems and integration – Open systems application
integration framework”.
Profiles define a common set of functionality (data and behaviour) for a class of devices in a
given industrial domain, thus allowing system designers, system integrators and maintenance
staff to handle profile-based devices without special tool configuration. Profiles also provide
consistent structuring and semantics of device functionality.
This part of IEC 61915 (Part 1) defines general rules for the development of device profiles
for networked industrial devices, including recommendations of general interest and
application, for example a documentation template and a profile exchange language. This will
allow uniformity of profile structure throughout the different device types.
IEC product committees may define “root device profiles” for their devices, in which they will
specify the amount of information which their products should make available through any
network, using the general rules defined in this part of IEC 61915. This will facilitate
uniformity of profiles throughout the corresponding family of devices. These root device
profiles will be published in subsequent parts of the IEC 61915 series.
This International Standard also gives manufacturers or other organizations a common
framework to represent their network capable devices.
Manufacturers or other organizations may use the root device profiles specified by the IEC
product committees for various device types as a basis for developing device profiles
corresponding to their products, using the general rules defined in this part of IEC 61915 to
add the required manufacturer-specific extensions. Alternatively, they may develop their own
device profiles using only the general rules. These manufacturer’s device profiles will typically
be published within the product documentation.
This International Standard facilitates the writing of network independent application software.

61915-1 © IEC:2007 – 9 –
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR –
DEVICE PROFILES FOR NETWORKED INDUSTRIAL DEVICES –

Part 1: General rules for the development of device profiles

1 Scope
The IEC 61915 series is intended to improve interoperability of devices, network tools and
application software.
This part of IEC 61915 defines a framework for common representation of networked
industrial devices and provides a template for documenting such a representation,
independent of the network used. This framework follows the principles given in
IEC/TR 62390, the “Common automation device – Profile guideline”, and refers to ISO 15745,
“Industrial automation systems and integration – Open systems application integration
framework”.
NOTE 1 The device profile format specified in this part of IEC 61915 is compatible with devices connected to both
bit- and byte-oriented networks.
This part of IEC 61915 applies to root device profiles, generic device profiles, and specific
device profiles. The root device profiles will be published in subsequent parts of the
IEC 61915 series.
NOTE 2 This International Standard is specifically intended for products covered by the IEC 60947 series.
NOTE 3 Organisations such as consortia are encouraged to use the rules defined in this part of IEC 61915 to
develop generic device profiles for use within their own organisations.
Users (product manufacturers and other organizations) should use the root device profiles
together with the rules defined in this part of IEC 61915. This part of IEC 61915 allows users
to make extensions to the root device profiles and/or generic device profiles. Where no
suitable root device profile exists, the user may develop generic or specific device profiles
using the rules defined in this part of IEC 61915.
This part of IEC 61915 recommends the use of a profile exchange language for representation
of the device profile information in order to facilitate the profile’s use by network tools and
application software.
NOTE 4 The types of devices may vary from simple devices, such as pilot lights, push-buttons and limit switches,
to more complex devices with many bytes of information, such as motor controllers, semiconductor motor starters,
etc.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60559:1989, Binary floating-point arithmetic for microprocessor systems
IEC 61131-3:2003, Programmable controllers − Part 3: Programming languages
IEC/TR 62390:2005, Common automation device − Profile guideline

– 10 – 61915-1 © IEC:2007
ISO 1000:1992, SI units and recommendations for the use of their multiples and of certain
other units
Amendment 1 (1998)
ISO 15745 (all parts), Industrial automation systems and integration – Open systems
application integration framework
ISO/IEC 10646:2003, Information technology − Universal Multiple-Octet Coded Character Set
(UCS) − Part 1: Architecture and Basic Multilingual Plane
ISO/IEC 19501:2005, Information technology – Open Distributed Processing – Unified
Modeling Language (UML) Version 1.4.2
3 Definitions, abbreviations and symbols
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
device profile
representation of a device that describes the device’s data and behaviour as viewed through
a network, independent from any network technology
NOTE Description of the communication options to be used to transfer data using a given network technology is
outside the scope of the device profile.
[IEC/TR 62390, Definition 3.1.9, modified]
3.1.2
functional element
entity of software or software combined with hardware, capable of accomplishing a specified
function of a device
NOTE 1 A functional element has interface(s), associations to other functional elements and functions.
NOTE 2 A functional element can be made out of function block(s), object(s) or parameter list(s).
[IEC/TR 62390, Definition 3.1.12]
3.1.3
generic device profile
manufacturer’s device profile for a family of similar devices (e.g. similar device types with
differing feature levels)
3.1.4
manufacturer’s device profile
device profile, defined by a manufacturer or any other organization, containing the mandatory
elements and the selected optional elements of a root device profile, if such a root device
profile is applicable, and which may also include manufacturer-specific extension(s)
NOTE 1 A manufacturer’s device profile is either a generic device profile, or a specific device profile.
NOTE 2 Organizations include users’ organizations, consortia, institutions, or standards bodies.

61915-1 © IEC:2007 – 11 –
3.1.5
manufacturer-specific extension
information contained within a manufacturer’s device profile which is specified by a particular
manufacturer or other organization and is in addition to the mandatory and optional parts of
the root profile
3.1.6
parameter
data element that represents device information that can be read from or written to a device,
e.g. through the network or a local HMI
NOTE A parameter is typically characterized by a parameter name, data type and access direction.
[IEC/TR 62390, Definition 3.1.22]
3.1.7
parameter assembly
collection of one or more parameters that can be read from or written to a device
NOTE Assemblies are typically used to increase efficiency of data exchanges.
3.1.8
parameter group
logical collection of parameters, typically associated with the same operational purpose or
functional element in a device
NOTE 1 Parameter groups may be nested, i.e. it is possible to define a parameter group composed of other
parameter groups.
NOTE 2 Contrary to parameter assemblies, parameter groups are not defined to increase efficiency of data
exchanges. Instead, they are mainly defined for the purpose of organizing long lists of parameters into meaningful
sets (e.g. for HMIs).
3.1.9
root device profile
device profile, defined by an IEC product committee, comprising mandatory and optional
elements
NOTE Mandatory and optional elements include parameters, parameter groups, …, as well as individual
characteristics of these.
3.1.10
service
means for a user or an application to request execution of specific actions (e.g. fault reset,
calibrate, identify, diagnostics)
NOTE 1 The service may be provided by the device or one of its functional elements.
NOTE 2 Actual execution may require that related preliminary conditions are satisfied.
NOTE 3 Services are futher detailed in 5.9.
3.1.11
specific device profile
manufacturer’s device profile for a single device (e.g. a specific catalogue model)
NOTE A specific device profile is also commonly referred to as a device description.

– 12 – 61915-1 © IEC:2007
3.2 Abbreviations and symbols
A Applied
D Device-specific
FE Functional element
ID Identifier
m Mandatory (if defined in a generic device profile)
M Mandatory (if defined in a root device profile)
O Optional
R Read
RW Read/write
UML Unified modelling language
W Write
XML Extensible markup language
na Not applicable
r Reserved
4 Device profiles
4.1 General
A device profile consists of the data (parameters, parameter assemblies and parameter
groups) and behaviour (functional elements, state model and services) provided by the
device. This device profile is used to represent the device independently of the network, e.g.
when designing an industrial automation application.
A device profile shall define the format and content of any control and management
information (see Annex E) that is received and/or sent by the device. Annex A defines the
template for the device profile. The entire template is used as a basis for both root device
profiles and manufacturer’s device profiles. Unless otherwise instructed in this part of
IEC 61915, unused fields shall remain empty.
NOTE 1 If some main template sections are completely empty (e.g. the manufacturer’s header for a root device
profile), these sections may be omitted in the profile.
Each profile shall stand alone without reference to other profiles, i.e. profiles shall not contain
other profiles embedded within them (see Annex C for profile creation guidelines). Simpler
device profiles should be subsets of the parameter lists, parameter assemblies, parameter
groups, state models and services of more complex device profiles, rather than redefining this
information.
Values of the parameters defined by the specific device profile will be transmitted on the
network. The application uses the profile information to interpret the parameter values
exchanged with the device.
NOTE 2 A device profile exists either on paper or in an electronic format.
NOTE 3 A device may store parts or all of the profile information; in this case, this information may also be read
through the network from the device. Format of these exchanges is not covered by this standard.
Parameter assemblies and parameter groups shall only include parameters that are defined in
the device profile.
61915-1 © IEC:2007 – 13 –
Parameter names and device state names shall use the terminology utilised in the
corresponding product standards.
NOTE 4 Annex D gives a recommended syntax for the documentation and transfer of device profiles when using
XML.
4.2 Root device profile
A root device profile is created by the relevant IEC product committee for each device type
(see Note 3 of Clause 1 for use by other organizations).
When defining root device profiles, IEC product committees shall apply the following rules,
unless there is a substantial technical justification.
a) The same parameters shall be used for the root device profiles of all the devices within
a product family.
b) The meaning assigned to the value of each parameter shall be the same throughout
the family, e.g. for a start/stop bit (Boolean) parameter, the value 1 should always
mean start.
c) Similarly, for assemblies the bit and byte order shall be consistent with assemblies in
other root device profiles belonging to the same product family, e.g. in a motor starter
control assembly, the start bit should be in the same position for each type of motor
starter.
A root device profile shall specify which parts of the profile (e.g. parameters) are mandatory,
i.e. required for all devices claiming compliance with this specific root device profile, and
which parts are optional, i.e. need not be used by all devices using this specific root device
profile.
The root device profile shall not include information which is network-specific.
Two practical examples of root device profiles are given in Clause B.2. Figure B.1 provides an
example for a photoelectric switch and Figure B.2 provides an example for a motor starter.
EXAMPLE 1 The photoelectric switch root device profile is an example of a presence sensor device that can be
configured over the network to detect the presence of an object either by the presence of light or the absence of
light, and to transmit a value of 1 over the network for the Presence parameter, indicating the object's presence.
The device can also be put in either configuration or automatic mode and normal or test states by sending the
device appropriate parameters values over the network. The mandatory requirement of the Device and Operate
mode parameters gives the device description “Photoelectric switch with mode control”. A manufacturer’s device
profile could use this root profile to create a device with a profile that only includes the parameters Presence,
Device mode and Operate mode. The device manufacturer’s description could be the same as the root profile. O
...
