EN 13059:2002

SLOVENSKI STANDARD
01-maj-2003
Varnost vozil za talni transport - Preskusne metode za merjenje vibracij
Safety of industrial trucks - Test methods for measuring vibration
Sicherheit von Flurförderzeugen - Verfahren zur Schwingungsmessung
Sécurité des chariots de manutention - Méthodes d'essai pour mesurer les vibrations
Ta slovenski standard je istoveten z: EN 13059:2002
ICS:
13.160 Vpliv vibracij in udarcev na Vibration and shock with
ljudi respect to human beings
53.060 Industrijski tovornjaki Industrial trucks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 13059
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2002
ICS 13.160; 53.060
English version
Safety of industrial trucks - Test methods for measuring vibration
Sécurité des chariots de manutention - Méthodes d'essai Sicherheit von Flurförderzeugen - Verfahren zur
pour mesurer les vibrations Schwingungsmessung
This European Standard was approved by CEN on 30 December 2001.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2002 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13059:2002 E
worldwide for CEN national Members.

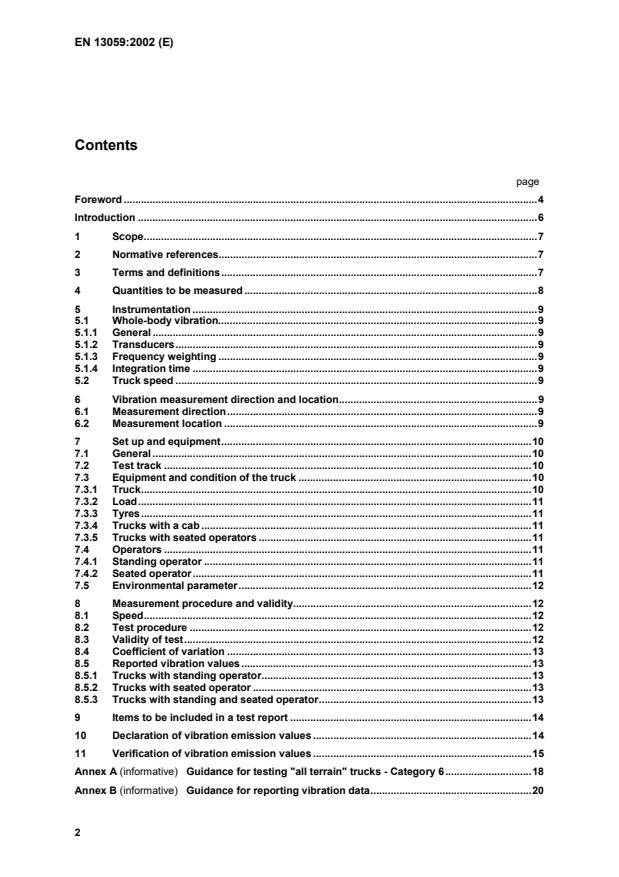

Contents
page
Foreword .4
Introduction .6
1 Scope.7
2 Normative references.7
3 Terms and definitions.7
4 Quantities to be measured .8
5 Instrumentation .9
5.1 Whole-body vibration.9
5.1.1 General .9
5.1.2 Transducers.9
5.1.3 Frequency weighting .9
5.1.4 Integration time .9
5.2 Truck speed .9
6 Vibration measurement direction and location.9
6.1 Measurement direction.9
6.2 Measurement location .9
7 Set up and equipment.10
7.1 General .10
7.2 Test track .10
7.3 Equipment and condition of the truck .10
7.3.1 Truck.10
7.3.2 Load.11
7.3.3 Tyres.11
7.3.4 Trucks with a cab .11
7.3.5 Trucks with seated operators .11
7.4 Operators .11
7.4.1 Standing operator .11
7.4.2 Seated operator.11
7.5 Environmental parameter.12
8 Measurement procedure and validity.12
8.1 Speed.12
8.2 Test procedure .12
8.3 Validity of test.12
8.4 Coefficient of variation .13
8.5 Reported vibration values .13
8.5.1 Trucks with standing operator.13
8.5.2 Trucks with seated operator .13
8.5.3 Trucks with standing and seated operator.13
9 Items to be included in a test report .14
10 Declaration of vibration emission values .14
11 Verification of vibration emission values .15
Annex A (informative)  Guidance for testing "all terrain" trucks - Category 6.18
(informative)
Annex B Guidance for reporting vibration data.20
B.1 Truck with standing operator.20
B.2 Truck with seated operator .20
B.2.1 The seat has passed the seat test code.20
B.2.2 The seat has not passed the seat test code.21
B.3 Truck with standing and seated operator.21
(informative)
Annex C Procedure for developing a measurement method for a specific
category of industrial truck.22
(informative)
Annex D Reference of ETRTO publication .23
Annex ZA (informative)  Relationship of this document with EC Directives.24
Bibliography .25
Foreword
This document has been prepared by Technical Committee CEN/TC 150 "Industrial trucks", the
secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2002, and conflicting national standards
shall be withdrawn at the latest by October 2002.
This document has been prepared under a mandate given to CEN by the European Commission and
the European Free Trade Association and supports essential requirements of EC Directives.
For the relationship with EC Directives, see annex ZA, which is an integral part of this document.
This European Standard is one of a series of European Standards for the safety of industrial trucks.
EN 1175-1, Safety of industrial trucks — Electrical requirements - Part 1: General requirements for
battery powered trucks
EN 1175-2, Safety of industrial trucks — Electrical requirements - Part 2: General requirements of
internal combustion engines
EN 1175-3, Safety of industrial trucks — Electrical requirements - Part 3: Specific requirements for the
electric power transmission systems of internal combustion engine powered trucks
EN 1459, Safety of industrial trucks — Self-propelled variable reach trucks
EN 1525, Safety of industrial trucks — Driverless trucks and their systems
EN 1526, Safety of industrial trucks — Additional requirements for automated functions on trucks
EN 1551, Safety of industrial trucks — Self propelled trucks over 10 000 kg capacity
EN 1726-1, Safety of industrial trucks — Self propelled trucks up to and including 10000 kg capacity
and industrial tractors with a drawbar pull up to and including 20000 N - Part 1: General requirements
EN 1726-2, Safety of industrial trucks — Self propelled trucks up to and including 10000 kg capacity
and industrial tractors with a drawbar pull up to and including 20000 N - Part 2: Additional
requirements for trucks with elevating operator position and trucks specifically designed to travel with
elevated loads
EN 1755, Safety of industrial trucks — Operation in potentially explosive atmospheres – Use in
flammable gas, vapour, mist and dust
EN 1757-1, Safety of industrial trucks — Pedestrian propelled trucks - Part 1: Stacker trucks
EN 1757-2, Safety of industrial trucks — Pedestrian propelled trucks - Part 2: Pallet trucks
EN 1757-3, Safety of industrial trucks — Pedestrian propelled trucks - Part 3: Platform trucks
EN 1757-4, Safety of industrial trucks — Pedestrian propelled trucks - Part 4: Scissor lift pallet trucks
EN 12053, Safety of industrial trucks — Test methods for measuring noise emissions
EN 12895, Industrial trucks — Electromagnetic compatibility
EN 13059, Safety of industrial trucks — Test methods for measuring vibration
)
EN ISO 13564 , Safety of industrial trucks — Test method for measuring visibility from self propelled
trucks (ISO/DIS 13564:1996)
The Machinery Directive 98/37/EC amended by Directive 98/79/EC requires that vibration
measurements be made and values put into the instruction books if the whole-body vibration values
are greater than 0,5 m/s .
A type test procedure is specified so that different establishments obtain comparable results of
vibration measurements within specified limits. The specified procedure consists of measuring the
vibration transmitted to the operator when the truck is travelling over a test track made of a straight
length of good quality surface with obstacles whose characteristics depend on the type of truck and its
wheel characteristics.
The annexes A, B, C and D are informative.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Czech
Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United Kingdom.

Under preparation, using the Vienna agreement with ISO lead.
Introduction
This European Standard has been prepared to be a harmonized standard to provide one means of
conforming to the essential safety requirements of the Machinery Directive and associated EFTA
regulations. This European Standard is a type C standard as stated in EN 1070.
The aim of this standard is to provide a method for the measurement of vibration emission transmitted
to the whole body of operators of industrial trucks which will enable the information requirements of
the Machinery Directive to be satisfied. It is intended that the results obtained also can be used to
compare industrial trucks of the same category or a given truck when equipped with different seats or
tyres, etc. This standard cannot be used for field measurements to determine the daily exposure of
the operator to vibration.
For the measurements trucks shall be fitted with equipment corresponding to that offered by the
manufacturers on the standard truck data sheet (lifting devices, batteries, etc.).
Type test measurements require accurate and reproducible results. It is essential that different
establishments obtain comparable results within specified limits. This requires that the process or way
in which the machinery is used during the measurement is precisely defined. This process will
reproduce the whole-body vibration values typical of the machinery when in normal travelling use.
In the case of industrial trucks, there may be three predominant operating modes: travelling, lifting
and engine idling; of these, only travelling exposes the driver to significant whole-body vibration.
Therefore, in accordance with EN 1032, the test for whole-body vibration is based on the travelling
operating mode.
Research has shown that the magnitude of hand-arm vibration on the steering wheel or control levers
of trucks will normally be lower than 2,5 m/s . Therefore no test method has been developed for its
measurement.
In practice, exposure over a working day is a mixture of the three modes and the average vibration
values will generally be lower than the values given by this standard. Fitting the industrial trucks with
different seats, changing the tyres, etc. can lead to different vibration values. Due to the specific
operation of industrial trucks however, the existing EN 1032 standard cannot be applied directly, so
that preparation of this standard for industrial trucks became necessary.
Although studies showed that it is possible to obtain repeatable and representative results with all-
terrain trucks tested on an artificial test track, this family of trucks is covered by Informative annex A.
The reason is that an inexplicable difference of about 20 % was found in the emission from one truck
when it was tested at two different times of the year. Further consideration should be given to
including all-terrain trucks in the normative section of the standard when more data is available for
these trucks.
For the verification of the measurements the uncertainty is fixed at 0,3 times the vibration emission
value reported in accordance with EN 12096. Further consideration should be given to revise this
range of uncertainty when emission vibration data obtained from different places is available.
1 Scope
This European Standard is a type test procedure for establishing the values of vibration emission
transmitted to the whole body of operators of industrial trucks under specified conditions. It is not
applicable to hand-arm vibration.
This standard is applicable to powered industrial trucks listed in ISO 5053:1987. The annex A is
applicable for "all-terrain" trucks. It also applies to other powered industrial trucks not covered by
ISO 5053:1987, e.g. variable-reach trucks and "low-lift" "order picking" trucks, etc.
NOTE  The standard may however be useful also for existing trucks.
This standard is not applicable to non-stacking "low-lift" straddle carriers (as specified in 3.1.3.2.3 of
ISO 5053:1987) and stacking "high-lift" straddle carriers (as specified in 3.1.3.1.11 of ISO 5053:1987).
The test results, however, are not applicable to the determination of whole-body vibration exposure.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text, and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
EN 292-1, Safety of machinery – Basic concepts, general principles for design - Part 1: Basic
terminology, methodology.
EN 292-2, Safety of machinery – Basic concepts, general principles for design - Part 2:Technical
principals and specifications.
EN 1032:1996, Mechanical vibration — Testing of mobile machinery in order to determine the whole-
body vibration emission value — General.
EN 1070, Safety of machinery – Terminology.
EN 12096, Mechanical vibration — Declaration and verification of vibration emission values.
ISO 2041, Vibration and shock — Vocabulary.
ISO 5053:1987, Powered industrial trucks — Terminology.
ISO 5805, Mechanical vibration and shock — Human exposure — Vocabulary.
3 Terms and definitions
For the purposes of this European Standard, the terms and definitions given in EN 1070, ISO 2041,
ISO 5053 and ISO 5805, and the following apply.
3.1
truck family
trucks sharing the same major components that influence vibration emission
3.2
wheel diameter
arithmetic mean of the outside diameters of the load bearing wheels, e.g. : if the truck has some
wheel(s) of diameter D , some wheel(s) of diameter D and some wheel(s) of diameter D , the wheel
1 2 3
mean diameter equals (D + D + D )/(number of tyre sizes fitted)
1 2 3
The outside diameter, D, is the maximum in service diameter quoted in the ETRTO manual (see
annex D) for the size(s) and type(s) of tyres fitted. If a tyre is not listed, consult the tyre's
manufacturer.
3.3
tyre
the tyre can be pneumatic or solid. Amongst the solid tyres a distinction can be made between high-
load "non-rubber" solid tyres (Vulkollan, Contilan, etc.) and rubber solid tyres
Rubber solid tyres can be fitted to a cylindrical or conical base (e.g. cushion "bandages") or to a
pneumatic tyre rim (e.g. super elastic tyres).
3.4
seat base
surface on which the seat and its suspension, if fitted, are mounted
3.5
seat pan
seat surface on which the operator is seated
4 Quantities to be measured
The quantities to be measured are as follows:
4.1 a : root mean square (r.m.s.) acceleration of whole-body vertical frequency-weighted
w,z
vibration in accordance with EN 1032;
4.2 a : mean value of N r.m.s. weighted vertical acceleration values of a valid test series
F
w,z
measured on the floor of the driving position with one standing operator;
4.3 a : average of acceleration mean values obtained for each of the two operators for a valid
w,zS
test series measured on the seat pan under the seated operator;
4.4 the mean truck speed when travelling on the test track. This may be determined from the time
taken to drive along the test track or by means of the measuring instruments specified in 5.2;
4.5 pneumatic tyre pressures shall be checked;
4.6 ambient air temperature.
5 Instrumentation
5.1 Whole-body vibration
5.1.1 General
The specifications for the instrumentation given in EN 1032:1996, 5.1, for the measurement of whole-
body vibration apply.
5.1.2 Transducers
General requirements for mounting of vibration transducers are given in EN 1032:1996, 5.2. In the
case where the measurements are made on a seat pan the transducer shall be mounted in a semi
rigid disc as described in EN 1032:1996, 5.2.
In the case where the measurements are made at the seat base or on the floor the transducer shall
be firmly fixed to rigid parts of trucks e.g. by means of a magnet, or adhesive, etc.
NOTE In the case of stand on trucks, it is convenient to mount the transducer on a light rigid plate upon
which the operator can place both feet.
5.1.3 Frequency weighting
Frequency weighting and band limiting characteristics shall be in accordance with 5.3 of
EN 1032:1996.
5.1.4 Integration time
For each run, the r.m.s. acceleration shall be a linearly integrated average over one complete test run
(see 8.2).
5.2 Truck speed
The truck speed on the test track shall be measured using instruments measuring the average speed
with an accuracy of
5 %.
NOTE An alternative method is to measure the time to travel over the full length of the test track. From
knowledge of the length of the track and the time taken to travel it, the truck average speed is calculated.
6 Vibration measurement direction and location
6.1 Measurement d
...
