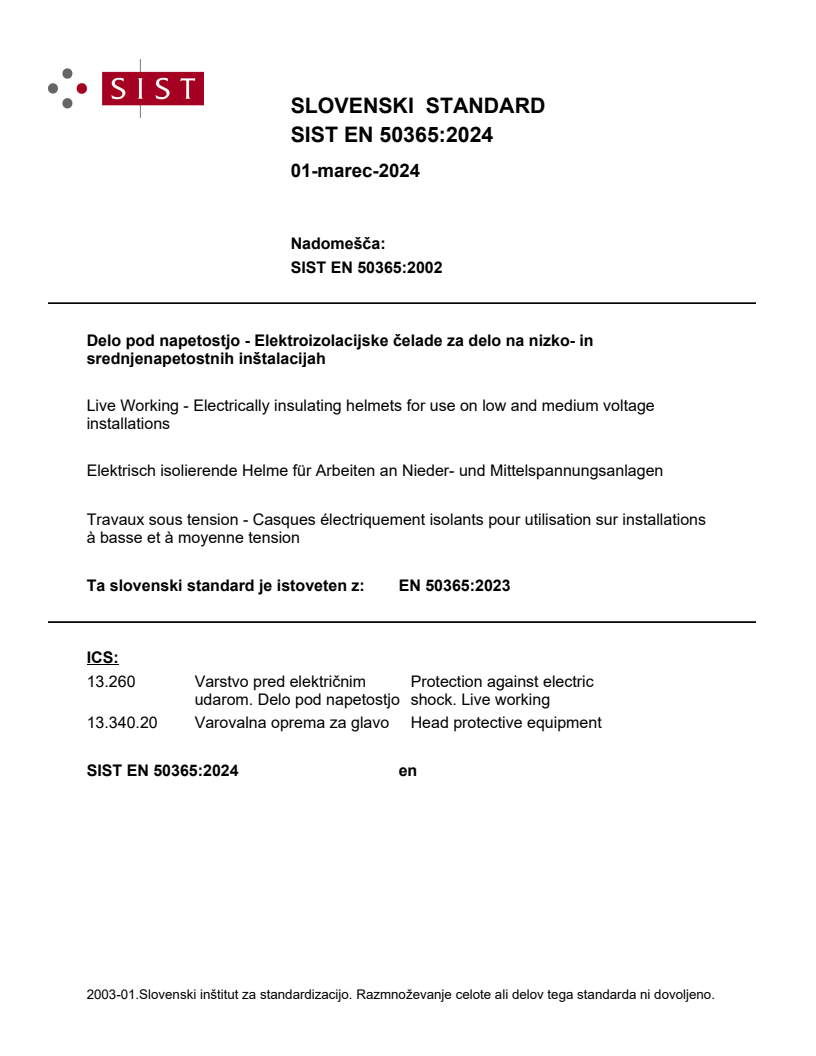

EN 50365:2023

SLOVENSKI STANDARD
01-marec-2024
Nadomešča:
SIST EN 50365:2002
Delo pod napetostjo - Elektroizolacijske čelade za delo na nizko- in
srednjenapetostnih inštalacijah
Live Working - Electrically insulating helmets for use on low and medium voltage
installations
Elektrisch isolierende Helme für Arbeiten an Nieder- und Mittelspannungsanlagen
Travaux sous tension - Casques électriquement isolants pour utilisation sur installations
à basse et à moyenne tension
Ta slovenski standard je istoveten z: EN 50365:2023
ICS:
13.260 Varstvo pred električnim Protection against electric
udarom. Delo pod napetostjo shock. Live working
13.340.20 Varovalna oprema za glavo Head protective equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

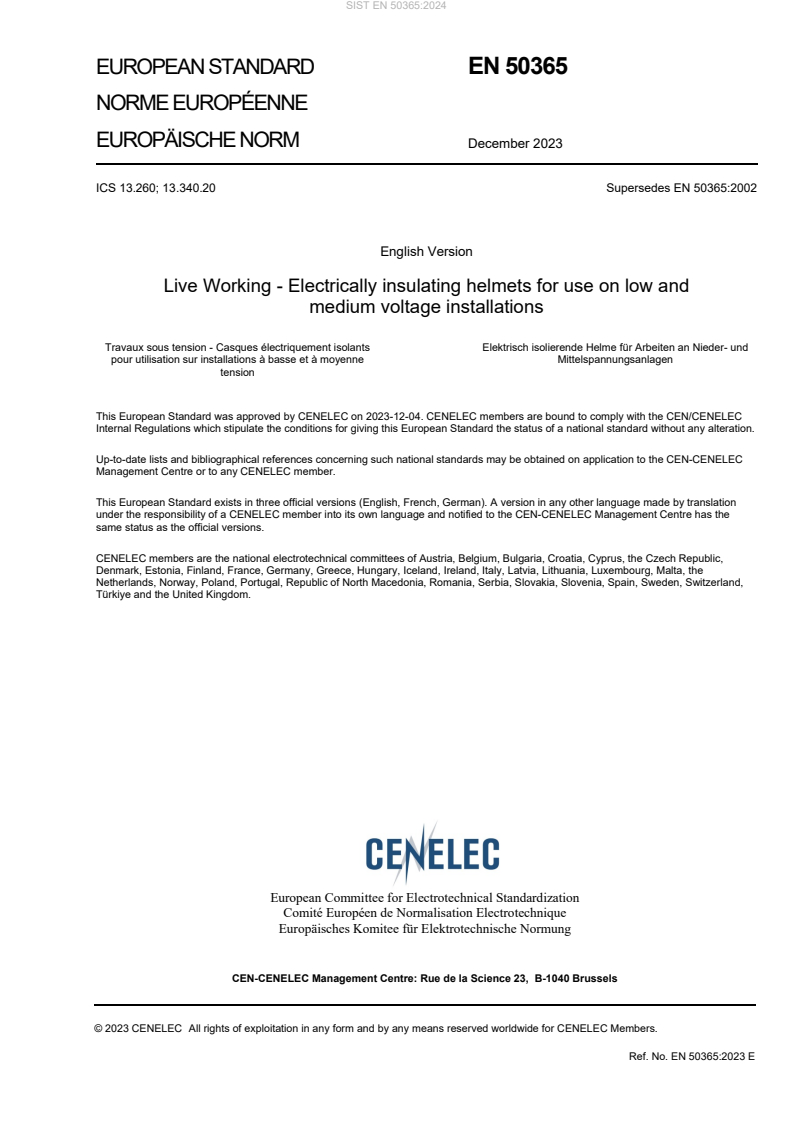

EUROPEAN STANDARD EN 50365
NORME EUROPÉENNE
EUROPÄISCHE NORM December 2023
ICS 13.260; 13.340.20 Supersedes EN 50365:2002
English Version
Live Working - Electrically insulating helmets for use on low and
medium voltage installations
Travaux sous tension - Casques électriquement isolants Elektrisch isolierende Helme für Arbeiten an Nieder- und
pour utilisation sur installations à basse et à moyenne Mittelspannungsanlagen
tension
This European Standard was approved by CENELEC on 2023-12-04. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50365:2023 E
Contents
European foreword .6
1 Scope .7
2 Normative references .7
3 Terms and definitions .7
4 Requirements .8
4.1 General .8
4.2 Non-electrical requirements.8
4.2.1 General .8
4.2.2 Helmet Design .8
4.3 Electrical requirements . 10
4.3.1 General . 10
4.3.2 Electrical Classification . 10
4.4 Marking . 10
4.4.1 General . 10
4.4.2 Colour code . 11
4.5 Packaging . 11
4.6 Instruction for use . 11
5 Type testing . 12
5.1 General . 12
5.2 Non-electrical type tests . 12
5.3 Electrical type tests . 12
5.3.1 General . 12
5.3.2 Test arrangement . 12
5.3.3 Preconditioning . 14
5.3.4 AC Proof test voltage . 14
5.3.5 AC Withstand test voltage . 15
5.3.6 DC Proof voltage test . 15
5.4 Marking . 15
5.4.1 Visual inspection . 15
5.4.2 Durability. 15
5.5 Packaging . 16
5.6 Instructions of use . 16
6 Alternative testing after production . 16
7 Method for assessment of defects and verification of performance applicable to electrically
insulating helmets having completed the production phase . 16
8 Modifications . 16
Annex A (normative) Suitable for live working: double triangle (IEC 60417-5216:2002-10) . 17
Annex B (normative) Example of Marking . 18
Annex C (informative) Additional recommendations and information to the instructions for use . 19
C.1 General . 19
C.2 Storage . 19
C.3 Examination before use. 19
C.4 Precaution in use . 19
C.5 Precaution after use . 19
C.6 Periodic test . 20
C.7 Obsolescence . 20
Annex D (normative) Chronological order for type testing . 21
Annex E (normative) Classification of tests and defects to be allocated . 22
Annex F (informative) Rationale for the classification of defects . 23
Annex ZZ (informative) Relationship between this European standard and the essential
requirements of Regulation (EU) 2016/425 aimed to be covered . 24
Bibliography . 25

European foreword
This document (EN 50365:2023) has been prepared by CLC/TC 78 “Equipment and tools for live working”.
The following dates are fixed:
• Latest date which this document has to be (dop) 2024-12-04
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) 2026-12-04
conflicting with this document have to
be withdrawn
This document supersedes EN 50365:2002 and all its amendments and corrigenda (if any).
— Change of scope to test helmets up to Class 2
— Update on normative references
— Definitions for Brim, Crown and Shell
— Helmet design types Type A and B
— Additional marking required for voltage and design type
— DC testing
— Alternative testing after production
— Removal of air hole design test
— Only electrical aspect are covered
— Addition of Annex ZZ
Terms defined in Clause 3 are given in italic print throughout this standard.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a standardization request addressed to CENELEC by the
European Commission. The Standing Committee of the EFTA States subsequently approves these
requests for its Member States.
For the relationship with EU Legislation, see informative Annex ZZ, which is an integral part of this
document.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
1 Scope
This document specifies the electrical requirements and testing for electrically insulating helmets that
provide electrical insulating protection of head of the worker against electric shock used for when working
live or near to live parts on installations not exceeding 17 000 V AC or 1 500 V DC.
The products designed and manufactured according to this document contribute to the safety of the users
provided they are used by skilled persons, in accordance with EN 50110-1:2023 and/or National
Regulations.
This document does not cover arc flash or additional helmet accessories such as face shields, ear
defenders, lamps and voltage detectors and doesn’t cover mechanical requirements and tests.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 397:2012+A1:2012, Industrial safety helmets
EN 443:2008, Helmets for fire fighting in buildings and other structures
EN 14052:2012+A1:2012, High performance industrial helmets
EN 50110-1:2023, Operation of electrical installations - Part 1: General requirements
EN 60060-1:2010, High-voltage test techniques - Part 1: General definitions and test requirements
(IEC 60060-1:2010)
EN 60212:2011, Standard conditions for use prior to and during the testing of solid electrical insulating
materials (IEC 60212:2010)
EN IEC 61318:2021, Live working - Methods for assessment of defects and verification of performance
applicable to tools, devices and equipment (IEC 61318:2021)
3 Terms and definitions
For the purposes of the present document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
brim
rim surrounding the shell
[SOURCE: ISO 3873:1977,3.4]
3.2
crown
area on the upper outside surface of the helmet centred on the top
3.3
electrically insulating helmet
safety helmet which protects the wearer against electrical shocks by preventing the passage of dangerous
current through the body via the head
3.4
proof test voltage
specified value of voltage that is applied to a device, item or comp
...
