Explosive atmospheres - Part 19: Equipment repair, overhaul and reclamation

IEC 60079-19:2010 gives instructions, principally of a technical nature, on the repair, overhaul, reclamation and modification of equipment designed for use in explosive atmospheres; it is not applicable to maintenance, other than when repair and overhaul cannot be disassociated from maintenance, neither does it give advice on cable entry systems which may require a renewal when the equipment is re-installed. The significant technical changes with respect to the previous edition are: - inclusion of specific Group I requirements; - inclusion of offshore requirements.

Explosionsgefährdete Bereiche - Teil 19: Gerätereparatur, Überholung und Regenerierung

Atmosphères explosives - Partie 19: Réparation, révision et remise en état de l'appareil

La CEI 60079-19:2010 donne des instructions, principalement de nature technique, pour la réparation, la révision, la remise en état et la modification de l'appareil conçu pour être utilisé en atmosphères explosives; il n'est pas applicable à l'entretien, sauf lorsque la réparation et la révision ne peuvent être dissociées de l'entretien, pas plus qu'elle ne donne des conseils sur les systèmes d'entrées de câbles qui peuvent exiger un renouvellement quand l'appareil est réinstallé. Les modifications techniques importantes par rapport à l'édition précédente sont: - inclusion des exigences spécifiques du Groupe I; - inclusion des exigences 'offshore'.

Eksplozivne atmosfere - 19. del: Popravilo, obnova in remont opreme (IEC 60079-19:2010)

Ta del IEC 60079:
– podaja navodila, predvsem tehnične narave, o popravilu, obnovi, remontu in spremembi opreme, zasnovane za uporabo v eksplozivnih atmosferah;
– ne velja za vzdrževanje, razen kadar popravilo in obnova ne moreta biti ločena od vzdrževanja, niti ne podaja predlogov glede sistemov za uvod kablov, ki lahko zahtevajo prenovo v primeru ponovne vgradnje opreme;
– ne velja za tipe zaščite »m«, »o« in »q«;
– predpostavlja, da so dobre inženirske prakse privzete v celotnem postopku.

General Information

Status
Withdrawn
Publication Date
13-Jan-2011
Withdrawal Date
31-Dec-2013
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
22-Nov-2022
Completion Date
22-Nov-2022

Relations

Buy Standard

Standard
EN 60079-19:2011
English language
69 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-marec-2011
1DGRPHãþD
SIST EN 60079-19:2008
Eksplozivne atmosfere - 19. del: Popravilo, obnova in remont opreme (IEC 60079-
19:2010)
Explosive atmospheres - Part 19: Equipment repair, overhaul and reclamation (IEC
60079-19:2010)
Explosionsgefährdete Bereiche - Teil 19: Betriebsmittelreparatur, Überholung und
Regenerierung (IEC 60079-19:2010)
Atmosphères explosives - Partie 19: Réparation, révision et remise en état de l'appareil
(CEI 60079-19:2010)
Ta slovenski standard je istoveten z: EN 60079-19:2011
ICS:
29.260.20 (OHNWULþQLDSDUDWL]D Electrical apparatus for
HNVSOR]LYQDR]UDþMD explosive atmospheres
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60079-19
NORME EUROPÉENNE
January 2011
EUROPÄISCHE NORM
ICS 25.180.10 Supersedes EN 60079-19:2007

English version
Explosive atmospheres -
Part 19: Equipment repair, overhaul and reclamation
(IEC 60079-19:2010)
Atmosphères explosives -  Explosionsgefährdete Bereiche -
Partie 19: Réparation, révision et remise Teil 19: Gerätereparatur, Überholung und
en état de l'appareil Regenerierung
(CEI 60079-19:2010) (IEC 60079-19:2010)

This European Standard was approved by CENELEC on 2011-01-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60079-19:2011 E

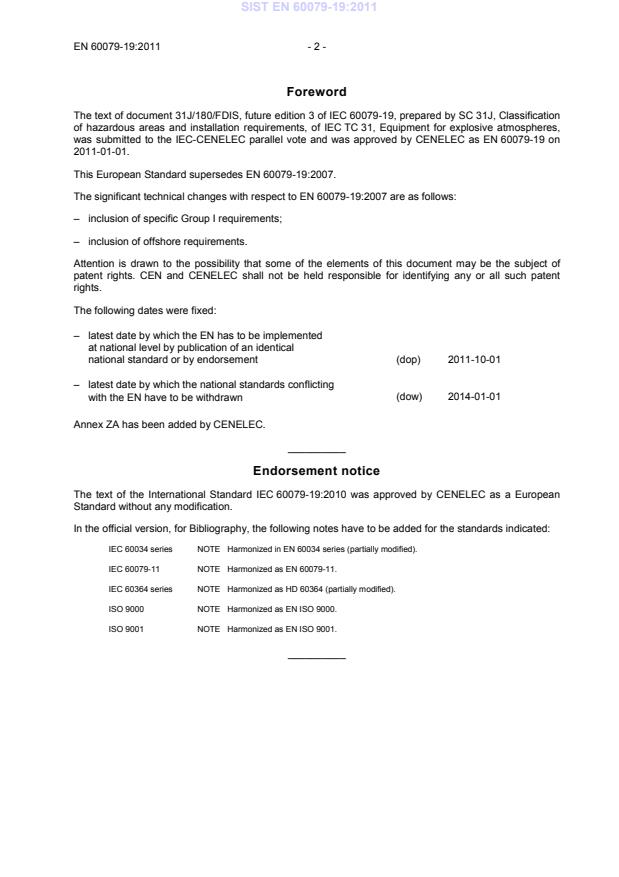

Foreword
The text of document 31J/180/FDIS, future edition 3 of IEC 60079-19, prepared by SC 31J, Classification
of hazardous areas and installation requirements, of IEC TC 31, Equipment for explosive atmospheres,
was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 60079-19 on
2011-01-01.
This European Standard supersedes EN 60079-19:2007.
The significant technical changes with respect to EN 60079-19:2007 are as follows:
– inclusion of specific Group I requirements;
– inclusion of offshore requirements.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2011-10-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2014-01-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60079-19:2010 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60034 series NOTE  Harmonized in EN 60034 series (partially modified).
IEC 60079-11 NOTE  Harmonized as EN 60079-11.
IEC 60364 series NOTE  Harmonized as HD 60364 (partially modified).
ISO 9000 NOTE  Harmonized as EN ISO 9000.
ISO 9001 NOTE  Harmonized as EN ISO 9001.
__________
- 3 - EN 60079-19:2011
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60079 series Explosive atmospheres EN 60079 series

IEC 60079-0 - Explosive atmospheres - EN 60079-0 -
Part 0: Equipment - General requirements

IEC 60079-1 - Explosive atmospheres - EN 60079-1 -
Part 1: Equipment protection by flameproof
enclosures "d"
IEC 60079-2 - Explosive atmospheres - EN 60079-2 -
Part 2: Equipment protection by pressurized
enclosure "p"
IEC 60079-7 - Explosive atmospheres - EN 60079-7 -
Part 7: Equipment protection by increased
safety "e"
IEC 60079-14 - Explosive atmospheres - EN 60079-14 -
Part 14: Electrical installations design,
selection and erection
IEC 60079-15 - Explosive atmospheres - EN 60079-15 -
Part 15: Equipment protection by type of
protection "n"
IEC 60079-19 - Explosive atmospheres - EN 60079-19 -
Part 19: Equipment repair, overhaul and
reclamation
IEC 60079-26 - Explosive atmospheres - EN 60079-26 -
Part 26: Equipment with equipment protection
level (EPL) Ga
IEC 60085 - Electrical insulation - Thermal evaluation and EN 60085 -
designation
IEC 60529 - Degrees of protection provided by enclosures EN 60529 -
(IP Code)
IEC 61241 series Electrical apparatus for use in the presence of EN 61241 series
combustible dust
IEC 61241-0 - Electrical apparatus for use in the presence of EN 61241-1 -
combustible dust -
Part 0: General requirements
IEC 61241-4 - Electrical apparatus for use in the presence of EN 61241-4 -
combustible dust -
Part 4: Type of protection 'pD'

Publication Year Title EN/HD Year

ISO 4526 - Metallic coatings - Electroplated coatings of EN ISO 4526 -
nickel for engineering purposes

ISO 6158 - Metallic coatings - Electrodeposited coatings EN ISO 6158 -
of chromium for engineering purposes

IEC 60079-19 ®
Edition 3.0 2010-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Explosive atmospheres –
Part 19: Equipment repair, overhaul and reclamation

Atmosphères explosives –
Partie 19: Réparation, révision et remise en état de l’appareil

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
XB
CODE PRIX
ICS 29.260.20 ISBN 978-2-88912-259-2
– 2 – 60079-19 Ó IEC:2010
CONTENTS
FOREW ORD . 7
INTRODUCTION . 9
1 Scope . 10
2 Normative references . 10
3 Terms and definitions . 11
4 General . 13
4.1 General principles . 13
4.2 Statutory requirements for repair facility . 14
4.3 Instructions for the user . 14
4.3.1 Certificates and documents . 14
4.3.2 Records and work instructions . 14
4.3.3 Re-installation of repaired equipment . 14
4.3.4 Repair facilities . 14
4.4 Instructions for the repair facility . 14
4.4.1 Repair and overhaul . 14
4.4.2 Reclamations . 19
4.4.3 Alterations and modifications . 21
4.4.4 Temporary repairs . 21
4.4.5 Rotating machinery . 22
4.4.6 Inverters. 22
5 Additional requirements for the repair and overhaul of equipment with type of
protection "d" (flameproof) . 23
5.1 Application . 23
5.2 Repair and overhaul . 23
5.2.1 Enclosures . 23
5.2.2 Cable and conduit entries . 24
5.2.3 Terminations. 24
5.2.4 Insulation . 24
5.2.5 Internal connections . 24
5.2.6 Windings . 24
5.2.7 Auxiliary equipment . 26
5.2.8 Light-transmitting parts . 26
5.2.9 Encapsulated parts. 26
5.2.10 Batteries . 26
5.2.11 Lam ps . 26
5.2.12 Lam pholders . 27
5.2.13 Ballasts . 27
5.2.14 Breathing devices. 27
5.3 Reclamation . 27
5.3.1 General . 27
5.3.2 Enclosures . 27
5.3.3 Sleeving . 28
5.3.4 Shafts and housings . 28
5.3.5 Sleeve bearings . 28
5.3.6 Rotors and stators . 28
5.4 Alterations and modifications . 29

60079-19 Ó IEC:2010 – 3 –
5.4.1 Enclosures . 29
5.4.2 Cable or conduit entries . 29
5.4.3 Terminations. 29
5.4.4 Windings . 29
5.4.5 Auxiliary equipment . 29
6 Additional requirements for the repair and overhaul of equipment with type of
protection "i" (intrinsic safety) . 29
6.1 Application . 29
6.2 Repair and overhaul . 30
6.2.1 Enclosures . 30
6.2.2 Cable glands . 30
6.2.3 Terminations. 30
6.2.4 Soldered connections . 30
6.2.5 Fuses . 31
6.2.6 Relays . 31
6.2.7 Shunt dio
...
