EN 10293:2015
(Main)Steel castings - Steel castings for general engineering uses
Steel castings - Steel castings for general engineering uses
This European Standard applies to steel castings:
- for general engineering uses. Its uses include machinery (mechanical, electrical...), automotive industries, railroad, armament, agricultural equipment, mining, etc.
In cases where castings are joined by welding by the founder, this document applies.
In cases where castings are welded:
- to wrought products (plates, tubes, forgings...), or
- by non-founders,
this document does not apply.
Stahlguss - Stahlguss für allgemeine Anwendungen
Diese Europäische Norm gilt für Stahlguss
- für allgemeine Anwendungen. Die Verwendung schließt Maschinen (mechanisch, elektrisch, ...), Kraftfahrzeugindustrie, Eisenbahnen, Rüstung, Landmaschinen, Bergbau usw., ein.
In Fällen, in denen Gussstücke vom Gießer zusammengeschweißt werden, gilt dieses Dokument.
In Fällen, in denen Gussstücke geschweißt werden
- zusammen mit umformbaren Erzeugnissen (Bleche, Rohre, Schmiedestücke, ...), oder
- von anderen als Gießern,
gilt dieses Dokument nicht.
Aciers moulés - Aciers moulés d'usage général
La présente norme Européenne s’applique aux aciers moulés utilisés :
- en mécanique générale. Leur utilisation inclut l’équipement (mécanique, électrique…), l’industrie automobile, le ferroviaire, l’armement, les équipements agricoles, l’industrie minière, etc.
Le présent document s’applique aux cas où les pièces moulées sont assemblées par soudage par le fondeur.
Le présent document ne s’applique pas aux cas où les pièces moulées sont soudées :
- à des produits corroyés (tôles, tubes, pièces forgées …) ; ou
- par des non-fondeurs.
Jekleni ulitki - Jekleni ulitki za splošne tehnične namene
Ta dokument se uporablja za jeklene ulitke za splošne tehnične namene. Nameni uporabe zajemajo stroje (mehanske, električne ...), avtomobilsko industrijo, železnico, vojno opremo, kmetijsko opremo, rudarstvo. Ta dokument se uporablja v primerih, ko spajanje ulitkov z varjenjem izvaja livar. Kadar se ulitke vari na gnetene zlitine (plošče, cevi, kovane predmete ...) ali ko to izvajajo druge osebe, ki niso livarji, se ta dokument ne uporablja.
General Information
- Status
- Published
- Publication Date
- 27-Jan-2015
- Withdrawal Date
- 30-Jul-2015
- Technical Committee
- ECISS/TC 111 - Steel castings and forgings
- Drafting Committee
- ECISS/TC 111 - Steel castings and forgings
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 22-Apr-2021
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 04-Feb-2015
- Effective Date
- 03-Nov-2011
Overview
EN 10293:2015 - "Steel castings - Steel castings for general engineering uses" is a European Standard published by CEN that defines technical delivery conditions for steel castings intended for a wide range of engineering applications. It supersedes EN 10293:2005 and aligns its structure with EN 1559‑1:2011 and EN 1559‑2:2014. The standard covers material designation, manufacture, required chemical composition and mechanical properties, welding by founders, inspection, marking, packaging and related test methods.
Key topics and requirements
- Scope and use: Applies to steel castings for general engineering uses (machinery, automotive, railroad, armament, agricultural equipment, mining, etc.). It applies when castings are welded by the founder; it does not apply when castings are welded to wrought products or welded by non‑founders.
- Material designation: Defines grade names and suffixes for heat‑treatment variants (e.g., grades such as GE200, GS200 and new grades added in 2015 like GE270, GE320, GE360).
- Chemical composition: Requires cast analysis to conform to tabulated composition limits and restricts intentional addition of unspecified elements unless agreed with the purchaser. Maximum contents for unspecified elements are given.
- Mechanical properties and heat treatment: Specifies tensile and impact property requirements, heat‑treatment symbols and limits on ruling/test block thickness. Yield proof (Rp0,2) and impact testing conditions are defined; alternative impact values/temperatures must be specified by the purchaser when applicable.
- Welding guidance: Annex A provides guidance on preheat, interpass and post‑weld heat treatment and references welding group classifications (EN ISO 11970).
- Inspection & testing: Defines inspection documents, test units, sampling, non‑destructive testing and procedures for retests, sorting and reprocessing.
- Marking, packaging and complaints: Includes requirements for marking castings, packaging/protection and complaint handling.
Practical applications
EN 10293:2015 is used to:
- Specify material and acceptance criteria when procuring steel castings for mechanical and structural components.
- Define heat‑treatment and mechanical property requirements during casting design and manufacturing.
- Guide founding and in‑foundry welding practices and post‑weld heat treatment for cast parts.
- Establish inspection, test and documentation requirements for quality assurance and compliance.
Who should use this standard
- Foundries and casting manufacturers producing engineering steel castings
- Design and procurement engineers in automotive, rail, mining, agricultural and defense industries
- Quality, inspection and testing laboratories
- Welding engineers responsible for in‑foundry welding and post‑weld heat treatment
Related standards
- EN 1559‑1:2011 and EN 1559‑2:2014 (founding technical conditions of delivery)
- EN ISO 11970 (welding group classifications)
Keywords: EN 10293:2015, steel castings, general engineering, chemical composition, mechanical properties, heat treatment, welding, CEN.
Frequently Asked Questions
EN 10293:2015 is a standard published by the European Committee for Standardization (CEN). Its full title is "Steel castings - Steel castings for general engineering uses". This standard covers: This European Standard applies to steel castings: - for general engineering uses. Its uses include machinery (mechanical, electrical...), automotive industries, railroad, armament, agricultural equipment, mining, etc. In cases where castings are joined by welding by the founder, this document applies. In cases where castings are welded: - to wrought products (plates, tubes, forgings...), or - by non-founders, this document does not apply.
This European Standard applies to steel castings: - for general engineering uses. Its uses include machinery (mechanical, electrical...), automotive industries, railroad, armament, agricultural equipment, mining, etc. In cases where castings are joined by welding by the founder, this document applies. In cases where castings are welded: - to wrought products (plates, tubes, forgings...), or - by non-founders, this document does not apply.
EN 10293:2015 is classified under the following ICS (International Classification for Standards) categories: 77.140.80 - Iron and steel castings. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 10293:2015 has the following relationships with other standards: It is inter standard links to EN 10293:2005/AC:2008, EN 10293:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 10293:2015 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

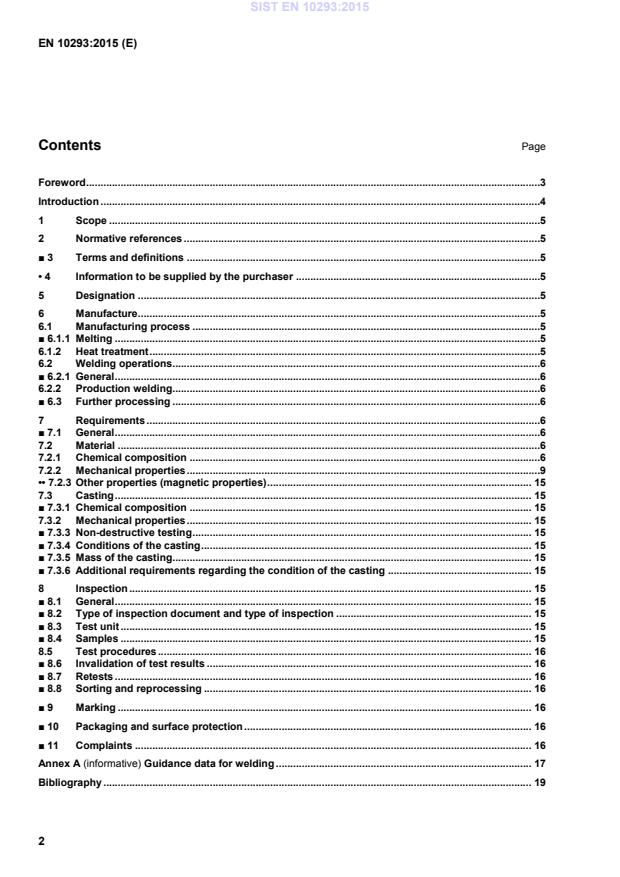

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stahlguss - Stahlguss für allgemeine AnwendungenAciers moulés - Aciers moulés d'usage généralSteel castings - Steel castings for general engineering uses77.140.80Železni in jekleni ulitkiIron and steel castingsICS:Ta slovenski standard je istoveten z:EN 10293:2015SIST EN 10293:2015en,fr,de01-maj-2015SIST EN 10293:2015SLOVENSKI
STANDARDSIST EN 10293:2005/AC:2008SIST EN 10293:20051DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10293
January 2015 ICS 77.140.80 Supersedes EN 10293:2005English Version
Steel castings - Steel castings for general engineering uses
Aciers moulés - Aciers moulés d'usage général
Stahlguss - Stahlguss für allgemeine Anwendungen This European Standard was approved by CEN on 5 December 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10293:2015 ESIST EN 10293:2015
1) When a complementary information is given in a clause or subclause of this document (versus the same clause or subclause of EN 1559-1:2011 or EN 1559-2:2014) it is preceded by “in addition to EN 1559-2:2014”. SIST EN 10293:2015
...
