This European Standard specifies test methods for the determination of the resistance of shutters under the application of a conventional hard body impact and test methods of the prevention of access by shutters.
Shutters covered by this European Standard are:
- external venetian blind,
- roller shutter,
- venetian shutter,
- flat closing concertina shutter,
- concertina shutter,
- wing shutter and
- sliding panel shutter.
Abschlüsse - Aufprall eines harten Stoßkörpers und Widerstand gegen gewaltsames Eindringen - Prüfverfahren
Die vorliegende Europäische Norm legt Prüfverfahren zur Bestimmung des Widerstands von Abschlüssen außen gegenüber einer Stoßbeanspruchung durch einen herkömmlichen Stoßkörper sowie Prüfverfahren zur Bestimmung des Widerstands von Abschlüssen außen gegen gewaltsames Eindringen fest.
Die in dieser Europäischen Norm behandelten Abschlüsse sind:
- Außenjalousien, Rollläden, geführte Faltläden, Faltläden geführt (flachgeschlossen), Faltläden geführt (Akkordeon), Drehläden, Schiebeläden.
Fermetures - Chocs de corps dur et protection de l'accès - Méthodes d'essai
La présente Norme européenne spécifie les méthodes d'essai permettant de déterminer la résistance des fermetures, sous l'application de chocs conventionnels de corps dur, ainsi que les méthodes d'essai permettant de déterminer la résistance des fermetures pour la protection de l’accès.
Les fermetures couvertes par la présente norme sont les suivantes :
- les stores vénitiens extérieurs,
- les volets roulants,
- les persiennes,
- les persiennes coulissantes,
- les jalousies,
- les volets battants, et
- les volets coulissants.
Polkna - Udarec s trdim telesom in odpornost proti nasilnemu vdoru - Preskusne metode
Ta evropski standard določa preskusne metode za določanje odpornosti polken proti običajnemu udarcu s trdim predmetom in preskusne metode za določanje odpornosti polken proti nasilnemu vdoru. V tem standardu so zajeta naslednja polkna: - zunanje žaluzije, - zunanje rolete, - notranje žaluzije, - harmonika vrata z ravnim zapiranjem, - harmonika vrata, - notranje rolete, - drsne rolete.
General Information
- Status
- Published
- Publication Date
- 18-Jun-2013
- Withdrawal Date
- 09-Dec-2014
- Technical Committee
- CEN/TC 33 - Doors, windows, shutters and building hardware
- Drafting Committee
- CEN/TC 33/WG 3 - Blinds and shutters
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 04-Jun-2024
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 08-Jun-2022
Overview
EN 13330:2013 - “Shutters - Hard body impact and prevention of access - Test methods” (CEN) specifies standardized test methods to evaluate the mechanical resistance of shutters to a conventional hard‑body impact and to assess their ability to prevent unauthorised access. The standard applies to a wide range of shutter types, including roller shutters, external venetian blinds, venetian shutters, concertina and flat closing concertina shutters, wing shutters and sliding panel shutters.
Key topics and technical requirements
- Hard‑body impact test (D 0,5)
- Uses a steel spherical impactor suspended as a pendulum (designated D 0,5). The pendulum impacts the shutter at defined points and drop height Z (Z is referenced to EN 13659).
- Test rig mounts the shutter vertically with manufacturer’s installation details respected. Tests carried out at (23 ± 5) °C unless otherwise specified.
- Indentations are measured after 2 minutes with 0.5 mm accuracy; cracks or perforations are recorded. Points of impact and tolerances (e.g. distances from guide rails or edges) are defined to ensure repeatability.
- Prevention of access tests
- Retraction/lifting resistance of the bottom rail: a specified hook construction and force application point are used to simulate attempts to retract the curtain.
- Guide‑rail splaying test: insertion of a screwdriver (tip A 2 mm × 12 mm per ISO 2380‑1) and application of force at a defined lever length to check guide rail resistance.
- Perforation test: a screwdriver mounted on an axle delivers a defined energy (E = m·g·h) to assess lath or panel penetration. Positioning rules (e.g. 50 mm from guide rails) reduce elastic effects.
- Bottom lath and installation fixation tests evaluate static horizontal forces and the effect of manufacturer‑recommended installation methods.
- Reporting
- Test reports must identify product details, faces tested, impact locations, damage descriptions, indentation sizes, functional checks post‑test, laboratory and test dates, and reference to EN 13330:2013.
Applications and users
EN 13330:2013 is used for:
- Product development and durability validation by manufacturers of shutters and blinds.
- Type testing and certification by independent test laboratories and conformity assessment bodies.
- Specification and procurement by architects, façade engineers, building owners and specifiers who require documented resistance to impact or forced entry.
- Regulatory compliance where performance classes from EN 13659 are referenced in procurement or safety requirements.
Related standards
- EN 13659 - Shutters and external venetian blinds: performance requirements (linked classification and performance levels).
- EN 12216 - Terminology and definitions for shutters and blinds.
- EN 1932, EN 13561 - Related performance and wind resistance standards for blinds and shutters.
Keywords: EN 13330:2013, shutters test methods, hard body impact, prevention of access, roller shutter testing, shutter impact resistance, CEN standard.
Frequently Asked Questions
EN 13330:2013 is a standard published by the European Committee for Standardization (CEN). Its full title is "Shutters - Hard body impact and prevention of access - Test methods". This standard covers: This European Standard specifies test methods for the determination of the resistance of shutters under the application of a conventional hard body impact and test methods of the prevention of access by shutters. Shutters covered by this European Standard are: - external venetian blind, - roller shutter, - venetian shutter, - flat closing concertina shutter, - concertina shutter, - wing shutter and - sliding panel shutter.
This European Standard specifies test methods for the determination of the resistance of shutters under the application of a conventional hard body impact and test methods of the prevention of access by shutters. Shutters covered by this European Standard are: - external venetian blind, - roller shutter, - venetian shutter, - flat closing concertina shutter, - concertina shutter, - wing shutter and - sliding panel shutter.
EN 13330:2013 is classified under the following ICS (International Classification for Standards) categories: 91.060.50 - Doors and windows. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13330:2013 has the following relationships with other standards: It is inter standard links to EN 13330:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 13330:2013 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Polkna - Udarec s trdim telesom in odpornost proti nasilnemu vdoru - Preskusne metodeAbschlüsse Außen - Aufprall eines harten Stoßkörpers und Widerstand gegen gewaltsames Eindringen - PrüfverfahrenFermetures - Chocs de corps dur et résistance contre l’intrusion - Méthodes d’essaisShutters - Hard body impact and resistance against intrusion - Test methods91.060.50Vrata in oknaDoors and windowsICS:Ta slovenski standard je istoveten z:EN 13330:2013SIST EN 13330:2013en,fr01-september-2013SIST EN 13330:2013SLOVENSKI
STANDARDSIST EN 13330:20031DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13330
June 2013 ICS 91.060.50 Supersedes EN 13330:2002English Version
Shutters - Hard body impact and prevention of access - Test methods
Fermetures - Chocs de corps dur et protection de l'accès - Méthodes d'essai
Abschlüsse Außen - Aufprall eines harten Stoßkörpers und Widerstand gegen gewaltsames Eindringen - PrüfverfahrenThis European Standard was approved by CEN on 14 December 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13330:2013: ESIST EN 13330:2013

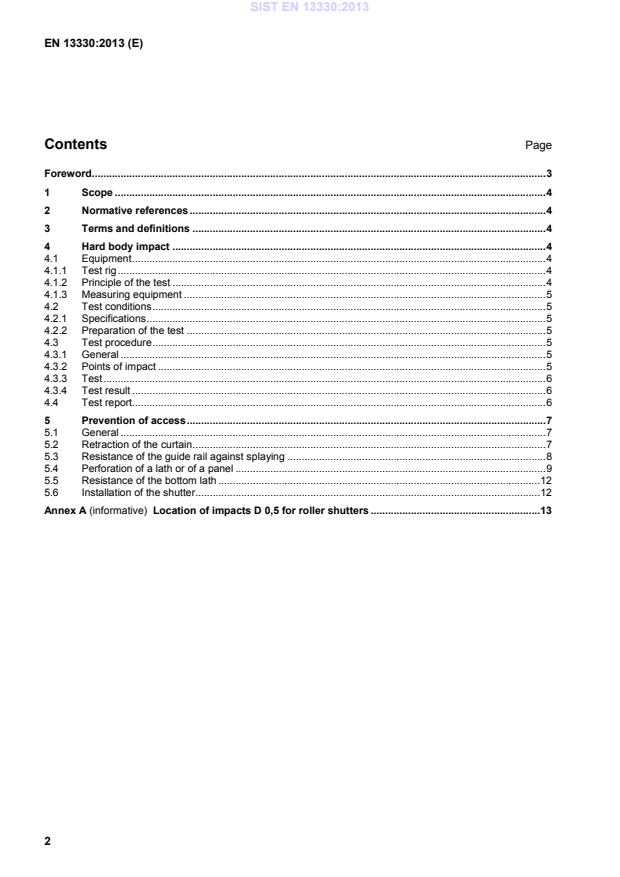

Page Foreword . 3 1 Scope . 4 2 Normative references . 4 3 Terms and definitions . 4 4 Hard body impact . 4 4.1 Equipment . 4 4.1.1 Test rig . 4 4.1.2 Principle of the test . 4 4.1.3 Measuring equipment . 5 4.2 Test conditions . 5 4.2.1 Specifications . 5 4.2.2 Preparation of the test . 5 4.3 Test procedure . 5 4.3.1 General . 5 4.3.2 Points of impact . 5 4.3.3 Test . 6 4.3.4 Test result . 6 4.4 Test report. 6 5 Prevention of access . 7 5.1 General . 7 5.2 Retraction of the curtain . 7 5.3 Resistance of the guide rail against splaying . 8 5.4 Perforation of a lath or of a panel . 9 5.5 Resistance of the bottom lath . 12 5.6 Installation of the shutter . 12 Annex A (informative)
