EN 10111:2008
(Main)Continuously hot rolled low carbon steel sheet and strip for cold forming - Technical delivery conditions
Continuously hot rolled low carbon steel sheet and strip for cold forming - Technical delivery conditions
This European Standard specifies the grades of continuously hot rolled low carbon steel sheet and strip (in coils) for cold forming.
Depending on its actual width, strip is classified as:
- hot rolled wide strip if its width is greater than or equal to 600 mm;
- hot rolled slit wide strip if its width is less than 600 mm.
For each grade, it specifies the chemical composition and the mechanical properties.
This European Standard is applicable to products of thickness not less than 1,0 mm and not exceeding 11 mm.
This European Standard is not applicable to products covered by other standards, such as:
- hot rolled products of non-alloy structural steels for general use (see EN 10025 all parts);
- steel sheet for pressure purposes (see EN 10028 all parts);
- steel sheet for welded gas cylinders (see EN 10120);
- quenched and tempered steels (see EN 10083-1 and EN 10083-2).
Kontinuierlich warmgewalztes Band und Blech aus weichen Stählen zum Kaltumformen - Technische Lieferbindungen
Diese Europäische Norm gilt für kontinuierlich warmgewalztes Blech und Band (in Rollen) aus weichen
Stählen zum Kaltumformen.
Nach seiner tatsächlichen Breite wird das Band unterteilt nach:
- Warmbreitband mit Breiten ≥ 600 mm und
- längsgeteiltes Warmbreitband mit Breiten < 600 mm.
Diese Europäische Norm enthält für jede Stahlsorte die Anforderungen an die chemische Zusammensetzung
und die mechanischen Eigenschaften.
Diese Europäische Norm gilt für Erzeugnisse in Dicken ≥ 1,0 mm und ≤ 11 mm.
Diese Europäische Norm gilt nicht für Erzeugnisse, die in anderen Normen erfasst sind, z. B.:
- warmgewalzte Erzeugnisse aus unlegierten Baustählen (siehe EN 10025, alle Teile);
- Flacherzeugnisse aus Stählen für Druckbehälter (siehe EN 10028, alle Teile);
- Flacherzeugnisse aus Stählen für geschweißte Gasflaschen (siehe EN 10120);
- Vergütungsstähle (siehe EN 10083-1 und EN 10083-2).
Tôles et bandes en acier à bas carbone laminées à chaud en continu pour formage à froid - Conditions techniques de livraison
La présente Norme européenne détermine les nuances des tôles et bandes en acier doux (en bobines) laminées à chaud en continu pour formage à froid.
Suivant sa largeur réelle, les bandes sont classées en :
- larges bandes à chaud dont la largeur est supérieure ou égale à 600 mm ;
- larges bandes à chaud refendues dont la largeur est inférieure à 600 mm.
L présente Norme européenne spécifie la composition chimique et les propriétés mécaniques de chaque nuance.
Elle s’applique à des produits dont l’épaisseur est au moins égale à 1,0 mm et au plus 11 mm.
La présente Norme européenne ne s’applique pas aux produits couverts par d’autres normes, tels que :
- les produits laminés à chaud en acier de construction non allié d’usage général (voir toutes les parties de l’EN 10025) ;
- les tôles en acier pour appareils à pression (voir toutes les parties de l’EN 10028) ;
- les tôles en acier pour bouteilles à gaz soudées (voir l’EN 10120) ;
les aciers pour trempe et revenu (voir l’EN 10083-1 et l’EN 10083-2).
Kontinuirno vroče valjane pločevine in trakovi iz maloogljičnega jekla za preoblikovanje v hladnem - Tehnični dobavni pogoji
General Information
- Status
- Published
- Publication Date
- 01-Apr-2008
- Withdrawal Date
- 30-Oct-2008
- Technical Committee
- ECISS/TC 109 - Coated and uncoated flat products to be used for cold forming
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 02-Dec-2024
- Completion Date
- 02-Dec-2024
Relations
- Effective Date
- 22-Dec-2008
Overview
EN 10111:2008 is a European Standard developed by CEN that specifies the technical delivery conditions for continuously hot rolled low carbon steel sheet and strip intended for cold forming. It covers grades of steel sheet and strip supplied in coils, classifying strips based on width-either as hot rolled wide strip (≥ 600 mm) or hot rolled slit wide strip (< 600 mm). Applicable to thicknesses from 1.0 mm up to 11 mm, this standard defines key requirements such as chemical composition, mechanical properties, surface conditions, and testing protocols to ensure consistent quality and performance tailored for cold forming processes.
This standard is essential for manufacturers, fabricators, and purchasers engaged in steel product supply chains for cold forming applications, providing clear guidelines for product classification, production methods, and quality criteria to ensure reliable and uniform steel products for industrial use.
Key Topics
Steel Grades and Classification
EN 10111:2008 classifies low carbon steel products into four grades (DD11, DD12, DD13, DD14), each grade defined by specific limits on chemical composition and mechanical properties. These grades offer increasing formability from DD11 to DD14, allowing users to select steel based on their cold forming requirements.Chemical Composition and Mechanical Properties
The standard sets maximum limits for elements including carbon, manganese, phosphorus, and sulfur. Mechanical properties such as tensile strength, yield strength, and elongation are specified to meet performance expectations for cold forming.Manufacturing Process and Deoxidation
Steelmaking and finishing processes are typically at the manufacturer's discretion; however, full killing (complete deoxidation) is mandatory for grades DD12 through DD14 to improve quality and consistency.Surface Characteristics and Delivery Conditions
Products are generally delivered as rolled with scale or descaled and oiled surfaces. Surface quality requirements address defects like cracks or slivers that could impair forming or welding. Oiling methods protect steel surfaces from corrosion during storage and transport.Weldability and Suitability for Coating
The steels covered are suitable for standard welding techniques. They can also be prepared for metallic coatings such as hot-dip galvanizing, making them versatile for various finishing processes.Testing and Inspection
Detailed testing methods including tensile testing, chemical analysis, and surface inspections ensure compliance with the standard. Inspection units and sampling procedures are clearly defined to maintain product integrity.
Applications
EN 10111:2008 steel products are widely used in cold forming processes such as:
- Automotive Industry: Manufacturing body panels, structural components, and chassis parts that require formability and surface quality suitable for painting or coating.
- Appliance Manufacturing: Production of enclosures and structural parts that demand consistent mechanical properties and surface finishes.
- Construction and Building: Fabrication of elements like metal cladding, roofing, and framing components requiring cold-formed steel sheets and strips.
- General Fabrication: Any application where low carbon steel strips or sheets are cold formed into intricate shapes, relying on precise mechanical and chemical requirements.
These steels support versatility in forming operations including bending, drawing, and stamping, beneficial for industries seeking high-quality, reproducible steel products.
Related Standards
EN 10111:2008 should be considered alongside several complementary standards to cover different steel products and purposes:
- EN 10025 (all parts) - Hot rolled non-alloy structural steel products for general use.
- EN 10028 (all parts) - Steel sheets for pressure purposes.
- EN 10120 - Steel sheet for welded gas cylinders.
- EN 10083-1 and EN 10083-2 - Quenched and tempered steels.
- EN 10002-1 - Tensile testing methods for metallic materials.
- EN 10051 - Tolerances on dimensions and shape for continuously hot rolled steel products.
- EN 10204 - Types of inspection documents for metallic products.
Adherence to EN 10111:2008 in coordination with these standards ensures comprehensive quality and suitability for various industrial steel applications, especially those involving cold forming techniques.
Keywords: EN 10111:2008, hot rolled low carbon steel, cold forming steel sheet, low carbon steel strip, steel grades DD11-DD14, chemical composition, mechanical properties, steel surface quality, steel welding, steel sheet tolerances, European steel standards, CEN steel standards, steel cold forming applications.
Frequently Asked Questions
EN 10111:2008 is a standard published by the European Committee for Standardization (CEN). Its full title is "Continuously hot rolled low carbon steel sheet and strip for cold forming - Technical delivery conditions". This standard covers: This European Standard specifies the grades of continuously hot rolled low carbon steel sheet and strip (in coils) for cold forming. Depending on its actual width, strip is classified as: - hot rolled wide strip if its width is greater than or equal to 600 mm; - hot rolled slit wide strip if its width is less than 600 mm. For each grade, it specifies the chemical composition and the mechanical properties. This European Standard is applicable to products of thickness not less than 1,0 mm and not exceeding 11 mm. This European Standard is not applicable to products covered by other standards, such as: - hot rolled products of non-alloy structural steels for general use (see EN 10025 all parts); - steel sheet for pressure purposes (see EN 10028 all parts); - steel sheet for welded gas cylinders (see EN 10120); - quenched and tempered steels (see EN 10083-1 and EN 10083-2).
This European Standard specifies the grades of continuously hot rolled low carbon steel sheet and strip (in coils) for cold forming. Depending on its actual width, strip is classified as: - hot rolled wide strip if its width is greater than or equal to 600 mm; - hot rolled slit wide strip if its width is less than 600 mm. For each grade, it specifies the chemical composition and the mechanical properties. This European Standard is applicable to products of thickness not less than 1,0 mm and not exceeding 11 mm. This European Standard is not applicable to products covered by other standards, such as: - hot rolled products of non-alloy structural steels for general use (see EN 10025 all parts); - steel sheet for pressure purposes (see EN 10028 all parts); - steel sheet for welded gas cylinders (see EN 10120); - quenched and tempered steels (see EN 10083-1 and EN 10083-2).
EN 10111:2008 is classified under the following ICS (International Classification for Standards) categories: 77.140.50 - Flat steel products and semi-products. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 10111:2008 has the following relationships with other standards: It is inter standard links to EN 10111:1998. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 10111:2008 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

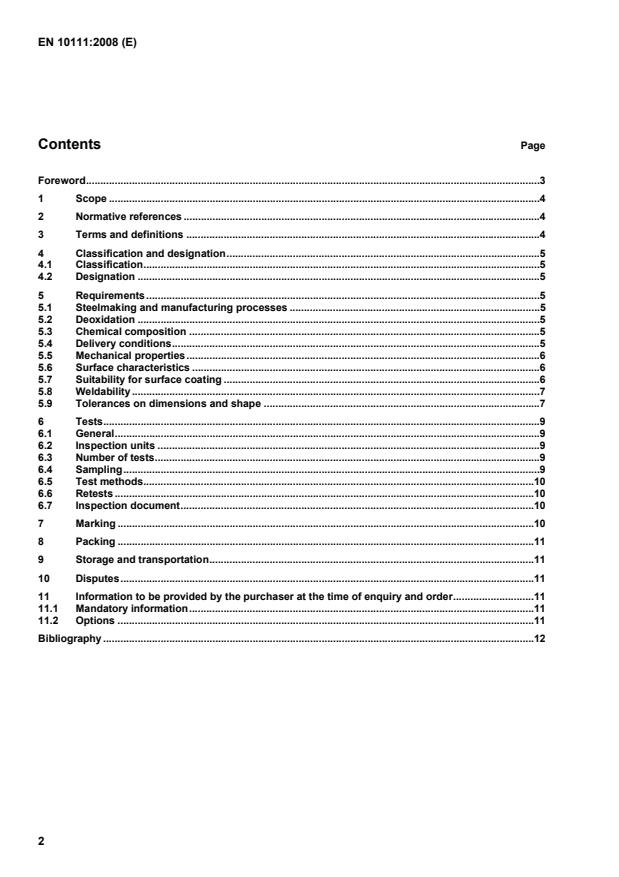

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Continuously hot rolled low carbon steel sheet and strip for cold forming - Technical delivery conditionsBandes et tôles laminées a chaud en continu, en acier doux pour emboutissage ou pliage a froid - Conditions techniques de livraisonKontinuierlich warmgewalztes Band und Blech aus weichen Stählen zum Kaltumformen - Technische Lieferbindungen77.140.50SROL]GHONLFlat steel products and semi-productsICS:SIST EN 10111:2008en,deTa slovenski standard je istoveten z:EN 10111:200801-junij-2008SIST EN 10111:2008SLOVENSKI
STANDARDSIST EN 10111:19981DGRPHãþD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 10111April 2008ICS 77.140.50Supersedes EN 10111:1998
English VersionContinuously hot rolled low carbon steel sheet and strip for coldforming - Technical delivery conditionsTôles et bandes en acier doux laminées à chaud en continupour formage à froid - Conditions techniques de livraisonKontinuierlich warmgewalztes Band und Blech aus weichenStählen zum Kaltumformen - Technische LieferbindungenThis European Standard was approved by CEN on 29 February 2008.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2008 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 10111:2008: E
The choice of steel grade and product type is left to the purchaser. For this choice, the purchaser may be advised by the manufacturer, but without any liability on the part of the latter, unless agreed at the time of enquiry and order. Hot rolled products are classified into four grades DD11, DD12, DD13 and DD14 defined by chemical composition, mechanical and forming characteristics (see Table 1). 4.2 Designation 4.2.1
The steel names are in compliance with EN 10027-1; the steel numbers, with EN 10027-2. 4.2.2 Products conforming to this European Standard shall be designated, in order, in the following way: a) product designation (e.g. “strip”, “sheet” or “slit strip cut longitudinally”) in line with EN 10079; b) number of this European Standard (EN
...
