EN 10205:2024
(Main)Cold reduced tinmill products - Blackplate
Cold reduced tinmill products - Blackplate
This document specifies requirements for blackplate product in the form of coils intended for direct use and mostly for the production of electrolytically zinc coated plate, or coils electrolytically coated with either tin (tinplate) or chromium/chromium oxide (ECCS or ECCS-RC).
Blackplate can be a single or double reduced product and is specified in nominal thicknesses that are multiples of 0,005 mm from typical 0,10 mm up to 0,60 mm.
This document applies to coils in nominal minimum widths of 600 mm.
In addition to this document, the general technical delivery conditions of EN 10021 apply.
NOTE Standard width coils for specific uses, e.g. tab stock, can be slit into narrow strip for supply in coil form.
Kaltgewalzte Verpackungsblecherzeugnisse - Feinstblech
Dieses Dokument legt die Anforderungen an Verpackungsblecherzeugnisse in Form von Band in Coils für die direkte Verwendung und für die häufigste Verwendung zur Erzeugung von elektrolytisch verzinktem Blech oder von Coils, die elektrolytisch entweder mit Zinn (Weißblech) oder Chrom/Chromoxid (ECCS oder ECCS RC) elektrolytisch beschichtet sind.
Feinstblech wird in Nenndicken von typischerweise 0,10 mm bis 0,60 mm in Stufen von 0,005 mm geliefert.
Dieses Dokument gilt für Band in Coils mit einer minimalen Nennbreite von 600 mm.
In Ergänzung zu diesem Dokument gelten die allgemeinen technischen Lieferbedingungen nach EN 10021.
ANMERKUNG Für besondere Anwendungen, z. B. "Laschenband", kann das Band auch als durch Längsteilen hergestelltes schmaleres Band in Coils geliefert werden.
Aciers pour emballage laminés à froid - Fer noir
Le présent document spécifie les exigences relatives aux produits de fer noir sous forme de bobines destinées à un usage direct et principalement à la production de tôles zinguées par électrolyse, ou de bobines revêtues par électrolyse d'étain (fer blanc) ou d'oxyde de chrome/chrome (ECCS ou ECCS-RC).
Le fer noir peut être un produit à simple ou double réduction, il est spécifié en épaisseur nominale multiple de 0,005 mm allant généralement de 0,10 mm jusqu’à 0,60 mm.
Le présent document s'applique aux bobines de largeur nominale minimale égale à 600 mm.
En complément au présent document, les conditions techniques générales de livraison de l’EN 10021 s’appliquent.
NOTE Les bobines de largeur standard pour des usages spécifiques, par exemple stock pour étiquettes de marquage, peuvent être découpée en bande plus étroite pour des livraisons en bobines.
Hladno valjani jekleni izdelki za embalažo - Črna pločevina
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
oSIST prEN 10205:2023
01-september-2023
Hladno valjani jekleni izdelki za embalažo - Črna pločevina
Cold reduced tinmill products - Blackplate
Kaltgewalzte Verpackungsblecherzeugnisse - Feinstblech
Aciers pour emballage laminés à froid - Fer noir
Ta slovenski standard je istoveten z: prEN 10205
ICS:
55.040 Materiali in pripomočki za Packaging materials and
pakiranje accessories
77.140.50 Ploščati jekleni izdelki in Flat steel products and semi-
polizdelki products
oSIST prEN 10205:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
oSIST prEN 10205:2023
oSIST prEN 10205:2023
DRAFT
EUROPEAN STANDARD
prEN 10205
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2023
ICS 77.140.20; 77.140.50 Will supersede EN 10205:2016
English Version
Cold reduced tinmill products - Blackplate
Aciers pour emballage laminés à froid - Fer noir Kaltgewalzte Verpackungsblecherzeugnisse -
Feinstblech
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 459/SC 9.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 10205:2023 E
worldwide for CEN national Members.
oSIST prEN 10205:2023
prEN 10205:2023 (E)

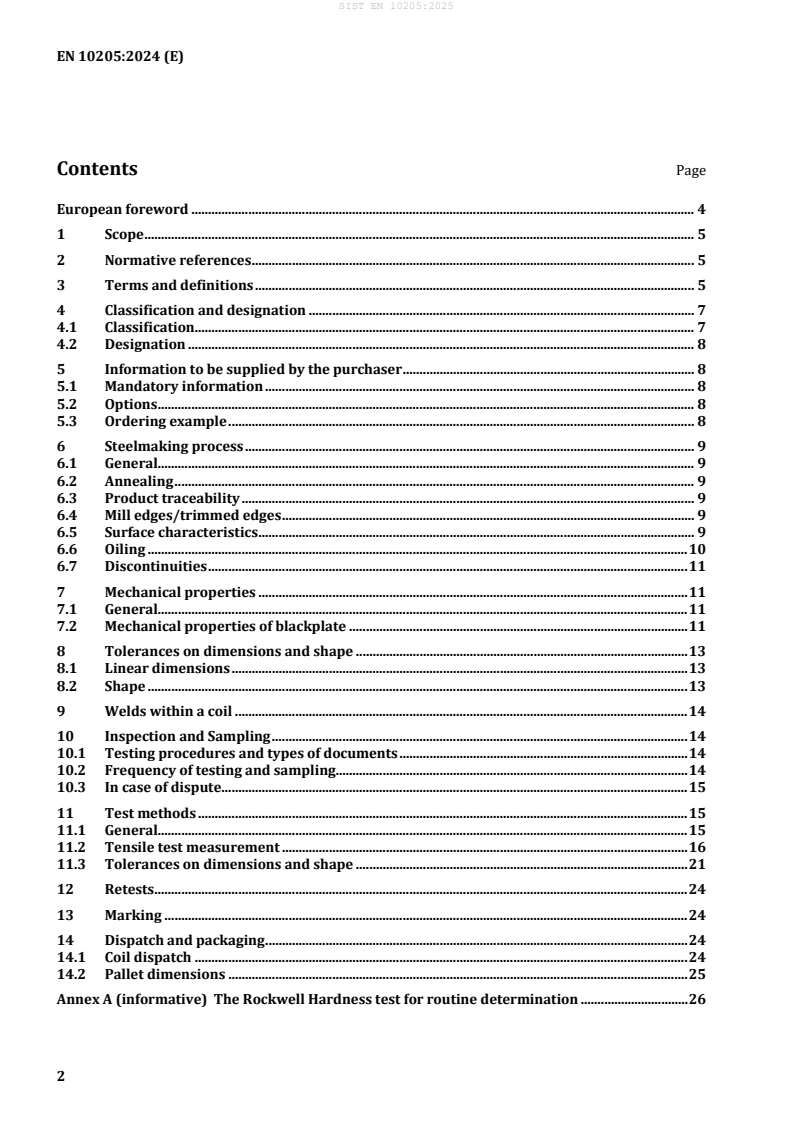

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Classification and designation . 7
4.1 Classification. 7
4.2 Designation . 8
5 Information to be supplied by the purchaser . 8
5.1 Mandatory information . 8
5.2 Options . 8
5.3 Ordering example . 9
6 Steelmaking process . 9
6.1 General. 9
6.2 Annealing . 9
6.3 Product traceability . 9
6.4 Mill edges/trimmed edges . 9
6.5 Surface characteristics . 9
6.6 Oiling . 10
6.7 Discontinuities . 11
7 Mechanical properties . 11
7.1 General. 11
7.2 Mechanical properties of blackplate . 11
8 Tolerances on dimensions and shape . 13
8.1 Linear dimensions . 13
8.2 Shape . 13
9 Welds within a coil . 14
10 Inspection and Sampling . 14
10.1 Testing procedures and types of documents . 14
10.2 Frequency of testing and sampling. 14
10.3 In case of dispute . 15
11 Test methods . 15
11.1 General. 15
11.2 Tensile test measurement . 16
11.3 Tolerances on dimensions and shape . 20
12 Retests . 23
13 Marking . 23
14 Dispatch and packaging . 23
14.1 Coil dispatch . 23
14.2 Pallet dimensions . 24
Annex A (informative) The Rockwell Hardness test for routine determination . 25
oSIST prEN 10205:2023
prEN 10205:2023 (E)
A.1 General . 25
A.2 Test pieces . 25
A.3 Test method . 25
A.4 Hardness for blackplate products . 27
Annex B (informative) List of corresponding former designations . 28
Annex C (informative) The springback test for routine determination of proof strength for
double reduced material. 29
C.1 General . 29
C.2 Principle . 29
C.3 Test pieces . 29
C.4 Test method . 29
Annex D (normative) Tensile testing conditions in case of dispute . 30
D.1 General . 30
D.2 Tensile test piece dimensions . 30
D.3 Elongation measurement. 30
D.4 Testing velocity . 30
Annex E (informative) Indicative tensile strength of blackplate products . 32
Bibliography . 33
oSIST prEN 10205:2023
prEN 10205:2023 (E)
European foreword
This document (prEN 10205:2023) has been prepared by Technical Committee CEN/TC 459/SC 9
“Coated and uncoated flat products to be used for cold forming”, the secretariat of which is held by
AFNOR.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 10205:2016.
The main changes compared to the previous edition are listed below:
— the scope and the normative references have been modified;
— the definition “anvil effect” has been deleted;
— Annexes C, D and E have been added;
— the bibliography has been modified.
oSIST prEN 10205:2023
prEN 10205:2023 (E)
1 Scope
This document specifies requirements for blackplate product in the form of coils intended for direct use
and mostly for the production of electrolytically zinc coated plate, or coils electrolytically coated with
either tin (tinplate) or chromium/chromium oxide (ECCS or ECCS-RC).
Blackplate can be a single or double reduced product and is specified in nominal thicknesses that are
multiples of 0,005 mm from typical 0,10 mm up to 0,60 mm.
This document applies to coils in nominal minimum widths of 600 mm.
In addition to this document, the general technical delivery conditions of EN 10021 apply.
NOTE Standard width coils for specific uses, e.g. tab stock, can be slit into narrow strip for supply in coil form.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 10204:2004, Metallic products - Types of inspection documents
EN ISO 6892-1:2019, Metallic materials - Tensile testing - Part 1: Method of test at room temperature (ISO
6892-1:2019)
EN 10334, Steel for packaging - Flat steel products intended for use in contact with foodstuffs, products
and beverages for human and animal consumption - Non-coated steel (blackplate)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
3.1
single reduced blackplate
blackplate wh
...
