EN 15461:2008

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bahnanwendungen - Schallemissionen - Charakterisierung der dynamischen Eigenschaften von Gleisabschnitten für Schallmessungen von vorbeifahrenden ZügenApplications ferroviaires - Emission sonore - Caractérisation des propriétés de sections de voie pour le mesurage du bruit au passageRailway applications - Noise emission - Characterisation of the dynamic properties of track sections for pass by noise measurements45.060.01Železniška vozila na splošnoRailway rolling stock in general17.140.30Emisija hrupa transportnih sredstevNoise emitted by means of transportICS:Ta slovenski standard je istoveten z:EN 15461:2008SIST EN 15461:2008fr01-julij-2008SIST EN 15461:2008SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15461February 2008ICS 17.140.30; 45.080 English VersionRailway applications - Noise emission - Characterisation of thedynamic properties of track sections for pass by noisemeasurementsApplications ferroviaires - Emission sonore -Caractérisation des propriétés dynamiques de sections devoie pour le mesurage du bruit au passageBahnanwendungen - Schallemission - Charakterisierungder dynamischen Eigenschaften von Gleisabschnitten fürVorbeifahrtgeräuschmessungenThis European Standard was approved by CEN on 28 December 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2008 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15461:2008: ESIST EN 15461:2008

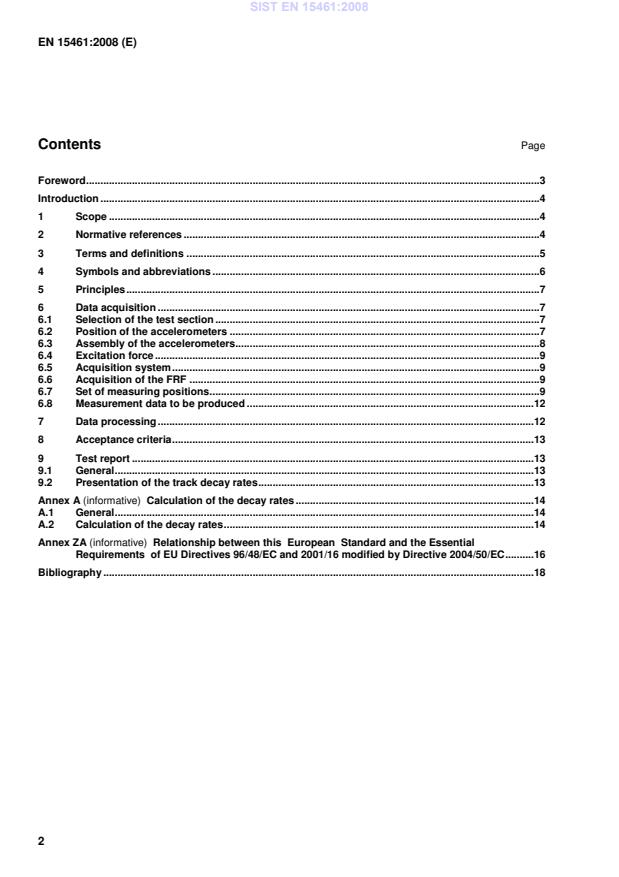

Calculation of the decay rates.14 A.1 General.14 A.2 Calculation of the decay rates.14 Annex ZA (informative)
Relationship between this
European
Standard and the Essential Requirements
of EU Directives 96/48/EC and 2001/16 modified by Directive 2004/50/EC.16 Bibliography.18
The vibration response of the track structure determines the level of its sound contribution to this noise. The method assumes that the vibration waves in the rail can be regarded as the superposition of two bending waves, one vertical and the other transverse, of the rail represented as a simple beam.
Although the track rail does not behave in this way over all the frequencies covered by the measurement, this simplification permits the "decay rates" to be measured for an estimation of the dynamic behaviour of the track which is one of the basic parameters influencing the generation of rolling noise. 1 Scope This European Standard specifies a method for characterizing the dynamic behaviour of the structure of a track relative to its contribution to the sound radiation associated with the rolling noise. This European Standard describes a method for: a) acquiring data on mechanical frequency response functions on a track; b) processing measurement data in order to calculate an estimate of the vibration decay rates along the rails in an audible frequency range associated with the rolling noise; c) presenting this estimate for comparison with the lower limits of the decay rates. It is applicable for evaluating the performance of sections of reference tracks for measuring railway vehicle noise within the framework of official approval tests. The method is not applicable for characterizing the vibration behaviour of tracks on loadbearing structures such as bridges or embankments. 2 Normative references The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any amendments) applies EN 61260, Electroacoustics — Octave-band and fractional-octave-band filters (IEC 61260:1995)
EN ISO 266, Acoustics — Normal frequencies (ISO 266:1997) EN ISO/IEC 17025, General requirements for the competence of testing and calibration laboratories
(ISO/IEC 17025:2005) ISO 2041, Vibration and shock — Vocabulary ISO 7626-1, Vibration and shock — Experimental determination of mechanical mobility — Part 1: Basic definitions and transducers
ISO 7626-1)
NOTE 1
In this document, the term also refers to the mean spectral amplitude of the FRF in the form of a one-third octave spectrum. NOTE 2
In this standard, the term frequency-response function (FRF) is used to refer generically either to accelerance (accelerometric response/excitation force) or to mobility (speed response/excitation force). The term is not used to refer to receptance (dynamic compliance).
NOTE 3 The FRF is generally calculated as the interspectrum ratio between the response and the force with the autospectrum.
This estimate of the FRF is called estimate H1. NOTE 4 A set of FRF between a single excitation point and multiple response points or even between a single response point and multiple excitation points may be used.
In this standard, the case of a fixed accelerometer and a mobile instrumented excitation hammer is the easiest to implement.
3.2 accelerance complex ratio of the acceleration at one point in a mechanical system to the force at the same point or at a different point during a single harmonic motion (see also ISO 7626-1 and ISO 2041)
NOTE
Accelerance is an FRF currently expressed as a narrow-band complex spectrum.
It is also used in this standard to express a one-third octave spectrum.
3.3 mobility complex ratio of the speed at one point in a mechanical system to the force at the same point or at a different point during a single harmonic motion (see also ISO 7626-1 and ISO 2041)
NOTE
Mobility is an FRF currently expressed as a narrow-band complex spectrum.
It is also used in this standard to express a one-third octave spectrum.
3.4 direct FRF, FRF at the point of application FRF for which the response is measured at the same position (as close as possible physically with an impact hammer and an accelerometer) and the same direction (see also ISO 7626-1)
NOTE
In this standard, the term refers both to force and response FRF in the vertical and transverse directions. 3.5 transfer FRF FRF for which the response amplitude is measured at a different position to the force application point
NOTE In order to define the FRF, the direction and position of the application force and the response should be mentioned.
section of track specifically associated with a particular set of measurement data
3.8 accelerometer position fixed position of the accelerometer(s) for which a complete set of FRF measurements is taken
3.9 structural wave
vibration wave that is propagated along the rail resulting in a deformation of the whole rail section
NOTE For example, vertical and transverse bending waves of the rail behaving like a beam or waves that involve deformation modes in the cross-section of the rail propagating along the rail.
The vibration waves with wavelengths that are smaller than the rail cross-section dimensions, such as the Rayleigh ultrasonic waves or the shear or compression waves in the material are not covered in the definition associated with the subject of this standard. 3.10 one third-octave band spectrum spectrum of the added squared values or the root mean squares of the FRF in each of the normal frequencies one-third octave band (see EN ISO 266). NOTE In this document, also refers to the speed and acceleration vibration spectrum, to the excitation effort spectrum, to the mobility and accelerance FRF spectrum and to the resulting decay rate 3.11 reference track section portion of track used to characterize the rail system noise emission performances that meet the requirements of the interoperability technical specification
...
